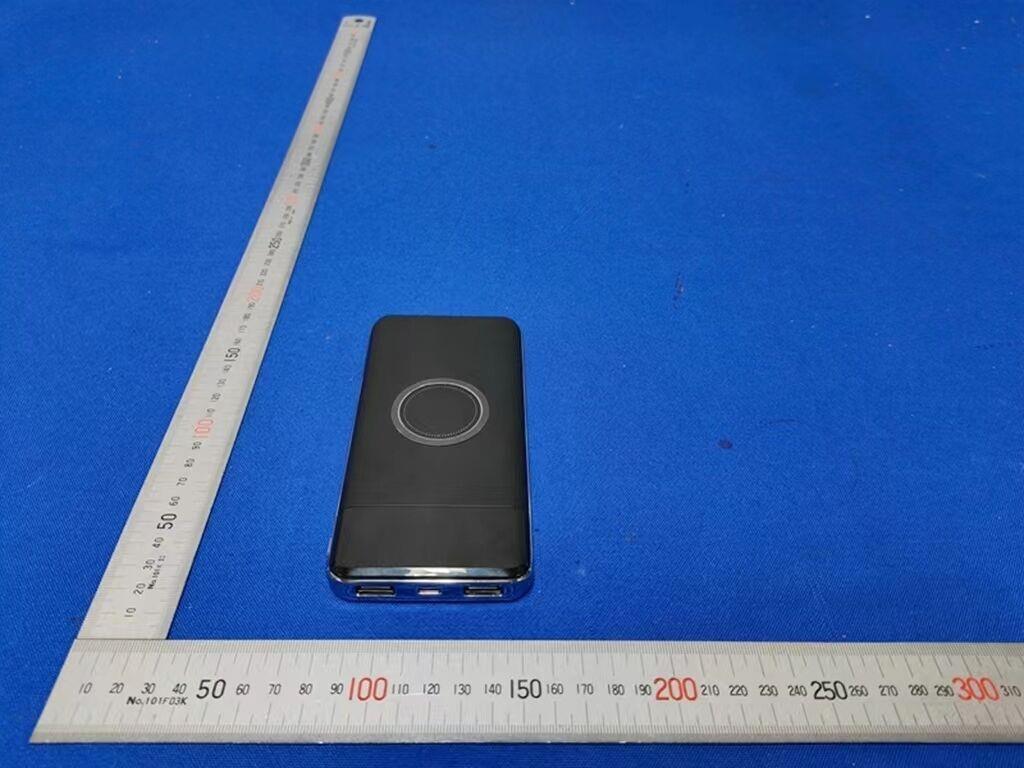

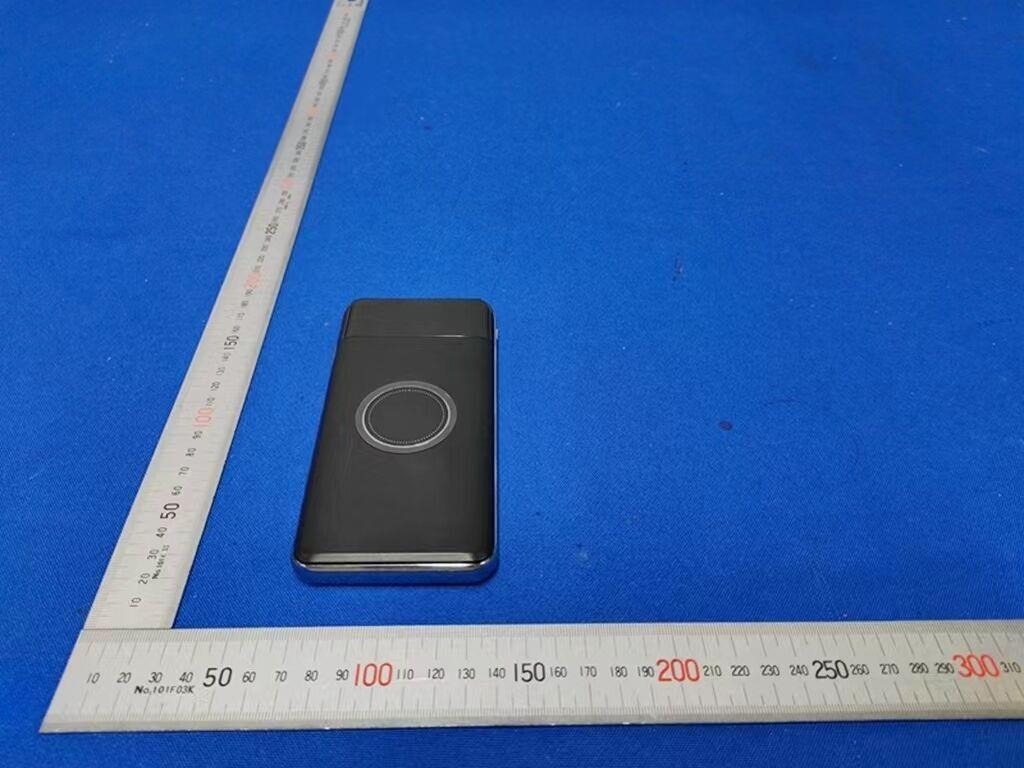

2A6XVPW-10KQIPower bank

Brief introduction: (1) Output 1: 5V/1A (2) Output 2: 5V/2A (3) Micro USB Input: 5V/2A (4) Power button ON/OFF (Switch Button) (5) Type C Input: 5V/2A (6) Wireless Charging Output Area (7) 4 LED lights to indicate battery capacity(1 LED light on means 25% battery capacity, 2 LED lights on means 50% battery capacity, 3 LED lights on means 75% battery capacity, 4 LED lights on means 100% battery capacity) 1 Pink LED light to indicate while there is Wireless Charging Use Operation: Charge other device (a) Use a suitable cable to connect the power bank and other device together to charge (*Remarks: This charged device is suitable for 5V charge voltage) (b) Before the 1 st use, suggest to fully charge power bank at first. (c) Put a Smartphone which have Qi Wireless Charging function to the area (6), put at the center place to make sure the wireless charging is high efficiency. Charge power bank (a) Use the Micro USB Cable or Type C Cable to connect power bank and 5V adaptor(or computer or other power sources) to charge power bank (b) During charging power bank, 4 LED lights is flashing: 1 LED light flashing means 25% battery charging inside, 2 LED lights flashing means 50% battery charging inside, 3 LED lights flashing means 75% battery charging inside, 4 LED lights flashing means 100% battery charging inside. After fully charged, LED light will stop flashing and become 4 LED lights always on. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter.

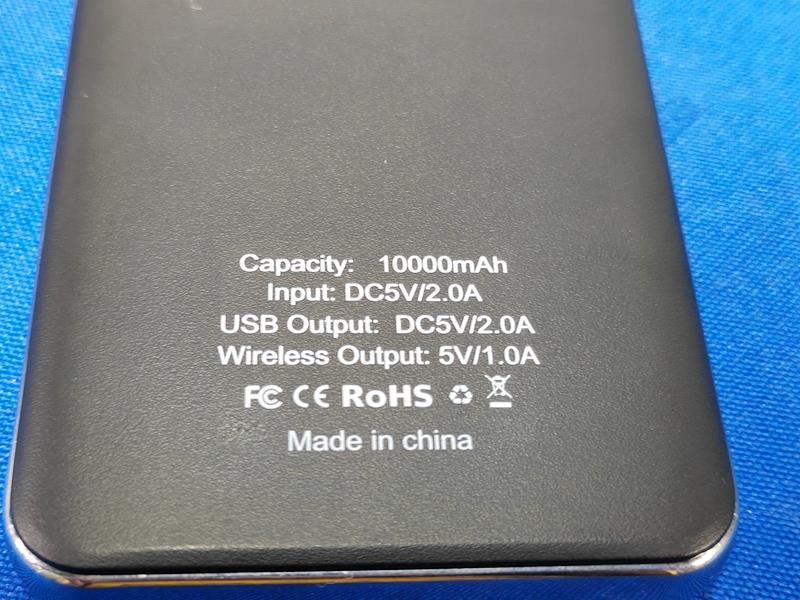

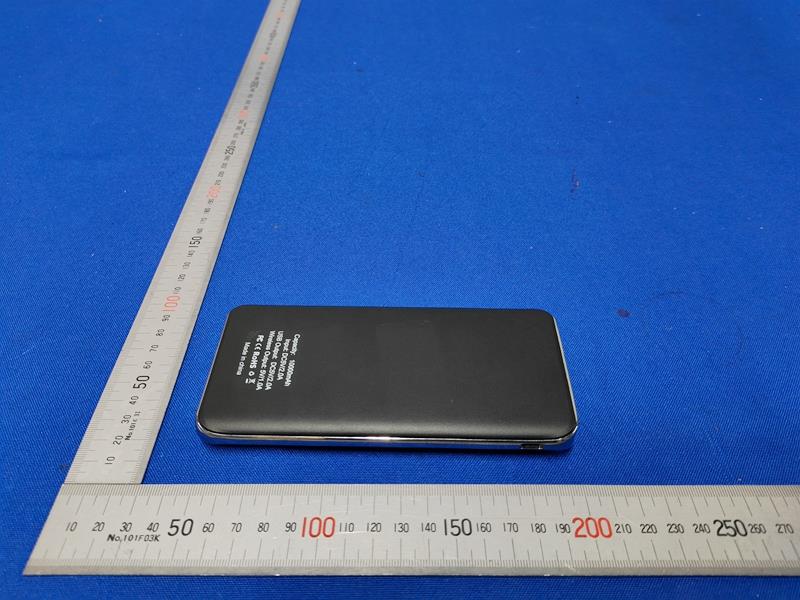

WIRELESS CHARGING Model: PW-10KQI Battery: Lithium Capacity: 10000mAh Input: 5V/2A, 10W (max) Output: 5V/2.1A, 10.5W (max) Wireless: 5W Smart IC Chip Made in China QI Battery 10000mAh 153 * 74.5 * 17 mm FCC ID: 2A6XVPW-10KQI 1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

Label Location

FCC ID: 2A6XVPW-10KQI RF Exposure Evaluation 1 Measuring Standard KDB 680106 D01 v03r01 RF Exposure Wireless Charging App v03 And KDB Tracking Number 671578; TCB Workshop, October 2018, 5.2 RF Exposure Procedures 2 Requirements According to the item 5 of KDB 680106 D01 v03r01 RF Exposure Wireless Charging App v03: (1)Power transfer frequency is less than 1 MHz Yes (2)Output power from each primary coil is less than or equal to 15 watts. Yes (3) The system may c onsist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Yes (3) Client device is placed directly in contact with the transmitter. Yes (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). NO (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm abov e the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes Limits The criteria listed in the following tab le shall be used to ev aluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Report No.: TW2205072-02-H Page 2 of 5 Date: 2022-05-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES.It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES.reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 3 Test Setup A: B: Report No.: TW2205072-02-H Page 3 of 5 Date: 2022-05-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES.It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES.reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 4 Test Procedure 1) The RF exposure test was performed in an echoic chamber; 2) The measurement probe was placed at test distance(15 cm from edges, 20 cm from top) Which is between the edge of the charger and the geometric center of probe, for test setup A; 3) In addition to what is described in 680106 D01 v03r01, please measure and provide magnetic and electrical field strength at a distance 10cm to 1cm at 1cm iteration, i.e. at a distance of 10cm, 9cm, 8cm, ....... 1cm. Which is between the edge of the charger and the edge of probe, for test setup B; 4) The highest emission level was recorded and compared with limit as soon as measurement of each points (A,B, C,D, E)were completed; 5) The EUT was measured according to the dictates of KDB 680106 D01 v03r01; And KDB Tracking Number 671578 ; TCB Workshop, October 2018, 5.2 RF Exposure Procedures Remark：The EUT’ s test position A, B,C, D and E is valid for the E and H field measurements. 5 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) EMF Meter NARDA ELT-400 N-0356 Oct 09, 2021 Oct 08, 2022 EMF probe NARDA B-Field Probe M-0812 Oct 09, 2021 Oct 08, 2022 6 Test Result Test Result for Test setup A: Note: Frequency Range 0.1115-0.205 (MHz); <5%, 50 %,> 90% load all have been tested, Only worse case Max load (>90%) is reported. E-Filed Strength at (15 cm from edges A, B, C, D, 20 cm from top E) surrounding the EUT (V/m) Charging Load Worse case Test Position A(V/m) Test Position B(V/m) Test Position C(V/m) Test Position D(V/m) Test Position E(V/m) Limits (V/m) Max load 1.59 1.51 1.35 1.28 1.41 614 H-Filed Strength at (15 cm from edges A, B, C, D, 20 cm from top E) surrounding the EUT (A/m) Charging Load Worse case Test Position A(A/m) Test Position B(A/m) Test Position C(A/m) Test Position D(A/m) Test Position E(A/m) Limits (A/m) Max load 0.63 0.52 0.39 0.38 0.32 1.63 Report No.: TW2205072-02-H Page 4 of 5 Date: 2022-05-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES.It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES.reserves the rights to withdraw it and to adopt any other remed…

Text truncated - open the document above for the full version.

Report No.: TW2205072-02E File Reference No.: 2022-05-13 Applicant: Filsion Technology Company Limited Product: Power Bank Model No.: PW-10KQI Trademark: N/A Test Standards: FCC Part 15 Subpart C Test Result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, for the evaluation of electromagnetic compatibility Approved By Terry Tang Manager Dated: May 13, 2022 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: TW2205072-02E Page 2 of 29 Date: 2022-05-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO 17025:2017 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 Report No: TW2205072-02E Page 3 of 29 Date: 2022-05-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 5 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
