2A6YC-X9projector

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shenzhen meterle Photoelectric Technology CO., Ltd Address: 7th floor, no.10-5, Minsheng 1st Road Baoyuan community, Shiyan street, Bao'an District, Shenzhen, China Phone: +86-13823579066 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. FCC ID: 2A6YC-X9 If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-08-15 Signature Date Name / Title: Chenhua Shen / General Manager Company: Shenzhen meterle Photoelectric Technology CO., Ltd Address: 7th floor, no.10-5, Minsheng 1st Road Baoyuan community, Shiyan street, Bao'an District, Shenzhen, China Phone: +86-13823579066 Fax: N/A E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2A6YC-X9 X9, Z6, Z7, Z8, Z9, Z10, Z11, Z12, X6, X7, X10, X11, X12 We, applicant Company Name: Shenzhen meterle Photoelectric Technology CO., Ltd Address: 7th floor, no.10-5, Minsheng 1st Road Baoyuan community, Shiyan street, Bao'an District, Shenzhen, China Phone: +86-13823579066 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-08-15 Signature Date Name / Title: Chenhua Shen / General Manager Company: Shenzhen meterle Photoelectric Technology CO., Ltd Address: 7th floor, no.10-5, Minsheng 1st Road Baoyuan community, Shiyan street, Bao'an District, Shenzhen, China Phone: +86-13823579066 Fax: N/A E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2A6YC-X9 X9, Z6, Z7, Z8, Z9, Z10, Z11, Z12, X6, X7, X10, X11, X12 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are:  the Operational Description  the Block Diagram  the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-08-15 Name / Title: chenghua shen / General Manager Company: Shenzhen meterle Photoelectric Technology CO., Ltd Address: 7th floor, no.10-5, Minsheng 1st Road Baoyuan community, Shiyan street, Bao'an District, Shenzhen,China Phone: 13823579066 Fax: / E-Mail: [email protected]

Page 1 of 1 Rev.2.0 Shenzhen meterle Photoelectric Technology CO., Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2A6YC-X9 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Chenhua Shen / General Manager Signature: Phone: +86-13823579066 Email: [email protected] Date: 2024-08-15

Shenzhen meterle Photoelectric Technology CO., Ltd 7th floor, no.10-5, Minsheng 1st Road Baoyuan community, Shiyan street, Bao'an District, Shenzhen, China Date: August 15, 2024 FCC ID: 2A6YC-X9 Model Number: X9, Z6, Z7, Z8, Z9, Z10, Z11, Z12, X6, X7, X10, X11, X12 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen meterle Photoelectric Technology CO., Ltd hereby declare that our product (projector) Model Number: X9, Z6, Z7, Z8, Z9, Z10, Z11, Z12, X6, X7, X10, X11, X12 board, Schematic, Hardware version, Software version, structure and internal photos are same, named and appearance differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Chenhua Shen / General Manager Company: Shenzhen meterle Photoelectric Technology CO., Ltd Address: 7th floor, no.10-5, Minsheng 1st Road Baoyuan community, Shiyan street, Bao'an District, Shenzhen, China Phone: +86-13823579066 Fax: N/A E-Mail: [email protected]

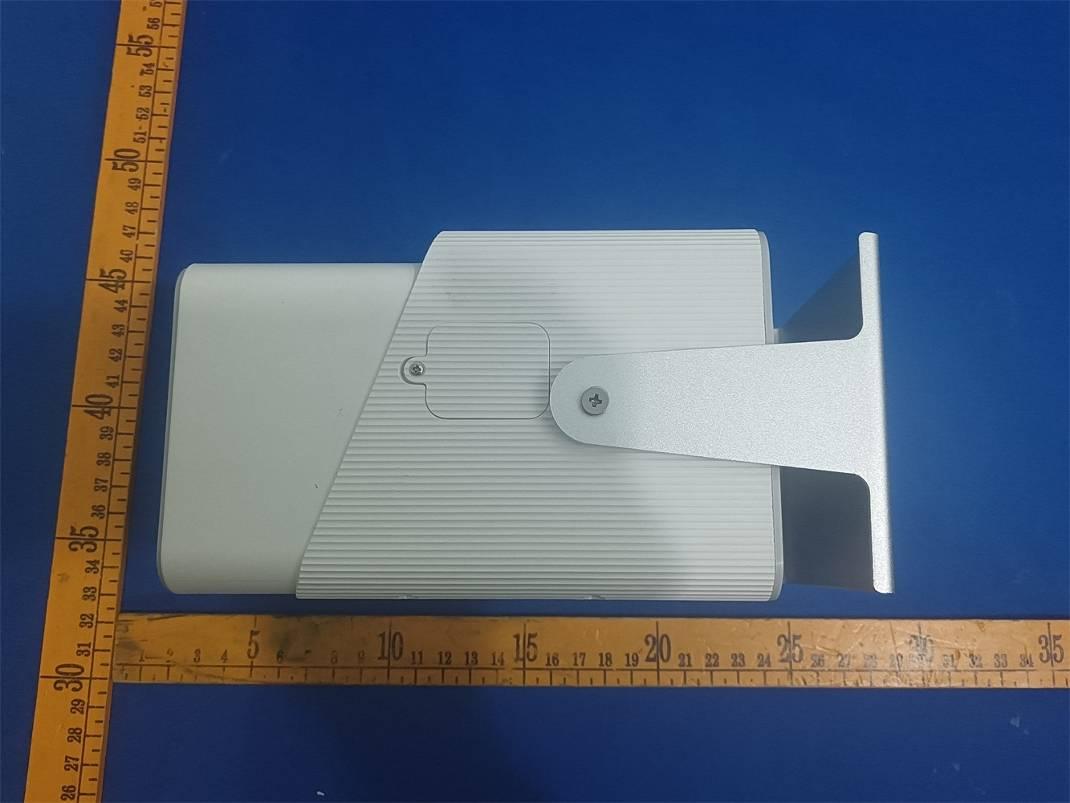

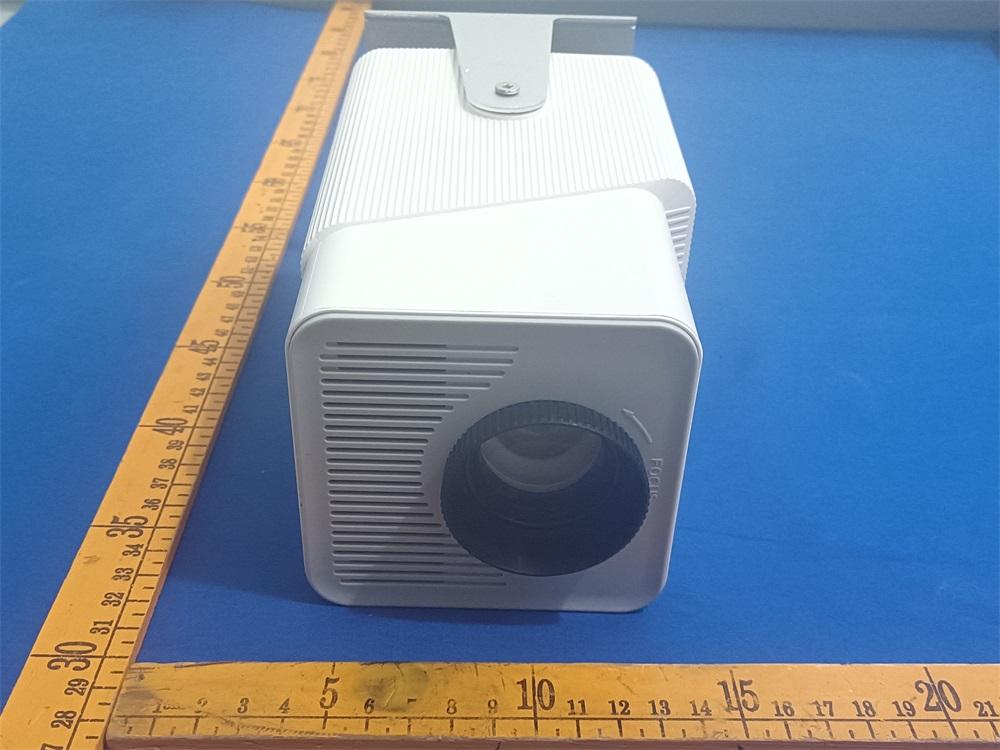

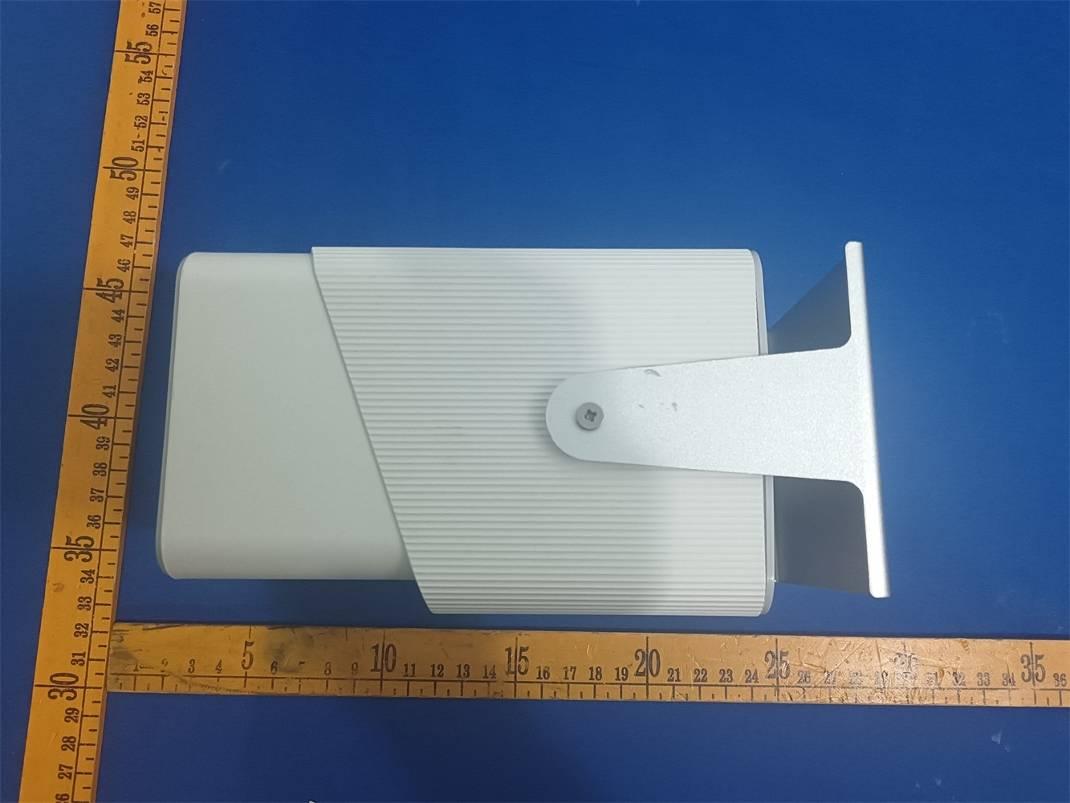

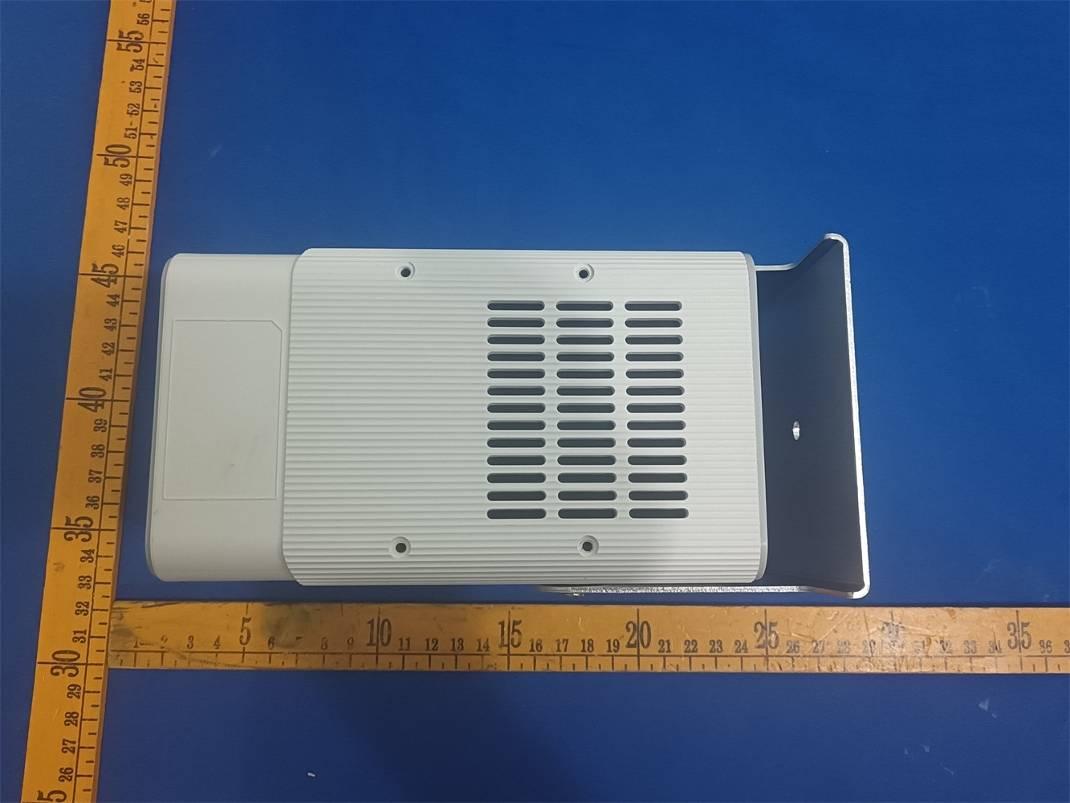

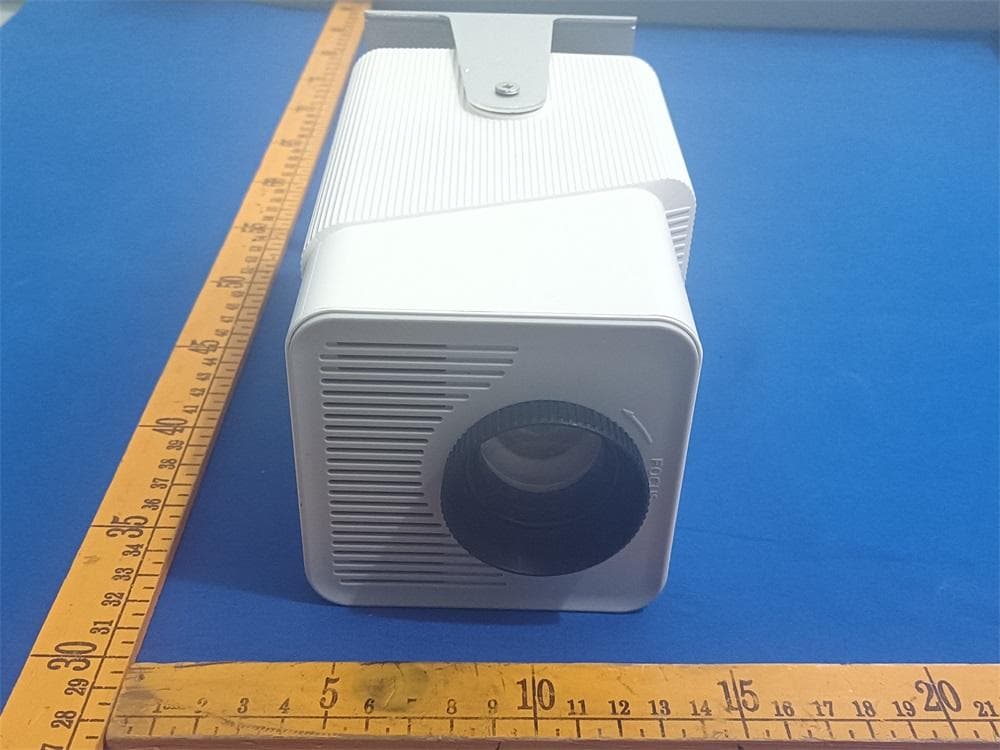

FCC ID: 2A6YC-X9 Fig. 1 Fig. 2 FCC ID: 2A6YC-X9 Fig. 3 Fig. 4 FCC ID: 2A6YC-X9 Fig. 5 Fig. 6 FCC ID: 2A6YC-X9 Fig. 7

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L6.0cm x 4.0cm) Label Location

FCC ID: 2A6YC-X9 Fig. 1 Fig. 2 FCC ID: 2A6YC-X9 Fig. 3 Fig. 4 BT&WLAN Antenna FCC ID: 2A6YC-X9 Fig. 5 Fig. 6 FCC ID: 2A6YC-X9 Fig. 7 Fig. 8 FCC ID: 2A6YC-X9 Fig. 9 Fig. 10 FCC ID: 2A6YC-X9 Fig. 11 Fig. 12

深圳市千目通讯科技有限公司 Shenzhen Qianmu Communication Technology Co.,Ltd. 联系人：王志强 联系方式：13760153961 电话：0755-21633653 传真：0755-21633541 No. 425, 443, 4th Floor, Block A, Huafeng Zhigu-Hangcheng High-tech Industrial Park, Hangcheng Street, Sanwei Community, Baoan District, Shenzhen Antenna Acknowledgement Applicable model Q5X Customer Shenzhen Shengxinke Electronics Co., Ltd. Specification description Product content Specifications Customer material code Specification description WiFi antenna FPC/black/character QM-Q5X-WIFI+ first-generation terminal 1.13*142mm Change resume Serial number Date Edition Brief description of the change content 1 2024-07-08 V1.0 New project 2 3 Supplier sample confirmation Research and develop Organization Check Decide PASS FAIL Customer sample confirmation Electron Organization Project Purchase Character Check Reasons for rejection or other precautions: — 1 — 1、Antenna SWR Natural capacity — 2 — 2、Antenna gain and efficiency — 3 — 3、Antenna direction chart — 4 — — 5 — 4、Antenna engineering drawings

FCC ID: 2A6YC-X9 1 Case No. : CTA24071502102 Ambient Condition: 24 °C, 51 %RH According Standard: ■Part15C Test Date: 2024.7.24 Test Engineer: Lushan Kong Appendix B.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.640 2401.672 2402.312 0.5 PASS 2440 0.684 2439.640 2440.324 0.5 PASS 2480 0.656 2479.664 2480.320 0.5 PASS FCC ID: 2A6YC-X9 2 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2A6YC-X9 3 FCC ID: 2A6YC-X9 4 Appendix B.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 1.0305 2401.4845 2402.5150 --- --- 2440 1.0363 2439.4796 2440.5159 --- --- 2480 1.0333 2479.4829 2480.5162 --- --- FCC ID: 2A6YC-X9 5 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2A6YC-X9 6 FCC ID: 2A6YC-X9 7 Appendix B.3: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 4.89 ≤30 PASS 2440 4.50 ≤30 PASS 2480 4.72 ≤30 PASS FCC ID: 2A6YC-X9 8 Appendix B.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -10.20 ≤8.00 PASS 2440 -10.66 ≤8.00 PASS 2480 -10.10 ≤8.00 PASS Note： 1. The Duty Cycle Factor and RBW Factor is compensated in the graph. FCC ID: 2A6YC-X9 9 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2A6YC-X9 10 FCC ID: 2A6YC-X9 11 Appendix B.5: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 Low 2402 4.72 -49.73 ≤-15.28 PASS High 2480 4.68 -40.59 ≤-15.32 PASS FCC ID: 2A6YC-X9 12 Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 FCC ID: 2A6YC-X9 13 Appendix B.6: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 Reference 4.63 4.63 --- PASS 30~1000 4.63 -60.26 ≤-15.37 PASS 1000~26500 4.63 -48.3 ≤-15.37 PASS 2440 Reference 3.20 3.20 --- PASS 30~1000 3.20 -60.12 ≤-16.8 PASS 1000~26500 3.20 -47.55 ≤-16.8 PASS 2480 Reference 3.45 3.45 --- PASS 30~1000 3.45 -60.04 ≤-16.55 PASS 1000~26500 3.45 -47.94 ≤-16.55 PASS FCC ID: 2A6YC-X9 14 Test Graphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 FCC ID: 2A6YC-X9 15 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 FCC ID: 2A6YC-X9 16 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 FCC ID: 2A6YC-X9 17 BLE_Ant1_2480_1000~26500 FCC ID: 2A6YC-X9 18 Appendix B.7: Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz ) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE Ant1 Low 2402 AV 2310.000 -49.29 ≤-41.20 45.91 ≤54 PASS AV 2325.095 -48.04 ≤-41.20 47.16 ≤54 PASS AV 2390.000 -48.92 ≤-41.20 46.28 ≤54 PASS Peak 2310.000 -40.82 ≤-21.20 54.38 ≤74 PASS Peak 2333.810 -38.73 ≤-21.20 56.47 ≤74 PASS Peak 2390.000 -41.05 ≤-21.20 54.15 ≤74 PASS High 2480 AV 2483.500 -47.34 ≤-41.20 47.86 ≤54 PASS AV 2483.520 -47.34 ≤-41.20 47.86 ≤54 PASS AV 2500.000 -48.47 ≤-41.20 46.73 ≤54 PASS Peak 2483.500 -40.77 ≤-21.20 54.43 ≤74 PASS Peak 2498.720 -37.47 ≤-21.20 57.73 ≤74 PASS Peak 2500.000 -40.23 ≤-21.20 54.97 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The Duty Cycle Factor and RBW Factor is compensated in the graph. 3. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. FCC ID: 2A6YC-X9 19 Test Graphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV FCC ID: 2A6YC-X9 20 BLE_Ant1_High_2480_Peak

FCC ID: 2A6YC-X9 1 Case No. : CTA24071502103 Ambient Condition: 24 °C, 51 %RH, Test Date: 2024.7.23 Test Engineer: Lushan Kong Appendix C.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.120 2406.920 2417.040 0.5 PASS 2437 10.080 2431.960 2442.040 0.5 PASS 2462 10.080 2456.960 2467.040 0.5 PASS 11G Ant1 2412 16.320 2403.840 2420.160 0.5 PASS 2437 16.360 2428.800 2445.160 0.5 PASS 2462 16.360 2453.800 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.560 2403.200 2420.760 0.5 PASS 2437 17.600 2428.200 2445.800 0.5 PASS 2462 17.560 2453.200 2470.760 0.5 PASS 11N40SISO Ant1 2422 36.320 2403.840 2440.160 0.5 PASS 2437 36.320 2418.840 2455.160 0.5 PASS 2452 36.320 2433.840 2470.160 0.5 PASS FCC ID: 2A6YC-X9 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2A6YC-X9 3 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2A6YC-X9 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2A6YC-X9 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2A6YC-X9 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2A6YC-X9 7 Appendix C.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.468 2405.3042 2418.7722 --- --- 2437 13.496 2430.2450 2443.7410 --- --- 2462 13.473 2455.2504 2468.7234 --- --- 11G Ant1 2412 17.170 2403.4533 2420.6233 --- --- 2437 17.169 2428.4095 2445.5785 --- --- 2462 17.182 2453.3957 2470.5777 --- --- 11N20SISO Ant1 2412 18.228 2402.9291 2421.1571 --- --- 2437 18.263 2427.8860 2446.1490 --- --- 2462 18.158 2452.8899 2471.0479 --- --- 11N40SISO Ant1 2422 36.455 2403.7738 2440.2288 --- --- 2437 36.579 2418.7270 2455.3060 --- --- 2452 36.529 2433.7989 2470.3279 --- --- FCC ID: 2A6YC-X9 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2A6YC-X9 9 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2A6YC-X9 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2A6YC-X9 11 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2A6YC-X9 12 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2A6YC-X9 13 Appendix C.3: Maximum conducted output power Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 16.58 ≤30.00 PASS 2437 16.90 ≤30.00 PASS 2462 17.29 ≤30.00 PASS 11G Ant1 2412 20.67 ≤30.00 PASS 2437 21.09 ≤30.00 PASS 2462 21.52 ≤30.00 PASS 11N20SISO Ant1 2412 20.63 ≤30.00 PASS 2437 21.10 ≤30.00 PASS 2462 21.45 ≤30.00 PASS 11N40SISO Ant1 2422 20.81 ≤30.00 PASS 2437 21.23 ≤30.00 PASS 2452 21.43 ≤30.00 PASS FCC ID: 2A6YC-X9 14 Appendix C.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -9.76 ≤8.00 PASS 2437 -10.38 ≤8.00 PASS 2462 -9.81 ≤8.00 PASS 11G Ant1 2412 -11.19 ≤8.00 PASS 2437 -11.86 ≤8.00 PASS 2462 -10.70 ≤8.00 PASS 11N20SISO Ant1 2412 -12.34 ≤8.00 PASS 2437 -11.75 ≤8.00 PASS 2462 -11.36 ≤8.00 PASS 11N40SISO Ant1 2422 -14.71 ≤8.00 PASS 2437 -14.30 ≤8.00 PASS 2452 -13.73 ≤8.00 PASS Note： 1. The Duty Cycle Factor and RBW Factor is compensated in the graph. FCC ID: 2A6YC-X9 15 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2A6YC-X9 16 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2A6YC-X9 17 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2A6YC-X9 18 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2A6YC-X9 19 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2A6YC-X9 20 Appendix C.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.18 -46.29 ≤-15.82 PASS High 2462 4.90 -48.7 ≤-15.1 PASS 11G Ant1 Low 2412 2.61 -28.52 ≤-17.39 PASS High 2462 3.60 -48.23 ≤-16.4 PASS 11N20SISO Ant1 Low 2412 2.74 -26.46 ≤-17.27 PASS High 2462 3.90 -48.69 ≤-16.1 PASS 11N40SISO Ant1 Low 2422 -0.07 -28.33 ≤-20.07 PASS High 2452 0.64 -42.55 ≤-19.36 PASS FCC ID: 2A6YC-X9 21 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCC ID: 2A6YC-X9 22 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 FCC ID: 2A6YC-X9 23 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCC ID: 2A6YC-X9 24 FCC ID: 2A6YC-X9 25 Appendix C.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 2.81 2.81 --- PASS 30~1000 2.81 -50.04 ≤-17.19 PASS 1000~26500 2.81 -48.2 ≤-17.19 PASS 2437 Reference 3.59 3.59 --- PASS 30~1000 3.59 -60.08 ≤-16.41 PASS 1000~26500 3.59 -47.28 ≤-16.41 PASS 2462 Reference 3.08 3.08 --- PASS 30~1000 3.08 -61.03 ≤-16.92 PASS 1000~26500 3.08 -47.8 ≤-16.92 PASS 11G Ant1 2412 Reference -0.58 -0.58 --- PASS 30~1000 -0.58 -52.9 ≤-20.58 PASS 1000~26500 -0.58 -47.2 ≤-20.58 PASS 2437 Reference -0.35 -0.35 --- PASS 30~1000 -0.35 -56.36 ≤-20.35 PASS 1000~26500 -0.35 -47.71 ≤-20.35 PASS 2462 Reference 0.49 0.49 --- PASS 30~1000 0.49 -48.67 ≤-19.51 PASS 1000~26500 0.49 -48.22 ≤-19.51 PASS 11N20SISO Ant1 2412 Reference 0.30 0.30 --- PASS 30~1000 0.30 -61.1 ≤-19.7 PASS 1000~26500 0.30 -47.13 ≤-19.7 PASS 2437 Reference -0.66 -0.66 --- PASS 30~1000 -0.66 -52.56 ≤-20.66 PASS 1000~26500 -0.66 -47.95 ≤-20.66 PASS 2462 Reference 0.55 0.55 --- PASS 30~1000 0.55 -60.46 ≤-19.45 PASS 1000~26500 0.55 -48.05 ≤-19.45 PASS 11N40SISO Ant1 2422 Reference -0.76 -0.76 --- PASS 30~1000 -0.76 -53.49 ≤-20.76 PASS 1000~26500 -0.76 -47.63 ≤-20.76 PASS 2437 Reference -0.24 -0.24 --- PASS 30~1000 -0.24 -60.82 ≤-20.24 PASS 1000~26500 -0.24 -48.31 ≤-20.24 PASS 2452 Reference 0.10 0.10 --- PASS 30~1000 0.10 -60.58 ≤-19.9 PASS 1000~26500 0.10 -47.48 ≤-19.9 PASS FCC ID: 2A6YC-X9 26 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCC ID: 2A6YC-X9 27 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 FCC ID: 2A6YC-X9 28 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCC ID: 2A6YC-X9 29 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCC ID: 2A6YC-X9 30 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~…
