Product model: VECS IHUB Instruction Manual preface preface The more familiar you are with your vehicle, you will find the more pleasure and convenience that comes from using it, so we please: Please read this manual carefully before using your vehicle.You can get important tips on the vehicle operation to take full advantage of the technical advantages of the vehicle.In addition, you will also get very useful information about the vehicle safety, traffic safety, and the best value of the vehicle. Sincerely wish you a safe and happy journey! point out vehicle outfitting Please note that this manual contains all standard, country, and special equipment for this model range.Therefore, some of the equipment or functions described in this manual may not be fitted on your vehicle or only available in certain markets.For specific configuration information, please consult the relevant sales information or consult your dealer when you purchase. On the right seat driver type of some operating elements, the actual position may differ from that shown in the illustration. The timeliness of the manual All information provided in this manual is up to date until the manual is printed.However, this manual will be subject to updates without notice. Depending on the vehicle specifications, the equipment for the vehicle shown in the figure may differ from your vehicle. Accessories, spare parts and modifications Now we can buy not only pure parts, but also various other spare parts and accessories suitable for this car.If parts need to be replaced, it is recommended to use pure parts, or other parts that meet quality requirements. We are unable to provide any guarantee without any responsibility and obligation for the replacement and installation of non-pure spare parts and accessories and for using non-pure spare parts and accessories.In addition, the vehicle damage and performance problems caused by the use of non-pure spare parts and accessories are not within the scope of quality guarantee. preface matters need attention About safety › When using any function in the system, ensure that attention does not distract and hinder safe driving.During driving, safe operation of the vehicle is a top priority, and you must obey all traffic rules. › During driving, the driver cannot operate the system, and keeps the volume of the system in the appropriate size, so as not to affect the driving safety due to inattention. › The system may be used only in areas permitted by law.Some national or local regulations may prohibit the use of display screens within the driver's view. › Do not dismantle or modify the system. › After the system fails, please stop using it immediately and contact the service provider. Do not repair it without permission. About the use › Use ignition switch to ACC or ON mode. › For safety reasons, certain functions may not be operational when the vehicle starts driving. › Do not press the button or knob on the panel vigorously. › Do not press or use sharp cutting display. › When the display screen is clean, do not use frosted wipes or cleaning agent containing organic solvents. › In the process of use, if the screen is shaking phenomenon is prohibited to knock the display screen. About the radio In driving due to road conditions, weather and other environments, there may be unable to search radio, noise, string and other phenomena. About the USB storage devices Due to the numerous models of USB storage devices, this system cannot guarantee compatibility with all USB storage devices. About bluetooth › Due to the numerous mobile phone brands and different functions, this system cannot guarantee compatible with models other than IOP certification. › When the Bluetooth connection, the phone cannot find the name of the Bluetooth device, please turn off the Bluetooth of the phone and search again. › If Bluetooth cannot connect, cancel the paired device on the phone and reconnect. › When use, disconnect and reconnect if Bluetooth is abnormal. About navigation › The system provides both visual maps and voice prompts.When approaching the intersection, voice prompts will tell you of the remaining distance and turn directions.This helps you focus while driving, giving you enough time to operate, change lanes, or slow down. › Keep in mind that all current vehicle navigation systems have certain limitations that may affect the proper functioning of the system.Satellite status, road status, vehicle status, or other environmental factors can all affect the vehicle positioning accuracy.Refer to the navigation section for more details about the system limitations. › Please use the system in compliance with the traffic regulations. › Please operate the system after parking. catalogue Main menu interface ................................................................................................................................................................. 1 starting up ............................................................................................................................................................................. 1 shut down ................................................................................................................................................................................. 1 Main menu interface description ..................................................................................................................................... 1 Status Information Bar ....................................................................................................................................................... 1 map ................................................................................................................................................................................................. 2 Map interface description ........................................................................................................................…

Text truncated - open the document above for the full version.

Co m Ad d Gua Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Yu dress: No. angdong, C oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: anfeng Tec 18, Industr China e: VECS IH er(s): VECS ription: VE MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Sun He Certified E Yuanfeng Yuanf Agen chnology C rial East Ro UB S IHUB ECS IHUB bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect Engineer Technology feng Techn nt Auth Co., Ltd oad, Songs Boulder Co erning the c allowed to f regulatory a cation. Any t as acts of y Co., Ltd ology Co., horizat shan Lake ourt, Pleasa certification forward all i agencies as and all acts our own. Ltd tion Developme anton, Califo of above na information s required a s carried ou Date: ent Zone, D ornia 94566 amed equip related to t nd to discu ut by MiCOM Jun. 01, 20 Dongguan, 6, USA, to pment. the approva ss any M Labs on 22 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: C e of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2A6YK-V om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio SOFTW r understand pondence du ents and thi zation is iss ely, ure: Sun He ertified Eng ing Techno cations Com s Road 046 for Confiden ECSIHUB Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri WARE SECU ding that all uring the ce s informatio sued. gineer Yuanfen logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption URITY DES l measurem ertification re on will be av ng Technolo ssion’s rule old the follow nitely. m and equi e equipmen ould give co SCRIPTION ment test rep eview proce vailable for ogy Co., Lt s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e td Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: Jun. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 01, 2022 0.459, we al dered as documents the market . ntial quipment .

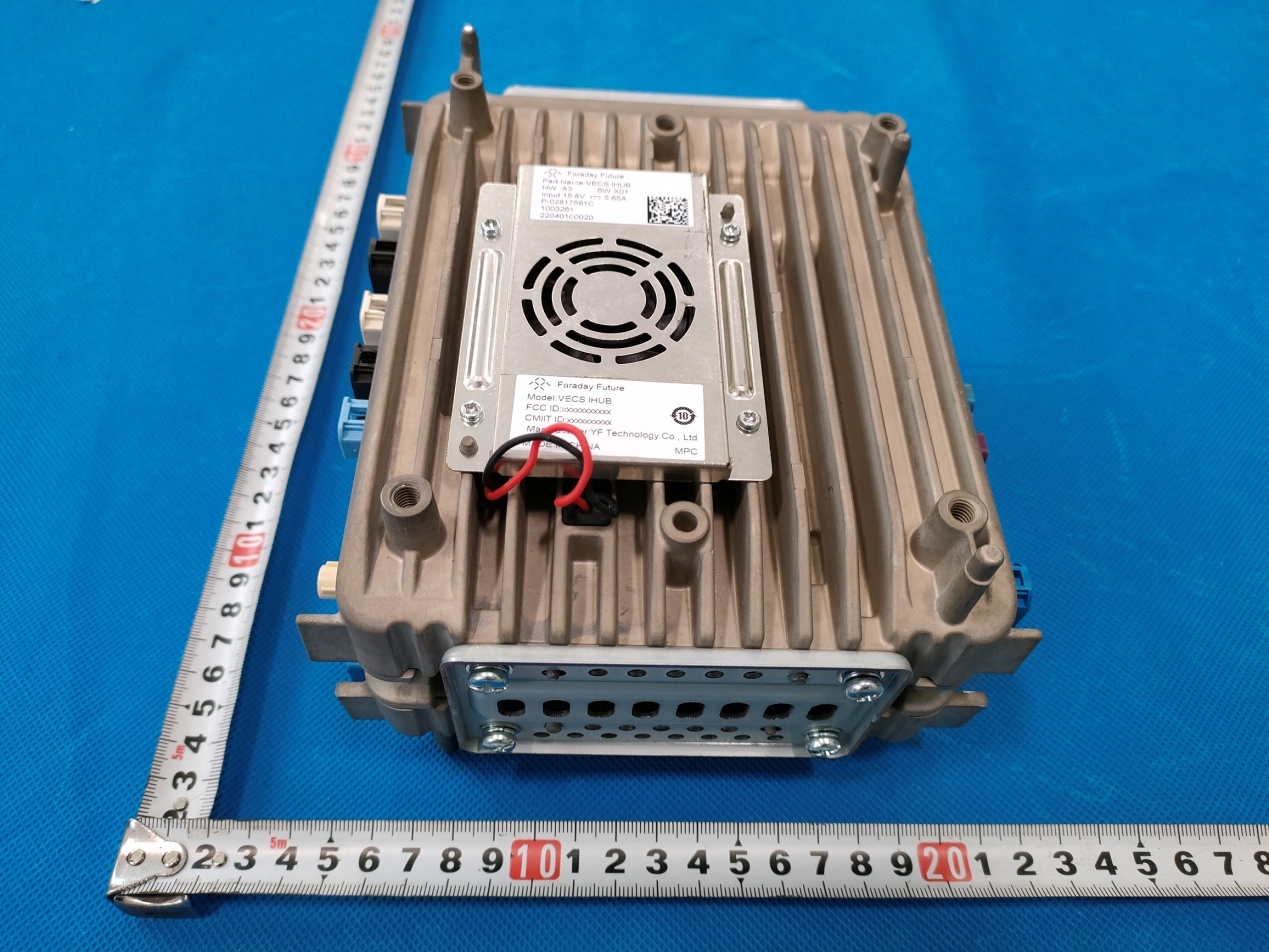

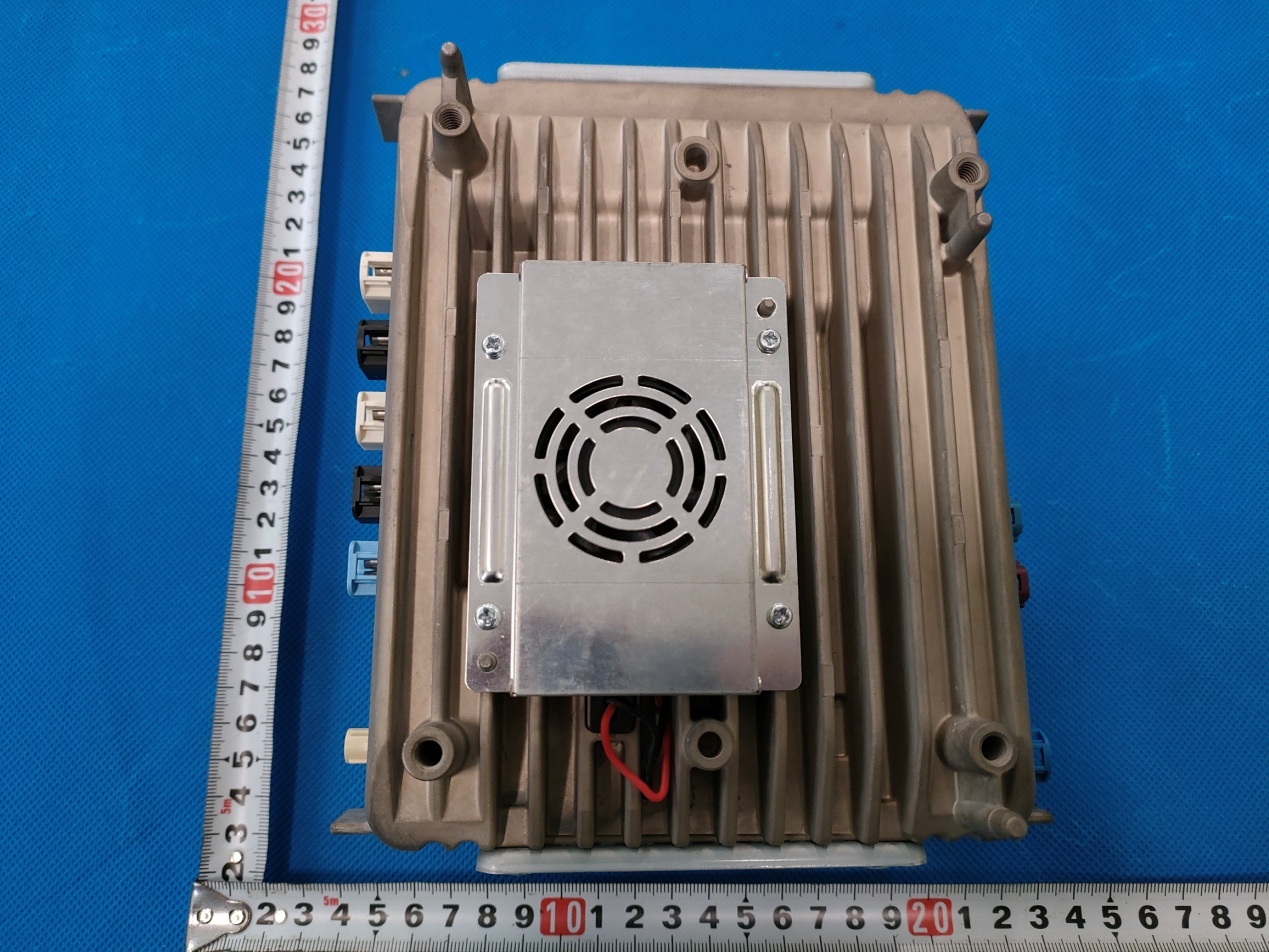

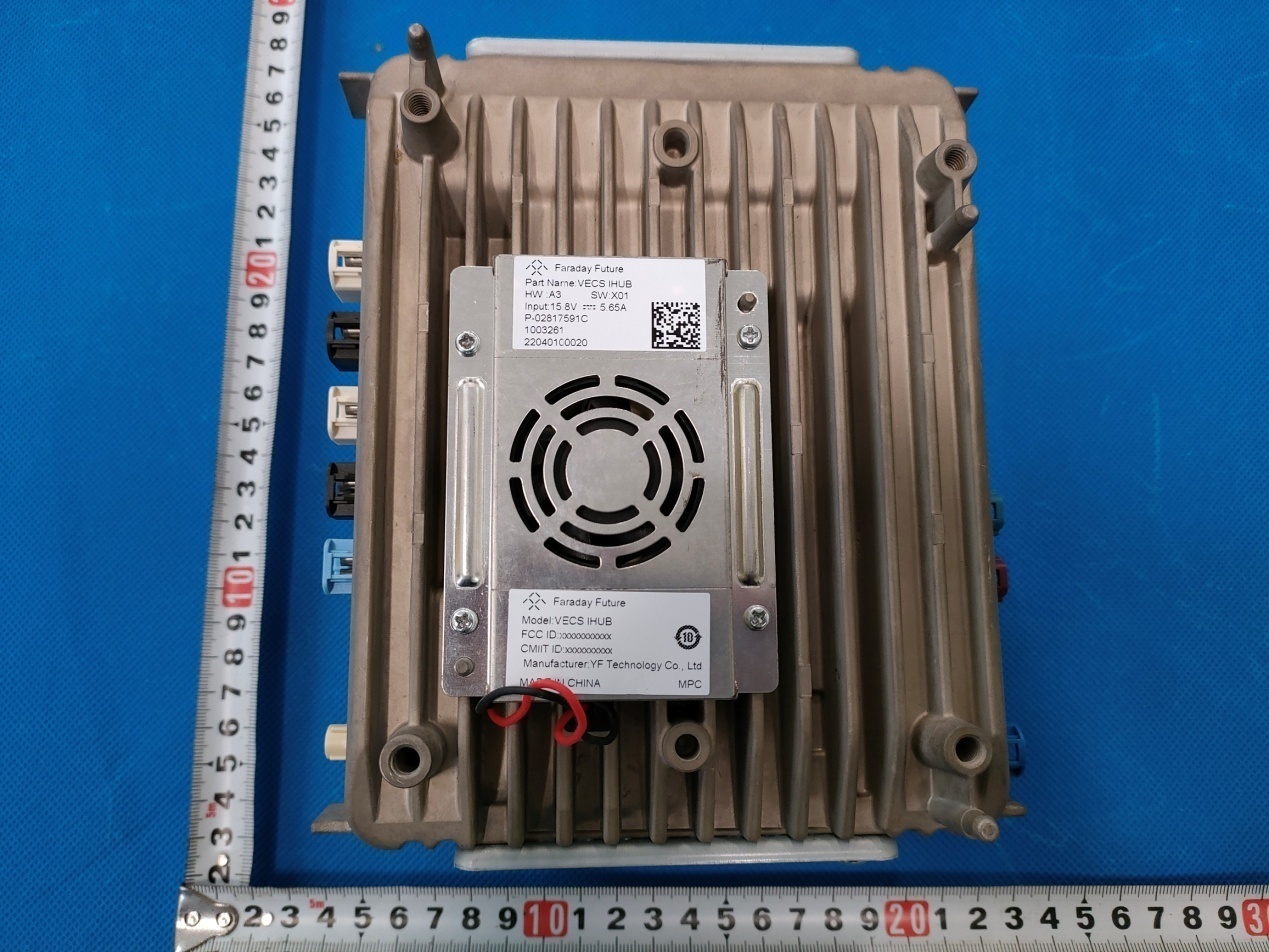

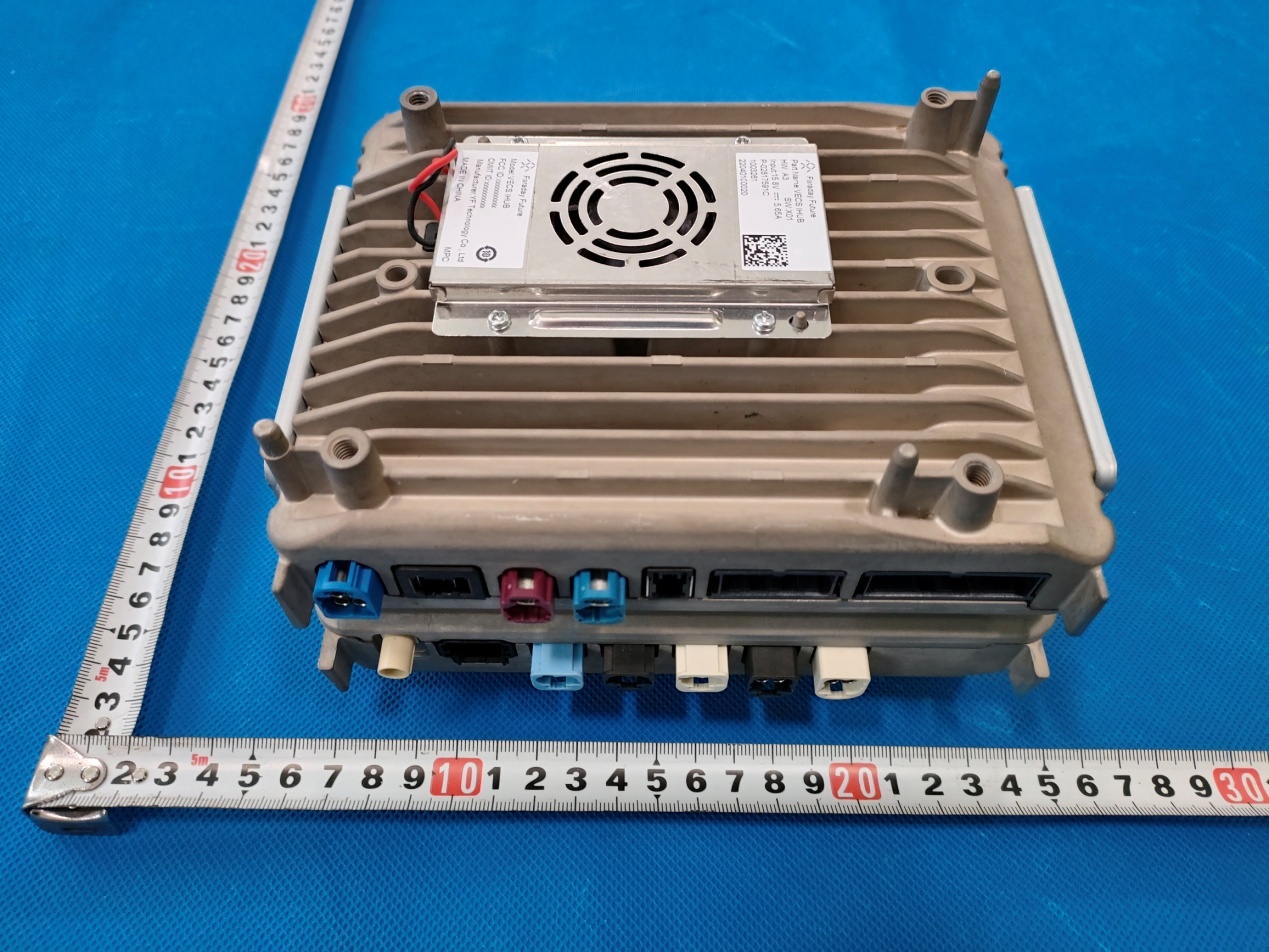

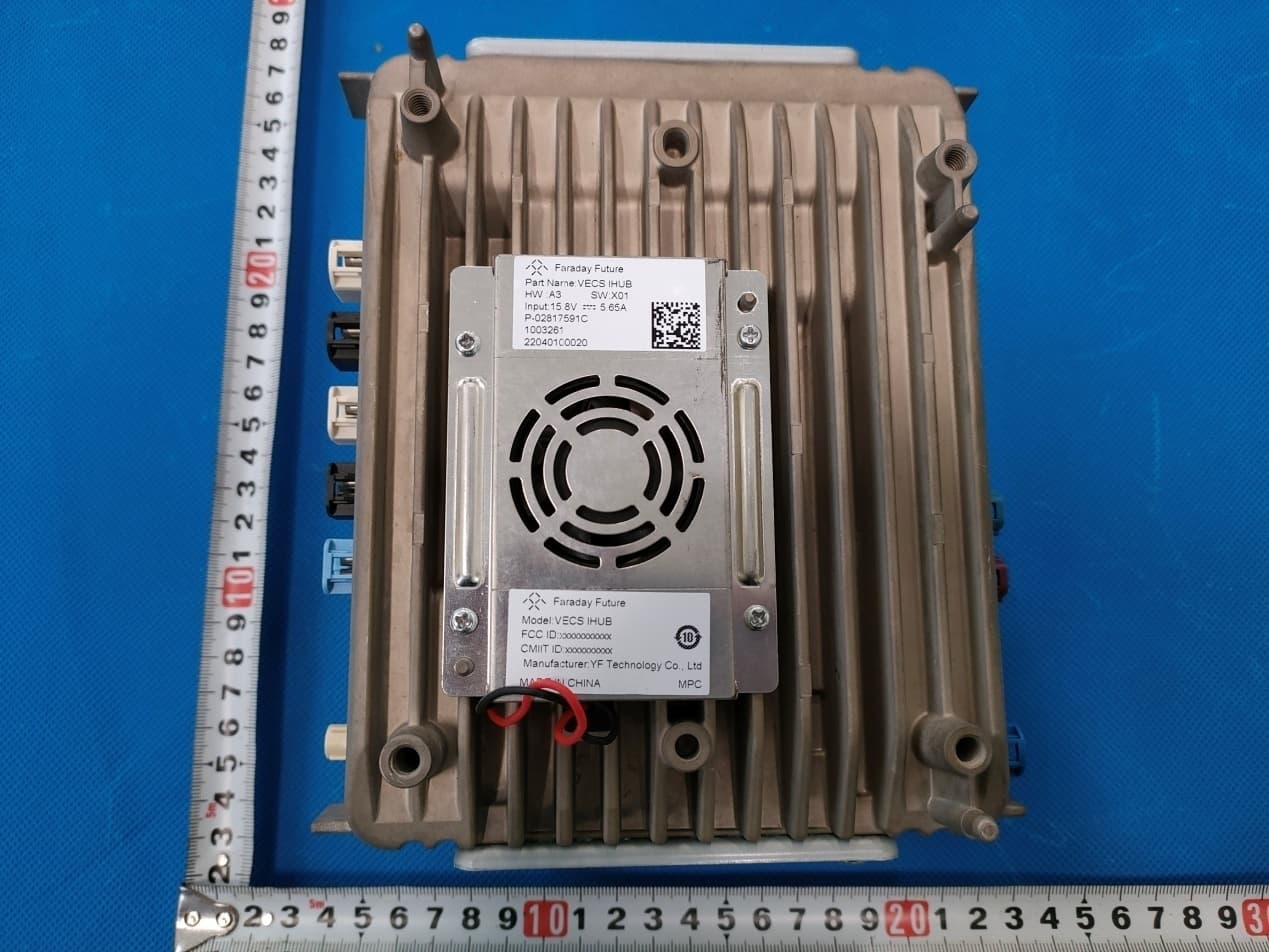

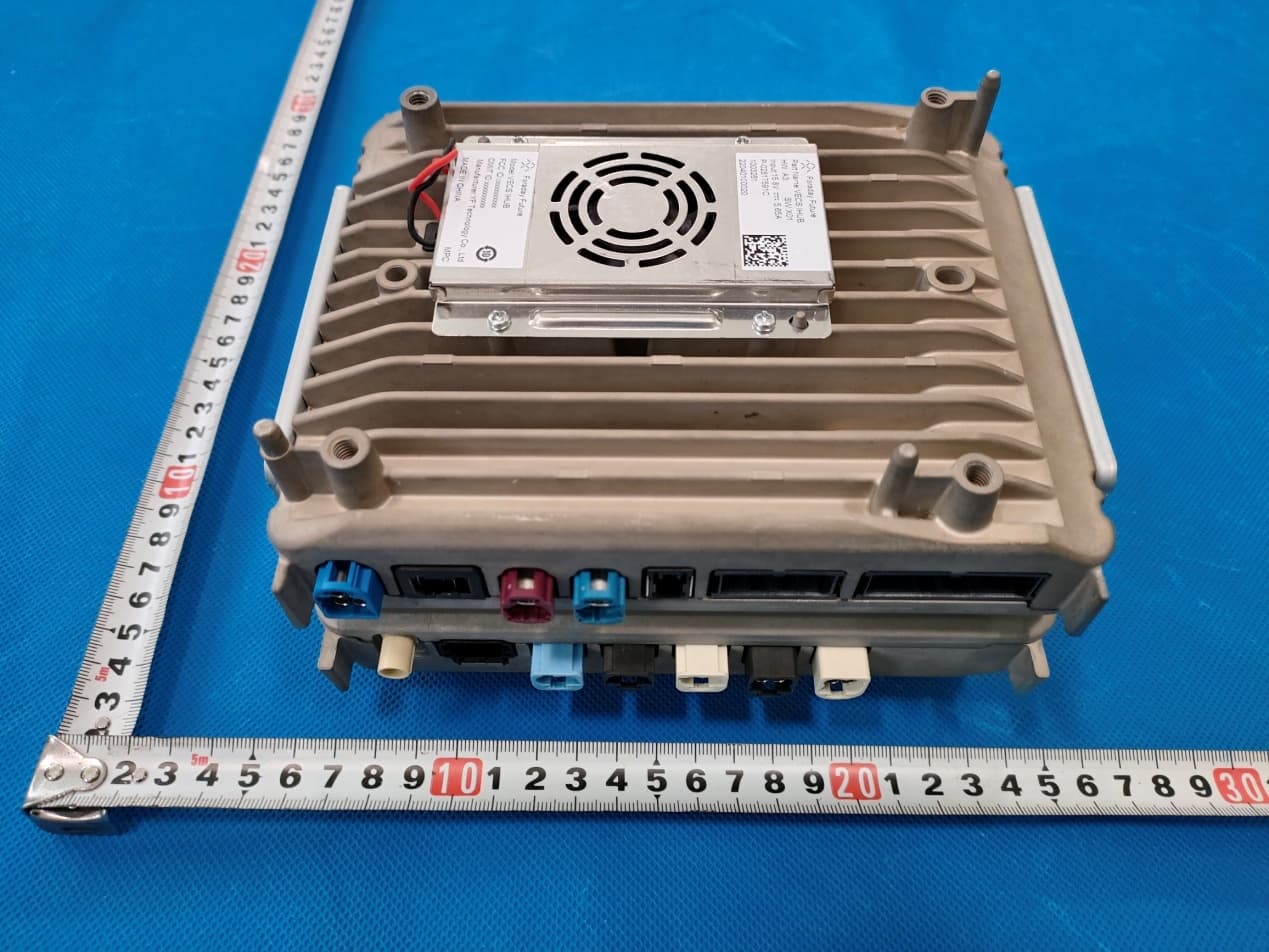

Annex A External Photos Report No.: HK2205051851‐1E/2E/3E/4E Page 1 of 4 2.4G/5G WIFI Antenna BT Antenna Report No.: HK2205051851‐1E/2E/3E/4E Page 2 of 4 Report No.: HK2205051851‐1E/2E/3E/4E Page 3 of 4 Report No.: HK2205051851‐1E/2E/3E/4E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2A6YK-VECSIHUB

Annex B Internal Photo Report No.:HK2205051851-1E/2E/3E/4E Page 1 of 3 Report No.:HK2205051851-1E/2E/3E/4E Page 2 of 3 Report No.:HK2205051851-1E/2E/3E/4E Page 3 of 3

MPE ESTIMATION FCC ID: 2A6YK-VECSIHUB 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result For 2.4G /5GWIFI/BT: Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 2.4G WIFI Ant 1 16.75 16±1(17) 50.12 1 1.26 0.01256 2.4G WIFI Ant 2 18.68 18±1(19) 79.43 1 1.26 0.01990 MIMO / / / / / 0.03246 5.2G WIFI Ant 1 11.81 11±1(12) 15.85 1 1.26 0.00397 5.2G WIFI Ant 2 12.29 12±1(13) 19.95 1 1.26 0.00500 MIMO / / / / / 0.00897 5.8G WIFI Ant 1 10.15 10±1(11) 12.59 1 1.26 0.00315 5.8G WIFI Ant 2 11.05 11±1(12) 15.85 1 1.26 0.00397 MIMO / / / / / 0.00713 EDR -0.88 -1.5±1(-0.5)0.891 1 1.26 0.00022 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2205051851-1E/2E/3E/4E, 2.4Gantenna gain=1dBi. 5Gantenna gain=1dBi. BTantenna gain=1dBi. WiFi and BT Simultaneous evaluation: 0.03246 mW/cm²+0.00022 mW/cm²=0.03268 mW/cm²<1. when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.03268 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. Note: the device could not transmit simultaneously in 2.4G and 5G. -------The End-------

Page 1 of 113 Report No.: HK2205051851-2E FCC TEST REPORT Test report On Behalf of Yuanfeng Technology Co., Ltd For VECS IHUB Model No.: VECS IHUB FCC ID: 2A6YK-VECSIHUB Prepared For : Yuanfeng Technology Co., Ltd No. 18, Industrial East Road, Songshan Lake Development Zone, Dongguan, Guangdong, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: May. 05, 2022 ~ May. 17, 2022 Date of Report: May. 17, 2022 Report Number: HK2205051851-2E Page 2 of 113 Report No.: HK2205051851-2E TEST RESULT CERTIFICATION Applicant’s name .................. : Yuanfeng Technology Co., Ltd Address .................................. : No. 18, Industrial East Road, Songshan Lake Development Zone, Dongguan, Guangdong, China Manufacture's Name ............. : Yuanfeng Technology Co., Ltd Address .................................. : No. 18, Industrial East Road, Songshan Lake Development Zone, Dongguan, Guangdong, China Product description Trade Mark: N/A Product name ............................ : VECS IHUB Model and/or type reference . : VECS IHUB Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : May. 05, 2022 ~ May. 17, 2022 Date of Issue ........................................... : May. 17, 2022 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 113 Report No.: HK2205051851-2E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. CARRIER FREQUENCY OF CHANNELS .......................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 15 4.3. EMISSION BANDWIDTH .................................................................................................................. 17 4.4. POWER SPECTRAL DENSITY ........................................................................................................ 32 4.5. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ................................. 49 4.6. RADIATED SPURIOUS EMISSION MEASUREMENT .................................................................... 75 4.7. ANTENNA REQUIREMENT ........................................................................................................... 111 5. PHOTOGRAPH OF TEST ...................................................................... 112 6. PHOTOS OF THE EUT .......................................................................... 113 Page 4 of 113 Report No.: HK2205051851-2E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release May. 17, 2022 Jason Zhou Page 5 of 113 Report No.: HK2205051851-2E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247(b)(4) PASS AC Power Line Conducted Emission §15.207 N/A Conducted Peak Output Power §15.247(b)(3) PASS 6dB Emission Bandwidth §15.247(a)(2) PASS Power Spectral Density §15.247(e) PASS Band Edge 1§5.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. INFORMATION OF THE TEST LABORATORY Shenzhen HUA K Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Testing Laboratory Authorization： A2LA Accreditation Code is 4781.01. FCC Designation Number is CN1229. Canada IC CAB identifier is CN0045. CNAS Regist…
