2A722-O-LOCK011Ulanzi O-LOCK 011 Car Wireless Charger

Product Instructions 1.QC3.0 or PD 18W adapter or above is recommended for fast charging function. 2.Supports input voltage of DC5V-9V. 3. This product is suitable for iPhone 12/13 series, it is recommended to use Magsafe phone case or phone case with thickness less than 2mm, so as not to affect the magnetic effect, about other models of cell phones, please purchase the magnetic sticker to comply with phone using. 4.The suitable working temperature of this product is between -10°C—40°C. When it is in a high temperature environment, the wireless charging efficiency will decrease. When using it in cold areas, please make sure that the ambient temperature is higher than -10°C,otherwise the wireless charger may be unable to work normally. 5.There should be no metal or magnetic objects between the back of the phone and the contact surface of the wireless charger, otherwise wireless charger will not work normally. 6.In the process of charging the mobile phone, the wireless charger may generate heat, which is normal. 7. Please do not let magnetic cards, bank cards or any other cards with chip close to the this product because it belongs to electromagnetic products , otherwise your cards and certificates may be invalidated. Meanwhile, please keep it away from all magnetic recording equipment and precision instruments. 8. This product is not waterproof, please keep it away from all liquid materials.

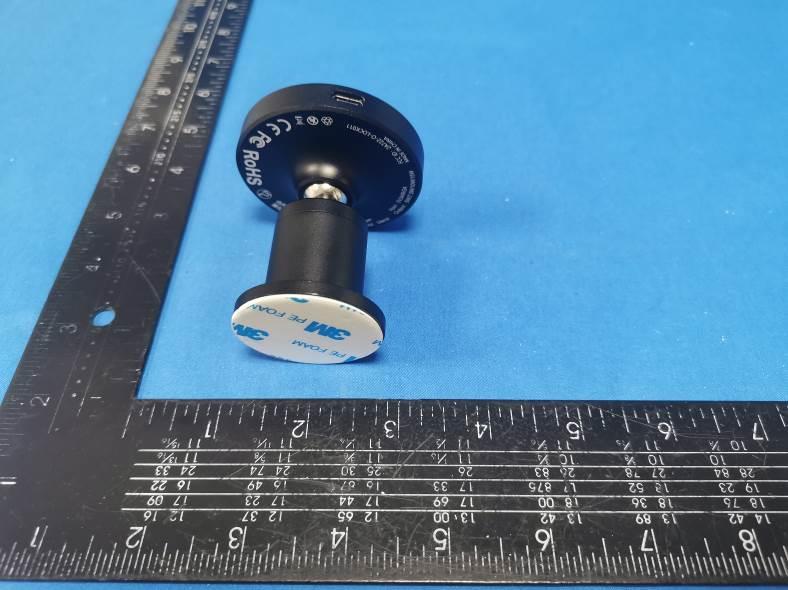

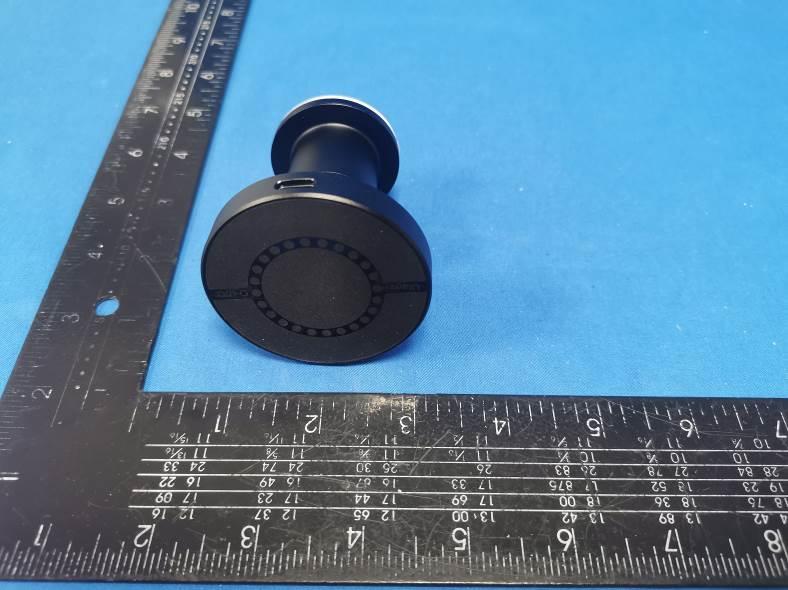

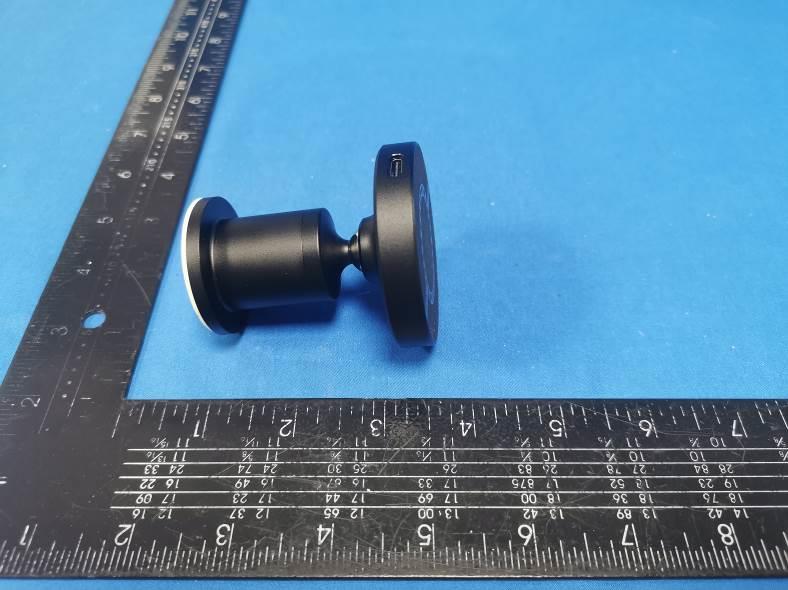

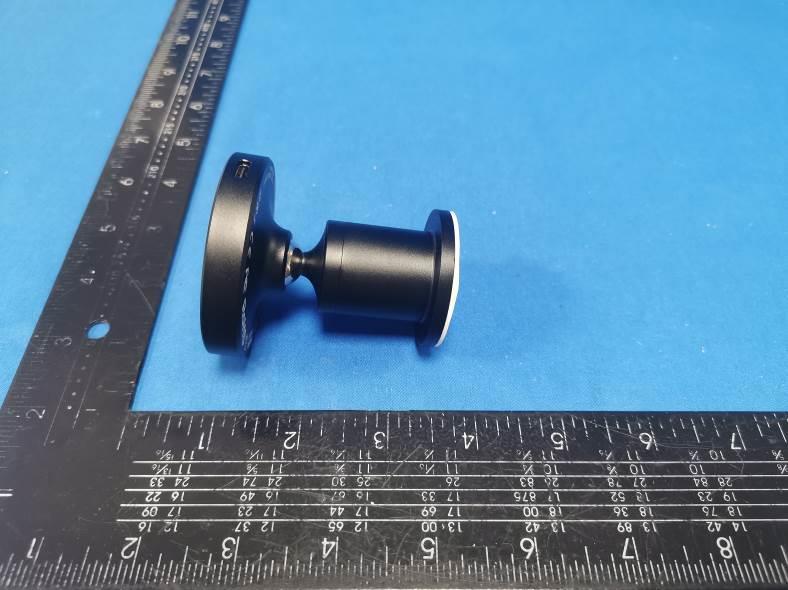

FCC ID: 2A722-O-LOCK011 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A722-O-LOCK011 Photo 4 Photo 5 Photo 6 FCC ID: 2A722-O-LOCK011 Photo 7

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2A722-O-LOCK011

FCC ID: 2A722-O-LOCK011 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 Loop coil antenna FCC ID: 2A722-O-LOCK011 Photo 4 Photo 5

Page 1 of 5 RF Exposure Evaluation FCC ID: 2A722-O-LOCK011 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03 2 Requirements According to the item 5 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device,and 20 cm away from the surface from all coils that by design can simultaneously transmit,and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 5 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 110KHz~205KHz Output power from each primary coil is less than 15 watts Yes The maximum output power for each primary coil is 15W. The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Yes The transfer system includes only one primary coils. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes Mobile exposure conditions only The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of Page 3 of 5 and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. the MPE limit. 6 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Test Modes: Mode 1 AC/DC Adapter (5V/2.5A) + EUT + Battery Load (Battery Status: <1%) Pre-tested Mode 2 AC/DC Adapter (5V/2.5A) + EUT + Battery Load (Battery Status: <50%) Pre-tested Mode 3 AC/DC Adapter (5V/2.5A) + EUT + Battery Load (Battery Status: 100%) Pre-tested Mode 4 AC/DC Adapter (9V/2A) + EUT + Battery Load (Battery Status: <1%) Record Mode 5 AC/DC Adapter (9V/2A) + EUT + Battery Load (Battery Status: <50%) Record Mode 6 AC/DC Adapter (9V/2A) + EUT + Battery Load (Battery Status: 100%) Record Note: All test modes were pre-tested, but we only recorded the worst case in this report. 7 Description of Support Units Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / Page 4 of 5 8 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June 27 2022 June 26 2023 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June 27 2022 June 26 2023 9 Test Result H-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Chargin g Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% uT 0.132 0.431 0.436 0.418 0.408 0.414 -- -- 1% A/m 0.132 0.345 0.349 0.334 0.326 0.331 0.815 1.63 50% uT 0.132 0.308 0.320 0.329 0.311 0.310 -- -- 50% A/m 0.132 0.246 0.256 0.263 0.249 0.248 0.815 1.63 99% uT 0.132 0.189 0.183 0.184 0.191 0.186 -- -- 99% A/m 0.132 0.151 0.146 0.147 0.153 0.149 0.815 1.63 E-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Chargin g Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (V/m) FCC E-Field Strength 50% Limits (V/m) FCC E-Field Strength Limits (V/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% V/m 0.132 130.065 131.573 125.918 122.902 124.787 307.0 614.0 50% V/m 0.132 92.742 96.512 99.151 93.873 93.496 307.0 614.0 99% V/m 0.132 56.927 55.042 55.419 57.681 56.173 307.0 614.0 Note: V/m= A/m *377 Page 5 of 5 H-Field Strength at 20cm from the top surface of the EUT Charging Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Loop coil antenna Model O-LOCK 011 Frequency range 110KHz - 205KHz Manufacturer Shenzhen Vijim Technology Co.,Ltd 2. Antenna Photo: Length:34.24mm diameter:10.62mm

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. .................... : FCC ID. ........................................... : CTA22110100101 2A722-O-LOCK011 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 08, 2022 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Vijim Technology Co.,Ltd Address ........................................... : Vijim International Group 7th Floor, Building e, Bantian International Center, Huancheng South Road, Bantian Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Ulanzi O-LOCK 011 Car Wireless Charger Trade Mark ....................................... : Manufacturer .................................... : Shenzhen Vijim Technology Co.,Ltd. Model/Type reference ...................... : O-LOCK 011 Listed Models .................................. : N/A Modulation Type ............................... : ASK Operation Frequency ....................... : From 110KHz~205KHz Rating ............................................... : Input: 5V3A, 9V2A Output: 5W/7.5W/10W/15W Result ............................................... : PASS Report No.: CTA22110100101 Page 2 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Ulanzi O-LOCK 011 Car Wireless Charger Model /Type : O-LOCK 011 Listed Models : N/A Applicant : Shenzhen Vijim Technology Co.,Ltd Address : Vijim International Group 7th Floor, Building e, Bantian International Center, Huancheng South Road, Bantian Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Vijim Technology Co.,Ltd Address : Vijim International Group 7th Floor, Building e, Bantian International Center, Huancheng South Road, Bantian Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22110100101 Page 3 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 5 2.4 Special Accessories 5 2.5 Modifications 5 3 T E S T E N V I R O N M E N T ............................................................... 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Environmental conditions 6 3.4 Summary of measurement results 7 3.5 Statement of the measurement uncertainty 7 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................. 9 4.1 AC Power Conducted Emission 9 4.2 Radiated Emission 12 4.3 The 20dB bandwidth 16 4.4 Antenna Requirement 17 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 18 6 PH O T O S O F T H E E U T ............................................................. 19 Report No.: CTA22110100101 Page 4 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C (Section 15.207): Conducted limits. FCC Rules and Regulations Part 15 Subpart C (Section 15.209): Radiated emission limits; general requirements. ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA22110100101 Page 5 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Nov. 01, 2022 Testing commenced on : Nov. 01, 2022 Testing conc…
