2A72M-DC001Electronic Eyepiece

封面 注：本栏为中文使用说明内容以左侧第一栏插图为例。 产品配件清单 目镜使用说明 电子目镜 手机拉伸夹 USB Type-C充电线 EVA圆环(用于连接固定小尺寸目镜) 擦试布 电子目镜介绍 电源开关和WIFI开关 WIFI指示灯 TF卡槽 充电/工作状态指示灯 USB Type C接口 复位键 手机拉夹卡槽 手机拉夹卡扣解锁开关 镜头 夹子左右按压开关 其它说明 1.1 1.2 1.3 1.4 1.5 1 3 4 2 中文 2.01 2.01 2.02 2.02 2.03 2.03 2.04 2.04 2.05 2.05 2.06 2.06 2.07 2.08 2.09 2.10 插入TF卡，长按按键3s开机。（注：内存卡第一次使用需要格 式化，APP会弹窗提醒。） 请用手机扫描说明书的二维码可下载APVision软件并安装。 安装完成后打开APP，点击“连接设备”将跳转到搜索设备 WIFI热点界面，请找到WIFI名称为：Apexel-DC001-xxxxxx ， 默认密码：12345678。注：双击按键为开启/关闭WIFI。 当连接WIFI成功后即跳转到APP实时预览画面，拍摄、录像、 查看、下载等操作均在APP内完成。 连接望远镜的方法 同时按压目镜夹左右两边不放，并套在望远镜目镜端即可开始 拍摄使用. 连接显微镜的方法 首先将EVA圆环套上显微镜目镜端，接着同时按压目镜夹左右 两边不放，并套在显微镜目镜端即可开始拍摄使用。（注：套 用EVA圆环是增大其外径尺寸导致夹子夹持更稳固，某些显微 镜目镜端外径大于Ø25MM可以不用套用EVA圆环。） 3.1 3.2 3.3 3.4 3.5 3.6 4.1 充电 连接电源适配器，type-c供电，充电时红灯常亮，充电时长2.5-3 小时，充满电绿灯常亮。续航时长约150分钟。 复位 用取卡针短按复位键，设备关机，指示灯全部熄灭。 数据传输 将数据线的USBType-C插头插入端口，另一端USB插头则插入电 脑USB端口进行数据传输与读取数据。此时短按电子目镜开关按 钮可以循环切换选择模式“读取TF卡 ⇄ 挂载摄像头” 注：如果需要将手机挂在夹子上观察，请先将手机装入在拉夹。 接着再将手机连同拉夹一起卡入电子目镜端即可。 按压解锁按钮并向上滑动可取出手机与拉夹。 电子目镜是一种创新工具, 它能够让您将智能手机与多种传统光学 仪器连接集成使用, 包括显微镜、望远镜、观鸟镜和天文望远镜。 这意味着，您可以直接在手机上观看和记录通过这些仪器观察到 的景象。使用电子目镜, 您不仅可以轻松获取令人惊叹的图片和视 频, 还能方便地与他人分享这些精彩瞬间。它为传统光学设备带来 了全新的互动体验, 让您的观察和记录更加便捷和有趣。 开机状态下，3分钟内无操作，电子目镜会自动关机。如需使用请 重新开机操作。 4.2 4.3 4.4 非常感谢您选择我们的手机电子目镜，在使用本镜头前请仔细 阅读本说明书并建议您妥善保管好以备将来参考。 电子目镜使用说明书 中文/English/日本語/Español/Deutsch/Français/ltaliano 1.11.2 1.3 1.5 1.4 2 3 4 1 3.33.4 3.5 3.6 4.1 4.3 4.4 4.5 4.6 4.7 4.8 4.7 4.2 3.1 3.2 RESET APVision APVision 4.54.6 Android iOS 电子目镜的指示灯说明 蓝灯常亮---设备开机状态。 蓝灯闪烁---设备低电状态 黄灯闪烁---WIFI等待连接状态。 黄灯常亮---WIFI连接完成。 注：この欄は、左側の第一欄のイラストを例として日本語の使用説明 内容です。 製品のアクセサリーリスト 目鏡の使用方法 電子目鏡 携帯電話用ストレッチクリップ USB Type-C充電ケーブル EVAリング（小型目鏡を接続固定用） 拭き布 電子目鏡の紹介 パワースイッチおよびWIFIスイッチ WIFIインジケーターランプ TFカードスロット 充電/動作状態インジケーターランプ USB Type Cインターフェース リセットボタン 携帯電話クリップスロット 携帯電話クリップアンロックスイッチ レンズ クリップ左右圧迫スイッチ その他の説明 1.1 1.2 1.3 1.4 1.5 1 3 4 2 日本語 2.01 2.02 2.03 2.04 2.05 2.06 2.07 2.08 2.09 2.10 TFカードを挿入し、ボタンを長押し3秒で電源を入れます。 （注：メモリカードは初めて使用する際にフォーマットが必要で す。APPがポップアップで通知します。） 携帯電話で説明書のQRコードをスキャンして、APVisionソフトウ ェアをダウンロードできます。 インストールが完了したら、APPを開き、「デバイスを接続」を クリックすると、デバイスのWIFIホットスポット検索画面に移動 します。WIFI名として「Apexel-DC001-xxxxxx」を見つけてくだ さい。デフォルトパスワード：12345678。注：ボタンをダブルク リックでWIFIをオン/オフにします。 WIFI接続に成功すると、APPのリアルタイムプレビュー画面に飛 び、撮影、録画、視聴、ダウンロードなどの操作はすべてAPP内 で完了します。 望遠鏡への接続方法 目鏡クリップの左右の両側を同時に押さえて離さずに、望遠鏡の 目鏡端に装着して撮影・使用を開始します。 顕微鏡への接続方法 最初にEVAリングを顕微鏡の目鏡端に装着し、次に目鏡クリップ の左右の両側を同時に押さえて離さずに、顕微鏡の目鏡端に装着 して撮影・使用を開始します。（注：EVAリングを使用すること で、外径サイズを増やし、クリップの取り付けをより安定させま す。一部の顕微鏡の目鏡端の外径がØ25MMを超える場合は、EVA リングを装着する必要はありません。） 3.1 3.2 3.3 3.4 3.5 3.6 4.1 充電 電源アダプターに接続し、Type-Cで電源を供給します。充電中は赤 色ランプが点灯し、充電時間は2.5～3時間で、電池が満タンになる と緑色ランプが点灯します。バッテリー持続時間は約150分です。 リセット カード取り出しピンでリセットボタンを短く押すと、デバイスがシ ャットダウンし、すべてのインジケーターランプが消灯します。 データ転送 データケーブルのUSB Type-Cプラグをポートに挿入し、もう一方 のUSBプラグをコンピュータのUSBポートに挿入して、データ転送 と読み取りを行います。この際、電子目鏡のスイッチボタンを短く 押すと、モード選択を「TFカードを読み取り ↔ カメラをマウント 」でループできます。 *注：携帯電話をクリップにかけて観察する必要がある場合は、ま ず携帯電話をストレッチクリップに装着してください。 そして、携帯電話とストレッチクリップを一緒に電子目鏡端に装着 します。 解除ボタンを押して上向きにスライドさせて、携帯電話とストレッ チクリップを取り出します。 電子目鏡は革新的なツールで、携帯スマートフォンを様々な伝統的 な光学機器と接続して使用できることを可能にします。これには、 顕微鏡、望遠鏡、鳥観察鏡、天体望遠鏡が含まれます。つまり、こ れらの機器を通じて観察された風景を携帯電話で直接見たり記録し たりできます。電子目鏡を使用することで、驚くべき画像やビデオ を簡単に取得し、これらの素敵な瞬間を他人と簡単に共有すること もできます。それは伝統的な光学装置に新しいインタラクティブな 体験をもたらし、観察と記録をより便利で楽しいものにします。 オン状態で3分間操作がない場合、電子目鏡は自動的にシャットダ ウンします。使用する場合は、再び電源を入れ直してください。 4.2 4.3 4.4 ご愛顧いただきありがとうございます。携帯電話用電子目鏡を選んでくださり、ありがとうご ざいます。このレンズを使用する前に、取扱説明書を注意深く読んでください。また、将来の 参照のために適切に保管することをお勧めします。 4.5 4.6 4.7 4.8 電子目鏡のインジケーターランプの説明 青色ランプが点灯している - デバイスが起動状態です。 青色ランプが点滅している - デバイスが電池が少ない状態です。 黄色ランプが点滅している - WIFIが接続待ちの状態です。 黄色ランプが点灯している - WIFIが接続完了です。。 Product Accessories List Eyepiece Usage Instructions Electronic Eyepiece Smartphone Stretch Clip USB Type-C Charging Cable EVA Ring (for connecting and fixing small-sized eyepieces) Cleaning Cloth Introduction to the Electronic Eyepiece Power and WIFI Switch WIFI Indicator Light TF Card Slot Charging/Working Status Indicator Light USB Type C Interface Reset Button Smartphone Clip Slot Smartphone Clip Release Switch Lens Clip Left and Right Pressure Switches Other Instructions 1.1 1.2 1.3 1.4 1.5 1 3 4 2 English 2.01 2.02 2.03 2.04 2.05 2.06 2.07 2.08 2.09 2.10 3.1 3.2 3.3 3.4 3.5 3.6 4.1 Charging Connect the power adapter, with Type-C for power supply. The red light will stay on during charging, and it takes about 2.5-3 hours to fully charge. The green light will stay on when fully charged. The battery life is approximately 150 minutes. Reset Use a card removal pin to briefly press the reset button. The device will shut down, and all indicator lights will go out. Data Transfer Insert the USB Type-C end of the data cable into the port, and the other end of the USB plug into the computer's USB port for data transfer and reading. At this point, briefly press the electronic eyepiece switch button to cycle through the selection modes "Read TF Card ↔ Mount Camera" *Note: If you need to mount your smartphone on the clip for observation, please first place your smartphone into the stretch clip. Then, insert the smartphone along with the stretch clip into the electronic eyepiece end. Press the unlock button and slide up to remove the smartphone and stretch clip. The electronic eyepiece is a cutting-edge device that seamlessly links your smartphone to a range of optical instruments, from microscopes to telescopes. It enables direct viewing and recording of observations on your phone, simplifying the capture of stunning images and videos. Plus, it facilitates easy sharing of these memorable moments, enhancing the user experience and making observation more engaging and fun. If there is no operation within 3 minutes in the powered-on state, the electronic eyepiece will automatically shut down. Please turn it on again if you need to use it. 4.2 4.3 4.4 Thank you very much for choosing our smartphone electronic eyepiece. Please read this manual carefully before using this lens and we suggest you keep it well for future reference. 4.5 4.6 4.7 4.8 Electronic Eyepiece Indicator Light Description Blue light steady on - Device is po…

Text truncated - open the document above for the full version.

SHENZHEN APEXEL TECHNOLOGY CO.,LTD 2024.09.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2A72M-DC001 SHENZHEN APEXEL TECHNOLOGY CO.,LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Applicant signature: Applicant printed name: LinHu Ye/ QE SHENZHEN APEXEL TECHNOLOGY CO.,LTD 2024.09.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2A72M-DC001 SHENZHEN APEXEL TECHNOLOGY CO.,LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Applicant signature: Applicant printed name: LinHu Ye/ QE

SHENZHEN APEXEL TECHNOLOGY CO.,LTD 2024.09.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Electronic Eyepiece MODEL: APL-DC001 FCC ID: 2A72M-DC001 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: LinHu Ye /QE Contact information / address: Room 502, unit 2, floor 5, building 2, Guanghui science and Technology Park, Minqing Road, Fukang community, Longhua street, Longhua District, Shenzhen, China

SHENZHEN APEXEL TECHNOLOGY CO.,LTD 2024.09.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: LinHu Ye /QE Contact information / address: Room 502, unit 2, floor 5, building 2, Guanghui science and Technology Park, Minqing Road, Fukang community, Longhua street, Longhua District, Shenzhen, China

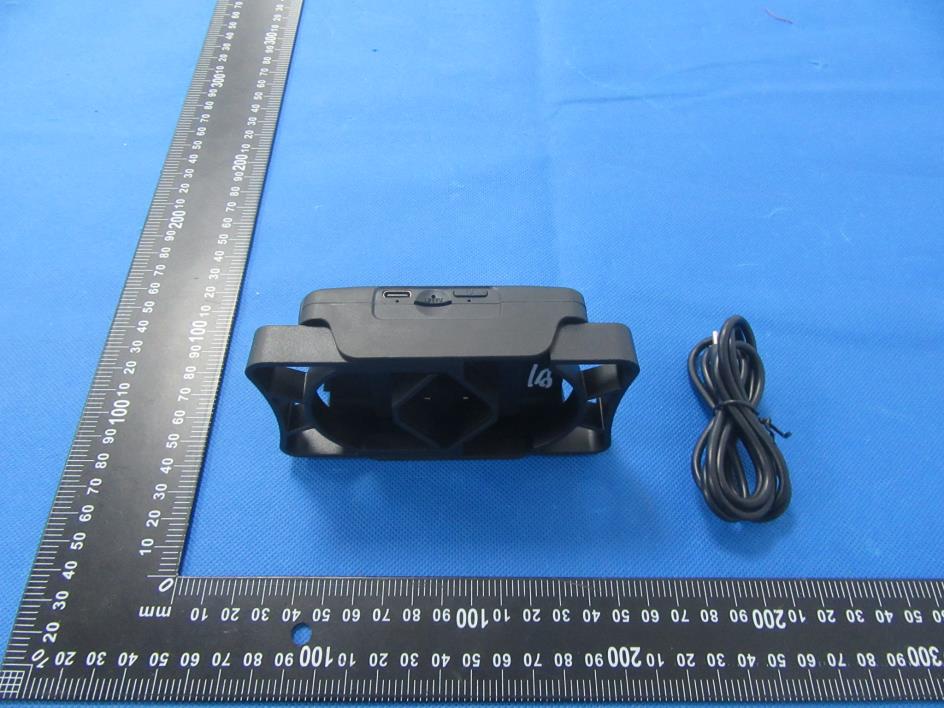

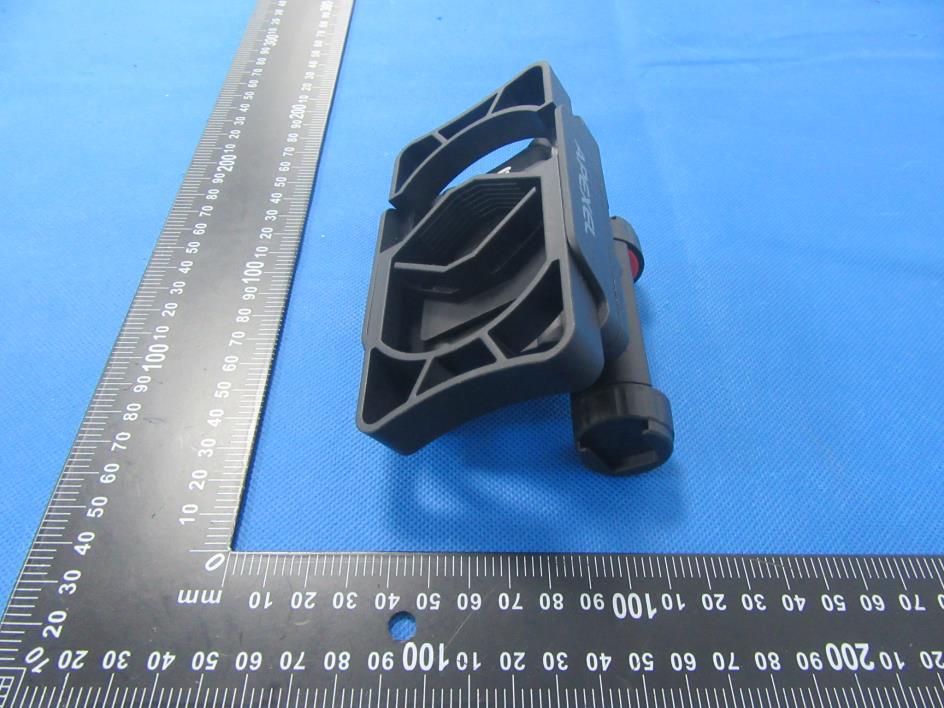

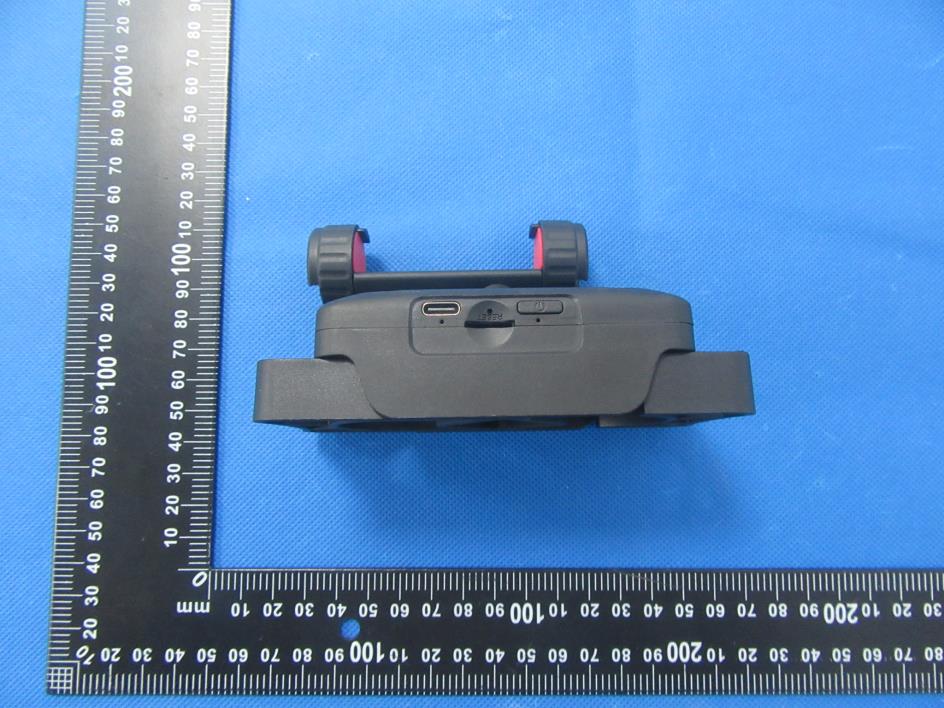

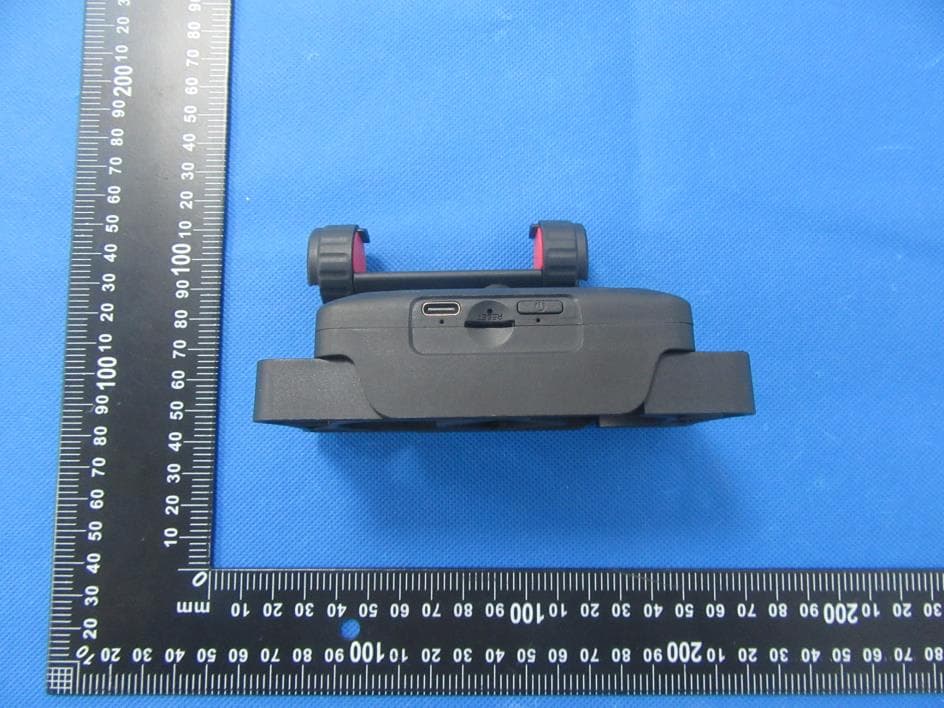

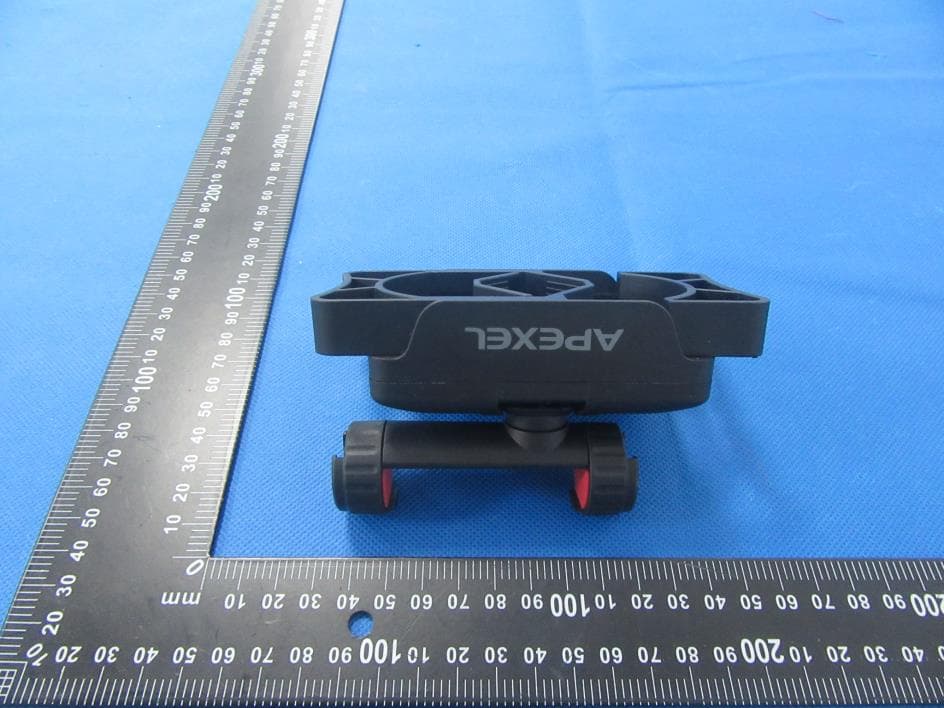

External Photos

10*5mm Label Location FCC ID: 2A72M-DC001

Internal Photos Antenna

FCC ID: 2A72M-DC001 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 802.11b 2.437 7 5.01 7±1 8.00 6.31 <5 1.96996 3.00 YES 802.11g 2.412 4.67 2.93 4±1 5.00 3.16 <5 0.98224 3.00 YES 802.11n20 2.462 4.5 2.82 4±1 5.00 3.16 <5 0.99237 3.00 YES 802.11n40 2.437 2.82 1.91 2±1 3.00 2.00 <5 0.62296 3.00 YES Conclusion: For the max result : 1.96996＜3, the SAR testing is not required.

公司地址：深圳市宝安区航城街道航城锦驰产业园B1栋7栋 联系方式：李学成 13760334554 Page 1 of 8 深圳市一加一无线通讯技术有限公司 承 认 书 APPROVAL SHEET 客户名称 Customer Name 创影时代 项目名 Project Name DC001 客户料号 Customer P/N 天线规格 Specification WIFI2.4GHZ Antennas 制作日期 Production Date 20240425 审批Approval OnePlusOne: RF Check ME Check QC Check Confirm By 签名 Signature 日期 Date Customer: EE Check PM Check QC Check Confirm By 签名 Signature 日期 Date 承认鉴章后请寄回承认书一份 Please return to us one copy of “APPROVAL SHEET” with your approved signatures Pl 公司地址：深圳市宝安区航城街道航城锦驰产业园B1栋7栋 联系方式：李学成 13760334554 Page 2 of 8 Contents 1 天线说明ANTENNA DESCRIPTION ............................................................... 1-3 1.1 天线规格Part number ................................................................... 1-3 1.2 天线图片Antenna pictures ........................................................... 1-3 2 测试设备TESTING EQUIPMENT .................................................................... 2-4 3 测试数据TEST DATA ...................................................................................... 3-4 3.1 无源Passive .................................................................................... 3-4 4 匹配电路MATCHING CIRCUIT DESCRIPTION ............................................. 4-5 5 可靠性报告RELIABILITY TEST REPORT ...................................................... 5-6 6 图纸DRAWING ................................................................................................ 6-7 6.1 尺寸图纸Dimensional drawing .................................................... 6-7 7 包装规范PACKAGING SPECIFICATIONS .................................................... 7-8 公司地址：深圳市宝安区航城街道航城锦驰产业园B1栋7栋 联系方式：李学成 13760334554 Page 3 of 8 1 天线说明Antenna description 天线 WIFI 频段范围 (MHZ) 2400-2500 天线类型 MONOPOLE 天线材质 FPC+同轴线 1.1 天线规格Part number 天线 WIFI 天线尺寸(MM) 26.5*6.4 天线丝印 DC001-WIFI-V2.0 1.2 天线图片Antenna pictures 公司地址：深圳市宝安区航城街道航城锦驰产业园B1栋7栋 联系方式：李学成 13760334554 Page 4 of 8 2 测试设备Testing equipment 3 测试数据Test data 3.1 无源Passive VSWR 公司地址：深圳市宝安区航城街道航城锦驰产业园B1栋7栋 联系方式：李学成 13760334554 Page 5 of 8 4 匹配电路Matching Circuit Description 原匹配未作修改 公司地址：深圳市宝安区航城街道航城锦驰产业园B1栋7栋 联系方式：李学成 13760334554 Page 6 of 8 5 可靠性报告Reliability Test Report 测试日期 Test Date 20240410 样品数量 Sample Qty 3 测试员 Tester 谭海兰 测试项目 Test Items 要求 Requirement 测试设备 Test Equipment 样品1 Sample 1 样品2 Sample 2 样品3 Sample 3 结果 PASS/NG 高温存储 在+85°C条件下暴露 24H，恢复2H后进行测 试 恒温恒湿箱 OK OK OK Pass 低温存储 在-40°C条件下暴露 24H，恢复2H后进行测 试 恒温恒湿箱 OK OK OK Pass 高温工作 在+60°C条件下通电工作 24H 恒温恒湿箱 OK OK OK Pass 低温工作 在-20°C条件下通电工作 24H 恒温恒湿箱 OK OK OK Pass 盐雾测试 （5±0.5）%氯化钠、 Ph值为6.5-7.2，实验箱 温度（35±2）°C 时间48H 恒温恒湿箱 OK OK OK Pass 最终结论 Pass 公司地址：深圳市宝安区航城街道航城锦驰产业园B1栋7栋 联系方式：李学成 13760334554 Page 7 of 8 6 图纸Drawing 6.1 尺寸图纸Dimensional drawing 公司地址：深圳市宝安区航城街道航城锦驰产业园B1栋7栋 联系方式：李学成 13760334554 Page 8 of 8 7 包装规范Packaging specifications 出货方式 整板 袋装 吸塑 天线类型 FPC FPC+同轴线 钢片 LDS 外置天线 线材

No.：BCTC/RF-EMC-005 Page: 1 of 77 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405284021E Applicant: SHENZHEN APEXEL TECHNOLOGY CO.,LTD Product Name: Electronic Eyepiece Test Model: APL-DC001 Tested Date: 2024-05-16 to 2024-05-27 Issued Date: 2024-05-28 Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 2 of 77 Edition：B.2 FCC ID: 2A72M-DC001 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Electronic Eyepiece Trademark: Model/Type Reference: APL-DC001 Prepared For: SHENZHEN APEXEL TECHNOLOGY CO.,LTD Address: Room 502, unit 2, floor 5, building 2, Guanghui science and Technology Park, Minqing Road, Fukang community, Longhua street, Longhua District, Shenzhen, China Manufacturer: SHENZHEN APEXEL TECHNOLOGY CO.,LTD Address: Room 502, unit 2, floor 5, building 2, Guanghui science and Technology Park, Minqing Road, Fukang community, Longhua street, Longhua District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-13 Sample Tested Date: 2024-05-16 to 2024-05-27 Issue Date: 2024-05-28 Report No.: BCTC2405284021E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 3 of 77 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Limit .................................................................................................................... 27 8.3 Test procedure .................................................................................................... 28 8.4 EUT Operating Conditions .................................................................................. 28 8.5 Test Result .......................................................................................................... 29 9. Power Spectral Density Test ............................................................................... 31 9.1 Block Diagram Of Test Setup .............................................................................. 31 9.2 Limit .................................................................................................................... 31 9.3 Test procedure ...................................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 58 of 77 Edition：B.2 Conducted Emission Measurement Test Graphs Tx. Spurious NVNT b 2412MHz Ref Tx. Spurious NVNT b 2412MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 59 of 77 Edition：B.2 Tx. Spurious NVNT b 2437MHz Ref Tx. Spurious NVNT b 2437MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 60 of 77 Edition：B.2 Tx. Spurious NVNT b 2462MHz Ref Tx. Spurious NVNT b 2462MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 61 of 77 Edition：B.2 Tx. Spurious NVNT g 2412MHz Ref Tx. Spurious NVNT g 2412MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 62 of 77 Edition：B.2 Tx. Spurious NVNT g 2437MHz Ref Tx. Spurious NVNT g 2437MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 63 of 77 Edition：B.2 Tx. Spurious NVNT g 2462MHz Ref Tx. Spurious NVNT g 2462MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 64 of 77 Edition：B.2 Tx. Spurious NVNT n20 2412MHz Ref Tx. Spurious NVNT n20 2412MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 65 of 77 Edition：B.2 Tx. Spurious NVNT n20 2437MHz Ref Tx. Spurious NVNT n20 2437MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 66 of 77 Edition：B.2 Tx. Spurious NVNT n20 2462MHz Ref Tx. Spurious NVNT n20 2462MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 67 of 77 Edition：B.2 Tx. Spurious NVNT n40 2422MHz Ref Tx. Spurious NVNT n40 2422MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 68 of 77 Edition：B.2 Tx. Spurious NVNT n40 2437MHz Ref Tx. Spurious NVNT n40 2437MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 69 of 77 Edition：B.2 Tx. Spurious NVNT n40 2452MHz Ref Tx. Spurious NVNT n40 2452MHz Emission Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 70 of 77 Edition：B.2 13. Duty Cycle Of Test Signal 13.1 Standard Requirement Pre-analysis Check: While conducting average power measurement, duty cycle of each mode shall be checked to ensure its duty cycle in order to compensate for the loss due to insufficient ratio of duty cycle. All duty cycle is pre-scanned, and result as obtained below shows only the most representative ones where duty cycle is conducted as the given transmission with given virtual operation that expresses the percentage. 13.2 Formula Duty Cycle = Ton / (Ton+Toff) 13.3 Test Procedure 1.Set span = Zero 2. RBW = 10MHz 3. VBW = 10MHz, 4. Detector = Peak 13.4 Test Result Test mode Frequency (MHz) Duty Cycle(%) Duty Fator(dB) 802.11b 2412 100 0 802.11g 2412 100 0 802.11n(HT20) 2412 100 0 802.11n(HT40) 2422 100 0 Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 71 of 77 Edition：B.2 Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 72 of 77 Edition：B.2 Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n40 2422MHz Ant1 Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 73 of 77 Edition：B.2 14. Antenna Requirement 14.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 14.1 Test Result The EUT antenna is FPC antenna, fulfill the requirement of this section. Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 74 of 77 Edition：B.2 15. EUT Photographs EUT Photo NOTE: Appendix-Photographs Of EUT Constructional Details Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 75 of 77 Edition：B.2 16. EUT Test Setup Photographs Conducted emissions Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 76 of 77 Edition：B.2 Radiated Measurement Photos Report No.: BCTC2405284021E No.：BCTC/RF-EMC-005 Page: 77 of 77 Edition：B.2 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Test. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The quality system of our laboratory is in accordance with ISO/IEC17025. 8. If there is any objection to this test report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL: 400-788-9558 P. C.: 518103 FAX: 0755-33229357 Website: http://www.chnbctc.com Consultation E-mail: [email protected] Complaint/Advice E-mail: [email protected] ※※※※※ END ※※※※※

Conducted emissions Radiated Measurement Photos
