First Cinema Limited Head Mounted Display User Manual For Model: Cinera Edge / Cinera Edge Pro Thank you for purchasing this product CINERA™ is owned by Cinera, Inc., a designer and producer of high-performance head-mounted displays (HMDs) that aim to convey an immersive cinematic experience. Please read this user manual carefully before you use the device and save it for future reference. You can visit www.cinera.net for more information. This product is authorized by Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Before using this device, please read all safety information to ensure correct and safe use. Use this device at a temperature between 0°C and 30°C. Store the product at a temperature between -5°C and 35°C. Using power supplies, chargers or batteries that are not approved by the producer may cause fire, explosion or other dangers. Please use accessories approved by the producer and ensure they are compatible with this model of device. The built-in battery is non-removable. Please do not replace the battery by yourself, or it may damage the battery or the device. Replacement of battery can be done only by an authorized service center. Please use the charger approved by the producer. Using unapproved chargers may cause leakage, fire or damage to the device and the charger. When the charging is completed, please disconnect the charger from the device and unplug the charger from the power outlet. Continuous charging time should not exceed 12 hours. Please do not dispose used batteries into domestic garbage. Improper disposal of batteries may cause fire and explosion. Please follow local regulations when disposing of the device, batteries, and other accessories. Do not place the device and its battery in a place of high temperature or around heating sources such as sunlight, microwave ovens, heaters, ovens, etc. Overheating of the batteries may cause explosions. The battery must not be disassembled, hit, squeezed or thrown into fire. If it swells, please stop using it immediately. Please keep the device dry. Keep it away from water and damp areas. If the device or any of its parts cannot work normally, please do not repair it by yourself. Please contact Customer Service at Cinera, Inc. in time for proper handling. When connecting other devices, please refer to the connection method in this user manual, and do not connect to incompatible devices. When charging the device, make sure that the charger is easy to unplug, so that if a problem occurs, the power cord can be unplugged immediately. To avoid hearing damage, do not use high excessively volume for a long time. In some environments, the use of wireless devices may be restricted. Please comply with relevant laws and regulations when using the device.  Important Safety Information Cinera Edge or Cinera Edge ProPD Charger USB-C Cable User Manual (with information about return, replacement, and repair) Packing List Operation Guide ON/OFF - Press the button and hold for 3 seconds to turn on. - Short press the button to turn on or turn off the screen. - Press the button and hold for 2 seconds for Power off/Restart. - Press the button and hold for 8 seconds to force the complete system to shut down (Note: This will make the system self-check on reboot, which may take up to 3 minutes). USB Type-C interface Right fan (Air out) HDMI input port 2.5mm audio port Touchpad lock/unlock button (When using short press) Menu (When using a press and hold) Micro SD (TF) card slot Left fan (Air in) Back (When using short press) Home (When using a press and hold) 2D/3D (When using short press) Screen scaling(When using a press and hold) Diopter adjustment (When rotating) Interpupillary distance adjustment (When moving left and right) Viewing lenses Proximity sensor Microphone Logo light Touchpad Q: Does Cinera Edge support "curved screen"? A: Yes, please enter the "Settings -> Display" page, turn off the "distortion correction". Then you can switch from "flat screen" to "curved screen" and get the illusion of a wider visual effect. Q: Can the function of "automatic screen shutdown" be turned off? A: Yes, please enter the "Settings -> Display" page and turn off the "Proximity Sensor". Note: The "automatic screen shutdown" is to protect the screen and reduce power consumption, so we strongly recommend that you enable this function. Q: Can the logo light be turned off? A: Yes, please enter the "Settings -> Display" page and turn off the "Logo light". Q: Can I adjust the magnification of the on-screen image? A: Yes, please enter the "Settings -> Display -> Screen Zoom" page to adjust the image magnification. (Range: 50% -100% of the full image can be enlarged to fill the screen.) Q: How to play local 3D video? A: Use VLC to play 3D video. Short press the 2D/3D button to switch the video format to "SBS 3D" or "T&B 3D". Q&A You can short press TP/MENU button to switch the touchpad operation mode: Lock -> Mouse Mode -> Volume/Brightness Mode. If you do not operate the touchpad for more than 1 minute after unlocking, the touchpad will be automatically locked. You cannot operate after the touchpad has been locked. You can follow the following guide to operate the touchpad after it has been unlocked: Operation Instructions Mouse Mode Volume/Brightness Mode Left click on the mouse Scroll up/down Scroll left/right Volume +/- Move the cursor Brightness +/- Q: How to watch HDMI 3D video? A: In the HDMI APP, start the "standard mode" to receive the 3D video from the external playback device. Short press the 2D/3D button to switch the video format to "SBS 3D" or "T&B 3D". Q: How to view 3D pictures? A: Open the 3D picture in the picture browser (If the picture browser supports it, display the picture in full screen). Short press the 2D/3D button to switch the video format to "SBS 3D" or "T&B 3D". Q: The window is divided into two halves, and each half only displays half of the image, what should I do? A: Short press the 2D/3D…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1 First Cinema Limited FCC Software Configuration Control Declaration Date: 8/23/2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Head Mounted Display / Cinera Edge Pro FCC ID: 2A749-CINERA Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Jun Yang Date: 8/23/2022 Title: manager Signature of applicant

add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 客户首影 CUSTOMER: 客户料号VR01 CUSTOMER NO: 品名WIFI MAIN L=60mm MHF PART NAME: 供方料号YJL01.069.001.301A SUPPLIER NO: 送样日期Date: 送样数量Q“TY: 东莞市一佳电子通讯科技有限公司 DongguanYiJia Electronics Communication Technology Co.,Ltd. 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN ChenGuoqiangWenXueChenXingyi 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 日期2022/03/14 Date 编号22031401 File No 版本1.0 Revision 规格承认书 SPECIFICATION FOR APPROVAL YJ-RD-F04-A add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 2 承认书项目表（Spec Item ） 12 3 工程成品图（Drawing） 13 4 天线规格（Antenna Specification） 14 5 S参数测试（S Parameter ） 15 6 无源测试（Passive Test ） 36 ~ 8 7 有源测试（Active Test ） 19 8 天线装配图（Antenna Profile） 410 ~ 13 9 材质证明（Material Certificate ） 3414 ~ 47 10 RoHS报告（RoHSTest Report ） **** 11N/AN/AN/A 12--- 13--- DC REV. E DESCRIPTION DATE B 8 6 7 5 4 A 1 2 3 A 首次发行 YJL01.069.001.301A COA10XXXA.P01FPC10XXXA.P01 TER10XXXX.P01 WIFI Antenna L=60mm MHF B 修改线长 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 天线规格 Antenna Specification Electrical Properties Frequency 2400-2500MHz 5150-5850MHz Impedance50 Ohm Nominal V.S.W.R 1.5 Max@2400-2500MHz 3.0 Max@5150-5850MHz Gain 5.0dBi@2400-2500MHz 3.7dBi@5150-5850MHz RadiationOmni-directional PolarizationLinear Physical Properties Connector 4代IPEX Cable TypeO.D.0.81mm Cable Length60mm Cable ColorBlack Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 Agilent E5071B S Parameter Test // WiFi Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 Passive Test For WiFi Antenna(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 51.4 -2.9 4.7 2410 52.2 -2.8 4.9 2420 52.0 -2.8 4.8 2430 53.0 -2.8 5.0 2440 53.1 -2.8 4.7 2450 54.7 -2.6 5.0 2460 51.5 -2.9 4.5 2470 52.4 -2.8 4.8 2480 50.5 -3.0 4.3 2490 51.2 -2.9 4.5 2500 47.1 -3.3 3.9 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 Passive Test For WiFi Antenna(5.8G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 5150 49.9 -3.0 2.8 5200 51.8 -2.9 3.2 5250 50.8 -2.9 3.5 5300 49.0 -3.1 3.2 5350 45.6 -3.4 2.6 5400 47.6 -3.2 2.5 5450 44.7 -3.5 2.5 5500 39.7 -4.0 2.6 5550 42.7 -3.7 3.4 5600 43.5 -3.6 3.7 5650 39.8 -4.0 3.4 5700 40.6 -3.9 3.6 5750 40.6 -3.9 3.2 5800 40.5 -3.9 3.3 5850 38.5 -4.2 2.5 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 Active Test For WIFI BandChannel Data Rate TRP EIRP Data Rate TISEIS WIFI 2.4G 802.11b 1 11Mbps 10.8 16.8 11Mbps -75.7 -81.5 7 11.2 17.4 -75.8 -81.6 13 12.0 17.4 -76.2 -82.1 WIFI 5G 802.11a 36 6Mbps 13.7 19.8 54Mbps -67.0 -73.7 149 13.6 19.6 -64.2 -69.8 165 13.9 19.6 -65.8 -70.0 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 Device add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 WiFi Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 WiFi天线 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086Fax:0769-82586086 屏蔽排线 MATERIALSAFETYDATASHEET 物质安全资料表 1、CHEMICALPRODUCTANDCOMPANYIDENTIFICATION产品和公司资料 1.1PRODUCTMAME：Polyimidereinforcementplate 产品名称：Pi补强片 1.2PRODUCTUSE：FlexibleprintedcircuitBoards. 用途：用于挠性印制电路板． 1.3ProductModel产品型号 Model:HS2025、HS3025、HS4025、HS5025、HS6025、HS7025、HS8025、HS9025、HS10025 1.4公司名称及地址： 深圳市溢海通电子有限公司 NAMEofCOMPANYandADDRESS：ShenzhenYiHaiTongElectronicsCo.,ltd 广东省深圳市宝安区沙井后亭第二工业区57号福新大厦B栋602 BuildingB,FuxinChuangkeBuilding, No.57BaoanDistrict,Shenzhen,China ShajingHoutingSecondIndustrialZone, FORMOREINFORMATIONCALL：INCASEOFEMERGENCYCALL： 紧急联络电话：（Monday～Saturday,9:00am～6:00pm）（24Hours/Day,7Days/Week） 0755-332380800755-33238080 2 、 COMPOSITIONINFORMATIONONINGREDIENTS 组成成份资料 2.1Themainingredient 主要成分 Ingredientnamechemicalabstractnumberweightratio成分名称化学文摘号重量比 Polyimidefilm25038-81-730-50%聚酰亚胺薄膜25038-81-730～50% Remove10-25%ofthereleasefilm/paperwhenitisused离形膜/纸使用时撕掉10～25% Acrylates141-32-225-40%丙烯酸酯141-32-225～40% Acrylicacid79-10-710-20%丙烯酸79-10-710～20% 2.2hazardousingredients 危害物质成分 No.SGSTestReport:No.CANML1412085401,No.CANML1412085402 2.3MolecularStructure: 分子结构 3 、 HAZARDSIDENTIFICATION 危害性资料 3.1hazardclassfilledbyGB13690-92"Classificationofhazardouschemicalsusedandsigns" requirement.： 危险性类别按GB13690-92《常用危险化学品的分类及标志》规定填写。 Insolubleinwater,nomeltingpoint,solubleinacid,alkali. 不溶于水，无熔点，易溶于强酸、强碱。 3.2Anonflammablesheetmaterial，Fumesifdecomposedmayirritateeyes、noseandthroat.. 是一种难燃的片状材料。当分解时产生的气体会刺激眼睛、鼻和咽喉。 POTENTIALHEALTHHAZARDS： 3.3Abriefdescriptionoftheextentofenvironmentalharmwhenhazardscausedbycertain concentrationsofvariouschemicalandbiologicalharm. 环境危害简要描述化学品在一定浓度时对各种生物造成的危害及其造成危害的程度。 ProducesCO2andCOdecomposition. 分解时会产生CO2和CO。 3.4SKIN：Adhesivemaycausemoderateskinirritation. 皮肤：胶粘剂可能导致中等程度皮肤过敏。 3.5EYES：Adhesivemaycauseeyemoderateirritated，Fumesmayirritateeyes. 眼睛：胶粘剂可能导致中等程度眼睛过敏。 3.6INHALATION：Traceofchemicalsolventsmaydiffusedtoairintheprocessesofvarnish preparationand coatingproduction. 吸入物：在涂覆生产过程中，会有很少量化学溶剂挥发出来。 3.7INGESTION：Notdetermined. 摄食：没有参考值。 4、FIRSTAIDMEASURES首要援助措施 SKIN：Washingthecontaminatedclothinginflowingwater. 皮肤：脱下已污染衣服，用流动水冲洗。 EYE：Washingwithflowingwaterfor15minutes，consultthephysicianIfirritationpersists. 眼睛：用流动水冲洗15分钟，如过敏现象持续发生，请求助于医生。 INHALATION：Suchasdust,smoketomuchmovetofreshair.Ifcannotbreathe,give mouth-to-mouth resuscitationandCallphysician. 吸入：如粉末烟尘太多请转移到有新鲜空气的地方，如没有呼吸，请进行人工呼吸，并致电 医生。 INGESTION：Iflargeamountsareingested,consultphysician. 摄食：如摄入大量，请致电医生。 ADVICETOPHYSICIAN：Treatsymptomatically. 建议医生：处理出现的症状。 5、FIREFIGHTINGMEASURES火灾测试 FLAMMABLEPROPERTIES：N/A 易燃烧性：不适用 FLASHPOINT：N/A 闪点：不适用 FLASHPOINTMETHOD：N/A 闪点方式：不适用 AUTOIGNITIONTEMPERATURE：Notdetermined 自燃点温度：无规定 UPPERFLAMELIMIT（Volume%inair）：N/A 燃烧上限：不适用 LOWERFLAMELIMIT（Volume%inair）：N/A 燃烧下限：不适用 FLAMEPROPAGATIONRATE（Solids）：UL94V-0 燃烧等级：UL94V-0 OSHAFLAMMABILITYCLASS：N/A 燃烧级别：不适用 EXTINGUISHINGMEDIA：Water,CO2anddrychemical. 灭火介质：水、CO2及干化学品 SPECIALFIREFIGHTINGPRECAUTIONS/INSTRUCTIONS： 特别火…

Text truncated - open the document above for the full version.

First Cinema Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2A749-CINERA To Whom It May Concern, Date: 8/23/2022 Pursuant to the provisions of the Commission's rules Title 47 Sections §0.457 and§0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents 而ght be harmful to our company and would give competitors an unfair advantage in the market. 因Schematic Diagram 因Block Diagram 口Parts List 因OperationalDescription 因SOFTWARESECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in orde九o comply with the marketing regulations in Title 47 CFR§2.803 and the importation rules in Title 47 CFR§2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); 因External Photos 因Test Setup Photos 匈nternal Photos 因User Manual 口For 45 days, pursuant to Public Notice DA 04-1705 OR 因For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, 尽 �:� u l���� 吵门 Title: manager Email: [email protected]

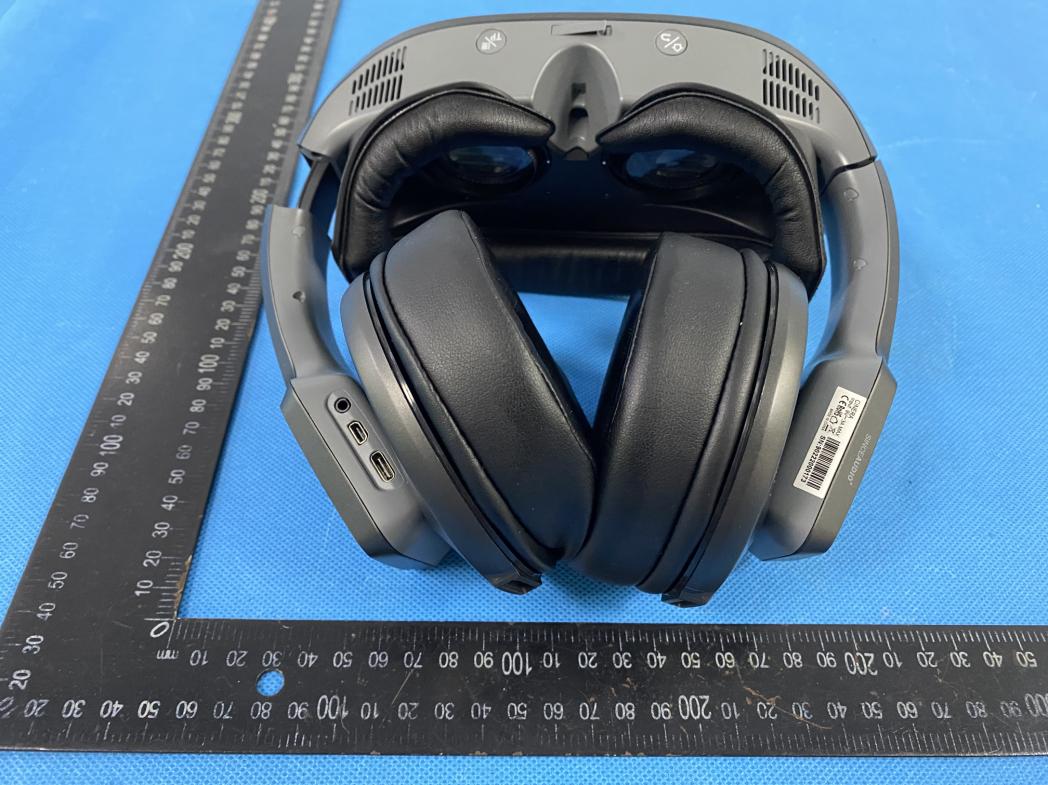

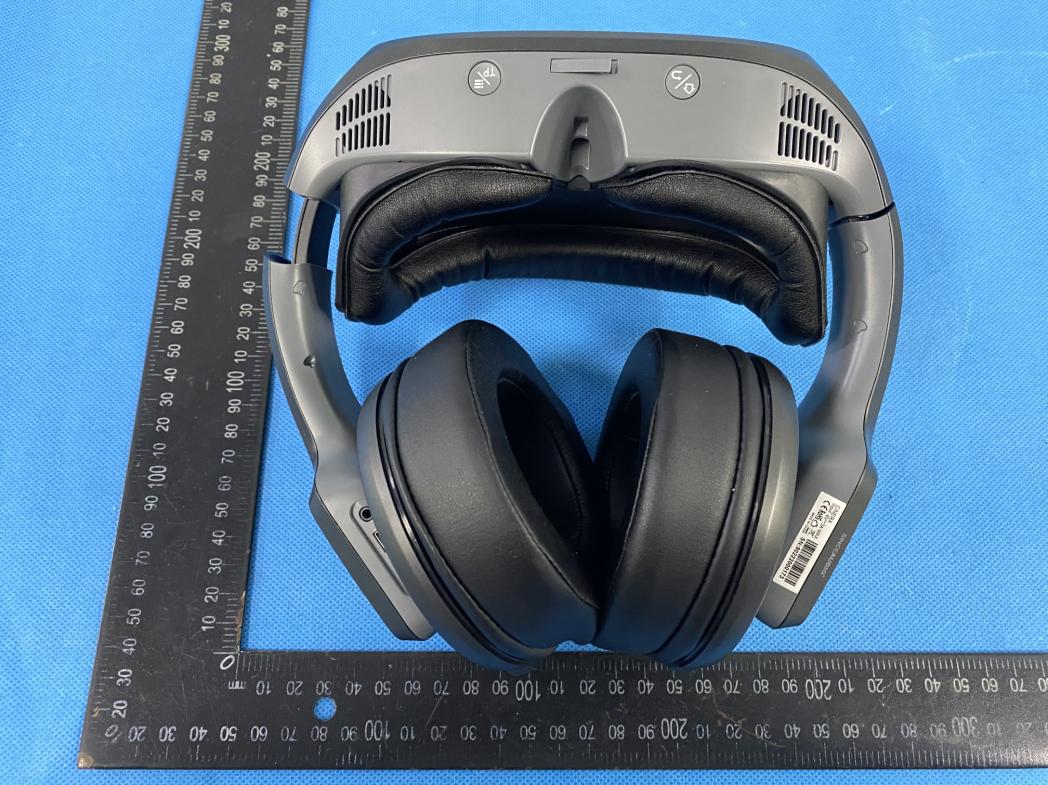

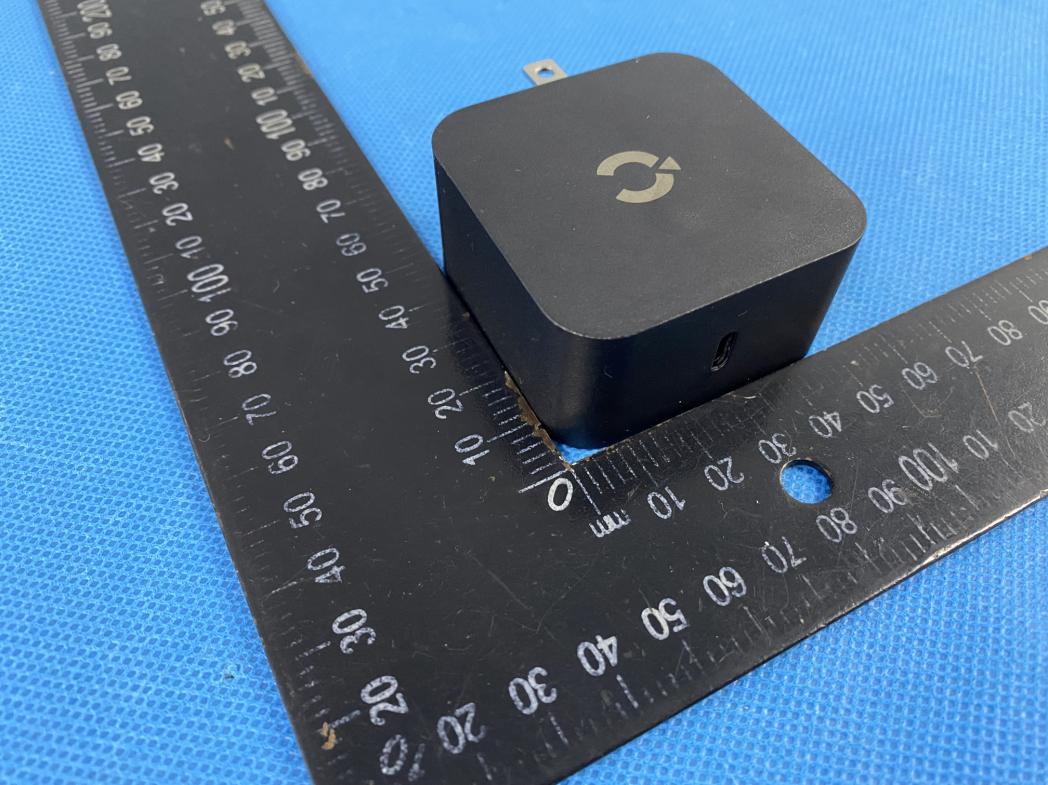

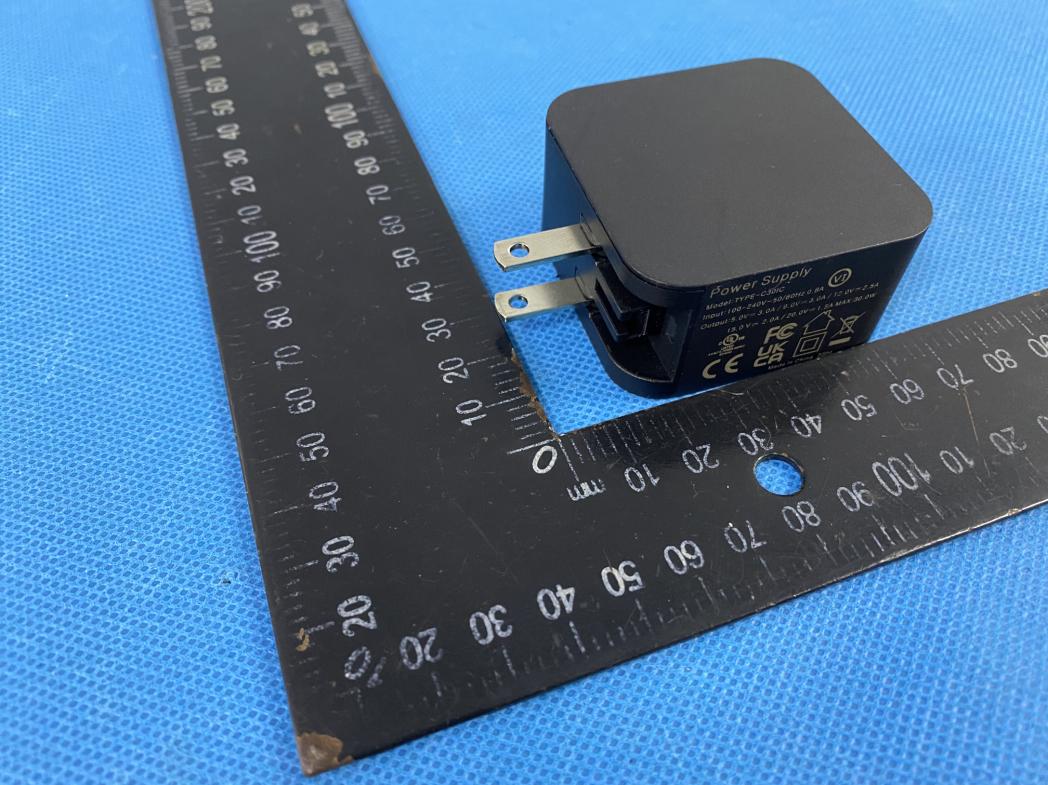

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 37 Photo 38 Photo 39

label location

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Ant Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24 Photo 25 Photo 26 Photo 27 Photo 28 Photo 29 Photo 30 Photo 31 Photo 32 Photo 33 Photo 34 Photo 35 Photo 36

Page 1 of 90 Report No.: S22062703612001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Head Mounted Display Trademark： CINERA Model Name： Cinera Edge Pro Family Model： N/A Report No.： S22062703612001 FCC ID. : 2A749-CINERA Prepared for First Cinema Limited 5C07, Blk 210, Tairan Science and Technology Park, 4 Tairan Rd, Futian, Shenzhen, Guangdong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 90 Report No.: S22062703612001 TEST RESULT CERTIFICATION Applicant’s name.................. : First Cinema Limited Address .................................. : 5C07, Blk 210, Tairan Science and Technology Park, 4 Tairan Rd, Futian, Shenzhen, Guangdong, China Manufacturer's Name ........... : First Cinema Limited Address .................................. : 5C07, Blk 210, Tairan Science and Technology Park, 4 Tairan Rd, Futian, Shenzhen, Guangdong, China Product description Product name ......................... : Head Mounted Display Trademark ............................ : CINERA Model Name ......................... : Cinera Edge Pro Family Model .......................... : N/A Standards.............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ........................... S220627036011 Date of Test Date (s) of performance of tests............. : Jul. 12, 2022 ~ Jul. 22, 2022 Date of Issue ......................................... : Aug. 10, 2022 Test Result ............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 90 Report No.: S22062703612001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Aug. 10, 2022 Jacob Chen Page 4 of 90 Report No.: S22062703612001 TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 7 1.4. Test specification(s) ................................................................................ 8 1.5. Ambient Condition ................................................................................. 8 2. SAR Measurement System ................................................................................. 9 2.1. SATIMO SAR Measurement Set-up Diagram ........................................... 9 2.2. Robot ................................................................................................... 10 2.3. E-Field Probe ........................................................................................ 11 2.3.1. E-Field Probe Calibration ................................................................ 11 2.4. SAM phantoms .................................................................................... 12 2.4.1. Technical Data ................................................................................ 13 2.5. Device Holder ...................................................................................... 14 2.6. Test Equipment List .............................................................................. 15 3. SAR Measurement Procedures ........................................................................ 17 3.1. Power Reference.................................................................................. 17 3.2. Area scan & Zoom scan ........................................................................ 17 3.3. Description of interpolation/extrapolation scheme ............................. 19 3.4. Volumetric Scan ................................................................................... 19 3.5. Power Drift .......................................................................................... 19 4. System Verification Procedure ......................................................................... 20 4.1. Tissue Verification ................................................................................ 20 4.1.1. Tissue Dielectric Parameter Check Results ..................................... 21 4.2. System Verification Procedure ............................................................. 22 4.2.1. System Verification Results ............................................................ 23 5. SAR Measurement variability and uncertainty ................................................. 24 5.1. SAR measurement variability ............................................................... 24 5.2. SAR measurement uncertainty ............................................................. 24 6. RF Exposure Pos…

Text truncated - open the document above for the full version.

Report No.:S22062703609004 Page 1 of223 5.2G Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant1 97.83 0.1 NVNT a 5200 Ant1 97.78 0.1 NVNT a 5240 Ant1 97.83 0.1 NVNT ac20 5180 Ant1 97.7 0.1 NVNT ac20 5200 Ant1 97.72 0.1 NVNT ac20 5240 Ant1 97.71 0.1 NVNT ac40 5190 Ant1 95.36 0.21 NVNT ac40 5230 Ant1 95.71 0.19 NVNT ac80 5210 Ant1 91.37 0.39 NVNT n20 5180 Ant1 97.67 0.1 NVNT n20 5200 Ant1 97.66 0.1 NVNT n20 5240 Ant1 97.68 0.1 NVNT n40 5190 Ant1 95.5 0.2 NVNT n40 5230 Ant1 95.47 0.2 Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report No.:S22062703609004 Page 2 of223 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT ac20 5180MHz Ant1 Report No.:S22062703609004 Page 3 of223 Duty Cycle NVNT ac20 5200MHz Ant1 Duty Cycle NVNT ac20 5240MHz Ant1 Report No.:S22062703609004 Page 4 of223 Duty Cycle NVNT ac40 5190MHz Ant1 Duty Cycle NVNT ac40 5230MHz Ant1 Report No.:S22062703609004 Page 5 of223 Duty Cycle NVNT ac80 5210MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Report No.:S22062703609004 Page 6 of223 Duty Cycle NVNT n20 5200MHz Ant1 Duty Cycle NVNT n20 5240MHz Ant1 Report No.:S22062703609004 Page 7 of223 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report No.:S22062703609004 Page 8 of223 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 10.307 0.1 10.407 24 Pass NVNT a 5200 Ant1 10.21 0.1 10.31 24 Pass NVNT a 5240 Ant1 10.353 0.1 10.453 24 Pass NVNT ac20 5180 Ant1 9.907 0.1 10.007 24 Pass NVNT ac20 5200 Ant1 10.064 0.1 10.164 24 Pass NVNT ac20 5240 Ant1 9.902 0.1 10.002 24 Pass NVNT ac40 5190 Ant1 9.659 0.21 9.869 24 Pass NVNT ac40 5230 Ant1 9.444 0.19 9.634 24 Pass NVNT ac80 5210 Ant1 9.086 0.39 9.476 24 Pass NVNT n20 5180 Ant1 9.952 0.1 10.052 24 Pass NVNT n20 5200 Ant1 9.86 0.1 9.96 24 Pass NVNT n20 5240 Ant1 9.992 0.1 10.092 24 Pass NVNT n40 5190 Ant1 8.844 0.2 9.044 24 Pass NVNT n40 5230 Ant1 9.608 0.2 9.808 24 Pass Power NVNT a 5180MHz Ant1 Report No.:S22062703609004 Page 9 of223 Power NVNT a 5200MHz Ant1 Power NVNT a 5240MHz Ant1 Report No.:S22062703609004 Page 10 of223 Power NVNT ac20 5180MHz Ant1 Power NVNT ac20 5200MHz Ant1 Report No.:S22062703609004 Page 11 of223 Power NVNT ac20 5240MHz Ant1 Power NVNT ac40 5190MHz Ant1 Report No.:S22062703609004 Page 12 of223 Power NVNT ac40 5230MHz Ant1 Power NVNT ac80 5210MHz Ant1 Report No.:S22062703609004 Page 13 of223 Power NVNT n20 5180MHz Ant1 Power NVNT n20 5200MHz Ant1 Report No.:S22062703609004 Page 14 of223 Power NVNT n20 5240MHz Ant1 Power NVNT n40 5190MHz Ant1 Report No.:S22062703609004 Page 15 of223 Power NVNT n40 5230MHz Ant1 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 22.38 Pass NVNT a 5200 Ant1 24.256 Pass NVNT a 5240 Ant1 21.436 Pass NVNT ac20 5180 Ant1 26.14 Pass NVNT ac20 5200 Ant1 24.7 Pass Report No.:S22062703609004 Page 16 of223 NVNT ac20 5240 Ant1 22.005 Pass NVNT ac40 5190 Ant1 44.725 Pass NVNT ac40 5230 Ant1 44.887 Pass NVNT ac80 5210 Ant1 96.299 Pass NVNT n20 5180 Ant1 24.701 Pass NVNT n20 5200 Ant1 22.879 Pass NVNT n20 5240 Ant1 24.268 Pass NVNT n40 5190 Ant1 40.972 Pass NVNT n40 5230 Ant1 42.95 Pass -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report No.:S22062703609004 Page 17 of223 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT ac20 5180MHz Ant1 Report No.:S22062703609004 Page 18 of223 -26dB Bandwidth NVNT ac20 5200MHz Ant1 -26dB Bandwidth NVNT ac20 5240MHz Ant1 Report No.:S22062703609004 Page 19 of223 -26dB Bandwidth NVNT ac40 5190MHz Ant1 -26dB Bandwidth NVNT ac40 5230MHz Ant1 Report No.:S22062703609004 Page 20 of223 -26dB Bandwidth NVNT ac80 5210MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report No.:S22062703609004 Page 21 of223 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report No.:S22062703609004 Page 22 of223 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report No.:S22062703609004 Page 23 of223 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.667 NVNT a 5200 Ant1 16.67 NVNT a 5240 Ant1 16.613 NVNT ac20 5180 Ant1 17.821 NVNT ac20 5200 Ant1 17.792 NVNT ac20 5240 Ant1 17.776 NVNT ac40 5190 Ant1 36.211 NVNT ac40 5230 Ant1 36.25 NVNT ac80 5210 Ant1 75.463 NVNT n20 5180 Ant1 17.828 NVNT n20 5200 Ant1 17.806 NVNT n20 5240 Ant1 17.784 NVNT n40 5190 Ant1 36.198 NVNT n40 5230 Ant1 36.258 OBW NVNT a 5180MHz Ant1 Report No.:S22062703609004 Page 24 of223 OBW NVNT a 5200MHz Ant1 OBW NVNT a 5240MHz Ant1 Report No.:S22062703609004 Page 25 of223 OBW NVNT ac20 5180MHz Ant1 OBW NVNT ac20 5200MHz Ant1 Report No.:S22062703609004 Page 26 of223 OBW NVNT ac20 5240MHz Ant1 OBW NVNT ac40 5190MHz Ant1 Report No.:S22062703609004 Page 27 of223 OBW NVNT ac40 5230MHz Ant1 OBW NVNT ac80 5210MHz Ant1 Report No.:S22062703609004 Page 28 of223 OBW NVNT n20 5180MHz Ant1 OBW NVNT n20 5200MHz Ant1 Report No.:S22062703609004 Page 29 of223 OBW NVNT n20 5240MHz Ant1 OBW NVNT n40 5190MHz Ant1 Report No.:S22062703609004 Page 30 of223 OBW NVNT n40 5230MHz Ant1 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Duty Factor (dB) Total PSD (dBm Limit (dBm) Verdict NVNT a 5180 Ant1 0.738 0.1 0.838 11 Pass NVNT a 5200 Ant1 0.627 0.1 0.727 11 Pass NVNT a 5240 Ant1 1.059 0.1 1.159 11 Pass NVNT ac20 5180 Ant1 0.167 0.1 0.267 11 Pass Report No.:S22062703609004 Page 31 of223 NVNT ac20 5200 Ant1 0.116 0.1 0.216 11 Pass NVNT ac20 5240 Ant1 0.033 0.1 0.133 11 Pass NVNT ac40 5190 Ant1 -3.092 0.21 -2.882 11 Pass NVNT ac40 5230 Ant1 -3.444 0.19 -3.254 11 Pass NVNT ac80 5210 Ant1 -6.417 0.39 -6.027 11 Pass NVNT n20 5180 Ant1 0.355 0.1 0.455 11 Pass NVNT n20 5200 Ant1 -0.077 0.1 0.023 11 Pass NVNT n20 5240 Ant1 0.309 0.1 0.409 11 Pass NVNT n40 5190 Ant1 -4.36 0.2 -4.16 11 Pass NVNT n40 5230 Ant1 -3.666 0.2 -3.466 11 Pass PSD NVNT a 5180…

Text truncated - open the document above for the full version.

Report No.:S22062703609004 Page 74 of223 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5260 Ant1 16.605 NVNT a 5280 Ant1 16.595 NVNT a 5320 Ant1 16.579 NVNT ac20 5260 Ant1 17.733 NVNT ac20 5280 Ant1 17.725 NVNT ac20 5320 Ant1 17.751 NVNT ac40 5270 Ant1 36.256 NVNT ac40 5310 Ant1 36.204 NVNT ac80 5290 Ant1 75.389 NVNT n20 5260 Ant1 17.769 NVNT n20 5280 Ant1 17.746 NVNT n20 5320 Ant1 17.727 NVNT n40 5270 Ant1 36.211 NVNT n40 5310 Ant1 36.205 OBW NVNT a 5260MHz Ant1 Report No.:S22062703609004 Page 75 of223 OBW NVNT a 5280MHz Ant1 OBW NVNT a 5320MHz Ant1 Report No.:S22062703609004 Page 76 of223 OBW NVNT ac20 5260MHz Ant1 OBW NVNT ac20 5280MHz Ant1 Report No.:S22062703609004 Page 77 of223 OBW NVNT ac20 5320MHz Ant1 OBW NVNT ac40 5270MHz Ant1 Report No.:S22062703609004 Page 78 of223 OBW NVNT ac40 5310MHz Ant1 OBW NVNT ac80 5290MHz Ant1 Report No.:S22062703609004 Page 79 of223 OBW NVNT n20 5260MHz Ant1 OBW NVNT n20 5280MHz Ant1 Report No.:S22062703609004 Page 80 of223 OBW NVNT n20 5320MHz Ant1 OBW NVNT n40 5270MHz Ant1 Report No.:S22062703609004 Page 81 of223 OBW NVNT n40 5310MHz Ant1 Report No.:S22062703609004 Page 82 of223 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Duty Factor (dB) Total PSD (dBm Limit (dBm) Verdict NVNT a 5260 Ant1 0.037 0.1 0.137 11 Pass NVNT a 5280 Ant1 0.129 0.1 0.229 11 Pass NVNT a 5320 Ant1 0.94 0.09 1.03 11 Pass NVNT ac20 5260 Ant1 0.16 0.1 0.26 11 Pass NVNT ac20 5280 Ant1 0.31 0.11 0.42 11 Pass NVNT ac20 5320 Ant1 0.774 0.1 0.874 11 Pass NVNT ac40 5270 Ant1 -2.99 0.19 -2.8 11 Pass NVNT ac40 5310 Ant1 -2.848 0.19 -2.658 11 Pass NVNT ac80 5290 Ant1 -6.894 0.39 -6.504 11 Pass NVNT n20 5260 Ant1 -0.083 0.1 0.017 11 Pass NVNT n20 5280 Ant1 -0.494 0.1 -0.394 11 Pass NVNT n20 5320 Ant1 0.418 0.1 0.518 11 Pass NVNT n40 5270 Ant1 -3.429 0.2 -3.229 11 Pass NVNT n40 5310 Ant1 -3.154 0.2 -2.954 11 Pass PSD NVNT a 5260MHz Ant1 PSD NVNT a 5280MHz Ant1 Report No.:S22062703609004 Page 83 of223 PSD NVNT a 5320MHz Ant1 PSD NVNT ac20 5260MHz Ant1 Report No.:S22062703609004 Page 84 of223 PSD NVNT ac20 5280MHz Ant1 PSD NVNT ac20 5320MHz Ant1 Report No.:S22062703609004 Page 85 of223 PSD NVNT ac40 5270MHz Ant1 PSD NVNT ac40 5310MHz Ant1 Report No.:S22062703609004 Page 86 of223 PSD NVNT ac80 5290MHz Ant1 PSD NVNT n20 5260MHz Ant1 Report No.:S22062703609004 Page 87 of223 PSD NVNT n20 5280MHz Ant1 PSD NVNT n20 5320MHz Ant1 Report No.:S22062703609004 Page 88 of223 PSD NVNT n40 5270MHz Ant1 PSD NVNT n40 5310MHz Ant1 Report No.:S22062703609004 Page 89 of223 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5260 Ant1 -45.39 -27 Pass NVNT a 5320 Ant1 -29.68 -27 Pass NVNT ac20 5260 Ant1 -53.04 -27 Pass NVNT ac20 5320 Ant1 -…
