2A77C-RBGC01Remote Control

Remote Control User Manual 1.Specification Product Specification Parameters Product Name IR&Bluetooth remote control Model Number RBGC01 Battery 2 AAA Battery Supply Voltage 2.2~3.6V Dimensions 164mm×41mm×16mm Weight 56g Bluetooth BLE 2.4GHz ISM；1Mbps Storage Temp. -25°C~+55°C Practical Temp. 0°C~+40°C 1 2.Keys and Functions Keys and Functions No. Name Function ① Power key Standby switch ② Up/Down /Left/Right When a menu is displayed, it is menu Up/Down/Left/Right; When the media plays without menu, the function defined by the system is executed ③ Return key Return to the previous menu ④ Focus key Open the focus menu ⑤ Hot key One key goes to APP ⑥ Volume - key Volume down ⑦ Voice Control Press to start voice interactive ⑧ Volume + key Volume up ⑨ Hot key One key goes to APP ⑩ Hot key One key goes to APP ⑪ Home key Call up the main scene ⑫ Setting Key Open setting menu ⑬ OK key Enter the page of selection ⑭ Mute Key Press to open/close mute 2 3.Matching of remote control The remote controller for this projector bounded with IR and Bluetooth function together. To use remote controller in Bluetooth model, please follow the following guide to pair remote controller with projector at the first using. 3 Battery ① Do not mix old and new batteries or different brands of batteries ② Please install the battery correctly according to the polarity mark when using ③ When the remote control is not used for a long time or the battery is exhausted, please remove the battery to prevent leakage ④ disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion ⑤ leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas ⑥ a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas ⑦ Do not charge non-rechargeable batteries ⑧ Please place the spent battery in the designated disposal area 4 FCC ID:2A77C-RBGC01 FCC Warning 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This device was tested for typical body-worn operations with the head 0mm and 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a appropriate separation distance between the user's body and the back of the device. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Use only the supplied or an approved antenna.

2022-09-16 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Sichuan Changhong Electric Co.,Ltd. / 35 Mianxing East Road, HI-Tech Development Zone, Mianyang City. Dated this 2022-09-16 Agency agreement expiration date: 2022-09-15 By: Jun Liang Signature Printed Title: Sales Manager On behalf of : Sichuan Changhong Electric Co.,Ltd. Telephone: +8619981109929

2022-09-16 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A77C-RBGC01 Product Name: Remote Control Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2022-09-16 By: Jun Liang Signature Printed Title: Sales Manager On behalf of : Sichuan Changhong Electric Co.,Ltd. Telephone: +8619981109929

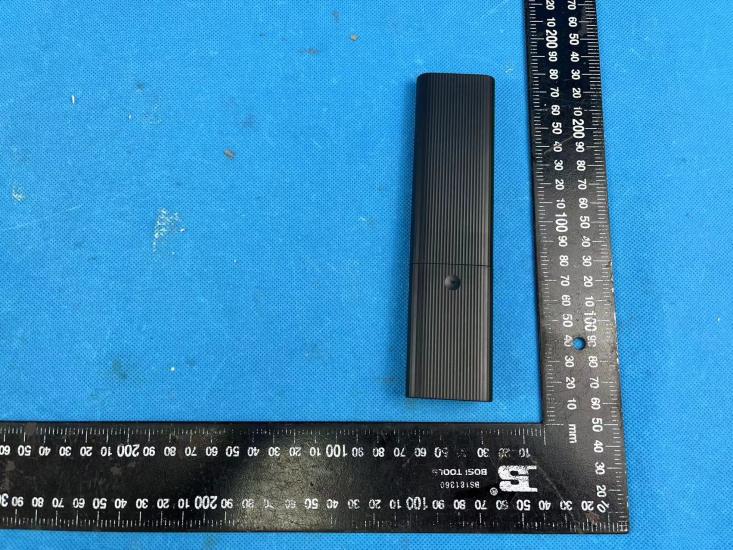

Report No.: CHTEW22090048 Page: 28 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 7. EXTERNAL AND INTERNAL PHOTOS External Photos Report No.: CHTEW22090048 Page: 29 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01)

Report No.: CHTEW22090048 Page: 30 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Internal Photos Report No.: CHTEW22090048 Page: 31 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 8. APPENDIX REPORT

FCC ID: 2A77C-RBGC01 RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 7.5 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable Type Conducted Average Power (dBm) Maximum Tune-up (dBm) Calculating data Limit Result BT BLE -9.00 -9.00 0.04 7.5 Pass Note: 1) The maximum antenna gain is 1.3dBi 2) The exposure evaluation safety distance is 0mm.

Page: 1 of 31 TEST REPORT For Bluetooth-LE Report No. ...................................... : CHTEW22090048 Report Verification: Project No.................................： SHT2207080706EW FCC ID ............................................. : 2A77C-RBGC01 Applicant’s name ........................... : Sichuan Changhong Electric Co.,Ltd. Address ............................................. : 35 Mianxing East Road, HI-Tech Development Zone, Mianyang City Product Name ................................ : Remote Control Trade Mark ....................................... : CHIQ Model No. ......................................... : RBGC01 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Aug.11, 2022 Date of testing.............................: Aug.11, 2022-Sep.12, 2022 Date of issue...............................: Sep.15, 2022 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Fanghui Zhu Supervised by (Position+Printed name+Signature): Project Engineer Weiyang.Xiang Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22090048 Page: 2 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 13 5.4. Power Spectral Density 14 5.5. 6dB bandwidth 15 5.6. 99% Occupied Bandwidth 16 5.7. Duty Cycle 17 5.8. Conducted Band edge and Spurious Emission 18 5.9. Radiated Band edge Emission 19 5.10. Radiated Spurious Emission 21 6. TEST SETUP PHOTOS 26 7. EXTERNAL AND INTERNAL PHOTOS 28 8. APPENDIX REPORT 31 Report No.: CHTEW22090048 Page: 3 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2022-09-15 Original Report No.: CHTEW22090048 Page: 4 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS Xiaoxiao Li 5.2 AC Conducted Emission 15.207 N/A N/A 5.3 Peak Output Power 15.247(b)(3) PASS Xiaoxiao Li 5.4 Power Spectral Density 15.247(e) PASS Xiaoxiao Li 5.5 6dB Bandwidth 15.247(a)(2) PASS Xiaoxiao Li 5.6 99% Occupied Bandwidth - PASS *1 Xiaoxiao Li 5.7 Duty cycle - PASS *1 Xiaoxiao Li 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS Xiaoxiao Li 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Quanhai Deng 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Haoxin Luo Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW22090048 Page: 5 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 3. SUMMARY 3.1. Client Information Applicant: Sichuan Changhong Electric Co.,Ltd. Address: 35 Mianxing East Road, HI-Tech Development Zone, Mianyang City Manufacturer: Sichuan Changhong Electric Co.,Ltd. Address: 35 Mianxing East Road, HI-Tech Development Zone, Mianyang City 3.2. Product Description Main unit information: Product Name: Remote Control Trade Mark: CHIQ Model No.: RBGC01 Listed Model(s): - Power supply: 1.5V*2 AAA from battery Hardware version: V3.0 Software version: V0.0.1 3.3. Radio Specification Description Bluetooth version: V5.1 Support function *2 : BLE Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: Internal Antenna Antenna gain: 1.3dBi Note: *2: only show the RF function associated with this report. Report No…

Text truncated - open the document above for the full version.

Antenna Specification Specifications Antenna Photo & Length Radiation Patterns ITEM SPEC. Model Name CH2.4 GHz MAX. GAIN 1.3 dBi Polarization Horizontal Azimuth Beam Pattern Omni-directional Impedance 50 Ω

Report No.: CHTEW22090048 Page: 26 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 6. TEST SETUP PHOTOS Radiated Emission Report No.: CHTEW22090048 Page: 27 of 31 Date of issue: 2022-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01)
