2A789THP10-B-V2Smart Bluetooth Gateway Pro

Mobile phoneRouterGateway Wi-Fi Product status Wait for distribution network Distribution network successfully Distribution network fails Add Sub-device Indicator status Red indicator flashing Red indicator off Red indicator on Blue indicator flashing Product Instruction manual Smart Bluetooth Gateway Pro Product Description Instructions Product Specifications Smart Bluetooth Gateway Pro Product Name Power input Working Temperature Working Humidity Product Size Wireless Protocol Net Weight Frequency band of radio equipment operation Maximum output power Internet Port 10% to 90% RH (non-condensing) 10/100Mbps Ethernet WiFiBluetooth 90.0 mm x 90.0 mm x 23.0 mm Product Model Packing List 2400MHZ-2483.5MHZ WiFi≤19dBmEIRP BluetoothEIRP -10°C +40 °C THP10-B-V2 Reset button Red WiFi States Indicator Network port Blue Bluetooth States Indicator Power port Smart Bluetooth Gateway Pro x 1Power cable x 1 Net cable x 1Instruction manual x 1 Connect your mobile phone to the Wi-Fi network. Connect your mobile phone and the gateway to the same network to ensure effective connectivity between them. Download and open the App Search for "Smart Life" in the App store or scan the QR code in the manual to download and install the App. Press the "Register" button register an account if this is your first time use; if you already have an account, press the "Login" button. Add Sub-device The sub-device can be added after the gateway is successfully added. Please refer to the instructions on the APP to add the sub-device. Rest network Press and hold the gateway button for more than 5 seconds to reset the device. After the initialization of the device is completed, the device will on distribution network state again, and repeat the steps of [Add Device] Note 1.Please ensure that your phone is connected to the 2.4GHz Wi-Fi network before adding a gateway. 2In order to make the connection more smooth, please try to keep the phone close to the gateway and ensure that the phone and the gateway are in the same Wi-Fi network. 3.If the device fails to be added or is not in the distribution network state after power on, please press and hold the gateway button for more than 5 seconds to reset the device and add it again Hereby, Ningbo Lingzhu Technology CO., Ltd. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU,2011/65/EU. This product must not be disposed of as normal household waste, in accordance with EU directive for waste electrical and electronic equipment (WEEE- 2012/19/EU). Insteadit should be disposed of by returning it to the point of sale, or to a municipal recycling collection point. FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. WAN About 74.5 g 5 V 1 A Smart Bluetooth Gateway Pro is the control center of smart home. Bluetooth and Bluetooth Mesh devices can be interconnected with devices on the TUYA platform through the gateway, and use mobile phones to remotely view or control devices, and it can diverse scene automation and provide users with convenient intelligent experience. Smart LifeApp Add Device Power on the gateway and connect it to the router through the network cable or 2.4G WiFiThe wireless 2.4G WiFi connection mode suggests that the distance between the gateway and the router should be within 6 meters, and there should be no obstacles around. Ensure that red indicators of the gateway are …

Text truncated - open the document above for the full version.

Rev 2/6/2023 Ningbo Lingzhu Technology CO., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 6-21-2023 FCC ID: 2A789THP10-B-V2 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing [Ningbo Lingzhu Technology CO., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing [Ningbo Lingzhu Technology CO., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. Cover List Link: (https://www.fcc.gov/supplychain/coveredlist) Applicant: Ningbo Lingzhu Technology CO., Ltd. Address: No.578,Building 7,No.535 Kangqiao South Road,Jiangbei District,Ningbo,PRC Contact Person: Linyun Li Tel.: 15355487379 Email: [email protected] Sincerely,

Rev 2 Ningbo Lingzhu Technology CO., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2A789THP10-B-V2 Date of Filing to TCB: 6-21-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing [Ningbo Lingzhu Technology CO., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, [Tuya Global Inc] is our designated U.S. agent for service of process for the above referenced FCC ID. [Ningbo Lingzhu Technology CO., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment and will notify the TCB/FCC in a timely manner if the US Processing Agent changes. [Tuya Global Inc.] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Tuya Global Inc. FRN: 0033411059 Address: 3979 Freedom Circle, Suite 340, Santa Clara, CA 95054, USA Contact Person: Eric Shen Tel.: 626-215-3367 Email: [email protected] Sincerely, (Applicant printed name) Linyun Li (Applicant signature) (US Local Agent printed name) Eric Shen (US Local Agent signature)

SCS-F019: Confidentiality Request Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Website: https://www.cps.bureauveritas.com/ Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 Updated References and Contact Info 6.0 7.0 Aug-30-2020 SCS-F019: Confidentiality Request Letter Page 2 of 2 Rev 7.0 Ningbo Lingzhu Technology CO., Ltd. (2023-03-10) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046-1609 Cc: Bureau Veritas Consumer Products Services Inc. 775 Montague Expressway Milpitas, CA 95035 Subject: Confidentiality Request for FCC ID: 2A789THP10-B-V2 Pursuant to CFR 47 sections 0.457 and 0.459, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application be held confidential: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagram Short Term External Photos Short Term Permanent i Internal Photos Short Term Permanent Operational Description/ Theory of Operation Short Term Permanent Parts List Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent i User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: To avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of not to exceed 180 days from the Grant Date The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name & title: Linyun Li, Manager Contact information / address: No.578,Building 7,No.535 Kangqiao South Road,Jiangbei District,Ningbo,PRC i Permanent confidentiality may be requested in accordance with FCC KDB 726920

SCS-F190 WiFi Channel 12&13 Declaration Letter Page 1 of 2 Rev.2.0 Created by William Graff Approved by Bao-Thuong Nguyen WIFI Channel 12 and 13 Declaration Letter Reason for Amendment Revision History Approved Date From To Initial Release (obsolete) Initial 1.0 December 22, 2015 Modify the select options (current) 1.0 2.0 September 23, 2016 SCS-F190 WiFi Channel 12&13 Declaration Letter Page 2 of 2 Rev.2.0 Created by William Graff Approved by Bao-Thuong Nguyen Ningbo Lingzhu Technology CO., Ltd. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2A789THP10-B-V2 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Linyun Li, Manager Signature: Phone: 15355487379 Email: [email protected] Date: 2023-6-21

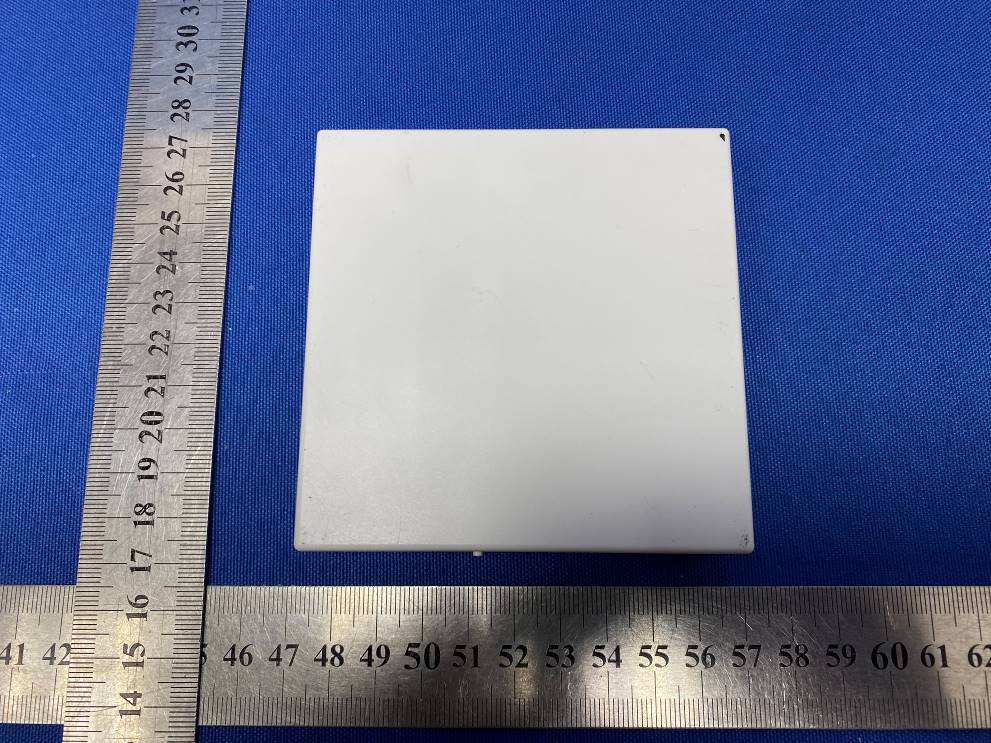

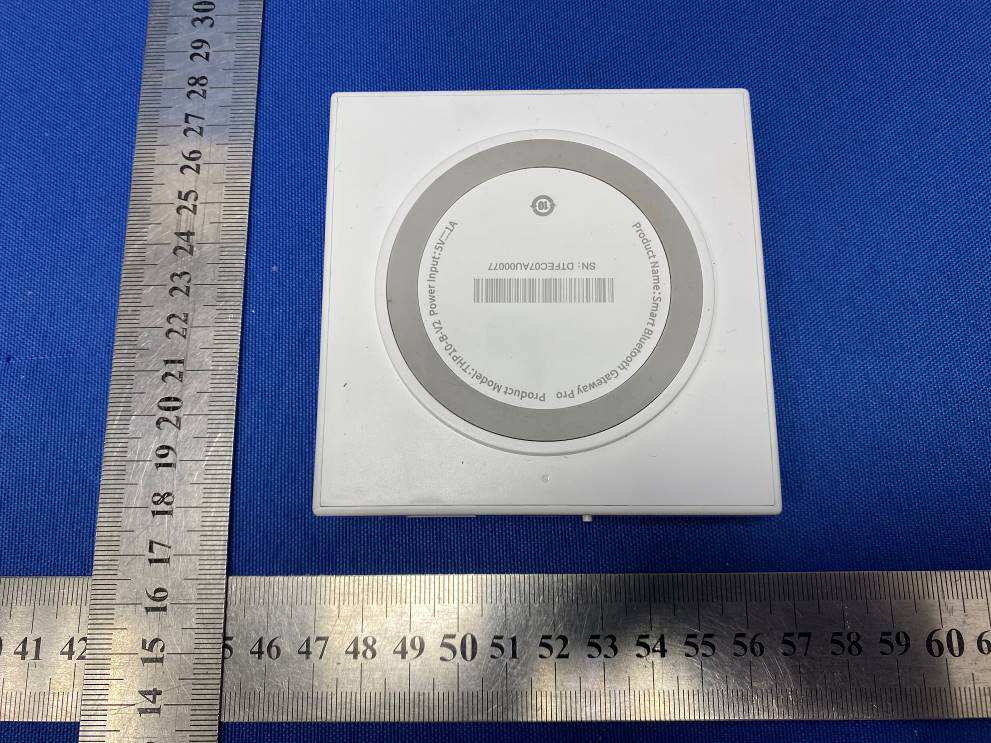

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 5 Report Version A Reference No.: 2304WDG0057 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 5 Report Version A Reference No.: 2304WDG0057 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 5 Report Version A Reference No.: 2304WDG0057 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 5 Report Version A Reference No.: 2304WDG0057 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 5 Report Version A Reference No.: 2304WDG0057

46mm 46.3mm P r o d u c t N a m e ： S m a r t B l u e t o o t h G a t e w a y P r o P r o d u c t M o d e l ： T H P 1 0 - B - V 2 P o w e r I n p u t ： 5 V 1 A N i n g b o L i n g z h u T e c h n o l o g y C O . , L t d . SNZR118061234567 FCC ID2A789THP10-B-V2

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 5 Report Version A Reference No.: 2304WDG0057 PHOTOGRAPHS OF THE EUT BT ANT 2.4G Wi-Fi ANT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 5 Report Version A Reference No.: 2304WDG0057 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 5 Report Version A Reference No.: 2304WDG0057 The antenna is not in use, please ignore. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 5 Report Version A Reference No.: 2304WDG0057 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 5 Report Version A Reference No.: 2304WDG0057

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 7 Report Version 1 Test Report No.: FM2304WDG0057 RF EXPOSURE REPORT Applicant Ningbo Lingzhu Technology CO., Ltd. Address No.578, Building 7, No.535 Kangqiao South Road, Jiangbei District, Ningbo, PRC Manufacturer or Supplier Ningbo Lingzhu Technology CO., Ltd. Address No.578, Building 7, No.535 Kangqiao South Road, Jiangbei District, Ningbo, PRC Product Smart Bluetooth Gateway Pro Brand Name N/A Model THP10-B-V2 Additional Model & Model Difference N/A Date of tests Apr. 24, 2023 ~ Jun. 02, 2023 FCC Part 2 (Section 2.1091) KDB 447498 D01 IEEE C95.1 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Niko Zhang Project Engineer / EMC Department Approved by Glyn He Assistant Manager / EMC Department Date: Jul. 17, 2023 This report is governed by, and incorporates by reference, CPS Conditions of Service as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute you unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 7 Report Version 1 Test Report No.: FM2304WDG0057 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................ 3 1. CERTIFICATION .............................................................................................. 4 2. RF EXPOSURE LIMIT ..................................................................................... 5 3. MPE CALCULATION FORMULA ..................................................................... 5 4. CLASSIFICATION ........................................................................................... 5 5. ANTENNA GAIN .............................................................................................. 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................... 6 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 7 Report Version 1 Test Report No.: FM2304WDG0057 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED FM2304WDG0057 Original release Jul. 17, 2023 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 7 Report Version 1 Test Report No.: FM2304WDG0057 1. CERTIFICATION FCC ID: 2A789THP10-B-V2 PRODUCT: Smart Bluetooth Gateway Pro BRAND NAME: N/A MODEL NO.: THP10-B-V2 ADDITIONAL NO.: N/A TEST SAMPLE: Engineering Sample APPLICANT: Ningbo Lingzhu Technology CO., Ltd. STANDARDS: FCC Part 2 (Section 2.1091) KDB 447498 D01 IEEE C95.1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 7 Report Version 1 Test Report No.: FM2304WDG0057 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 6 of 7 Report Version 1 Test Report No.: FM2304WDG0057 5. ANTENNA GAIN The ant…
