2A78SR2XWOW Robot Vacuum and Mop

XWOW Robot Vacuum and Mop Product Manual Product model: R2 R2-ST Welcome to the world of XWOW 01 WELCOME Keep your home clean and tidy, even in invisible places. 02 Dear customer: Thank you for choosing [XWOW Robot Vacuum and Mop]. Before use, please carefully read and properly save this Product Manual. If you have any questions when using, you can contact us through the following method: Email：zbmarketing＠zbeetle.com You can submit your suggestions or questions through the [Profile-Help and feedback] module in [XWOW] app, and leave your contact information. We will contact you as soon as possible. Note: The illustrations for product, accessory, and user interface in this Product Manual are only for reference. This product is subject to change due to constant product updates. WELCOME 03 CONTENTS 04 Introduction Package list Product details Introduction to operation panel Common issues analysis Cleaning and maintenance Product specifications 05 06 09 14 38 27 42 Product use Special tips First use Introduction to sweeping and mopping functions App introduction and operation 16 17 20 22 24 CONTENTS 05 INTRODUCE 06 Package list Standard accessories Station×1 Clean water tank×1 Sewage tank×1 Cleaning filter×1 Robot×1 Mid brush×1 Mid brush cover plate×1 Dust bin (including: a dust bin filter)×1 Sewage box×1 Small cleaning tool×1 Side bar×1 Accessories Side brush×1 Mop support & mop×1 Mop scraper×1 Others Cleaning brush×1 Power cord×1 INTRODUCE Package list Dust bin (a dust bin filter included)×1 07 Robot | Main body Robot | Accessories Robot×1 Mid brush×1Mid brush cover plate×1 Small cleaning tool×1 Sewage box×1 Side bar×1 INTRODUCE Package list 08 Station | Main body Station×1 Accessories Side brush×1Mop support & mop×1Mop scraper×1 Power cord×1Cleaning brush×1 Station | Accessories Clean water tank×1Sewage tank×1Cleaning filter×1 INTRODUCE Package list 09 Front side of robot Status indicator To p Internal part Robot top cover Small cleaning tool Power button Laser radar Linear laser 3D obstacle avoidance sensor Robot buttons Collision damper Clean water box Clean water box Speaker Linear laser 3D obstacle avoidance sensor Sewage box Sewage box pop-up button Dust bin Air outlet Rear charge sensor Charging contact INTRODUCE Product details 10 Back side of robot Bottom Release button of mid brush cover plate Lift button of mid brush Release button of mid brush cover plate Drive wheel Drive wheel Side brush Mid brush Universal wheel Cliff sensor Carpet detection sensor Side bar INTRODUCE Product details 11 Dust bin components Sewage box components Filter upper cover Release button of dust bin Dust bin removal button Water inlet Sewage box upper cover Filter Dust bin filter Primary filter INTRODUCE Product details 12 Sweeping components Mopping components Mop support Sewage box filter element Mid brush Mid brush cover plate Mop Water injector Release button of mop support Side brush Mop scraper Mop motor INTRODUCE Product details Cable management slot 13 Front side of station Station top cover Clean water tank Sewage tank Operation panel Robot charge button Robot start button Cleaning filter Guide wheel Station bottom shell Back side of station Hand grip INTRODUCE Product details Power socket 14 Robot operation panel Start buttonCharge button Press two buttons simultaneously Status indicator Power button Press and hold for 6 seconds: Turn on/off Press: Start/pause cleaning Press and hold for 3s: Confirm the selection in menu Press: Start/pause charge Press and hold: Partial cleaning Press and hold for 3s： Entering menu 3 seconds：on/off Child lock 6 seconds: Reset Wi-Fi 15 seconds: Restore factory setting Blink dark blue slowly: Working Blink light blue slowly: Pausing Blink red: Error Blink orange slowly: Connecting to network INTRODUCE Introduction to operation panel 15 Station operation panel Start button Charge button Status icon OLED screenAnnular status indicator Press: Start/pause charging Press and hold: Cleaning the base plate Press: Start/pause cleaning INTRODUCE Introduction to operation panel 16 PRODUCT USE 17 Before use, please keep vigilant and pay attention to the followings: When using the product, please carefully read this Product Manual, and keep it properly. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. Be sure to recognize issues that may occur during cleaning as soon as possible. Clean up power cables and small items on the floor to avoid obstruction during the cleaning process. Keep the robot away from the carpet as much as possible. Prevent hanging curtains and tablecloth from touching ground. If there are suspended environments such as stairs, please test whether this product can detect these area edges without falling off. Set up restricted zones/virtual walls at suspended area edges using [XWOW] app to prevent this product from falling off. Please follow the Product Manual to use this product. Only use accessories and cleaning detergent recommended or sold by the manufacturer. Please make sure that the power voltage is in line with the one marked on the station. Before use, make sure that the mop support, mop, dust bin and filtration materials have been installed in place. To avoid danger, any damaged power supply cord must be replaced by the manufacturer repair department or professionals from a designated institution. Before cleaning and maintaining the robot, please turn off this product first. Before cleaning and maintaining the station, make sure that the plug has been removed from the power socket. Before discarding this product, please remove this product from the station, turn off the power switch and remove the battery. Used batteries must be disposed of in accordance with local laws and regulations. If this product is idle for a long time, please power it off. Children under 8 years old or the mentally disturbed are prohibited from using this product. If it is indeed necessary to do so, such users need to use this product under supe…

Text truncated - open the document above for the full version.

QA-FR-170-B Shenzhen ZBeetle Intelligence Co., Ltd. Add:Building 2, Jinlitong Financial Center Tower, No. 1100, Xingye Road, Haiwang Community, Xin'an Street, Bao'an District, Shenzhen, Guangdong China Tel: 15814657029 Email: [email protected] FCC Authorization Date: 2022-10-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Shenzhen ZBeetle Intelligence Co., Ltd., Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Melo Niu Title: Manager 凡 [p ./V : 农

QA-FR -171-A Shenzhen ZBeetle Intelligence Co., Ltd. Add:Building 2, Jinlitong Financial Center Tower, No. 1100, Xingye Road, Haiwang Community, Xin'an Street, Bao'an District, Shenzhen, Guangdong China Tel: 15814657029 Email: [email protected] FCC Confidential Authorization Date:2 022 -10-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2A78SR2 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Shenzhen ZBeetle Intelligence Co., Ltd.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagra m Schematics Operation Description Th e above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Melo Niu Title: Manager 凡 [p ./V : 农 BOM

Shenzhen ZBeetle Intelligence Co., Ltd. Add:Building 2, Jinlitong Financial Center Tower, No. 1100, Xingye Road, Haiwang Community, Xin'an Street, Bao'an District, Shenzhen, Guangdong China Tel: 15814657029 Email: [email protected] DECLARATION OF SIMILARITY Date: 2022-10-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 D ear Sir or Madam: We, Shenzhen ZBeetle Intelligence Co., Ltd., hereby declare that the product:XWOW Robot Vacuum and Mop, FCC ID:2A78SR2. model: R3,R4,R5 are electrically identical with the model: R2 which was tested by China Certification ICT Co., Ltd (Dongguan) with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Melo Niu Title: Manager 凡 [p ./V : 农

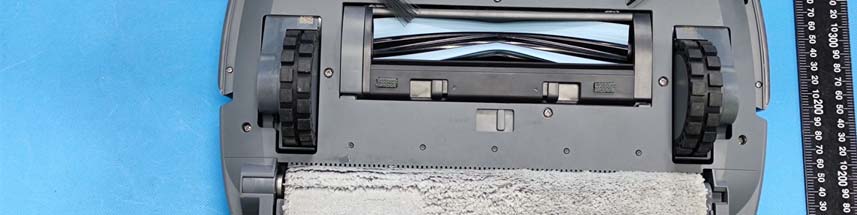

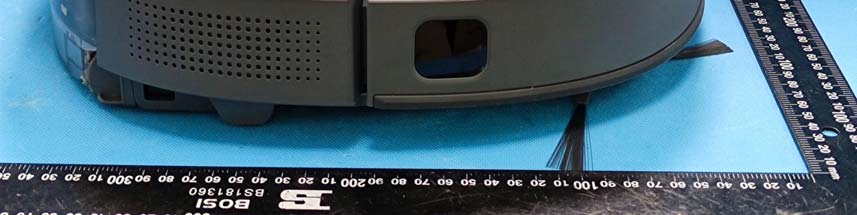

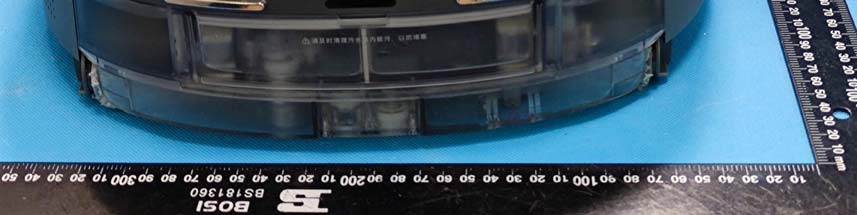

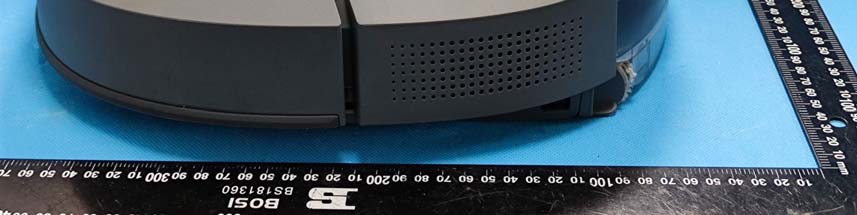

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

Product Name: XWOW Robot Vacuum and Mop Product model: R2 FCC ID: 2A78SR2 Robot rated input: 24V 1.5A 36W Manufacturer: Shenzhen ZBeetle Intelligence Co., Ltd. MADE IN CHINA This product complles with 21CFR 1010.10 and 1040.11 except for deviationspursuant to Laser Notice NO.50, dated June 24,2007. Wavelength:793nm SN﹕ 101ACQXXXXXXXXX

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS WiFi Antenna 433MHz Antenna 433MHz Module WiFi Module

China Certification ICT Co., Ltd (Dongguan) Report No.: CR22070023-00B Page 57 of 57 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.2 Measurement Result Operation Modes Frequency (MHz) λ/2π (mm) Distance (mm) Exemption ERP Maximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP (dBm) ERP (mW) MPE- Based Exemption (mW)(dBm) WLAN 2.4G 2412-2462 19.80 200 768 28.85 16 4 17.85 61 Compliant 433M 433.595 110 200 222 23.46 / / -16.97 0.02 Compliant Note: 433M: Peak Filed strength is 80.38 dBμV/m= -14.82 dBm EIRP (ERP = -16.97dBm) WLAN 2.4G can transmit simultaneously with 433M: = ERP 2.4G /ERP limit-2.4G + ERP 433M /ERP limit-433M =61/768+0.02/222 =0.08 Result: The device compliant the MPE-Based Exemption at 20cm distances. ===== END OF REPORT ====

TEST REPORT Applicant: Shenzhen ZBeetle Intelligence Co., Ltd. Address: Building 2, Jinlitong Financial Center Tower, No. 1100, Xingye Road, Haiwang Community, Xin'an Street, Bao'an District, Shenzhen, Guangdong FCC ID: 2A78SR2 Product Name: XWOW Robot Vacuum and Mop Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR22070023-00B Date Of Issue: 2022-10-08 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR22070023-00B Page 2 of 57 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR22070023-00B Page 3 of 57 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 16 3.3.1 Applicable Standard ..................................................................................................................................... 16 3.3.2 EUT Setup................................…

Text truncated - open the document above for the full version.

密级：一般文件 深圳甲壳虫智能有限公司 物 料 承 认 书 MATERIALFORAPPROVAL 编号：JKC-BD-ISC-001 供应商（代理商） PROVIDER： ： 深圳市盛邦尔科技有限公司 品名规格 DESCRIPTION： 2.4GHZWIFI 模块用FPC 天线200mm 黑色同轴线 线径 1.13mm 带一代端子 品牌（型号）： BRAND（P/N）： 扫地机 3160-170-00222-V01 甲壳虫料号： B151200002 承认版本：A0变更内容： 图纸版本：A0变更内容： 承认类别： APPROVAL TYPE: A.新物料B.替代物料C.临时样D.版本升级 送样日期：DATE 2021-11-29 供应商会签 结构/电子品质批准 甲壳虫承 认 栏 会签 确认 结构□ID□包装□硬件□品质□ 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD 承认书 SPECIFICATION FOR APPROVAL 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城 B25 栋 2 楼 TEL：0755-82790675FAX：0755-82809726 SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. www.surbaner.com.cn 长胜电子审批/Surbaner Approval客户批准/Customer Approval 制作 Prepared By 审核 Checked By 批准 Approval By 审核 Checked By 批准 Approval By 签章 Signature 刘胜荣 日期 Date 2021.11.29 修订履历/Change Log 版本 Version 修订内容 Change Description 责任人 Person in Charge 核准 Approval By 日期 Date 客户名称 Customer Name 甲壳虫 客户项目名 Customer Project Name 扫地机 盛邦尔项目名 Surbaner Project Name 扫地机 客户编码 Customer P/N B151200002 盛邦尔料号 Surbaner P/N 3160-170-00222-V01 频段 Band 2400-2500MHz 版本号 Version A0 设计人信息/Designer Information 射频工程师 RF Engineer 周洪亮 研发主管 R&D Diretor 周洪亮 结构工程师 ME Engineer 邹荣凯 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD 目录/Catalogue 序号 No. 项目 Item 页码 Page No. 1 图纸或实物图片 Drawing or Product Image 4 2 尺寸测量报告 Dimensions Test Report 5 3 射频性能测试报告 RF Performance Test Report 6-8 4 可靠性测试报告 Reliability Test Report1 9 5 包装文件 Package Document 10 6 环境有害物质管控一览表 RoHS Control list for Sample 11 7 安装事宜或其它 Install Wizard or Other 11 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城 B25 栋 2 楼 TEL：0755-82790675FAX：0755-82809726 SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. www.surbaner.com.cn 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD 产品图纸或实物图片 Drawing or Product Image 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城 B25 栋 2 楼 TEL：0755-82790675FAX：0755-82809726 SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. www.surbaner.com.cn 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD 样品尺寸测量报告 Sample Dimensions Test Report 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城 B25 栋 2 楼 TEL：0755-82790675FAX：0755-82809726 SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. www.surbaner.com.cn 客户名称 Customer Name 甲壳虫 客户料号 Customer P/N B151200002 盛邦尔料号 Surbaner P/N 3160-170-00222-V01 测试日期 Test Date 2021/11/29 样品数量 Sample Qty. 3 测试人 Inspector 曾心荣 尺寸编号 Dimension No. 标准 Standard 样品 1 Sample 1 样品 2 Sample 2 样品 3 Sample 3 Pass/NG ①长度34.4±0.2mm34.4234.4334.45 Pass ②宽度10.3±0.2mm10.3110.3210.33 Pass ③厚度0.12±0.05mm0.1210.1220.125 Pass ④线长200±3mm200.03200.05200.11 Pass ⑤ ⑥ ⑦ 最终结论 Conclusion PASS 测试人&日期 Inspector & Date 曾心荣2021/11/29 批准&日期 Approval &D ate 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD 射频性能测量报告 RF Performance Test Report 客户名称 Customer Name 甲壳虫 项目名称 Project Name 扫地机 盛邦尔料号 Surbaner P/N 3160-170-00222-V01 频段 Band 2400-2500MHz 测试日期 Test Date 2021/7/14 测试人 Inspector 周洪亮 天线测试设备简介 Antenna Test Equipment Introduction 测试天线输入特性使用 Agilent E5071C and Agilent 5062A 矢量网络分析仪；辐射特性利 用 Satimo 三维近场暗室进行测试，并分别使用 8960 E5515 和 Agilent E4438C 进行了分析。暗房的 测试坐标如下: Test of antenna input characteristics using Agilent E5071C and Agilent 5062A vector network analyzer; The radiation pattern of the antenna are tested using the Satimo starlab 3D near field Anechoic Chamber, and the instrument is used to agilent8960 E5515 and Agilent E4438C. The test coordinates of the darkroom are as follows: 1. S11 参数测量/Passive S11 parameter 使用一根 50Ω同轴电缆连接到天线，然后该电缆连接到网络分析仪测量 S11 参数，被测量产品远离金属至少 20 厘米。 Measuring Methodis a 50Ωcoaxial cable is connected to the antenna. Then this cable is connected to a network analyzer to measure the S11 parameter, Keeping this fixture away from metal at least 20cm. 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城 B25 栋 2 楼 TEL：0755-82790675FAX：0755-82809726 SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. www.surbaner.com.cn 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD S11 Parameter-VSWR-2.4GHZ 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城 B25 栋 2 楼 TEL：0755-82790675FAX：0755-82809726 SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. www.surbaner.com.cn 4.32D Pattern-WIFI 4. TestResult 9 4.32D Pattern-WIFI 4. TestResult 9 4.32D Pattern-WIFI 4. TestResult 9 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD 3. Test Result 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城 B25 栋 2 楼 TEL：0755-82790675FAX：0755-82809726 SBR Communication has possession of proprietary information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. www.surbaner.com.cn 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD 可靠性测试报告 Reliability Test Report 客户名称 Customer Name 甲壳虫 客户料号 Customer P/N B151200002 盛邦尔料号 Surbaner P/N 3160-170-00222-V01 测试日期 Test Date 2021/11/27 样品数量 Sample Qty. 3 测试人 Inspector 何春辉 测试项目 Test Item 要求 Requirement 试验设备 testing equipment 样品 1 Sample 1 样品 2 Sample 2 样品 3 Sample…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
