2A7A2-S1PORTABLE TDD BTS

Cognyte Software LP
PORTABLE TDD BTS - FCC ID 2A7A2-S1 - Cognyte Software LP
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Oct 06, 2022
Application Purpose
Original Equipment
Date of Application
Sep 28, 2022
Equipment Note
PORTABLE TDD BTS
Frequency Range
2506.00000000 - 2680.00000000
Company
Cognyte Software LP
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FalcoNet Series 1 Module User Guide Revision 1.2, September 2022 © 2021, 2022 Cognyte Software Ltd. All Rights Reserved Worldwide. Confidential and Proprietary Information of Cognyte Software Ltd. All materials (regardless of form and including, without limitation, software applications, documentation, and any other information relating to Cognyte, its products or services) are the exclusive property of Cognyte Software Ltd Only expressly authorized individuals under obligations of confidentiality are permitted to review materials in this document. By reviewing these materials, you agree to not disclose these materials to any third party unless expressly authorized by Cognyte, and to protect the materials as confidential and trade secret information. Any unauthorized review, retransmission, dissemination or other use of these materials is strictly prohibited. If you are not authorized to review these materials, please return these materials (and any copies) from where they were obtained. All materials found herein are provided “AS IS” and without warranty of any kind. Cognyte Software Ltd does not warrant, guarantee or make any representation regarding the use or the results of the use of the information, links, tools, and materials in terms of the accuracy, reliability, quality, validity, stability, completeness, correctness, or otherwise of its content or products. The entire risk as to the use, results and performance of information, links, tools and materials provided or referenced herein is assumed by the user. Cognyte Software Ltd shall not be liable for damages resulting from the use, misuse or unlawful use of the information, links, tools, and materials contained or referenced herein. Any third party technology that may be appropriate or necessary for use with the Cognyte Product is licensed to you only for use with the Cognyte Product under the terms of the third party license agreement specified in the Documentation, the Software or as provided online at www.cognyte.com/thirdpartylicense. You may not take any action that would separate the third party technology from the Cognyte Product. Unless otherwise permitted under the terms of the third party license agreement, you agree to only use the third party technology in conjunction with the Cognyte Product. The Cognyte Software Ltd products are protected by one or more U.S., European or International Patents and other U.S. and International Patents and Patents Pending. All marks referenced herein with the ® or TM symbol are registered trademarks or trademarks of Cognyte Software Ltd or its subsidiaries. All rights reserved. All other marks are trademarks of their respective owners. Please visit our website at www.cognyte.com/intellectualpropertynotice for updated information on Cognyte Intellectual Property. TDD Hardware Guide Page a Table of Contents 1 INTRODUCTION ..................................................................................................................... 2 2 SERIES 1 MODULE OVERVIEW ................................................................................................. 3 3 HARDWARE CONFIGURATION ................................................................................................ 4 Interfaces ............................................................................................................................................................ 4 4 SOLUTIONS ............................................................................................................................ 6 Antenna solution................................................................................................................................................. 7 5 RF EXPOSURE INFORMATION ................................................................................................. 9 6 FCC INFORMATION .............................................................................................................. 10 Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information ............................................. 10 FCC Compliance statement subject to Part 15.105 .......................................................................................... 10 Series 1 User Guide Page 2 1 Introduction This document is designed to provide the user with hardware information on the FalcoNet Series 1 box solution. Series 1 User Guide Page 3 2 Series 1 Module Overview The Series 1 Module solution is an LTE base station. Basic Specifications + Length – 563mm + Width – 200mm + Height – 86mm + Weight: Approx. 5Kg + Target output power on unit connector – 33 dBm (+/-1) Electrical Specifications Power Input + 36V for Vehicle solution - provided from DC APM + 24V for Desktop solution – provided from AC-DC power supply Consumption + 152W Typical + 380W Max Supported LTE bands Band Frequency Band 41 (TDD 2500) 2496-2690 MHz Series 1 User Guide Page 4 3 Hardware Configuration Interfaces No. Interface Designation Description 1 Power IN From PSU/APM 4 way Amphenol Connector 2 TX/RX To Ext Omni/Directional Antenna QN-type Connector 3 LAN To Laptop or FalcoNet Standard RJ45 socket 4 LAN To Laptop or FalcoNet Standard RJ45 socket 5 GPS To External GPS Antenna Standard SMA Female 6 CLOCK Not connected Standard SMA Female 7 1PPS Not connected Standard SMA Female 8 ON/OFF Switch System ON/OFF Push Button with LED Series 1 User Guide Page 5 Back view Front view Series 1 User Guide Page 6 4 Solutions There are two design solutions: 1. Standalone – for desktop solution 2. Rack mounted – for vehicle solution Standalone Series 1 User Guide Page 7 Rack mounted Antenna solution Series 1 module can be configured for two solutions 1. Directional Antenna on tripod 2. Omnidirectional Antenna – for vehicle installation Directional Antenna on tripod + Freq. Range - 698-960MHz, 1710-2700MHz + Gain - 6-9 dBi + Impedance - 50Ohm + Max. Input Power - 100 Watts + Polarisation - Vertical Series 1 Module Series 2 Module AP…

Text truncated - open the document above for the full version.

External Photos

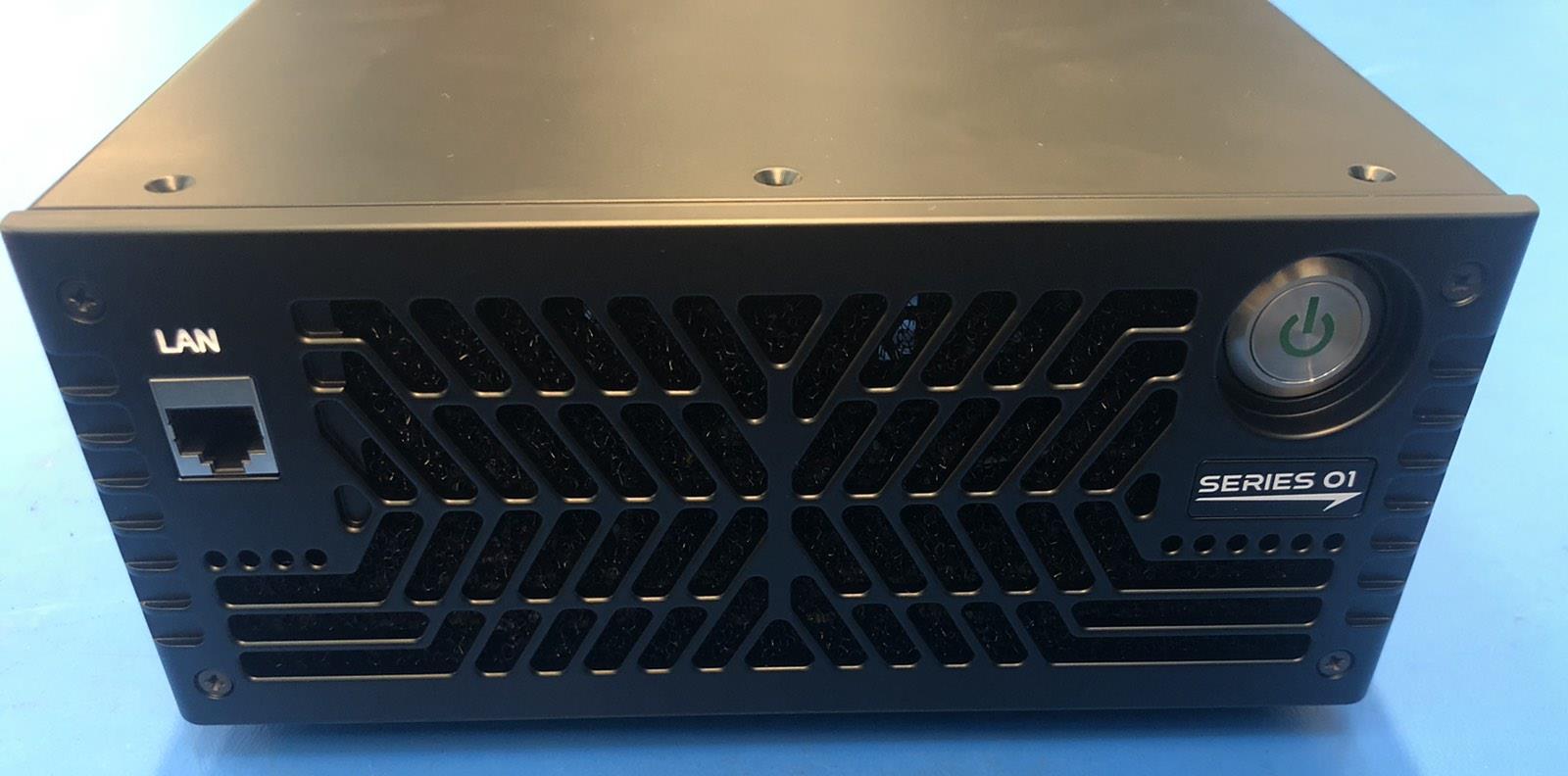

Series01 External Photos Front Panel Rear Panel

ID Label/Location Info

Series01 - FCC Labels Location FCC ID Front Panel FCC Labels location FCC Compliance

RF Exposure Info

RF EXPOSURE REPORT Report Number: 14144423-E2V2 Applicant : COGNYTE SOFTWARE LP 35 PINELAWN ROAD, SUITE 204 MELVILLE, NEW YORK 11747 USA Model : Series01 Box FCC ID : 2A7A2-S1 EUT Description : PORTABLE TDD BTS Test Standard(s) : FCC Part 1 Subpart I FCC Part 2 Subpart J Date Of Issue: 2022-09-22 Prepared by: UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538 U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14144423-E2V2 DATE: 2022-09-22 EUT Model:Series01 Box FCC ID:2A7A2-S1 Page 2 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of. UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 2022-09-20 - V2 2022-09-22 Updated Section 6 K.Kedida REPORT NO: 14144423-E2V2 DATE: 2022-09-22 EUT Model:Series01 Box FCC ID:2A7A2-S1 Page 3 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of. UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. EQUATIONS ................................................................................................................ 7 6. RF EXPOSURE RESULTS ................................................................................................. 9 REPORT NO: 14144423-E2V2 DATE: 2022-09-22 EUT Model:Series01 Box FCC ID:2A7A2-S1 Page 4 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of. UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: COGNYTE SOFTWARE LP 35 PINELAWN ROAD, SUITE 204 MELVILLE, NEW YORK 11747 USA EUT DESCRIPTION: PORTABLE TDD BTS MODEL: Series01 Box APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Complies UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by A2LA, NIST, any agency of the Federal Government, or any agency of the U.S. government. Approved & Released For UL Verification Services Inc. By: Calculated By: Dan Coronia Kiya Kedida Operations Leader Senior Project Engineer Consumer Technology Division Consumer Technology Division UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 14144423-E2V2 DATE: 2022-09-22 EUT Model:Series01 Box FCC ID:2A7A2-S1 Page 5 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of. UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01. 3. REFERENCES All measurements were made as documented in test reports UL Verification Services. Documents 14144423-E1. Output power, Duty cycle and Antenna gain data is excerpted from the applicable test reports. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 and 47658 Kato Road, Fremont, California, USA. UL Verification Services Inc. is accredited by A2LA, Certificate Number #0751.05, for all testing performed within the scope of this report. REPORT NO: 14144423-E2V2 DATE: 2022-09-22 EUT Model:Series01 Box FCC ID:2A7A2-S1 Page 6 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of. UL Verification Services Inc. 5. MAXIMUM PERMISSIBLE RF EXPOSURE 5.1. FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT Report Number: 14144423-E1V4 Applicant : COGNYTE SOFTWARE LP 35 PINELAWN ROAD, SUITE 204 MELVILLE, NEW YORK 11747 USA Model : Series01 Box FCC ID : 2A7A2-S1 EUT Description : PORTABLE TDD BTS Test Standard(s) : FCC CFR 47 Part 27 Date Of Issue: 2022-09-30 Prepared by: UL LLC 47173 Benicia Street Fremont, CA 94538, U.S.A. TEL: (510) 319-4000 FAX: (510) 661-0888 REPORT NO: 14144423-E1V4 DATE: 2022-09-30 EUT MODEL: Series01 Box FCC ID: 2A7A2-S1 Page 2 of 45 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 2022-09-13 Initial Review -- V2 2022-09-20 Updated Section 2 and 9.1 K.Kedida V3 2022-09-22 Updated Section 2 and 9.2.1 K.Kedida V4 2022-09-30 Updated Section 10.1.1 and 10.2.1 K.Kedida REPORT NO: 14144423-E1V4 DATE: 2022-09-30 EUT MODEL: Series01 Box FCC ID: 2A7A2-S1 Page 3 of 45 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ......................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................................................... 6 3. TEST METHODOLOGY ............................................................................................................................. 7 4. FACILITIES AND ACCREDITATION ......................................................................................................... 7 5. DECISION RULES AND MEASUREMENT UNCERTAINTY...................................................................... 8 METROLOGICAL TRACEABILITY ...................................................................................................... 8 DECISION RULES .............................................................................................................................. 8 MEASUREMENT UNCERTAINTY ...................................................................................................... 8 SAMPLE CALCULATION .................................................................................................................... 8 6. EQUIPMENT UNDER TEST ...................................................................................................................... 9 DESCRIPTION OF EUT ...................................................................................................................... 9 MAXIMUM OUTPUT POWER ............................................................................................................. 9 SOFTWARE AND FIRMWARE ......................................................................................................... 10 MAXIMUM ANTENNA GAIN ............................................................................................................. 11 WORST-CASE CONFIGURATION AND MODE ............................................................................... 12 DESCRIPTION OF TEST SETUP ..................................................................................................... 13 7. TEST AND MEASUREMENT EQUIPMENT ............................................................................................. 15 8. RF OUTPUT POWER VERIFICATION ..................................................................................................... 16 LTE BAND 41 .................................................................................................................................... 18 9. CONDUCTED TEST RESULTS ............................................................................................................... 19 OCCUPIED BANDWIDTH ................................................................................................................. 19 LTE BAND 41 ............................................................................................................................. 21 EMISSION MASK AND ADJACENT CHANNEL POWER.................................................................. 22 LTE BAND 41 EMISSION MASK................................................................................................ 23 OUT OF BAND EMISSIONS ............................................................................................................. 25 LTE BAND 41 (FCC) .................................................................................................................. 26 FREQUENCY STABILITY ................................................................................................................. 28 LTE BAND 41 ............................................................................................................................. 29 PEAK-TO-AVERAGE POWER RATIO .............................................................................................. 30 LTE BAND 41 ............................................................................................................................. 31 REPORT NO: 14144423-E1V4 DATE: 2022-09-30 EUT MODEL: Series01 Box FCC ID: 2A7A2-S1 Page 4 of 45 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10. RADIATED TEST RESULTS ................................................................................................................ 32 FIELD STRENGTH OF SPURIOUS RADIATION, ABOVE 1GHz ...................................................... 32 LTE BAND 41 ........................…

Text truncated - open the document above for the full version.

Test Setup Photos

REPORT NO: 14144423-E1V4 DATE: 2022-09-30 EUT MODEL: Series01 Box FCC ID: 2A7A2-S1 Page 44 of 45 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FREQUENCY TOLERANCE OVER EXTREME CONDITIONS REPORT NO: 14144423-E1V4 DATE: 2022-09-30 EUT MODEL: Series01 Box FCC ID: 2A7A2-S1 Page 45 of 45 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP ABOVE 1GHz (FRONT PHOTO) ABOVE 1GHz (BACK PHOTO) BELOW 1GHz (FRONT PHOTO) BELOW 1GHz (BACK PHOTO) END OF REPORT

Contact Information

Applicant

Noa Levinson
[email protected]7049810890Fax: 2027197049

Technical Contact

UL Verification Services IncAna Aumentado
[email protected]5103194007

47173 Benicia St · Fremont · United States

Test Firm

UL Verification Services Inc.Jay Kogoma
[email protected]510 319 4135

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
1272.51 GHz - 2.68 GHz1.74 W17M9W7W2.5000000000 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is conducted power. Professional installation required. This transmitter must be installed to provide a separation distance of at least 39.86 cm from all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product guidelines. The grantee must provide installers and operators, with installation and operating instructions for satisfying FCC multi-transmitter product guidelines. This device supports LTE 20 MHz bandwidth modes. Maximum Antenna gain the product incorporates 10 dBi.
