2A7AONS1-4H-3MPWWireless Camera System

PWR HDD NET Statement Thank you for purchasing our product! This quick user guide will talk about main usages of the product.More information can be found on our website and the help center. This user guide may contain inaccurate content due to hardware and software upgrade.It is subject to change without previous notice. Safety Caution Please do not put any fluid container on the product.Please use the product in ventilated environment and prevent blocking the vents.Please use included power supply with the product to prevent damage to the product.Please use the product under its standard working temperature and humidity.(advised in this manual or distributor’s website)Dust on PCB may cause short circuit.It is suggested to clean the dust on PCB timely to make the product work properly.Please obey the regulation and policy in your country and area during the installation of this. NVR IPC Wireless Mini NVR kit manual 123456 < Antenna port: Dual antennas expand the WIFI range; WAN port: Connect the NVR to the Internet; TF card slot: TF card interface; HDMI interface: Connect to high-definition TV; USB port: Connect mouse and U disk; 1 2 3 5 4 6 7 Power supply: DC power input (12V 2A); RESET: Press and hold for 3 seconds to reset (clear the password, network and other settings, do not clear the camera channel, release the button and restart to take effect), continue to press the reset button for 10 seconds to reset all (clear the password, including all settings such as camera channels and so on); White light/IR light Indicator light Button/SD card slot /USB charging port 1 7 8 6 3 MIC Antenna 9 5 10 Base Human InfraredSensor (PIR) Speaker Lens 4 Connect the system as shown in the steps below System wiring diagram System connection and installation IP Camera TV or Monitor NVR Power Mouse USB Interface DC 12V USB WAN RST TF HDMI CONNECT TO ROUTER HDMI Output 1 2 3 4 5 Open the hard disk cover on the back of the chassis and remove the cover. Align the hard disk socket with the wiring port on the NVR, insert the hard disk, and pay attention to the direction of the hard disk. Align the hard disk with the hard disk socket and push it to the left to fix the hard disk. Close the hard disk cover. Insert one end of the HDMI cable into the HDMI port of the NVR rear panel, and the other end into the HDMI port of the TV or monitor;Insert the USB mouse into the USB port on the NVR rear panel;Connect one end of the network cable to the WAN network interface of the NVR rear panel, and the other end to the home router or network access point;Connect the power adapter connector to the power socket on the NVR rear panel, and then insert the adapter into the surge protector or uninterruptible power supply (UPS); make sure that the surge protector or uninterruptible power supply (UPS) switch is ON, After a few moments, the NVR splash screen will appear on the screen;Press and hold the power button of the camera for 2 seconds to turn it on. 1 1 2 2 3 3 4 4 5 Button operation for Two-button model: Press and hold the on off button for 2s when shutting down: Turn on Press and hold the on off button for 2s when powering on: Power off Press and hold the reset button for 3s: Reset Green light flashes continuously: Upgrading Green light flashes continuously and slowly: Charging Red light flashes 3 times quickly: Power off Red light is always on: Low battery The traffic light is always off: In standby The instructions of LED light : Green light flashes for 2s and goes out: The device is powered on and connecting to the networkGreen light + red light is always on: The camera is being previewed remotely (privacy light)Green light is always on: The device is connected to the network or awakened Front of hard drive PWR HDD NET Hard disk installation Configure WNVR on TV or Monitor After powering on, please follow the steps of the setup wizard to complete the settings of language, network, time, view real-time screen, password, hard disk and download APP and device. If you see the prompt "Network status is good!" in the network setup wizard interface, it means your recorder has successfully connected to the Internet.(Tips: If there is no Internet near your video recorder device, you can also choose to use it without connecting to the Internet. This method will make it impossible to use the mobile APP to watch the video from a long distance.) Menu bar Right-click and you'll go to the main menu, right-click again to exit the menu or go back. Split screen selection: Change the view state, you can choose to view multiple or single cameras.Video playback: Enter the video playback interface to play the recorded video.Camera Settings: View the settings related to the added camera. System Settings: Manage all system settings. Channel Sort: Adjust the camera channel sorting order. Device Diagnosis: Diagnose camera status, signal and firmware version. Network Settings: View your device's network connection. Exit the system: logout, restart, shutdown functions. System Settings Channel Toolbar Right click on the mouse select System Settings: You can modify system -related settings. General settings: Set language, display resolution, audio volume and view firmware information. Camera settings: All camera settings, alarm settings, recording settings. Date/Time: Set device time, date and time zone information. Network settings: Network connection to router settings, wireless channel settings. Device Diagnosis: Device and added camera status detection and diagnosis. Storage settings: View hard disk or TFcard information and format. Move the left mouse button to the corresponding channel, and the toolbar at the bottom of the pop-up channel will be activated. Click the corresponding icon to enable the corresponding function settings. From left to right: Audio output switch button, camera light control and color adjustment button, PTZ control button, talkback button, channel full-screen playback button. 3 Recording settings Right click on …

Text truncated - open the document above for the full version.

ShenZhen Yuanfang Technology Development Co., Ltd Agent Authorization Company: ShenZhen Yuanfang Technology Development Co., Ltd Ltd.Address: 2nd Floor, No. 18, Heping Industrial Park, Heping Road, Yucui Community, Longhua Street, Longhua District, Shenzhen Product Name: Wireless Camera System Model Number(s): NS1-4H-3MPW NS1-8H-3MPW, NK1-4H-2MPW, NK1-8H-2MPW, NK2-4H-5MP, NK2-8H-5MP, NK3-4H-5MP, NK3-8H-5MP, NK4-4H-3MPW, NK4-8H-3MPW, NK5-4H-3MPW, NK5-8H-3MPW, NK6-4H-3MPW, NK7-8H-3MPW, NK7-4H-3MPW, NK6-8H- 3MPW, NK8-4H-3MPW, NK8-8H-3MPW, NK9-4H-3MPW, NK9-8H-3MPW, NK10-4H-3MPW, NK10-8H-3MPW Product Description: Wireless Camera System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-13 Name: peter wang Title: Certification Engineer Company: ShenZhen Yuanfang Technology Development Co., Ltd

ShenZhen Yuanfang Technology Development Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/06/13 Subject; Request for Confidentiality FCC ID: 2A7AONS1-4H-3MPW To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: peter wang Title: Certification Engineer

ShenZhen Yuanfang Technology Development Co., Ltd Model Difference Data：2022.06.13 Product description: Wireless Camera System Model name: NS1-4H-3MPW NS1-8H-3MPW, NK1-4H-2MPW, NK1-8H-2MPW, NK2-4H-5MP, NK2-8H-5MP, NK3-4H-5MP, NK3-8H-5MP, NK4-4H-3MPW, NK4-8H-3MPW, NK5-4H-3MPW, NK5-8H-3MPW, NK6-4H-3MPW, NK7-8H-3MPW, NK7-4H-3MPW, NK6-8H- 3MPW, NK8-4H-3MPW, NK8-8H-3MPW, NK9-4H-3MPW, NK9-8H-3MPW, NK10-4H-3MPW, NK10-8H-3MPW Trade Name: N/A FCC ID: 2A7AONS1-4H-3MPW All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : peter wang (Certification Engineer) Contact information / address: 2nd Floor, No. 18, Heping Industrial Park, Heping Road, Yucui Community, Longhua Street, Longhua District, Shenzhen

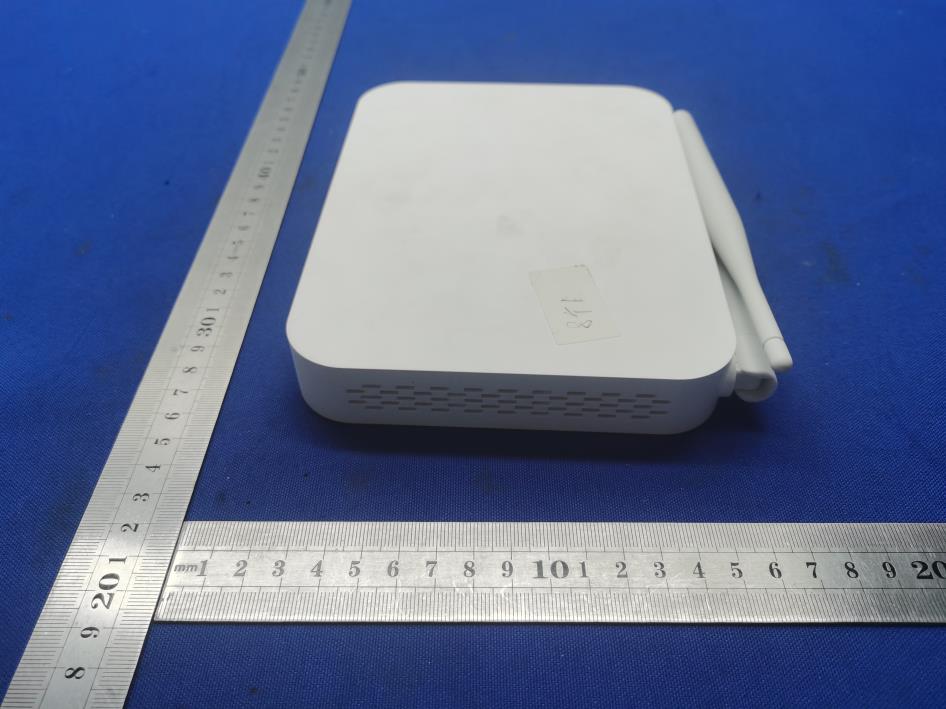

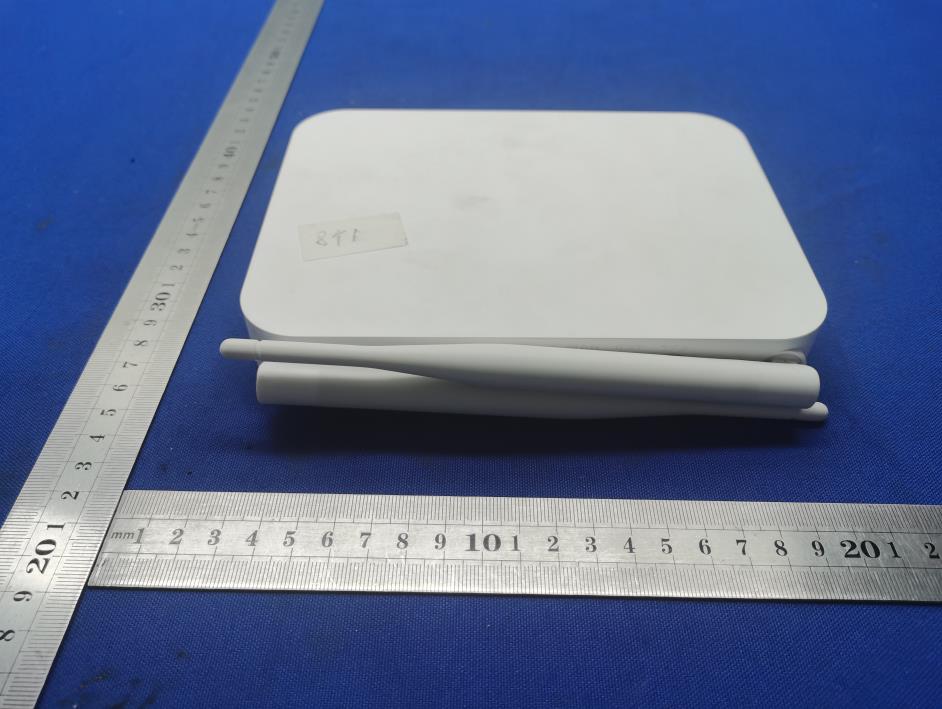

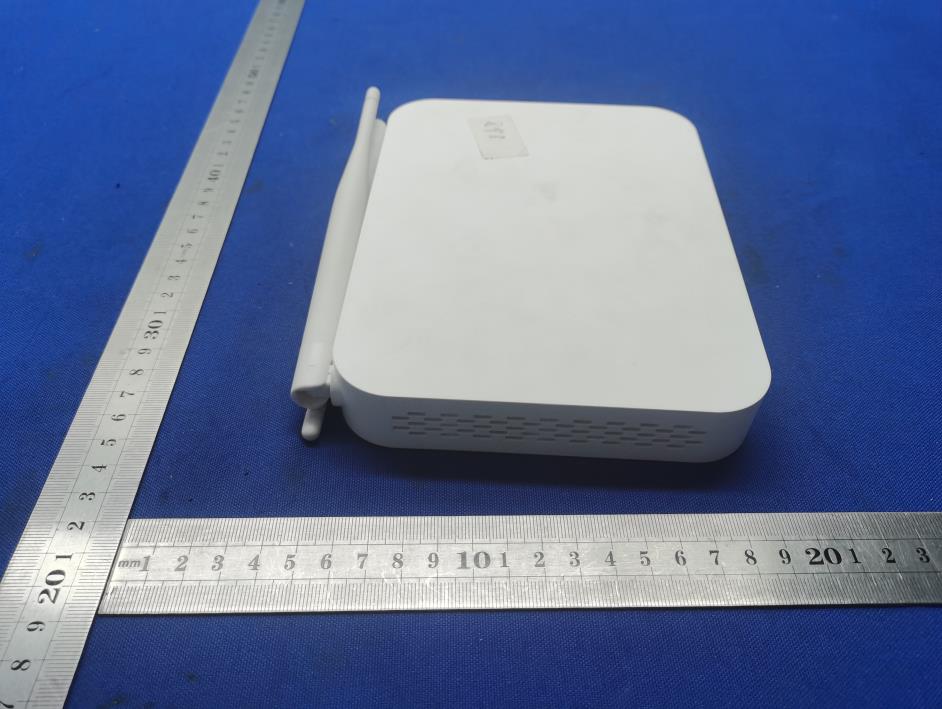

External Photos

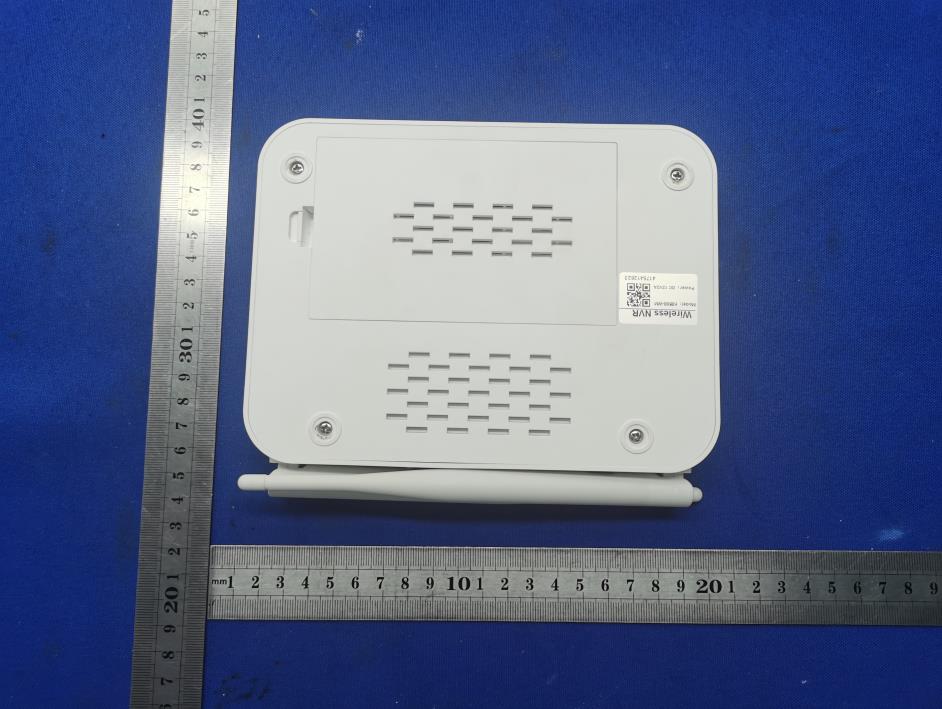

Model: NS1-4H-3MPW FCC ID: 2A7AONS1-4H-3MPW Label Location

Internal Photos ANT 2 ANT 1 ANT 3

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A7AONS1-4H-3MPW Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result ANT1 2.4G WIFI 802.11b HCH 8±1 9 7.943 1.259 (1dBi) 0.00199 1 Pass ANT2 2.4G WIFI 802.11b LCH 8±1 9 7.943 1.259 (1dBi) 0.00199 1 Pass ANT3 2.4G WIFI 802.11b MCH 8±1 9 7.943 1.259 (1dBi) 0.00199 1 Pass Tech nolo gy Modes& Channel Freq. (MHz) Tune up Produce power(dBm) ANT 1 ANT 2 Maximum Tune-up (dBm) ANT 1 ANT 2 Antenna Gain(ANT 1/ANT 2) (numeric) ∑MPE Ratio ∑ MPE Ratio Limit Result 2.4G WIFI MIM O 802.11n(HT20)& LCH 9±1 10 ANT1: 1.259 (1dBi) ANT2: 1.259 (1dBi) 0.0025 6 1 Pass

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220606025RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 99 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Camera System FCC ID: 2A7AONS1-4H-3MPW Trademark: N/A Model Number: NS1-4H-3MPW, NS1-8H-3MPW, NK1-4H-2MPW, NK1-8H-2MPW, NK2-4H-5MP, NK2-8H-5MP,NK3-4H-5MP, NK3-8H-5MP, NK4-4H-3MPW, NK4-8H-3MPW, NK5-4H-3MPW, NK5-8H-3MPW, NK6-4H-3MPW, NK7-8H-3MPW, NK7-4H-3MPW, NK6-8H-3MPW, NK8-4H-3MPW, NK8-8H-3MPW, NK9-4H-3MPW, NK9-8H-3MPW, NK10-4H-3MPW, NK10-8H-3MPW Prepared For: ShenZhen Yuanfang Technology Development Co., Ltd Address: 2nd Floor, No. 18, Heping Industrial Park, Heping Road, Yucui Community, Longhua Street, Longhua District, Shenzhen Manufacturer: ShenZhen Yuanfang Technology Development Co., Ltd Address: 2nd Floor, No. 18, Heping Industrial Park, Heping Road, Yucui Community, Longhua Street, Longhua District, Shenzhen Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Jun. 02, 2022 Sample tested Date: Jun. 02, 2022 to Jun. 09, 2022 Issue Date: Jun. 09, 2022 Report No.: CTB220606025RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is WIFI-2.4GHz band radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220606025RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 99 TABLE OF CONTENT Test Report Declaration Page 1. VERSION............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ........................... 7 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 8 4.4 Channel List ........................................................... 8 4.5 Test Mode ............................................................. 8 4.6 Test Environment ....................................................... 9 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 10 5.1 Test Facility ........................................................... 10 5.2 Test Instrument Used .................................................. 10 6. AC POWER LINE CONDUCTED EMISSION .............................. 12 6.1 Block Diagram Of Test Setup............................................ 12 6.2 Limit ................................................................. 12 6.3 Test procedure ........................................................ 12 6.4 Test Result ........................................................... 14 7. RADIATED SPURIOUS EMISSION ..................................... 16 7.1 Block Diagram Of Test Setup............................................ 16 7.2 Limit ................................................................. 16 7.3 Test procedure ........................................................ 17 7.4 Test Result ........................................................... 18 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............ 40 8.1 Block Diagram Of Test Setup............................................ 40 8.2 Limit ................................................................. 40 8.3 Test procedure ........................................................ 40 8.4 Test Result ........................................................... 41 9. COUDUCTED OUTPUT POWER....................................... 65 9.1 Block Diagram Of Test Setup............................................ 65 9.2 Limit ................................................................. 65 9.3 Test procedure ........................................................ 65 9.4 Test Result ........................................................... 66 10. 6DB OCCUPIED BANDWIDTH ........................................ 67 10.1 Block Diagram Of Test Setup .......................................... 67 10.2 Limit ................................................................ 67 10.3 Test procedure ....................................................... 67 10.4 Test Result .......................................................... 68 11. POWER SPECTRAL DENSITY ........................................ 82 11.1 Block Diagram Of Test Setup .......................................... 82 11.2 Limit ................................................................ 82 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220606025RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 99 11.3 Test procedure ....................................................... 82 11.4 Test Result .......................................................... 83 12. ANTENNA REQUIREMENT ........................................... 96 13. EUT PHOTOGRAPHS ................................................ 97 14. EUT TEST SETUP PHOTOGRAPHS ................................... 98 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220606025RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 99 1. VERSION Report No. Issue Date Description Approved CTB220606025RFX Jun. 09, 2022 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220606025RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 99 2…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1GHz Conducted Emission
