2A7AQ-BD13MINI PC

1 UserManual 2 Overview 1.COM232/485(byjumper)x111.HDMIvideooutput 2.COM232/485(byjumper)x112.HDMIvideooutput 3.ComboMIC13.HDMIvideooutput 9. 8. 1. 2. 3. 4. 5. 6. 7. 10. 11. 12. 13. 14. 15. 16. 17. 18. 3 14.USB2.0 15.USB2.0 16.2.5GigabitLAN 17.2.5GigabitLAN 18.DC in 4.Power button 5.USB3.0 Type-C 6.USB 3.0 7.USB 3.0 8.USB 3.0 9.WIFI Antenna 10.HDMI video output TURNINGON Press and hold the ON/OFF Button for a couple of seconds to turn on your computer PowerSupply Connect the providedcharger (19V) to the power supply port, do not use other than the providedcharger. ON/OFFbutton You can see computerstatus by looking at the ON/OFF button. InstallingSSD STORAGEor replacethe SSD 4 Tobeginusingyourcomputer,youmustfirstinstallanSSDdriveandthe operatingsystem.Ifyoufindthestoragecapacityisinsufficientforyourneeds, youcanreplacetheSSDwithoneofalargercapacity. DeviceisequippedwithtwoM.2SSDslotstoprovideflexiblestorageoptions: Slot1:SupportsM.22280NVMeSSDs. Slot2:SupportsbothM.22280SATAandNVMeSSDs. Foryourconvenience,thecorrespondingspecificationsforeachslotareclearly markedonthemotherboard. Packing 1xBOXPCBD13 1xPowersupply(adapterandcord) 1xVESAbracket&screws 1xHDMICable 1xColorbox 2xAntennas(iforderWi-Fi) SAFETYINFORMATION 5 FullSupportofBIOS SupportWakeOnLan,UEFI,Autopoweronwhenpowerfailure,PXE WorkingCondition WorkingTemperature：-10°C～55°C WorkingHumidity：5%～95%（Non-gel） SAFETYINFORMATION Built-inbattery: Donotattempttoreplaceorremovethebatteryyourself.Youmaydamagethe battery,whichcouldcauseoverheatingandinjury,Thebatteryshouldbe replacedbyanauthorizedserviceprovider,andmustberecycledordisposed ofseparatelyfromhouseholdwaste. Liquidexposure: Keepyourcomputerawayfromsourcesofliquid,suchasdrinks,oils,lotions, sinks,bathtubs,showerstalls,andsoon.Protectyourcomputerfromdampness, humidity,orwetweather,suchasrain,snowandfog. Charging: 6 Chargeonlywiththeincludedpoweradapter,otherpoweradaptersmightnot meetsafetystandards,andusingsuchpoweradapterscouldposeariskof deathorinjury,usingdamagedpoweradaptersorcables,orchargingwhen moistureispresent,cancausefire,electricshock,injury,ordamagetoyour computerorotherproperty.Donotuseapoweradapterinwetlocations,such asnearasink,bathtub,orshowerstall,orconnectordisconnectthepower adapterwithwethands. Manufacture:NewsmayTechnologyCo.,Ltd Web:www.newsmaytech.com Phone:+86-0755-89456786 Email:[email protected] FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuan t to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterferenc e to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: •Reorient or reloca te the receiving antenna. •Increase the separation between the equi pment and receiver. •Connect the equipment into an outlet on a circuit different f rom that to which the receiver is c onnected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated w ith minimum distance 20cm between the radiator and your body.

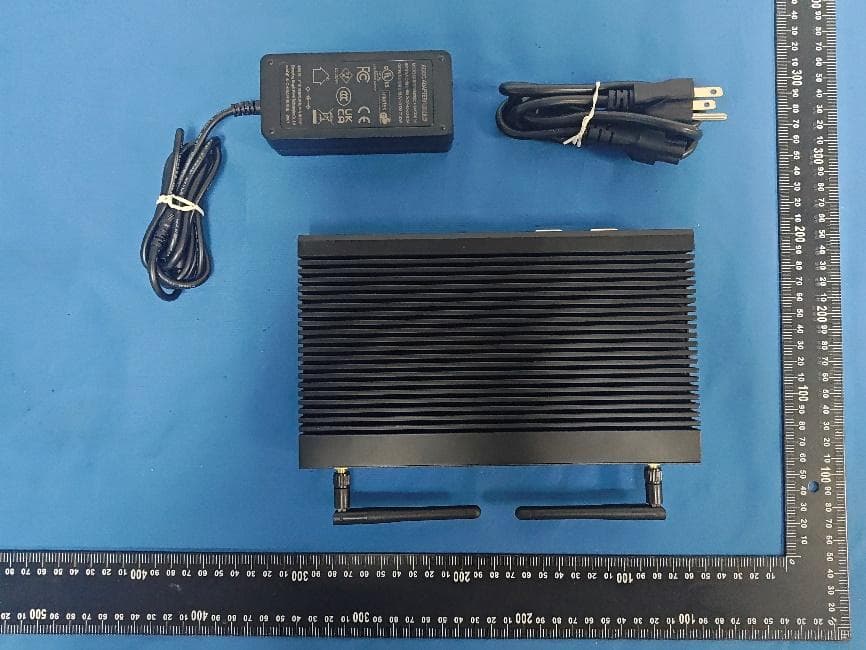

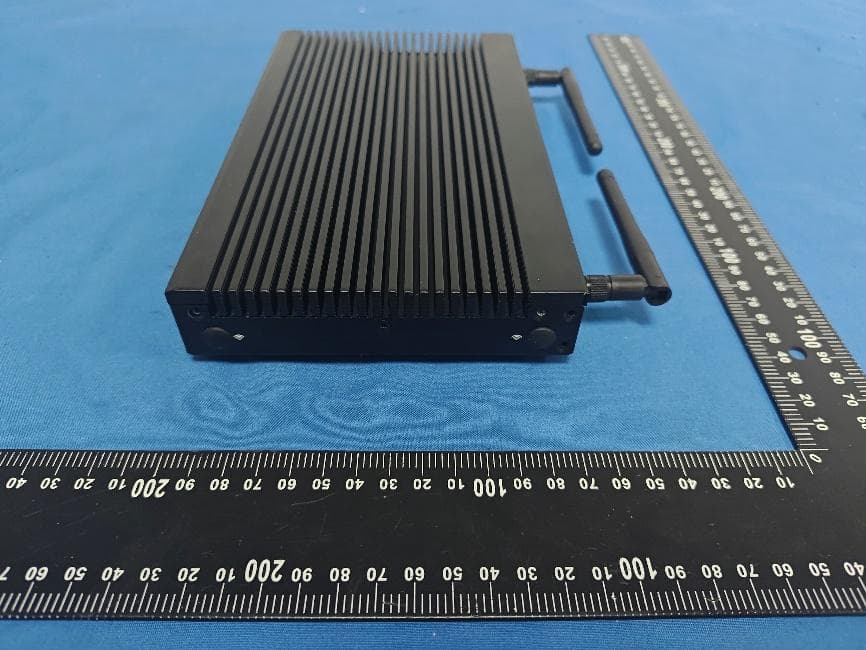

FCC ID: 2A7AQ-BD13 External Photos of the EUT FCC ID: 2A7AQ-BD13 Antenna 1 Antenna 2 FCC ID: 2A7AQ-BD13 FCC ID: 2A7AQ-BD13

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2A7AQ-BD13

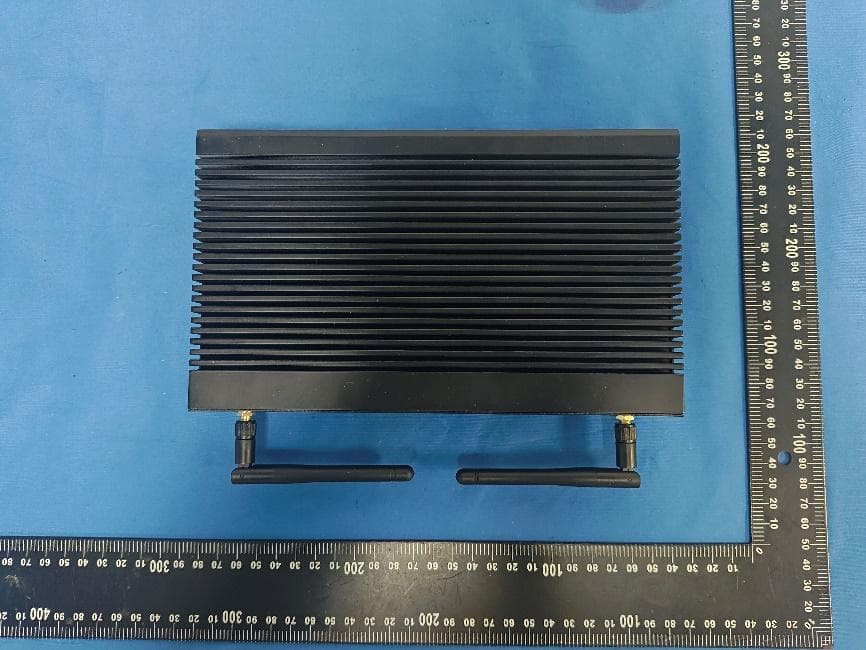

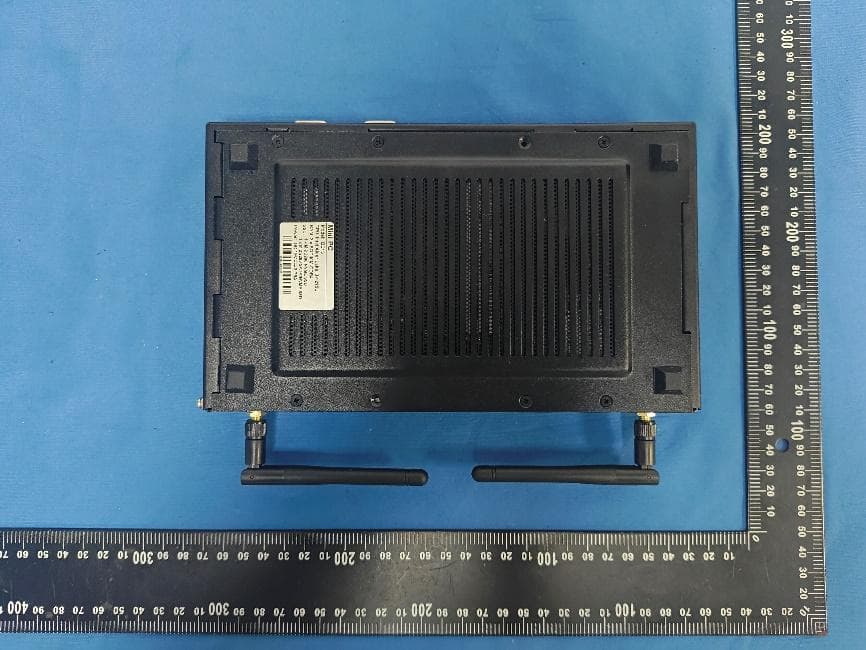

FCC ID: 2A7AQ-BD13 Internal Photos of the EUT FCC ID: 2A7AQ-BD13 FCC ID: 2A7AQ-BD13 FCC ID: 2A7AQ-BD13 FCC ID: 2A7AQ-BD13 FCC ID: 2A7AQ-BD13

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26050900903 2A7AQ-BD13 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 19, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Newsmay Technology Co.,limited Address............................................ : 402&405, Building B, Taiyufeng Industrial Park, Dalang, Longhua New District, shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : MINI PC Trade Mark ....................................... : N/A Manufacturer .................................... : Newsmay Technology Co.,limited Model/Type reference ...................... : BD13 Listed Models ................................... : N/A Rating ............................................... : Input:DC 19V 3.78A Result ............................................... : PASS Report No.: CTA26050900903 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : MINI PC Model /Type : BD13 Listed Models : N/A Applicant : Newsmay Technology Co.,limited Address : 402&405, Building B, Taiyufeng Industrial Park, Dalang, Longhua New District, shenzhen, China Manufacturer : Newsmay Technology Co.,limited Address : 402&405, Building B, Taiyufeng Industrial Park, Dalang, Longhua New District, shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26050900903 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 9 4.4 Manufacturing tolerance .......................................................................................... 9 4.5 Standalone MPE Result ......................................................................................... 10 4.6 Simultaneous Transmission for MPE Result ......................................................... 10 5 Conclusion ......................................................................................................................... 10 Report No.: CTA26050900903 Page 4 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type External antenna Model BD13 Frequency range 2400-2500MHz, 5180-5240MHz Manufacturer Newsmay Technology Co.,limited Address 402&405, Building B, Taiyufeng Industrial Park, Dalang, Longhua New District, shenzhen, China ANT Peak Gain 1.39 dBi for 2400-2500MHz 1.64 dBi for 5180-5240MHz 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz 5180MHz 5220MHz 5240MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26050900901 2A7AQ-BD13 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 19, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Newsmay Technology Co.,limited Address ............................................ : 402&405, Building B, Taiyufeng Industrial Park, Dalang, Longhua New District, shenzhen, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : MINI PC Trade Mark ....................................... : N/A Manufacturer .................................... : Newsmay Technology Co.,limited Model/Type reference ...................... : BD13 Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input:DC 19V 3.78A Result ............................................... : PASS Report No.: CTA26050900901 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : MINI PC Model /Type : BD13 Listed Models : N/A Applicant : Newsmay Technology Co.,limited Address : 402&405, Building B, Taiyufeng Industrial Park, Dalang, Longhua New District, shenzhen, China Manufacturer : Newsmay Technology Co.,limited Address : 402&405, Building B, Taiyufeng Industrial Park, Dalang, Longhua New District, shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26050900901 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Description ........................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWiFi FCC ID : 2A7AQ-BD13 Company : Newsmay Technology Co.,limited EUT : MINI PC Model Number : BD13 Report No. : CTA26050900901 Reviewed By : Eric Wang 2 FCC Appendix RF Test Data for 2.4GWiFi Antenna 1 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.560 2404.320 2419.880 0.5 PASS 2437 15.640 2429.160 2444.800 0.5 PASS 2462 15.880 2454.080 2469.960 0.5 PASS 11N20SISO Ant1 2412 16.480 2403.520 2420.000 0.5 PASS 2437 16.280 2428.680 2444.960 0.5 PASS 2462 16.960 2453.600 2470.560 0.5 PASS 11N40SISO Ant1 2422 35.840 2404.080 2439.920 0.5 PASS 2437 35.840 2419.080 2454.920 0.5 PASS 2452 35.040 2435.040 2470.080 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.416 2405.3183 2418.7343 --- --- 2437 13.409 2430.3132 2443.7222 --- --- 2462 13.413 2455.3083 2468.7213 --- --- 11G Ant1 2412 16.800 2403.6415 2420.4415 --- --- 2437 16.734 2428.6760 2445.4100 --- --- 2462 16.851 2453.5863 2470.4373 --- --- 11N20SISO Ant1 2412 17.889 2403.0838 2420.9728 --- --- 2437 17.903 2428.0588 2445.9618 --- --- 2462 17.843 2453.0974 2470.9404 --- --- 11N40SISO Ant1 2422 36.047 2404.0616 2440.1086 --- --- 2437 35.971 2419.1376 2455.1086 --- --- 2452 36.016 2434.1021 2470.1181 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 12.26 ≤30.00 PASS 2437 12.46 ≤30.00 PASS 2462 12.55 ≤30.00 PASS 11G Ant1 2412 12.44 ≤30.00 PASS 2437 12.60 ≤30.00 PASS 2462 12.79 ≤30.00 PASS 11N20SISO Ant1 2412 12.37 ≤30.00 PASS 2437 12.50 ≤30.00 PASS 2462 12.74 ≤30.00 PASS 11N40SISO Ant1 2422 12.73 ≤30.00 PASS 2437 12.97 ≤30.00 PASS 2452 12.92 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -13.32 ≤8.00 PASS 2437 -12.78 ≤8.00 PASS 2462 -13.23 ≤8.00 PASS 11G Ant1 2412 -20.14 ≤8.00 PASS 2437 -18.32 ≤8.00 PASS 2462 -19.40 ≤8.00 PASS 11N20SISO Ant1 2412 -19.55 ≤8.00 PASS 2437 -18.67 ≤8.00 PASS 2462 -18.87 ≤8.00 PASS 11N40SISO Ant1 2422 -21.36 ≤8.00 PASS 2437 -21.56 ≤8.00 PASS 2452 -21.20 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -0.13 -52.81 ≤-20.13 PASS High 2462 0.17 -57.87 ≤-19.83 PASS 11G Ant1 Low 2412 -4.03 -36.06 ≤-24.03 PASS High 2462 -3.71 -57.54 ≤-23.71 PASS 11N20SIS O Ant1 Low 2412 -4.21 -36.92 ≤-24.21 PASS High 2462 -3.96 -57.52 ≤-23.96 PASS 11N40SIS O Ant1 Low 2422 -7.24 -35.93 ≤-27.24 PASS High 2452 -7.03 -56.84 ≤-27.03 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -1.15 -1.15 --- PASS 30~1000 -1.15 -67.52 ≤-21.15 PASS 1000~26500 -1.15 -55.64 ≤-21.15 PASS 2437 Reference -0.23 -0.23 --- PASS 30~1000 -0.23 -67.6 ≤-20.23 PASS 1000~26500 -0.23 -55.23 ≤-20.23 PASS 2462 Reference -0.16 -0.16 --- PASS 30~1000 -0.16 -67.58 ≤-20.16 PASS 1000~26500 -0.16 -55.1 ≤-20.16 PASS 11G Ant1 2412 Reference -4.72 -4.72 --- PASS 30~1000 -4.72 -67.78 ≤-24.72 PASS 1000~26500 -4.72 -55.37 ≤-24.72 PASS 2437 Reference -4.31 -4.31 --- PASS 30~1000 -4.31 -68.22 ≤-24.31 PASS 1000~26500 -4.31 -55.7 ≤-24.31 PASS 2462 Reference -5.32 -5.32 --- PASS 30~1000 -5.32 -68.29 ≤-25.32 PASS 1000~26500 -5.32 -55.64 ≤-25.32 PASS 11N20SISO Ant1 2412 Reference -5.95 -5.95 --- PASS 30~1000 -5.95 -67.97 ≤-25.95 PASS 1000~26500 -5.95 -55.98 ≤-25.95 PASS 2437 Reference -4.13 -4.13 --- PASS 30~1000 -4.13 -67.19 ≤-24.13 PASS 1000~26500 -4.13 -55.36 ≤-24.13 PASS 2462 Reference -5.14 -5.14 --- PASS 30~1000 -5.14 -67.7 ≤-25.14 PASS 1000~26500 -5.14 -55.22 ≤-25.14 PASS 11N40SISO Ant1 2422 Reference -7.75 -7.75 --- PASS 30~1000 -7.75 -52.5 ≤-27.75 PASS 1000~26500 -7.75 -56.02 ≤-27.75 PASS 2437 Reference -7.59 -7.59 --- PASS 30~1000 -7.59 -66.95 ≤-27.59 PASS 1000~26500 -7.59 -55.65 ≤-27.59 PASS 2452 Reference -7.74 -7.74 --- PASS 30~1000 -7.74 -67.64 ≤-27.74 PASS 1000~26500 -7.74 -55.29 ≤-27.74 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.15 0.19 78.95 1.03 6.67 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.19 78.95 1.03 6.67 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.18 0.23 78.26 1.06 5.56 2462 0.18 0.22 81.82 0.87 5.56 11N40SISO Ant1 2422 0.18 0.22 81.82 0.87 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.22 81.82 0.87 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.12 2.00 0.03 37.11 ≤54 PASS AV 2389.830 -57.46 2.00 0.03 39.77 ≤54 PASS AV 2390.000 -57.96 2.00 0.03 39.27 ≤54 PASS Peak 2310.000 -51.05 2.00 0.00 46.15 ≤74 PASS Peak 2321.840 -48.5 2.00 0.00 48.70 ≤74 PASS Peak 2390.000 -50.29 2.00 0.00 46.91 ≤74 PASS High 2462 AV 2483.500 -58.02 2.00 0.03 39.21 ≤54 PASS AV 2484.330 -57.87 2.00 0.03 39.36 ≤54 PASS AV 2500.000 -59.04 2.00 0.03 38.19 ≤54 PASS Peak 2483.500 -49.83 2.00 0.00 47.37 ≤74 PASS Peak 2492.580 -48.81 2.00 0.00 48.39 ≤74 PASS Peak 2500.000 -51.18 2.00 0.00 46.02 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.78 2.00 1.03 38.45 ≤54 PASS AV 2373.190 -58.65 2.00 1.03 39.58 ≤54 PASS AV 2390.000 -59.4 2.00 1.03 38.83 ≤54 PASS Peak 2310.000 -52.27 2.00 0.00 44.93 ≤74 PASS Peak 2364.220 -48.54 2.00 0.00 48.66 ≤74 PASS Peak 2390.000 -52.09 2.00 0.00 45.11 ≤74 PASS High 2462 AV 2483.500 -59.02 2.00 1.03 39.21 ≤54 PASS AV 2490.930 -58.55 2.00 1.03 39.68 ≤54 PASS AV 2500.000 -59.23 2.00 1.03 39.00 ≤54 PASS Peak 2483.500 -50.74 2.00 0.00 46.46 ≤74 PASS Peak 2488.950 -49.18 2.00 0.00 48.02 ≤74 PASS Peak 2500.000 -51.43 2.00 0.00 45.77 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -59.93 2.00 1.12 38.39 ≤54 PASS AV 2383.330 -58.53 2.00 1.12 39.79 ≤54 PASS AV 2390.000 -59.08 2.00 1.12 39.24 ≤54 PASS Peak 2310.000 -50.15 2.00 0.00 47.05 ≤74 PASS Peak 2331.070 -48.01 2.00 0.00 49.19 ≤74 PASS Peak 2390.000 -51.81 2.00 0.00 45.39 ≤74 PASS High 2462 AV 2483.500 -59.18 2.00 0.87 38.89 ≤54 PASS AV 2484.330 -58.48 2.00 0.87 39.59 ≤54 PASS AV 2500.000 -59.33 2.00 0.87 38.74 ≤54 PASS Peak 2483.500 -51.25 2.00 0.00 45.95 ≤74 PASS Peak 2495.330 -48.97 2.00 0.00 48.23 ≤74 PASS Peak 2500.000 -52.08 2.00 0.00 45.12 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -59.63 2.00 0.87 38.44 ≤54 PASS AV 2387.450 -58.15 2.00 0.87 39.92 ≤54 PASS AV 2390.000 -58.71 2.00 0.87 39.36 ≤54 PASS Peak 2310.000 -51.43 2.00 0.00 45.77 ≤74 PASS Peak 2384.150 -47.98 2.00 0.00 49.22 ≤74 PASS Peak 2390.000 -50.88 2.00 0.00 46.32 ≤74 PASS High 2452 AV 2483.500 -58.47 2.00 0.87 39.60 ≤54 PASS AV 2483.875 -57.62 2.00 0.87 40.45 ≤54 PASS AV 2500.000 -58.95 2.00 0.87 39.12 ≤54 PASS Peak 2483.500 -48.52 2.00 0.00 48.68 ≤74 PASS Peak 2487.375 -48.41 2.00 0.00 48.79 ≤74 PASS Peak 2500.000 -50.66 2.00 0.00 46.54 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak 57 FCC Appendix RF Test Data for 2.4GWiFi Antenna 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant2 2412 15.880 2404.040 2419.920 0.5 PASS 2437 15.400 2429.280 2444.680 0.5 PASS 2462 15.720 2454.280 2470.000 0.5 PASS 11N20SISO Ant2 2412 16.520 2403.440 2419.960 0.5 PASS 2437 15.840 2429.320 2445.160 0.5 PASS 2462 16.960 2453.520 2470.480 0.5 PASS 11N40SISO Ant2 2422 35.120 2404.800 2439.920 0.5 PASS 2437 35.920 2419.080 2455.000 0.5 PASS 2452 35.280 2434.640 2469.920 0.5 PASS 58 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 59 11G_Ant2_2412 11G_Ant2_2437 60 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 61 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 62 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 63 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 13.411 2405.3230 2418.7340 --- --- 2437 13.413 2430.3096 2443.7226 --- --- 2462 13.416 2455.3064 2468.7224 --- --- 11G Ant2 2412 16.912 2403.5571 2420.4691 --- --- 2437 16.806 2428.6351 2445.4411 --- --- 2462 16.910 2453.6130 2470.5230 --- --- 11N20SISO Ant2 2412 17.901 2403.0382 2420.9392 --- --- 2437 17.840 2428.0818 2445.9218 --- --- 2462 17.891 2453.0749 2470.9659 --- --- 11N40SISO Ant2 2422 36.005 2404.1211 2440.1261 --- --- 2437 36.028 2419.0819 2455.1099 --- --- 2452 36.092 2434.077…

Text truncated - open the document above for the full version.

66 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 67 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 68 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 69 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[ MHz] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 12.42 ≤30.00 PASS 2437 12.63 ≤30.00 PASS 2462 12.80 ≤30.00 PASS 11G Ant2 2412 12.52 ≤30.00 PASS 2437 12.75 ≤30.00 PASS 2462 12.86 ≤30.00 PASS 11N20SISO Ant2 2412 12.40 ≤30.00 PASS 2437 12.54 ≤30.00 PASS 2462 12.87 ≤30.00 PASS 11N40SISO Ant2 2422 12.80 ≤30.00 PASS 2437 13.25 ≤30.00 PASS 2452 13.12 ≤30.00 PASS 70 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant2 2412 -12.86 ≤8.00 PASS 2437 -12.88 ≤8.00 PASS 2462 -12.54 ≤8.00 PASS 11G Ant2 2412 -18.62 ≤8.00 PASS 2437 -19.46 ≤8.00 PASS 2462 -19.04 ≤8.00 PASS 11N20SISO Ant2 2412 -18.35 ≤8.00 PASS 2437 -19.02 ≤8.00 PASS 2462 -18.17 ≤8.00 PASS 11N40SISO Ant2 2422 -21.80 ≤8.00 PASS 2437 -21.23 ≤8.00 PASS 2452 -21.44 ≤8.00 PASS 71 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 72 11G_Ant2_2412 11G_Ant2_2437 73 11G_Ant2_2462 11N…
