2A7D2-BH501Baby up smiles inbound

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE IM-010725-V1 IMPORTANT! ONLY USE THE TRANSFORMER SUPPLIED. DO NOT ATTEMPT TO CONNECT TO ANOTHER TRANSFORMER AS PRODUCT WILL GET DAMAGED. page 2 The BabyUp ® innovation IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. YOUR CHILD MAY BE HURT IF YOU DO NOT FOLLOW THE INSTRUCTIONS. Suitable for babies from birth to 3 years (For babies under 3 kg medical advice should be sought before using BabyUp®) Congratulations on choosing BabyUp ® . A chair designed by paediatric gastroenterologist, Roberto Albani to alleviate colic and reflux in babies by positioning your baby in a safe, natural position, as comfortable as your arms. The Shoulder Replicated Angle (SRA tm ) of the product is the ideal position to aid digestion after a feed allowing parents and carers a well-earned break. Once your baby is at weaning age, the BabyUp ® transforms into a highchair and is suitable up to 3 years or 15 kg. Safety Standards: BS EN14988:2017, UK, EU and USA compliant Customer care email: [email protected] Assembly required. Videos that can further assist with assembly and operation of BabyUp ® , plus a more in-depth explanation of reflux and colic, can be found on our website: https://albanibaby.com/support/ What’s in the box N o Part AMain Unit BMetal Base and Legs CBaby Seat DBaby Seat Cushion EMain Back Lining FSling GHighchair Seat HFootrest IHighchair Lining JTray KLeg Positioner LHighchair Safety Straps MElectric Transformer NToy Holder OSoft Toy PScrews QBib The following list is for ALL the parts found in the carton. page 3 What’s in the box A E I OPQ JLMN K FGH BC D You will require one Phillips screwdriver (not supplied). page 4 Part 1: BabyUp ® Anti-Reflux/ Anti-Colic Position Instructions For other languages please visit our website page 5 When should BabyUp ® be used How long can a baby stay on BabyUp ® The vertical (70 degrees) position is essential for a baby in the first hours after a feed to aid digestion and avoid excessive regurgitation and consequent ingestion of air (later resulting in colic). This is especially true in the evening before going to bed. After feeding and ‘burping’ your baby, you can place them on BabyUp ® where they can rest for as long as needed and desired. The slanted (45 degree) position is ideal for Tummy Time, encouraging the strengthening of muscles. In this angle the baby needs to be supervised at all times. It is advisable to get your baby used to BabyUp ® slowly as it might initially feel unusual for them. We recommend a gradual approach. Maximum load in BabyUp ® : 9 kg; standard load 6 kg Maximum load in Highchair: 15 kg; standard load 9 kg Your baby is safe to stay on BabyUp ® for several hours every day, depending on the signals your baby gives you, and as long as you feel that the baby is comfortable. After that they can be placed in their cradle, in a sitting position, or of course in your arms or a carrier sling. page 6 Parts required for Anti-reflux/Anti-colic mode A E O Q MN F BC D N o Part AMain Unit BMetal Base and Legs CBaby Seat DBaby Seat Cushion EMain Back Lining FSling MElectric Transformer NToy Holder OSoft Toy QBib The following list is for the parts required to assemble the BabyUp ® in the Anti-reflux/ Anti-colic mode. page 7 1. To open: Unfold legs (B) until they click and lock open. 3. Holding the baby seat (C) tilted almost vertically, push in button (ii) on the main unit (A) and then slide the baby seat in to the slot (adjustment rail) whilst keeping the seat tilted upwards. 4. Rotate the baby seat (C) downwards to lock it in position at the desired height. See page 9 “Adjusting BabyUp ® to fit your baby’s needs” for further details. 2. Attach the main unit (A) onto legs (B) ensuring the spring-pins (i) click and lock in place on both legs. B NOTE: You can find tutorials on our website https://albanibaby.com/support/ Assembling BabyUp ® B A i C C C A ii click click page 8 Assembling BabyUp ® 5. Place the lining (E) over the baby seat (C) ensuring the fabric is not trapped or gathered and that you have fed the two top buckles (iii) through the top-most slots in the lining. Zip the lining onto the main unit (A). 6. Slide the seat cover (D) over the baby seat (C). Note: Seat cover may come pre-attached. 7. Attach sling (F) to the main unit (A). IMPORTANT! See page 11 “Adjusting the height of the sling” for further details. 8. Assembled BabyUp ® E C A iii D C page 9 Adjusting BabyUp ® to fit your needs Adjusting the height of the baby seat: The BabyUp ® seat has 4 different height settings you can use to ensure your baby is in the correct and safe position, with their head positioned resting on the slope (or curve) of the main unit (A) AAA 1. Push the baby seat (C) up slightly.2. Rotate the baby seat upwards so that it is parallel to the main unit (A) C A C page 10 i ii 3. Slide the baby seat up or down to one of the FOUR possible heights. 4. Rotate the baby seat downwards once at the desired height and check the seat is locked in place. C A X Y Z Adjusting BabyUp ® to fit your needs Adjusting BabyUp ® to fit your needs Adjusting the height of the baby seat: Adjusting the height of the sling: WARNING: For correct use of bayonets (Y),(Z) always check that the protruding part (i) is towards the outside and that after insertion you hear a “click” which indicates that the bayonet is locked. To unlock, press button (ii) and pull. page 11 X 0 1 2 3 4 Y Z Adjusting BabyUp ® to fit your needs Adjusting the height of the sling: These references are indicative and general as babies’ height-per-age may be different to those described below. Please follow the height indications rather than the age indication to determine correct positioning of the sling. Generally, the smaller the baby the higher they will need to be positioned in the chair. IMPORTANT! Bayonet (X) MUST ALWAYS be connected to its buckle strap at top hole (0) at the top of the chair. Babies from Birth to 2 Months (From 49 to 58 cm) …

Text truncated - open the document above for the full version.

ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD No.3, Heman Street, JIDONG YI DISTRICT, Xi Zhongshan, Guangdong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/11/19 U.S. Agent Designation ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A7D2-BH501): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD with the FRN [0032534034] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Yanbei Zhang Manager ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

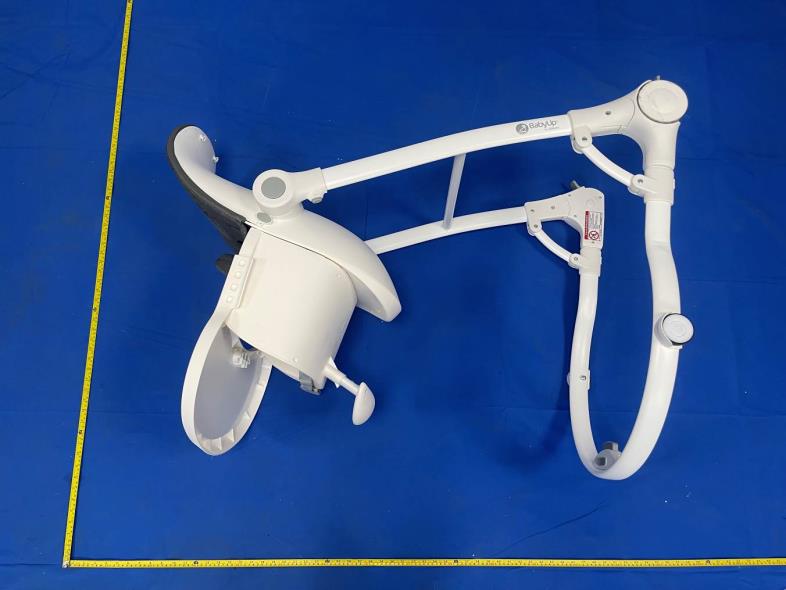

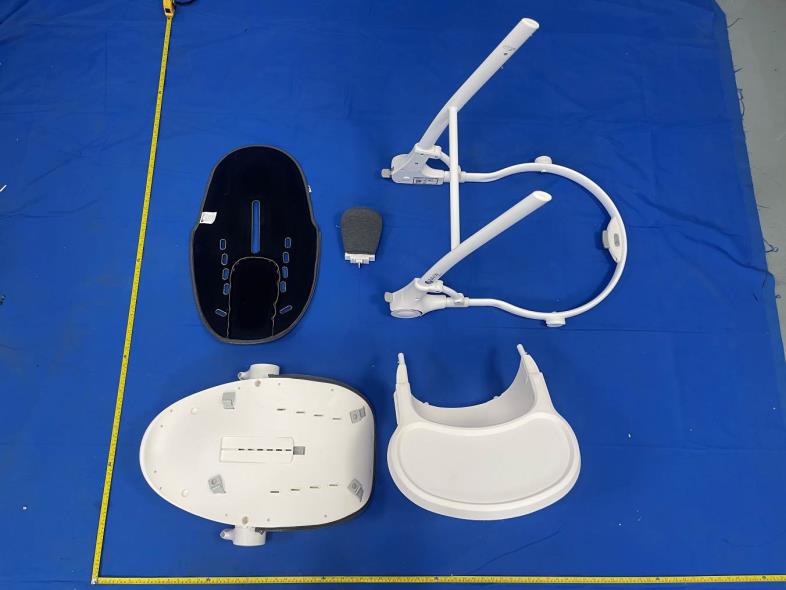

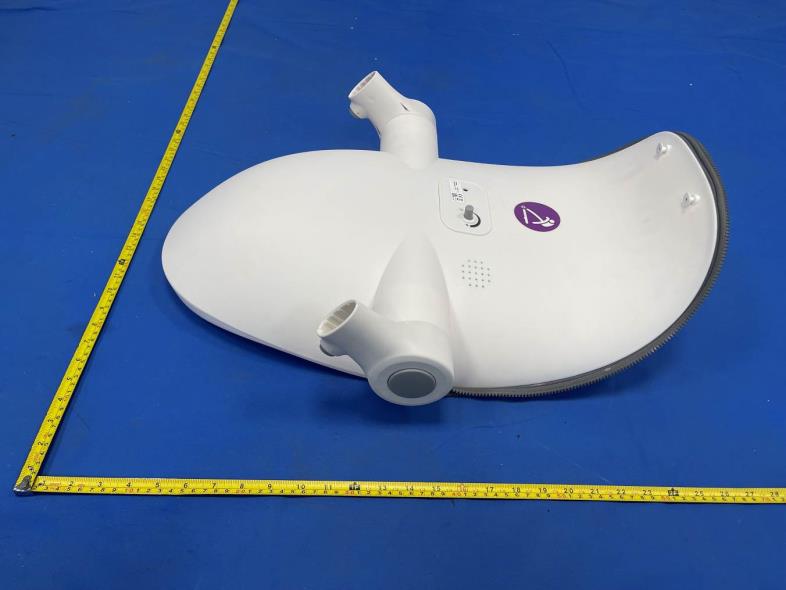

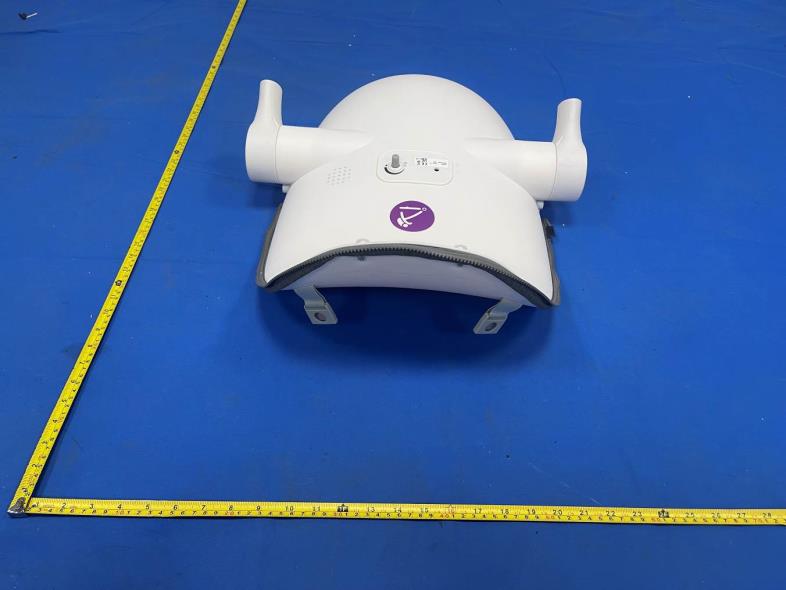

FCC ID: 2A7D2-BH501 External Photos of the EUT FCC ID: 2A7D2-BH501 FCC ID: 2A7D2-BH501

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A7D2-BH501

FCC ID: 2A7D2-BH501 Internal Photos of the EUT FCC ID: 2A7D2-BH501 ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ............................................ : CTA25110500602 2A7D2-BH501 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue..................................... : Nov. 11, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Address ............................................ : No.3, Heman Street, JIDONG YI DISTRICT, Xi Zhongshan, Guangdong China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Baby up smiles inbound Trade Mark ........................................ N/A Manufacturer .................................... : ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Model/Type reference ...................... : BH501 Listed Models ................................... : BBU101 Rating ............................................... : 120~ 50/60Hz Result ............................................... : PASS Report No.: CTA25110500602 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Baby up smiles inbound Model /Type : BH501 Listed Models : BBU101 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Address : No.3, Heman Street, JIDONG YI DISTRICT, Xi Zhongshan, Guangdong China Manufacturer : ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Address : No.3, Heman Street, JIDONG YI DISTRICT, Xi Zhongshan, Guangdong China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25110500602 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25110500602 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2450MHz2500MHz 2400MHz 2450MHz2500MHz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Antenna Photo & Length (mm) ZHUHAI JIELI TECHNOLOGY CO.,LTD No. 333 Kexing Road, Xiangzhou District, Zhuhai City Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25110500601 2A7D2-BH501 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 11, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Address ............................................ : No.3, Heman Street, JIDONG YI DISTRICT, Xi Zhongshan, Guangdong China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Baby up smiles inbound Trade Mark ....................................... : N/A Manufacturer .................................... : ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Model/Type reference ...................... : BH501 Listed Models ................................... : BBU101 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : 120~ 50/60Hz Result ............................................... : PASS Report No.: CTA25110500601 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Baby up smiles inbound Model /Type : BH501 Listed Models : BBU101 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Address : No.3, Heman Street, JIDONG YI DISTRICT, Xi Zhongshan, Guangdong China Manufacturer : ZHONGSHAN CITY BOBIE BABY PRODUCT CO.,LTD Address : No.3, Heman Street, JIDONG YI DISTRICT, Xi Zhongshan, Guangdong China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25110500601 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions .........................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2A7D2-BH501 Company : Zhongshan City Bobie Baby Product Co., Ltd EUT : Baby up smiles inbound Model Number : BH501 Report No. : CTA25110500601 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.969 2401.535 2402.504 --- --- 2441 0.936 2440.553 2441.489 --- --- 2480 0.954 2479.550 2480.504 --- --- 2DH5 Ant1 2402 1.323 2401.346 2402.669 --- --- 2441 1.263 2440.394 2441.657 --- --- 2480 1.320 2479.349 2480.669 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86953 2401.5749 2402.4444 --- --- 2441 0.87104 2440.5719 2441.4429 --- --- 2480 0.86655 2479.5758 2480.4423 --- --- 2DH5 Ant1 2402 1.1857 2401.4166 2402.6023 --- --- 2441 1.1894 2440.4158 2441.6052 --- --- 2480 1.1857 2479.4176 2480.6033 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -0.10 ≤20.97 PASS 2441 -0.16 ≤20.97 PASS 2480 -0.15 ≤20.97 PASS 2DH5 Ant1 2402 -0.89 ≤20.97 PASS 2441 -0.95 ≤20.97 PASS 2480 -0.93 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.012 ≥0.969 PASS 2DH5 Ant1 Hop 1.1 ≥0.882 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 318 0.124 ≤0.4 PASS DH3 Ant1 Hop 1.640 156 0.256 ≤0.4 PASS DH5 Ant1 Hop 2.900 101 0.293 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 318 0.124 ≤0.4 PASS 2DH3 Ant1 Hop 1.640 154 0.253 ≤0.4 PASS 2DH5 Ant1 Hop 2.900 103 0.299 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.20 -54.2 ≤-20.2 PASS High 2480 -0.48 -62.03 ≤-20.48 PASS Low Hop_2402 -4.82 -61.43 ≤-24.82 PASS High Hop_2480 -4.37 -64.76 ≤-24.37 PASS 2DH5 Ant1 Low 2402 -4.64 -58.21 ≤-24.64 PASS High 2480 -4.37 -61.85 ≤-24.37 PASS Low Hop_2402 -4.34 -61.44 ≤-24.34 PASS High Hop_2480 -7.36 -64.47 ≤-27.36 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.41 -0.41 --- PASS 30~1000 -0.41 -68.49 ≤-20.41 PASS 1000~26500 -0.41 -43.94 ≤-20.41 PASS 2441 Reference -1.20 -1.20 --- PASS 30~1000 -1.20 -67.86 ≤-21.2 PASS 1000~26500 -1.20 -43.5 ≤-21.2 PASS 2480 Reference -1.06 -1.06 --- PASS 30~1000 -1.06 -67.84 ≤-21.06 PASS 1000~26500 -1.06 -43.56 ≤-21.06 PASS 2DH5 Ant1 2402 Reference -5.08 -5.08 --- PASS 30~1000 -5.08 -67.75 ≤-25.08 PASS 1000~26500 -5.08 -48.08 ≤-25.08 PASS 2441 Reference -6.49 -6.49 --- PASS 30~1000 -6.49 -68.02 ≤-26.49 PASS 1000~26500 -6.49 -49.35 ≤-26.49 PASS 2480 Reference -5.42 -5.42 --- PASS 30~1000 -5.42 -66.74 ≤-25.42 PASS 1000~26500 -5.42 -46.28 ≤-25.42 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480

FCC ID: 2A7D2-BH501 Test Setup Photos of the EUT FCC ID: 2A7D2-BH501
