2A7DY-US-65-1U2P3OGaN 65W Smart Wi-Fi Power Strip

GaN 65W Smart Wi-Fi Power Strip Read this User Guide before using the product User Guide Operating Instructions:Adding a New Device:AppearanceSpecifications Downloading the APP and Set-Up Your Smart Power Strip US-65-1U2P3O GaN USB-A Type-C2Type-C1 K1 K2 K3 GaN USB-A Type-C2 Type-C1 K1K2K3 1, Power/Pairing Button * Turn on or off your Smart Power Strip manually. * Press and hold a power button for 5s until the LED indicator flashes twice continuously to enter pairing mode. 2, LED of Smart Outlet Lit up when the corresponding smart outlet is on. 3, Type-C Ports * Charge your laptop, tablet, smartphone or other devices. * Output: 3.3-11V/3A, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A, 20V/3.25A (Single Type C Max 65W) 4, USB Port * Charge your tablet, smartphone or other devices. * Output: 5V/4.5A, 9V/3A, 12V/2.5A, 20V/1.5A (Single USB-A 22.5 Max) 5, Hanging Holes 6, Anti-Slip Strip 7, Buckle Sticker Make sure the Power Strip and Cell Phone/Smart Device Sare covered by the same Wi-Fi Router (only 2.4G Support). Please be sure to be as close to the router as possible. PLUG IN THE POWER STRIP AND MAKE SURE POWER ON, OPEN THE APP AND FOLLOW THE SET-UP INSTRUCTIONS. STEP.1 Open the APP. If you have an account, log in directly. If you are a new user, tap sign up. STEP.2 Input your email to create an account and receive a verification code from your email. *Note: If you haven't received the verification code for a long time, please check it in your junk mail. STEP.3 Registration is complete. Back to the homepage. 1. Download and install Smart Life APP *Go to Google Play or the APP Store and search ”Smart Life”. *Scan the QR code below to download the Smart Life APP. Wi-Fi Power Strip has 3 individual smart outlets, 2 PD charging Type-C ports and 1 USB-A port. Single port output Max 65W with GaN Chip. See the explanation below: 2. Log in or Sign up with email address. Wi-Fi: Input Voltage: Input Frequency: Max Load Current: Max Power Power: Working Temp: Working Humidity: Operating System: 90V-125V 50-60Hz 10A 1875W -10°C~40°C 5-95% (non-condensing) Android 4.1 or IOS 9.0 or higher WALN Built-In Wi-Fi Module, supports IEEE 802.11 b/g/n 2.4Ghz -1--2--3--4--5- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Others: STEP.4 1. Connect the Power Strip to a targeted wall outlet. 2. Make sure your Smart Device (Phone or Tablet is connected to Wi-Fi). 3. Press the power button more than 5s to make the LED indicator change in a cycle of two short and one long flash. And then release the button. *Note: The device will exit the pairing mode if not paired within 3mins. If you want to enter this mode, please press the power button again until the indicator light flashes twice continuously. STEP.5-1 Searching Automatically Go to APP and click “+” in the upper right-hand corner and choose “Add Device”, the discovering devices show on the top and click “Add”. the APP will select the Wi-Fi your phone has connected STEP.5-2 Add Manually Tap ”Electrical” in the upper left-hand corner and choose “Power Strip (Wi-Fi)” *Note: Please turn on the Wi-Fi and connected the Bluetooth. 1. Countdown and Schedule STEP.6 Added Successfully After adding a device, it will prompt you to NAME the device. 2. Share Device and Create Group *Notes: You can also SHARE your device with friends or family-theyneed to have download the APP and created a user name & password, then add their email address to share the device functions with then. Use the Smart Life APP to pair your Smart Wi-Fi Power Strip with Amazon Alexa or Google Home Assistant, and enjoy a fully hands-free experience. Please contact the seller to get the set-up video if you need. Voice & 3rd Party Support STEP.7 APP Control Controlled by APP remotely and freely. automatically, and then input the Wi-Fi password to pairing mode. *Note: 1. The Wi-Fi may can't connect successful if your Wi-Fi password contains special characters, such as @ #. Please make your Wi-Fi password contain only letters or number. 2. Please make sure you will be put the correct password. 3. Only 2.4G router support. FCC Warning Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection agai…

Text truncated - open the document above for the full version.

SHENZHEN3TOPSTECHNOLOGYCO.,LIMITED AgentAuthorization Company:SHENZHEN3TOPSTECHNOLOGYCO.,LIMITED Address:5F-510,1stBLD,QILifeHuashengAIIndustrialPark,No.48thDonghuan 2ndRoad,Longhua,Shenzhen,China,518109 ProductName:GaN65WSmartWi-FiPowerStrip ModelNumber(s):US-65-1U2P3O ProductDescription:GaN65WSmartWi-FiPowerStrip WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:14June2022 Name:AlexYan Title:MANAGER Company:SHENZHEN3TOPSTECHNOLOGYCO.,LIMITED

SHENZHEN3TOPSTECHNOLOGYCO.,LIMITED OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:14June.2022 Subject;RequestforConfidentiality FCCID:2A7DY-US-65-1U2P3O ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential SHENZHEN3TOPSTECHNOLOGYCO.,LIMITED documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:AlexYan Title:MANAGER

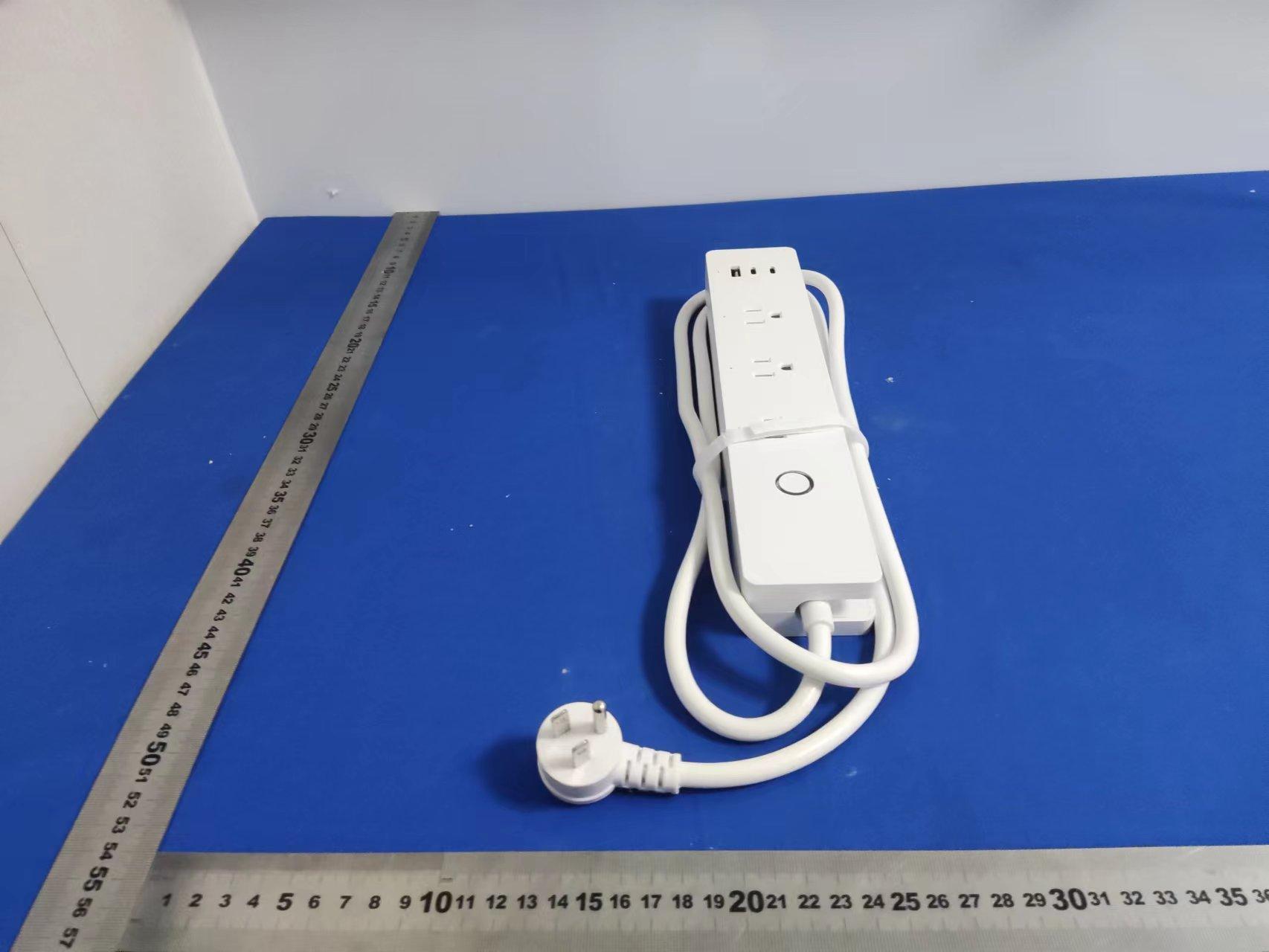

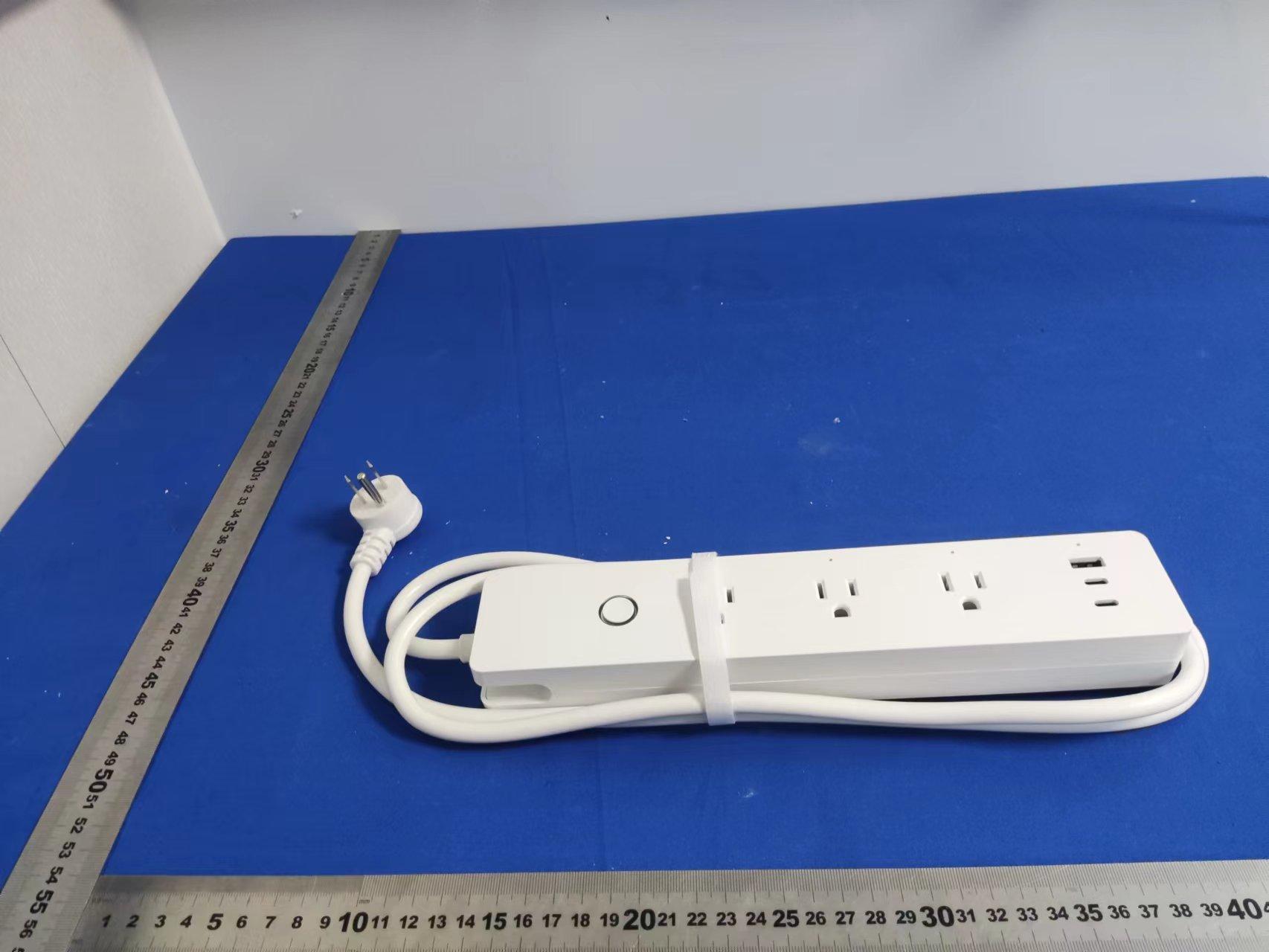

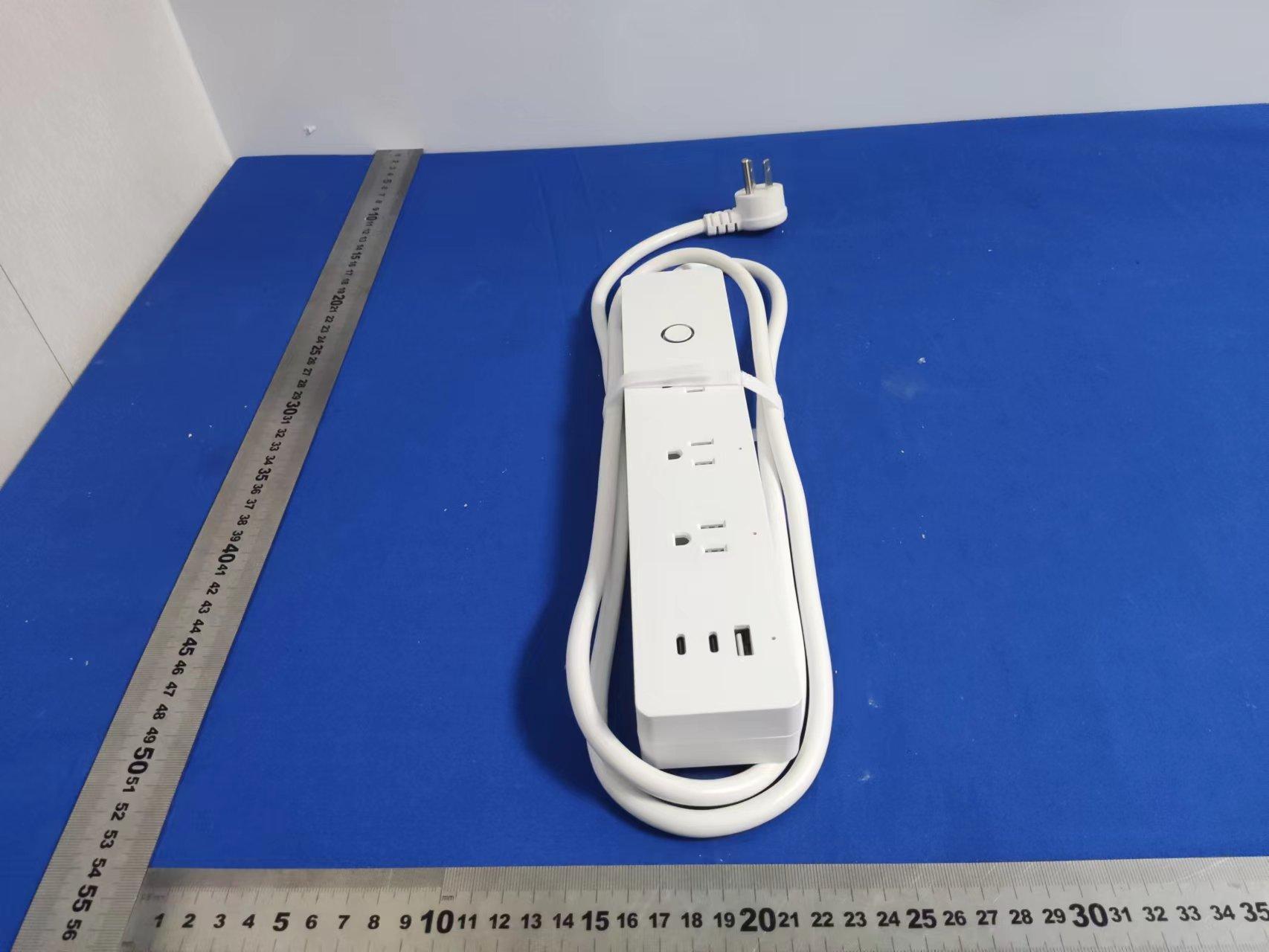

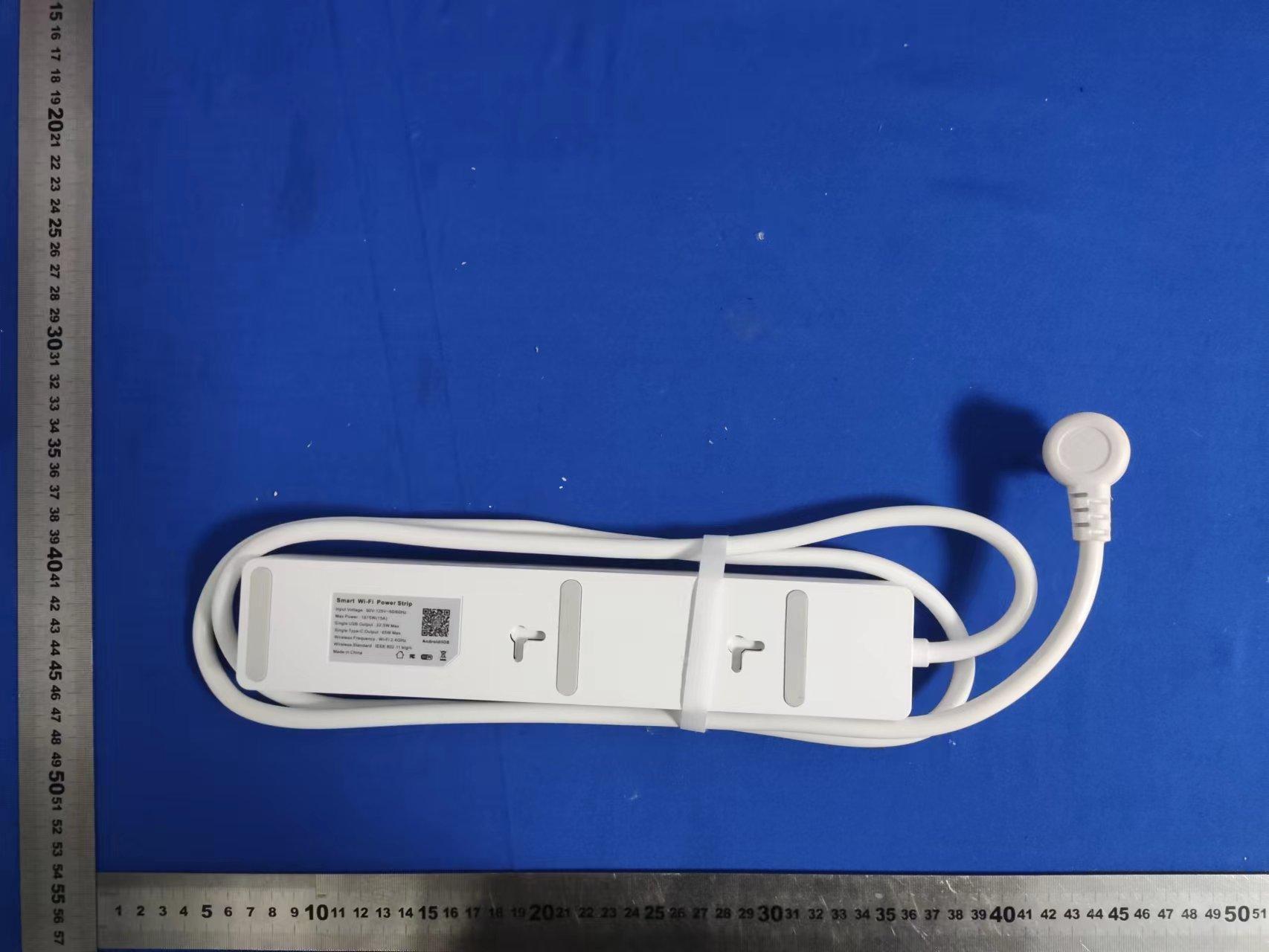

Page1of3ReportNo.:FCS202206001 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202206001 Photo3 Photo4 Page3of3ReportNo.:FCS202206001 Photo5 Photo6
