2A7FP-MYT-JMY01pro spa Cleanser

MEIYATI Pro Spa Cleanser -Small clean massage head -Big clean massage head -Power indicator -on/off -Brand logo -Wireless charging base Product Introduction: Meiyati smart Pro Spa cleanser, the product is through the skin structure science, skin cytology, genetics ,pathology, R&D team developed the most safe and effective smart Pro Spa facial cleaning device after 24 months hardworking ,adopts the structure of human body skin texture design, internal and external guide wheel forward and reverse massage roller, removing the skin cuticle and pore melanin effectively, at the same time it can provide essence for underlying skin, to the cells for energy, effectively maintain skin structure integrity, skin firming, young state. Thank you for choosing Pro Spa Cleanser Introduction 1. Wipe your face with a wet face towel, dip the guide of the cleanser with water, and then squeeze the cleanser into the guide( or apply proper amount of cleaner to face evenly) 2. Press the button to start(press the key to start, the 3 LED indicator white lights will lights, then press once will pause ,long press 2 seconds will shut down). 3.Booting,lead will 1234 start slowly, and then the machine rotates at a constant speed 4.The instrument's each working time is total 3 minutes ,It will pause in 1min and one LED light will be off to remind you to change a part, LED light is all off and shut down after 3 min. 5.Do not press the hardly, the instrument will vibrate. 6. After using every time, remove the guide wheel and wash it with water directly ,then put it into the instrument base(avoid the instrument slipping and damage). -LED indicator - on/off Instructions for wireless charging 1. Connect the USB port of the product line to the 5V charging head, and the male type-C port to the female type-C port of the wireless charging base. Then put the host into the wireless charging base. 2. When the base is charging normally, the hidden LED indicator light inside the base shows green, indicating that the charging base is working normally. 3. When the cleanser is fully charged, the hidden LED indicator light inside the base shows red indicating that the charging base stops charging. 4. If the instrument has no power, and three lights will all become red 5. The charging time is about 2-3h,and the wireless charging pairing time is about 5 seconds. When fully charged, the three white lights will on, and during the charging time instrument cannot be used. -Position of internal indicator light -Internal indicator light Guide wheel installation/replacement instructions The guide can be disassembled and replaced(as shown below).Hold the main body with one hand and pull the guide in the direction of the arrow with the other hand to disassemble the guide wheel. When installing, align the guide buckle with the corresponding position at the end of the body and gently press to complete the installation. -Guide wheel (massage head) -Body of cleansing machine -Wireless charging base In order to achieve better cleaning effect, it is recommended to replace the lead in 3-6 months. Do not soak the instrument in water or wash it with high-pressure water. Warranty period:12 months Shenzhen meiyati intelligent Co.,Ltd. ： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) th is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B d igital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in stalled and used in accordance with the in structions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only th e supplied antenna.

Shenzhen meiyati intelligent Co., Ltd. (2022.06.09) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR ( pro spa Cleanser / MYT-JMY01 / 2A7FP- MYT-JMY01) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ N OTE 1 ☐ Internal Photos ☐ N OTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Xiaoqiong Fang Title: Manage

Shenzhen meiyati intelligent Co., Ltd. (2022.06.09) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Xiaoqiong Fang Title: Manager

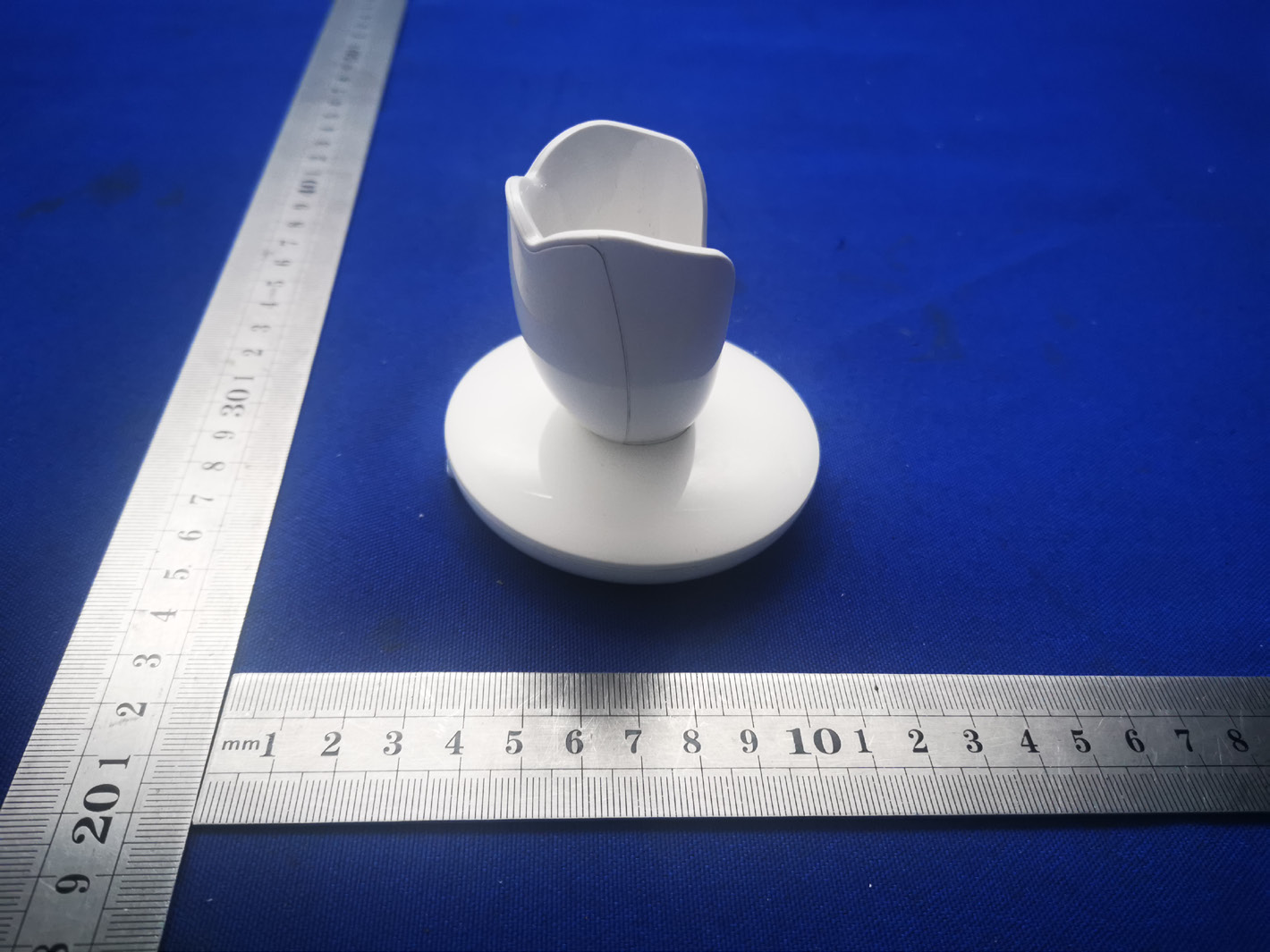

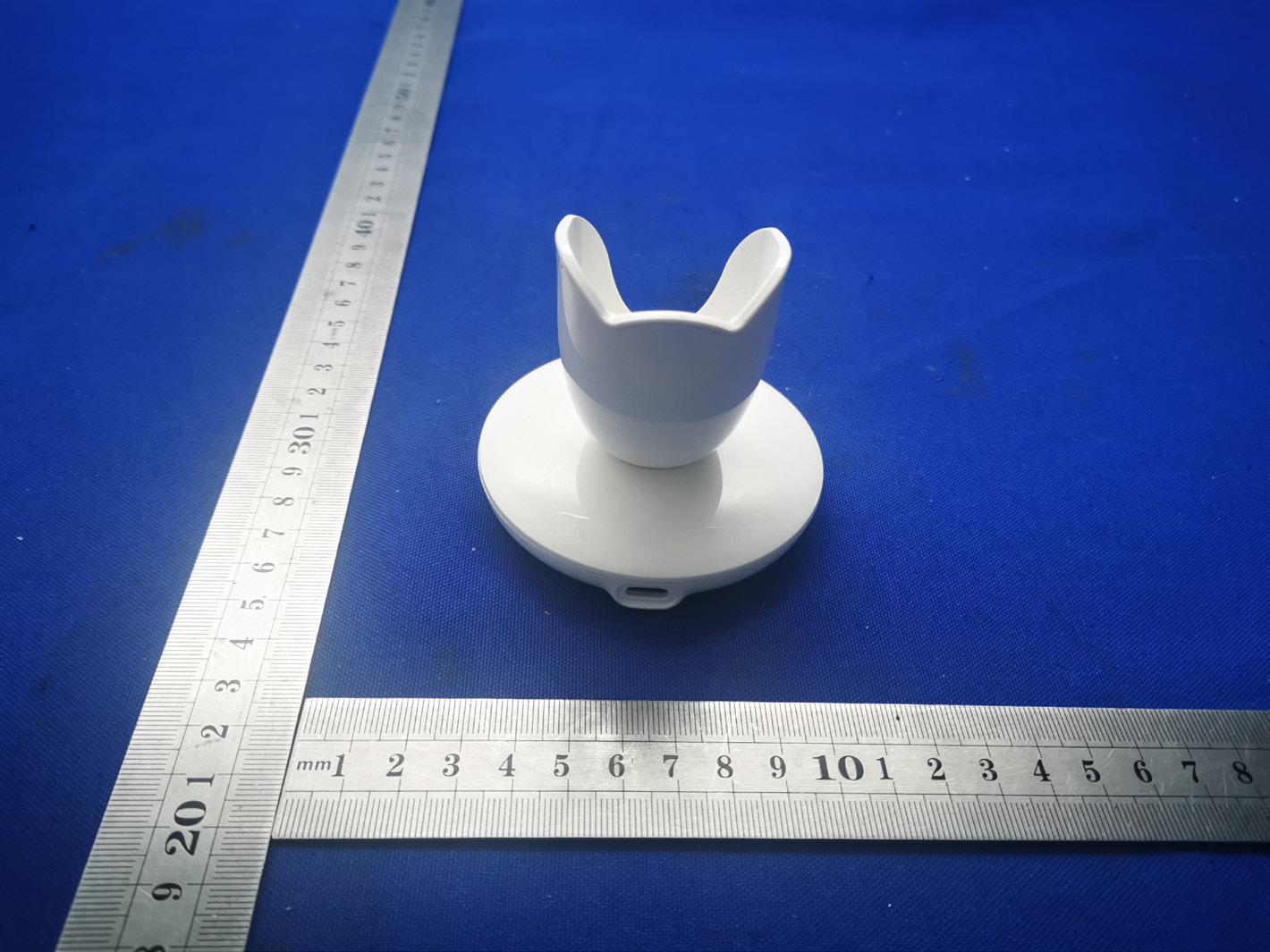

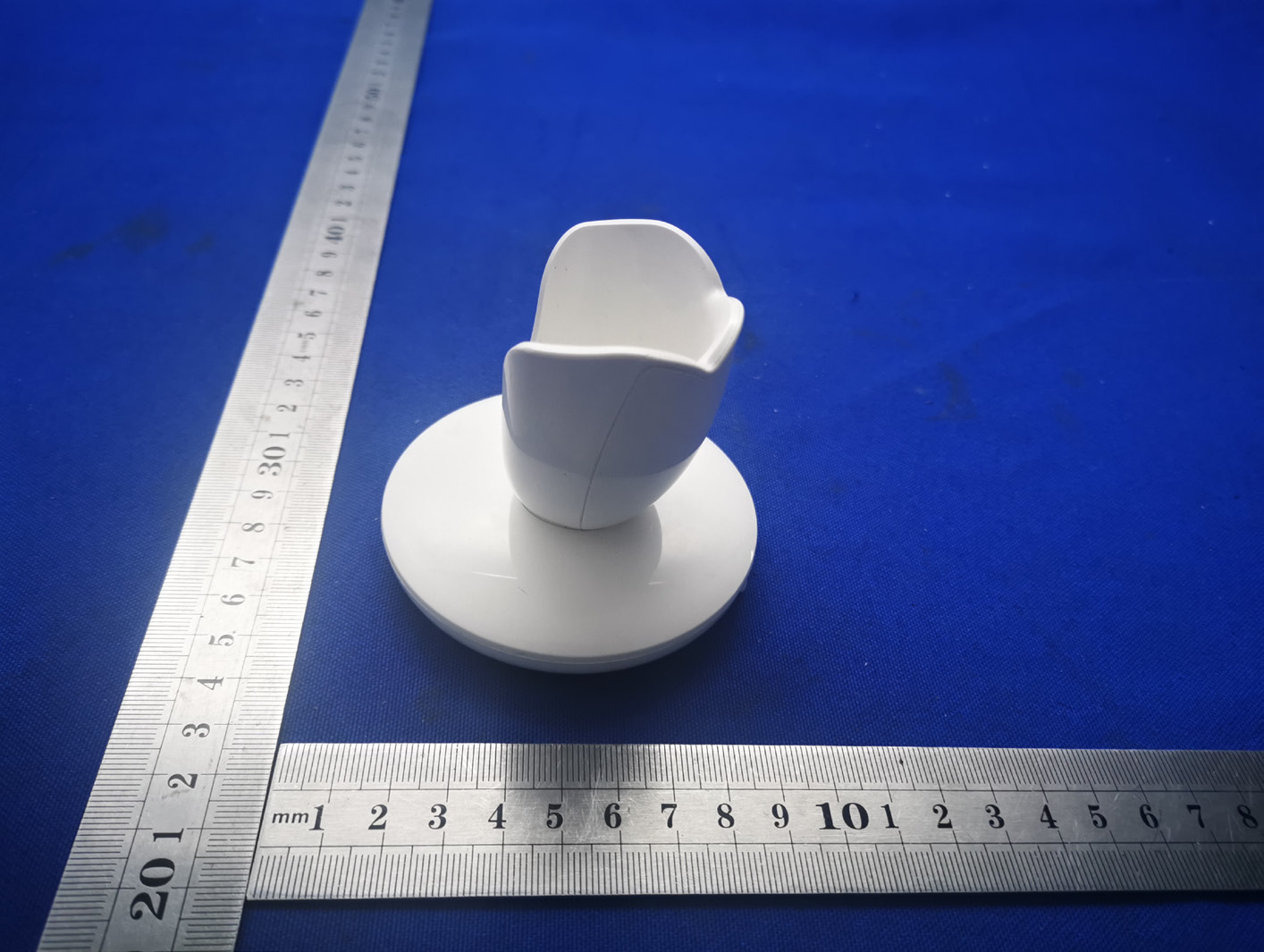

External Photos

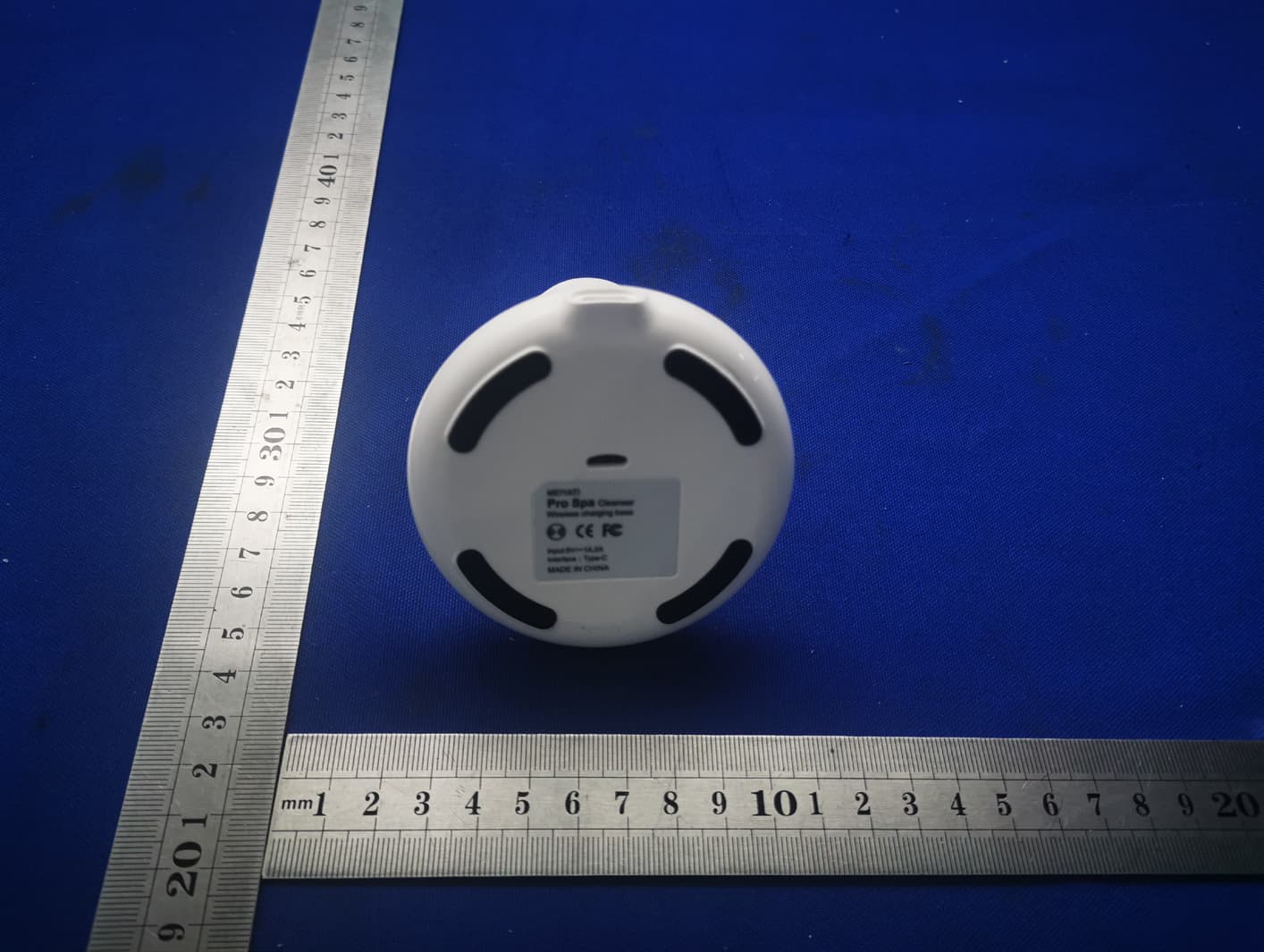

Model: MYT-JMY01 FCC ID: 2A7FP-MYT-JMY01 Label Location

Internal Photos

RF EXPOSURE REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: pro spa Cleanser FCC ID: 2A7FP-MYT-JMY01 Trademark: N/A Model Number: MYT-JMY01 Prepared For: Shenzhen meiyati intelligent Co., Ltd Address: 9C, Building A, Building B and Building A, Jinmaolidu, Sangda Industrial Zone, Zhenxing Road, Licun Community, Huaqiangbei Street, Futian District, Shenzhen, Guangdong, China Manufacturer: Shenzhen meiyati intelligent Co., Ltd Address: 9C, Building A, Building B and Building A, Jinmaolidu, Sangda Industrial Zone, Zhenxing Road, Licun Community, Huaqiangbei Street, Futian District, Shenzhen, Guangdong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Street, Baoan District, Shenzhen China Sample Received Date: May. 20, 2022 Sample tested Date: May. 20, 2022 to May. 28, 2022 Issue Date: Ma y. 28, 2022 Report No.: CTB220418055RFX Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310, 47 CFR§2.1091; KDB 680106 D01 RF Exposure Wireless Charging App v03r01 Test Results PASS Remark: This is wireless charger EMF report. EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page1 of 7 Table of Contents Page 1 . GENERAL INFORMATION 3 1.1 . Independent Operation Mode 3 1.2 . Test Supporting System 3 2 .LIST OF T EST AND MEASUREMENT I NSTRUMENTS 4 2.1 . For conducted emission at the mains terminals test 4 3. METHOD OF MEASUREMENT 5 3. 1.Applicable Standard 5 4. TEST RESULT 5 4.1. Conducted Emission at the Mains Terminals Test 5 4.2. Equipment Approval Considerations: 6 4.3. E and H field Strength 6 EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page2 of 7 1. GENERAL INFORMATION 1.1. Independent Operation Mode The basic operation mode is: 1.1.1. wireless charger power: 10 W 1.2. Test Supporting System Adapter Description : Adapter Model No. : HKA03612030-7B Power Input :USB-C PD 5V/2A, 9V/2A Output: USB-C PD 5V/2A, 9V/2.22A, 12V/1.5A USB-A Quick Charge 5V/3A, 9V/2A, 12V/1.5A DC Line : Unshielded, Detachable 0.2m EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page3 of 7 2.LIST OF TEST AND MEASUREMENT INSTRUMENTS 2.1. For conducted emission at the mains terminals test Item Equipment Brand Model No. Frequency Range Last calibration Calibrated until 1 Broadband Field Meter NARDA NBM-550 - 2020.09.27 2022.08.05 2 Magnetic Field Meter NARDA ELT-400 1 – 400kHz 2020.09.27 2022.08.05 3 Magnetic Probe NARDA HF-3061 300kHz – 30MHz 2020.09.27 2022.08.05 4 Magnetic Probe NARDA HF-0191 27 – 1000MHz 2020.09.27 2022.08.05 5 Broadband Field Meter NARDA NBM-550 - 2020.09.27 2022.08.05 6 Electric Field Meter COMBINOV A EFM 200 5Hz – 400kHz 2020.09.27 2022.08.05 7 E- Field Probe NARDA EF-0391 100kHz – 3GHz 2020.09.27 2022.08.05 8 E- Field Probe NARDA EF-6091 100MHz – 60GHz 2020.09.27 2022.08.05 EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page4 of 7 3. METHOD OF MEASUREMENT 3. 1.Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. According KDB680106 D01: RF Exposure Wireless Charging Apps v 03r01. 4. TEST RESULT 4.1. Conducted Emission at the Mains Terminals Test Note: Measurements should be made from all sides and the top of the primary/client pair, with the 20 cm-0cm measured from the center of the top, and 15cm-0cm measured from the center of the rest Test Procedure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) 20 cm-0cm measured from the center of the top, and 15cm-0cm measured from the center of the rest sides.c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. e) The EUT were measured according to the dictates of KDB 680106 D01 RF Exposure Wireless Charging App v03r01. EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page5 of 7 4.2. Equipment Approval Considerations: The EUT does comply with item 5(b) of KDB 680106 D01 RF Exposure Wireless Charging App v03r01 1) Power transfer frequency is less than 1MHz Ye s , the device operate in the frequency range from 110KHz to 205KHz 2) Output power from each primary coil is less than or equal to 15 watts. Ye s , the maximum output power of the primary coil is 10000mW. 3) The system may consist of more than one source primany coils, charging one or more chients, if more than one primary coils is present, the coil pairs may be powered on at the same time. Ye s , the transfer system includes only single primary coils. 4) Client device is inserted in or placed directly in contact with the transmitter. Ye s , client device is placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, it is mobile device only. 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Ye s , the EUT field strength levels are less 50% x MPE limit. 4.3. E and H field Strength EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page6 of 7 The result: H- Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 0.110-0.2…
