2A7G3XS5G03045G DATA CARD

XS5G03/XS5G04 M.2 Module Hardware Guide (Datasheet) Issue 01.2 Date 2022-09-15 Copyright © 2022 XSquare Communications Corp. All rights Reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of XSquare Communications Corp. The product described in this manual may include copyrighted software of XSquare and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions and are trademarks or registered trademarks of XSquare Communications Corp. LTE is a trade mark of ETSI. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. XSquare reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL XSQUARE BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF XSQUARE ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please email to: [email protected] XSquare Communications Proprietary and Confidential Copyright © XSquare Communications Corp. Issue 01.2 (2022-09-15) 3 XS5G03/XS5G04 M.2 Data Card Hardware Guide About This Document Revision History Document Version Date Chapter Descriptions V01 V1.0 Initial release V01.1 2022/8/29 7 Add FCC/NCC/CE statement. - 7.3 Federal Communication Commission Interference Statement - 7.4 Europe – EU Declaration of Conformity - 7.5 NCC Notice V01.2 2022/9/15 7 Update FCC/NCC/CE statement. - 7.3 FCC Notice - 7.4 CE Notice XSquare Communications Proprietary and Confidential Copyright © XSquare Communications Corp. Issue 01.2 (2022-09-15) 4 XS5G03/XS5G04 M.2 Data Card Hardware Guide Contents Contents 1 Introduction ...................................................................................................................................... 7 1.1 About This Chapter .................................................................................................................. 7 2 Overall Description ......................................................................................................................... 8 2.1 About This Chapter .................................................................................................................. 8 2.2 Function Overview.................................................................................................................... 8 2.3 Specification ............................................................................................................................. 9 2.4 Circuit Block Diagram .............................................................................................................10 2.5 Application Interface ................................................................................................................11 3 Description of the Application Interfaces ............................................................................. 12 3.1 About This Chapter .................................................................................................................12 3.2 M.2 Key B Interface ..................................................................................................................13 3.3 Power Interface ........................................................................................................................17 3.4 Control Signal Interface ............................................................................................................18 3.5 PCIE Interface .........................................................................................................................20 3.6 USB Interface ..........................................................................................................................22 3.7 I2C Interface ............................................................................................................................24 3.8 USIM Interface .........................................................................................................................24 3.9 I2S .........................................................................…

Text truncated - open the document above for the full version.

Page 1 of 1 Modular Approval Request FCC FCC ID: 2A7G3XS5G0304 Requirements EUT 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. 2. The modular transmitter must have buffered modulation/data inputs The module has modulation/data inputs 3. The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). No applicable to licensed modules 5. The modular transmitter must be tested in a stand-alone configuration This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. The device complies with this requirement. Please refer to RF exposure report. Name and surname of applicant (or authorized representative): __________________ Date: ___26 September 2022____ Signature: ___________________________

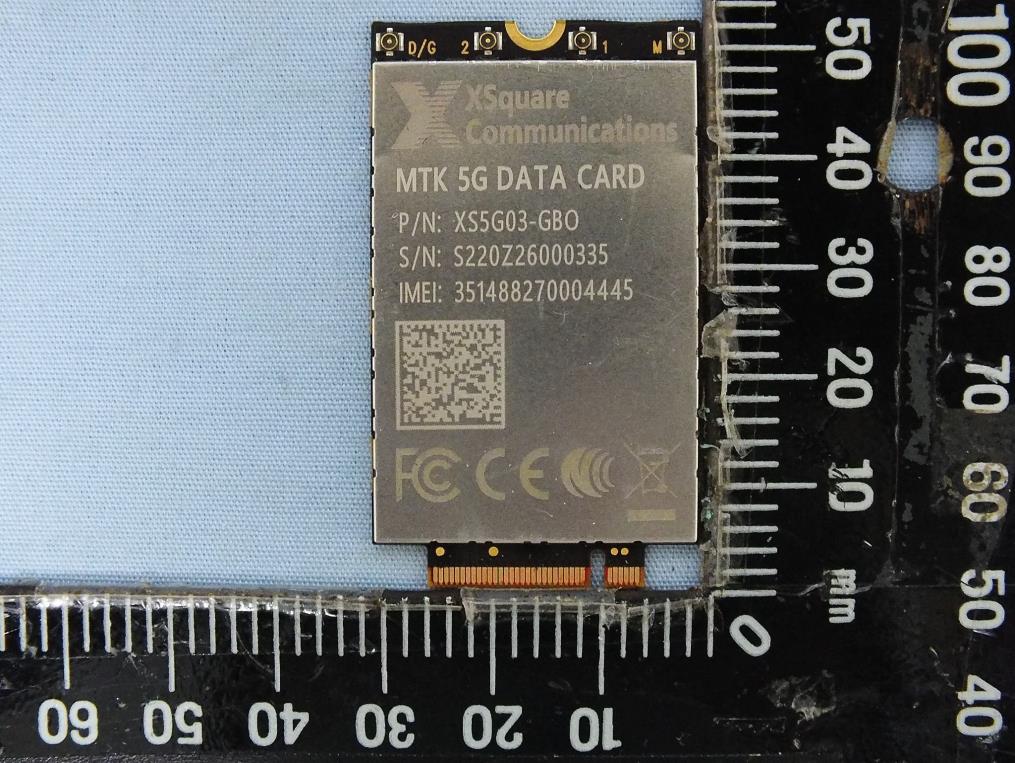

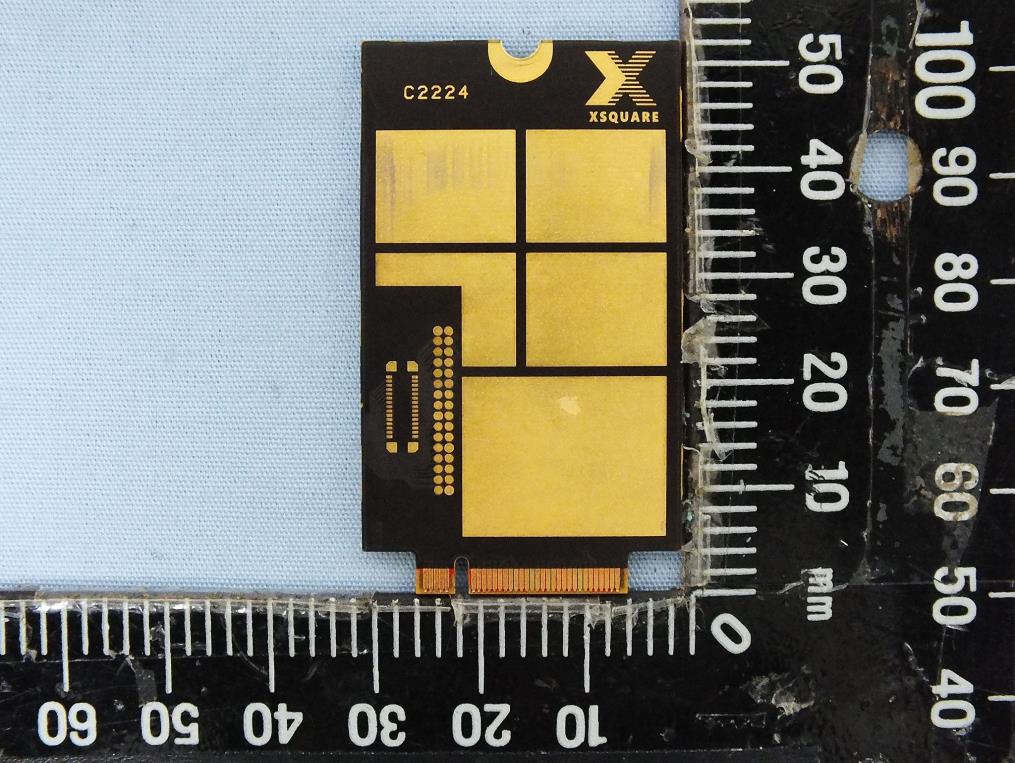

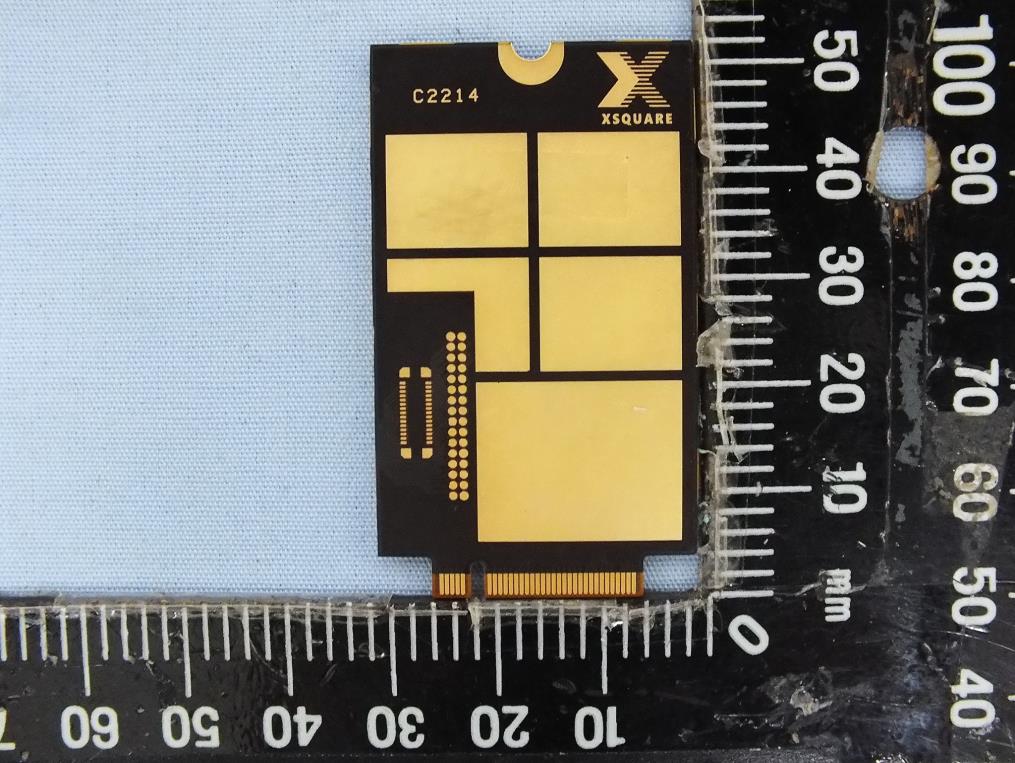

Project No.: EP261301 Page No. : 1 of 12 Photographs of EUT Model: XS5G03-GBO Project No.: EP261301 Page No. : 2 of 12 Project No.: EP261301 Page No. : 3 of 12 Project No.: EP261301 Page No. : 4 of 12 Model: XS5G04-GBO Project No.: EP261301 Page No. : 5 of 12 Project No.: EP261301 Page No. : 6 of 12 Project No.: EP261301 Page No. : 7 of 12

Label sample Label location

Project No.: EP261301 Page No. : 8 of 12 Model: XS5G03-GBO Project No.: EP261301 Page No. : 9 of 12 Model: XS5G04-GBO Project No.: EP261301 Page No. : 10 of 12 Project No.: EP261301 Page No. : 11 of 12 Project No.: EP261301 Page No. : 12 of 12

Report No.: FA261301 Page : 1 of 8 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2A7G3XS5G0304 Equipment : 5G DATA CARD Model No. : XS5G03-GBO (refer to item 1.1.1 for more details) Brand Name : XSquare Applicant : XSquare Communications Corporation Address : NO.6 INNOVATION ROAD II, SCIENCE PARK, HSINCHU 30076, TAIWAN, R.O.C Standard : 47 CFR FCC Part 2.1091 Received Date : Aug. 18, 2015 Tested Date : Aug. 23 ~ Sep. 04, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA261301 Page : 2 of 8 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information .............................................................................................................................................. 4 2 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 5 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 5 2.2 MPE EVALUATION FORMULA ............................................................................................................. 5 2.3 MPE EVALUATION RESULTS .............................................................................................................. 6 2.4 MAXIMUM ANTENNA GAIN EVALUATION (REFERENCE ONLY) ..................................................... 7 3 TEST LABORATORY INFORMATION ................................................................................................. 8 Report No.: FA261301 Page : 3 of 8 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA261301 Rev. 01 Initial issue Sep. 23, 2022 Report No.: FA261301 Page : 4 of 8 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description XSquare XS5G03-GBO 5G DATA CARD (SA+NSA)+GPS XS5G04-GBO (SA Only)+GPS XS5G03-GBO base band IC disable NSA by SW  The above models, model XS5G03-GBO was selected as a representative one for the final test and only its data was recorded in this report. Report No.: FA261301 Page : 5 of 8 Report Version: Rev. 01 2 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 2.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance Report No.: FA261301 Page : 6 of 8 Report Version: Rev. 01 2.3 MPE EVALUATION RESULTS Mode Frequency (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Pass / Fail WCDMA B2 1850 22.41 22.5 0.2 20 0.037 1.000 Pass WCDMA B5 824 22.25 22.5 -1.2 20 0.027 0.549 Pass LTE Band 2 1850 21.59 22 0.2 20 0.033 1.000 Pass LTE Band 4 1710 21.71 22 1.9 20 0.049 1.000 Pass LTE Band 5 824 21.66 22 -1.2 20 0.024 0.549 Pass LTE Band 7 2500 22.38 22.5 -1.1 20 0.027 1.000 Pass LTE Band 12 699 21.69 22 -0.7 20 0.027 0.466 Pass LTE Band 13 777 21.56 22 -0.7 20 0.027 0.518 Pass LTE Band 14 788 21.57 22 -0.7 20 0.027 0.525 Pass LTE Band 17 704 21.58 22 -0.7 20 0.027 0.469 Pass LTE Band 18 815 21.62 22 -1.2 20 0.024 0.543 Pass LTE Band 19 830 21.62 22 -1.2 20 0.024 0.553 Pass LTE Band 25 1850 21.79 22 0.2 20 0.033 1.000 Pass LTE Band 26 814 21.69 22 -1.2 20 0.024 0.543 Pass LTE Band 30 2305 22.46 22.5 -2.1 20 0.022 1.000 Pass LTE Band 38 2570 22.73 23 -1.1 20 0.031 1.000 Pass LTE Band 40 2300 22.64 23 -2.1 20 0.024 1.000 Pass LTE Band 41 2496 22.49 22.5 -1.1 20 0.027 1.000 Pass LTE Band 42 3400 23.39 23.5 -0.4 20 0.041 1.000 Pass LTE Band 48 3550 22.92 23 -0.4 20 0.036 1.000 Pass LTE Band 66 1710 21.91 22 1.9 20 0.049 1.000 Pass 5G NR n2 1850 22.35 22.5 0.2 20 0.037 1.000 Pass 5G NR n5 824 22.26 22.5 -1.2 20 0.027 0.549 Pass 5G NR n77 3450 22.81 23 -0.2 20 0.038 1.000 Pass 5G NR n77 3700 22.85 23 -0.2 20 0.038 1.000 Pass Report No.: FA261301 Page : 7 of 8 Report Version: Rev. 01 2.4 MAXIMUM ANTENNA GAIN EVALUATION (REFERENCE ONLY) Mode Rated power (dBm) Max Gain to comply with MPE Max Gain to comply with ERP/EIRP Max Gain to comply with MPE and ERP/EIRP (dBi) Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (W) WCDMA B2 22.50 14.51 20 1.000 10.51 2 10.51 WCDMA B5 22.50 11.91 20 0.549 18.10 7 11.91 LTE Band 2 22 15.01 20 1.000 11.01 2 11.01 LTE Band 4 22 15.01 20 1.000 8.00 1 8.00 LTE Band 5 22 12.41 20 0.549 18.60 7 12.41 LTE Band 7 22.5 14.51 20 1.000 10.51 2 10.51 LTE Band 12 22 11.70 20 0.466 14.92 3 11.70 LTE Band 13 22 12.16 20 0.518 14.92 3 12.16 LTE Band 14 22 12.22 20 0.525 14.92 3 12.22 LTE Band 17 22 11.73 20 0.469 14.92 3 11.73 LTE Band 18 22 12.36 20 0.543 18.60 7 12.36 LTE Band 19 22 12.44 20 0.553 18.60 7 12.44 LTE Band 25 22 15.01 20 1.000 11.01 2 11.01 LTE Band 26 22 12.36 20 0.543 18.60 7 12.36 LTE Band 30 22.5 14.51 20 1.000 1.48 0.25 1.48 LTE Band 38 23 14.01 20 1.000 10.01 2 10.01 LTE Band 40 23 14.01 20 1.000 0.98 0.25 0.98 LTE Band 41 22.5 14.51 20 1.000 10.51 2 10.51 LTE Band 42 23.5 13.51 …

Text truncated - open the document above for the full version.

Adjacent Channel Leakage Ratio Appendix C Page No. : 13 of 20 Low Ch. 3625MHz, 16QAM, CB: 15MHz Mid. Ch. 3625MHz, 16QAM, CB: 15MHz High Ch. 3625MHz, 16QAM, CB: 15MHz Low Ch. 3625MHz, 64QAM, CB: 15MHz Mid. Ch. 3625MHz, 64QAM, CB: 15MHz High Ch. 3625MHz, 64QAM, CB: 15MHz Adjacent Channel Leakage Ratio Appendix C Page No. : 14 of 20 Low Ch. 3692.5MHz, QPSK, CB: 15MHz Mid. Ch. 3692.5MHz, QPSK, CB: 15MHz High Ch. 3692.5MHz, QPSK, CB: 15MHz Low Ch. 3692.5MHz,16QAM, CB: 15MHz Mid. Ch. 3692.5MHz,16QAM, CB: 15MHz High Ch. 3692.5MHz,16QAM, CB: 15MHz Adjacent Channel Leakage Ratio Appendix C Page No. : 15 of 20 Low Ch. 3692.5MHz, 64QAM, CB: 15MHz Mid. Ch. 3692.5MHz, 64QAM, CB: 15MHz High Ch. 3692.5MHz, 64QAM, CB: 15MHz --- --- Adjacent Channel Leakage Ratio Appendix C Page No. : 16 of 20 Low Ch. 3560MHz, QPSK, CB: 20MHz Mid. Ch. 3560MHz, QPSK, CB: 20MHz High Ch. 3560MHz, QPSK, CB: 20MHz Low Ch. 3560MHz, 16QAM, CB: 20MHz Mid. Ch. 3560MHz, 16QAM, CB: 20MHz High Ch. 3560MHz, 16QAM, CB: 20MHz Adjacent Channel Leakage Ratio Appendix C Page No. : 17 of 20 Low Ch. 3560MHz, 64QAM, CB: 20MHz Mid. Ch. 3560MHz, 64QAM, CB: 20MHz High Ch. 3560MHz, 64QAM, CB: 20MHz Low Ch. 3625MHz, QPSK, CB: 20MHz Mid. Ch. 3625MHz, QPSK, CB: 20MHz High Ch. 3625MHz, QPSK, CB: 20MHz Adjacent Channel Leakage Ratio Appendix C Page No. : 18 of 20 Low Ch. 3625MHz, 16QAM, CB: 20MHz Mid. Ch. 3625MHz, 16QAM, CB: 20MHz High Ch. 3625MHz, 16QAM, CB: 20MHz Low Ch. 3625MHz, 64QAM, CB: 20MHz Mid. Ch. 3625MHz, 64QAM, CB: 20MHz High Ch. 3625MHz, 64QAM, CB: 20MHz Adjacent Channel Leakage Ratio Appendix C Page No. : 19 of 20 Low Ch. 3690MHz, QPSK, CB: 20MHz Mid. Ch. 3690MHz, QPSK, CB: 20MHz High Ch. 3690MHz, QPSK, CB: 20MHz Low Ch. 3690MHz,16QAM, CB: 20MHz Mid. Ch. 3690MHz,16QAM, CB: 20MHz High Ch. 3690MHz,16QAM, CB: 20MHz Adjacent Channel Leakage Ratio Appendix C Page No. : 20 of 20 Low Ch. 3690MHz, 64QAM, CB: 20MHz Mid. Ch. 3690MHz, 64QAM, CB: 20MHz High Ch. 3690MHz, 64QAM, CB: 20MHz --- --- Occupied and 26 dB Bandwidth Appendix D Page No. : 1 of 7 Summary Mode Max-NdB Max-OBW ITU-Code Min-NdB Min-OBW (Hz) (Hz) (Hz) (Hz) Band 48 - - - - - LTE_20MHz_Nss1,QPSK_1TX 19.3M 17.816M 17M8G7D 19.3M 17.816M LTE_20MHz_Nss1,16QAM_1TX 19.125M 17.816M 17M8W7D 19.125M 17.816M LTE_20MHz_Nss1,64QAM_1TX 18.85M 17.841M 17M8W7D 18.85M 17.841M LTE_15MHz_Nss1,QPSK_1TX 14.381M 13.381M 13M4G7D 14.381M 13.381M LTE_15MHz_Nss1,16QAM_1TX 15.075M 13.4M 13M4W7D 15.075M 13.4M LTE_15MHz_Nss1,64QAM_1TX 15.356M 13.418M 13M4W7D 15.356M 13.418M LTE_10MHz_Nss1,QPSK_1TX 9.6M 8.933M 8M93G7D 9.6M 8.933M LTE_10MHz_Nss1,16QAM_1TX 9.8M 8.933M 8M93W7D 9.8M 8.933M LTE_10MHz_Nss1,64QAM_1TX 9.813M 8.933M 8M93W7D 9.813M 8.933M LTE_5MHz_Nss1,QPSK_1TX 4.8M 4.479M 4M48G7D 4.8M 4.479M LTE_5MHz_Nss1,16QAM_1TX 4.75M 4.46M 4M46W7D 4.75M 4.46M LTE_5MHz_Nss1,64QAM_1TX 4.788M 4.467M 4M47W7D 4.788M 4.467M Max-N dB = Maximum 26dB down bandwidth; Max-OBW = Maximum 99% occupied bandwidth; Min-N dB = Minimum 26dB down bandwidth; Min-OBW = Minimum 99% occupied bandwidth Result Mode Result Port 1-NdB Port 1-OBW Limit (Hz) (Hz) (Hz) Band 48_LTE_20MHz_Nss1_1TX - - - - 3625MHz_QPSK_RB 100,#RB 0 Pass 19.3M 17.816M Inf 3625MHz_16QAM_RB 100,#RB 0 Pass 19.125M 17.816M Inf 3625MHz_64QAM_RB 100,#RB 0 Pass 18.85M 17.841M Inf Band 48_LTE_15MHz_Nss1_1TX - - - - 3625MHz_QPSK_RB 75,#RB 0 Pass 14.381M 13.381M Inf 3625MHz_16QAM_RB 75,#RB 0 Pass 15.075M 13.4M Inf 3625MHz_64QAM_RB 75,#RB 0 Pass 15.356M 13.418M Inf Band 48_LTE_10MHz_Nss1_1TX - - - - 3625MHz_QPSK_RB 50,#RB 0 Pass 9.6M 8.933M Inf 3625MHz_16QAM_RB 50,#RB 0 Pass 9.8M 8.933M Inf 3625MHz_64QAM_RB 50,#RB 0 Pass 9.813M 8.933M Inf Band 48_LTE_5MHz_Nss1_1TX - - - - 3625MHz_QPSK_RB 25,#RB 0 Pass 4.8M 4.479M Inf 3625MHz_16QAM_RB 25,#RB 0 Pass 4.75M 4.46M Inf 3625MHz_64QAM_RB 25,#RB 0 Pass 4.788M 4.467M Inf Port X-N dB = Port X 26dB down bandwidth; Port X-OBW = Port X 99% occupied bandwidth Occupied and 26 dB Bandwidth Appendix D Page No. : 2 of 7 Occupied and 26 dB Bandwidth Appendix D Page No. : 3 of 7 Occupied and 26 dB Bandwidth Appendix D Page No. : 4 of 7 Occupied and 26 dB Bandwidth Appendix D Page No. : 5 of 7 Occupied and 26 dB Bandwidth Appendix D Page No. : 6 of 7 Occupied and 26 dB Bandwidth Appendix D Page No. : 7 of 7 Peak to Average Power Ratio Appendix E Page No. : 1 of 3 Summary Mode Result Freq Limit 0.1% Port (MHz) (dB) Band 48 - - - - - LTE_20MHz_Nss1,QPSK_1TX Pass 3625 13.00 6.08 1 LTE_20MHz_Nss1,16QAM_1TX Pass 3625 13.00 6.71 1 LTE_20MHz_Nss1,64QAM_1TX Pass 3625 13.00 6.76 1 Result Mode Result Freq Limit 0.1% Port (MHz) (dB) Band 48_LTE_20MHz_Nss1_1TX - - - - - 3625MHz_QPSK_RB 100,#RB 0 Pass 3625 13.00 6.08 1 3625MHz_16QAM_RB 100,#RB 0 Pass 3625 13.00 6.71 1 3625MHz_64QAM_RB 100,#RB 0 Pass 3625 13.00 6.76 1 Peak to Average Power Ratio Appendix E Page No. : 2 of 3 Peak to Average Power Ratio Appendix E Page No. : 3 of 3 Frequency Stability Appendix F Page No. : 1 of 1 Ref. Freq: 3625MHz Test Conditions LTE Band 48(QPSK) / Middle channel Temperature ( o C) Deviation (ppm) Limit Result Note 1 T20°CVmax 0.01 PASS T20°CVmin 0.02 T70°CVnom 0.01 T60°CVnom 0.02 T50°CVnom 0.01 T40°CVnom 0.02 T30°CVnom 0.02 T20°CVnom 0.02 T10°CVnom 0.02 T0°CVnom 0.01 T-10°CVnom 0.02 T-20°CVnom 0.02 T-30°CVnom 0.02 Note: 1. The frequency fundamental emissions stay within the authorized frequency block. End User Device Additional Requirements Appendix G Page No. : 1 of 2 Step 1: Setup with 3600 ~ 3620 MHz and Power level 20 dBm/MHz Step 2: Check EUD TX Frequency and Power Step 2: Check EUD TX Frequency and Power Step 3: Check EUD stop transmission within 10s of receiving instructions from its associated CBSD End User Device Additional Requirements Appendix G Page No. : 2 of 2 Step 4: Setup with 3680 ~ 3700 MHz and Power level 10 dBm/MHz Step 5: Check EUD TX Frequency and Power Step 6:Check EUD stop transmission within 10s of receiving instructions from its associated CBSD

Report No.: FG261301P96 Page : 1 of 21 Report Version: Rev. 01 FCC Test Report FCC ID : 2A7G3XS5G0304 Equipment : 5G DATA CARD Model No. : XS5G03-GBO (refer to item 1.1.1 for more details) Brand Name : XSquare Applicant : XSquare Communications Corporation Address : NO.6 INNOVATION ROAD II, SCIENCE PARK, HSINCHU 30076, TAIWAN, R.O.C Standard : 47 CFR FCC Part 96 Type : End User Device Received Date : Jun. 13, 2022 Tested Date : Jun. 28 ~ Aug. 15, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FG261301P96 Page : 2 of 21 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Reference Guidance .............................................................................................................................. 9 1.7 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.8 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition and Location Information ......................................................................................... 11 2.2 Testing Facility...................................................................................................................................... 11 2.3 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TEST RESULTS................................................................................................................................... 13 3.1 Equivalent Isotropically Radiated Power .............................................................................................. 13 3.2 Radiated Emissions .............................................................................................................................. 14 3.3 Conducted Emissions & Band Edge .................................................................................................... 16 3.4 Emission Bandwidth ............................................................................................................................. 17 3.5 Peak to Average Ratio ......................................................................................................................... 18 3.6 Frequency Stability ............................................................................................................................... 19 3.7 End user device additional requirements ............................................................................................. 20 4 TEST LABORATORY INFORMATION ............................................................................................... 21 APPENDIX A TEST RESULTS FOR EQUIVALENT ISOTROPICALLY RADIATED POWER APPENDIX B TEST RESULTS FOR RADIATED EMISSIONS APPENDIX C TEST RESULTS FOR CONDUCTED EMISSIONS & BAND EDGE APPENDIX D TEST RESULTS FOR EMISSION BANDWIDTH APPENDIX E TEST RESULTS FOR PEAK TO AVERAGE POWER RATIO APPENDIX F TEST RESULTS FOR FREQUENCY STABILITY APPENDIX G TEST RESULTS FOR END USER DEVICE ADDITIONAL REQUIREMENTS Report No.: FG261301P96 Page : 3 of 21 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FG261301P96 Rev. 01 Initial issue Sep. 23, 2022 Report No.: FG261301P96 Page : 4 of 21 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 2.1046 / 96.41(b) Equivalent Isotropically Radiated Power Power: 22.52 Pass 96.41(g) Peak to Average Ratio Meet the requirement of limit Pass 2.1053 / 96.41(e) Radiated Spurious Emission Meet the requirement of limit Pass 2.1051 / 96.41(e) Conducted Spurious Emission Meet the requirement of limit Pass 2.1051 / 96.41(e) Band Edge Meet the requirement of limit Pass 2.1049 Emission Bandwidth Meet the requirement of limit Pass 2.1055 / 96.41(e) Frequency Stability Meet the requirement of limit Pass 96.47 End user device additional requirements Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FG261301P96 Page : 5 of 21 Report Version: …

Text truncated - open the document above for the full version.

Report No.: FR261301 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Radiated Emission Below 1GHz Test Report No.: FR261301 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR261301 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR261301 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR261301 Page: : 5 of 5 Report Version: Rev. 01 Function Test
