2A7GS-19416The fan lights
Zhongshan Haibang Lighting Appliance Co., Ltd
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Jul 04, 2022
- Application Purpose
- Original Equipment
- Date of Application
- Jul 04, 2022
- Equipment Note
- The fan lights
- Frequency Range
- 2402.00000000 - 2402.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Thefanlights --19416 ProductIntroduction： Thisproductuses2.4Gwirelessdigitalremotecontrol technology,remotecontrolone-to-onecontrol,simpleand convenientoperation,stronganti-interferenceability. TechnicalParameters： Wallswitchsegmentsequence：Allbright/whitelight/yellow light Inputvoltage：200V-240VAC50Hz Powerfactor：˃0.9 Outputvoltage：90-200VDC LEDOutputPower：25-60W Motorratedpower：<25W Controllerefficiency：>84% Windvelocity：1-6gears Timing：1hour/2hours Receivingmethod：RF2.4G Remotecontroldistance：8-20 meters Remotecontrolbattery：Number7 1.5VX2 Remotecontrolmatchingcode： Turnonthepowerandpressand holdthelightswitchbuttonforalongtimewithin5secondsofthe lighton,Whenyouhearabeeporalightflashes,thecodematchis successful.Ifyouneedtomatchthecodeasecondtime,youneed towait30secondsbeforeturningonthepowerandrepeatthe aboveoperation. CAUTION: Theelectronicswitchisnotanisolatedproductandneedstobe operatedbyprofessionalpersonnelduringinstallation. Theelectronicswitchistriggeredbytheremotecontrol,andthe wirelessfrequencyoftheremotecontroltransmitteris2.4GHz. FCCCaution: Thisdevicecomplieswithpart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions:(1)Thisdevicemaynot causeharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycause undesiredoperation. Anychangesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthorityto operatetheequipment. NOTE:Thisequipmenthasbeentestedandfoundtocomplywith thelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCC Rules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergy and,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However, thereisnoguaranteethatinterferencewillnotoccurinaparticular installation. Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,the userisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferent fromthattowhichthereceiverisconnected. --Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThedevicehasbeenevaluatedtomeetgeneralRFexposure requirement.Thedevicecanbeusedinportableexposure conditionwithoutrestriction. FCCID:2A7GS-19416
External Photos

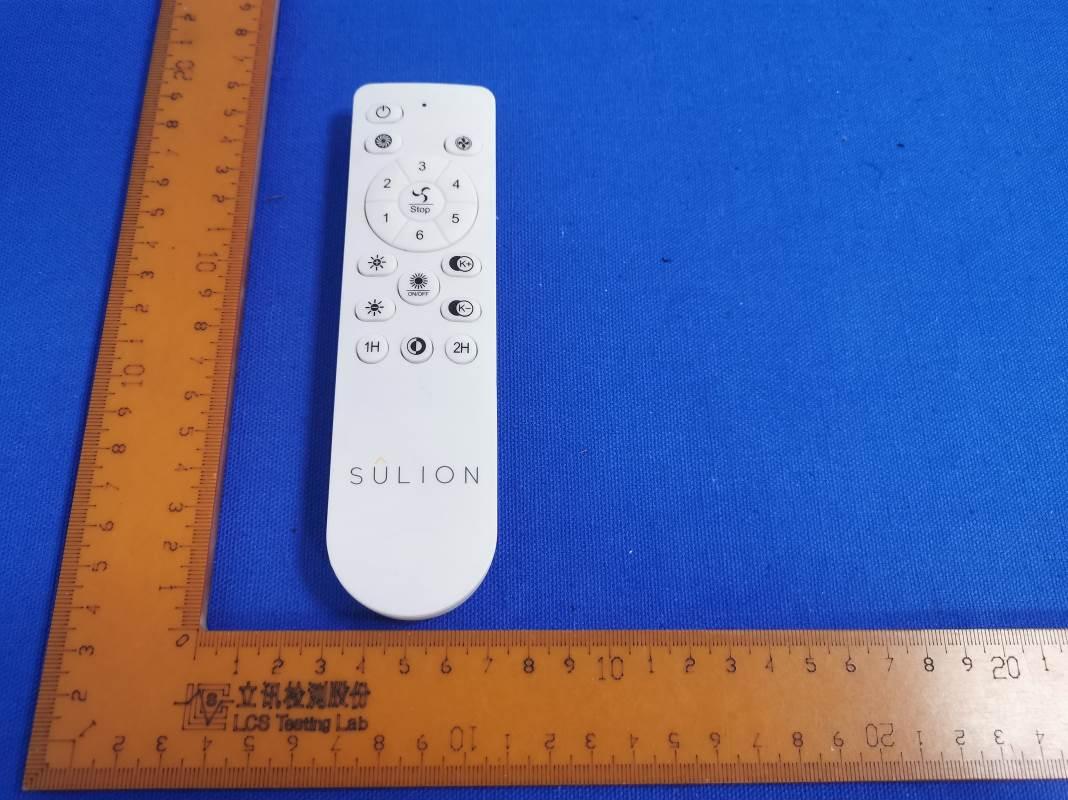

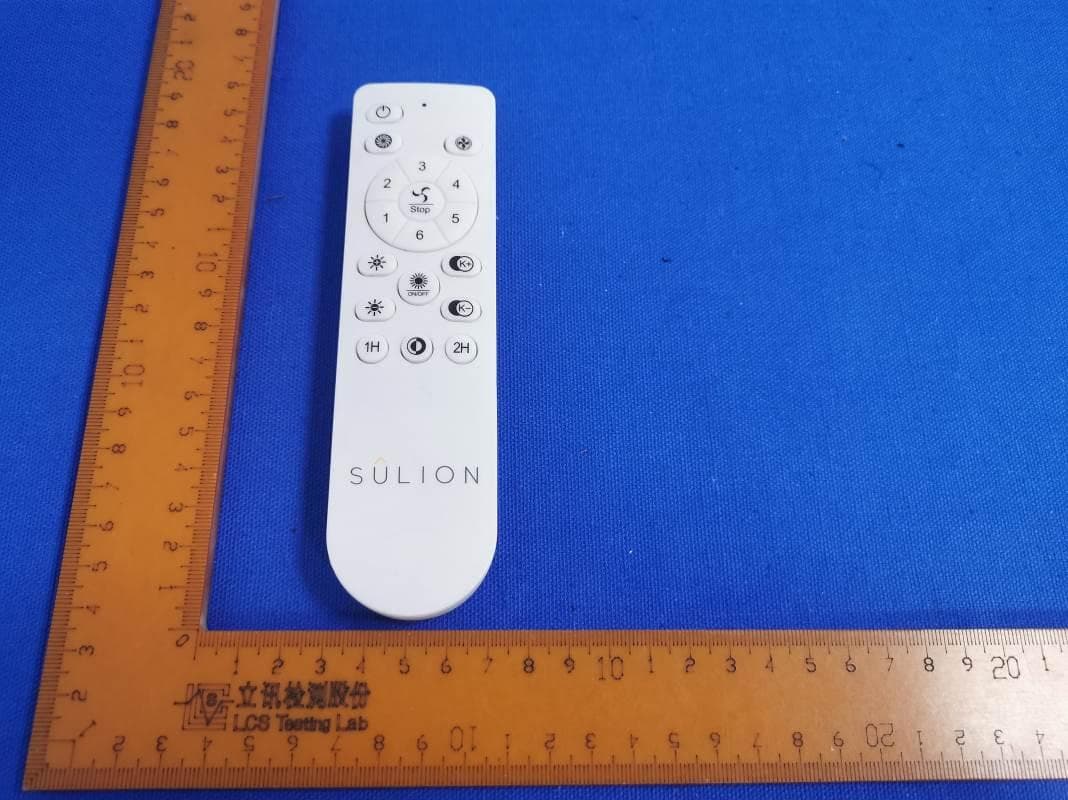

Page1of4FCCID:2A7GS-19416 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2A7GS-19416 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2A7GS-19416 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2A7GS-19416 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7
ID Label/Location Info
Page1of1FCCID:2A7GS-19416 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L1.0cmx1.0cm) LabelLocation Thefanlights Model:19416 FCCID:2A7GS-19416
Internal Photos
Page1of2FCCID:2A7GS-19416 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of2FCCID:2A7GS-19416 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Antenna
Test Report
Page1of32FCCID:2A7GS-19416ReportNo.:LCSA052522121EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FOR ZhongshanHaibangLightingApplianceCo.,Ltd Thefanlights TestModel:19416 Preparedfor: ZhongshanHaibangLightingApplianceCo.,Ltd Address:No.16,KANGLONGfifthroad,XinmaoIndustrialZone,HenglanTown, ZhongshanGuangdong,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd Address: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet,Bao’an District,Shenzhen,Guangdong,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:June06,2022 Numberoftestedsamples:2 Samplenumber:A052522121-1,A052522121-2 Samplenumber:Prototype DateofTest:June06,2022~June11,2022 DateofReport:June13,2022 Page2of32FCCID:2A7GS-19416ReportNo.:LCSA052522121EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.249) ReportReferenceNo......................:LCSA052522121EA DateofIssue.......................................:June13,2022 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, Bao’anDistrict,Shenzhen,Guangdong,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ZhongshanHaibangLightingApplianceCo.,Ltd Address................................................:No.16,KANGLONGfifthroad,XinmaoIndustrialZone,Henglan Town,ZhongshanGuangdong,China TestSpecification Standard..............................................:FCCCFR47PART15C(15.249)/ANSIC63.10:2013 TestReportFormNo.........................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2019-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription.....................:Thefanlights TradeMark..........................................:N/A TestModel...........................................:19416 Ratings.................................................: DC3.0Vby2*AAAbattery Result..................................................: Positive Compiledby:Supervisedby:Approvedby: JackLiu/AdministratorJinWang/TechniqueprincipalGavinLiang/Manager Page3of32FCCID:2A7GS-19416ReportNo.:LCSA052522121EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. TestReportNo.:LCSA052522121EA June13,2022 Dateofissue TestModel..............................:19416 EUT.........................................:Thefanlights Applicant...............................:ZhongshanHaibangLightingApplianceCo.,Ltd Address..................................:No.16,KANGLONGfifthroad,XinmaoIndustrialZone,Henglan Town,ZhongshanGuangdong,China Telephone...............................:/ Fax..........................................:/ Manufacturer........................:ZhongshanHaibangLightingApplianceCo.,Ltd Address...................................:No.16,KANGLONGfifthroad,XinmaoIndustrialZone,Henglan Town,ZhongshanGuangdong,China Telephone...............................:/ Fax..........................................:/ Factory...................................:ZhongshanHaibangLightingApplianceCo.,Ltd Address...................................:No.16,KANGLONGfifthroad,XinmaoIndustrialZone,Henglan Town,ZhongshanGuangdong,China Telephone...............................:/ Fax..........................................:/ Page4of32FCCID:2A7GS-19416ReportNo.:LCSA052522121EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000June13,2022InitialIssue-- Page5of32FCCID:2A7GS-19416ReportNo.:LCSA052522121EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION........................................................................................................................5 1.1DESCRIPTIONOFDEVICE(EUT)..............................................................................................................6 1.2.SUPPORTEQUIPMENTLIST.....................................................................................................................6 1.3.EXTERNALI/O............................................................................................…
Text truncated - open the document above for the full version.
Test Setup Photos
Page1of1FCCID:2A7GS-19416 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2
Contact Information
Applicant
Qiang Qiang
Test Firm
Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.40 GHz | - |
