2A7IA-QX7PROSMART WATCH

Basic introduction to the product 1，Appearance introductio SMART WATCH User Manual Model No.: n Power on/off key Return key 2，Watch strap installation method Basic Product Operation 1.Press the key for 3 seconds to turn on or off, and press it briefly to return to the main interface 2.On the main interface, long press for 3 seconds to switch the dial. 3.Slide the screen up, down, left and right to access various functions. APP download, installation and use GloryFit 2.After the download is completed, start the new user registration or third-party login.And improve personal basic information 1.Scan the following QR code or enter each major application market to download and install "GloryFit" Equipment requirements: ios 8.0 and above; Android 4.4 and above 4.After the binding is successful, start to set the functions of the watch in the APP according to your habits 3.Start binding watch 1.Main interface/dial Long press the main interface for 3 seconds to switch the dial 2.Motion state Record the current steps, distance and calories in real time 3.Temperature monitoring The current body temperature can be measured in time and uploaded to the APP for recording. Other functions of the watch： Do Not Disturb Mode/Stopwatch/Countdown/Flashlight/Calculator/ Female Physiological Cycle/Call Reminder/Message Reminder/ Alarm clock reminder/long sitting reminder/ goal achievement reminder 1， Please avoid strong impact, high temperature and exposure to the sun. 2， Do not disassemble, repair or modify the machine by yourself. 3， This machine can be charged with 5V 500MA -- 5V 2A charger. It is strictly prohibited to use the over-voltage load power supply for charging. 4， It is prohibited to charge when there is water stain. 5， This product is an electronic consumption monitoring product and is not used for medical purposes. The measured data are for reference only. Notice: The company reserves the right to modify the contents of this manual without any notice.It is normal that some functions are different in specific software versions. Heart rate sensor Charging contact Temperature sensor Touch panel Basic product functions Sort regardless 5.Blood oxygen saturation monitoring Enter the blood oxygen saturation interface to start the measurement, and the vibration indicates that the measurement is completed. 6.Blood pressure monitoring The current high voltage and low voltage can be measured in time and synchronized to the APP (Please note that this function is not enabled in some versions) 7.Sleep monitoring Switch the sleep monitoring interface to view the sleep situation last night. When wearing a watch to sleep, the watch willAutomatic monitoring of deep sleep, shallow sleep, awake, total duration. 8.Weather forecast After successful APP connection, you can view the weather conditions of the current day and recent days 9.Information reminder The watch saves the last 8 information prompts. Click to view the contents, or click to clear the information 10.100+Sport mode Click the sport mode to enter the sport list, click the selected sport mode to start calculation, and slide to the rightPause, stop, or continue 11.Voice Assistant Click the voice assistant and speak to the watch to control the phone to achieve the goal 12.Bluetooth call The watch dials directly and can store 100 phone numbers. The watch has recent call records 13.Find your phone Click Search, and the phone will sound a reminder. (The audio button on the watch should be turned off) 14.Music control Click the music control to pause/play, the previous song, the next song, and the volume adjustment Matters needing attention 4.Heart rate monitoring Switch to the heart rate monitoring interface, start to automatically measure the current index of heart rate, and slide to exit the measurement.Real time heart rate measurement can be turned on or off in APP settings 15.Remote control photography Click the watch to control the phone to take photos 16.SOS The emergency number can be stored in the APP and synchronized to the watch end. Click it to make a circular call. 17.Game Built in 2 entertainment games 18.Respiratory training Time and frequency can be set to achieve the purpose of training your breathing effect. （Bluetooth, for example） FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

-ShenzhenHanleYoupinTechnologyCo.,Ltd.- FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 7/14/23 U.S.AgentDesignation [ShenzhenHanleYoupinTechnologyCo.,Ltd.]acknowledgestheirconsentforthefollowingcontactlocatedin theUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought (FCCID:[2A7IA-QX7PRO]): NameandcompanyofU.S.agent:LinkwldLLC PhysicalU.S.addressofagent:1942BroadwaySt.STE314C,Boulder,CO,80302,US FRNofU.S.agent:0033625682 EmailaddressofU.S.agent:[email protected] [LinkwldLLC]acknowledgestheirobligationtoacceptserviceofprocessonbehalfof[ShenzhenHanleYoupin TechnologyCo.,Ltd.]. [ShenzhenHanleYoupinTechnologyCo.,Ltd.]withtheFRN[0032561649]acceptsitsobligationtomaintain anagentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature [Xiaoyinlv] [Generalmanager] [ShenzhenHanleYoupinTechnologyCo.,Ltd.] Signature [TimothyZhu] [Manager] [LinkwldLLC] 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

-ShenzhenHanleYoupinTechnologyCo.,Ltd.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 7/14/23 Towhomitmayconcern: We,[ShenzhenHanleYoupinTechnologyCo.,Ltd.],herebycertifythattheequipmentforwhich authorizationissought(FCCID:[2A7IA-QX7PRO])isnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [Xiaoyinlv] [Generalmanager] [ShenzhenHanleYoupinTechnologyCo.,Ltd.] 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

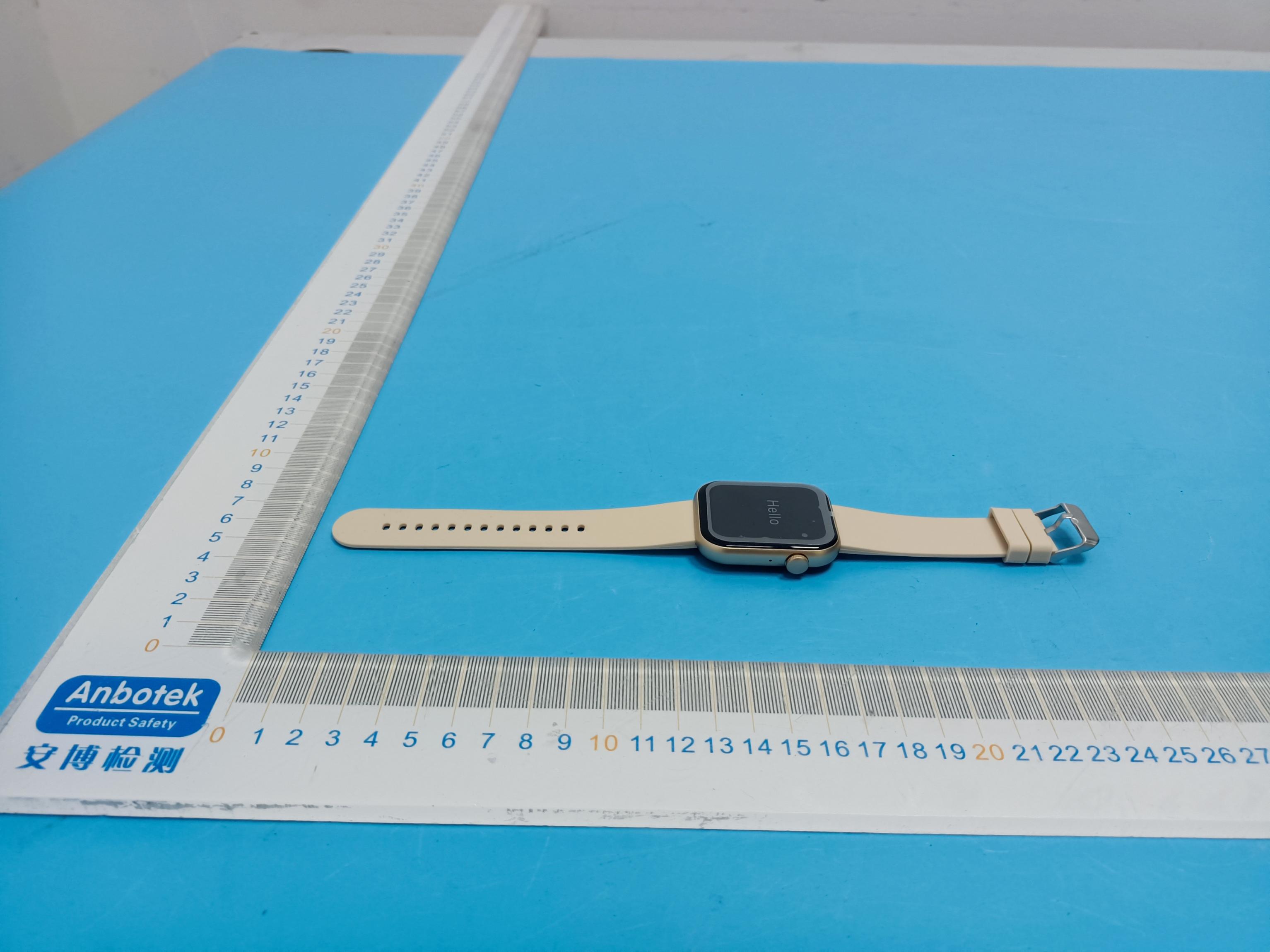

ProjectNo.:18220WC301273Page1of4 Code:AB-RF-05-b AppendixII--ExternalPhotograph ProjectNo.:18220WC301273Page2of4 Code:AB-RF-05-b ProjectNo.:18220WC301273Page3of4 Code:AB-RF-05-b ProjectNo.:18220WC301273Page4of4 Code:AB-RF-05-b

LabelLocationOnEUT Label ModelNo.:QX7Pro FCCID:2A7IA-QX7PRO

ProjectNo.:18220WC301273Page1of3 Code:AB-RF-05-b AppendixIII--InternalPhotograph ProjectNo.:18220WC301273Page2of3 Code:AB-RF-05-b ANT ProjectNo.:18220WC301273Page3of3 Code:AB-RF-05-b

RFEXPOSUREEVALUATION FCCID:2A7IA-QX7PRO AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 2402-0.80-0.80±10.2050.3253 BLE_1M2440-1.75-1.75 ±1 -0.7550.2633 2480-3.18-3.18±1-2.1850.1913 2402-0.67-0.67±10.3350.3343 BLE_2M2440-1.60-1.60 ±1 -0.6050.2723 2480-3.04-3.04±1-2.0450.1973 Result:NoStandaloneSARtestisrequired.

Page1of33 AppendixTestData ReportNo.:18220WC30127301TestSampleNo.:1-2-2 StartTestDate:2023.06.26FinishTestDate:2023.06.27 TestEngineer:Auditor: Temperature:25.1 °C RelativeHumidity:50% Pressure:1012hPa AppendixA:DTSBandwidth TestResult TestModeAntennaFrequency[MHz] DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.7002401.6402402.3400.5PASS 24400.6642439.6522440.3160.5PASS 24800.6602479.6642480.3240.5PASS BLE_2MAnt1 24021.1082401.4482402.5560.5PASS 24401.0442439.5002440.5440.5PASS 24800.9642479.4402480.4040.5PASS Page2of33 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page3of33 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page4of33 BLE_2M_Ant1_2480 Page5of33 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz]OCB[MHz]FL[MHz]FH[MHz] BLE_1MAnt1 24021.03032401.48312402.5134 24401.02872439.48232440.5110 24801.03122479.48012480.5113 BLE_2MAnt1 24022.06252400.98962403.0521 24402.05782439.00122441.0590 24802.06242478.98702481.0494 Page6of33 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page7of33 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page8of33 BLE_2M_Ant1_2480 Page9of33 AppendixC:Maximumconductedoutputpower TestResultPeak TestModeAntennaFrequency[MHz] ConductedPeak Power[dBm] Conducted Limit[dBm] Verdict BLE_1MAnt1 2402-0.80≤30PASS 2440-1.75≤30PASS 2480-3.18≤30PASS BLE_2MAnt1 2402-0.67≤30PASS 2440-1.60≤30PASS 2480-3.04≤30PASS Page10of33 TestGraphsPeak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page11of33 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page12of33 BLE_2M_Ant1_2480 Page13of33 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-16.22≤8.00PASS 2440-16.64≤8.00PASS 2480-18.15≤8.00PASS BLE_2MAnt1 2402-19.79≤8.00PASS 2440-20.98≤8.00PASS 2480-20.76≤8.00PASS Page14of33 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page15of33 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page16of33 BLE_2M_Ant1_2480 Page17of33 AppendixE:Bandedgemeasurements TestResult TestModeAntennaChName Frequency [MHz] RefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 Low2402-0.46-57.53≤-20.46PASS High2480-3.63-57.79≤-23.63PASS BLE_2MAnt1 Low2402-1.58-33.92≤-21.58PASS High2480-3.68-57.16≤-23.68PASS Page18of33 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 Page19of33 BLE_2M_Ant1_High_2480 Page20of33 AppendixF:ConductedSpuriousEmission TestResult TestModeAntenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference-1.80-1.80---PASS 30~1000-1.80-69.34≤-21.8PASS 1000~26500-1.80-52.53≤-21.8PASS 2440 Reference-3.06-3.06---PASS 30~1000-3.06-69.1≤-23.06PASS 1000~26500-3.06-53.39≤-23.06PASS 2480 Reference-4.31-4.31---PASS 30~1000-4.31-69.46≤-24.31PASS 1000~26500-4.31-53.65≤-24.31PASS BLE_2MAnt1 2402 Reference-4.67-4.67---PASS 30~1000-4.67-68.97≤-24.67PASS 1000~26500-4.67-52.73≤-24.67PASS 2440 Reference-2.45-2.45---PASS 30~1000-2.45-69.77≤-22.45PASS 1000~26500-2.45-53.32≤-22.45PASS 2480 Reference-3.54-3.54---PASS 30~1000-3.54-69.77≤-23.54PASS 1000~26500-3.54-53.51≤-23.54PASS Page21of33 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Page22of33 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Page23of33 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Page24of33 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Page25of33 BLE_2M_Ant1_2402_0~Reference BLE_2M_Ant1_2402_30~1000 Page26of33 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_0~Reference Page27of33 BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 Page28of33 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 Page29of33 BLE_2M_Ant1_2480_1000~26500 Page30of33 AppendixG:DutyCycle TestResult TestModeAntennaFrequency[MHz] ONTime [ms] Period [ms] DutyCycle [%] DutyCycle Factor[dB] BLE_1MAnt1 24020.400.6363.491.97 24400.400.6363.491.97 24800.400.6363.491.97 BLE_2MAnt1 24020.210.6333.334.77 24400.210.6333.334.77 24800.210.6333.334.77 Page31of33 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page32of33 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page33of33 BLE_2M_Ant1_2480 ---End---

ReportNo.:18220WC30127301FCCID:2A7IA-QX7PROPage1of30 Code:AB-RF-05-b FCCTestReport Applicant:ShenzhenHanleYoupinTechnologyCo.,Ltd. Address: 709,BuildingB,CityShanhaiCenter,No.11, TaiwanCountyRoad136Community, MaantangCommunity,BantianStreet, LonggangDistrict,Shenzhen,China ProductName:SMARTWATCH ReportDate:Jul.14,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30127301FCCID:2A7IA-QX7PROPage2of30 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................6 1.1.ClientInformation....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................7 1.4.DescriptionofTestConfiguration..........................................................................................................7 1.5.DescriptionOfTestSetup......................................................................................................................8 1.6.TestEquipmentList.................................................................................................................................9 1.7.MeasurementUncertainty....................................................................................................................10 1.8.DescriptionofTestFacility...................................................................................................................10 2.SummaryofTestResults.................................................................................................................................11 3.ConductedEmissionTest................................................................................................................................12 3.1.TestStandardandLimit........................................................................................................................12 3.2.TestSetup...............................................................................................................................................12 3.3.TestProcedure.......................................................................................................................................12 3.4.TestData.................................................................................................................................................12 4.RadiationSpuriousEmissionandBandEdge.............................................................................................15 4.1.TestStandardandLimit........................................................................................................................15 4.2.TestSetup...............................................................................................................................................15 4.3.TestProcedure.......................................................................................................................................16 4.4.TestData.................................................................................................................................................17 5.MaximumPeakOutputPowerTest...............................................................................................................25 5.1.TestStandardandLimit........................................................................................................................25 5.2.TestSetup...............................................................................................................................................25 5.3.TestProcedure.......................................................................................................................................25 5.4.TestData.................................................................................................................................................25 6.6dBOccupyBandwidthTest...........................................................................................................................26 6.1.TestStandardandLimit........................................................................................................................26 6.2.TestSetup...............................................................................................................................................26 6.3.TestProcedure.......................................................................................................................................26 6.4.TestData.................................................................................................................................................26 7.PowerSpectralDensityTest...........................................................................................................................27 7.1.TestStandardandLimit........................................................................................................................27 7.2.TestSetup...............................................................................................................................................27 7.3.TestProcedure.......................................................................................................................................27 7.4.TestData.................................................................................................................................................27 8.100kHzBandwidthofFrequencyBandEdgeRequirement......................................................................28 8.1.TestStandardandLimit................................................................................................…

Text truncated - open the document above for the full version.

version01 ShenzhenHanleYoupinTechnologyCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:QX7Pro,Q9Pro,QX5,QX7,QX8,QX9,QX9Pro,QX10,QX11,QX12,Q13, QX14,QX15,QX16,QX17,QX18,QX19 FCCID:2A7IA-QX7PRO fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:MonopoleAntenna Gainoftheantenna:-3.96dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShenzhenHanleYoupinTechnologyCo.,Ltd. Address:709,BuildingB,CityShanhaiCenter,No.11,TaiwanCountyRoad136 Community,MaantangCommunity,BantianStreet,Longgang District,Shenzhen,China City:Shenzhen ZIP/Postalcode:/ Country:China Place:Date:7/14/2023 Signature:

深圳市和鸣微科技有限公司 ShenzhenHamyWeTechnologyCo.,Ltd. Page1 深圳市和鸣微科技有限公司版权所有 天线承认书 PartsApprovalSheet DATE:2022/11/24 R&DQC IssuedbyCheckedbyConfirmedbyCheckedby 伍海沅冯少辉韦永斌文孝群 Customer Confirm Environmentalrequirements：█ROHS□REACH□无 Customer优创亿ProjectS6 BandBTColorBlack PNX1649VersionV0 Customer materialnumber 深圳市和鸣微科技有限公司 ShenzhenHamyWeTechnologyCo.,Ltd. Page2 深圳市和鸣微科技有限公司版权所有 Contents Contents............................................................................................................................................................................2 1.Summary........................................................................................................................................................................3 2.GeneralDescription...................................................................................................................................................3 2.1AntennaComponents/Partrevisions.......................................................................................................3 2.2Definitions..........................................................................................................................................................3 3.ElectricalPerformance..............................................................................................................................................4 3.1MatchingCircuitDescription.....................................................................................................................4 3.2VSWR(Testinfreespace)............................................................................................................................4 3.3Gain&Efficiency...............................................................................................................................................5 4.AntennaEngineerdrawing....................................................................................................................................6 深圳市和鸣微科技有限公司 ShenzhenHamyWeTechnologyCo.,Ltd. Page3 深圳市和鸣微科技有限公司版权所有 1.Summary ThisreportsummarizestheelectricalresultsoftheourantennatosupporttheprojectS6.Thetestfixture ismadeforfurthertesting,whichisshowbelow ： 2.GeneralDescription 2.1AntennaComponents/Partrevisions TheantennapartnumberisT ： A 2.2Definitions VSWR ： VoltageStandingWaveRate TRP ： totalradiatedpower TIS ： totalistropicsensitivity 深圳市和鸣微科技有限公司 ShenzhenHamyWeTechnologyCo.,Ltd. Page4 深圳市和鸣微科技有限公司版权所有 3.ElectricalPerformance 3.1MatchingCircuitDescription 3.2VSWR(Testinfreespace) 深圳市和鸣微科技有限公司 ShenzhenHamyWeTechnologyCo.,Ltd. Page5 深圳市和鸣微科技有限公司版权所有 3.3Gain&Efficiency Frequency(MHz)Gain(dB)Efficiency(%) 240015.7-4.213 241016.1-4.044 242017.0-4.841 243018.4-4.758 244018.3-4.683 245019.9-4.325 246018.0-4.547 247016.5-3.962 248017.8-4.569 249016.4-4.754 250016.2-4.854 Frequency(MHz)Gain(dB)Efficiency(%) 2400-7.624.86 2410-8.054.8 2420-7.824.86 2430-8.074.94 2440-8.075.15 2450-7.875.16 2460-7.875.41 2470-7.955.54 2480-7.835.78 2490-7.815.84 2500-7.75.86 深圳市和鸣微科技有限公司 ShenzhenHamyWeTechnologyCo.,Ltd. Page6 深圳市和鸣微科技有限公司版权所有 4.AntennaEngineerdrawing

ProjectNo.:18220WC301273Page1of2 Code:AB-RF-05-b AppendixI--TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest ProjectNo.:18220WC301273Page2of2 Code:AB-RF-05-b
