Sensor Maestros Revised: June 18, 2022 Page 1 of 3 Bluetooth Low Energy BLE 4.2 Radio PCBA Model Number: smB1110, smB1111 Data Sheet Sensor Maestros Revised: June 18, 2022 Page 2 of 3 Description smB1110 BLE PCBA utilizes the Nordic nRF52810-QCAA SoC with a PCB trace antenna. smB1111 BLE PCBA utilizes the Nordic nRF52811-QCAA SoC with a PCB trace antenna. The nRF52811 BLE SoC is simply a slightly newer version of the nRF52810 BLE SoC and provides the exact same radio functionality. smB1110/smB1111 operates as a ‘Connectable-Beacon’ and transmits its beacon information at a fixed interval that can be adjusted from 1 to 2.2 seconds and at a Tx power of 0dBm. It can optionally be provided with a MEMs accelerometer for simple motion detection. For the nRF52810-QCAA and nRF52811-QCAA SoC, refers to the nRF52810/nRF52811 Product Specification and the SDK is available from the Nordic Semiconductor website. Main Features - Complete Bluetooth® low energy SoC (4.2 specification) - 32-bit ARM Cortex-M4F processor @ 64MHz - Size : 32pin QFN 5x5x0.85mm - Operating Frequency : 2,402MHz ~ 2,480MHz - Up to 24kB SRAM and 192kB Flash - Certified for FCC and Bluetooth - Rx sensitivity : Typical -93dBm - Operational Temperature range : -20°C to 70°C Applications - Asset Tracking - Remote Monitoring The (Family model smB1110/smB1111) two models of Main Board share the same PCB layout. The only difference is the SMB1111 uses a slightly newer BLE SoC in the nRF52811-QCAA. ⚫ smB1110 uses the nRF52810-QCAA BLE SoC ⚫ smB1111 uses the nRF52811-QCAA BLE SoC Model Item Description Placement Type/ Model Manufacturer Name Manufacturers. Part Number Remark smB1110 Bluetooth PCBA with PCB Trace Antenna U2 nRF52810 Nordic Semiconductor nRF52810-QCAA N/A smB1111 Bluetooth PCBA with PCB Trace Antenna U2 nRF52811 Nordic Semiconductor nRF52811-QCAA N/A Antenna Approved for use with smB1110 and smB1111 Part Number Max Gain (dBi) Supplier Notes PCB Trace 3.3 PCBA Trace Inverted F PCB Trace Antenna This unit is sold pre-programmed with its Radio Transmit interval, BLE UUID, and Transmit Power defined and is encompassed into a plastic enclosure so there is not a detailed user manual. Sensor Maestros Revised: June 18, 2022 Page 3 of 3 Federal Communication Commission Interference Statement This equipment was tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ⚫ Reorient or relocate the receiving antenna. ⚫ Increase the separation between the equipment and receiver. ⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫ Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important Note Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA. This device is intended only for OEM integrators under the following conditions: 1.The antenna must be installed such that 20 centimeters is maintained between the antenna and users, and 2.The transmitter module may not be co-located with any other transmitter or antenna, 3.For all products market in US, OEM must limit the operation channels in CH0 to CH39 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end user regarding to Regulatory Domain change. If the conditions above are met, further transmitter test are not required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Important Note In the event that these conditions cannot be met (for example, certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator is responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization End Product Labeling This transmitter module is authorized only for use in a device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: Contains FCC ID: XXXX-XXXX Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory informati…

Text truncated - open the document above for the full version.

Sensor Maestros P a g e | 1 Revised: Novermber 30, 2022 Bluetooth Low Energy BLE 4.2 Radio PCBA Model Number: smB1110, smB1111 User Manual Sensor Maestros P a g e | 2 Revised: Novermber 30, 2022 Description smB1110 BLE PCBA utilizes the Nordic nRF52810-QCAA SoC with a PCB trace antenna. smB1111 BLE PCBA utilizes the Nordic nRF52811-QCAA SoC with a PCB trace antenna. The nRF52811 BLE SoC is simply a slightly newer version of the nRF52810 BLE SoC and provides the exact same radio functionality. smB1110/smB1111 operates as a ‘Connectable-Beacon’ and transmits its beacon information at a fixed interval that can be adjusted from 1 to 2.2 seconds and at a Tx power of 0dBm. It can optionally be provided with a MEMs accelerometer for simple motion detection. For the nRF52810-QCAA and nRF52811-QCAA SoC, refers to the nRF52810/nRF52811 Product Specification and the SDK is available from the Nordic Semiconductor website. Main Features - Complete Bluetooth® low energy SoC (4.2 specification) - 32-bit ARM Cortex-M4F processor @ 64MHz - Size : 32pin QFN 5x5x0.85mm - Operating Frequency : 2,402MHz ~ 2,480MHz - Up to 24kB SRAM and 192kB Flash - Certified for FCC and Bluetooth - Rx sensitivity : Typical -93dBm - Operational Temperature range : -20°C to 70°C - CR2477 primary coin cell - Red and Green visual indicators(LED’s) - Optional MEMs accelerometer Applications - Asset Tracking - Remote Monitoring Sensor Maestros P a g e | 3 Revised: Novermber 30, 2022 The (Family model smB1110/smB1111) two models of Main Board share the same PCB layout. The only difference is the SMB1111 uses a slightly newer BLE SoC in the nRF52811-QCAA. ⚫ smB1110 uses the nRF52810-QCAA BLE SoC ⚫ smB1111 uses the nRF52811-QCAA BLE SoC Model Item Description Placement Type/ Model Manufacturer Name Manufacturers. Part Number Remark smB1110 Bluetooth PCBA with PCB Trace Antenna U2 nRF52810 Nordic Semiconductor nRF52810-QCAA N/A smB1111 Bluetooth PCBA with PCB Trace Antenna U2 nRF52811 Nordic Semiconductor nRF52811-QCAA N/A Antenna Approved for use with smB1110 and smB1111 Part Number Max Gain (dBi) Supplier Notes PCB Trace 3.3 PCBA Trace Inverted F PCB Trace Antenna This unit is sold pre-programmed with its Radio Transmit interval, BLE UUID, and Transmit Power defined and is encompassed into a plastic enclosure so there is not a detailed user manual. RADMEDIA-BLE-T21, T22 Mechanical View NOTE: There are no accessible GPIO to a user/host outside of power and programming pins. Sensor Maestros P a g e | 4 Revised: Novermber 30, 2022 RADMEDIA-BLE-T21 PCBA Photos RADMEDIA-BLE-T22 PCBA Photos Sensor Maestros P a g e | 5 Revised: Novermber 30, 2022 PCB Trace Antenna 1. Dimensions Figure 1. IFA Dimensions Table 1. IFA Dimensions H1 5.70 mm W2 0.46 mm H2 0.74 mm L1 25.58 mm H3 1.29 mm L2 16.40 mm H4 2.21 mm L3 2.18 mm H5 0.66 mm L4 4.80 mm H6 1.21 mm L5 1.00 mm H7 0.80 mm L6 1.00 mm H8 1.80 mm L7 3.20 mm H9 0.61 mm L8 0.45 mm W1 1.21 mm 2. Radiation Pattern Figure 2 shows how to relate all of the radiation patterns to the orientation of the antenna. The radiation patterns were measured with the RADMEDIA-BLE-T21/RADMEDIA-BLE-T22 device programmed to 0-dBm output power. Figure 2. Relating Antenna to Radiation Patterns Sensor Maestros P a g e | 6 Revised: Novermber 30, 2022 Figure 3. XY Plane – Vertical Polarization Sensor Maestros P a g e | 7 Revised: Novermber 30, 2022 Figure 4. XY Plane Horizontal Polarization Sensor Maestros P a g e | 8 Revised: Novermber 30, 2022 Figure 5. XZ Plane Vertical Polarization Sensor Maestros P a g e | 9 Revised: Novermber 30, 2022 Figure 6. XZ Plane Horizontal Polarization Sensor Maestros P a g e | 10 Revised: Novermber 30, 2022 Figure 7. YZ Plane Vertical Polarization Sensor Maestros P a g e | 11 Revised: Novermber 30, 2022 Figure 8. YZ Plane Horizontal Polarization Sensor Maestros P a g e | 12 Revised: Novermber 30, 2022 3. PCB Antenna Bandwidth One way of measuring the bandwidth after the antenna is implemented on a PCB and connected to a transmitter is to write test software that steps a carrier across the frequency band of interest. By using the maximum hold function on a spectrum analyzer, the variation in output power across frequency can easily be measured. Figure 9 shows how the output power varies on the IFA when the PCB is horizontally oriented and the receiving antenna has horizontal polarization. This measurement was not performed in an anechoic chamber, thus the graph shows only the relative variation for the given frequency band. Figure 9. Bandwidth of PCB Antenna 4. Conclusion PCB Trace Antenna Table 2 lists the most important properties for the IFA. Table 2. Summary of IFA Properties Gain in XY plane 1.1 dBi Gain in XZ plane 3.3 dBi Gain in YZ plane 1.6 dBi Reflection < –15 dB Antenna size 25.7 × 7.5 mm Sensor Maestros P a g e | 13 Revised: Novermber 30, 2022 Federal Communication Commission Interference Statement This equipment was tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ⚫Reorient or relocate the receiving antenna. ⚫Increase the separation between the equipment and receiver. ⚫Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not ex…

Text truncated - open the document above for the full version.

1 | Page Company: Sensor Maestros LLC Address: 9878 W. Belleview Ave #124 Littleton CO 80123 Product Name: smB1110 Model Number(s): smB1110, smB1111 Product Description: BT Modular We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: November 2, 2022 Name: Frank Roberts II Title: Executive Manager Company: Sensor Maestros LLC

Date: June 18, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: FCC Family Model Letter FCC ID: 2A7JO-SMB1110 To Whom It May Concern: Please be notified that we, the under signed, Sensor Maestros LLC hereby declare that the reasons for this FCC multiple listing: The (Family model smB1110/smB1111) 2 models of Main Board share the same PCB layout. The only difference between the smB1110 and the smB1111 models is the BLE SOC in which the smB1111 uses a slightly newer revision of the BLE SOC but provides the exact same radio and MCU functionality. ⚫ smB1111 utilizes the nRF52811-QCAA which is a slightly newer version of the original nRF52810-QCAA ⚫ smB1110 utilizes the original BLE SOC model being the nRF52810-QCAA Model Item Description Placement Type/ Model Manufacturer. Name Manufacturers. Part Number Remark smB1111 IC, 2.4GHz BLE SOC Nordic Semiconductor U2 smB1111 Nordic Semiconductor nRF52811-QCAA N/A smB1110 IC, 2.4GHz BLE SOC Nordic Semiconductor U2 smB1110 Nordic Semiconductor nRF52810-QCAA N/A Yours sincerely, Signature Name of Contact: Frank Roberts II Title of Contact: Executive Manager

1 | Page Date: June 18, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request FCC ID: 2A7JO-SMB1110 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Sensor Maestros LLC hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Signature Name of Contact: Frank Roberts II Title of Contact: Executive Manager

1 | Page Date: October 14, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: FCC Modular Approval Letter for Limit Modular FCC ID: 2A7JO-SMB1110 To Whom It May Concern: Modular Approval Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; ☒No The modular does not have RF own shielding 2) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; ☒Yes The modular transmitter have buffered modulation/data inputs 3) The module must contain power supply regulation on the module; ☒Yes PWM is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); ☒Yes The modular has a PCB antenna 5) The module must demonstrate compliance in a stand-alone configuration; ☒Yes The module compliance in a stand-alone configuration. 6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748); ☒Yes The FCC identification number can put on the modular with either a permanently affixed label 7) The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee; ☒Yes The instructions will be provided and apply to a complete transmit 8) The module must comply with RF exposure requirements. ☒Yes The total power density of modular transmitter final configuration comply with FCC RF Exposure Signature Name of Contact: Frank Roberts II Title of Contact: Executive Manager

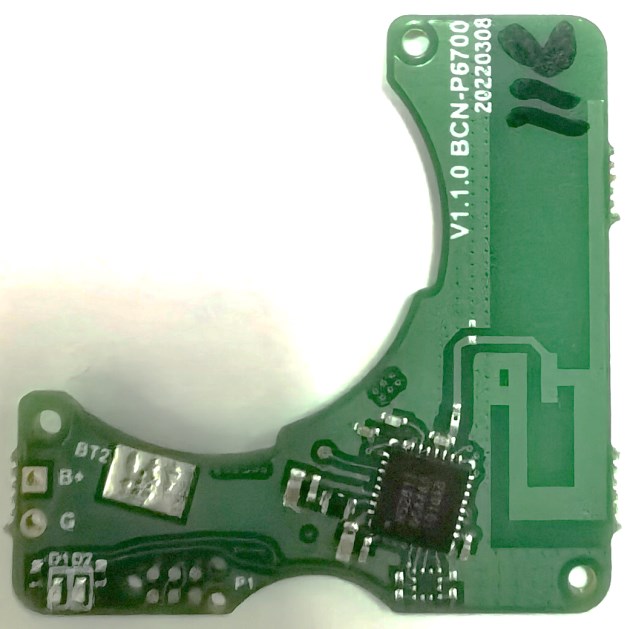

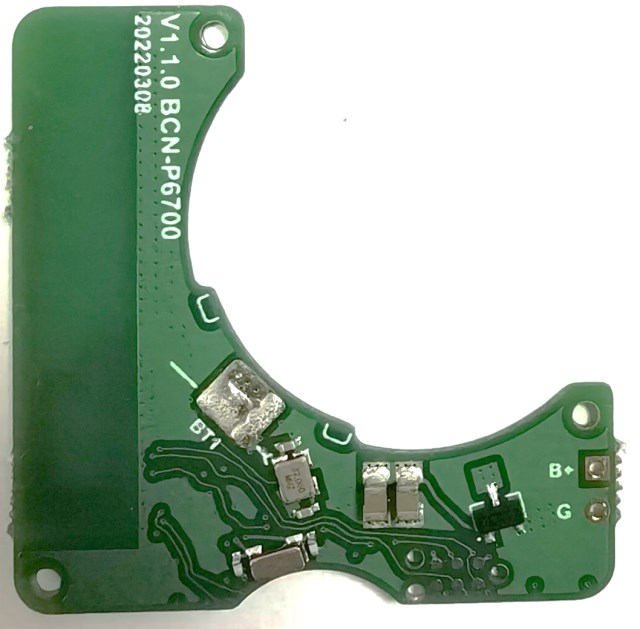

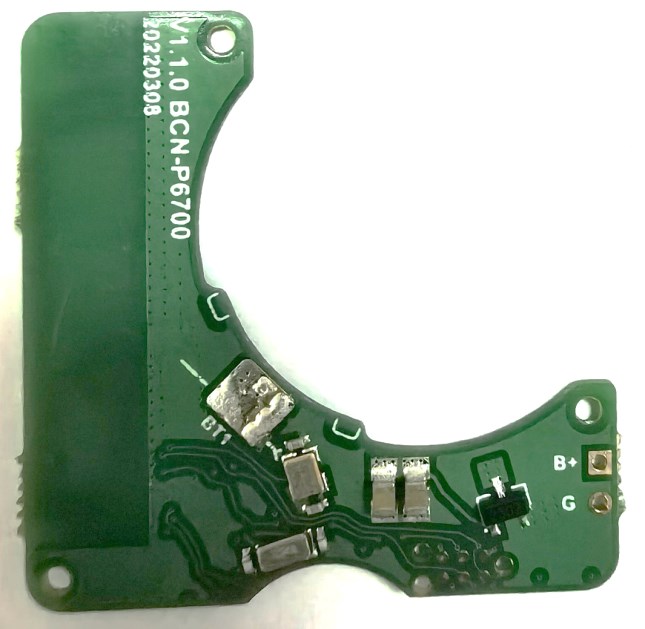

Global Market Access Service >> www.kmolab.com External Photos_2A7JO-SMB1110 Page 1 of 2 EUT top side view_smB1110 EUT top side view_smB1-111 Global Market Access Service >> www.kmolab.com External Photos_2A7JO-SMB1110 Page 2 of 2 EUT bottom side view_smB1110 EUT bottom side view_smB1-111
