2A7KU-S-W-1Smart water timer

Shen zhen jian pai mao yi you xian gong si
Smart water timer - FCC ID 2A7KU-S-W-1 - Shen zhen jian pai mao yi you xian gong si
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 04, 2022
Application Purpose
Original Equipment
Date of Application
Jul 04, 2022
Equipment Note
Smart water timer
Frequency Range
2405.00000000 - 2480.00000000
Company
Shen zhen jian pai mao yi you xian gong si
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

(Zigbee) Smart Water Valve User Manual www.sainlogic.com ●Smart water valve Remote operation: remote control of mobile APP anytime and anywhere, manual control of field devices, and timing control of APP Signal distance: the open distance between gateway and smart water valve is ≤50 meters Battery:4*AA alkaline dry batteries are used. Protection grade: IP66. Smart water valve can be installed and used outdoors. 1. One gateway can be connected with 8 smart water valves. 2. The open distance from the gateway to the smart water valve is ≤50 meters, and the partition wall distance is ≤20 meters (determined according to the actual installation environment). 3. Zigbee signal cannot be relayed and jumped through smart water valve. 4. After setting the timing, if the smart water valve is offline, it will be watered according to the timing program. 5. Operational requirements of water flowmeter: the water flow rate is at least 2L/ min, and the water flow is too small to drive the flowmeter to work. There will be a false alarm of "water shortage warning". 6. Statistics will be recorded only when the smart water valve is online for historical records. 7. Water shortage reminder: When the water valve is opened and there is no water, the water shortage warning will be prompted after 15 seconds in the connected state. Instructions for use: Performance and instructions Water pipe Router Smart water valve Smart gateway Smart water valve Mobile phone/Tablet 812 Hose Dual-purpose nozzle Remote control via APP Water pipe Lawn irrigation 2.4Ghz Cloudservice Product parameters ½"or ¾"&1" Ip66 0.2~8bar Power -10°C~+50°C PowerDC5V/1A Switch / reset button ¾"water inlet 1 inch internal thread water inlet Battery slot ¾"external thread outlet Smart water valve (Zigbee) Smart gateway (Zigbee) Product name Product name Caliber Waterproof level Withstand water pressure 4*AA alkaline dry battery Operating temperature Working humidity Signal range Open area ≤ 50 meters 0-90%RH No condensation Gateway networking tutorial ① Open the APP and click add device or "+"in the upper right corner, ② Select gateway central control → wireless gateway (zigbee), ③ Enter WiFi account and password (2.4Ghz), ④Check to confirm that the indicator light is flashing, and EZ mode is in the upper right corner, ⑤Next, enter the interface of adding equipment , ⑥Wait a moment and add successfully. ① ② ③ Operation Guide ①Scan the QR code to download the “Smart Life” app, ②Register a member account. Input your mobile phone number or email address. Receive the verification code SMS. Configurate your own password. Gateway adds and connects intelligent water valve ①Open the gateway interface and select "+Add Subdevice". ② Confirm whether the indicator light of the intelligent water valve flashes (press and hold the switch button of the intelligent water valve for 5 seconds, and the indicator light switches from long on to flash or extinguish). ③Automatically search for equipment, and click Finish after searching for the equipment. ④ If the addition is successful, click the name of the brush to modify it. ④ ⑤ ⑥ Mobile APP Interface It's easy to understand and operate Water capacity 1.Single irrigation 2.Cycle irrigation 1. Real-time feedback of watering time 2.Real-time feedback of watering flow Timing watering 1.Set timing by flow 2.Set timing by duration 3.Rain and snow delay Watering history 1.Total monthly watering volume 2.Records of each open 1.Last irrigation time 2.Remaining power 1.Next irrigation time 2.Current weather Watering time 1.single irrigation 2.cycle irrigation Control switch button Warranty Regulations 1. The warranty period of this product is one year. 2. During the warranty period, any failure occurred under normal use according to the instruction manual (judged by the official staff of our company) shall be repaired free of charge. 3. During the warranty period, if one of the following situations occurs, it must be repaired as a charge: ①This guarantee and valid purchase certificate cannot be provided. ②Faults and damages caused by incorrect use and improper repair by oneself. ③ Failure or damage caused by transportation, moving and falling after receiving goods. ④ Damage caused by other inevitable bad factors. ⑤ Failure or damage caused by equipment soaking in water. ⑥ If the temperature is lower than 0°C, please disassemble and put it back indoors. If the equipment is damaged due to this problem, there is no warranty. 4. We only make the above warranties, and do not make any other express or implied warranties (including implied warranties of merchantability, rationality and adaptability to a specific application, etc.). Our company is not responsible for any special, accidental or indirect damages, whether in contract, civil negligence or other aspects. Product Warranty Card Product name: Customer name: Contact number: Customer address: Warranty contents: Warranty contents: Warranty contents: Client signature: Client signature: Client signature: After sale: After sale: After sale: Satisfied Satisfied Satisfied Dissatisfied Dissatisfied Dissatisfied Product model: Ex-factory number: Date of appearance: FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate …

Text truncated - open the document above for the full version.

External Photos

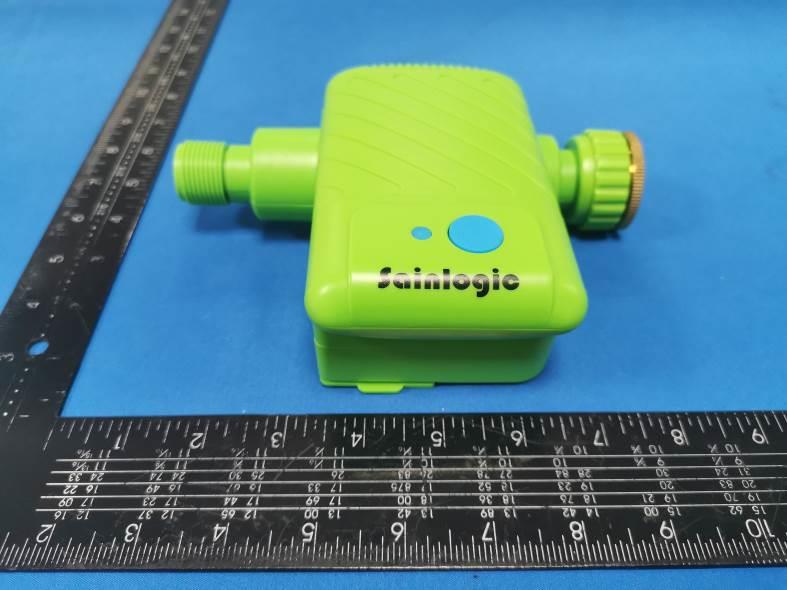

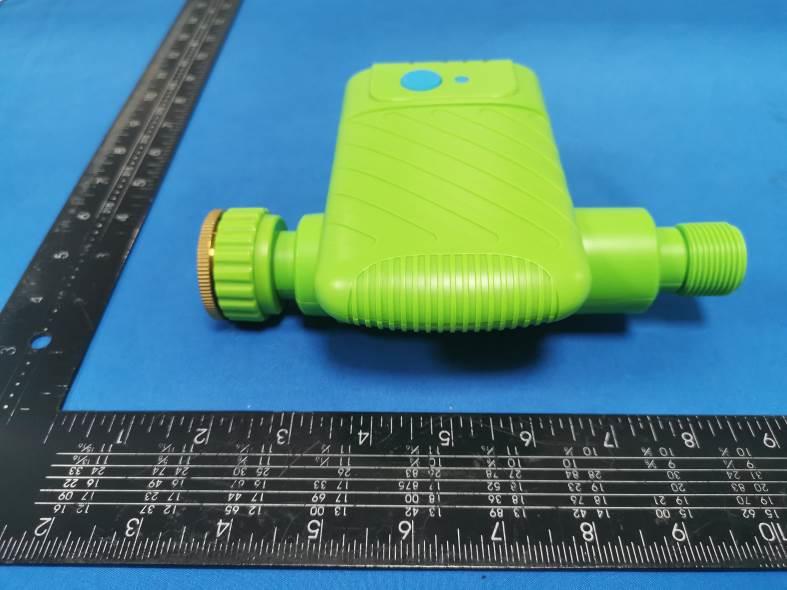

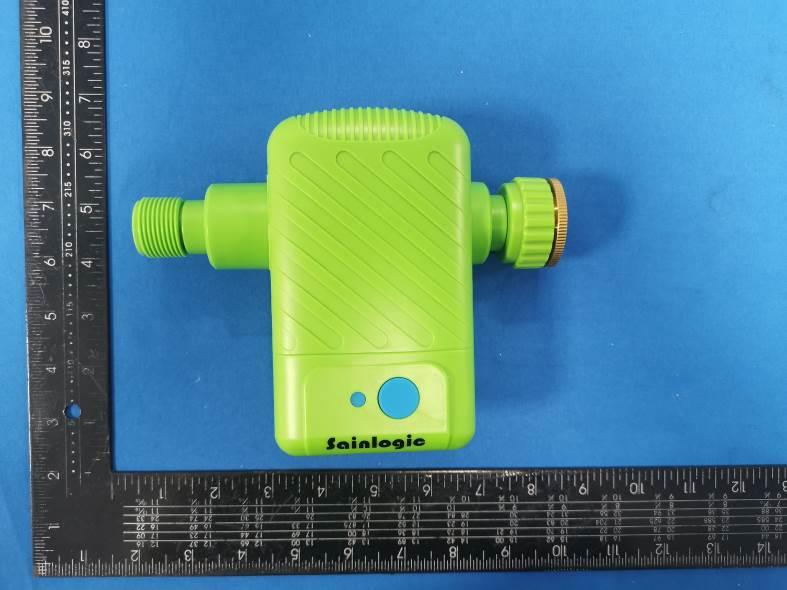

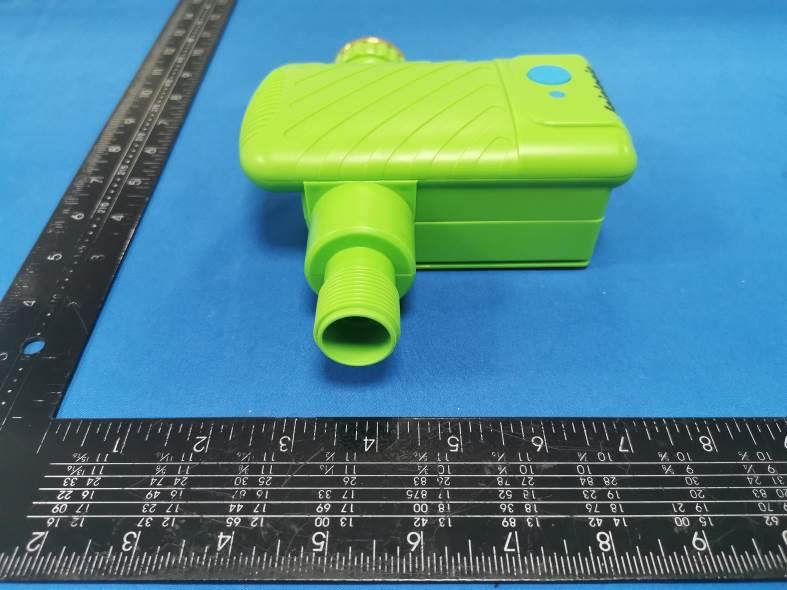

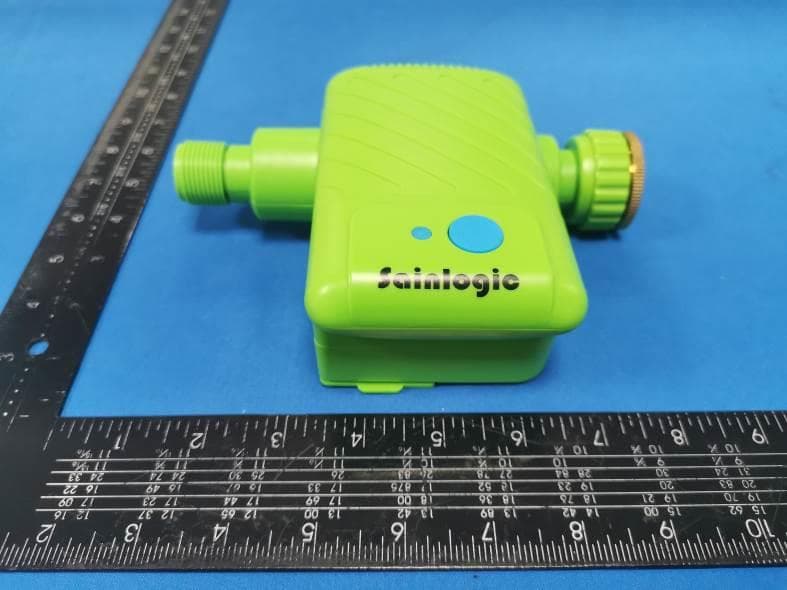

FCC ID: 2A7KU-S-W-1 S-W-1 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A7KU-S-W-1 Photo 4 Photo 5 Photo 6 FCC ID: 2A7KU-S-W-1 Photo 7 Photo 8

ID Label/Location Info

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A7KU-S-W-1

Internal Photos

FCC ID: 2A7KU-S-W-1 S-W-1 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A7KU-S-W-1 Photo 4 Photo 5 Photo 6 Antenna FCC ID: 2A7KU-S-W-1 Photo 7 Photo 8

RF Exposure Info

RF Exposure evaluation FCC ID: 2A7KU-S-W-1 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information S-W-1 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: Zigbee / PIFA antenna 2.5dBi for 2400-2500MHz; 5. Manufacturing Tolerance Zigbee GFSK(Peak) Channel Channel 11 Channel 18 Channel 26 Target (dBm) 13.0 13.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 2.5dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW Zigbee 14.0 25.1189 2.5 1.7783 0.0089 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------
