  1. Home/
  2. Zhejiang Yi Xin Electronic TechnologyCo., Ltd/
  3. 2A7LQ-YX009-YX009S

2A7LQ-YX009-YX009SUS Smart Socket

Zhejiang Yi Xin Electronic TechnologyCo., Ltd
US Smart Socket - FCC ID 2A7LQ-YX009-YX009S - Zhejiang Yi Xin Electronic TechnologyCo., Ltd
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 14, 2022
Application Purpose
Original Equipment
Date of Application
Jul 14, 2022
Equipment Note
US Smart Socket
Frequency Range
2412.00000000 - 2462.00000000
Company
Zhejiang Yi Xin Electronic TechnologyCo., Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CRAIPW102 Color Electrical Rating Working TempWi-Fi RequirementApp support White120V AC,60Hz,10A load1200W general use-20~50 2.4GHz OnlyIOS/Android Smart Plug User Manual Into the home page 1 Select Auto Scan Mode 2 Enter the Wi-Fi password 3 Distribution network succeed 4 Setting CRESTIN App 1.Download the “CRESTIN” APP form App Store or Google PLay Market or scan the QR code and install the “CRESTIN” for either iOS or Android.2.Once downloaded the app will ask you to register your account.3.Type your email, click and verification code will besent to your email.4.Type verification code to complete registration. How to add device using thegateway function Method 1 First add device with a mobile phone and bind it to the gateway (recommended, efficient).Method 2 Directly use gateway discovery to add devices.The following steps will be added using a Smart Lockas an example. How to connect smart plug withCRESTIN APP in auto scan mode 1.Turn on the smart phone or other devices function and ensure the smart phone or other devices network is ON.2.Before connecting, please make sure your smartphone or device is connecting with your home Wi-Fi2.4GHz successfully.3.Open the application, click ”+” to select “Auto ScanMode”, and then start to automatically scan productsthat can be connected.4.Once connect the App will prompt the connection,then click “Done”.5.Now you can control the smart plug through CRESTINApp. Panel Layout 1.Smart Plug 2.On/Off switch 3.Indicator light Method 11.Turn on the function of the mobile phone (required).2.Set the Smart Lock enter the state of waiting fornetwork distribution. (If your phone has already addedthis Smart Lock, please skip this step).3.Discover and add devices. (If your phone has alreadyadded this Smart Lock, please skip this step).4.Enter the gateway interface and choose to add anexisting device. 1 1 3 2 Method 22.Set the Smart Lock enter the state of waiting for network distribution.3.Discover and add devices. Troubleshooting and FAQ1.What devices can i control with the Smart Plug?You can control lights, fans, portable heaters, and any small appliances in accordance with the Smart Plug’s specifications.2. What should I do when device configuration process has failed? You could: Check whether the Smart Plug is powered on or not. Check whether your mobile device is connected to 2.4 GHz WI-Fi network. Check your network connectivity. Make sure the router is working properly: If the router is dual-band router, please select 2.4G network and then add Smart Plug. Enable the router's broadcasting function. Configure the encryption method as WPA2-PSK and authorization type as AES,or set both as auto. Wireless mode cannot be 11n only. Check for Wi-Fi interference or relocate the Smart Plug to another location within the signal range. Check whether the router’s connected devices reach the amount limit.Please try to turn off some device’s Wi-Fi function and configure Smart Plug again. Check if router’s wireless MAC filtering functions in enabled. Remove the device from filter list and make sure the router is not prohibiting Smart Plug from connection. Make sure the password of your Wi-Fi network entered in App is correct when adding Smart Plug. Make sure the Smart Plug is in ready for App-Configuration; the indicator light is quick blinking blue [twice per second].Repeat the App-configuration process.Factory reset the Smart Plug and tries to add it again.3. Can I control device through 2G/3G/4G cellular networks?The Smart Plug and the mobile device are required to be under same Wi-Fi network when adding the Smart Plug for the first time. After successful device configuration, you can remotely control the device through 2G/3G/4G cellular networks.4. How can I share my device with family?Run the App CRESTIN, go to “ Profile ” -> “ Device Sharing ” -> “ Sent ” tap “ Add Sharing ”, now you can share the device with added family members.5.How to create a group?Run the CRESTIN, go to " Profile " -> " Create Group" Select the plugs you want to team up 1 Method 21.Enter the gateway function interface and choose to add a new device. 1 4 Made in China ˖ FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.

Cover Letter(s)

Zhejiang Yi Xin Electronic TechnologyCo., Ltd Agent Authorization Company: Zhejiang Yi Xin Electronic TechnologyCo., Ltd Address: East 4/F, 2# Building, No.589 LongtanRoad, Wucheng District, Jinhua City,Zhejiang Province China Product Name: US Smart Socket Model Number(s): YX009, YX005, YX006, YX010, CRAGWW101 Product Description: US Smart Socket We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-24 Name: Meng Yi Title: President Company: Zhejiang Yi Xin Electronic TechnologyCo., Ltd

Cover Letter(s)

Zhejiang Yi Xin Electronic TechnologyCo., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/06/24 Subject; Request for Confidentiality FCC ID: 2A7LQ-YX009-YX009S To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Meng Yi Title: President

Cover Letter(s)

Zhejiang Yi Xin Electronic TechnologyCo., Ltd Model Difference Data:2022.06.24 Product description: US Smart Socket Model name: YX009, YX005, YX006, YX010, CRAGWW101 Trade Name: YIXIN FCC ID: 2A7LQ-YX009-YX009S All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Meng Yi(President) Contact information / address:East 4/F, 2# Building, No.589 LongtanRoad, Wucheng District, Jinhua City,Zhejiang Province China

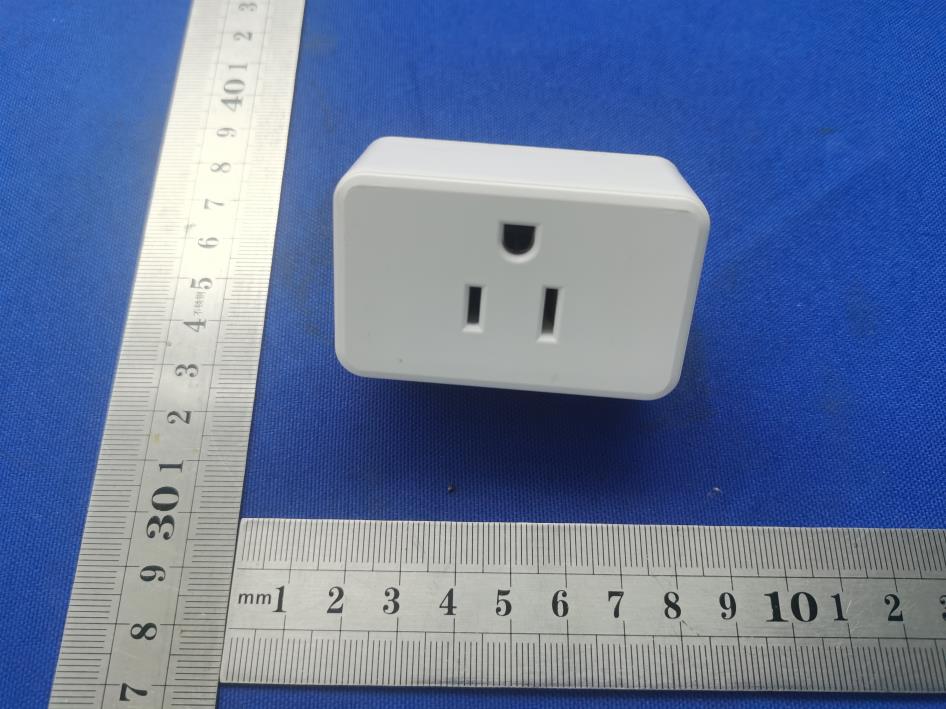

External Photos

External Photos

ID Label/Location Info

Label Location 2A7LQ-YX009-YX009S

Internal Photos

Internal Photos ANT

RF Exposure Info

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A7LQ-YX009-YX009S Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 2.4G WIFI 802.11b&2 437 8±1 9 7.94 1.2589 (1dBi) 0.00199 1 Pass

Test Report

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220616016RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 66 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. This report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: US Smart Socket FCC ID: 2A7LQ-YX009-YX009S Trademark: YIXIN Model Number: YX009, YX005, YX006, YX010, CRAGWW101 Prepared For: Zhejiang Yi Xin Electronic TechnologyCo., Ltd Address: East 4/F, 2# Building, No.589 LongtanRoad, Wucheng District, Jinhua City, Zhejiang Province Manufacturer: Zhejiang Yi Xin Electronic TechnologyCo., Ltd Address: East 4/F, 2# Building, No.589 LongtanRoad, Wucheng District, Jinhua City, Zhejiang Province Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Jun. 10, 2022 Sample tested Date: Jun. 10, 2022 to Jun. 16, 2022 Issue Date: Jun. 16, 2022 Report No.: CTB220616016RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is WIFI-2.4GHz band radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220616016RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 66 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ........................... 6 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 7 4.4 Channel List ........................................................... 8 4.5 Test Mode ............................................................. 8 4.6 Test Environment ....................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. AC POWER LINE CONDUCTED EMISSION ............................. 12 6.1 Block Diagram Of Test Setup ........................................... 12 6.2 Limit ................................................................. 12 6.3 Test procedure ........................................................ 12 6.4 Test Result ........................................................... 14 7. RADIATED SPURIOUS EMISSION ..................................... 16 7.1 Block Diagram Of Test Setup ........................................... 16 7.2 Limit ................................................................. 16 7.3 Test procedure ........................................................ 17 7.4 Test Result ........................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ........... 40 8.1 Block Diagram Of Test Setup ........................................... 40 8.2 Limit ................................................................. 40 8.3 Test procedure ........................................................ 40 8.4 Test Result ........................................................... 41 9. COUDUCTED OUTPUT POWER ....................................... 49 9.1 Block Diagram Of Test Setup ........................................... 49 9.2 Limit ................................................................. 49 9.3 Test procedure ........................................................ 49 9.4 Test Result ........................................................... 50 10. 6DB OCCUPIED BANDWIDTH ........................................ 51 10.1 Block Diagram Of Test Setup .......................................... 51 10.2 Limit ................................................................ 51 10.3 Test procedure ....................................................... 51 10.4 Test Result .......................................................... 52 11. POWER SPECTRAL DENSITY ........................................ 57 11.1 Block Diagram Of Test Setup .......................................... 57 11.2 Limit ................................................................ 57 11.3 Test procedure ....................................................... 57 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220616016RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 66 11.4 Test Result .......................................................... 58 12. ANTENNA REQUIREMENT ........................................... 63 13. EUT PHOTOGRAPHS ................................................ 64 14. EUT TEST SETUP PHOTOGRAPHS ................................... 65 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220616016RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 66 1. VERSION Report No. Issue Date Description Approved CTB220616016RFX Jun. 16, 2022 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220616016RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 66 2. TEST SUMMARY The Product has been tested according to the following specifications: Test Item Test Requirement Test method Result AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 ANSI C63.10-2013 PASS Radiated Spurious emissions 47 CFR Part 15 Subpart C Section 15.205/15.209 A…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emission Below 1G Above 1GHz Conducted Emission

Contact Information

Applicant

Meng Yi(President)
[email protected]13538218145Fax: 13538218145

Technical Contact

Zhejiang Yi Xin Electronic TechnologyCo., Ltd
[email protected]

China

Test Firm

Shenzhen CTB Testing Technology Co., Ltd.Rita Xiao
[email protected]86-13538218145

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz5.90 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted power. This device contains 20 and 40 MHz signal bandwidth. The antenna used with this transmitter must be installed to provide a minimum separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-users must be provided with operating procedures for satisfying RF exposure compliance.
