2A7MN-X2PROExercise Bike

JOROTO-X2PRO CONTENTS Exploded-View & Parts List..............................................................1 User Manual........................................................................................7 Bedienungsanleitung........................................................................17 Manuel d'utilisation..........................................................................26 Manuale d'uso...................................................................................35 Manual de usuario...........................................................................44 Read all instructions carefully before using this product. Retain this owner’s manual for future reference. If you have any inqui- ries or require further assistance, please contact JOROTO Cus- tomer Support. Scan the Instagram QR Code to reach us online [email protected] 1 EXPLODED-VIEW & PARTS LIST 65 66 57 64 69 95 67 91 90 50 34 37 30 32 27 4 81 88 78 31 35 25 89 45 44 63 61 62 42 28 26 24 41 22 53 39 66 40 68 13 11 8 7 10 6 23 20 15 43 29 21 18 16 19 17 14 50 72 70 74 73 1 75 76 91 71 90 98L 52 48 47 58 78 83 87 84 86 88 46 5 56 55 54 60 33 9 2 12 49 59 98R 3 51 56 79 36 99R 96 99L 100 101 87 80 38 83 86 77 82 2 100 101 96 95 86 96R 43 64 89 90 91 96L 90 91 70 73 74 84 86 88 87 77 88 87 1 NAME Main Frame Belt Pulley Axis Countersunk Head Hexagon Socket Screw Short Fixing Tube Flywheel Flywheel Shaft Bearing Bolt Flat Washer Hex Nut Short Fixing Tube Adjustable Flywheel Fixing Chain Brake Knob Hex Nut Upside of Brake Knob Brake Pole Telescopic Plastic Tube Brake Spring Brake Fixing Part Brake Tube Plug Downside of Spring Nylon Nut Sweat Proof Cover(L) Sweat Proof Cover(R) X4S Panel Panel Connecting Tube Round Head Cross Self-Tapping Screw Cross Recessed Truss Head ScrewCross Recessed Truss Head Screw Nylon Nut Magnet Holder Support Magnet Holder Magnet C Casing Felt Pad Cross Recessed Truss Head Screw T Casing Pattern Nut Ball Head Cross Self-Tapping Screw Hexagon Socket Head Cap Screws Flat Washer Spring Knob V Top Tight Block Hex Nut Cross Recessed Truss Head Screw Sleeve Nylon Nut Bearing NO. 123456789 10111213141516171819202122232425262728293031323334353637383940414243444546474849 SPEC. - Ф236x5 Φ20x176L M8x12L Φ20.2xΦ25x8.1mmL Φ464 Φ17x160L 6201RS M12x1.25x10T Φ12xΦ24x2T M12x1.25 6.5T Φ12xΦ16x17L M8x35L Φ60x40L M8 69.5g M8 6T Φ10x120L PVC 7.5g 20x20x8mm M10 Φ16x10L POM 9g - Φ15x51L M10 ABSABS 1T M3x10LM4x20L M4×12L M4 -- 15x30x6.3T Φ10(65Mn) 30x20x7.5 M4×6L Ф19x10L M10xP1.25x9T M3x10LM6x10L Φ6xΦ13x2T M16xP1.5x22 Φ22x20L 32x12L M10 M4x16L Φ25xΦ20.2x51L M20xP1.0 6004RS NAME Hauptrahmen Riemenscheibe Achse Senkkopfschrauben mit Innensechskant Befestigungshülse Schwungscheibe Schwungradwelle Lager Bolzen Unterlegscheibe Sechskantmutter Hülse Verstellbare Kette Bremsknopf Senkkopfschrauben mit Innensechskant Oberer Bremspol Dekorative Bremsabdeckung Frühlingshalter Bremsfeder Bremshalterung Geschweißter Bremshebel Untere Bremsfeder Nylon Mutter Schweißfeste Abdeckung(L) Schweißfeste Abdeckung(R) Schalttafel Verbindungsstange des Bedienfelds Kugelkopf-Kreuz-Blechschraube Regenschirmkopf-Kreuz-Blechschraube Schirmkopf-Phillips-Schraube Nylon Mutter Welle der Magnetgruppe Magnet Halterung Magnet C-förmige Schnalle Bremsgummimatte Schirmkopf-Phillips-Schraube T-förmige Hülse Mutter Kugelkopf-Kreuz-Blechschraube Innensechskantschrauben Unterlegscheibe Federknopf V Top Tight Block Sechskantmuttern Regenschirmkopf-Kreuz-Blechschraube Hülse Nylon Mutter Lager UNIT SET PCS SET PCSPCS SET PCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCS SETSET PCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCSPCS QTY. 111311122221211111111111111231111411222422111 15 112 3 NAME Plastic Sleeve Belt (PK) Left Crank Right Crank Sensor Cable Hole Sensor Cable Sensor Cable Fixing Basement Sensor Cable Crank Cover Belt Cover(L) Belt Cover(R) Handlebar Post End Cap Handlebar Cap Handlebar Slide Front Cover Countersunk Head Socket Head Cap Screw Handlebar Cover Handlebar Plug Protective Pad of Ipad Holder Vertical Seat Post Seat Post Plug End Cap Seat Post Seat Slide Back Cover Countersunk Head Socket Head Cap Screw Front Stabilizer End Cap Transportation Wheel Umbrella Head Socket Head Screw Washer Nylon Nut Stopper Rear Stabilizer Tool Kit Carriage Screw Cap Nut Flat Washer L KnobL Knob Large Washer Multifunctional Wrench Open End Wrench Allen Wrench Monitor Phillips Screw Monitor Connecting Cable Pedal LD-902A Non-Slip Nut Bottle Shelf Umbrella Head Phillips Screw NO. 5051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899 100101 SPEC. PP (27g) 5PK 1360m/m 9/16" 170L9/16" 170L TPR Φ13 230mm -- PVC 18g (ABS)346.5g ABS PC 656.5g - Φ38.5 PP 8.5g 25x50x2T Φ25.4 PA M5*8 Φ32x3Tx460L NBR φ25 8g 259.5x239.5x1T NBR - 25x50x2T Φ38.5 PP 8.5g -- PA M5*8 - PP 13g Φ53xΦ8x21.5 26g M8x40L Φ8xΦ16x1.5T M8 PVCφ50 -- M8x57L M8 30# Φ8xΦ19x1.5T M10x25L M10 10x40x4T - 13-15 6mm - M5*10 - 9/16 9/16"(LH) - M5xP0.8x20L NAME Kunststoffhülse Riemen Linke Kurbel Rechte Kurbel Sensorkabel-Endkappe Sensorkabel Sensorkabel Halterung Sensorkabel Achse-Endkappe Riemen-Abdeckung(L) Riemen-Abdeckung(R) Lenker Stütze Innere Buchse Lenkerstütze-Endkappe Lenker Abdeckung des Sitzschibers Senkkopfschrauben mit Innensechskant Lenker-Abdeckung Lenker-Endkappe Schutzpolster des Tabletthalters Sattelstütze Endkappe Sattelstütze-Stecker Sitzschiber Sattel Abdeckung des Sitzschibers Senkkopfschrauben mit Innensechskant Vorderes Fußrohr Endkappe Transportrolle Schirmkopf-Innensechskantschraube Unterlegscheibe Nylon Mutter Nivellierer Hinteres Fußrohr Werkzeugkasten Wagenschraube Hutmutter Unterlegscheibe L-Knopf L-Knob Vergrößerte Unterlegscheibe Multifunktionsschlüssel Gabelschlüssel Sechskantschlüssel LCD-Anzeige Kreuzschlitzschrauben Sensoranschlusskabel Pedale LD-902A Befestigungsmutter Wasserflaschen-Halter Schirmkopf-Phillips-Schraube QTY. 2111211111111211122112111111422224114441221111411112…

Text truncated - open the document above for the full version.

Li’ang jian kang ke ji bei jing you xian gong si Agent Authorization Company: Li’ang jian kang ke ji bei jing you xian gong si Address: beijing, fengtaiqu xijubeijie 26haoyuan 2haolou 1ceng 1-4(01), Beijing, 100000 China Product Name: Exercise Bike Model Number(s): X2PRO Product Description: Exercise Bike We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec. 15, 2022 Name: Yuhua Guo Title: CEO Company: Li’ang jian kang ke ji bei jing you xian gong si

Li’ang jian kang ke ji bei jing you xian gong si Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Dec. 15, 2022 Subject; Request for Confidentiality FCC ID: 2A7MN-X2PRO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yuhua Guo Title: CEO

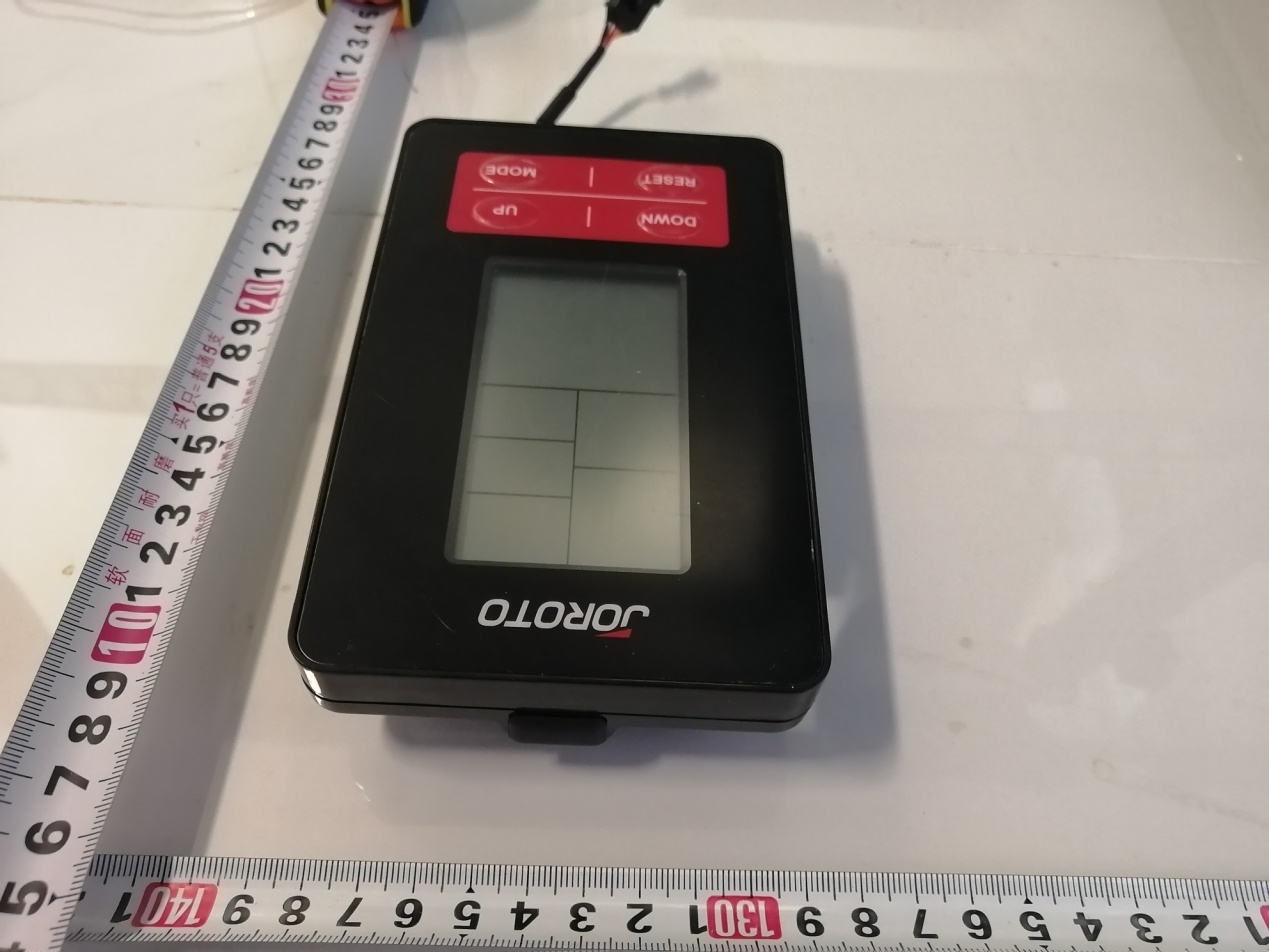

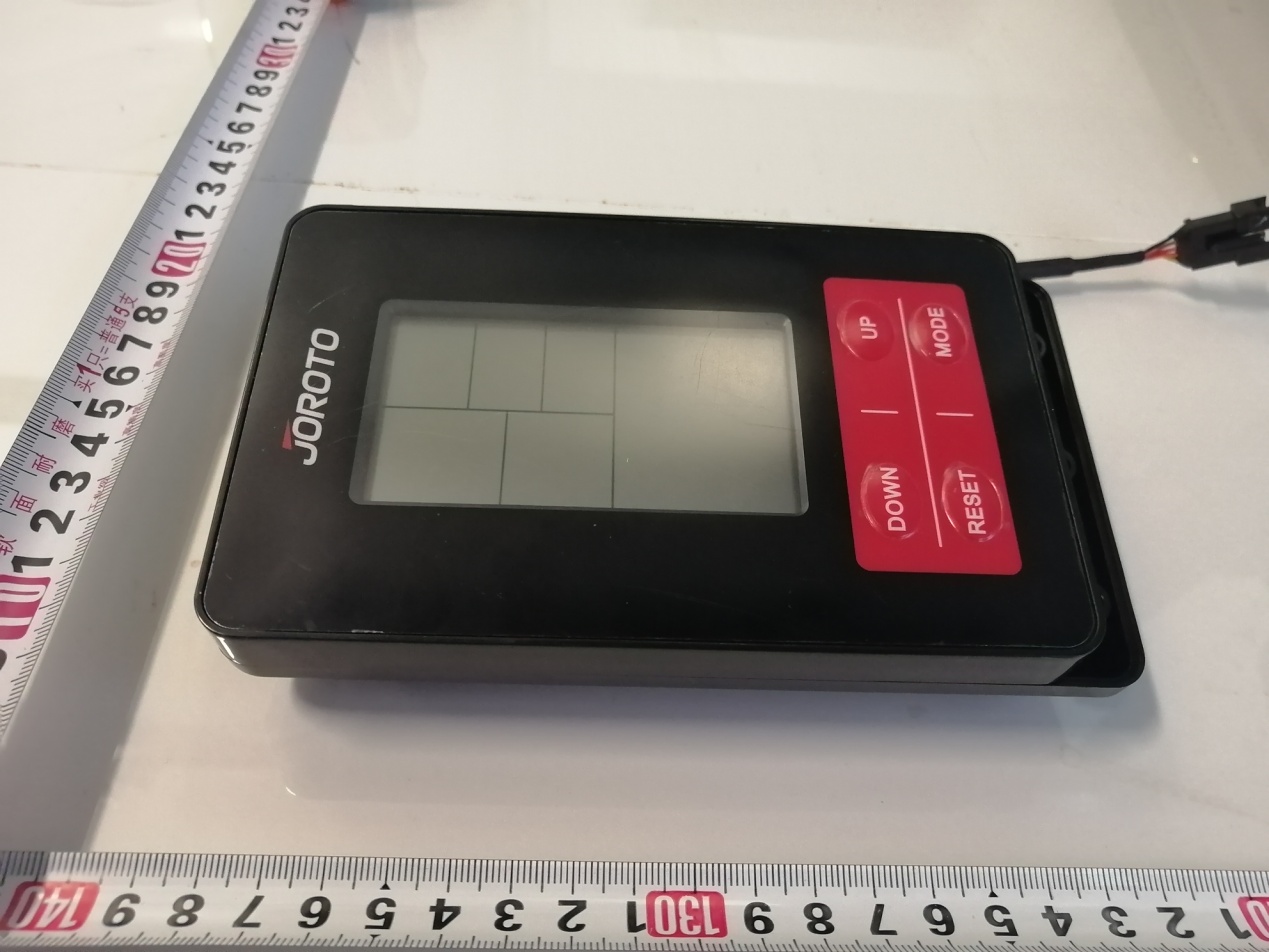

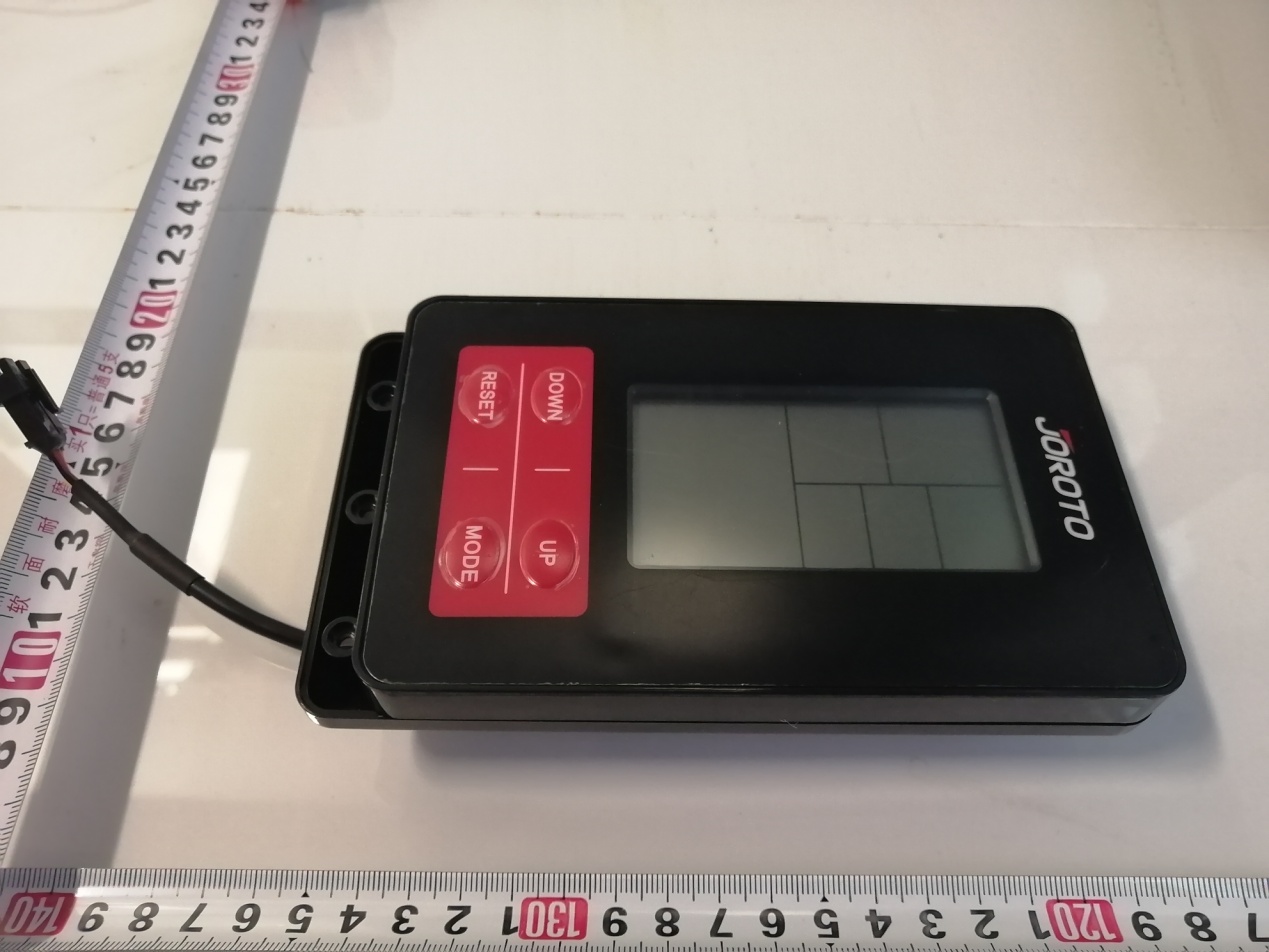

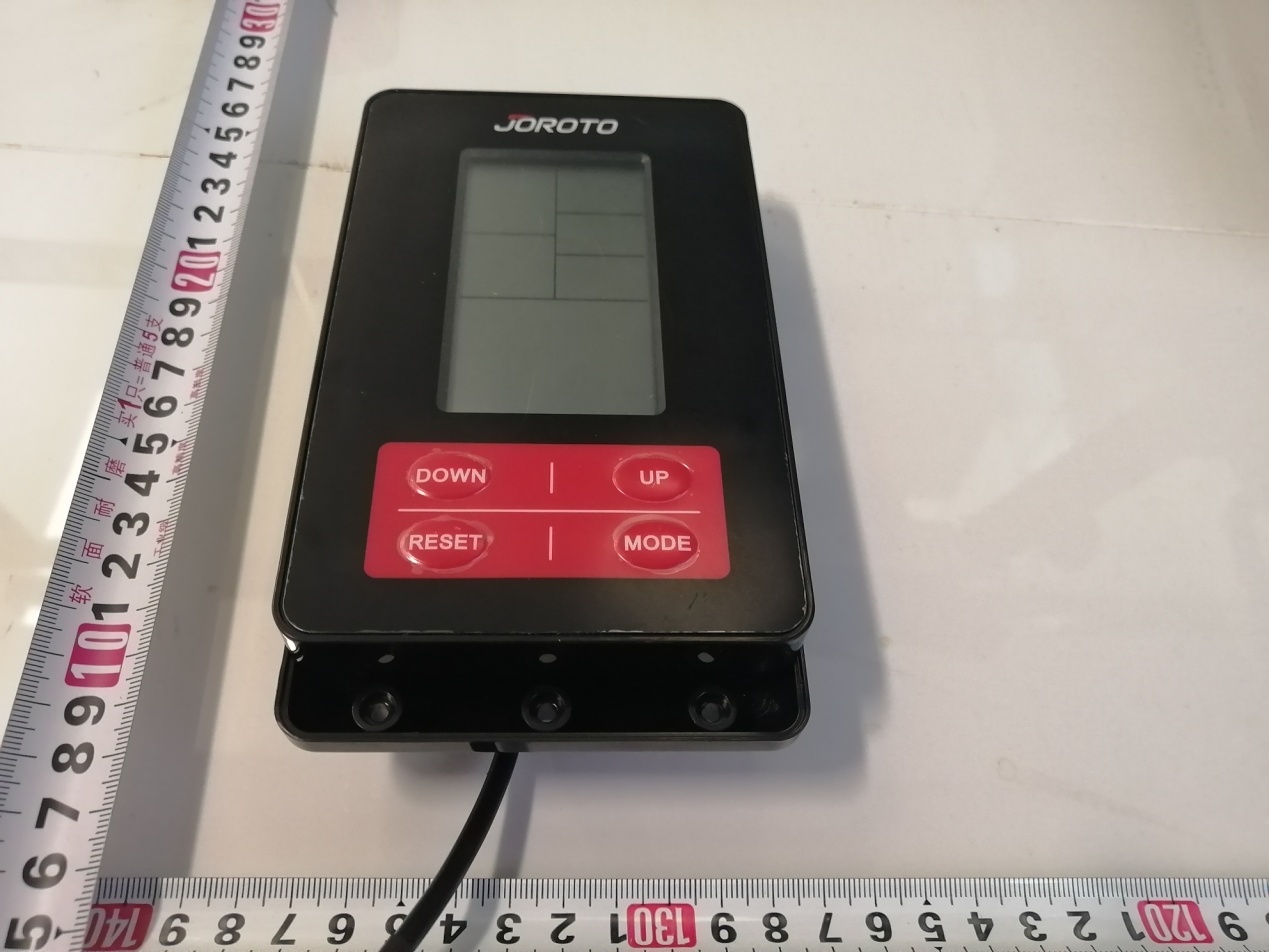

Annex A External Photos Model name: X2PRO Page 1 of 5 Model name: X2PRO Page 2 of 5 Model name: X2PRO Page 3 of 5 Model name: X2PRO Page 4 of 5 Model name: X2PRO Page 5 of 5

FCC ID LABEL: Ca. 10mm x 40mm label location FCC ID: 2A7MN‐X2PRO

Annex B Internal Photo Model name: X2PRO Page 1 of 3 Antenna Model name: X2PRO Page 2 of 3 Model name: X2PRO Page 3 of 3 Antenna

FCC RF Exposure EUT Description: Exercise Bike Model No.: X2PRO FCC ID: 2A7MN‐X2PRO 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2480 ‐3.78 ‐3±1 ‐2/0.63 5 0.198 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2210244689‐E, antenna gain=‐0.58dBi The certified sample is portable device, Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.198 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page 1 of 43 Report No.: HK2210244689-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Li’ang jian kang ke ji bei jing you xian gong si For Exercise Bike Model No.: X2PRO FCC ID: 2A7MN-X2PRO Prepared For : Li’ang jian kang ke ji bei jing you xian gong si beijing, fengtaiqu xijubeijie 26haoyuan 2haolou 1ceng 1-4(01), Beijing, 100000 China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Oct. 24, 2022 ~ Nov. 22, 2022 Date of Report: Nov. 22, 2022 Report Number: HK2210244689-E Page 2 of 43 Report No.: HK2210244689-E TEST RESULT CERTIFICATION Applicant’s name ................... : Li’ang jian kang ke ji bei jing you xian gong si Address .................................... : beijing, fengtaiqu xijubeijie 26haoyuan 2haolou 1ceng 1-4(01), Beijing, 100000 China Manufacture's Name .............. : Li’ang jian kang ke ji bei jing you xian gong si Address .................................... : beijing, fengtaiqu xijubeijie 26haoyuan 2haolou 1ceng 1-4(01), Beijing, 100000 China Product description Trade Mark: JOROTO Product name ............................. : Exercise Bike Model and/or type reference .. : X2PRO Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ................ : Oct. 24, 2022 ~ Nov. 22, 2022 Date of Issue ............................................. : Nov. 22, 2022 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 43 Report No.: HK2210244689-E Contents Page 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ................................................................................................................................ 6 1.2 MEASUREMENT UNCERTAINTY ............................................................................................................ 7 1.3 INFORMATION OF THE TEST LABORATORY ....................................................................................... 7 2 GENERAL INFORMATION ............................................................................................................................. 8 2.1 GENERAL DESCRIPTION OF EUT .......................................................................................................... 8 2.2 DESCRIPTION OF TEST CONDITIONS ................................................................................................... 9 2.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 10 3 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 4 TEST RESULT .............................................................................................................................................. 13 4.1 ANTENNA REQUIREMENT .................................................................................................................... 13 4.1.1 Standard requirement ...................................................................................................................... 13 4.1.2 EUT Antenna ................................................................................................................................... 13 4.2 CONDUCTION EMISSIONS MEASUREMENT ...................................................................................... 14 4.2.1 Applied procedures / Limit ............................................................................................................... 14 4.2.2 Test procedure ................................................................................................................................. 14 4.2.3 Test setup ........................................................................................................................................ 15 4.2.4 Test results ...................................................................................................................................... 16 4.3 RADIATED EMISSIONS MEASUREMENT............................................................................................. 17 4.3.1 Applied procedures / Limit ............................................................................................................... 17 4.3.2 Test setup ........................................................................................................................................ 17 4.3.3 Test Result ....................................................................................................................................... 19 4.4 MAXIMUM OUTPUT POWER MEASUREMENT .................................................................................... 26 4.4.1 Limit ................................................................................................................................................. 26 4.4.2 Test procedure ................................................................................................................................. 26 4.4.3 Deviation from standard .............................................................................…

Text truncated - open the document above for the full version.

X2PRO Radiated Emissions
