2A7MQ-FP5500POWER STATION

FP5500 POWER STATION User Manual 01 Before use, please read the user manual of this product to ensure correct use after complete understanding. After reading, please keep the user manual for future reference. If you do not operate this product properly, you may cause serious injury to yourself or others, or cause product damageand property damage. By using this product, you will be deemed to have understood, approved and accepted the full terms and contents of this document. The user undertakes to be responsible for his actions and all consequences arising therefrom. Senci shall not be liable for any loss caused by the user's failure to use the product in accordance with the User Manual.In compliance with the laws and regulations, the Company has the right to the final interpretation of this document and all documents related to this product. Updates, modifications or terminations are subject to notice. Please visit Senci's official website for the latest product information. Disclaimer 02 Use the Power Cable provided to charge the unit and keep it works properly. Solar
Charging
Cable AC Charger Cable The cable is different for different regions. This newly designed solar generator FP uses high-quality lithium- ion batteries as the main body for energy storage. Compact size, light weight, large capacity, easy to carry, with built-in USB ports, DC and AC outputs, this unit can provide power solutions to you quickly and easily wherever you are in outages or outdoors. FP5500 POWER STATION User Manual CATALOGCATALOGCATALOGCATALOGCATALOGCATALOG 04 05 06 07.08 09 10.11.12.13.14 15 16 Safety Instructions Product appearance introduction Tips For Ase 04 Do not disassemble or modify this unit privately. Do not use or store this unit in a high temperature environment and avoid direct sunlight. Do not use or store this unit in a dusty or humid environment. Do not heat this unit or place it in fire, water or other liquid. Do not place the unit sideways or upside down while using or storing. Do not charge with a non-standard charger. It is normal for the charger to heat up when charging. Do not charge for a long time, and disconnect the charger as soon as it is fully charged. Do not touch the input and output ports of this unit. Only use the output outlets to power external devices. Check the unit before each use. Do not use it if it is damaged or broken. Keep this unit away from children and do not allow children to use this unit alone. If the unit is accidentally dropped or hit, turn it off immediately. Carefully read the instructions for the appliances you intend to connect with this unit. Please use this unit with caution to avoid the risk of electric shock. If rust, odor, overheating or other abnormalities are observed, discontinue use of this unit immediately and contact us. This unit meets the relevant requirements for the transport of dangerous goods. Please dispose of the scrap according to the regulations and classify them in time to avoid explosions and pollution. Safety Information 05 Type of protection: High temperature protection, low temperature protection, over discharge protection, over charge protection, over load protection, short circuit protection, over current protection Net weight：71kg（156.53 lbs） Dimension：602*340*602mm（23.7×13.39×23.70 inches） Battery Capacity: 51.2V,105Ah, 5376Wh Battery cycle life: ≥3000 times, remaining capacity>80%( LiFePO4) Power Station (Two sets can parallel by using parallel box, the parallel box purchased separately.） Generator (Separate parallel box） Parallel ACx4:120V/20A~60Hz（
MAX2200W），AC
Output
5000W
Total ACx2:120V/30A~60Hz（
MAX3300W），AC
Output
5000W
Total ACx1:120V/240V
50A~60Hz
，AC
Output
5000W
Total (When
the
output
is
120V,
the
maximum
is
2500W) Fast
Charge
Output
×4:
5V⎓2.5A,
9V⎓2A,
12V⎓2A(24W
max.)
PD100W Output ×2: 5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓3A, 20V⎓ 5A(100W max.)Total 200W. Cigarette
Lighterx1:12V⎓10A DC
5521x2:13.6V⎓5A,Total
8A (DC
5521
and
Cigarette
Lighter
8A
Total) Wireless
Charging
x
1:
5/7.5/10/15W
Total AC:110V-120V~50-60Hz,16A
1800W
MAX AC:220V-240V~50-60Hz,10A
2200W
MAX DC:10-150V⎓20Ax2
(1200W
MAX),2400W
Total Product appearance introduction 1.LCD Display 2.AC Output Switch/Voltage transfer switch This button controls the AC outputs, turn off this switch when not in use./Press and hold this switch for S and switch the voltage to V/V output. 3.USB-C 100W Output 4.Power Switch Click the power button to turn on the product, turn on the USB output port and top wireless charging. Double click the power button to enter ECO mode. Long press the power button to turn off. 5.1 120V/20A AC Output Charge a device with a voltage requirement of V. (Do not support all excess appliances, the power of the power of the powered device should be less than W). 7.DC Output Switch This button control products auto charge output and the DC output of the two DC output ports. 8.DC Output This port is an output port, so input charging is prohibited. 9.FAST CHARGEOput ut 10.LED Light The LED light has five modes, including: three brightness adjustments (25%, 50%, 100%), SOS mode and pop mode. 6.Wireless Charging It supports w wireless charging function. 11.AC Charging protect When the AC input socket exceeds the maximum value of the current it can bear byA, the thermal protector will automatically trigger the protection to disconnect the input; after reducing the output current, manually reset the thermal protector to restore the AC input. 13.Solar Input Support solar panels in parallel or series, and support -V, W total input. 12.AC Recharging Input Insert the power cord connector into this port and then connect it to the mains. 7 1 2 4 6 8 9 3 10 18 12 11 13 15 16 17 19 Display the power and usage status of the unit. 5.2 120V/30A AC Output Charge a device with a voltage requirement of V. (Do not support all excess appliances, the power of the power of the powered device should be less than W). 5.3 50A AC Output /…

Text truncated - open the document above for the full version.

Example 2: 10 When the AC input current is continuously greater than 15A, the AC input port thermal protector will protect itself, and the button will pop up automatically. After confirming that the product has no fault, press the AC input overload protector to resume charging; Charging: the battery level indicator rotates.Charging: the battery level indicator rotates. SP2113*P4/Solar
chargingSP2913*P3/AC
charging 2.8 3.4 11 total Example 3: Notice: 1. When the voltage output is 120V, if the current exceeds the rating of the corresponding plug, the thermal protection CA 1/2/3/4 will be activated and the corresponding output will be disconnected. 2. After restarting, the output can be automatically restored. 240V/5000W MAX. 120V/2500W MAX.120V/2500W MAX. 1. Switch the AI to dual-voltage output and turn off the AC output switch. After turning off the output, press and hold the AC switch for 7 seconds, check that the current voltage changes from "120V" to "240V", and then lightly press and hold the AC switch to complete the dual-voltage switching. 2. When changing voltage, both 120V and 240V exist simultaneously, with a maximum output of 2300W for 120V and 5000W for 240V, totaling 5000W. 3. When the voltage returns to 120V, the 120V/240V socket has no output, while the total output of the 120V socket is 5000W. Power on Power outage UPSUPS UPS 13 ( output 2400W Max)120V ( output Total 5000W )120V

14 Parallel: The product can be expanded in parallel with two power station and can be used to meet the need for more power and capacity. When using this product for other parallel connections, follow the user instruction manual. Before using the parallel function and connecting them with a parallel cable, make sure that the two products you want to parallel are turned off. When using the parallel function, an output from the parallel box is required (the parallel box plug attachment must be purchased separately). When the products are connected in parallel, the rated maximum power and rated battery capacity are doubled. Please use the parallel cable provided by our company for connection to avoid damage to the product. When using the parallel function, make sure that both products are turned off. If the two products are in the same output state, do not plug in the parallel cable. When the products are connected in parallel, do not unplug them during the process; This is to prevent anomalies from occurring. Harnesses and parallel boxes are sold separately Two-Stage Start-Up: 1. When the energy storage level is below 'SOC 30%', a start-up signal will be sent to the generator to initiate operation and charge the energy storage. (Ensure that the communication line and AC charging line between the generator and the energy storage are properly connected.) 2. When the energy storage level exceeds 'SOC 80%', a shutdown signal will be sent to the generator to cease operation and stop charging the energy storage. Two-wire start protection cable (sold separately) Power cord 15 Please be aware that this manual is only for this unit FP5500 and does not represent the manual for others. In addition, this manual is provided as a guide only, the pictures in this manual are for reference only, and all statements, information and suggestions in this manual do not constitute any express or implied warranty. We are always dedicate to the improvement of product itself, therefore, the appearance and performance of units may be slightly different from this manual, please understand.

16 5000W This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with minimum distance20cm between the radiator & your body. FCC ID:AMQ-FP FCC Radiation Exposure Statement:

Sencielectromechanicalco.,LTD . 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:Sencielectromechanicalco.,LTD. Address:No.200TongxinbeiRoad,BeibeiDistrictChongqing400701,China ProductName:POWERSTATION FCCID:2A7MQ-FP5500 Model(s):FP5500 2.911(d)(5)(i)EquipmentType We,[Sencielectromechanicalco.,LTD.]certifythattheequipmentforwhichauthorizationissought throughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Signature: Name:YOGNSHEGNTANGDate:2026.4.8 TitleandCompanyname:Manager/Sencielectromechanicalco.,LTD. NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Sencielectromechanicalco.,LTD . 2.911(d)(5)(ii)ApplicantAttestationv1.2 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:Sencielectromechanicalco.,LTD. Address:No.200TongxinbeiRoad,BeibeiDistrictChongqing400701,China ProductName:POWERSTATION FCCID:2A7MQ-FP5500 Model(s):FP5500 2.911(d)(5)(ii)Applicantfiling We,[Sencielectromechanicalco.,LTD.]certifythat,asofthedateofthefilingoftheapplication,the applicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,establishedpursuantto §1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Signature: Name:YOGNSHEGNTANGDate:2026.4.8 TitleandCompanyname:Manager/Sencielectromechanicalco.,LTD. NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Sencielectromechanicalco.,LTD. AgentAuthorization Company:Sencielectromechanicalco.,LTD. Address:No.200TongxinbeiRoad,BeibeiDistrictChongqing400701,China ModelNumber(s):FP5500 ProductDescription:POWERSTATION WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2026.4.8 Name:YOGNSHEGNTANG Title:Manager Company:Sencielectromechanicalco.,LTD.

Sencielectromechanicalco.,LTD. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026.4.8 Subject;RequestforConfidentiality FCCID:2A7MQ-FP5500 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SOFTWARESECURITYREQUIREMENTSFORU-NIIDEVICES Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:YONGSHENGTANG Title:Manager

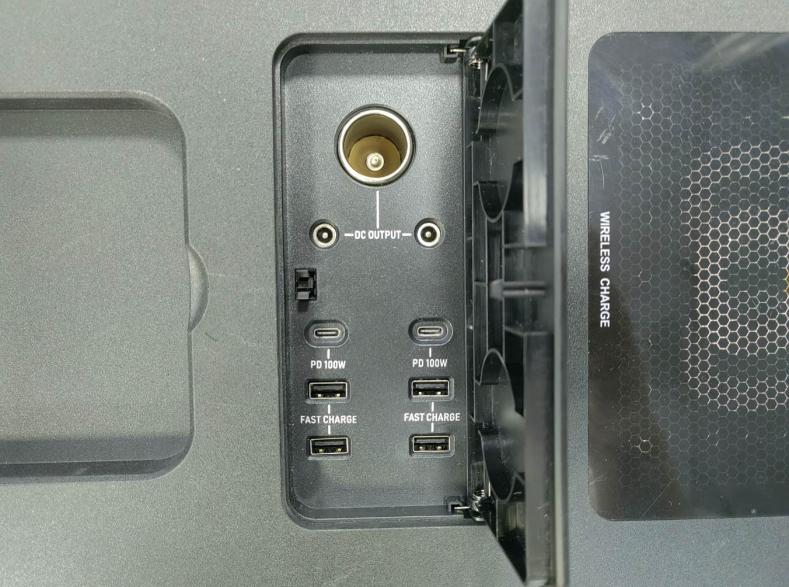

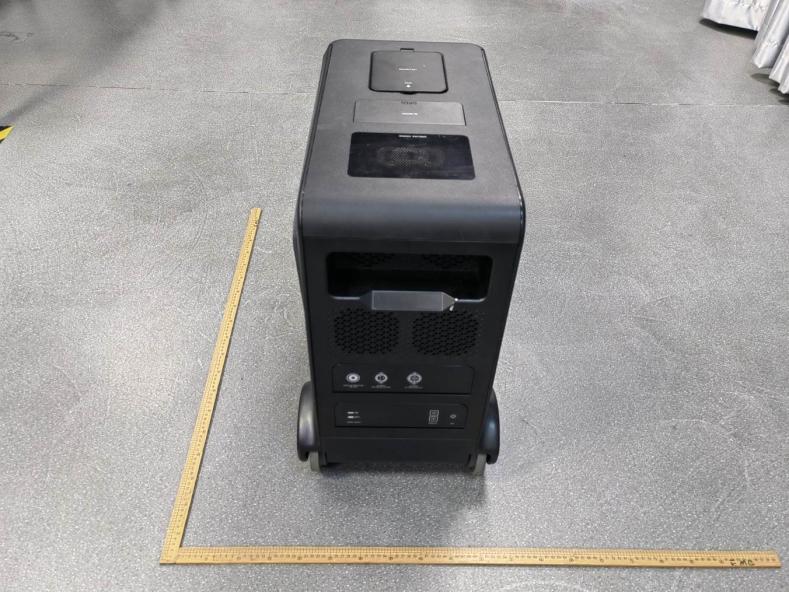

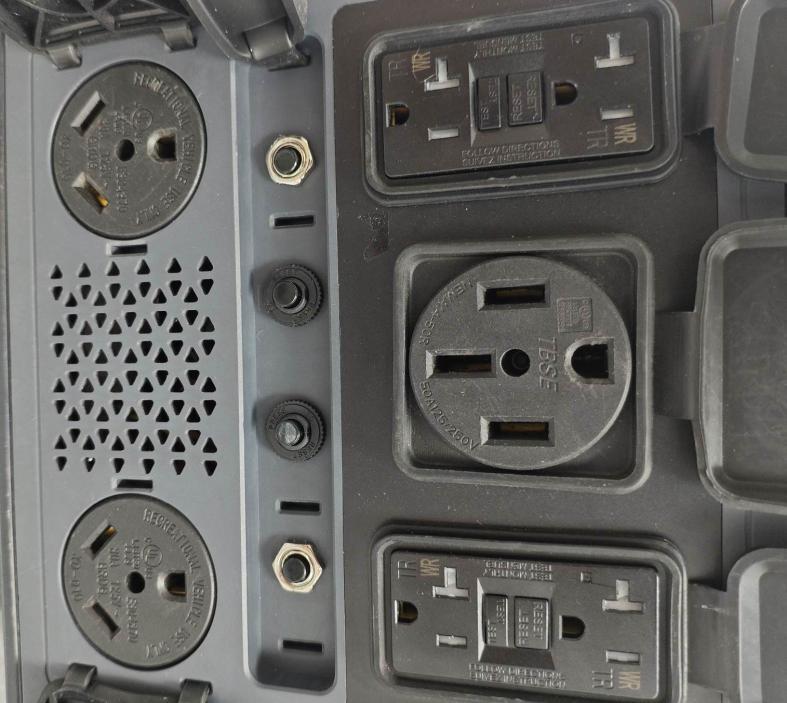

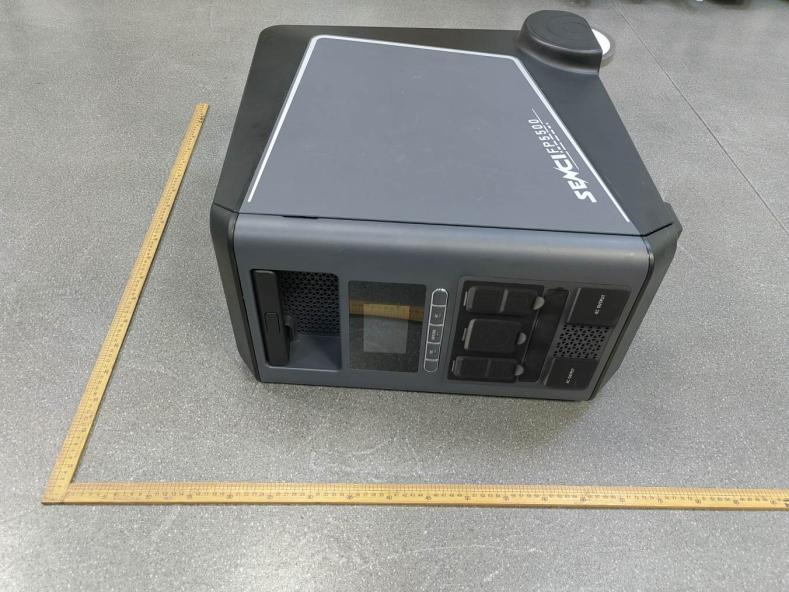

FCC ID:2A7MQ-FP5500 External Photos of the EUT FCC ID:2A7MQ-FP5500 FCC ID:2A7MQ-FP5500 FCC ID:2A7MQ-FP5500

FCC ID:2A7MQ-FP5500 Internal Photos of the EUT FCC ID:2A7MQ-FP5500 FCC ID:2A7MQ-FP5500 FCC ID:2A7MQ-FP5500 FCC ID:2A7MQ-FP5500

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure-WPT Report Reference No. ..................... : FCC ID............................................. : CTA26030901302 2A7MQ-FP5500 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 17, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Senci electro mechanical co., LTD Address ............................................ : No.200 Tongxinbei Road,Beibei District Chongqing 400701,China Test specification ........................... : FCC CFR 47 PART 1, § 1.1310 Standard ........................................... : KDB 680106 D01 Wireless Power Transfer v04 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : POWER STATION Manufacturer .................................... : Senci electro mechanical co., LTD Trade Mark ....................................... : N/A Model/Type reference ...................... : FP5500 Listed Models .................................. : N/A Rating ............................................... : Refer to section 2.2 Result ............................................... : PASS Report No.: CTA26030901302 Page 2 of 11 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : POWER STATION Model /Type : FP5500 Listed Models : N/A Applicant : Senci electro mechanical co., LTD Address : No.200 Tongxinbei Road,Beibei District Chongqing 400701,China Manufacturer : Senci electro mechanical co., LTD Address : No.200 Tongxinbei Road,Beibei District Chongqing 400701,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26030901302 Page 3 of 11 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Description of the test mode .................................................................................... 5 2.4 Special Accessories ................................................................................................. 6 2.5 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 3.4 Equipments Used during the Test ........................................................................... 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Test setup ................................................................................................................ 9 4.3 Test Procedures..................................................................................................... 10 4.4 Equipment Approval Considerations of KDB 680106 D01v04 .............................. 10 4.5 Test results ............................................................................................................ 10 4.6 Conclusion ............................................................................................................. 10 5 Photographs of the Test Setup ......................................................................................... 11 Report No.: CTA26030901302 Page 4 of 11 Shenzhen CTA Testing Technol…

Text truncated - open the document above for the full version.

Productdatasheet SPECIFICATION NAME(SERIES):THREE-COILWIRELESSCHARGING MODULE ITEM:MXC-A28 VersionInformation:V1.0 RevisionTable numberingVersion number ReviserRevisionsdate 1V1.0 Createa document 2023/10/13 Approvalrecords VersionnumberApproverApproval opinions date V1.0 1.ProductIntroduction (1)Overview Awirelesschargingmoduleisadevicethatintegrateswirelesscharging technologyintothemodule,whichusuallyconsistsoftwoparts:a transmitterandareceiver.Thetransmitterisresponsibleforgenerating high-frequencyelectromagneticfields,whilethereceiverisresponsible forconvertingthiselectromagneticfieldintoelectricalenergy forcharging,whichisaconvenient,safe,applicable,energy-savingand environmentallyfriendlychargingmethod,whichcanprovideuserswith amoreconvenientandcomfortablechargingexperience。 (2)Productfeatures ◆Convenience:Usersdon'tneedtousethechargingcabletoconnect thedevice,justneedtoplacethedeviceinthechargingarea. ◆Safety:Theelectromagneticwaveenergytransmissionmethod adoptedwillonlytransmitelectricalenergytotheequipmentthatcan receiveelectromagneticwaveswithintheelectromagneticfieldrange,and willnotcauseharmorelectromagneticwaveinterferencetothehuman body. ◆Applicability:Compatiblewithavarietyofdevices,suchas mobilephones,smartwatches,headphones,etc.,aslongasthedevice supportswirelesschargingfunction,youcanusethewirelesscharging moduleforcharging. ◆Energysavingandenvironmentalprotection:Itcanavoidthewaste andlossofchargingcables,andalsoreducethenegativeimpactofwaste chargingcablesontheenvironment. 2.Productappearanceandstructuredrawing Figure1Front Figure2Back 3.ProductParameters ModelMXC-A28 MastercontrolIP6809 Input voltage/current DC12V±10% StandbycurrentAveragequiescentcurrent:25mA ChargingefficiencyThesystemhasachargingefficiencyofupto79%. ChargingdistanceThechargingequipmentneedstobecharged2-4mm awayfromthecoilofthewirelesschargingmodule LEDindicatorsupport UpgrademethodBurnerupgrade Structural dimensions 59*100(mm) Operating temperature -20°C-+70°C Storagetemperature-30°C-+85°C Humidity requirements <70% 4.SoftwareFeatures Wirelesscharging protocol PD3.0inputrequestsaresupported PIDalgorithmisadopted CompatiblewithWPCQiv1.2.4standard Chargingpower Support5W Support75W Supports10W Supports15W FODforeignbody detectionfunction Support protection 5Vovercurrentprotection:2A 9Vover-currentprotection:2.5A 12VOvercurrentProtection:2.2A(20WTransmitter Protection) NTCovertemperatureprotection:70°C±5°C NTCovertemperaturerecovery:60°C±5°C LockingtimeafterNTCover-temperature protection:10minutes Under-voltageprotection:<4.5V Overvoltageprotection:>13.5V Operatingtemperature:-20-85°C±5°C LED1.Greenlight Power-on:Flashing Standby:Solidon ChargingComplete(Full):Solidon Undervoltage/ForeignBody/Overcurrent:Flashing Overtemperature:Flashing LED2.Redlight Power-on:Flashing Charging:Solidon Overtemperature:Flashing Overvoltage/DPM/RX/Abnormal:Blinking

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID............................................. : CTA26030901301 2A7MQ-FP5500 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 17, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Senci electro mechanical co., LTD Address ............................................ : No.200 Tongxinbei Road,Beibei District Chongqing 400701,China Test specification ........................... : Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a- 2024 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : POWER STATION Trade Mark ....................................... : N/A Manufacturer .................................... : Senci electro mechanical co., LTD Model/Type reference ...................... : FP5500 Listed Models .................................. : N/A Modulation Type ............................... : ASK Operation Frequency ........................ : From 115KHz~205KHz Rating ............................................... : Refer to section 2.2 Result ............................................... : PASS Report No.: CTA26030901301 Page 2 of 27 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : POWER STATION Model /Type : FP5500 Listed Models : N/A Applicant : Senci electro mechanical co., LTD Address : No.200 Tongxinbei Road,Beibei District Chongqing 400701,China Manufacturer : Senci electro mechanical co., LTD Address : No.200 Tongxinbei Road,Beibei District Chongqing 400701,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26030901301 Page 3 of 27 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 6 2.4 Special Accessories 6 2.5 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 The 20dB bandwidth 17 4.4 Antenna Requirement 18 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 19 6 PH O T O S O F T H E E U T ............................................................. 20 Report No.: CTA26030901301 Page 4 of 27 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C (Section 15.207): Conducted limits. FCC Rules and Regulations Part 15 Subpart C (Section 15.209): Radiated emission limits; general requirements. ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA26030901301 Page 5 of 27 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Mar. 09, 2026 Testing commenced on : Mar. 09, 2026 Testing concluded on : Mar. 17, 2026 2.2 Product Description Product Name: POWER STATION Model/Type reference: FP5500 Hardware version: V1.0 Software version: V1.0 Test samples ID: CTA260309013-1# (Engineer sample) CTA260309013-2# (Normal sample) Power su…

Text truncated - open the document above for the full version.

FCC ID:2A7MQ-FP5500 Test Setup Photos of the EUT
