2A7ON-BTLWireless Headphone

WIRELESS HEADPHONE ATTENTION:PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT AND KEEP IT PROPERLY. BUTTON INTRODUCTION 1. Push button: Control the light. There will be a voice prompt when turning on or off the light 2. Press button: A.When playing music:Press the function once to stop/play; Press twice in a row to the previous song ; Press three times in a row to the next song B.When the call comes,:Press the function once to answer/end 3. Microphone: Automatically turn on after connection 4. Audio port:Connect the headphone with your device by the given audio cable.( Headphone will automatically turn off wireless connection and Microphone if use this audio port.) 5. Charging port 6. Reminder light:Red light flash Intermittently when not paring，when connect successful reminder light will turn off; The Reminder light flash blue light when charging,Reminder light will turn off when full charging. Battery below 10%, audio reminder: Battery is running low When charging, the Bluetooth function can be used normally, but it is not recommended to use the Bluetooth function during charging, otherwise it may cause the device to heat up. WAY OF USE Long press ＂ ⚪＂ to power on the headphones and then choose Pair Name :BT-UNICORN to connect your device with the headphones. PARAMETER PRODUCT NAME WIRELESS HEADPHONE WIRELESS VERSION JL 5.2 IMPEDANCE 32±15% Ω/ 1KHz DRIVER UNIT 40MM Working temperature -0°C to +35°C FREQUENCY BAND 2.4GHZ FREQUENCY RANGE 20HZ ~20KHZ BATTERY NAME Lithium ion battery BATTERY MODEL 902030 BATTERY RATING Nominal Voltage:3.7V Rated Capacity:500mAH ,1.85Wh Weight:0.0093kg TRANSMISSION RANGE ≤10M CHARGING TIME 1.5~2.5H CHARGING MODE MICRO USB 5V CHARGING CURRENT 450MA CONTINUOUS SERVICE TIME 20-25H STANDBY TIME >2 MONTHS(POWER OFF STATE) MAX VOLUME ≤95DB PACKING LIST • 1pcs WIRELESS HEADPHONE • 1pcs INSTRUCTION SHEET • 1pcs USB CHARGING CABLE • 1pcs 3.5mm AUDIO CABLE FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID : 2A7ON-BTL WARNING -PLEASE STORE AND USE THE PRODUCT AT ROOM TEMPERATURE. -DO NOT EXPOSE THE PRODUCT TO RAIN OR HUMIDITY. -DO NOT THROW, TO AVOID PRODUCT DAMAGE DUE TO DROP. -DO NOT DISASSEMBLE, REPAIR OR MODIFY THE PRODUCT BY YOURSELF. -DO NOT WIPE THIS PRODUCT WITH CHEMICAL SOLVENT. -DO NOT THROW AWAY OR SET FIRE TO AVOID DANGER. -WARNING: To avoid danger of suffocation, keep the plastic bag away from children and babies, Do not use this bag in cribs,beds,carriages or playpens,The plastic bag could block nose and mouth and prevent breathing, This bag is not a toy -This goods is lithium ion/polymer cell,contain in equipment.Watt-hour rating is 1.85 Wh. Each battery is of a type proved to meet the Requirements of each test in the UN MANUAL OF TEST AND CRITERIA,Part III,sub-section 38.3,Each package is marked with lithium battery mark.According to IATA DGR,lithium ion batteries in compliance with Section II of PI 967 WARNING - California Proposition 65 NONE WARNING CHOKIN HAZAD -Small parts Not for Children under 3 years old

Dongguan Qizhou electronic company First Floor,No.4 Lane 14 Yuanzaotou,Xiabian Changan,Dongguan,Guangdong China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-5-16 To whom it may concern: We, Dongguan Qizhou electronic company , hereby certify that the equipment for which authorization is sought (FCC ID: 2A7ON-BTL) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature qiaoling li Manager Dongguan Qizhou electronic company 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02

Dongguan Qizhou electronic company Add: First Floor,No.4 Lane 14 Yuanzaotou,Xiabian Changan,Dongguan,Guangdong China Date: 2023-5-16 FCC ID: 2A7ON-BTL Dear Sir/Madam, We, Dongguan Qizhou electronic company Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless Headphone Model no.: BTL-Rose, BTL-Purple, BTL-Pink, BTL-Gold, BTL-Crown-Silvery, BTL-Crown-Blue, BTL-Pom-Pur, BTL-Pom-Pink, BTL-Bow-Pur, BTL-Bow-Pink, BTL-Dino-Green, BTL-Rule-G, BTL-Rule-B Sincerely, Name/Title： qiaoling li /Manager Company: Dongguan Qizhou electronic company Address: First Floor,No.4 Lane 14 Yuanzaotou,Xiabian Changan,Dongguan,Guangdong China Phone: 008618681030731 Fax: 008618681030731 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2023-5-16> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A7ON-BTL BTL-Rose For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： qiaoling li /Manager Company: Dongguan Qizhou electronic company Address: First Floor,No.4 Lane 14 Yuanzaotou,Xiabian Changan,Dongguan,Guangdong China Phone: 008618681030731 Fax: 008618681030731 E-Mail: [email protected]

Dongguan Qizhou electronic company First Floor,No.4 Lane 14 Yuanzaotou,Xiabian Changan,Dongguan,Guangdong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-5-16 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A7ON-BTL including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： qiaoling li /Manager Company: Dongguan Qizhou electronic company Address: First Floor,No.4 Lane 14 Yuanzaotou,Xiabian Changan,Dongguan,Guangdong China Phone: 008618681030731 Fax: 008618681030731 E-Mail: [email protected]

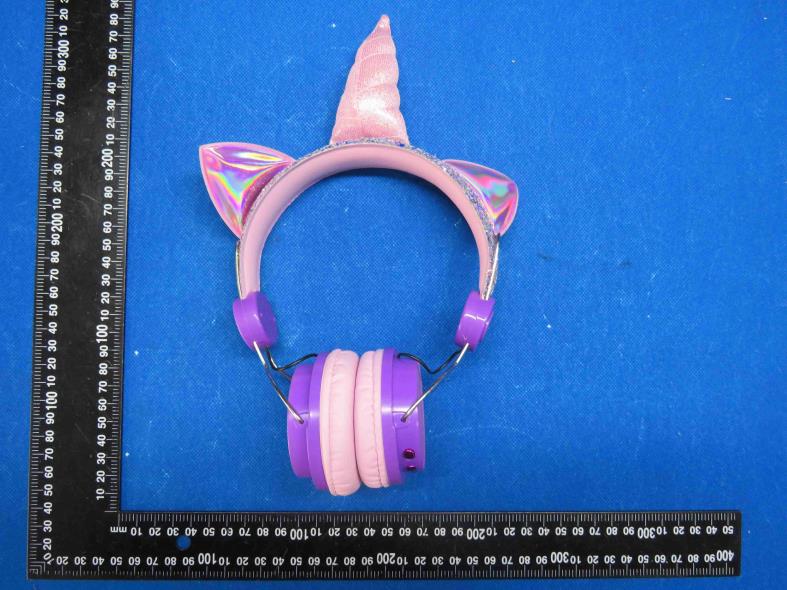

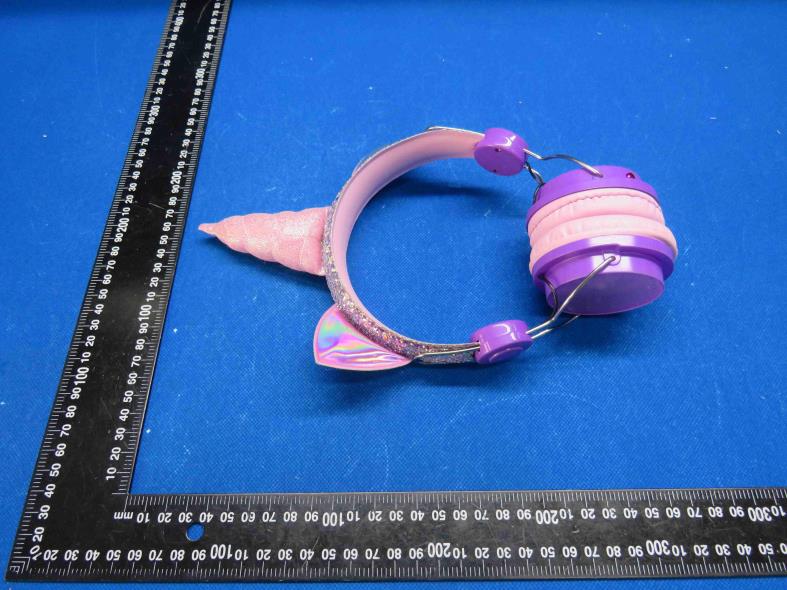

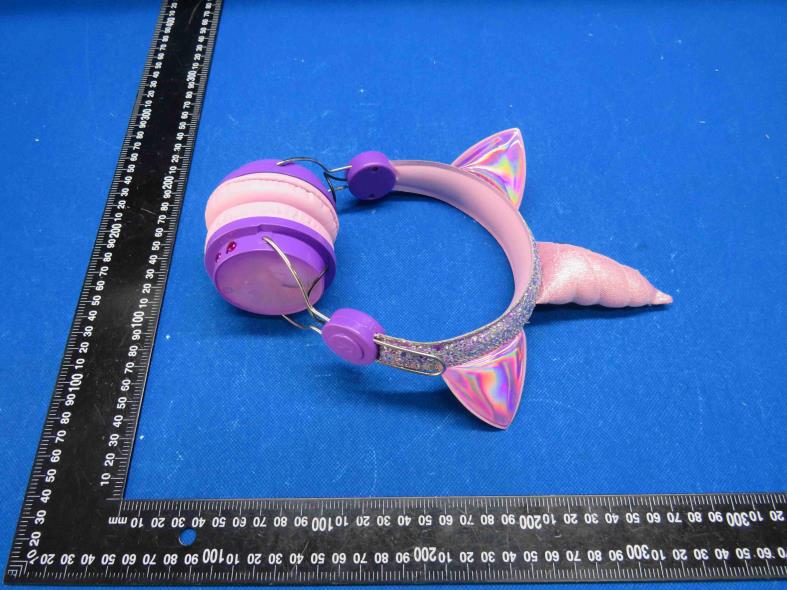

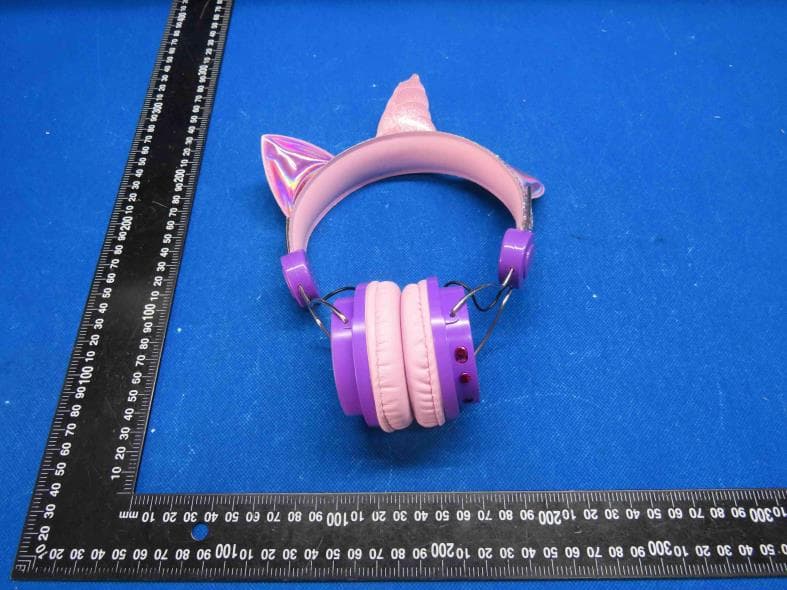

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202304436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Wireless Headphone Model No.: BTL-Rose EUT Constructional Details External Photo Report No.: HTT202304436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202304436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202304436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A7ON-BTL

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202304436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Wireless Headphone Model No.: BTL-Rose EUT Constructional Details Internal Photo Report No.: HTT202304436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202304436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

RF Exposure evaluation FCC ID: 2A7ON-BTL 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -5.0 -5.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -5.0 -5.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 -2.0 0.6310 0.1975<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Antennaspecification APPlications ※Bluetooth Home RF ※ISM band 2.4GHz applications 1.Dimensions 2.Specifications numberItemSpecifications 1Working Central Frequency2441 MHz 2Band Width(2402-2480)MHz 3Gain 0 dBi 4VSWR≤2.0 5Antenna typePCB antenna 6Azimuth Beam widthOmni‐directional 7Impedance 50ohm 8Modulation modeGFSK ‣Company Name : Dongguan Permake Technology Co., Ltd. ‣ Company address : Room 609, No. 48 West of Houjie Street, Houjie Town, Dongguan City, Guangdong Province 3. simulationparameter ① VSWR Mkr1:2397MHz1.47Mkr2:2450MHz1.51Mkr3:2482MHz 1.59 ②SmithChar Mkr1:2397MHz73.4Mkr2:2450MHz62.7Mkr3:2482MHz66.8 ③ReturnLoss Mkr1:2397MHz-15Mkr2:2450MHz-18Mkr3:2482MHz-16 ④SmithChar Mkr1:2400MHz1.234Mkr2:2500MHz1.051Mkr3:2600MHz1.322 ⑤ReturnLoss Mkr1:2400MHz-19.59Mkr2:2450MHz-27.70Mkr3:2500MHz-31.97Mkr4: 2550MHz-21.83 ` ⑥Phase Mkr1:2400MHz-54.89Mkr2:2500MHz-82.03Mkr3:2600MHz-102.6 4.RadiationPattems XY-plane XZ-plane YZ-plane  3DRadiationpattern

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202304436F01 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 42 TEST Report Applicant: Dongguan Qizhou electronic company Address of Applicant: First Floor,No.4 Lane 14 Yuanzaotou,Xiabian Changan,Dongguan,Guangdong Manufacturer : Dongguan Qizhou electronic company Address of Manufacturer : First Floor,No.4 Lane 14 Yuanzaotou,Xiabian Changan,Dongguan,Guangdong Equipment Under Test (EUT) Product Name: Wireless Headphone Model No.: BTL-Rose Series model: BTL-Purple, BTL-Pink, BTL-Gold, BTL-Crown-Silvery, BTL-Crown-Blue, BTL-Pom-Pur, BTL-Pom-Pink, BTL-Bow-Pur, BTL-Bow-Pink, BTL-Dino-Green, BTL-Rule-G, BTL-Rule-B Trade Mark: N/A FCC ID: 2A7ON-BTL Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Apr.25,2023 Date of Test: Apr.25,2023- May.05,2023 Date of report issued: May.05,2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT202304436F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 42 1. Version Version No. Date Description 00 May.05,2023 Original Tested/ Prepared By Date: May.05,2023 Project Engineer Check By: Date: May.05,2023 Reviewer Approved By : Date: May.05,2023 Authorized Signature Report No.: HTT202304436F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 42 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 7 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 7 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 7 4.5. ABNORMALITIES FROM STANDARD CONDITIONS........................................................................................... 7 4.6. TEST FACILITY ........................................................................................................................................... 7 4.7. TEST LOCATION ......................................................................................................................................... 7 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 7 5. TEST INSTRUMENTS LIST ........................................................................................................................... 8 6. TEST RESULTS AND MEASUREMENT DATA ............................................................................................ 9 6.1. CONDUCTED EMISSIONS ............................................................................................................................ 9 6.2. CONDUCTED PEAK OUTPUT POWER ......................................................................................................... 12 6.3. 20DB EMISSION BANDWIDTH .................................................................................................................... 13 6.4. FREQUENCIES SEPARATION ..................................................................................................................... 16 6.5. HOPPING CHANNEL NUMBER .................................................................................................................... 18 6.6. DWELL TIME ............................................................................................................................................ 20 6.7. BAND EDGE ............................................................................................................................................. 24 6.7.1. Conducted Emission Method ......................................................................................................... 24 6.7.2. Radiated Emission Method ............................................................................................................ 27 6.8. SPURIOUS EMISSION ................................................................................................................................ 29 6.8.1. Conducted Emission Method ......................................................................................................... 29 6.8.2. Radiated Emission Method ............................................................................................................ 33 6.9. ANTENNA REQUIREMENT ..............................................…
