2A7PK-F187Remote control lock

V000240829 REMOTE CONTROL CABINET LOCK USER MANUAL 1.Remote unlocking 2.Low power consumption and long battery life 3.Low battery warning 4.Support external emergency power supply 4.Low battery alarm →Remote control low voltage alarm: when the remote control indicator light is dark or not bright, or when the lock is not sensitive, the remote control power is insufficient, please replace the battery immediately. Battery type: 3V button battery, CR2032. →Lock body low voltage alarm:In case of voltage less than 3.8Vit will unlock with 5 “Beep” .Please replace the battery in time. Battery type: 3*AAA alkaline batteriesprohibit the use of carbon batteries. 2. Remote control unlocking (within 10M) →Press the remote unlock button once, the red light on, unlocking, and lock automat- ically after 4 seconds. →If the remote control is not bound, press the unlock button, the red light on, and the lock body will not respond. →Press the unlock button in the unlocked state, and the lock will delay for 4 seconds before locking. 3.How to unbind the remote control →Press the lock body setting switch for 5 seconds, “Beep,beep” five sounds, initialization successful. Set the hole 5.Automatic unlocking function →When the lock body battery is below 3.6V for a long time, it will automatically unlock. Notes →After installing the lock body, please use the remote control to unlock it once and confirm that the unlocking is normal; →Keep the remote control properly and never put it in the drawer or cabinet of the lock. 1. How to bind the lock body →Press the settings button on the lock body, “Beep”, and press the remote control button within 5 seconds. →“Beep,beep” two sounds, the remote control is bound. →Note: Multiple remotes can be bound by one lock body. Double-sided tape Follow the drawing to drill the hole 12mm Lock BodyRemote Control Indicator TYPE-C External diagram Cabinet of Drawers installation guide 1.Lock body and latch positioning size chart Striking Plate Lock Body A(Pumping front plate and pumping top plate clearance) Top board Bottom board Door board 32.25(the distance from inside board to the centre of screw hole of striking plate) 33.5the distance from inside board to the centre of screw hole of striking plate) 1. To drill a Ø 12MM mounting hole in the center of the mounting surface of the lock body within 80MM; 2. Insert the external connection into the mounting hole; 3. Then connect the external connection to the socket behind the lock body, arrange the connecting cable, and finally install the lock body. 16.7 14.5 14.5 13.4 10 Ø12 Picture 3 3. Fix the striking plate by screw ST3.5*14(Make sure latch works well) ST3.5x14 screw striking plate 33.5+L L = door thickness 2. Connect the lock body, (Tide up the wire not crush), fix lock body by screw ST3X30 and screw ST3X16. Connecting Wire&Screws Lock Body 3 AAA batteries (AAA) ST3*16 screw ST3*30 screw M3*6 Battery Cover Door thickness 10~20mm Lock body positioning wire 32.25-A Latch positioning cable 1 FCCWarningStatement:Changesormodificationstothisunitnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’s authoritytooperatetheequipment.Thisequipmenthasbeentestedandfound tocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates, usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradio communications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof thefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. - Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. - Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference, and(2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. FCCRadiationExposureStatement ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.The devicecanbeusedinportableexposureconditionwithoutrestriction.

QidotsSecurityTechnologyCo.Ltd 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:QidotsSecurityTechnologyCo.Ltd Address:3rdFloor,buildig2,No.39ShunxiangRoad,DaLiang,ShundeDistrictFoshanChina ProductName:Remotecontrollock FCCID:2A7PK-F187 Model(s):F187 2.911(d)(5)(i)EquipmentType We,[QidotsSecurityTechnologyCo.Ltd](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:MeixiaWuDate:2024.9.26 TitleandCompanyname:Manager/QidotsSecurityTechnologyCo.Ltd NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

QidotsSecurityTechnologyCo.Ltd 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:QidotsSecurityTechnologyCo.Ltd Address:3rdFloor,buildig2,No.39ShunxiangRoad,DaLiang,ShundeDistrictFoshanChina ProductName:Remotecontrollock FCCID:2A7PK-F187 Model(s):F187 2.911(d)(5)(ii)Applicantfiling We,[QidotsSecurityTechnologyCo.Ltd](“theapplicant”)certifythat,asofthedateofthefilingof theapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:MeixiaWuDate:2024.9.26 TitleandCompanyname:Manager/QidotsSecurityTechnologyCo.Ltd NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

QidotsSecurityTechnologyCo.Ltd AgentAuthorization Company:QidotsSecurityTechnologyCo.Ltd Address:3rdFloor,buildig2,No.39ShunxiangRoad,DaLiang,ShundeDistrict FoshanChina ProductName:Remotecontrollock ModelNumber(s):F187 ProductDescription:Remotecontrollock WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.9.26 Name:MeixiaWu Title:Manager Company:QidotsSecurityTechnologyCo.Ltd

QidotsSecurityTechnologyCo.Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.9.26 Subject;RequestforConfidentiality FCCID:2A7PK-F187 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:MeixiaWu Title:Manager

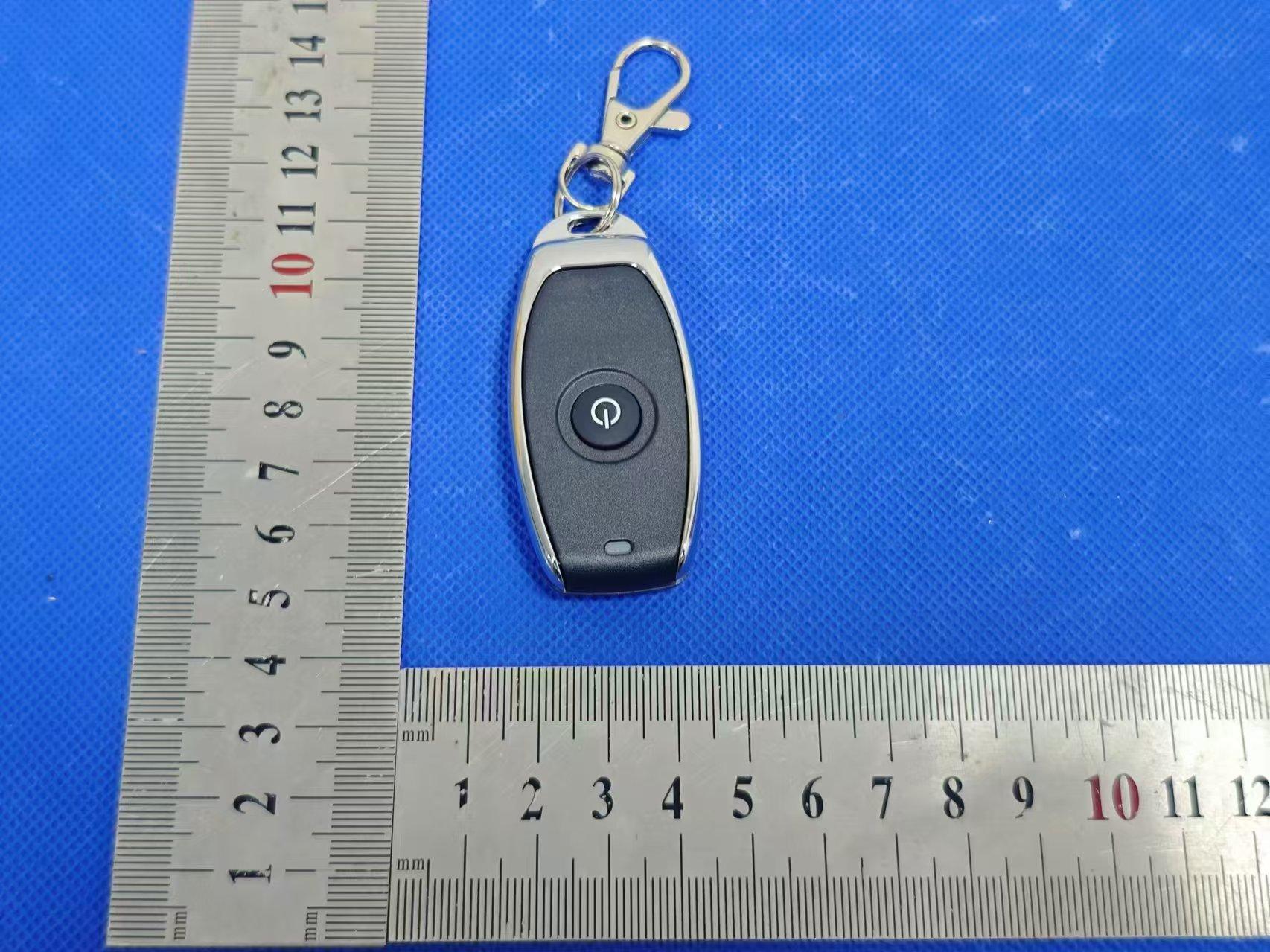

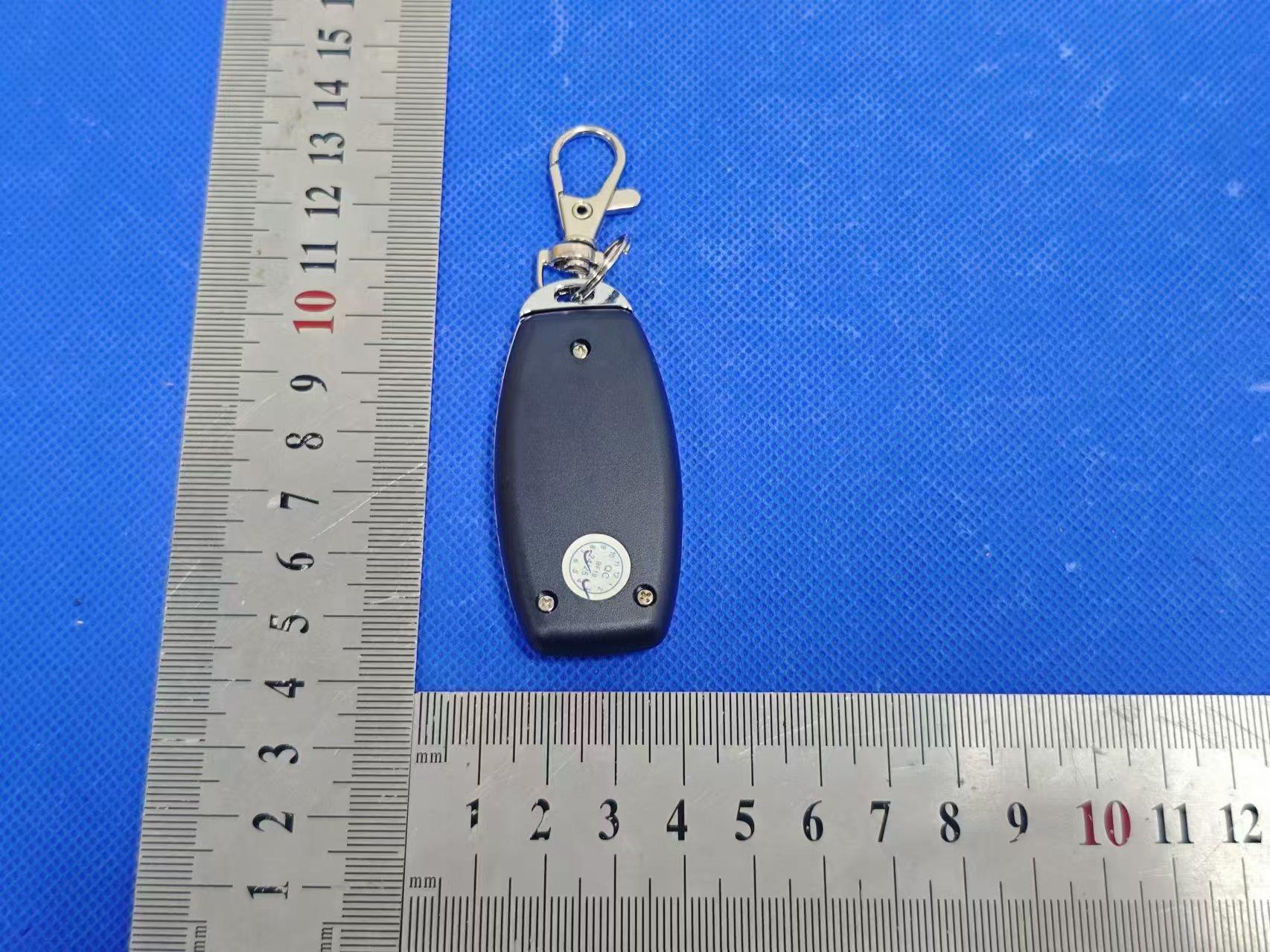

EUTPHOTO(ExternalPhotos) EUTPhoto1 EUTPhoto2 EUTPhoto3 EUTPhoto4 EUTPhoto5 EUTPhoto6 EUTPhoto7 EUTPhoto7 ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation 2cm 1cm Remotecontrollock FCCID:2A7PK-F187

EUTPHOTO(InternalPhotos) EUTPhoto1 EUTPhoto2 9 EUTPhoto3 EUTPhoto4 Antenna EUTPhoto5 ※※※※※ENDOFREPORT※※※※※

FCCID:2A7PK-F187 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, Frequency(MHz) PeakLevel dBuV/m Max Power(dBm) Max Power(mW) Min.Distance (mm) Calc. thresholds limit 433.9273.35-21.850.0150.00113.0 SoaSARtestisnotrequired
