2A7Q2-RF16C-433MREMOTE CONTROL PURE SINE WAVE INVERTER

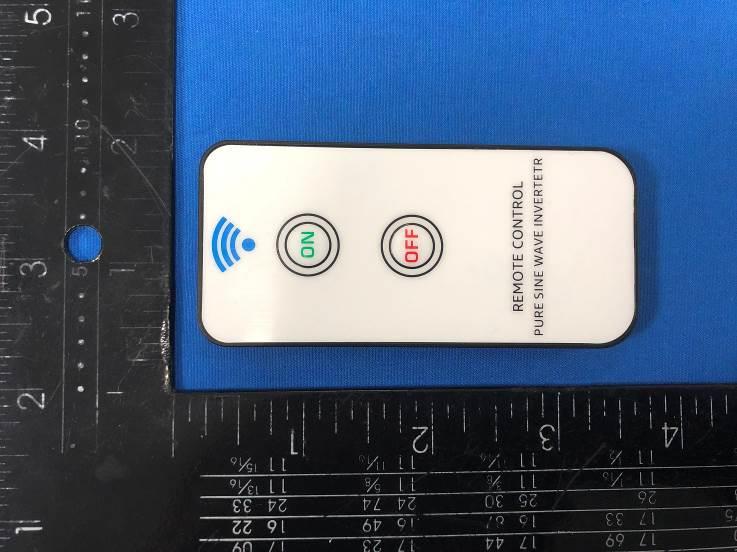

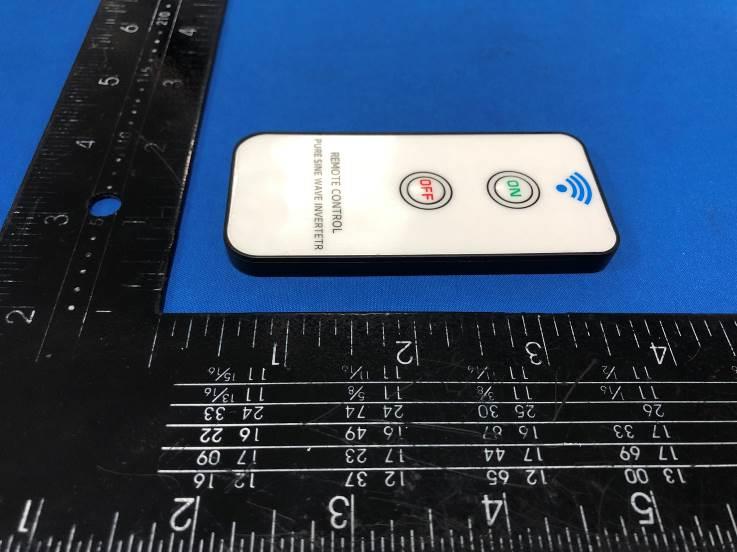

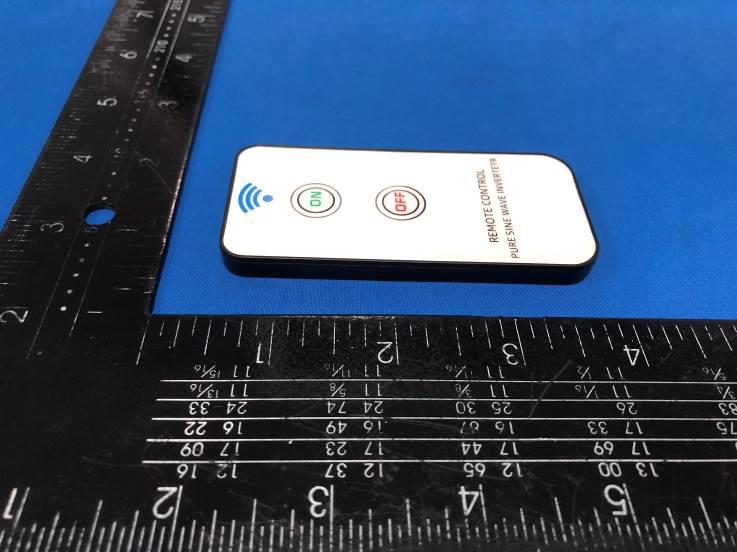

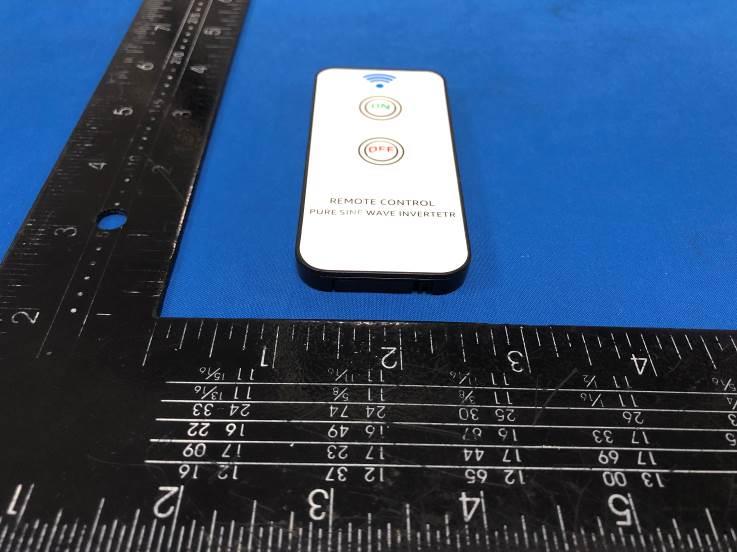

FCC ID: 2A7Q2-RF16C-433M External Photos of the EUT FCC ID: 2A7Q2-RF16C-433M

FCC ID: 2A7Q2-RF16C-433M Label and Location Size: L: 1.5cm*W: 1.0cm Label and Location FCC ID: 2A7Q2-RF16C-433M

FCC ID: 2A7Q2-RF16C-433M Internal Photos of the EUT FCC ID: 2A7Q2-RF16C-433M FCC ID: 2A7Q2-RF16C-433M

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ............................................ : CTA22062000901 2A7Q2-RF16C-433M Compiled by ( position+printed name+signature) .. : File administrators Kevin Liu Supervised by ( position+printed name+signature) .. : Project Engineer Kevin Liu Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jun. 28, 2022 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Zhengzhou Datou Hardware Products Co.，Ltd Address ............................................ : Room 101, Building 30, Xingyang Equipment Manufacturing Industrial Park, Wulong Industrial Cluster District, Xingyang , Zhengzhou , Henan China Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: REMOTE CONTROL PURE SINE WAVE INVERTER Trade Mark ....................................... : N/A Manufacturer .................................... : Zhengzhou Datou Hardware Products Co.，Ltd Model/Type reference....................... : RF16C-433M Listed Models .................................. : N/A Modulation ....................................... : ASK Frequency .......................................... 433.948MHz Ratings ............................................. : DC 3.0V FromBattery Result................................................ : PASS Report No.: CTA22062000901 Page 2 of 23 T E S T R E P O R T Equipment under Test : REMOTE CONTROL PURE SINE WAVE INVERTER Model /Type : RF16C-433M Listed Models : N/A Applicant : Zhengzhou Datou Hardware Products Co.，Ltd Address : Room 101, Building 30, Xingyang Equipment Manufacturing Industrial Park, Wulong Industrial Cluster District, Xingyang , Zhengzhou , Henan China Manufacturer : Zhengzhou Datou Hardware Products Co.，Ltd Address : Room 101, Building 30, Xingyang Equipment Manufacturing Industrial Park, Wulong Industrial Cluster District, Xingyang , Zhengzhou , Henan China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22062000901 Page 3 of 23 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S UL T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 15 4.4 Deactivation Time 16 4.5 Antenna Requirement 17 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 18 6 P H O T O S O F T H E E U T ........................................................... 19 Report No.: CTA22062000901 Page 4 of 23 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA22062000901 Page 5 of 23 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jun. 20, 2022 Testing commenced on : Jun. 20, 2022 Testing concluded on : Jun. 28, 2022 2.2 Product Description Product Name: REMOTE CONTROL PURE SINE WAVE INVERTER Model/Type reference: RF16C-433M Testing sample ID： CTA220620009-1# (Engineer sample), CTA220620009-2#(Normal sample) Power supply: DC 3.0V From Battery Modulation: ASK Operation frequency: 433.948MHz Channel number: 1 Antenna type: PCB antenna Antenna gain: 0 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.0V From Battery 2.4 Short description of the Equipment under Test (EUT) This is a Wireless remote control switch. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / EUT Battery Report No.: CTA22062000901 Page 6 of 23 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15…
