2A7RW-TYZG1Smart gateway

Zigbee Gateway FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. .

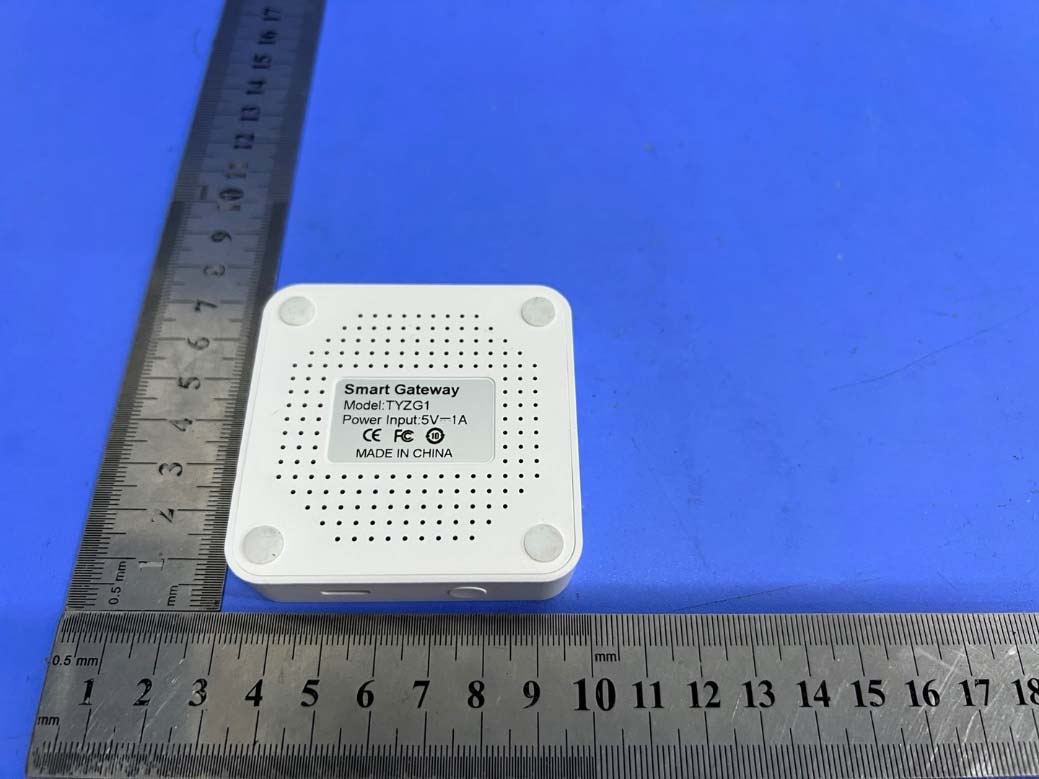

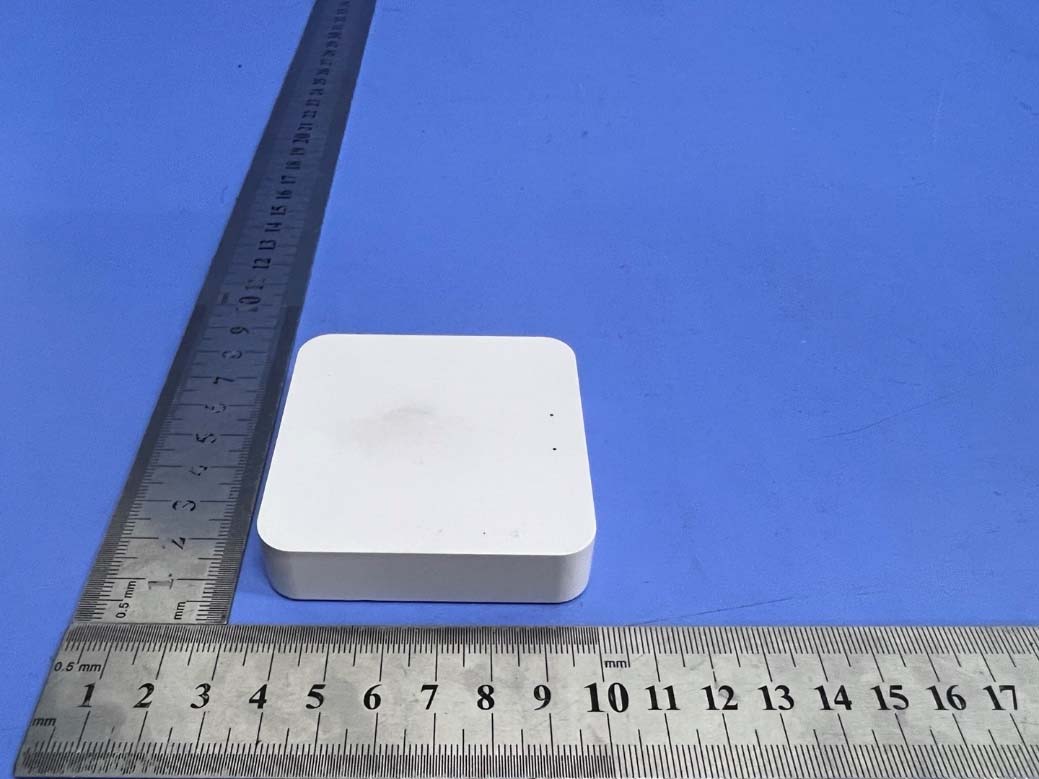

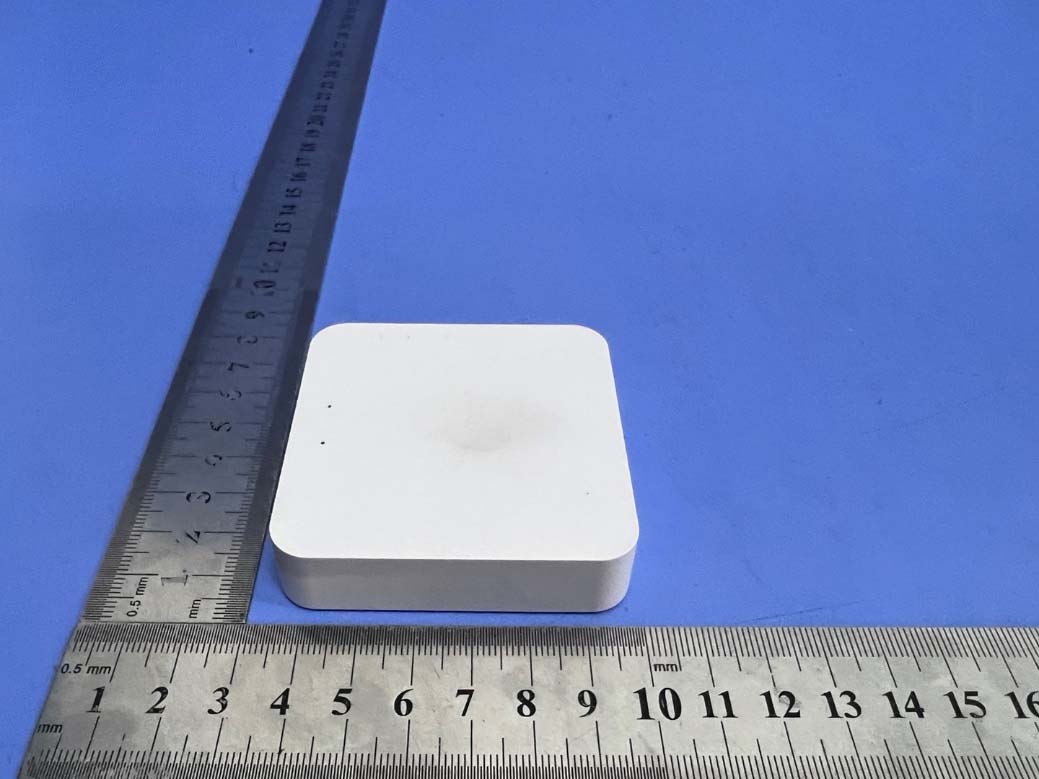

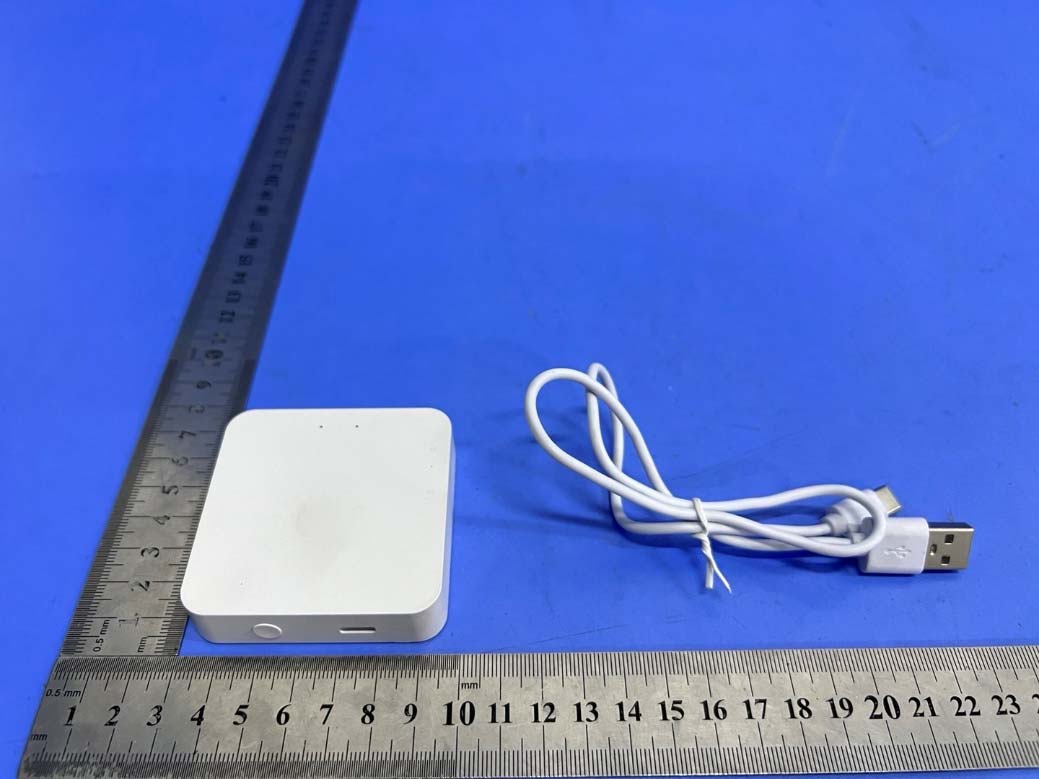

FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Appendix I Label FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Appearance of PCB FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Photo 9 Appearance of PCB WIFI Antnna Zigbee Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-2 Page: 1 of 3 TB-RF-075-1.0 Maximum Permissible Exposure Evaluation FCC ID: 2A7RW-TYZG1 1. Client Information Applicant : Shenzhen CDTONG Technology Co., Ltd Address : Dongjiang Haoyuan, No. 1 longjing Second Road, Longjing Community, Xin 'an Street, Bao 'an District, Shenzhen, China Manufacturer : Shenzhen CDTONG Technology Co., Ltd Address : Dongjiang Haoyuan, No. 1 longjing Second Road, Longjing Community, Xin 'an Street, Bao 'an District, Shenzhen, China 2. General Description of EUT EUT Name : Smart gateway Models No. : TYZG1, TYZB1, TYBL1 Model Different : All these models are identical in the same PCB, layout and electrical circuit, The only difference is model name. Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz Zigbee: 2405MHz~2480MHz Number of Channel: 802.11b/g/n(HT20):11 channels 802.11n(HT40): 7 channels Zigbee:16 channels Antenna Gain: 0dBi PCB Antenna for 2.4G 0dBi PCB Antenna for Zigbee Power Rating : Output: DC 5V/1A Software Version : V2.0.0 Hardware Version : V2.0.0 Connecting I/O Port(S) : : Please refer to the User's Manual Remark : the evaluation report used the EUT(202206-0350-1-2#). Report No.: TBR-C-202206-0350-2 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 2. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 3. Simultaneous transmission MPE Considerations According to KDB447498: All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 4. Test Result: 2.4G WiFi & Zigbee 2.4GWiFi Mode Channel Conducte d Power(m ax) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) 802.11B 2412 18.755 19±1 20 0 20 0.0199 1 2437 18.76 19±1 20 0 20 0.0199 1 2462 17.934 18±1 19 0 20 0.0158 1 802.11G 2412 17.915 18±1 19 0 20 0.0158 1 2437 18.474 18±1 19 0 20 0.0158 1 2462 17.393 17±1 18 0 20 0.0126 1 802.11N(HT20) 2412 18.115 18±1 19 0 20 0.0158 1 2437 18.572 19±1 20 0 20 0.0199 1 2462 17.546 18±1 19 0 20 0.0158 1 802.11N(HT40) 2422 18.059 18±1 19 0 20 0.0158 1 2437 17.832 18±1 19 0 20 0.0158 1 2452 17.544 18±1 19 0 20 0.0158 1 Report No.: TBR-C-202206-0350-2 Page: 3 of 3 TB-RF-075-1.0 Zigbee Mode Channel Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) Zigbee Mode 2405 -1.444 -1±1 0 0 20 0.00020 1 2445 -1.825 -1±1 0 0 20 0.00020 1 2480 -2.295 -2±1 -1 0 20 0.00016 1 Maximum Simultaneous transmission MPE Ratios for 2.4GHz WiFi and Zigbee. Maximum MPE ratio 2.4GWiFi Maximum MPE ratio Zigbee ∑MPE Limit Results 0.0199 0.00016 0.02006 1.0 PASS 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For 2.4WIFI:2412~2462 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.02006/ cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 6. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 1 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 RF Test Data for 2.4G WiFi (Conducted Measurements) General Description of EUT Product Name: Smart gateway Test Model: TYZG1 Sample ID: 202206-0350-1-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 5V Test Engineer: Huang jian ping Note: For a more detailed features description, please refer to the report TBR-C-202206-0350-1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 2 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Contents 1. Duty Cycle ............................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ................................................................................................................................................... 10 3. -6dB Bandwidth ..................................................................................................................................................................................... 11 4. Occupied Channel Bandwidth ............................................................................................................................................................. 18 5. Maximum Power Spectral Density Level ............................................................................................................................................ 25 6. Band Edge ............................................................................................................................................................................................. 32 7. Conducted RF Spurious Emission ...................................................................................................................................................... 41 8. Restrict Band ......................................................................................................................................................................................... 54 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 3 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT b 2412 Ant1 99.12 0.04 0.08 NVNT b 2437 Ant1 99.05 0.04 0.08 NVNT b 2462 Ant1 99.06 0.04 0.08 NVNT g 2412 Ant1 94.69 0.24 0.48 NVNT g 2437 Ant1 94.68 0.24 0.48 NVNT g 2462 Ant1 94.64 0.24 0.49 NVNT n(HT20) 2412 Ant1 94.12 0.26 0.52 NVNT n(HT20) 2437 Ant1 94.15 0.26 0.52 NVNT n(HT20) 2462 Ant1 94.12 0.26 0.52 NVNT n(HT40) 2422 Ant1 89.02 0.51 1.05 NVNT n(HT40) 2437 Ant1 88.94 0.51 1.06 NVNT n(HT40) 2452 Ant1 88.93 0.51 1.05 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 4 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 5 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Duty Cycle NVNT b 2462MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 6 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 7 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Duty Cycle NVNT n(HT20) 2412MHz Ant1 Duty Cycle NVNT n(HT20) 2437MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 8 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Duty Cycle NVNT n(HT20) 2462MHz Ant1 Duty Cycle NVNT n(HT40) 2422MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 9 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Duty Cycle NVNT n(HT40) 2437MHz Ant1 Duty Cycle NVNT n(HT40) 2452MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 10 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 18.755 30 Pass NVNT b 2437 Ant1 18.76 30 Pass NVNT b 2462 Ant1 17.934 30 Pass NVNT g 2412 Ant1 17.915 30 Pass NVNT g 2437 Ant1 18.474 30 Pass NVNT g 2462 Ant1 17.393 30 Pass NVNT n(HT20) 2412 Ant1 18.115 30 Pass NVNT n(HT20) 2437 Ant1 18.572 30 Pass NVNT n(HT20) 2462 Ant1 17.546 30 Pass NVNT n(HT40) 2422 Ant1 18.059 30 Pass NVNT n(HT40) 2437 Ant1 17.832 30 Pass NVNT n(HT40) 2452 Ant1 17.544 30 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 11 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 3. -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 8.57 0.5 Pass NVNT b 2437 Ant1 9.06 0.5 Pass NVNT b 2462 Ant1 8.11 0.5 Pass NVNT g 2412 Ant1 16.46 0.5 Pass NVNT g 2437 Ant1 16.35 0.5 Pass NVNT g 2462 Ant1 16.36 0.5 Pass NVNT n(HT20) 2412 Ant1 17.6 0.5 Pass NVNT n(HT20) 2437 Ant1 17.58 0.5 Pass NVNT n(HT20) 2462 Ant1 17.57 0.5 Pass NVNT n(HT40) 2422 Ant1 35.07 0.5 Pass NVNT n(HT40) 2437 Ant1 35.04 0.5 Pass NVNT n(HT40) 2452 Ant1 35.25 0.5 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 12 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 13 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 14 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 15 of 63 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 -6dB Bandwidth NVNT n(HT20) 2412MHz Ant1 -6dB Bandwidth NVNT n(HT20) 2437MHz Ant1 Sh…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 1 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 RF Test Data for Zigbee (Conducted Measurements) General Description of EUT Product Name: Smart gateway Test Model: TYZG1 Sample ID: 202206-0350-1-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 5V Test Engineer: Huang jian ping Note: For a more detailed features description, please refer to the report TBR-C-202206-0350-11. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT Zigbee 2405 Ant1 100 0 0 NVNT Zigbee 2445 Ant1 100 0 0 NVNT Zigbee 2480 Ant1 100 0 0 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 2 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT Zigbee 2405MHz Ant1 Duty Cycle NVNT Zigbee 2445MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 3 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Duty Cycle NVNT Zigbee 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 4 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT Zigbee 2405 Ant1 -1.444 30 Pass NVNT Zigbee 2445 Ant1 -1.825 30 Pass NVNT Zigbee 2480 Ant1 -2.295 30 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 5 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs Power NVNT Zigbee 2405MHz Ant1 Power NVNT Zigbee 2445MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 6 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Power NVNT Zigbee 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 7 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT Zigbee 2405 Ant1 1.66 0.5 Pass NVNT Zigbee 2445 Ant1 1.81 0.5 Pass NVNT Zigbee 2480 Ant1 1.71 0.5 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 8 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT Zigbee 2405MHz Ant1 -6dB Bandwidth NVNT Zigbee 2445MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 9 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 -6dB Bandwidth NVNT Zigbee 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 10 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT Zigbee 2405 Ant1 -16.491 8 Pass NVNT Zigbee 2445 Ant1 -16.85 8 Pass NVNT Zigbee 2480 Ant1 -17.677 8 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 11 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs PSD NVNT Zigbee 2405MHz Ant1 PSD NVNT Zigbee 2445MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 12 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 PSD NVNT Zigbee 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 13 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT Zigbee 2405 Ant1 -49.41 -20 Pass NVNT Zigbee 2480 Ant1 -48.85 -20 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 14 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs Band Edge NVNT Zigbee 2405MHz Ant1 Ref Band Edge NVNT Zigbee 2405MHz Ant1 Emission Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 15 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Band Edge NVNT Zigbee 2480MHz Ant1 Ref Band Edge NVNT Zigbee 2480MHz Ant1 Emission Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 16 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT Zigbee 2405 Ant1 -35.89 -20 Pass NVNT Zigbee 2445 Ant1 -35.54 -20 Pass NVNT Zigbee 2480 Ant1 -34.92 -20 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 17 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs Tx. Spurious NVNT Zigbee 2405MHz Ant1 Ref Tx. Spurious NVNT Zigbee 2405MHz Ant1 Emission Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 18 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Tx. Spurious NVNT Zigbee 2445MHz Ant1 Ref Tx. Spurious NVNT Zigbee 2445MHz Ant1 Emission Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 19 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Tx. Spurious NVNT Zigbee 2480MHz Ant1 Ref Tx. Spurious NVNT Zigbee 2480MHz Ant1 Emission Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 20 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Restrict Band Condition Mode Frequency (MHz) Antenna Spur Freq (MHz) Power (dBm) Gain (dBi) E (dBuV/m) Detector Limit (dBuV/m) Verdict NVNT Zigbee 2405 Ant1 2310 -49.36 2 47.9 Peak 74 Pass NVNT Zigbee 2405 Ant1 2310 -59.53 2 37.73 Average 54 Pass NVNT Zigbee 2405 Ant1 2384.547 -46.34 2 50.92 Peak 74 Pass NVNT Zigbee 2405 Ant1 2389.497 -59.38 2 37.88 Average 54 Pass NVNT Zigbee 2405 Ant1 2390 -49.28 2 47.98 Peak 74 Pass NVNT Zigbee 2405 Ant1 2390 -59.42 2 37.84 Average 54 Pass NVNT Zigbee 2480 Ant1 2483.5 -45.15 2 52.11 Peak 74 Pass NVNT Zigbee 2480 Ant1 2483.5 -54.75 2 42.51 Average 54 Pass NVNT Zigbee 2480 Ant1 2483.536 -44.25 2 53.01 Peak 74 Pass NVNT Zigbee 2480 Ant1 2483.512 -54.75 2 42.51 Average 54 Pass NVNT Zigbee 2480 Ant1 2500 -49.2 2 48.06 Peak 74 Pass NVNT Zigbee 2480 Ant1 2500 -59.23 2 38.03 Average 54 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 21 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-074-1.0 Test Graphs Restrict Band NVNT Zigbee 2405MHz Ant1 Peak Restrict Band NVNT Zigbee 2405MHz Ant1 Average Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 22 of 22 FCC ID: 2A7RW-TYZG1 TB-RF-…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-1 Page: 1 of 41 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2A7RW-TYZG1 Report No. : TBR-C-202206-0350-1 Applicant : Shenzhen CDTONG Technology Co., Ltd Equipment Under Test (EUT) EUT Name : Smart gateway Model No. : TYZG1, TYZB1, TYBL1 Brand Name : CDTONG Sample ID : 202206-0350-1-1#&202206-0350-1-2# Receipt Date : 2022-07-22 Test Date : 2022-07-22 to 2022-08-04 Issue Date : 2022-08-04 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202206-0350-1 Page: 2 of 41 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Mode ........................................................................................................ 17 6.6 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 19 7.4 Deviation From Test Standard ......................................................................................... 20 7.5 EUT Operating Mode ........................................................................................................ 20 7.6 Test Data ............................................................................................................................. 20 8. BANDWIDTH TEST ................................................................................................................. 21 8.1 Test Standard and Limit .................................................................................................... 21 8.2 Test …

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202206-0350-11 Page: 1 of 32 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2A7RW-TYZG1 Report No. : TBR-C-202206-0350-11 Applicant : Shenzhen CDTONG Technology Co., Ltd Equipment Under Test (EUT) EUT Name : Smart gateway Model No. : TYZG1 Series Model No. : TYZB1, TYBL1 Brand Name : CDTONG Sample ID : 202206-0350-1-1#&202206-0350-1-2# Receipt Date : 2022-07-22 Test Date : 2022-07-22 to 2022-08-10 Issue Date : 2022-08-10 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202206-0350-11 Page: 2 of 32 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION ....................................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ...............…

Text truncated - open the document above for the full version.
