2A7TW-P1Wall-mounted wireless charger

Thank you for your patronage, ooother , Phone Home series wall-mounted wireless mobile phone charger, is an innovative mobile phone charger product, giving your mobile phone a fixed charging position, making your desktop more tidy, and can also avoid Children play with mobile phones and bring more convenience to your life. Product introduction Product parameters Installation method Product size 1. 3rd Floor,ZhanRun Business Building, Yunfeng Road NO.1,Queshan Industrial Ared, dalang,Longhua district,Shenzhen,China Manufacturer com 1. Product description Charging Phone is fully charged, charging is over Screw Installation panel Wireless charging case Remove the panel of the original socket 2. Install the product with the accessory panel according to the original style (pay attention to tighten the screws) 3. Select the direction to install the charging box, you can install it on the left or on the right 4. Insert the charging case from the side top to the bottom Dovetail slot 5. Plug in, you can use your existing phone charger. (The recommended parameter is greater than 5v2A, the charging effect will be better) 6. Storage charging cable V-1.0 Wall
Mounted
Wireless
Charger
Instruction
Manual Methods of use To charge with wireless charging, place the mobile phone that supports wireless charging directly in the charging box. The green light is on means charging. Lit blue means power status. 2. Use USB direct charging. Plug the USB directly into the phone. Then place the phone into the phone case. 3. Mobile phone charging cable storage. After the USB charging is completed, the mobile phone charging cable can be placed in the card slot on both sides of the charging box. 1. Answers to common questions Please choose a power supply with higher power, it is recommended to use 5V 2.4A or above. 2. A.Please confirm that your mobile phone must support wireless charging. B.You can adjust the position of the mobile phone appropriately. C.Try a new USB cable. 34mm 1 1 4 m m 69mm 1 1 4 m m 93mm 1 1 4 m m 69mm 1 1 4 m m Input: 5V 2A 9V 2A 12V 2A Input power: 24W Max Output power: 15W Max Standby power: ＜0.5W Vertical induction range: ≤5mm Charging area： off-centering：≤8mm Qi-enabled wireless charging protocols: 15W/10W/7.5W/5W Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd. Phone Home Phone must be centered ooother ooother Bottom of product VentsVents Power port The wireless charging speed is too slow: Can't charge wirelessly: Series FCC warning： 1. This device should be installed and operated with minimum distance 20cm between the radiator&your body. 2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 3.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 4.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.

Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd. 320 3rd Floor, ZhanRun Business Building, Yunfeng Road No.1 , Dalang,Longhua district,Shenzhen,China Date: 2022.07.08 FCC ID Number: 2A7TW-P1 Dear Sir/Madam, We, SHENZHEN ZHIDUOJING SCIENCE AND TECHNOLOGY LIMITED COMPANY, hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model numbers are the same. All model numbers are same electrically identical. Only model number is different for these models: Product Name: Wall-mounted wireless charger Model Numbers: P1 ，P2， P3 ，X1，X2，X3 Yours Sincerely, Name/Title： Xiao Feng Wanh/manager Company: Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd. Address: 320 3rd Floor, ZhanRun Business Building, Yunfeng Road No.1 , Dalang,Longhua district,Shenzhen,China Phone: 13760134983 Fax: 13760134983 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2022-7-8> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A7TW-P1 P1 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Name/Title： Xiao Feng Wanh/manager Company: Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd. Address: 320 3rd Floor, ZhanRun Business Building, Yunfeng Road No.1 , Dalang,Longhua district,Shenzhen,China Phone: 13760134983 Fax: 13760134983 E-Mail: [email protected]

Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd. 320 3rd Floor, ZhanRun Business Building, Yunfeng Road No.1 , Dalang,Longhua district,Shenzhen,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022.07.08 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A7TW-P1 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Xiao Feng Wanh/manager Company: Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd. Address: 320 3rd Floor, ZhanRun Business Building, Yunfeng Road No.1 , Dalang,Longhua district,Shenzhen,China Phone: 13760134983 Fax: 13760134983 E-Mail: [email protected]

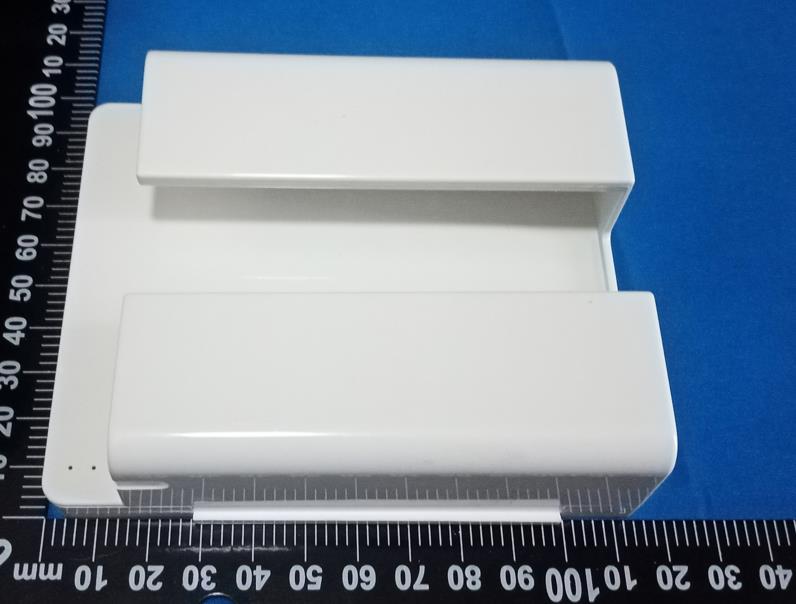

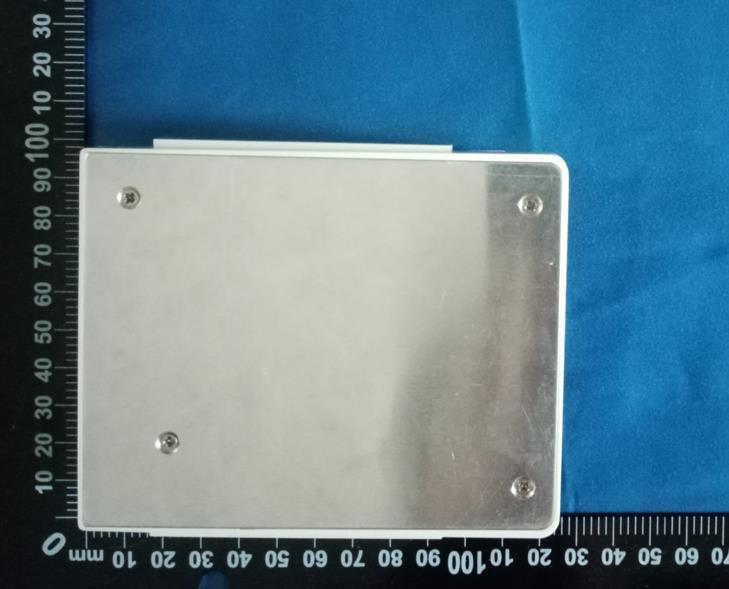

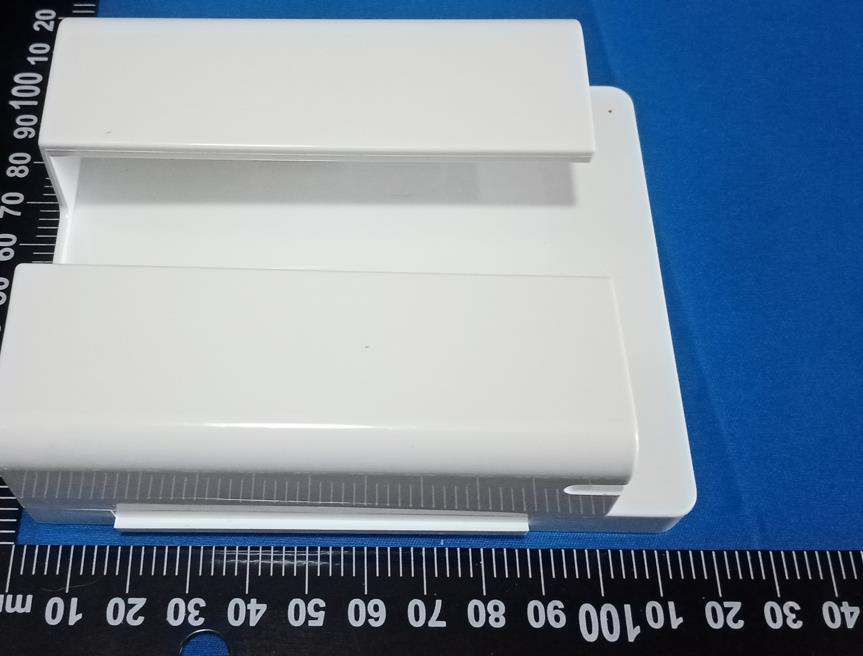

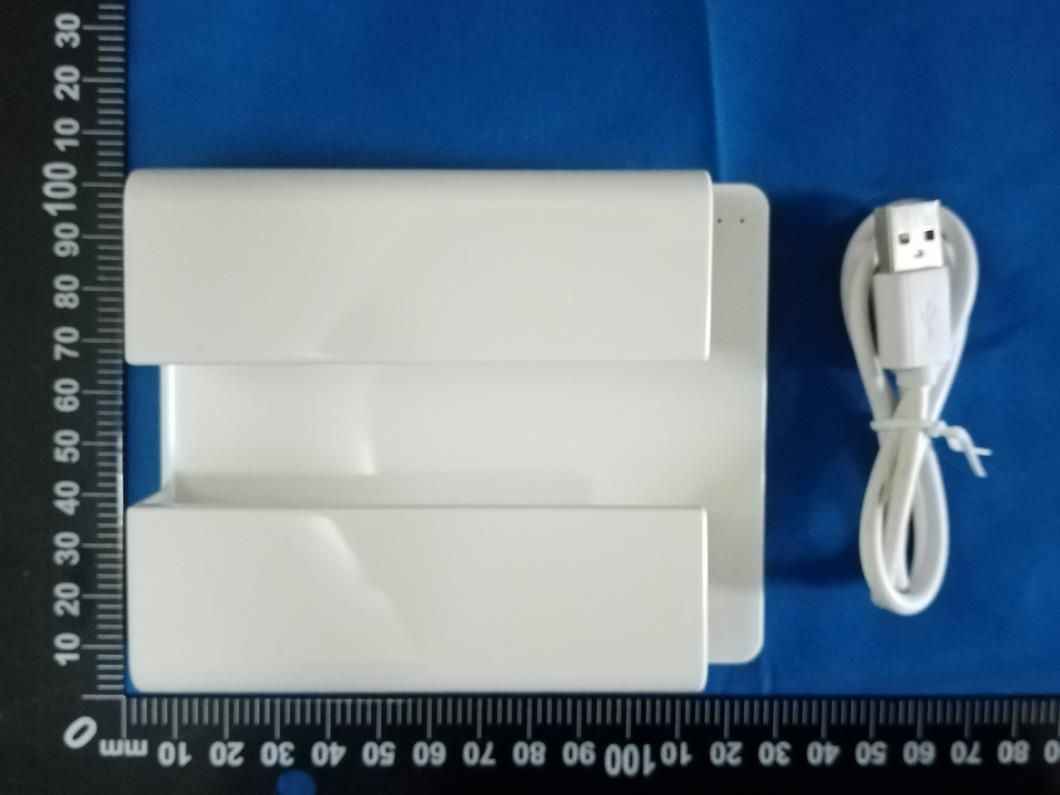

Wall-mounted wireless charger FCC ID: 2A7TW-P1 P1 External Photographs

A5418 Label and Label Location Wall-mounted wireless charger P1 FCC ID: 2A7TW-P1

Wall-mounted wireless charger FCC ID: 2A7TW-P1 P1 Tires Internal Photographs

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn RF Exposure Evaluation Report Report No. ··························: CTC20221868E02 FCC ID································: 2A7TW-P1 Applicant····························: Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd. Address·······························: 320 3rd Floor, ZhanRun Business Building, Yunfeng Road No.1 , Dalang,Longhua district,Shenzhen,China Manufacturer························: Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd. Address·······························: 320 3rd Floor, ZhanRun Business Building, Yunfeng Road No.1 , Dalang,Longhua district,Shenzhen,China Product Name······················: Wall-mounted wireless charger Trade Mark···························: / Model/Type reference·············: P1 Listed Model(s) ·····················: P2， P3 ，X1，X2，X3 Standard·····························: 47 CFR FCC Part 1 Date of receipt of test sample...: June 29, 2022 Date of testing.......................: June 30, 2022 to July 9, 2022 Date of issue.........................: July 9, 2022 Result.................................: PASS Compiled by: (Printed name+signature) Zoe Xie Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ Testing Laboratory Name ........... : CTC Laboratories, Inc. Address .......................................... : 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 11 Report No.: CTC20221868E02 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ......................................................................................................................................... 3 1.1. TEST STANDARDS ................................................................................................................................................. 3 1.2. REPORT VERSION ................................................................................................................................................. 3 1.3. TEST FACILITY ...................................................................................................................................................... 4 1.4. MEASUREMENT UNCERTAINTY ............................................................................................................................... 4 1.5. ENVIRONMENTAL CONDITIONS ............................................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. CLIENT INFORMATION ........................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................. 6 2.3. ACCESSORY EQUIPMENT INFORMATION .................................................................................................................... 7 2.4. DESCRIPTION OF TEST MODES ................................................................................................................................ 7 2.5. MEASUREMENT INSTRUMENTS LIST ........................................................................................................................ 7 2.6. EQUIPMENT APPROVAL CONSIDERATIONS ................................................................................................................. 8 2.7. RF EXPOSURE ..................................................................................................................................................... 9 Page 3 of 11 Report No.: CTC20221868E02 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 1. TEST SUMMARY 1.1. Test Standards The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 1.2. Report version Revised No. Date of issue Description 01 July 9,2022 Original Page 4 of 11 Report No.: CTC20221868E02 CTC Laboratories, Inc. 1-2/F., B…
