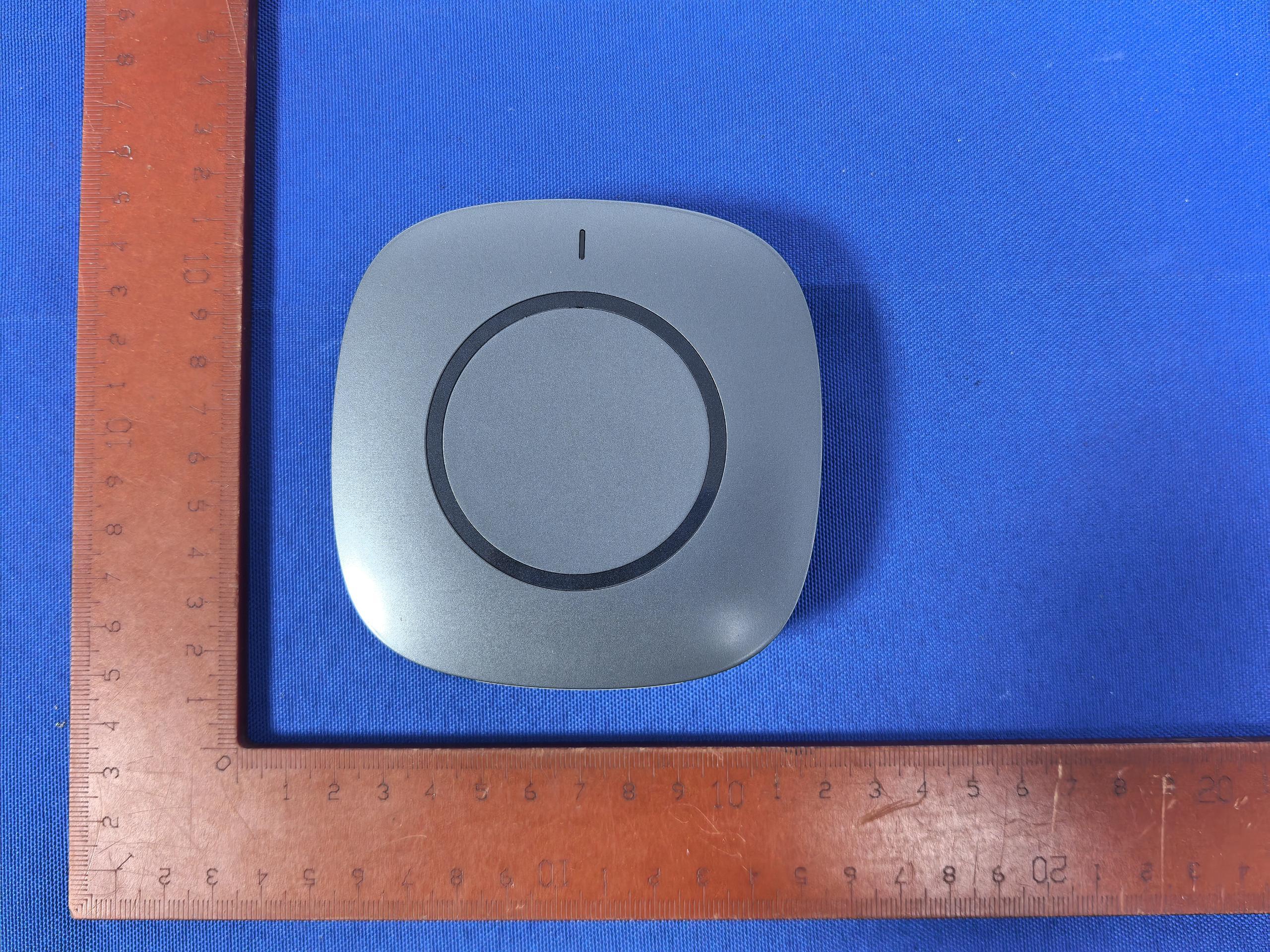

2A7U2-ARK01Android Box

Guangzhou Liuhuan Information Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Dec 29, 2025
Application Purpose: Original Equipment
Equipment Note: Android Box
Frequency Range: 824.00000000 - 849.00000000
Company: Guangzhou Liuhuan Information Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ARK01AndroidBoxQuickStartGuide 1.ProductOverview TheARK01AndroidBoxisanintelligentcaraccessorythatconnectstoyourvehicleviatheUSB interface,transformingyourcar’sdisplayintoaCertifiedAndroidsystem.Itsupportsapp installations,wirelessCarPlayandAndroidAuto,4G/LTEconnectivity,GPSnavigation,Bluetooth, andmore-enablingenhancedin-carentertainment,navigation,andconnectivity. Usage：PlugInCarAndroidSystemViaUSBcable.Connecttheboxusingthecar'swiredCarPlayor Easycastapp(forcarswithoutwiredCarPlay). 2.KeyFeatures Android14OSwith6GBRAM+64GBROM RockchipRK3576Jprocessor(8-core) Richinterfaces,4G/LTE,Wi-Fi,Bluetooth,Hotspot WirelessCarPlay&AndroidAutosupport Split-screenmodefordual-appuse(e.g.,Maps+Music) Customizablehomescreenwithmultiplelayoutoptions Multi-languagesupport,OTAupdates,andsystemsettings 3.Ports&Connections SIM:Insert4GSIMformobiledata LinktoCar:ConnecttovehiclesystemviaUSB(5V/1A) USB:ConnectstoexternalUSBdrivesandenablesfirmwareupgrades 4.BasicOperation HomeScreen&Navigation FloatingButton:AccessHome,Back,AppCenter,Settings,Split-Screen,andCarSystem return;AndThefloatingbutton'sdisplaystylecanbechangedinthesettingsmenu. ControlCenter:SwipedownforBluetooth,Wi-Fi,Hotspot,Volume,DisplayMode,and Wallpapersettings. StatusBar:Showstime,SIM,Wi-Fi,hotspot,andBluetoothstatus. DesktopLayouts SmallCard:Compactappandinfowidgets LargeCard:Full-widthnavigation,music,andsysteminfo Multi-App:Gridofrecentlyusedandallapps SettingsOverview Network:Wi-Fi,SIM,Hotspot Bluetooth:Pairdevices,renamebox Language&Date:Setlanguageandtimeformat Display:Day/Nightmode,layout,floatingbuttonstyle Theme:Wallpapersandvisualthemes(Classic,Tech,Christmas...) General:Deviceinfo,OTAupdates,factoryreset 5.WirelessCarPlay&AndroidAuto ConnectionSteps 1.TapCarPlay/AndroidAutoiconorIphone/Androidicon 2.EnableBluetoothandWi-Fionyourphone. 3.Pairwiththedevicenameshownonthecardisplay. 4.Onceconnected,useyourphone’sappsdirectlyonthecarscreen. 6.Split-ScreenMode Tapthesplit-screenbuttoninthefloatingmenu. Usetwoappsside-by-side(e.g.,Maps+Spotify). Exitbytappingthesplit-screenexitbuttonorswipingthecenterdivider. 7.TroubleshootingTips Nopower ： Reconnectcable;UsecertifiedUSBcable Nosound ： Checkvolume;confirmmediaformatsupport Bluetooth/Wi-Fifails ： Ensuredeviceisdiscoverable;restartconnection *Note: Google,GooglePlay,Android,AndroidAuto,aretrademarksofGoogleInc.,registeredintheU.S.and othercountries. Apple,iPhone,iPad,andCarPlayaretrademarksofAppleInc.,registeredintheU.S.andother countries. Fordetailedinstructions,refertothefulluserguide. ARK01AndroidBox GuidedeDémarrageRapide 1.Présentationduproduit LeboîtierARK01AndroidBoxestunaccessoireautomobileintelligentquiseconnecteviaUSBet transformel'affichagedevotrevéhiculeenunsystèmecertifiéAndroid.Ilprendencharge l'installationd'applications,CarPlay/AndroidAutosansfil,laconnectivité4G/LTE,lanavigation GPS,leBluetooth,etbienplusencore-offrantundivertissement,unenavigationetuneconnectivité améliorésàbord. Utilisation:BranchezlesystèmeAndroiddelavoiturevialecâbleUSB.Connectezleproduiten utilisantleCarPlaycâblédelavoiture,ouutilisezl'applicationEasyCast(pourlesvoituressans CarPlaycâblé). 2.Caractéristiquesprincipales SystèmeAndroid14avec6GodeRAM+64GodeROM Processeurocta-coreRockchipRK3576J Connectivitériche:4G/LTE,Wi-Fi,Bluetooth,etHotspot PriseenchargedeCarPlayetAndroidAutosansfil Modeécranpartagépourl'utilisationdedeuxapplications(parexemple,Cartes+Musique) Écrand'accueilpersonnalisableavecplusieursoptionsdedisposition Priseenchargemultilingue,misesàjourOTAetparamètressystème 3.Portsetconnexions SIM:InsérezunecarteSIM4Gpourlesdonnéesmobiles. Lienverslevéhicule:Connectez-vousausystèmeduvéhiculeviaUSB(5V/1A) USB:SeconnecteauxpériphériquesUSBexternesetpermetlesmisesàjourdufirmware 4.Opérationdebase Écrand'accueiletnavigation Boutonflottant:AccèsrapideàAccueil,Retour,Centred'applications,Paramètres,Écran partagé,etretourausystèmedelavoiture.Vouspouvezpersonnalisersonstyled'affichage danslemenudesparamètres. Centredecontrôle:FaitesglisserverslebaspouraccéderauxparamètresBluetooth,Wi-Fi, Hotspot,Volume,Moded'affichageetFondd'écran. Barred'état:Affichel'heure,lestatutdelaSIM,Wi-Fi,HotspotetBluetooth. Dispositionsdubureau Petitecarte:Widgetsd'applicationetd'informationscompacts Grandecarte:Dispositionenpleinelargeurpourlanavigation,lamusiqueetles informationssystème Multi-applications:Vuegrilledesapplicationsrécemmentutiliséesetdetoutesles applications Vued'ensembledesparamètres Réseau:Wi-Fi,SIM,Hotspot Bluetooth:Jumelerdesappareils,renommerleproduit Langueetdate:Définirlalangueetleformatdel'heure Affichage:Modejour/nuit,disposition,styledeboutonflottant Thème:Fondsd'écranetthèmesvisuels(Classique,Tech,Noël,etc.) Général:Informationssurl'appareil,misesàjourOTA,réinitialisationd'usine 5.CarPlaysansfil&AndroidAuto Étapesdeconnexion Touchezl'icôneCarPlay/AndroidAutooul'icôneiPhone/Android ActivezleBluetoothetleWi-Fisurvotretéléphone. Sélectionnezlenomdel'appareilaffichésurl'écrandevotrevoiturepoureffectuerle jumelage. Unefoisconnecté,lesapplicationsdevotretéléphonepeuventêtreutiliséesdirectementsur l'écrandelavoiture. 6.Modeécranpartagé Touchezleboutonécranpartagédanslemenuflottant. Utilisezdeuxapplicationscôteàcôte(parexemple,Cartes+Spotify). Pourquitter,touchezleboutonQuittersurl'écranpartagéoufaitesglisserlabarrecentrale. 7.Dépannage Pasd'alimentation:Reconnectezlecâble;utilisezuncâbleUSBcertifié. Pasdeson:Vérifiezleniveaudevolumeetlacompatibilitéduformatmédia. ÉchecdelaconnexionBluetooth/Wi-Fi:Assurez-vousquel'appareilestvisible;redémarrezla connexion. *Note: Google,GooglePlay,Android,AndroidAutosontdesmarquesdéposéesdeGoogleLLC., enregistréesauxÉtats-Unisetdansd'autrespays. Apple,iPhone,iPadetCarPlaysontdesmarquesdéposéesd'AppleInc.,enregistréesauxÉtats-Unis etdansd'autrespays. Consultezleguidecompletdel'utilisateurpourdesinstructionsdétaillées. ARK01AndroidBox Schnellstartanleitung 1.Produktübersicht DerARK01AndroidBoxisteinintelligentesAutozubehör…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixF:TestDataforE-UTRABand7 ProductName:AndroidBox TestModel:ARK01 EnvironmentalConditions Temperature: 24.5  C RelativeHumidity:52.8% ATMPressure:100.0kPa TestEngineer:JayLuo Supervisedby:PaddiChen Page 2 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity F.1ConductedOutputPowerData TestResult BandBandwidthModulationChannelRBConfigurationResult(dBm)Verdict Band75MHzQPSK207751RB#023.20PASS Band75MHz16QAM207751RB#022.13PASS Band75MHzQPSK207751RB#1223.18PASS Band75MHz16QAM207751RB#1222.07PASS Band75MHzQPSK207751RB#2422.63PASS Band75MHz16QAM207751RB#2422.30PASS Band75MHzQPSK2077512RB#022.51PASS Band75MHz16QAM2077512RB#021.69PASS Band75MHzQPSK2077512RB#622.52PASS Band75MHz16QAM2077512RB#621.58PASS Band75MHzQPSK2077512RB#1322.38PASS Band75MHz16QAM2077512RB#1321.66PASS Band75MHzQPSK2077525RB#022.38PASS Band75MHz16QAM2077525RB#021.59PASS Band75MHzQPSK211001RB#023.00PASS Band75MHz16QAM211001RB#021.76PASS Band75MHzQPSK211001RB#1223.04PASS Band75MHz16QAM211001RB#1221.68PASS Band75MHzQPSK211001RB#2422.99PASS Band75MHzQPSK214251RB#1223.52PASS Band75MHz16QAM214251RB#1222.73PASS Band75MHzQPSK214251RB#2423.17PASS Band75MHz16QAM214251RB#2422.77PASS Band75MHzQPSK2142512RB#023.20PASS Band75MHz16QAM2142512RB#022.53PASS Band75MHzQPSK2142512RB#623.17PASS Band75MHz16QAM2142512RB#622.51PASS Band75MHzQPSK2142512RB#1323.34PASS Band75MHz16QAM2142512RB#1322.56PASS Band75MHzQPSK2142525RB#023.27PASS Band75MHz16QAM2142525RB#022.63PASS Band710MHzQPSK208001RB#022.70PASS Band710MHz16QAM208001RB#022.67PASS Band710MHzQPSK208001RB#2422.51PASS Band710MHz16QAM208001RB#2422.50PASS Page 3 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band710MHzQPSK208001RB#4922.46PASS Band710MHz16QAM208001RB#4922.45PASS Band710MHzQPSK2080025RB#022.60PASS Band710MHz16QAM2080025RB#022.21PASS Band710MHzQPSK2080025RB#1222.63PASS Band710MHz16QAM2080025RB#1222.21PASS Band710MHzQPSK2080025RB#2522.54PASS Band710MHz16QAM2080025RB#2522.19PASS Band710MHzQPSK2080050RB#022.55PASS Band710MHz16QAM2080050RB#022.36PASS Band710MHzQPSK211001RB#023.95PASS Band710MHz16QAM211001RB#023.01PASS Band710MHzQPSK211001RB#2423.92PASS Band710MHz16QAM211001RB#2423.02PASS Band710MHzQPSK211001RB#4923.86PASS Band710MHz16QAM211001RB#4923.06PASS Band710MHzQPSK2110025RB#023.11PASS Band710MHz16QAM2110025RB#022.40PASS Band710MHzQPSK2110025RB#1223.14PASS Band710MHz16QAM2110025RB#1222.32PASS Band710MHzQPSK2110025RB#2523.07PASS Band710MHz16QAM2110025RB#2522.33PASS Band710MHzQPSK2110050RB#022.93PASS Band710MHz16QAM2110050RB#022.21PASS Band710MHzQPSK214001RB#022.90PASS Band710MHz16QAM214001RB#022.73PASS Band710MHzQPSK214001RB#2423.06PASS Band710MHz16QAM214001RB#2423.06PASS Band710MHzQPSK214001RB#4923.42PASS Band710MHz16QAM214001RB#4923.42PASS Band710MHzQPSK2140025RB#023.00PASS Band710MHz16QAM2140025RB#022.56PASS Band710MHzQPSK2140025RB#1222.99PASS Band710MHz16QAM2140025RB#1222.55PASS Band710MHzQPSK2140025RB#2523.37PASS Band710MHz16QAM2140025RB#2522.50PASS Band710MHzQPSK2140050RB#023.19PASS Band710MHz16QAM2140050RB#022.64PASS Band715MHzQPSK208251RB#022.67PASS Band715MHz16QAM208251RB#022.64PASS Band715MHzQPSK208251RB#3822.31PASS Page 4 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band715MHz16QAM208251RB#3822.30PASS Band715MHzQPSK208251RB#7422.33PASS Band715MHz16QAM208251RB#7422.36PASS Band715MHzQPSK2082538RB#022.41PASS Band715MHz16QAM2082538RB#022.41PASS Band715MHzQPSK2082538RB#1822.40PASS Band715MHz16QAM2082538RB#1822.39PASS Band715MHzQPSK2082538RB#3722.39PASS Band715MHz16QAM2082538RB#3722.39PASS Band715MHzQPSK2082575RB#022.38PASS Band715MHz16QAM2082575RB#022.35PASS Band715MHzQPSK211001RB#023.45PASS Band715MHz16QAM211001RB#023.19PASS Band715MHzQPSK211001RB#3823.51PASS Band715MHz16QAM211001RB#3823.14PASS Band715MHzQPSK211001RB#7423.35PASS Band715MHz16QAM211001RB#7423.26PASS Band715MHzQPSK2110038RB#022.94PASS Band715MHz16QAM2110038RB#022.95PASS Band715MHzQPSK2110038RB#1822.95PASS Band715MHz16QAM2110038RB#1822.96PASS Band715MHzQPSK2110038RB#3722.96PASS Band715MHz16QAM2110038RB#3722.97PASS Band715MHzQPSK2110075RB#022.98PASS Band715MHz16QAM2110075RB#022.27PASS Band715MHzQPSK213751RB#022.85PASS Band715MHz16QAM213751RB#022.51PASS Band715MHzQPSK213751RB#3822.92PASS Band715MHz16QAM213751RB#3822.70PASS Band715MHzQPSK213751RB#7423.04PASS Band715MHz16QAM213751RB#7422.84PASS Band715MHzQPSK2137538RB#022.94PASS Band715MHz16QAM2137538RB#022.92PASS Band715MHzQPSK2137538RB#1822.92PASS Band715MHz16QAM2137538RB#1822.91PASS Band715MHzQPSK2137538RB#3722.91PASS Band715MHz16QAM2137538RB#3722.91PASS Band715MHzQPSK2137575RB#022.90PASS Band715MHz16QAM2137575RB#022.52PASS Band720MHzQPSK208501RB#022.68PASS Band720MHz16QAM208501RB#022.53PASS Page 5 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band7…

Text truncated - open the document above for the full version.

Test Setup Photos

Page1of2FCCID:2A7U2-ARK01 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT RadiatedEmissionsMeasurement(Below1GHz) RadiatedEmissionsMeasurement(Above1GHz) Page2of2FCCID:2A7U2-ARK01 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RFconductedMeasurement

Test Report

Page 1 of 37 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FOR GuangzhouLiuhuanInformationTechnologyCo.,Ltd. AndroidBox TestModel:ARK01 Preparedfor:GuangzhouLiuhuanInformationTechnologyCo.,Ltd. Address: Room401,No.192,KezhuRoad,HuangpuDistrict,Guangzhou, China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:November07,2025 Numberoftestedsamples:2 SampleNo.:A251104031-1,A251104031-2 Serialnumber:Prototype DateofTest:November07,2025~December10,2025 DateofReport:December11,2025 Page 2 of 37 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCPART22/27TESTREPORT FCCPart22H/Part27 ReportReferenceNo. ....................... : FCCID..................................................: DateofIssue. ...................................... : LCSA11055113EE 2A7U2-ARK01 December11,2025 TestingLaboratoryName ................ :ShenzhenLCSComplianceTestingLaboratoryLtd. Address ................................................. : 101,201BldgA&301BldgC,JujiIndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Applicant’sname...............................:GuangzhouLiuhuanInformationTechnologyCo.,Ltd. Address.................................................: Room401,No.192,KezhuRoad,HuangpuDistrict,Guangzhou, China Testspecification .............................. : Standard................................................: FCCCFRTitle47Part2,Part22H,Part27 TIA-603-E:2016 KDB971168D01PowerMeasLicenseDigitalSystemsv03r01 TestReportFormNo .......................... :TRF-4-E-153A/0 TRFOriginator ...................................... :ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF ........................................... :Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription ........................ :AndroidBox TradeMark............................................:CViauto TestModel ............................................ :ARK01 ModulationType..................................:QPSK,16QAM Rating.....................................................:PleaseRefertoPage7 Result ..................................................... :Pass Compiledby:Supervisedby:Approvedby: DiamondLu/AdministratorsKevinHuang/RFManagerGavinLiang/Manager Page 3 of 37 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TESTREPORT TestReportNo.:LCSA11055113EE December11,2025 ______________________________________________________________________________________________ Dateofissue EUT........................................:AndroidBox TestModel...........................:ARK01 Applicant...............................:GuangzhouLiuhuanInformationTechnologyCo.,Ltd. Address..................................:Room401,No.192,KezhuRoad,HuangpuDistrict, Guangzhou,China Telephone..............................:/ Fax.........................................:/ Manufacturer........................:GuangzhouLiuhuanInformationTechnologyCo.,Ltd. Address...................................:Room401,No.192,KezhuRoad,HuangpuDistrict, Guangzhou,China Telephone..............................:/ Fax.........................................:/ Factory..................................:GuangzhouLiuhuanInformationTechnologyCo.,Ltd. Address..................................:Room401,No.192,KezhuRoad,HuangpuDistrict, Guangzhou,China Telephone..............................:/ Fax.........................................:/ TestResult:Pass Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. Page 4 of 37 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisonHistory ReportVersionIssueDateRevisionContentRevisedBy 000December11,2025InitialIssue--- Page 5 of 37 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Contents 1TESTSTANDARDS...................................................................................................................6 2SUMMARY.......................................................................................................................................7 2.1ProductDescription7 2.2EquipmentunderTest9 2.3ShortdescriptionoftheEquipmentunderTest(EUT)9 2.4…

Text truncated - open the document above for the full version.

Test Report

Page 103 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_39750_1RB#0_0.009~0.15_0.009~0.15 Band41_20MHz_16QAM_39750_1RB#0_0.15~30_0.15~30 Page 104 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_39750_1RB#0_30~1000_30~1000 Band41_20MHz_16QAM_39750_1RB#0_1000~20000_1000~20000 Page 105 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_39750_1RB#0_20000~27000_20000~27000 Band41_20MHz_QPSK_40620_1RB#0_0.009~0.15_0.009~0.15 Page 106 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_QPSK_40620_1RB#0_0.15~30_0.15~30 Band41_20MHz_QPSK_40620_1RB#0_30~1000_30~1000 Page 107 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_QPSK_40620_1RB#0_1000~20000_1000~20000 Band41_20MHz_QPSK_40620_1RB#0_20000~27000_20000~27000 Page 108 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_40620_1RB#0_0.009~0.15_0.009~0.15 Band41_20MHz_16QAM_40620_1RB#0_0.15~30_0.15~30 Page 109 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_40620_1RB#0_30~1000_30~1000 Band41_20MHz_16QAM_40620_1RB#0_1000~20000_1000~20000 Page 110 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_40620_1RB#0_20000~27000_20000~27000 Band41_20MHz_QPSK_41490_1RB#0_0.009~0.15_0.009~0.15 Page 111 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_QPSK_41490_1RB#0_0.15~30_0.15~30 Band41_20MHz_QPSK_41490_1RB#0_30~1000_30~1000 Page 112 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_QPSK_41490_1RB#0_1000~20000_1000~20000 Band41_20MHz_QPSK_41490_1RB#0_20000~27000_20000~27000 Page 113 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_41490_1RB#0_0.009~0.15_0.009~0.15 Band41_20MHz_16QAM_41490_1RB#0_0.15~30_0.15~30 Page 114 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_41490_1RB#0_30~1000_30~1000 Band41_20MHz_16QAM_41490_1RB#0_1000~20000_1000~20000 Page 115 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_20MHz_16QAM_41490_1RB#0_20000~27000_20000~27000 Band41_5MHz_QPSK_40620_1RB#0_1000~20000_1000~20000 Page 116 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_5MHz_QPSK_40620_1RB#0_20000~27000_20000~27000 Band41_5MHz_16QAM_40620_1RB#0_0.009~0.15_0.009~0.15 Page 117 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen,…

Text truncated - open the document above for the full version.

Test Report

Page 82 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_10MHz_QPSK_41540_1RB#0_1000~20000_1000~20000 Band41_10MHz_QPSK_41540_1RB#0_20000~27000_20000~27000 Page 83 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_10MHz_16QAM_41540_1RB#0_0.009~0.15_0.009~0.15 Band41_10MHz_16QAM_41540_1RB#0_0.15~30_0.15~30 Page 84 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_10MHz_16QAM_41540_1RB#0_30~1000_30~1000 Band41_10MHz_16QAM_41540_1RB#0_1000~20000_1000~20000 Page 85 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_10MHz_16QAM_41540_1RB#0_20000~27000_20000~27000 Band41_15MHz_QPSK_39725_1RB#0_0.009~0.15_0.009~0.15 Page 86 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_QPSK_39725_1RB#0_0.15~30_0.15~30 Band41_15MHz_QPSK_39725_1RB#0_30~1000_30~1000 Page 87 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_QPSK_39725_1RB#0_1000~20000_1000~20000 Band41_15MHz_QPSK_39725_1RB#0_20000~27000_20000~27000 Page 88 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_16QAM_39725_1RB#0_0.009~0.15_0.009~0.15 Band41_15MHz_16QAM_39725_1RB#0_0.15~30_0.15~30 Page 89 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_16QAM_39725_1RB#0_30~1000_30~1000 Band41_15MHz_16QAM_39725_1RB#0_1000~20000_1000~20000 Page 90 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_16QAM_39725_1RB#0_20000~27000_20000~27000 Band41_15MHz_QPSK_40620_1RB#0_0.009~0.15_0.009~0.15 Page 91 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_QPSK_40620_1RB#0_0.15~30_0.15~30 Band41_15MHz_QPSK_40620_1RB#0_30~1000_30~1000 Page 92 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_QPSK_40620_1RB#0_1000~20000_1000~20000 Band41_15MHz_QPSK_40620_1RB#0_20000~27000_20000~27000 Page 93 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_16QAM_40620_1RB#0_0.009~0.15_0.009~0.15 Band41_15MHz_16QAM_40620_1RB#0_0.15~30_0.15~30 Page 94 of 117 FCCID:2A7U2-ARK01ReportNo.:LCSA11055113EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Band41_15MHz_16QAM_40620_1RB#0_30~1000_3…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mark Ma

[email protected]Fax: /

Technical Contact

HOORAY INDUSTRY LLCCindy Wu

[email protected]

1408 Pinon Place, Fullerton, · United States

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22H	824 MHz - 849 MHz	129.70 mW	9M00G7D	2.5ppm
2	22H	824 MHz - 849 MHz	99.80 mW	9M02W7D	2.5ppm
3	27	2.50 GHz - 2.57 GHz	109.90 mW	4M52G7D	2.5ppm
4	27	2.50 GHz - 2.57 GHz	96.40 mW	18M0G7D	2.5ppm
5	27	2.50 GHz - 2.57 GHz	88.90 mW	18M1W7D	2.5ppm
6	27	2.50 GHz - 2.69 GHz	109.60 mW	4M52G7D	2.5ppm
7	27	2.50 GHz - 2.69 GHz	108.60 mW	18M0G7D	2.5ppm
8	27	2.50 GHz - 2.69 GHz	86.70 mW	18M0W7D	2.5ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operation below 1GHz and EIRP for operation above 1GHz. This device supports LTE bandwidths of 1.4, 3, 5, 10 MHz at LTE Band 5 and of 5, 10, 15, 20 MHz at LTE Band 7/41. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.

Other Applications from Guangzhou Liuhuan Information Technology Co., Ltd.

2A7U2-M903AT-13T

Car Audio Navigation

Jan 22, 2026

Equipment Class

DTS - Digital Transmission System

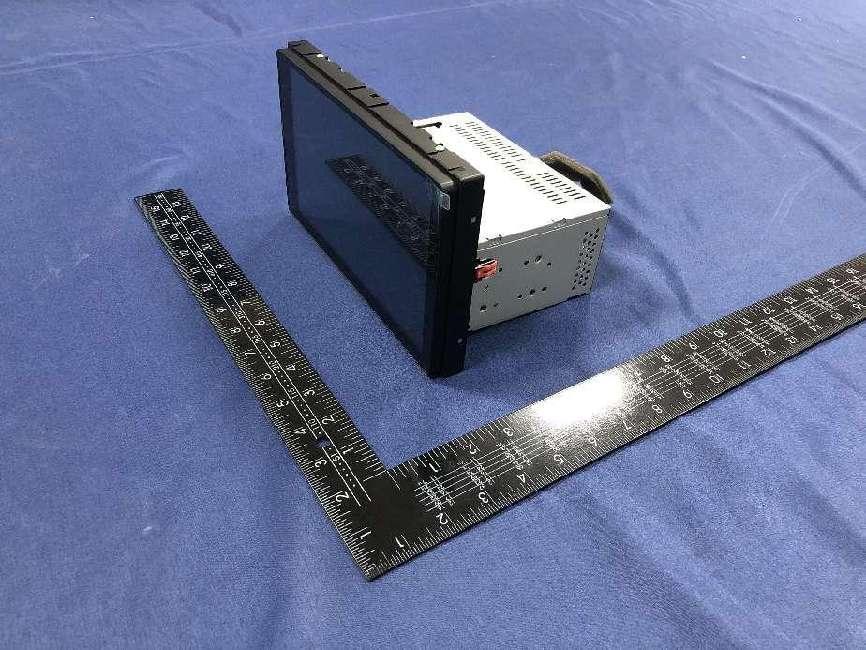

2A7U2-M903AT-11T
