12 5 7 8 6 2 1 11 15 14 9 4 3 10 13 CONTROL PANEL Press to activate the “standby”mode when the POWER switch MODE Press to skip or return, or select the station under FM mode Press to lower/raise the volume (Repeat) Numbers Press to select the equalizer mode. 30°30° Remote control STOP Press to mute and press again to resume. 5 1 10 POWER SHUTDOWN Press to on the control panel is in the “ON ”position. Press this button to play one as a loop or play all. (Repeat) MUTE Select the music on the USB or TF card. 30°30° Remote control To use the remote control, keep it within 4 meters of the machine at an angle of up to 60 degrees. STOP Press this button to pause. 5 1 10 1. LED digital display. 4. AUX output "MIC PRI ": Microphone priority: Press this button to turn ON/OFF the microphone priority function, Press and hold this button for more than 3 seconds to select single loop or random play. "REC" Recording function-Turn on the MIC, insert the storage disk(USB/TF card),start recording the voice from the MIC, saved in a newly created Mp3 file in USB/TF card. 2. MODE: Source Switching Button. (1) Display"USB": the U disk mode; Default boot mode. (2) Display" Bluetooth": the Bluetooth mode. (3) Display "80. 9": the radio mode. (4) Display"L": the external audio mode. " "USB/TF/FM mode: Press this button to return to the last song or channel; Press and hold it for more than 3 seconds to decrease the volume of USB/TF/FM. " " USB/TF/FM mode: Press this button go to the next or the next channel, Press this button for more than 3 seconds to increase USB/TF/FM volume. " "USB/TF/FM mode: Press this button to play/pause; FM mode: Press and hold it for more than 3 seconds to automatically search for stations. 12. Wired microphoe input or guitar input 6. Music volume controller 5. AUX input 3. USB/TF card port 8. Music bass controller 7. Music treble controller 9. Microphone ECHO controller 10. Microphone volume controller 11. AC charging socket 13. LED Ligth switch 14. Power switch 15. DC 12V power input terminal block Bluetooth mode: Press and hold it for more than 3 seconds to start TWS function; TWS: Bluetooth Synchronization-Two or more devices with TWS function and the same Bluetooth name succeed in Bluetooth connection; when "Bluetooth" on the screen stops flashing; REMOTE CONTROL Press to start playing/pause.Under FM mode : press to tune by 0.1 MHz. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Contents of package The following materials are included Speaker 1 Remote control 2 Wireless microphone 1 Instruction Manual 1 Cable DC 12V 1 Wired microphone 1 Cable AC Abrato Recommend to read this manual in advance USER MANUAL 1 IPAD stand 3.Choose the Bluetooth name “ABRATO” on your device and connect. 1. Under “Bluetooth ”mode, the source will be matched and connected to the speakerautomatically if they have been ever connected via Bluetooth once. Do remember to remove the previous connected source if the new one is to be added. 2. What should you do if there is no sound coming from the speaker after being connected to the source? Firstly, please check the volume of the speaker or the source if it is off. Secondly, please restart the speaker or the source. 3. The USB or TF card can only be inserted into USB/TF slot; do not push it too hard, or it could be damaged. 4. USB/TF card should be formatted by FAT32; it will be better to use those storage volume below 32GB. 5. MP3 file is the defaulted format accepted by the speaker. 6. Turn off the speaker before removing the USB/TF card, or it could be damaged. 7. The USB mode won’t be working if there is no USB or TF card inserted into the corresponding slot of the speaker. Meanwhile, only one device at a time, USB or TF card. 8. To maintain the inside rechargeable battery in a good condition, strongly recommend to charge the speaker every 3 months if to leave it being unused for a long time. IMPORTANT NOTE

GuangzhouJunhaoElectronicsCo.,Ltd. AgentAuthorization Company:GuangzhouJunhaoElectronicsCo.,Ltd. Address:4thFL,WorkshopC-1,BuildingNo.1,No.18XinhuaRD,Xinzhuang Village,ShilingTown,HuaduDist,Guangzhou ProductName:Karaokemachine ModelNumber(s):S-2802,TY-1200,M-1003,S-601,M-001,M-002,M-003,S-001, S-002,S-003,M-2601 ProductDescription:Karaokemachine WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:July12,2022 Name:ChengChao Title:MANAGER Company:GuangzhouJunhaoElectronicsCo.,Ltd.

GuangzhouJunhaoElectronicsCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:July12.2022 Subject;RequestforConfidentiality FCCID:2A7U7-S-2802 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. GuangzhouJunhaoElectronicsCo.,Ltd. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature:Date:July6,2022 Name:ChengChao Title:MANAGER Company:GuangzhouJunhaoElectronicsCo.,Ltd.

Modeldifferencedeclarationletter DifferencesDescription WeGuangzhouJunhaoElectronicsCo.,Ltd.state: Product： Karaokemachine ModelName ： S-2802,TY-1200,M-1003,S-601,M-001,M-002, M-003,S-001,S-002,S-003,M-2601 Theaboveproductwithsamecircuit,PCBlayout,electricalparts,materialsandwiring structures,Appearanceshape,thematerialsofdecorativeaccessoriesissame,only differentcolor. Signatory Date:07-12-2022 Signature:Date:July12,2022 Name:ChengChao Title:MANAGER Company:GuangzhouJunhaoElectronicsCo.,Ltd.

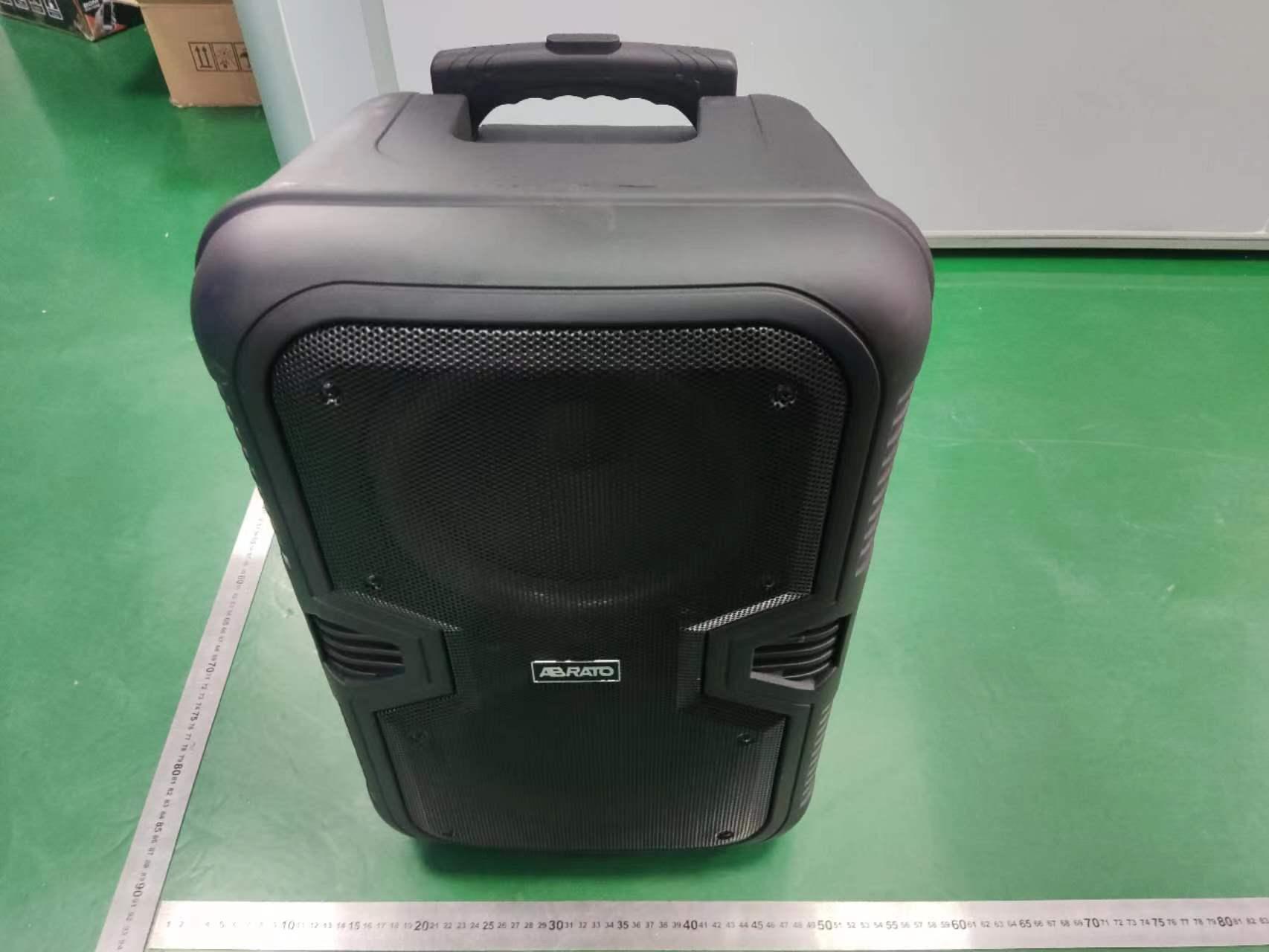

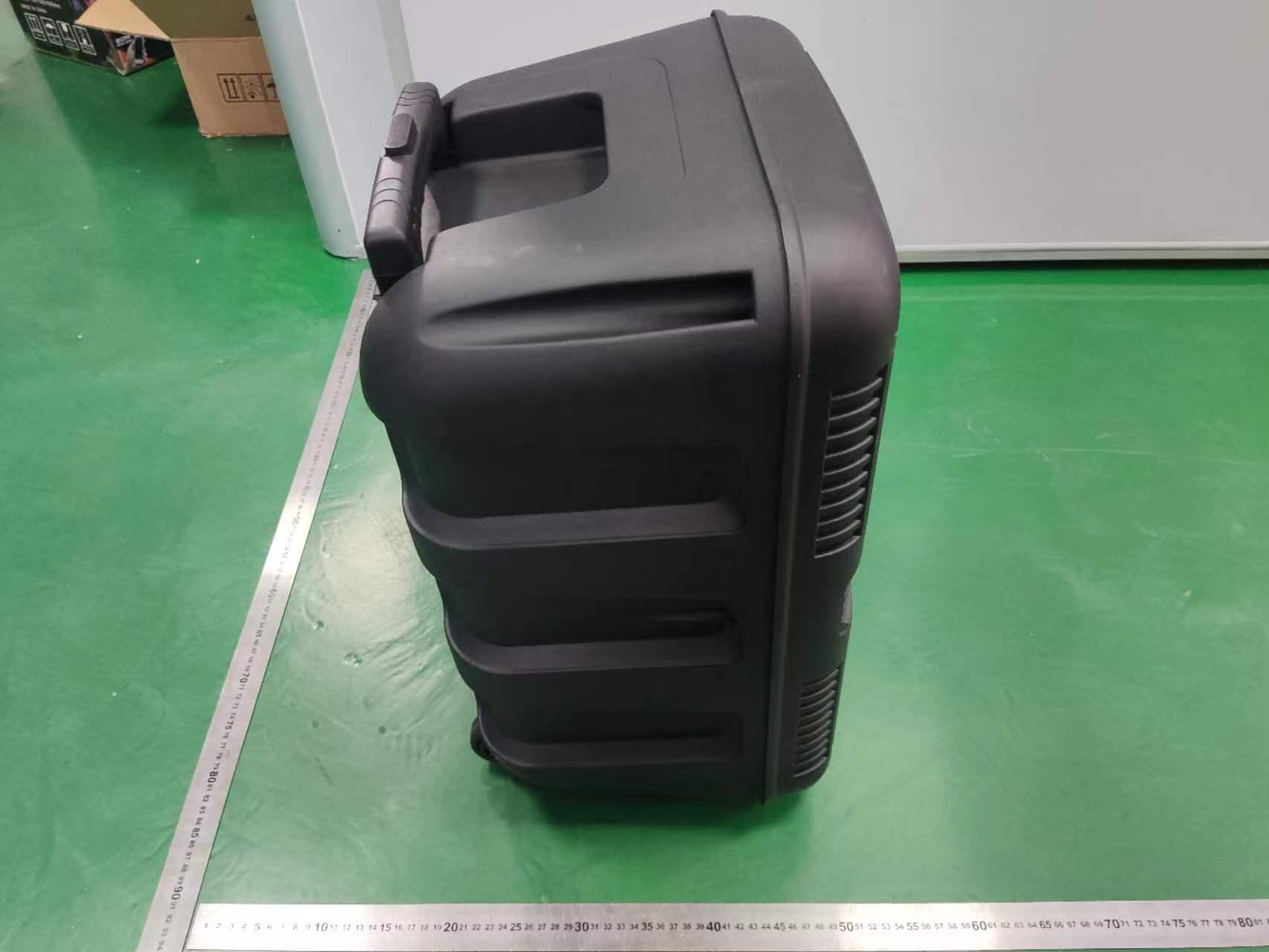

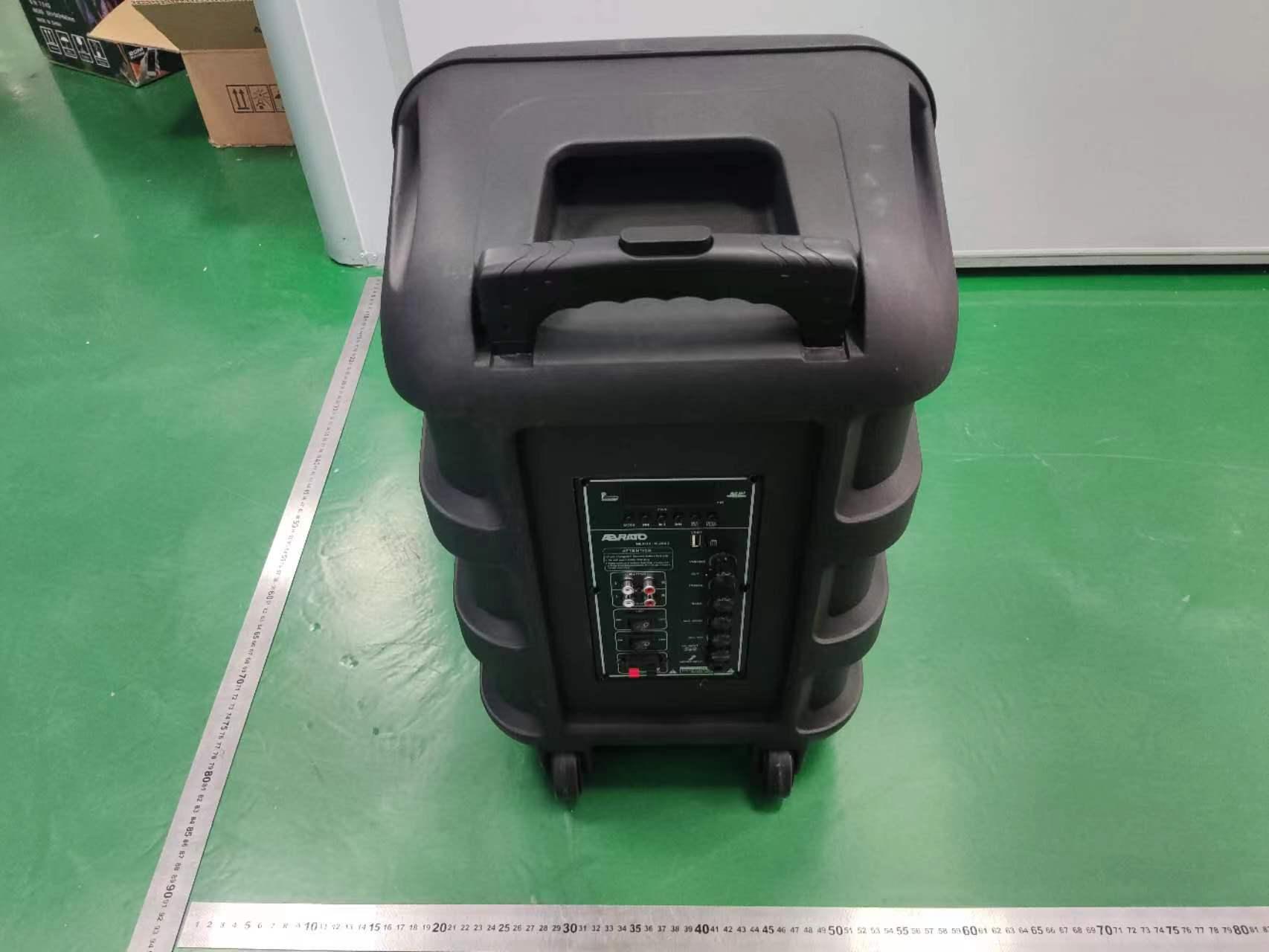

Page1of3ReportNo.:FCS202206212 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202206212 Photo3 Photo4 Page3of3ReportNo.:FCS202206212 Photo5 Photo6
