2A7UF-TK-144Bluetooth Party Speaker

User Manual TK-144 PORTABLE BATTERY SPEAKER LOGO 1 2 Control Panel Function POWER SOURCE 1.Please charge the unit at least 4 hours before first time using. 2. Twist the dial clockwise/anticlockwise to switch on/off the unit. CHARGE THE BATTERY When the battery is charging, the CHARGE STATUS lights shows on the LED display is red. After the battery has fully charged, the light turns off. 1. Connect the USB charge cable to the DC5V interface of the speaker firmly. 2. When the battery is fully charged, please disconnect the USB charge cable from the speaker. 3.The speaker works normally when charging. PREVIOUS/NEXT BUTTON Under playing status, press PREVIOUS/NEXT button to get back to a previous or next song. PAUSE/PLAY BUTTON To stop playing the current track, please press PAUSE/PLAY button on the control panel. Press it once again to continue playing. MODE Lightly press to enter into playing mode selection(Bluetooth,FM Radio,AUX Input, USB/TF). LED Long press to turn on/off light. AUX IN JACK 1. Connect an audio cable to the AUX IN JACK of the speaker and to the audio output socket on the external audio devices such as MP3 player, discman,etc,then select AUX by pressing the MODE button on the control panel . 2.Play from an external audio device. MIC IN JACK Plug in microphone directly for playing. USB/TF JACK Insert USB/TF card directly for playing. FM FUNCTION Lightly press MODE button to switch to FM mode, long press PLAY/PAUSE button on control panel for automatic searching and saving the radio stations, by pressing PREVIOUS or NEXT you can select a previous or next radio station. Bluetooth: Press MODE button on control panel to select Bluetooth mode. Simultaneously open the Bluetooth setting on your phone, tablet or any other bluetooth enabled audio device and select "TK-144"(no need to match code),the unit and device will then connected via Bluetooth. Press the "NEXT SONG" and "PREVIOUS SONG" button on the control panel to select the song, press" PLAY/PAUSE" button to control the playing status. 1.USB/TF JACK 2.Power(OFF/ON) 3.DC interface (5V) 4.MIC input 5.AUX input 6.<: Short press to select previous track.Press-hold to decrease volume. 7.Play/Pause&TWS (Wirless Bluetooth Connection: under bluetooth mode, press TWS button for around 3 seconds to pairing another TWS speaker; Under FM mode, lightly press Play/Pause&TWS to enter into automatic scan and all the scanned radio stations will be saved automatically.) 8.>: Short press to select next track. Press-hold to increase volume. 9.MODE Lightly press to enter into selection for Bluetooth,FM Radio,AUX Input,USB/TF) 10.LED(Long press to turn on/off light） 11.Charging Status RED=Charging Light off = Fully Charged SPECIFICATIONS Power Output: 10W Frequency Response for main speaker: 50Hz-20KHz Power Supply: DC5V 11 1 2345 796810 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technic ian for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be insta lled and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

QINGYUANRUIMAELECTRONICSCO.,LIMITED ModelDifference Productdescription:BluetoothPartySpeaker Modelname:TK-144 TK-178,TK-176,PSP1499,RM-788,VS-66,PBX-66,ISB293B,ISB693B TradeName:OEMBRAND FCCID:2A7UF-TK-144 AllthemodelarethesamecircuitandRFmodule,onlyformodelname. Regards Sincerely Client’ssignature: Client’sname/title:WadeZeng(N/A) Contactinformation/address:5THFLOOR,NO.17BUILDING,NO.12TAIKIINDUSTRIAL CITY,LONGTANGTOWN,QINGCHENGDISTRICT, QINGYUAN,CHINA

C5266091_X8_Ed.1 1/1 LetterofAuthorization <QINGYUANRUIMAELECTRONICSCO.,LIMITED> Company:QINGYUANRUIMAELECTRONICSCO.,LIMITED Address:5THFLOOR,NO.17BUILDING,NO.12TAIKIINDUSTRIAL CITY,LONGTANGTOWN,QINGCHENGDISTRICT, QINGYUAN,CHINA ProductName:BluetoothPartySpeaker ModelNumber:TK-144 TK-178,TK-176,PSP1499,RM-788,VS-66,PBX- 66,ISB293B,ISB693B FCCIdentifier:2A7UF-TK-144 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:WadeZengDate:2022-11-30 Title:N/A Signatureofapplicant:

C5266091_X10_Ed.1 1/1 <QINGYUANRUIMAELECTRONICSCO.,LIMITED> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2022-11-30 Subject:RequestforConfidentiality FCCID:2A7UF-TK-144 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:WadeZeng Title:N/A

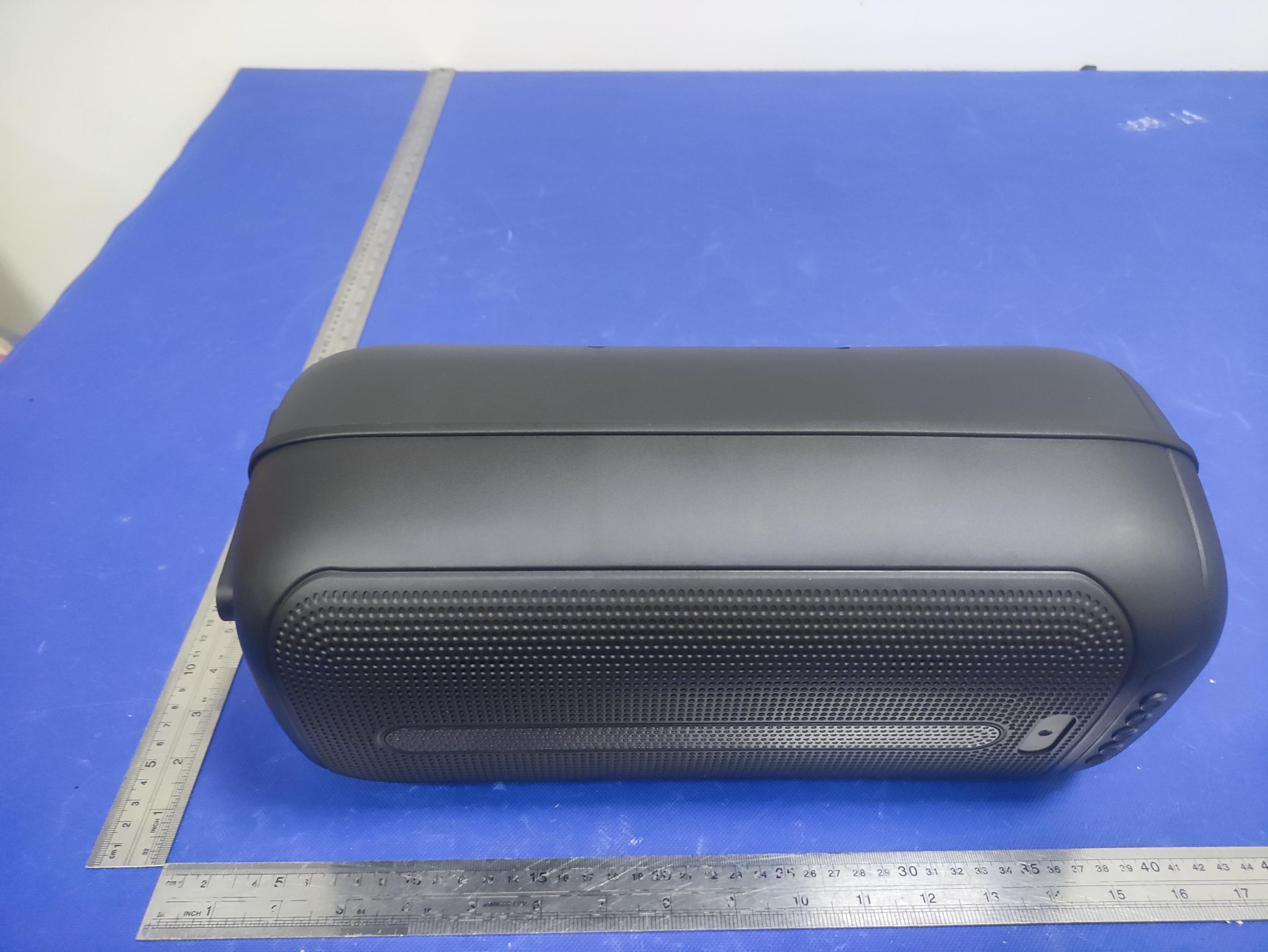

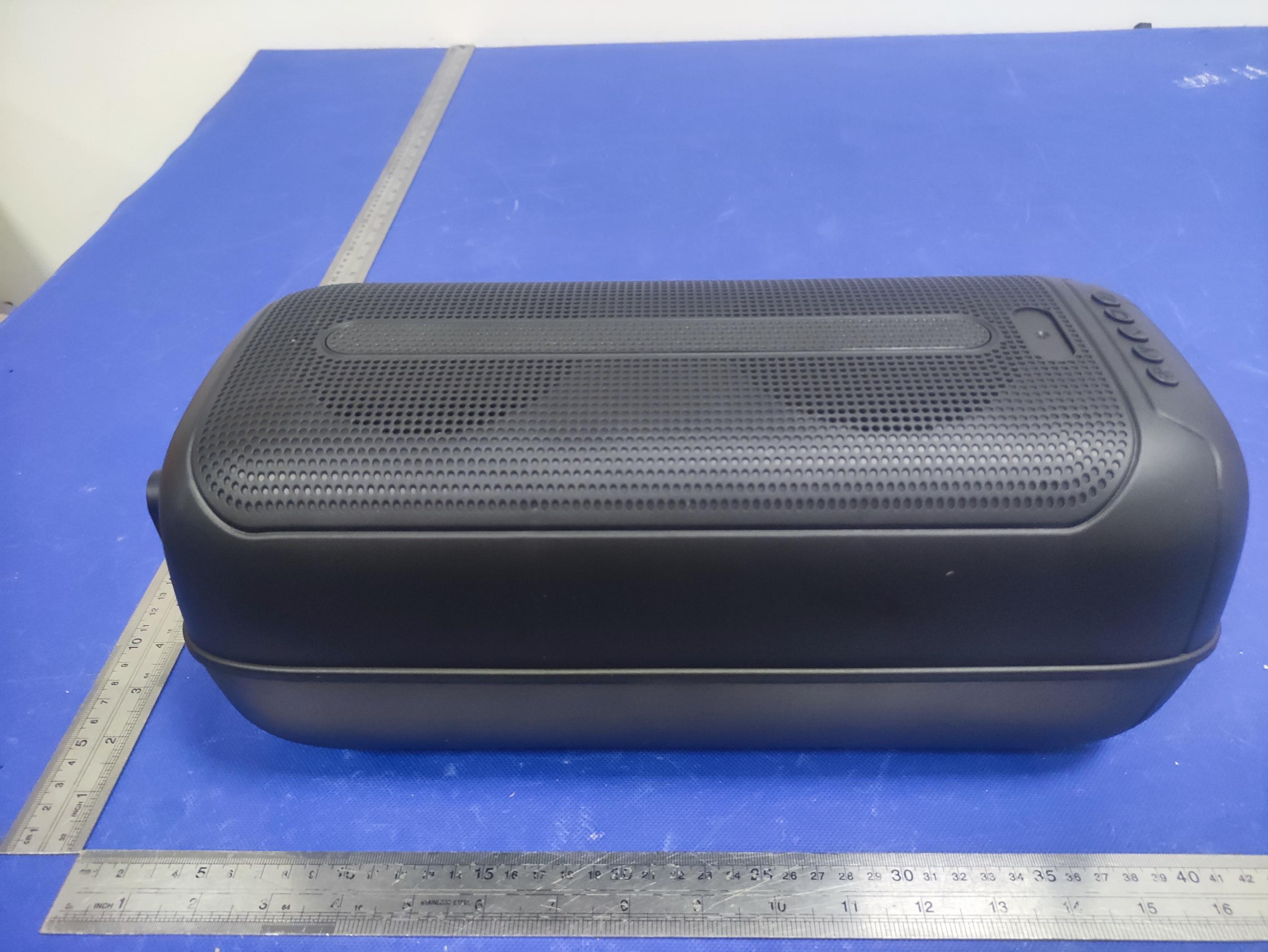

EUTPHOTO(ExternalPhotos) ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation BluetoothPartySpeaker FCCID:2A7UF-TK-144

EUTPHOTO(InternalPhotos) ※※※※※ENDOFREPORT※※※※※ ANT

RFExposureEvaluation Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE FCC ID:2A7UF-TK-144 ) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfieldstrength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500f/3006 1500–100,00056 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500f/150030 1500–100,0001.030 f=frequencyinMHz Friistransmissionformula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 ,Pout=outputpowertoantennainmW; G=gainofantennainlinearscale,Pi=3.1416; R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainoftheantennaandthetotalpowerinputto theantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleandhighest channelindividually. TestResultofRFExposureEvaluation BTmode Mode Outputpowerto antenna(dBm) Outputpowerto antenna(mW) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK 0.711.180.000347 1.0PASS π/4-DQPSK 1.111.29 1. 0.000380 0PASS 8-DPSK 0.471.110.000328 1.0PASS Remark:antennagain=1.7dBi

Productspecification QuickReferenceDate Antennamoduleonthesystemboard AntennamanufacturerShenzhenZhongche ngCommunicationTechnologyCo.,Ltd. Antennamanufacturer address 301, Shang Baoan FengshengBuilding,No.81, liaoCommunity,XinqiaoStreet, District,ShenzhenCity ProjectVCI200 Antennatype PCB Frequency 2.45GHz*1 Ant.PortInputPwr.(dBm)0(Typ.BTclass2outputpower) Tot.Rad.Pwr.(dBm) -2.3(Inputpowerlosspower) PeakEIRP(dBm) 1.3 Directivity(dBi) 1(alldirectionantenna) Efficiency(dB) -2.3(58.5%) Gain(dBi) 1.7(PeakGainXZ-plane) MaximumPower(dBm) 1.3(XY-plane) MinimumPower(dBm) -4(XY-plane) Avg.Power(dBm)-0.5(XY-plane) Max/MinRatio(dB) 5.3(XY-plane) Max/AvgRatio(dB)1.8(XY-plane) Min/AvgRatio(dB) -3.5(XY-plane) AverageGain(dB)-0.5(AvgGainXY-plane) Allthetechnicaldataandinformationcontainedhereinaresubjecttochangewithoutpriornotice AntennaGai AntennaLayout&moduleonthesystemboard n GainTable [email protected] XY-planeXZ-plane YZ-planeEfficiency Peak Avg. Peak Avg. Peak Avg. ModuleBoard 1.3 -0.5 1.7 -3.8 1.1 -3.058.5% Far-field Power Distribution(H+V) on X-Y Plane Plot Peak Gain(H+V) — 1.35dBi; Plot Avg Gain(H+V) — -0.48dBi; @2.45000GHz Far-field Power Distribution(H+V) on X-Z Plane Plot Peak Gain(H+V) — 1.68dBi; Plot Avg Gain(H+V) — -3.83dBi; @2.45000GHz Far-field Power Distribution(H+V) on Y-Z Plane Plot Peak Gain(H+V) — 1.11dBi; Plot Avg Gain(H+V) — -2.99dBi; @2.45000GHz
