2A7UZHL60-GCGPSmart Pillow

HL60-L-GC-ZX Smart Pillow User Guide 1. Operating Instructions 1.1 Turn on and Turn off 1.2 Temperature Control 1.3 Lighting Control 1.4 Bluetooth Music Playing 1.2.1 Shift by Button Turn on：Connect device to the power to turn on. This product is designed with four gears, which are displayed as below: Fig.1 Light color cycle diagram Users can directly switch gears by the button, and set corresponding target temperature cycle control in the order of”starting->green 37 ->orange 42 ->purple47->red 52->shutdown “ The specific operation flow is shown in the following figure: Every time the gear is adjusted,the device will be heated at full power. When the target temperature is reached ,the breathing light will be turned on and kept at a constant temperature. 1.3.1 Night Mode This device has a night mode, and if there is no operation within 30 seconds from 17:00 on the same day to 08:00 on the next day, the lights will be automatically turned off in order to reduce the impact on the user’s sleep. 1.6.1 Arrangements 1 . Log in to the Tuya Smart APP. 1.6.3 Temperature Adjustment Temperature adjustment : The annular area is the temperature adjustment operation area, and the user need to slide the pointer to adjust the temperature . Turn off heating when the pointer slides off. Stall : Different temperatures correspond to different gears and colors : green light(37~41) orange light(42~46)purple light (47~51)and red(≥52). 1.6.2 Search and Connection Manual adding method : click”+” in the upper right corner --select” add manually “--find the device to be added (the device name is “Smart Sleep-assistance Pillow” ) ,” add it” --Click “+” --wait for connection -- after completion, the system will automatically enter the device page. 2.Press and hold the device for 2s, wait for the blue light to flash, and then enter bluetooth pairing mode. After entering the night mode, any key operation or APP operation will cause the machine to exit the night mode immediately. See 1.6.6 Bluetooth music playing for more details. 1.5 Sleep Monitoring Sleep monitoring is conducted from 18:00 on the same day to 12:00 on the next day. During this period , sleep data ( Mainly related parameters of shallow sleep, deep sleep and rapid eye rotation) are recorded every half hour. 1.6 APP operation Please search for “Tuya Smart App” in Android application market(If it is an Apple phone, please go to Apple Store), download and then install it. In order to ensure the accuracy of sleep monitoring data, please try to : Note: Sleep data can only be kept on the device side for 3 days, so if the device is not used to connect to APP for 3 consecutive days, the data of the earliest day may become inaccurate or lost. The acquired sleep data will be displayed on the “Sleeping” page of APP. 1. Connect the Tuya Smart App with the device before going to sleep at night and enter the “sleep”page 2. After getting up the next day, please connect to the APP again and enter the “Sleep” page to synchronize the sleep data Note: It can be turned on by plugging to the power supply. By default, it will be heated at the 1st gear. When the temperature reaches 37, the green breathing light will be turned on. 1st gear-green light(37~41); 2nd gear- orange light(42~46); 3rd gear-purple light(47~51); 4th gear-red light(52~57); Turn off: Click the button circularly until the LED light goes out to turn off(Mainly used to turn off the heating function ). Automatic adding method:click “+ “ in the upper right corner -- select “ automatic adding” -- search for the device ( the device name is “ Smart Sleep-assistance Pillow”“Next” --wait for connection -- the system will automatically enter the device page after completion. 37 Starting Shutdown 424752 1.6.4 Timing Heating Click the “ timed heating” button, select the time in the pop-up window ,and then click “OK “ to start automatic heating. At the same time, display the countdown in the middle of the temperature control interface on this page .After the countdown, the machine automatically stops heating. Click the “ close timing” button to close the countdown and keep the device at the current temperature. 1.6.6 Bluetooth Music Playing In “Setting --Bluetooth” of the mobile phone, turn on the Bluetooth function, search and pair the device named “Smart Music Pillow BLE”. 1.6.7 Device Information Sleep Music on Demand On the “Music “ page of Tuya smart APP ,users can order various sleeping music according to your personal hobbies. Click the drop-down button, and the user can perform timed operation and start countdown. When the time is set to "∞", it can be closed at a fixed time. Click “More” to go to the third-party music APP, which currently only supports Netease cloud music and QQ music. 1.6.5 Sleep Monitoring Data viewing: On the “ Sleep “ page, users can view the total sleep duration, sleep duration and proportion in each stage, sleep quality and other information. Data update:The local data will be automatically synchronized when entering the device page or the data can be manually switched for synchronization. Local data can be kept for up to 3days, and data can be kept for up to 7 days after being uploaded to the cloud. Firmware update:Click “Check Firmware Upgrade” ,and the users can view the device version information. If there is a new version, the users will be prompted to upgrade. Fig.2 Temperature adjustment Fig.3 Timing setting window Device information : Click in the upper right corner to enter the device information interface ,where you can view the device status and more setting options. 1.6.8 Disconnect the smart pillow Disconnect the smart phone app with smart pillow by long press the button for 10 seconds,so other people can connect the smart pillow again. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with RF radiation exposure limits set forth for an uncontrolled envir…

Text truncated - open the document above for the full version.

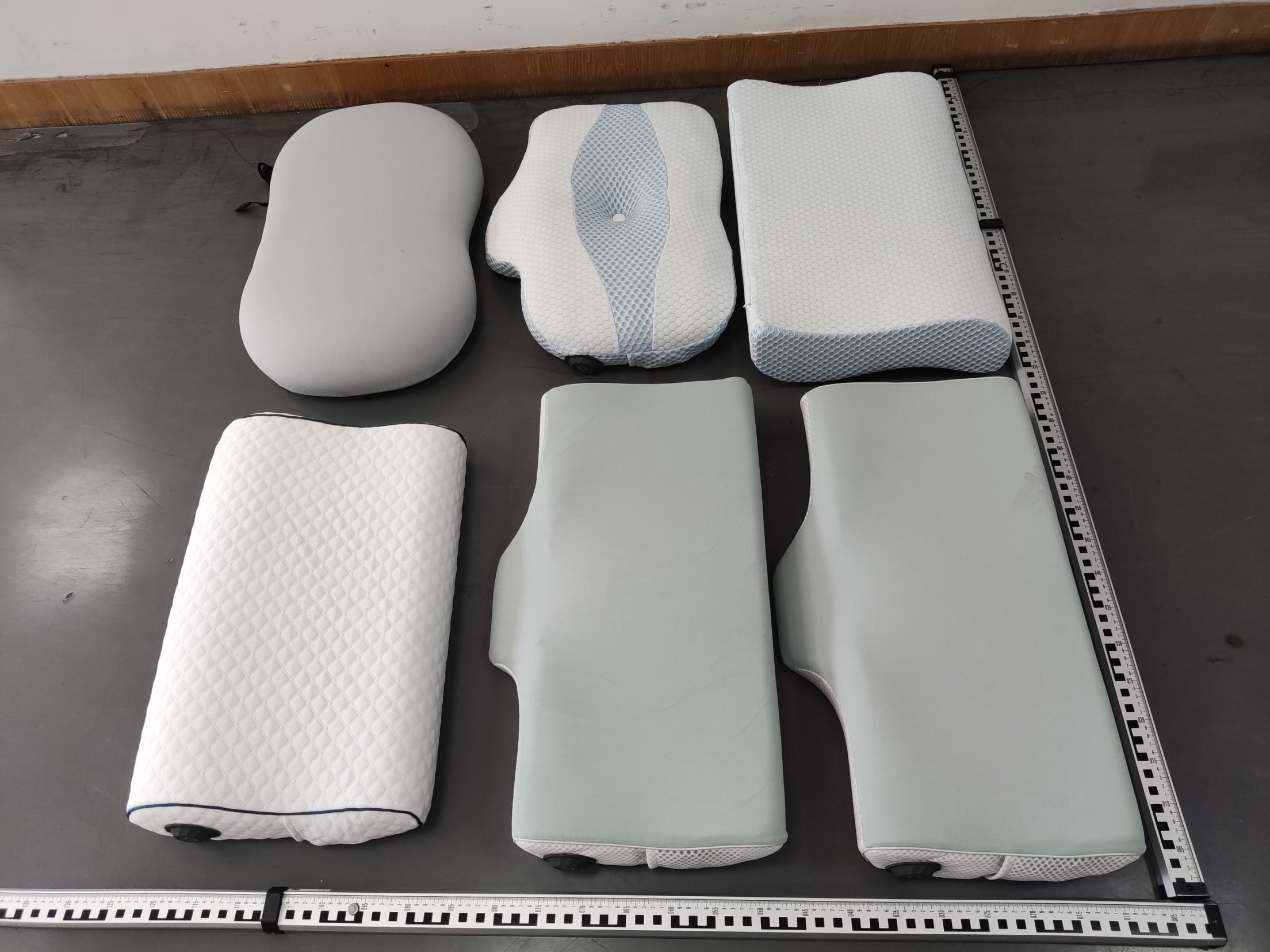

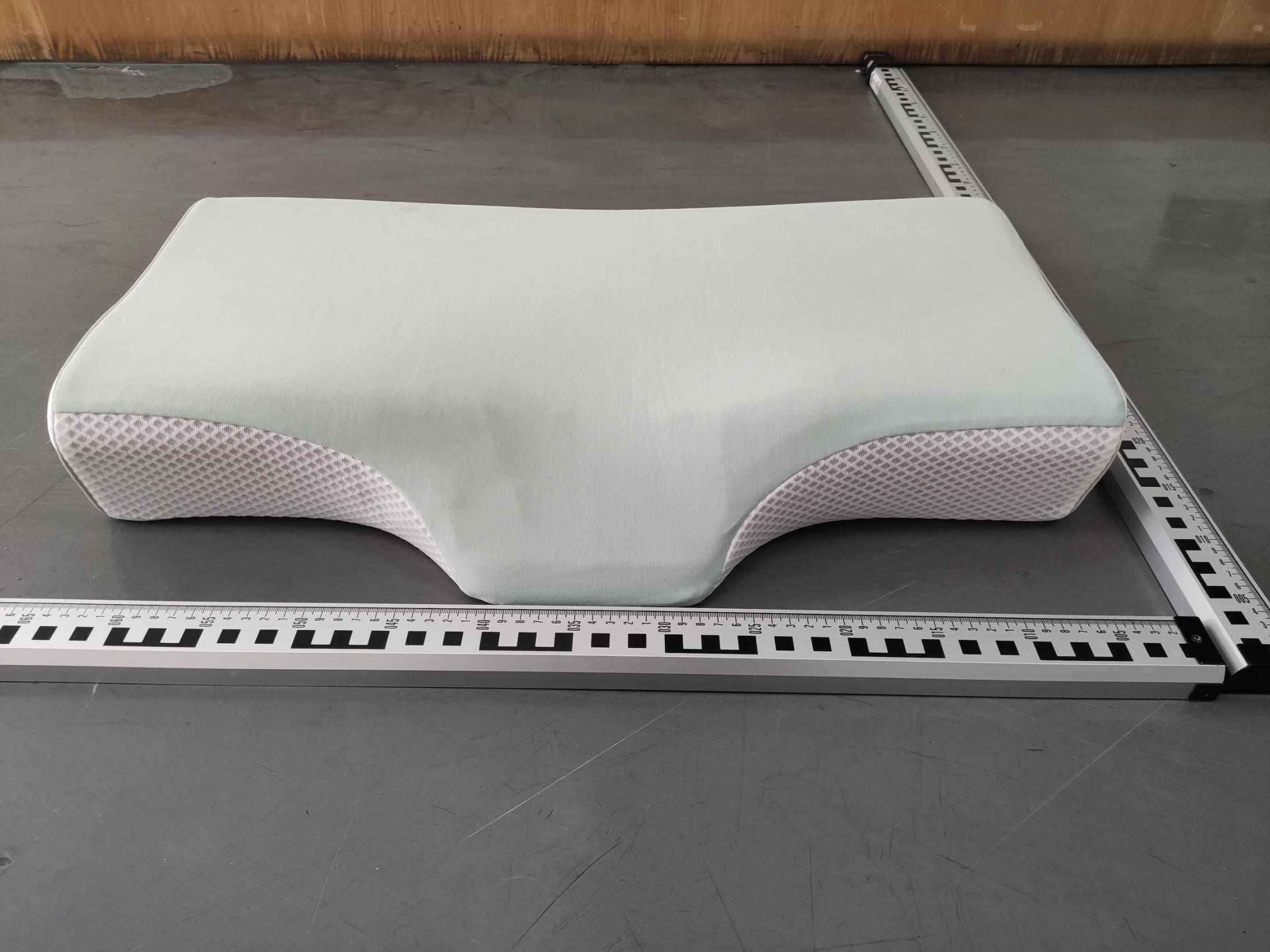

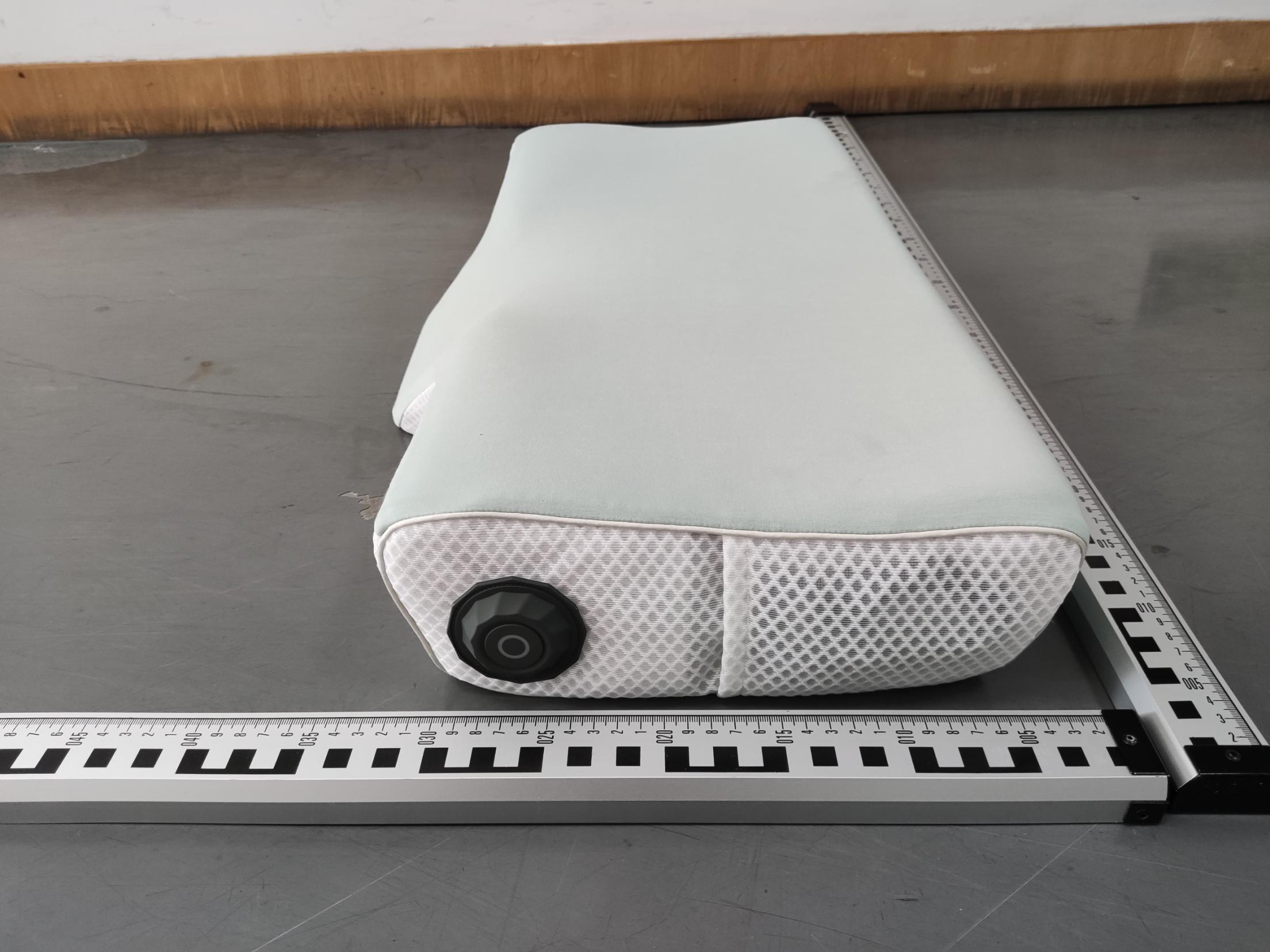

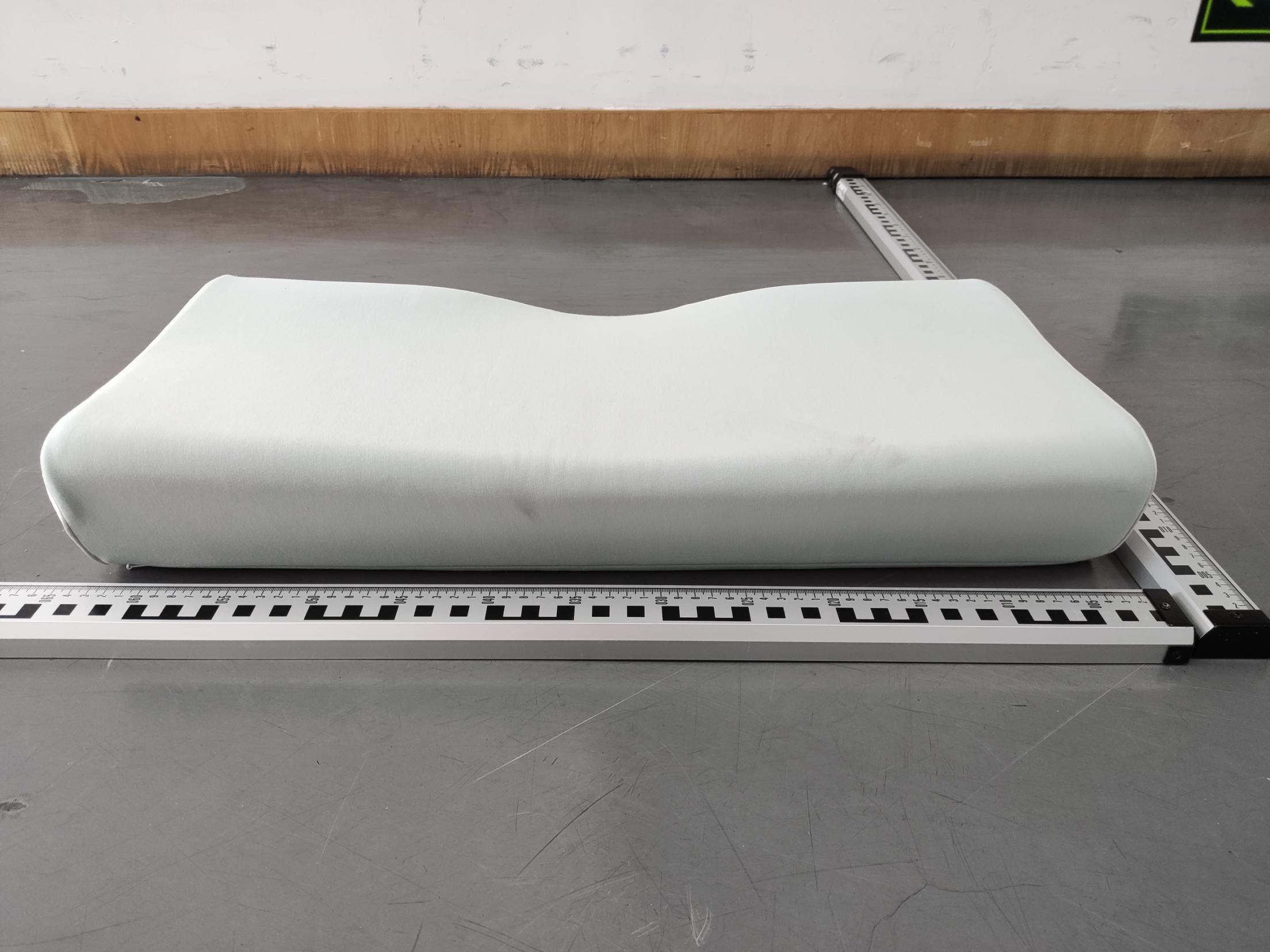

EXTERNALPHOTOS

7W 64.5*36*10.2cm Size:7*7cm HL60-L-GC-ZX

INTERNALPHOTOS 1.

FCC ID: 2A7UZHL60-GCGP RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable Type Channel(MHz) Average Output Power (dBm) Maximum Tune-up (dBm) Calculating data Limit Result BT EDR 2480 5.14 5.50 1.1175 3.00 Pass BT BLE 2440 -0.32 -0.50 0.2785 3.00 Pass Note: 1) The maximum antenna gain is 1.5dBi 2) The exposure evaluation safety distance is 5mm.

ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 1 of 14 APPENDIXREPORT ProjectNo.SHT2207009001EWRadioSpecificationBluetoothBLE TestsampleNo.YPHT22070090009ModelNo.HL60-L-GP-ZX Starttestdate2022-07-13Finishdate2022-07-13 Temperature 24.9°C Humidity34% TestEngineerXiaoqinLiAuditor Appendix clause TestitemResult APeakOutputPowerPASS BPowerSpectralDensityPASS C6dBBandwidthPASS D99%OccupiedBandwidthPASS EDutycyclePASS FBandedgeandSpuriousEmissions(conducted)PASS ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 2 of 14 AppendixA ： PeakOutputPower TypeChannelPeakOutputpower(dBm) Average Outputpower (dBm) Limit(dBm)Result BT-BLE 00-0.37-0.39 ≤30.00Pass19-0.30-0.32 39-0.68-0.69 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 3 of 14 CH00 Date: 13.JUL.2022 13:22:34 CH19 Date: 13.JUL.2022 13:27:20 CH39 Date: 13.JUL.2022 13:30:15 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 4 of 14 AppendixB ： PowerSpectralDensity TypeChannel PowerSpectral Density(dBm/3KHz) Limit(dBm/3KHz)Result BT-BLE 00-13.51 ≤8.00Pass19-12.77 39-13.42 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 5 of 14 CH00 Date: 13.JUL.2022 13:24:46 CH19 Date: 13.JUL.2022 13:27:55 CH39 Date: 13.JUL.2022 13:30:50 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 6 of 14 AppendixC ： 6dBbandwidth TypeChannel6dBBandwidth(kHz)Limit(kHz)Result BT-BLE 00754.00 ≥500Pass19760.00 39766.00 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 7 of 14 CH00 Date: 13.JUL.2022 13:22:12 CH19 Date: 13.JUL.2022 13:27:00 CH39 Date: 13.JUL.2022 13:29:55 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 8 of 14 AppendixD ： 99%OccupiedBandwidth TypeChannel 99%Occupied Bandwidth(MHz) Limit(kHz)Result BT-BLE 001.05 -Pass191.04 391.04 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 9 of 14 CH00 Date: 13.JUL.2022 13:22:24 CH19 Date: 13.JUL.2022 13:27:09 CH39 Date: 13.JUL.2022 13:30:05 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 10 of 14 AppendixE ： Dutycycle TestFrequency （MHz） T ontime for singleburst (ms) T period (ms)Dutycycle 1/T ontime (kHz) 24400.420.9046.7%2.38 Date: 13.JUL.2022 13:26:45 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 11 of 14 AppendixF ： BandedgeandSpuriousEmissions(conducted) TestItem:Bandedge CH00 Date: 13.JUL.2022 13:24:57 CH39 Date: 13.JUL.2022 13:31:02 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 12 of 14 TestItem:SE CH00 Referencelevel Date: 13.JUL.2022 13:25:06 CH00 30MHz~1000MHz Date: 13.JUL.2022 13:25:40 CH00 1GHz~26GHz Date: 13.JUL.2022 13:25:57 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 13 of 14 CH19 Referencelevel Date: 13.JUL.2022 13:28:29 CH19 30MHz~1000MHz Date: 13.JUL.2022 13:28:48 CH19 1GHz~26GHz Date: 13.JUL.2022 13:29:06 ProjectNo.:SHT2207009001EWRadioSpecification:BluetoothBLE ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage: 14 of 14 CH39 Referencelevel Date: 13.JUL.2022 13:31:12 CH39 30MHz~1000MHz Date: 13.JUL.2022 13:31:29 CH39 1GHz~26GHz Date: 13.JUL.2022 13:31:47 --------EndofReport--------

Page:1of28 TESTREPORT ForBluetooth-LE ReportNo............................................: CHTEW22070072 ReportVerification: ProjectNo.................................： SHT2207009001EW FCCID...................................................:2A7UZHL60-GCGP Applicant’sname...............................:ZonnsmartScience&TechnologyCo.,Ltd Address ................................................. : Room416,Building8A2,DezhiHi-techPark,YangtianRoad, XingdongCommutiy,XinanStreet,Bao'anDistrict Shenzhen ProductName.....................................:SmartPillow TradeMark............................................:- ModelNo...............................................:HL60-L-GC-ZX ListedModel(s) ..................................... : HL60-A-GC,HL60-C-GC,HL60-D-GC,HL60-M-GC HL60-L-GP-ZX Standard..............................................:FCCCFRTitle47Part15SubpartCSection15.247 Dateofreceiptoftestsample..........: Jul.06,2022 Dateoftesting.............................: Jul.07,2022-Jul.14,2022 Dateofissue...............................: Jul.15,2022 Result............................................:PASS Compiledby (Position+Printedname+Signature):FileadministratorSilviaLi Supervisedby (Position+Printedname+Signature): ProjectEngineerKikiKong Approvedby (Position+Printedname+Signature):RFManagerHansHu TestingLaboratoryName................:ShenzhenHuatongweiInternationalInspectionCo.,Ltd. Address.................................................:1/F,Bldg3,HongfaHi-techIndustrialPark,GenyuRoad, Tianliao,Gongming,Shenzhen,China ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen HuatongweiInternationalInspectionCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial. ShenzhenHuatongweiInternationalInspectionCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfor damagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Thetestreportmerelycorrespondtothetestsample. ReportNo.:CHTEW22070072Page:2of28Dateofissue:2022-07-15 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V04(2022-01) Contents 1.TESTSTANDARDSANDREPORTVERSION3 1.1.TestStandards3 1.2.Reportversion3 2.TESTDESCRIPTION4 3.SUMMARY5 3.1.ClientInformation5 3.2.ProductDescription5 3.3.RadioSpecificationDescription5 3.4.TestingLaboratoryInformation6 4.TESTCONFIGURATION7 4.1.Testfrequencylist7 4.2.DescriptionsofTestmode7 4.3.Testsampleinformation7 4.4.Supportunitusedintestconfigurationandsystem8 4.5.Testingenvironmentalcondition8 4.6.Statementofthemeasurementuncertainty8 4.7.EquipmentUsedduringtheTest9 5.TESTCONDITIONSANDRESULTS11 5.1.AntennaRequirement11 5.2.ACConductedEmission12 5.3.PeakOutputPower14 5.4.PowerSpectralDensity15 5.5.6dBbandwidth16 5.6.99%OccupiedBandwidth17 5.7.DutyCycle18 5.8.ConductedBandedgeandSpuriousEmission19 5.9.RadiatedBandedgeEmission20 5.10.RadiatedSpuriousEmission22 6.TESTSETUPPHOTOS27 7.EXTERNALANDINTERNALPHOTOS28 8.APPENDIXREPORT28 ReportNo.:CHTEW22070072Page:3of28Dateofissue:2022-07-15 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V04(2022-01) 1.TESTSTANDARDSANDREPORTVERSION 1.1.TestStandards Thetestswereperformedaccordingtofollowingstandards: ‒FCCRulesPart15.247:FrequencyHopping,DirectSpreadSpectrumandHybridSystemsthatarein operationwithinthebandsof902-928MHz,2400-2483.5MHz,and5725-5850MHz ‒ANSIC63.10:2013:AmericanNationalStandardforTestingUnlicensedWirelessDevices ‒KDB558074D0115.247MeasGuidancev05r02:GuidanceforComplianceMeasurementsonDigital TransmissionSystem,FrequencyHoppingSpreadSpectrumSystem,andHybridSystemDevices OperatingunderSection15.247ofTheFCCRules 1.2.Reportversion RevisionNo.DateofissueDescription N/A2022-07-15Original ReportNo.:CHTEW22070072Page:4of28Dateofissue:2022-07-15 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V04(2022-01) 2.TESTDESCRIPTION Report clause TestItemsStandardRequirementResultTestEngineer 5.1AntennaRequirement15.203/15.247(c)PASSXiaoqinLi 5.2ACConductedEmission15.207PASSXiaoqinLi 5.3PeakOutputPower15.247(b)(3)PASSXiaoqinLi 5.4PowerSpectralDensity15.247(e)PASSXiaoqinLi 5.56dBBandwidth15.247(a)(2)PASSXiaoqinLi 5.699%OccupiedBandwidth-PASS *1 XiaoqinLi 5.7Dutycycle-PASS *1 XiaoqinLi 5.8ConductedBandEdgeandSpurious Emission 15.247(d)/15.205PASSXiaoqinLi 5.9RadiatedBandEdgeEmission15.205/15.209PASSXiaoqinLi 5.10RadiatedSpuriousEmission15.247(d)/15.205/15.209PASSPanXie Note: ‒Themeasurementuncertaintyisnotincludedinthetestresult. ‒*1:Norequirementonstandard,onlyreportthesetestdata. ReportNo.:CHTEW22070072Page:5of28Dateofissue:2022-07-15 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V04(2022-01) 3.SUMMARY 3.1.ClientInformation Applicant:ZonnsmartScience&TechnologyCo.,Ltd Address: Room416,Building8A2,DezhiHi-techPark,YangtianRoad,Xingdong Commutiy,XinanStreet,Bao'anDistrictShenzhen Manufacturer:ZonnsmartScience&TechnologyCo.,Ltd Address: Room416,Building8A2,DezhiHi-techPark,YangtianRoad,Xingdong Commutiy,XinanStreet,Bao'anDistrictShenzhen 3.2.ProductDescription Mainunitinformation: ProductName:SmartPillow TradeMark:- ModelNo.:HL60-L-GC-ZX ListedModel(s):HL60-A-GC,HL60-C-GC,HL60-D-GC,HL60-M-GC,HL60-L-GP-ZX Powersupply:DC5V Hardwareversion:SP-V2MU-0120211215 Softwareversion:SP-40MU-ZXH 3.3.RadioSpecificationDescription Bluetoothversion:V5.0 Supportfunction *2 :BLE Modulation:GFSK Operationfrequency:2402MHz~2480MHz Channelnumber:40 Channelseparation:2MHz Antennatype:PCBAntenna Antennagain:1.5dBi Note: *2:onlyshowtheRFfunctionassociatedwiththisreport. ReportNo.:CHTEW22070072Page:6of28Dateofissue:2022-07-15 ShenzhenHuatongweiInternationalInspectionCo.,Ltd.ReportTemplateVersion:V04(2022-01) 3.4.TestingLaboratoryInformation LaboratoryNameShenzhenHuatongweiInternationalInspectionCo.,Ltd. LaboratoryLocation 1/F,Bldg3,HongfaHi-techIndustrialPark,GenyuRoad,Tianliao, Gongming,Shenzhen,China Connectinformation: Phone:86-755-26715499 E-mail:cs@szh…

Text truncated - open the document above for the full version.

1.TESTSETUPPHOTOS RadiatedEmission ACConductedEmission
