2A7V3-AIIP13Wireless CarPlay

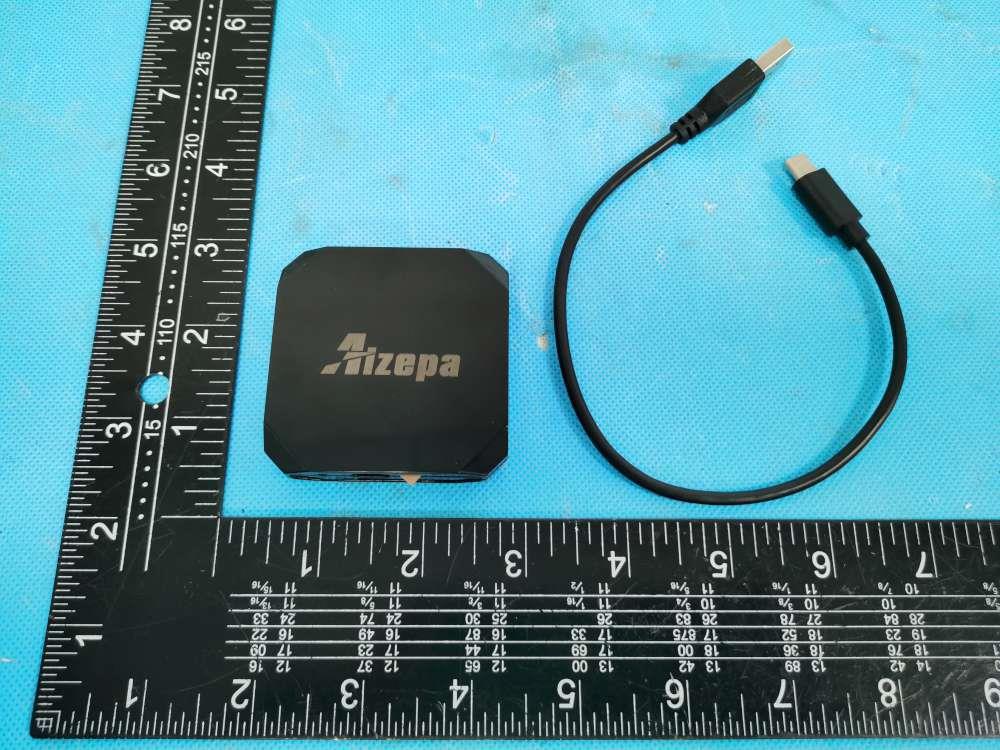

Wireless CarPlay User Manual SMT-9B Converter Box （1）Product introduction car intelligent conversion box, mainly used for realizing the interconnection of mobile phone and car. The conversion function integrates the mobile phone and the car screen, which will convert the diversified Mobile phones to car entertainment, providing users with music & abundant driving pleasure; reducing the frequency of using the mobile phone, providing users with a safer driving Car experience. （2） Products Host & Accessories （3）Product Instructions （4） Frequently Asked Questions 1. How to update the product？ The wireless CarPlay adapter needs to be removed to a USB power adapter; join the Wifi devices naming 'smartBox_ xxxx' on your iPhone with password: 88888888; Enter the IP Address 192.168.1.101 in your Safari Browser, and press ' click me to upgrade'; wait for a few minutes for upgrade. 「Note: Please forget the 'smartBox-xxxx' Networks after upgrading sucessfully.」 USB 1.Connect the box to the original car USB Data interface; Press the' APP' button or Enter to the Carplay page; Read box data and wait for a connection; 2. Turn on the Bluetooth of the iPhone, search for the Bluet ooth Device naming : "smartBox-****". Pair it and allow the Sync, finally click "Use Carplay" USB 3. After the connection , please wait for a few seconds and CarPlay interface will be shown； ( ( ( —— iOS Phone User 456 Carplay Apple TYPEC Cable （30 CM） ( ( ( （5）Product after-sales warranty and warranty Carplay 123 （1）. Terms of Service Every purchase of this terminal product can enjoy the three guarantees service (except shell and wire) that we provide for you. （2）. Host Warranty Regulations 1. Commodity host (please confirm at the time of purchase, except for commodities that are not suitable for return), within 7 days from 0:00 on the second day of the logistics receipt date(Seven days for the full 168 hours) The product is in good condition, and the product packaging and accessories are complete. At the same time, the appearance of the mobile phone is not damaged and no one is damaged You can enjoy "7 days no reason to return the goods". 2. From the second day after receipt, if there is a performance failure that is not artificially damaged within 7 days, you can choose according to the test results of authorized after-sales outlets Return or replace products of the same model and specifications or free maintenance services. 3. Counting from the second day of the receipt date, if there is a performance failure that is not artificially damaged from the 8th to the 15th day, based on the test results of the authorized after-sales outlets,You can choose to replace the same model and specification machine or repair service. 4. If the host has a performance failure that is not artificially damaged within one year from the date of receipt of the logistics, the consumer can authorize the after-sales service Outlets enjoy free maintenance service. 5. Any wear or scratches on the appearance of the product will not enjoy the return or replacement service. 6. The product host has a performance failure that is not artificially damaged within one year from the date of receipt of the logistics. After two repairs, it still cannot be corrected.Frequently used, you can choose to repair for free or with the valid repair record provided by the repairer in the warranty card, contact customer service to confirm whether it is available If you can exchange the goods, you will be replaced with the same model and specification products or you can choose to return the goods. （3）. Accessories warranty rules 1. The attached data cable/package (not covered by the warranty). （4）. Warranty terms restrictions 2. Failure to use, maintain or maintain the product in accordance with the requirements of the product instruction manual causes damage; 1. Exceeding the warranty period; 3. Damage caused by misuse, such as falling, squeezing, or immersion in water; 4. Damage caused by force majeure such as floods, fires, lightning strikes, etc.; 5. Machines repaired by an unauthorized repair center; 6. Use of non-original accessories, causing malfunctions or accidents; 7. Any product sold through unofficial channels, and the model, number, and manufacturing number indicated on the product have been changed, deleted, moved or not Identifiable 8. It only includes hardware maintenance service, all configurations and accessories, such as data cable housing and user guide, etc. are not included in the maintenance service; （4） Frequently Asked Questions 2. Does the CarPlay adapter fit my iPhone 11? Yes, the wireless CarPlay Adapter works every iPhone from the 6s(iOS 12.1) all the way up to the 13 Pro max(iOS 15 software version). 3. Do I have to sync the wireless CarPlay adapter every time when starting my car? Don't worry, After the first adaptation, the wireless CarPlay adapter will automatically match the Bluetooth and WiFi of your iPhone every time. 4. How to upload the log data when the adapter doesn't work for my car unit? Please enter the IP address Page & fill in the car info in the Problem Description sheet, and press 'Submit' to upload your log data. Enter the web settings Page There will be an upgrade prompt For Ford SYNC 2.0 car unit, please switch the Unit Type. Note: When upgrading the box, please connect the USB data cable to the car charger port. Do not connect the box to the USB data port of the original car for upgrading. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part …

Text truncated - open the document above for the full version.

Shenzhen Shengrui Industry Co., Ltd. Model Difference Product Name: Wireless CarPlay Model Number: AI-IP13 AI-IP5, AI-IP6, AI-IP7, AI-IP8, AI-IPX, AI-IP11, AI-IP12, AI-SENRI1, SENRI-MINI, SENRI-PRO, AI-S50, AI-S60, AI-S70, AI-S80, AI-S90, AI-S00, AI-TS 70, AI-TS 80, AI-TS 90, AI- S16, S17, S18 FCC Identifier: 2A7V3-AIIP13 All the models are the same circuit and RF module, except the model names and outlook color. Regards Sincerely Client’s signature Client’s name / title : Jade Yang / Manager Contact information / address: Bantian community Bantian San Industrial Zone, Bantian Street, Longgang District, Shenzhen

Shenzhen Shengrui Industry Co., Ltd. 1/1 Letter of Authorization Company: Shenzhen Shengrui Industry Co., Ltd. Address: Bantian community Bantian San Industrial Zone, Bantian Street, Longgang District, Shenzhen Product Name: Wireless CarPlay Model Number: AI-IP13 AI-IP5, AI-IP6, AI-IP7, AI-IP8, AI-IPX, AI-IP11, AI-IP12, AI-SENRI1, SENRI-MINI, SENRI-PRO, AI-S50, AI-S60, AI-S70, AI-S80, AI-S90, AI-S00, AI-TS 70, AI-TS 80, AI-TS 90, AI- S16, S17, S18 FCC Identifier: 2A7V3-AIIP13 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: jadeyang Date: 2022-07-13 Title: Manager Signature of applicant:

Shenzhen Shengrui Industry Co., Ltd. 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022-07-13 Subject: Request for Confidentiality FCC ID: 2A7V3-AIIP13 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: jadeyang Title: Manager

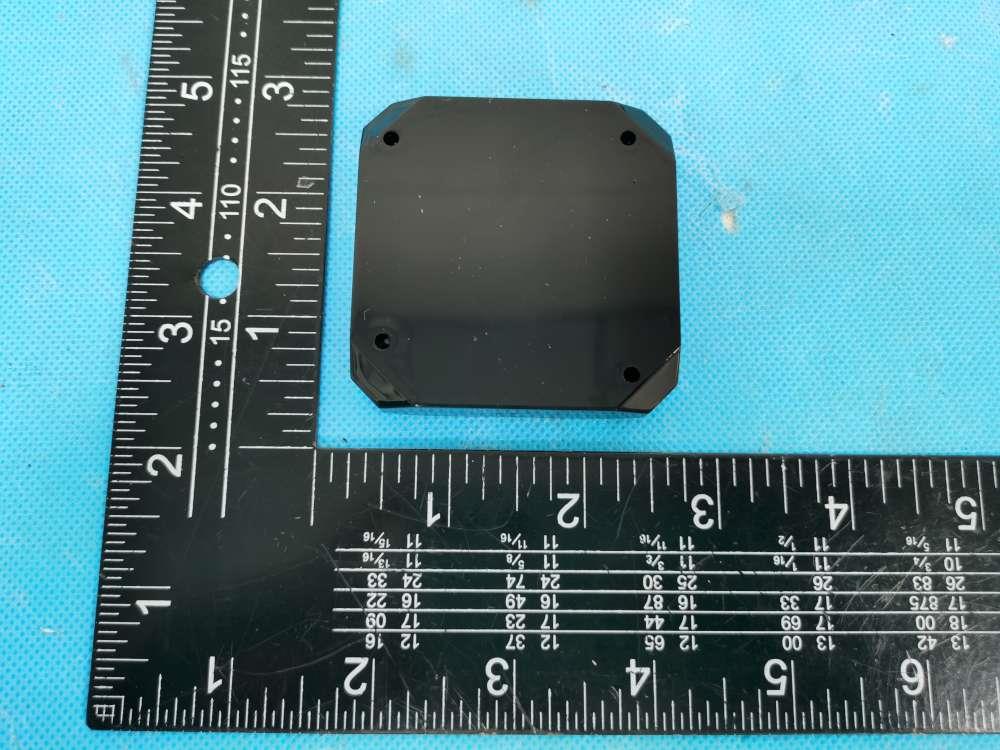

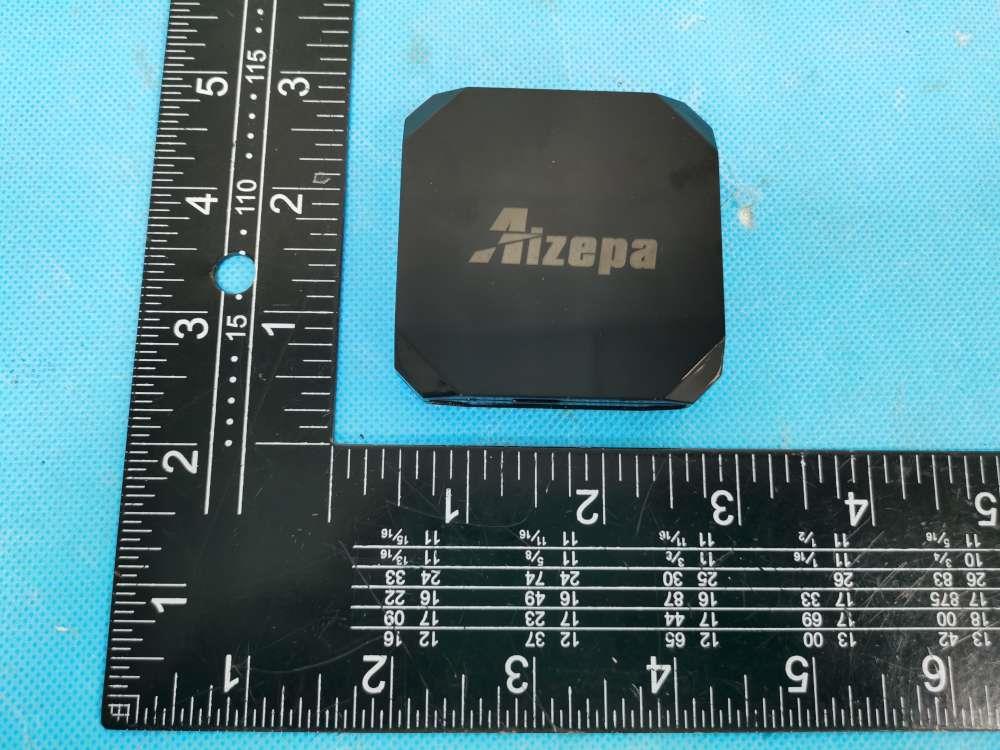

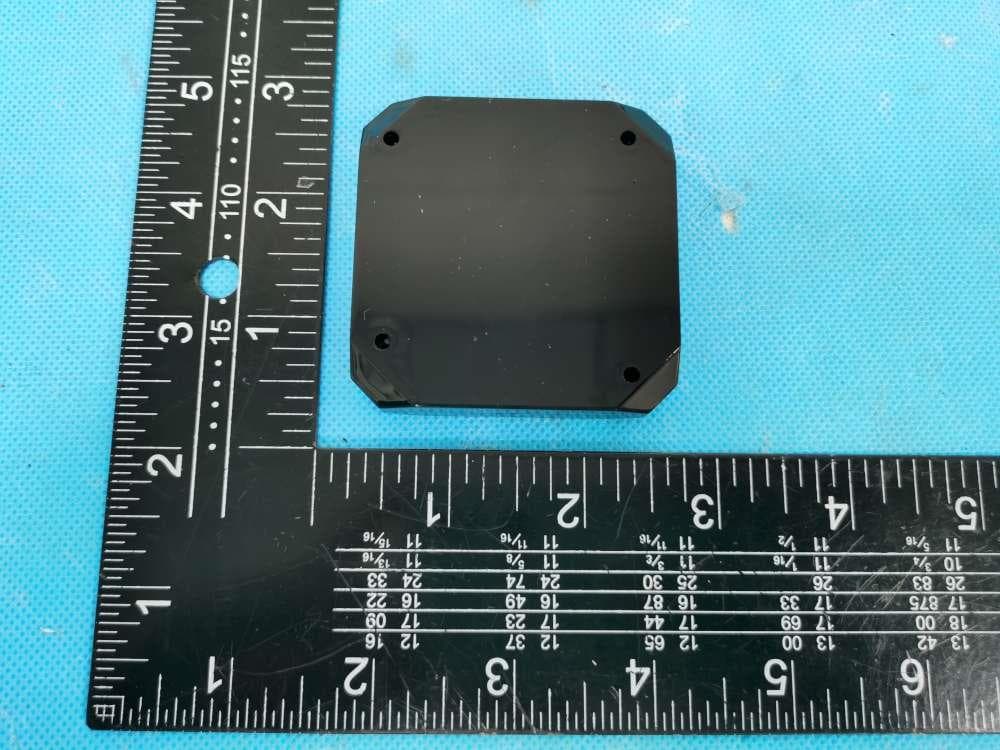

Size:18*14mm M/N: AI-IP13 FCC ID: 2A7V3-AIIP13 Label location

ANT

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220713017E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 37 FCC Part 15C Test Report FCC ID: 2A7V3-AIIP13 Applicant: Shenzhen Shengrui Industry Co., Ltd. Address: Bantian community Bantian San Industrial Zone, Bantian Street, Longgang District, Shenzhen Manufacturer: Shenzhen Shengrui Industry Co., Ltd. Address: Bantian community Bantian San Industrial Zone, Bantian Street, Longgang District, Shenzhen EUT: Wireless CarPlay Trade Mark: N/A Model Number: AI-IP13 AI-IP5, AI-IP6, AI-IP7, AI-IP8, AI-IPX, AI-IP11, AI-IP12, AI-SENRI1, SENRI-MINI, SENRI-PRO, AI-S50, AI-S60, AI-S70, AI-S80, AI-S90, AI-S00, AI-TS 70, AI-TS 80, AI-TS 90, AI- S16, S17, S18 Date of Receipt: Jul. 01, 2022 Test Date: Jul. 01, 2022 – Jul. 12, 2022 Date of Report: Jul. 12, 2022 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 C 15.249 ANSI C63.10:2013 Test Result: Pass Report Number: DL-20220713017E Prepared (Test Engineer): Pxing Huang Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220713017E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 37 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 7 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 11 3.2.1 RADIATED EMISSION LIMITS 11 3.2.2 TEST PROCEDURE 12 3.2.3 DEVIATION FROM TEST STANDARD 12 3.2.4 TEST SETUP 12 3.2.5 EUT OPERATING CONDITIONS 13 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 14 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 15 3.2.8 TEST RESULTS (1GHZ~25GHZ) 17 3.3 RADIATED BAND EMISSION MEASUREMENT 20 3.3.1 TEST REQUIREMENT: 20 3.3.2 TEST PROCEDURE 20 3.3.3 DEVIATION FROM TEST STANDARD 20 3.3.4 TEST SETUP 21 3.3.5 EUT OPERATING CONDITIONS 21 4 . BANDWIDTH TEST 25 4.1 APPLIED PROCEDURES / LIMIT 25 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220713017E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 37 Table of Contents Page 4.1.5 TEST RESULTS 26 5 . ANTENNA REQUIREMENT 29 5.1 STANDARD REQUIREMENT 29 5.2 EUT ANTENNA 29 6 . TEST SEUUP PHOTO 30 7 . EUT PHOTO 31 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220713017E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 37 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.249) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.205(a), 15.209(a) 15.249(a), 15.249(c) Fundamental &Radiated Spurious Emission Measurement PASS 15.249(d) Band Edge Emission PASS 15.215(c) 20dB Bandwidth PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220713017E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 37 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: Wireless CarPlay Trademark N/A Model No.: AI-IP13 AI-IP5, AI-IP6, AI-IP7, AI-IP8, AI-IPX, AI-IP11, AI-IP12, AI-SENRI1, SENRI-MINI, SENRI-PRO, AI-S50, AI-S60, AI-S70, AI-S80, AI-S90, AI-S00, AI-TS 70, AI-TS 80, AI-TS 90, AI- S16, S17, S18 Model Difference All samples are the same except the mode names and outlook color, so we prepare "AI-IP13" for test only. Operation Frequency: 2402~2480MHz Channel numbers: 79 Channels Channel separation: 1M Modulation technology: GFSK, PI/4 DQPSK, 8DPSK Antenna Type: Internal antenna Antenna gain: -1dBi Power supply: DC 5V Note: 1.For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2.The EUT’s all information provided by client. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220713017E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 37 3. Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 247…
