Antennatest report ManufacturerDongguanYijia ElectronicCo., LTD Address No. 59 Muyu Road, ShatouCommunity,Chang 'an Town, Dongguan City, GuangdongProvince Contact:Mr. Gan 13823198410 AntennaTypePCB ANT 1. Test procedures NameParameterMethodStandardNo. Mobile communication antenna VSWR Genericspecificaitonfor antennasused in the mobilecommunications GB/T 9410-2008 AntennaGain Radiationpattern Antenna Radiationefficiency IEEE StandardTest Proceduresfor Antennas ANSI/IEEEStd 149 -1979 2. Test Equipment EquipmentModelNo. Serial No. ManufactureCalibration Date Next calibration Date 24 probe Microwave chamber MPS 2450 Multi - probe OTA me asurementsystems 5*5*5 YJ -PB -F01XH -IOE2023.09.012024.09.01 NetworkAnalyzer ZVB 8YJ -RD - 15 ROHDE&SCH WAR S 2024.08.252025 .08.25 Widebandradio Communication tester CMW 50 0YJ -RD - 16 ROHDE&SCH WAR S 2024.08.252025.08.25 Test laboratory: SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co.. Ltd. Address FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road,Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China 3.DUTSetupPhoto 4.BluetoothAntennaPhysicalSize 5. Bluetooth Antenna Type & Gain Type :PCB Frequency/ MHzBT Gain/ dBi 24005.14 24105.04 24205.19 24305.31 24405.06 24505.21 24604.67 24704.96 24804.65 24905.12 25005.02 BT： 6. BluetoothAntennaPatternPicture 240 0MHz 2450MHz 2500MHz 7. EUTPhoto Testerby：Wuxianming BLEANT

Shenzhen Qianyan Technology LTD Declaration on Model Differences We, Shenzhen Qianyan Technology LTD No.3301,Block C,Section 1,Chuangzhi Yuncheng Building,Liuxian Avenue,Xili Community,Xili Street, Nanshan District,Shenzhen 518000 China Declare that the following product(s): Product Name: Govee RGB LED Strip Light Model No.: H613G, H613A, H613B, H613C, H613D, H613E FCC ID: 2A7VD-H613EA Utilize the identical circuit design, PCB layout, shielding and interface with (H613G), only the input current, adapter, lengths of light are different. The model differentiations will not affect RF parameters, so we prepare all models for Conducted Emission, Radiated Emission tests with their own adapters. And prepare “H613G” for RF test only. Therefore this application can be regarded as identical in performance to the submitted test sample. Detailed table: Model No. Length of Light Rating Adapter Information H613G 2*20m 24V 0.75A Model No.: YXTG18US-2400750 Input: 100-240V~ 50/60Hz 0.8A Max Output: 24.0V 0.75A 18.0W Manufacturer: SHENZHEN LINKSOONER TECHNOLOGY CO., LTD H613A 5m 24V 0.5A Model No.: BI12G-240050-BdU Input: 100-240V~ 50/60Hz 0.5A Output: 24V 0.5A Manufacturer: Dong Guan Royal Intelligent Co., Ltd. H613B 10m H613C 15m H613D 20m H613E 30m The manufacturer would take all the responsibilities for the above product(s). For and on behalf of Shenzhen 518000 China Authorized person Location Name: Xiaopeng Pan Position: Certification Manager Date of issue: 2024-09-23 *I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete.

Shenzhen Qianyan Technology LTD Date:2024-09-29 Product Model Number: H613G, H613A, H613B, H613C, H613D, H613E FCC ID: 2A7VD-H613EA To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Certification Manager Email: [email protected] Telephone: +86-13632599550 On behalf of: Shenzhen Qianyan Technology LTD

Shenzhen Qianyan Technology LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 29, 2024 Subject; Request for Confidentiality FCC ID: 2A7VD-H613EA To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiaopeng Pan Title: Certification Manager

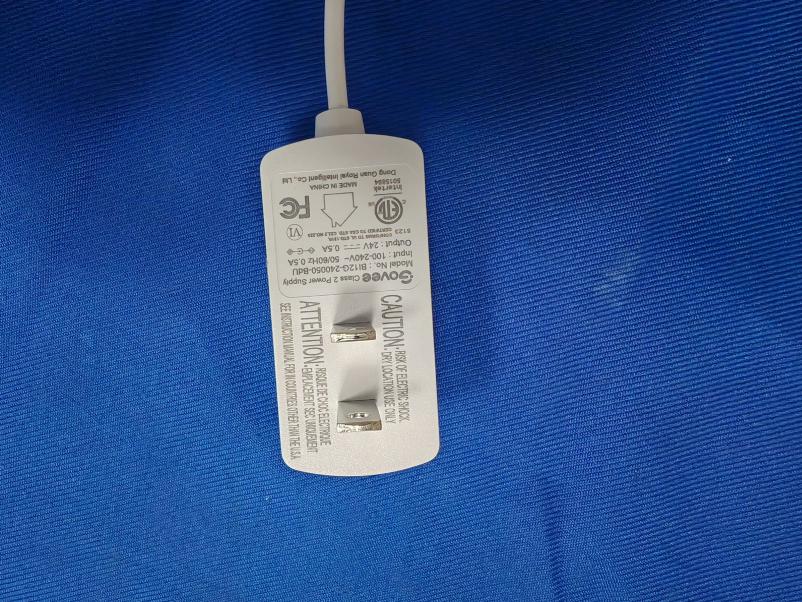

Page 1 of 30 Report No.: 8225EU011603W-AB ANNEX B EXTERNAL PHOTOS (Model No.: H613G) PHOTO 1 PHOTO 2 Page 2 of 30 Report No.: 8225EU011603W-AB PHOTO 3 PHOTO 4 Page 3 of 30 Report No.: 8225EU011603W-AB PHOTO 5 PHOTO 6 Page 4 of 30 Report No.: 8225EU011603W-AB PHOTO 7 PHOTO 8 Page 5 of 30 Report No.: 8225EU011603W-AB PHOTO 9 PHOTO 10 Page 6 of 30 Report No.: 8225EU011603W-AB (Model No.: H613E) PHOTO 11 PHOTO 12 Page 7 of 30 Report No.: 8225EU011603W-AB PHOTO 13 PHOTO 14 Page 8 of 30 Report No.: 8225EU011603W-AB PHOTO 15 PHOTO 16 Page 9 of 30 Report No.: 8225EU011603W-AB PHOTO 17 PHOTO 18 Page 10 of 30 Report No.: 8225EU011603W-AB PHOTO 19 PHOTO 20 Page 11 of 30 Report No.: 8225EU011603W-AB (Model No.: H613A) PHOTO 21 PHOTO 22 Page 12 of 30 Report No.: 8225EU011603W-AB PHOTO 23 PHOTO 24 Page 13 of 30 Report No.: 8225EU011603W-AB PHOTO 25 PHOTO 26 Page 14 of 30 Report No.: 8225EU011603W-AB PHOTO 27 PHOTO 28 Page 15 of 30 Report No.: 8225EU011603W-AB PHOTO 29 PHOTO 30 Page 16 of 30 Report No.: 8225EU011603W-AB (Model No.: H613B) PHOTO 31 PHOTO 32 Page 17 of 30 Report No.: 8225EU011603W-AB PHOTO 33 PHOTO 34 Page 18 of 30 Report No.: 8225EU011603W-AB PHOTO 35 PHOTO 36 Page 19 of 30 Report No.: 8225EU011603W-AB PHOTO 37 PHOTO 38 Page 20 of 30 Report No.: 8225EU011603W-AB PHOTO 39 PHOTO 40 Page 21 of 30 Report No.: 8225EU011603W-AB (Model No.: H613C) PHOTO 41 PHOTO 42 Page 22 of 30 Report No.: 8225EU011603W-AB PHOTO 43 PHOTO 44 Page 23 of 30 Report No.: 8225EU011603W-AB PHOTO 45 PHOTO 46 Page 24 of 30 Report No.: 8225EU011603W-AB PHOTO 47 PHOTO 48 Page 25 of 30 Report No.: 8225EU011603W-AB PHOTO 49 PHOTO 50 Page 26 of 30 Report No.: 8225EU011603W-AB (Model No.: H613D) PHOTO 51 PHOTO 52 Page 27 of 30 Report No.: 8225EU011603W-AB PHOTO 53 PHOTO 54 Page 28 of 30 Report No.: 8225EU011603W-AB PHOTO 55 PHOTO 56 Page 29 of 30 Report No.: 8225EU011603W-AB PHOTO 57 PHOTO 58 Page 30 of 30 Report No.: 8225EU011603W-AB PHOTO 59 PHOTO 60 --- End ---

Label Location On EUT Label Sizes: 35.3*65.3mm

Page 1 of 12 Report No.: 8225EU011603W-AC ANNEX C INTERNAL PHOTOS (Model No.: H613G) PHOTO 1 PHOTO 2 BLE ANT Page 2 of 12 Report No.: 8225EU011603W-AC PHOTO 3 PHOTO 4 Page 3 of 12 Report No.: 8225EU011603W-AC (Model No.: H613E) PHOTO 5 PHOTO 6 BLE ANT Page 4 of 12 Report No.: 8225EU011603W-AC PHOTO 7 PHOTO 8 Page 5 of 12 Report No.: 8225EU011603W-AC (Model No.: H613A) PHOTO 9 PHOTO 10 BLE ANT Page 6 of 12 Report No.: 8225EU011603W-AC PHOTO 11 PHOTO 12 Page 7 of 12 Report No.: 8225EU011603W-AC (Model No.: H613B) PHOTO 13 PHOTO 14 BLE ANT Page 8 of 12 Report No.: 8225EU011603W-AC PHOTO 15 PHOTO 16 Page 9 of 12 Report No.: 8225EU011603W-AC (Model No.: H613C) PHOTO 17 PHOTO 18 BLE ANT Page 10 of 12 Report No.: 8225EU011603W-AC PHOTO 19 PHOTO 20 Page 11 of 12 Report No.: 8225EU011603W-AC (Model No.: H613D) PHOTO 21 PHOTO 22 BLE ANT Page 12 of 12 Report No.: 8225EU011603W-AC PHOTO 23 PHOTO 24 --- End ---

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2A7VD-H613EA EUT Specification EUT Govee RGB LED Strip Light Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5.825GHz Others: 2.402GHz~2.480GHz BLE Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power BLE: 1.07dBm (0.0013W) Antenna gain (Max) BLE: 5.31 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result BLE worst case: Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm 2 ) (MHz) (dBm) (dBm) (dBm) (dBi) (mW/ cm 2 ) BLE 2402 1.07 1.07±1 2.07 5.31 0.0011 1 Test Result: Pass

TEST REPORT Report No.: 8225EU011603W Applicant: Shenzhen Qianyan Technology LTD Address: No.3301,Block C,Section 1,Chuangzhi Yuncheng Building,Liuxian Avenue,Xili Community,Xili Street, Nanshan District,Shenzhen 518000 China Product Name: Govee RGB LED Strip Light Model No.: H613G (refer to clause 2.4) Trademark: Govee FCC ID: 2A7VD-H613EA Test Standard(s): 47 CFR Part 15 Subpart C Date of Receipt: Jan. 16, 2024 Test Date: Jan. 16, 2024 – Aug. 23, 2024 Date of Issue: Sep. 23, 2024 ISSUED BY: SHENZHEN EU TESTING LABORATORY LIMITED Prepared by: Reviewed and Approved by: ____________________ _____________________ Mikey Zhu/ Engineer Sally Zhang/ Manager Page 2 of 37 Report No.: 8225EU011603W TRF No.: FCC Part 15 Subpart C_BLE (A01) Revision Record Report Version Issued Date Description Status V0 Sep. 23, 2024 Original Valid Page 3 of 37 Report No.: 8225EU011603W TRF No.: FCC Part 15 Subpart C_BLE (A01) Table of Contents 1 COVER PAGE .................................................................................................................................... 1 2 GENERAL INFORMATION .......................................................................................................................5 2.1 APPLICANT INFORMATION ...................................................................................................................5 2.2 MANUFACTURER INFORMATION ...........................................................................................................5 2.3 FACTORY INFORMATION ......................................................................................................................5 2.4 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................5 2.5 TECHNICAL INFORMATION OF E.U.T. ...................................................................................................7 3 TEST SUMMARY .......................................................................................................................................8 3.1 TEST STANDARD ................................................................................................................................8 3.2 TEST VERDICT ....................................................................................................................................8 3.3 TEST LABORATORY ............................................................................................................................8 4 TEST CONFIGURATION ...........................................................................................................................9 4.1 TEST ENVIRONMENT ...........................................................................................................................9 4.2 TEST EQUIPMENT ...............................................................................................................................9 4.3 DESCRIPTION OF SUPPORT UNIT ...................................................................................................... 10 4.4 TEST MODE..................................................................................................................................... 10 4.5 MEASUREMENT UNCERTAINTY ......................................................................................................... 10 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 10 4.7 ABNORMALITIES FROM STANDARD CONDITION ................................................................................. 10 5 TEST ITEMS ........................................................................................................................................... 11 5.1 ANTENNA REQUIREMENT .................................................................................................................. 11 5.1.1 Test Requirement ........................................................................................................... 11 5.1.2 Antenna Anti-Replacement Construction ........................................................................ 11 5.1.3 Antenna Gain .................................................................................................................. 11 5.2 CONDUCTED EMISSION AT AC POWER LINE ..................................................................................... 12 5.2.1 Test Requirement ........................................................................................................... 12 5.2.2 Test Setup Diagram ........................................................................................................ 12 5.2.3 Test Procedure ............................................................................................................... 12 5.2.4 Test Data......................................................................................................................... 12 5.3 DTS BANDWIDTH ............................................................................................................................ 17 5.3.1 Test Requirement ........................................................................................................... 17 5.3.2 Test Setup Diagram ........................................................................................................ 17 5.3.3 Test Procedure ............................................................................................................... 17 5.3.4 Test Data......................................................................................................................... 17 5.4 MAXIMUM CONDUCTED OUTPUT POWER .......................................................................................... 18 5.4.1 Test Requirement ........................................................................................................... 18 5.4.2 Test Setup Diagram ............…

Text truncated - open the document above for the full version.

Page 1 of 22 Report No.: 8225EU011603W-AD ANNEX D TEST DATA For Project No.: 8225EU011603W Client: Shenzhen Qianyan Technology LTD Product Name: Govee RGB LED Strip Light Model No.: H613G FCC ID: 2A7VD-H613EA Technology: Bluetooth BLE Test Engineer: Test Date: 2024-08-16 Page 2 of 22 Report No.: 8225EU011603W-AD Test Summary Item Result Duty Cycle Pass Bandwidth Pass Maximum Conducted Output Power Pass Maximum Power Spectral Density Pass Unwanted Emissions In Non-restricted Frequency Bands Pass Page 3 of 22 Report No.: 8225EU011603W-AD 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 100.000 100.000 100.00 0.00 0.00 2440 100.000 100.000 100.00 0.00 0.00 2480 100.000 100.000 100.00 0.00 0.00 Page 4 of 22 Report No.: 8225EU011603W-AD 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 5 of 22 Report No.: 8225EU011603W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 6 of 22 Report No.: 8225EU011603W-AD 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.084 / Pass 2440 1 1.085 / Pass 2480 1 1.096 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.681 >=0.5 Pass 2440 1 0.675 >=0.5 Pass 2480 1 0.680 >=0.5 Pass Page 7 of 22 Report No.: 8225EU011603W-AD 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 22 Report No.: 8225EU011603W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 9 of 22 Report No.: 8225EU011603W-AD 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 10 of 22 Report No.: 8225EU011603W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 11 of 22 Report No.: 8225EU011603W-AD 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 1.07 <=30 Pass 2440 1.03 <=30 Pass 2480 0.76 <=30 Pass Page 12 of 22 Report No.: 8225EU011603W-AD 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 13 of 22 Report No.: 8225EU011603W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 14 of 22 Report No.: 8225EU011603W-AD 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -12.41 <=8 Pass 2440 -12.56 <=8 Pass 2480 -12.79 <=8 Pass Page 15 of 22 Report No.: 8225EU011603W-AD 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 16 of 22 Report No.: 8225EU011603W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 17 of 22 Report No.: 8225EU011603W-AD 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 0.13 2440 1 0.09 2480 1 -0.19 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 0.13 -19.87 Pass 2440 1 0.13 -19.87 Pass 2480 1 0.13 -19.87 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 18 of 22 Report No.: 8225EU011603W-AD 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 22 Report No.: 8225EU011603W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 20 of 22 Report No.: 8225EU011603W-AD 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 21 of 22 Report No.: 8225EU011603W-AD 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 22 of 22 Report No.: 8225EU011603W-AD 1M_HCH_2480MHz_Ant1_NTNV --------- End of Report -------

Page 1 of 2 Report No.: 8225EU011603W-AA ANNEX A TEST SETUP PHOTOS PHOTO 1 Conducted Emission PHOTO 2 Radiated Emission (Below 1GHz) Page 2 of 2 Report No.: 8225EU011603W-AA PHOTO 3 Radiated Emission (Above 1GHz) --- End ---
