2A7XQ-SKCL-300LED CEILING LAMP

i-Link Smart Lamp with Speaker User Manual (EN) CAUTIONS: 1. This lighting fixture must be installed by a qualified licensed electrician 2.Please read the instruction before installation. Manufacturer Name : ZHONGSHAN SUNKA LIGHTING TECHNOLOGYCO., LTD Address : 3rd Floor, No. 4, Beiyi Lane, Hua'an East Road, Caosan Pioneer Park, Zhongshan City, Guangdong Province, CN Email：[email protected] EC/REP TESmert GmbH Address: Reinbeker Weg 72 Erst Obergeschoss, 21029 Hamburg, Germany Email：[email protected] UK/REP DONGHAIDU LTD Address: 59 BLOXCIDGE STREET U2 OLDBURY United Kingdom, E1 0SG Email: [email protected] EU This produet has a unique and exclusive two-in-one design - the smart LED lamp and Bluetooth stereoaudio speaker. Bluetooth 4.0+EDR (enhanced data rate) and purity and definition of particular voicebased on DSP technology. Wish you have infinite joy from the combination of light and music. ·Change light color (warm white/cool white/RGB) and brightness as you need; ·Timer setting: auto light, auto musie and alarm clock; ·Mood lighting and musie rhythm, enjoy music anywhere; ·Sound effect setting: Pop, Classical, Jazz, Bass and Flat Scan the QR-Code to download APP. Google PlayApp StoreIOS&Android I.Bluetooth Connection For the first time you use it or never pair with"iLink" after moving the equipment, please have it pairedaccording to the steps below: i. First of all, enter the System Settings-Bluetooth-Discover and Connect the devise name "iLink".Once connected, you will hear the connestion tone. EN EN Tips: When the next time you use it, "iLink" will connect with your phone automatically(when the Bluetooth is opening). ii. Open "iLink" app, enter the main interface. Click the menu icon, enter the "BT Connect", as follow： Then,enter "BT Connect" Firstly, click the menu icon, enter the "Setting" interface EN iii. "BT Connect",operate as follow： Then,you can operate the smart lamp via the app. Enjoy the magical light and music. Then,click "iLink" to connect. ”Connected” means the connection is successful. Firstly, you should search the device. II.Main User Interface A. Color Changing: RGB light control Setting Menu Shake:shake to change the color On/Off: turn on/off the light Dimming: adjust the brightness Preferred Color Function Navigation EN B. Brightness Adjustable: Warm White/Daylight White/Cool White C.Music When you use the lamp for the first time, please enter your phone’s settings, open the Bluetooth and pair the"iLink". Play the music via "iLink" APP and then enjoy your favorite music. Only iTunes Player supports musical rhythm(the color flash with the music). Click to enter Music Rhythm Adjust light to warm white/daylight white/cool white Preferred color Adjust the brightness EN Music Playing Interface Tips：iOS system, non-iTunes music have none "Musical Rhythm" lighting effect. D.Profiles Rainbow: brightness and color change gradually and randomly as the rainbow; Breathing: brightness and color change like breathing; Flashing: stage-lighting effect, the light switchs quickly; Heartbeat: fast switching just like the heartbeat; Musical Rhythm: "musical rhythm" lighting effect, works when the music is playing, stops when pause the music. Song The album and the progress bar Play/Pause Playlist Play Mode EN E. Timer Setting It is your close sleep assistant and smart alarm clock.The music and lamp turn on/off automatically. Tips：The function automatically work even when the Bluetooth disconnected. F.Sound Effect Sound effect setting: Pop, Classical, Jazz, Bass and Flat. You can set your favorite high pitch/low pitch sound effect via tone equalizer. The light turns on/off automatically Mute or music waking Alarm clock setting EN III.Specification No.ItemParameter Input Voltage (V)220-240V / 50-60HZ Input Power ( W)24W Power Factor（PFC）>90% LED light indicators CRI>0.85 Color Temperature( IF)3000-6500K Light Decay<10%, T=25°C；RH=90%；H=20000 Illumination Angle>90°, DimmingPWM Audio amplifier indicators Audio Power (W)5W，THD+N=10%，1KHz Frequency Response40HZ-18KHZ, Nonuniformity：±3dB Audio Distortion (HTD+N)<1%, P=1W;1KHz Signal to Noise Ratio( SNR)>80dB,P=1W;A-weight Volume ControlAPP Bluetooth Distance>10m,Straight line distance and no obstacles lIf you can’t find the Bluetooth "iLink" in APP or can’t connect the Bluetooth to the lamp for a long time, please enter your phone “system settings” and connect it again; u lIf you can’t connect the bluetooth to the lamp for a long time or other abnormal, please close the APP and try to restart it; lDo not put the bulb in closed lampshade; lDo not put the lamp in the place which is humid or has water; lKeep using it under the power supply of 90V to 245V AC, 50-60Hz; lThis lamp is not a toy and keep it untouchable to children; lDo not put the lamp on high-temperature surface; lDo not open any sealing device for safety and according to arranty Terms; lCool down the lamp before replacing it to avoid electric shock or burning. IV.Note: Warning: 1. This lighting fixture is for indoor use only. The maximum rated room temperature is 45°C. 2. RISK OF ELECTRIC SHOCK. Please shut off the power before installing the lighting fixture. 3. If the electric wire is damaged, please qualified professional to replace to avoid danger. 4. Under no circumstances can the lamp be installed on the surface of ordinary flammable materials, and it is normal for the lamp to slightly heat up during use. 5.Not for using with dimnmers. EN 1 2 3 4 5 6 Remote Control Instructions 1. ON/OFF 2.Reduce Brightness 3.Music Play/Pause 4.Previous Song 5.RGB-Light Color 6.Reduce Color Temperature 7.Increase Brightness 8.Increase volume 9.Next Song 10.Reduce volume 11.Increase color temperature 12.Light Mode EN 12 11 10 8 7 9 1 2 4 5 6 3 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including…

Text truncated - open the document above for the full version.

ZHONGSHAN SUNKA LIGHTING TECHNOLOGY CO., LTD 3rd Floor, No. 4, Beiyi Lane, Hua'an East Road, Caosan Pioneer Park, Zhongshan city,Guangdong Province Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-07-17 U.S. Agent Designation Applicant Company: ZHONGSHAN SUNKA LIGHTING TECHNOLOGY CO., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A7XQ-SKCL-300): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of ZHONGSHAN SUNKA LIGHTING TECHNOLOGY CO., LTD with the FRN 0032670242 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Shurong Zhong Manager ZHONGSHAN SUNKA LIGHTING TECHNOLOGY CO., LTD Signature Jack Fu Manager UUX GROUP INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

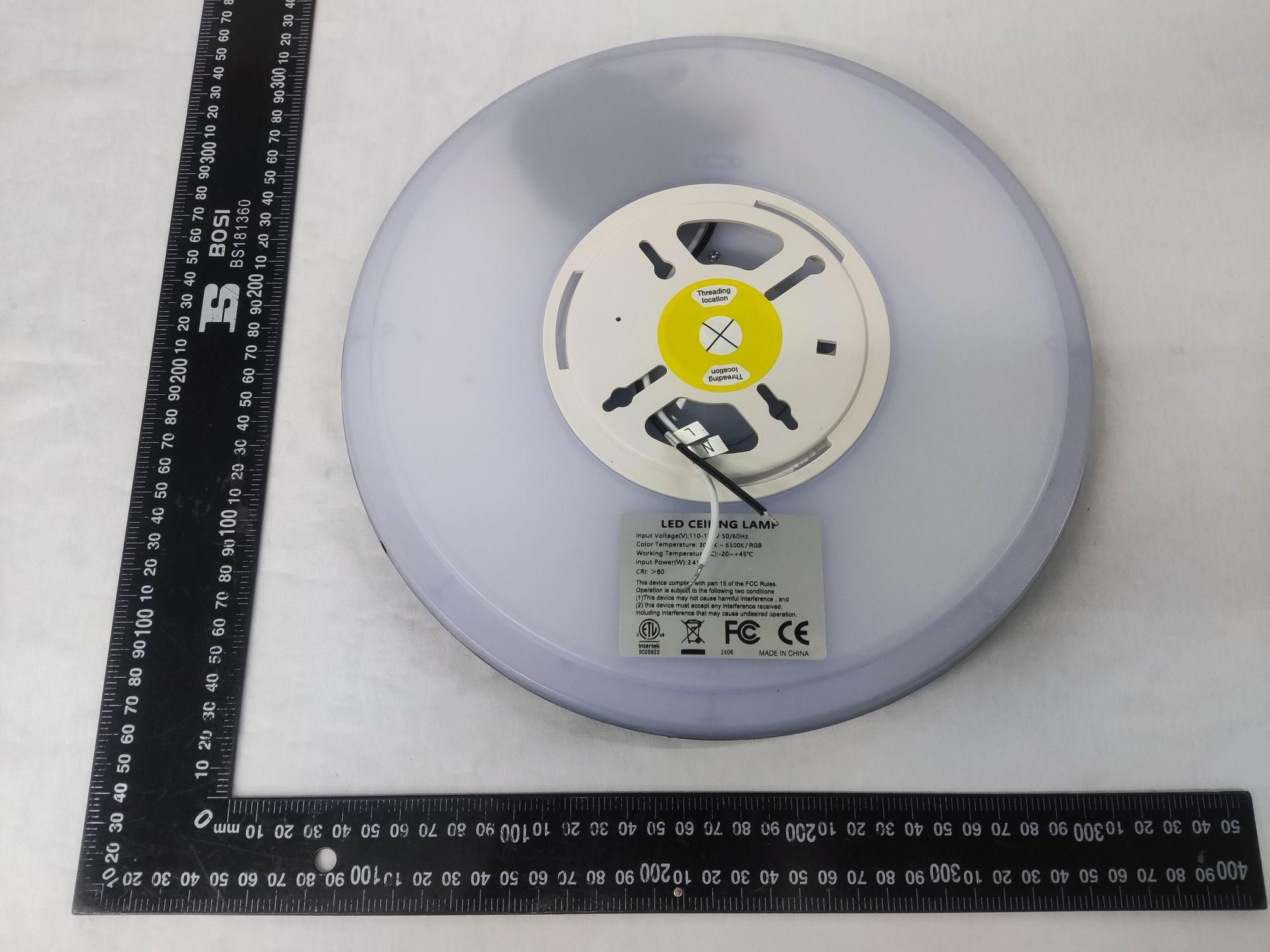

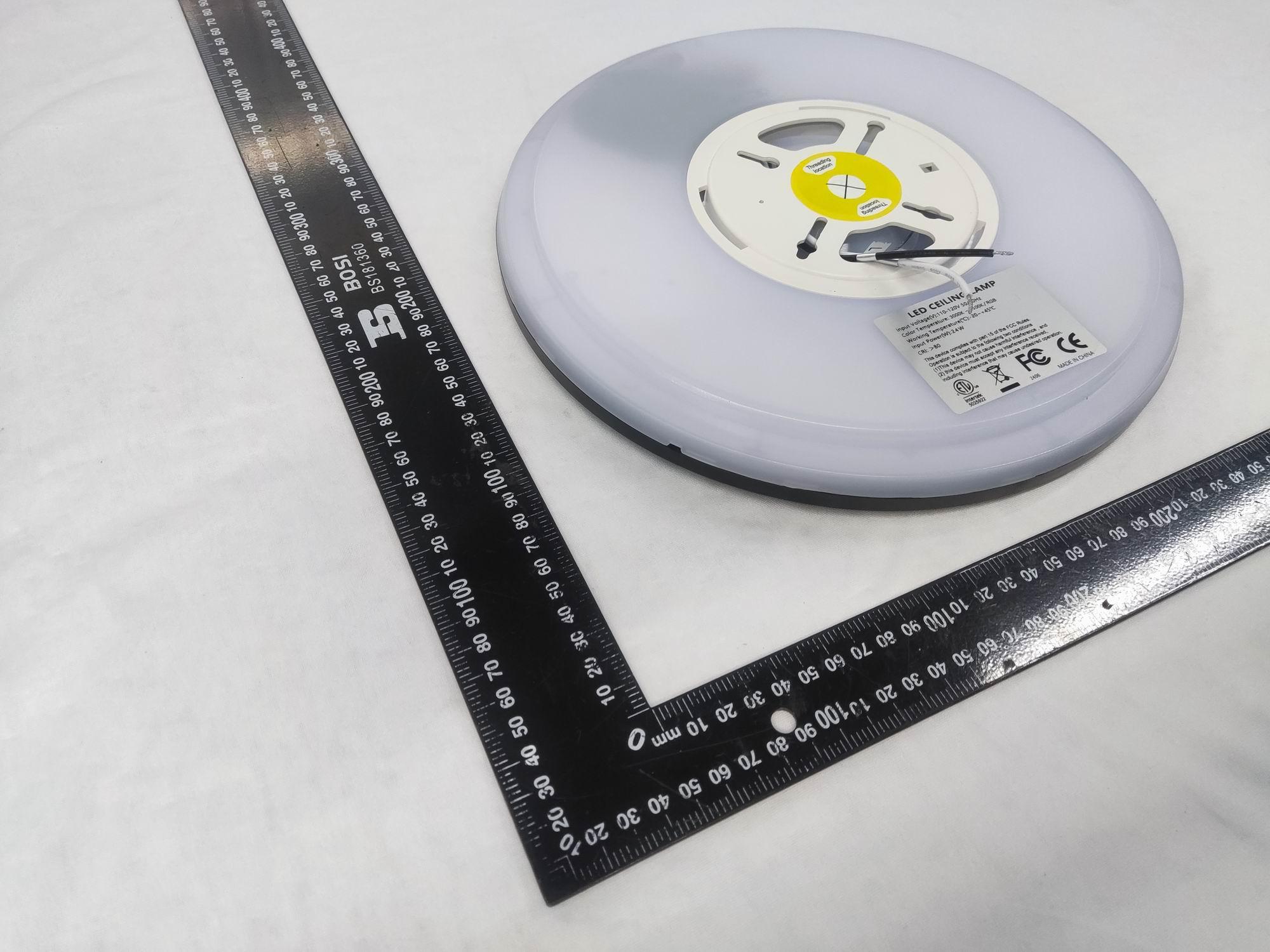

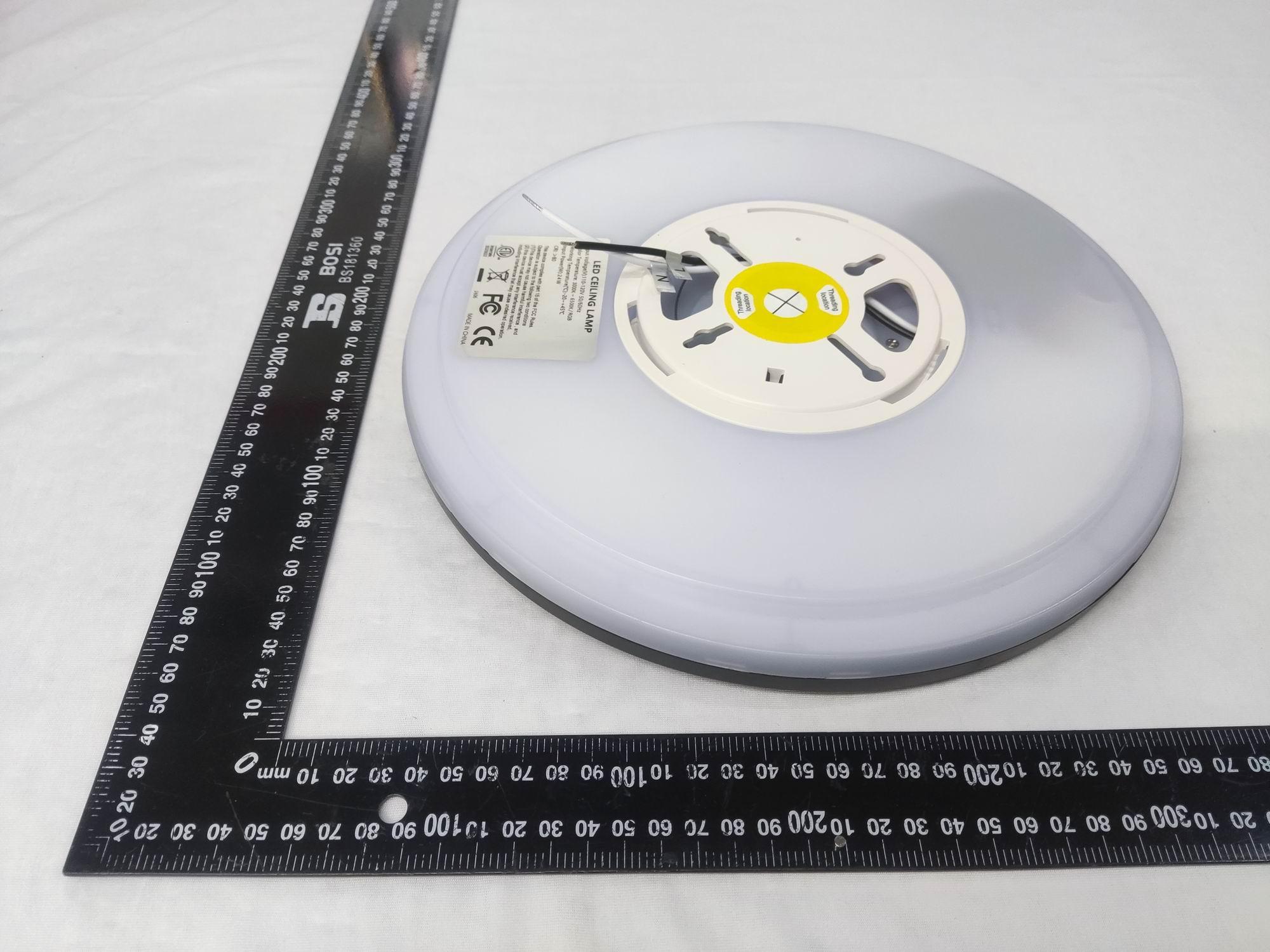

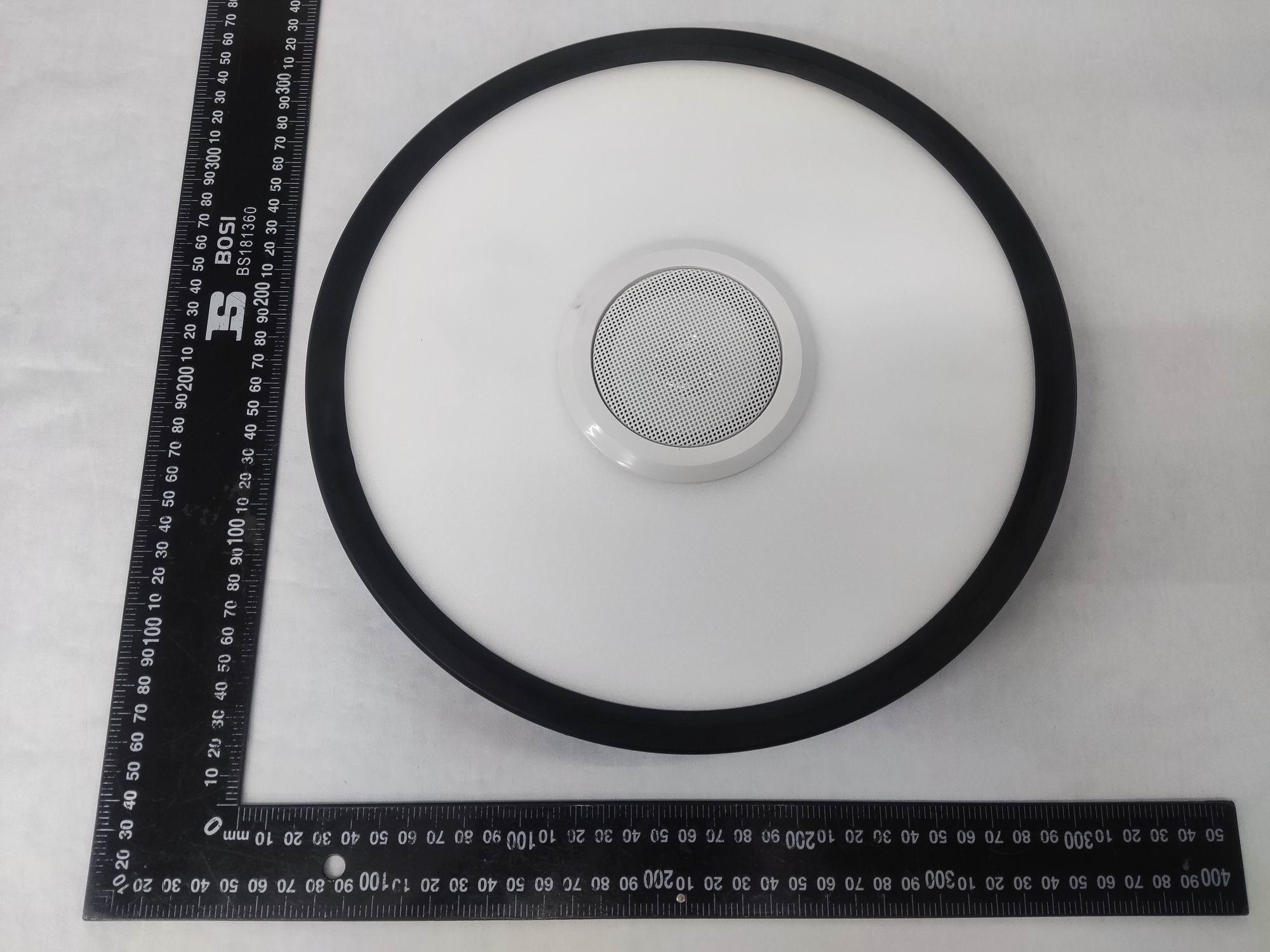

Page1of5FCCID: 2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos Photo1 Photo2 Page2of5FCCID: 2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of5FCCID: 2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of5FCCID: 2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 Page5of5FCCID: 2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 ------End------

Label FCCID:2A7XQ-SKCL-300

Page1of8FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. InternalPhotos Photo1 Photo2 Page2of8FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of8FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of8FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 Antenna Page5of8FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 Page6of8FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo11 Photo12 Page7of8FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo13 Photo14 Page8of8FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo15 ------End------

RFExposureevaluation FCCID:2A7XQ-SKCL-300 ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. Accordingto§1.1310and§2.1093RFexposurerequirement KDB447498v06:MobileandPortableDevicesRFExposureProceduresandEquipmentAuthorization Policies 1.1.Requirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22Theminimum testseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresor outersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements, toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbytheoperating configurationsandexposureconditionsofthetransmitterandapplicablehostplatformrequirements,typically intheSARmeasurementorSARanalysisreport,accordingtotherequiredpublishedRFexposureKDB procedures.WhennootherRFexposuretestingorreportingisrequired,astatementofjustificationand compliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,toqualifyfortheSARtest exclusion.Whenrequired,thedevicespecificconditionsdescribedintheotherpublishedRFexposureKDB proceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusionprovisions;forexample,handheldPTT two-wayradios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)] ≤ 3.0for1-gSARand ≤ 7.5for10-gextremitySAR,where: • f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison • 3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto5)insection4.1isappliedtodetermineSARtestexclusion. 1.2.Manufacturingtolerance BR-EDR Frequency (MHz) GFSK 240224412480 Target(dBm)000 Tolerance±(dB)111 Frequency (MHz) π/4DQPSK 240224412480 Target(dBm)111 Tolerance±(dB)111 Frequency (MHz) 8DPSK 240224412480 Target(dBm)111 Tolerance ± (dB) 111 Page2of2 2.EvaluationResult EvaluationResults Band/Modef(GHz) Antenna Distance (mm) Max.RFoutputpower (includingtune-up tolerance) SARTest Exclusion Threshold SARTest Exclusion dBmmW BR-EDR2.552.01.580.50<3Yes 3.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06 .....................EndofReport.........................

DongguanYaxu(AiT)TechnologyLimited ReportNo.: AiTDG-240716005W1 FCC ID : 2A7XQ-SKCL-300 Page1 of61 AppendixA RF Test Data for BT(BDR/EDR)(ConductedMeasurement) ProductName:LED CEILINGLAMP TradeMark:N/A Test Model:SKCL-300/M EnvironmentalConditions Temperature: 24.6C RelativeHumidity:52.4 % ATM Pressure:10 0.0 kPa Test Engineer:Emiyalin Supervisedby:SimbaHaung DongguanYaxu(AiT)TechnologyLimited ReportNo.: AiTDG-240716005W1 FCC ID : 2A7XQ-SKCL-300 Page2 of61 Contents Page COVERPAGE 1Duty Cycle........................................................................................................................................................................................3 1.1Test Result............................................................................................................................................................................3 1.2Test Graphs...........................................................................................................................................................................4 2MaximumConductedPeakOutputPower........................................................................................................................................9 2.1Test Result............................................................................................................................................................................9 2.2Test Graphs.........................................................................................................................................................................10 320dBBandwidth..............................................................................................................................................................................15 3.1Test Result..........................................................................................................................................................................15 3.2Test Graphs.........................................................................................................................................................................16 4CarrierFrequencySeparation.........................................................................................................................................................21 4.1Test Result..........................................................................................................................................................................21 4.2Test Graphs.........................................................................................................................................................................22 5HoppingChannelNumber...............................................................................................................................................................24 5.1Test Result..........................................................................................................................................................................24 5.2Test Graphs.........................................................................................................................................................................25 6DwellTime ......................................................................................................................................................................................27 6.1Test Result..........................................................................................................................................................................27 6.2Test Graphs.........................................................................................................................................................................28 7RF ConductedSpuriousEmissions.................................................................................................................................................31 7.1Test Result..........................................................................................................................................................................31 7.2Test Graphs.........................................................................................................................................................................32 8Band-edgefor RF ConductedEmissions........................................................................................................................................41 8.1Test Result..........................................................................................................................................................................41 8.2Test Graphs.........................................................................................................................................................................42 9Restrict-bandband-edgemeasurements........................................................................................................................................54 9.1Test Result..........................................................................................................................................................................54 9.2Test Graphs.........................................................................................................................................................................56 DongguanYaxu(AiT)TechnologyLimited ReportNo.: AiTDG-240716005W1 FCC ID : 2A7XQ-SKCL-300 Page3 of61 1 Duty Cycle 1.1Test Result ModeFrequency(MHz)Duty Cycle(%)Correction Factor 1/T (kHz) 1-DH1240231.25.062.63 1-DH1244131.475.022.63 1-DH1248031.25.062.63 2-DH1240232.014.952.56 2-DH1244132.014.952.56 2-DH12480324.952.56 3-DH1240232.014.952.56 3-DH1244132.014.952.56 3-DH1248032.014.952.56 DongguanYaxu(AiT)TechnologyLimited ReportNo.: AiTDG-240716005W1 FCC ID : 2A7XQ-SKCL-300 Page4 of61 1.2Test Graphs Test G…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEM ANT SPEC 2.4G ANTModel Name Horizontal Vertical 2400MHz2400MHz 2450MHz2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 -0.58dBiMAX. Gain Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page1of2FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TestSetupPhoto RadiatedEmission Page2of2FCCID:2A7XQ-SKCL-300 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ConductedEmission ------End------
