User Manual BEYONICS XRT270 Remote Control Rev A Date: 06.06.2022 Revision History Sect. Description By Rev Date A 6/6/2022 All Initial Release Jack Qi Overview/ Purpose: To help user quickly get started with Beyonics’s XRT270 Remote Control Unit (RCU). Package inclusions: In this packaging: XRT270 Remote control built by Beyonics. Not Included: 2x AAA alkaline batteries, VIZIO SmartCast TV. Steps: 1. Insert 2x AAA alkaline batteries into RCU. 2. Check RED LED blinks. (The status LED will flash until pair successfully) 3. Test keys’ IR functionality with VIZIO TV by press keys ONE by ONE. All keys will be response following below table. 4. Press MIC and MUTE keys to relaunch pairing mode. Button Name Button Icon Button Description Input Change input on TV Power Toggles TV's power state between on and standby App Shortcut 1 HBOMAX App Shortcut 2 Netflix App Shortcut 3 Amazon Prime Video App Shortcut 4 Pluto App Shortcut 5 iHeart App Shortcut 6 CRACKLE Mic Microphone WatchFree WatchFree+ Settings TV Settings/Menu Directional Ring (Up) Navigate TV menu Up/Channel Up (if source is Tuner or App with Channel) Directional Ring (Down) Navigate TV menu Down/Channel Down (if source is Tuner or App with Channel) Directional Ring (Left) Navigate TV menu Left/Rewind Directional Ring (Right) Navigate TV menu Right/Fast Forward OK Confirm the selection (conditionally for Cast remotes, functions if play/pause is pressed) Back Go back one menu level Home Launches SmartCast on TV screen CC Closed Caption Vol - TV Volume Down Vol + TV Volume Up Mute Mute TV Audio Figure 1 Relaunch Pairing 5. pair RCU with VIZIO TV, follow below steps to setup. Go to TV setting: -> Voice Remote->Unpair Remote, unpair previous RCU. =>Pair New Remote , then TV will searching RCU. Once pair successfully, the screen will shown next page. 6. BLE-HID key functional Test: All 22 keys are available at BT mode on VIZIO TV. Bluetooth 2400MHz ~ 2483.5MHz Power 2.19mW PCB Antenna Gain 1.0dBi Notes： This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

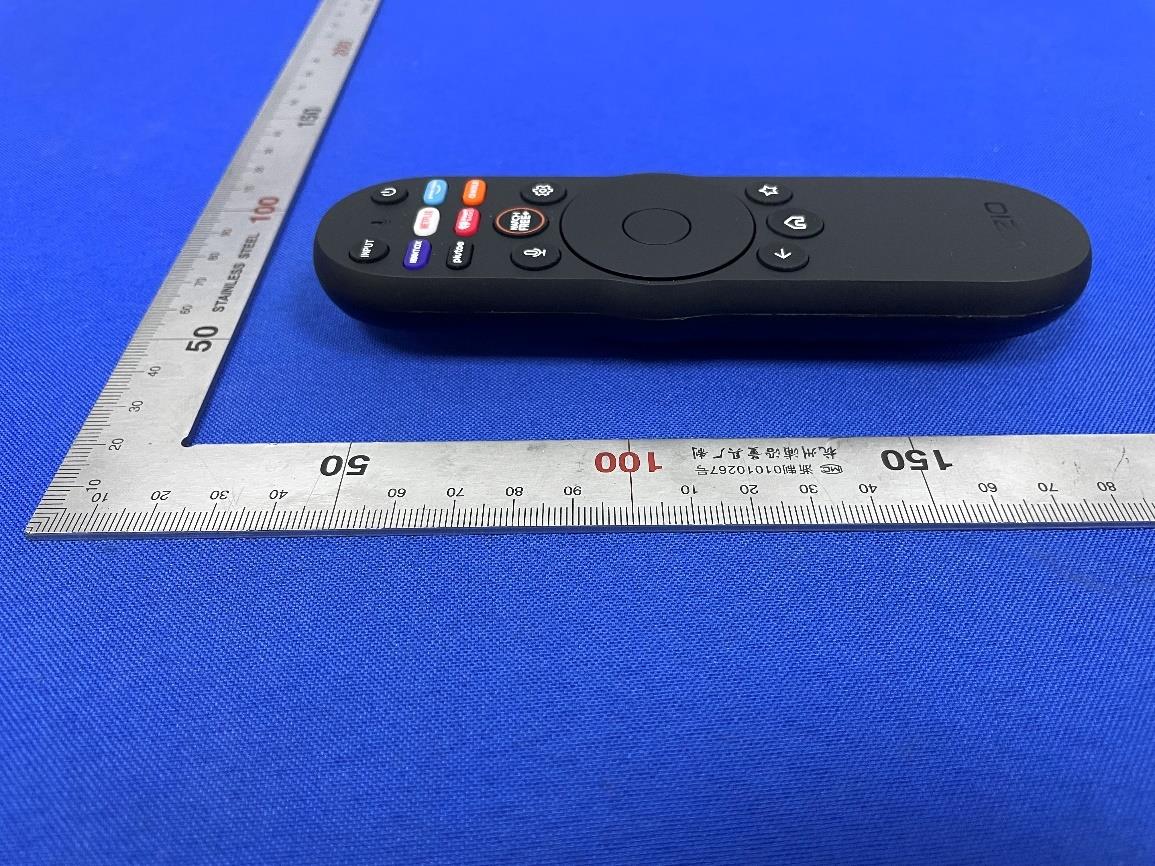

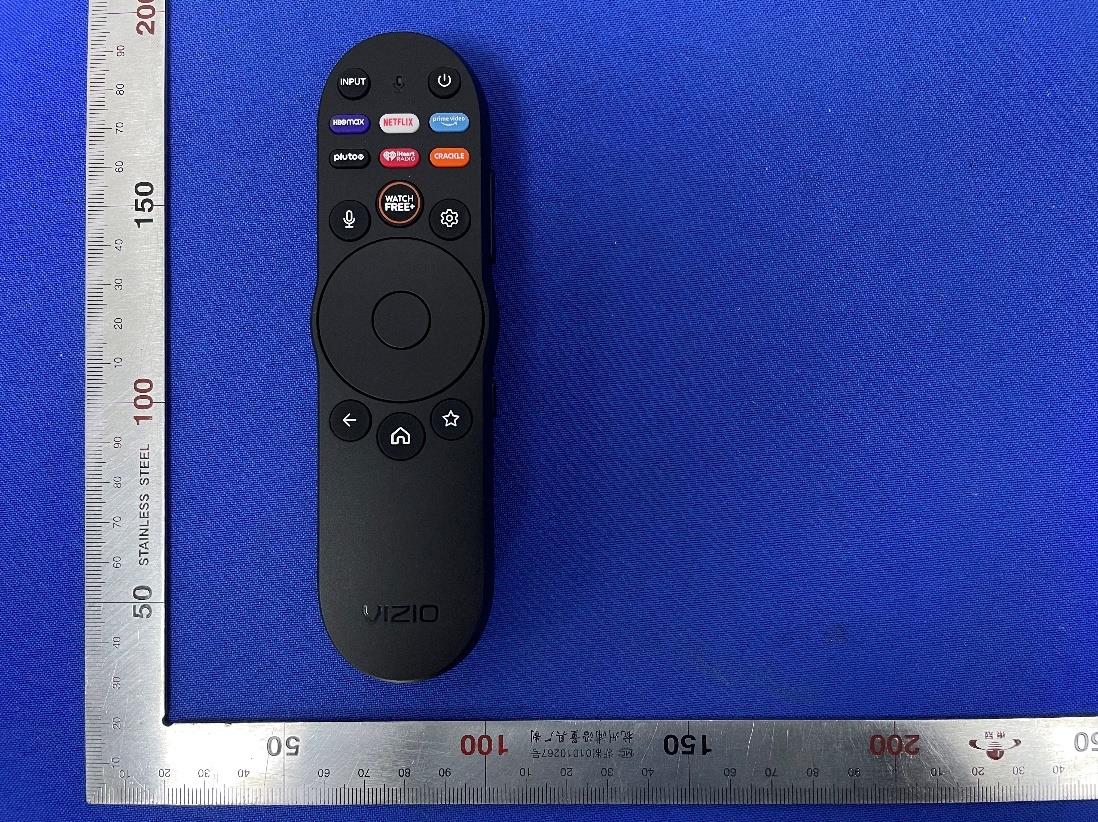

Document No: SH22060072-02 Page 1 of 3 XRT270 External photo Front Rear Document No: SH22060072-02 Page 2 of 3 Right side Left side Document No: SH22060072-02 Page 3 of 3 Top Bottom

Document No: SHE22060072-02 Page 1 of 1 Label Location

Document No: SHE22060072-02 Page 1 of 2 XRT270 Internal photo Internal 1 Internal 2 Document No: SHE22060072-02 Page 2 of 2 Internal 3 Internal 4 Antenna RF chip

MPE TEST REPORT Report No.: SHE22060072-02BE Date: 2022-07-19 Page 1 of 5 Applicant : Beyonics Technology Electronic (Changshu) Co., Ltd. Address of Applicant : 18 Yinhuan Road, Changshu New & Hi-tech Industrial Development Zone of Jiangsu, Changshu, Jiangsu 215500, China Product Name : Good Remote 2023 Brand Name : VIZIO Model No. : XRT270 Sample No. : E22060072-02#01 E22060072-02#02 FCC ID : 2A7Y5-XRT270 Standards : FCC Part 2.1093 Date of Receipt : 2022-07-12 Date of Test : 2022-07-14~ 2022-07-18 Date of Issue : 2022-07-19 Remark: This report details the results of the testing carried out on one sample, the results contained in this report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. Prepared by： Reviewed by： Approved by： (Erik Yang) (Jennifer Zhou) (Authorized signatory: Guoyou Chi) MPE TEST REPORT Report No.: SHE22060072-02BE Date: 2022-07-19 Page 2 of 5 Contents 1 GENERAL INFORMATION ................................................................................................................................................... 3 1.1 TESTING LABORATORY ............................................................................................................................................................... 3 1.2 ENVIRONMENTAL CONDITIONS ................................................................................................................................................... 3 1.3 DETAILS OF APPLICATION .......................................................................................................................................................... 3 1.4 DETAILS OF EUT ........................................................................................................................................................................ 3 2 ASSESSMENT METHODS .................................................................................................................................................... 4 3 CONCLUSION ......................................................................................................................................................................... 4 4 APPENDIXES .......................................................................................................................................................................... 5 4.1 SAMPLE PHOTOGRAPH............................................................................................................................................................... 5 MPE TEST REPORT Report No.: SHE22060072-02BE Date: 2022-07-19 Page 3 of 5 1 General Information 1.1 Testing Laboratory Company Name ICAS Testing Technology Services (Shanghai) Co., Ltd. Address No.1298, Pingan Road, Minhang District, Shanghai, China Telephone 0086 21-51682999 Fax 0086 21-54711112 Homepage www.icasiso.com 1.2 Environmental conditions Temperature (C) 18-25 Humidity (%RH) 40-65 Barometric Pressure (mbar) 960-1060 Ambient noise & Reflection（W/kg） < 0.012 1.3 Details of Application Applicant Company Name Beyonics Technology Electronic (Changshu) Co., Ltd. Address 18 Yinhuan Road, Changshu New & Hi-tech Industrial Development Zone of Jiangsu, Changshu, Jiangsu 215500, China Contact Person Pillar Chen Telephone +86 51252351155 Email [email protected] Manufacturer Company Name Beyonics Technology Electronic (Changshu) Co., Ltd. Address 18 Yinhuan Road, Changshu New & Hi-tech Industrial Development Zone of Jiangsu, Changshu, Jiangsu 215500, China 1.4 Details of EUT Product Name Good Remote 2023 Brand Name VIZIO Test Model No. XRT270 FCC ID 2A7Y5-XRT270 Mode of Operation Bluetooth BLE 1M/2M Frequency Range 2400MHz ~ 2483.5MHz Modulation Type GFSK Antenna Type PCB Antenna Antenna Gain 1.0dBi Hardware version V1.0 Software version V1.0 MPE TEST REPORT Report No.: SHE22060072-02BE Date: 2022-07-19 Page 4 of 5 2 Assessment methods According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation Test Data Mode Modulation Channel Frequency (MHz) Conducted Power (dBm) BLE GFSK 0 2402 3.40 19 2440 3.15 39 2480 2.40 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Turn-up power Mode Power Range (dBm) BLE 2.00-4.00 Turn-up Power (dBm) Turn-up Power (mW) Separation Distance (mm) Frequency (GHz) Value Exclusion Thresholds 4.00 2.51 5 2.402 0.778 3.0 3 Conclusion Per KDB 447498 D01v06, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.778 which is <3.0, SAR testing is not required. RF exposure Evaluation Results:Compliance MPE TEST REPORT Report No.: SHE22060072-02BE Date: 2022-07-19 Page 5 of 5 4 Appendixes 4.1 Sample Photograph Front of the sample Rear of the sample ***End of the report***

TEST REPORT Report No.: SHE22060072-02AE Date: 2022-07-19 Page 41 of 84 The plots of BLE_1Mbps_2440 Channel, Vertical polarization_30MHz-1GHz No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 30.485 15.25 -29.66 40.0 -24.75 Peak 356.50 150 Vertical Pass 2 67.578 21.90 -28.50 40.0 -18.10 Peak 235.90 100 Vertical Pass 3 98.368 24.40 -26.77 43.5 -19.10 Peak 37.20 100 Vertical Pass 4 191.950 24.54 -26.70 43.5 -18.96 Peak 49.60 200 Vertical Pass 5 301.047 21.30 -23.73 46.0 -24.70 Peak 8.90 150 Vertical Pass 6 524.819 43.38 -17.96 46.0 -2.62 Peak 2.50 100 Vertical Pass TEST REPORT Report No.: SHE22060072-02AE Date: 2022-07-19 Page 42 of 84 The plots of BLE_1Mbps_2440 Channel, Horizontal polarization_1GHz-7GHz No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 1386.250 40.29 -12.72 74.0 -33.71 Peak 202.50 100 Horizontal Pass 1** 1386.250 29.92 -12.72 54.0 -24.08 AV 202.50 100 Horizontal Pass 2 2208.250 44.27 -8.08 74.0 -29.73 Peak 202.50 100 Horizontal Pass 2** 2208.250 33.86 -8.08 54.0 -20.14 AV 202.50 100 Horizontal Pass 3 2476.250 49.43 -2.10 74.0 -24.57 Peak 54.80 100 Horizontal Pass 3** 2476.250 39.90 -2.10 54.0 -14.10 AV 54.80 100 Horizontal Pass 4 2959.250 46.63 -3.43 74.0 -27.37 Peak 211.10 100 Horizontal Pass 4** 2959.250 36.57 -3.43 54.0 -17.43 AV 211.10 100 Horizontal Pass 5 4879.500 53.29 0.06 74.0 -20.71 Peak 184.80 100 Horizontal Pass 5** 4879.500 47.01 0.06 54.0 -6.99 AV 184.80 100 Horizontal Pass 6 6935.000 56.01 5.12 74.0 -17.99 Peak 249.90 100 Horizontal Pass 6** 6935.000 45.57 5.12 54.0 -8.43 AV 249.90 100 Horizontal Pass TEST REPORT Report No.: SHE22060072-02AE Date: 2022-07-19 Page 43 of 84 The plots of BLE_1Mbps_2440 Channel, Vertical polarization_1GHz-7GHz No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 1299.750 40.14 -12.80 74.0 -33.86 Peak 282.20 100 Vertical Pass 1** 1299.750 29.46 -12.80 54.0 -24.54 AV 282.20 100 Vertical Pass 2 1526.750 39.96 -13.02 74.0 -34.04 Peak 112.50 100 Vertical Pass 2** 1526.750 29.17 -13.02 54.0 -24.83 AV 112.50 100 Vertical Pass 3 2186.000 44.17 -8.07 74.0 -29.83 Peak 156.80 100 Vertical Pass 3** 2186.000 33.96 -8.07 54.0 -20.04 AV 156.80 100 Vertical Pass 4 2487.250 50.99 -1.89 74.0 -23.01 Peak 0.20 100 Vertical Pass 4** 2487.250 40.29 -1.89 54.0 -13.71 AV 0.20 100 Vertical Pass 5 4880.000 51.40 0.06 74.0 -22.60 Peak 360.00 100 Vertical Pass 5** 4880.000 45.28 0.06 54.0 -8.72 AV 360.00 100 Vertical Pass 6 6369.500 55.25 3.54 74.0 -18.75 Peak 334.70 100 Vertical Pass 6** 6369.500 44.27 3.54 54.0 -9.73 AV 334.70 100 Vertical Pass TEST REPORT Report No.: SHE22060072-02AE Date: 2022-07-19 Page 44 of 84 The plots of BLE_1Mbps_2440 Channel, Horizontal polarization_7GHz-18GHz No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 7995.500 34.31 3.81 74.0 -39.69 Peak 0.90 100 Horizontal Pass 1** 7995.500 22.68 3.81 54.0 -31.32 AV 0.90 100 Horizontal Pass 2 10143.250 41.08 9.30 74.0 -32.92 Peak 0.90 100 Horizontal Pass 2** 10143.250 30.61 9.30 54.0 -23.39 AV 0.90 100 Horizontal Pass 3 10855.500 42.72 11.12 74.0 -31.28 Peak 23.10 100 Horizontal Pass 3** 10855.500 31.74 11.12 54.0 -22.26 AV 23.10 100 Horizontal Pass 4 12458.750 45.98 12.54 74.0 -28.02 Peak 51.70 100 Horizontal Pass 4** 12458.750 34.15 12.54 54.0 -19.85 AV 51.70 100 Horizontal Pass 5 14188.500 50.55 19.75 74.0 -23.45 Peak 241.20 100 Horizontal Pass 5** 14188.500 40.80 19.75 54.0 -13.20 AV 241.20 100 Horizontal Pass 6 17999.999 60.12 27.92 74.0 -13.88 Peak 167.10 100 Horizontal Pass 6** 17999.999 48.96 27.92 54.0 -5.04 AV 167.10 100 Horizontal Pass TEST REPORT Report No.: SHE22060072-02AE Date: 2022-07-19 Page 45 of 84 The plots of BLE_1Mbps_2440 Channel, Vertical polarization_7GHz-18GHz No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 7613.250 32.07 1.54 74.0 -41.93 Peak 359.70 100 Vertical Pass 1** 7613.250 21.21 1.54 54.0 -32.79 AV 359.70 100 Vertical Pass 2 9285.250 38.49 6.59 74.0 -35.51 Peak 70.80 100 Vertical Pass 2** 9285.250 27.06 6.59 54.0 -26.94 AV 70.80 100 Vertical Pass 3 10203.750 39.98 9.15 74.0 -34.02 Peak 1.00 100 Vertical Pass 3** 10203.750 29.26 9.15 54.0 -24.74 AV 1.00 100 Vertical Pass 4 11133.250 43.04 10.69 74.0 -30.96 Peak 1.00 100 Vertical Pass 4** 11133.250 32.78 10.69 54.0 -21.22 AV 1.00 100 Vertical Pass 5 14158.250 50.44 18.82 74.0 -23.56 Peak 70.80 100 Vertical Pass 5** 14158.250 40.03 18.82 54.0 -13.97 AV 70.80 100 Vertical Pass 6 17997.251 58.76 27.75 74.0 -15.24 Peak 134.80 100 Vertical Pass 6** 17997.251 49.31 27.75 54.0 -4.69 AV 134.80 100 Vertical Pass TEST REPORT Report No.: SHE22060072-02AE Date: 2022-07-19 Page 46 of 84 Figure 12: The plots of BLE_1Mbps_2480 Channel, Horizontal polarization_30MHz-1GHz No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 67.578 20.55 -28.50 40.0 -19.45 Peak 27.90 100 Horizontal Pass 2 98.368 23.57 -26.77 43.5 -19.93 Peak 37.00 150 Horizontal Pass 3 191.950 23.92 -26.70 43.5 -19.58 Peak 32.10 150 Horizontal Pass 4 344.929 24.35 -21.82 46.0 -21.65 Peak 0.00 150 Horizontal Pass 5 430.995 26.37 -20.31 46.0 -19.63 Peak 348.80 100 Horizontal Pass 6 524.819 37.82 -17.96 46.0 -8.18 Peak 255.60 150 Horizontal Pass TEST REPORT Report No.: SHE22060072-02AE Date: 2022-07-19 Page 47 of 84 The plots of BLE_1Mbps_2480 Channel, Vertical polarization_30MHz-1GHz No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 67.336 22.01 -28.42 40.0 -17.99 Peak 256.20 150 Vertical Pass 2 98.368 24.26 -26.77 43.5 -19.24 Peak 360.00 150 Vertical Pass 3 191.950 25.28 -26.70 43.5…
