2A7Y6-R15R15 GIMBAL

单键单轴稳拍器说明书2022.8.11 阿矿 50 ＿ 一 用户手册 第1步在手机上依次点击设置＞蓝牙， 并将手机蓝牙打开。 第2步长按拍照键（约2秒）直至指示灯闪 烁后成功开机。 第3步当搜索到名为"Selfie"的蓝牙设备时 ，点击并选择配对0 1· 开启稳拍器电源前必须先将横滚轴锁拨至 第4步打开相机APP, 按下拍照键即可拍 解锁位置，否则将有可能导致稳拍器损坏。 摄照片或视频。 第5步长按拍照键（约3秒）直至指示灯熄 灭后成功关机。 1将横滚轴锁拨至解锁位置。并将稳拍器三 脚架打开放在水平桌面上。 2、将手机置入手机夹中，调整手机位置， 直至可以使手机自然旋转至接近水平位置。 型号： R15 2伸缩杆 3蓝牙遥控器 4遥控器电源＼拍照键 5遥控器电源指示灯 6. 三脚架 7电源键 8稳拍器充电接口 9横滚轴锁 10手机夹 ｀ 请扫码获取视频教程 nm 1稳拍器＼遥控器＼补光灯无法开机 请接上电源为设备充电。 2开机后蓝牙遥控器无法连接／无法正常工作． 移除手机上的蓝牙配对，重启蓝牙遥控器后 重新配对连接。 3电机连发三次提示音· 为稳定器电机运动受阻所致，请立即关闭稳 定器电源并检查横滚轴锁是否解除，或更换 较轻的拍摄设备。 唇 1诮勿将产品置于低温、潮湿环境保存。 2请勿将产品置于曝晒、火烤等高温环境。 3请勿在设备被限制的场所中使用，避免违 反公共秩序。 4本产品含有电池，请放置于婴幼儿触摸不 到的地方，防止小孩误吞。 5产品图片、尺寸仅供参考，请以所购买款 式为准。 感谢您的支持！ 合格证 元CE,:; RoHS 旦 75 Instructions Model: R15 34 ＿ 7 8 1.Stab山zer 2. Telescopic Stick 3.Rmote 7.Power Botton 4.Powe「Botton\Shutter8.Charging Port 5.LED 9.Roller Lock 6.Tripod Stand 10.Mobile Phone Clip ＿ Step 1: On your phone, tap Settings > Bluetooth, and then turn on the Bluetooth. Step 2: Hold down the shutter button (about 2s) until indicator light starts flashing to turn on the remote control. Step 3: Once the Bluetooth name of "Selfie" appears in the display, select it and tap "pair" Step 4: Press the Shutter button to take photos Step 5: Hold down the shutter button (about 3s) until indicator light goes out to turn off the remote control 飞 Please scan the code for video tuto『ials ＿ Stepl.Unlock the Roller lock and place the stabilizer on a horizontal table with tripod op Step2:Put the mobile phone into the mobile phone clip and ad」ustthe position of the mobile phone until it can rotate naturally to close to the horizontal position. *Before turning on the power supply of the stabilizer, you must turn the roller lack ta the unlocked position first, otherwise the stabilizer may be damaged. FCC Warning Statement Changes ar madifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to � rovide reasonable protection against armful interference in a「esidential installation. This equipment generates uses and can radiate radio fre � uency energy and, if not installed an used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. - - Increase the separation between the equipment and receiver. - - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced Thanks for your support ! Certificated 元CE,'.; RoHS 巴

< Dongguan Mingqinxin Electronics Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Dec. 01, 2022 Subject; Request for Long Term Confidentiality FCC ID: 2A7Y6-R15 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jiaxin Lin Title: Manager

Dongguan Mingqinxin Electronics Co., Ltd Letter of Authorization Company: Dongguan Mingqinxin Electronics Co., Ltd Address: 302, building 5, fengzhimei Industrial Zone, Jintian Road, Huangdong, Fenggang, Dongguan, China Product name: R15 GIMBAL Trade name: N/A Model name: R15, R25, R25S, R35, R35S, R45, R45S, R55, R55S, R1, R1S, H1, H1S, H8, H8S, H9, R21, R21S, R23, R23S, XT-02, XT-02SP, Q07, Q07S FCC Identifier: 2A7Y6-R15 We authorize MiCOM LabsInc, 575 Boulder Court, Pleasanton, California94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Jiaxin Lin Date: Dec. 01, 2022 Title: Manager Signature of applicant:

Model Difference Declaration To Whom It May Concern, We, Dongguan Mingqinxin Electronics Co., Ltd Product name: R15 GIMBAL Trade name: N/A Model name: R15, R25, R25S, R35, R35S, R45, R45S, R55, R55S, R1, R1S, H1, H1S, H8, H8S, H9, R21, R21S, R23, R23S, XT-02, XT-02SP, Q07, Q07S All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: R15. Please contact me if you have any question. Name: Jiaxin Lin Date: Dec. 01, 2022 Title: Manager Signature of applicant:

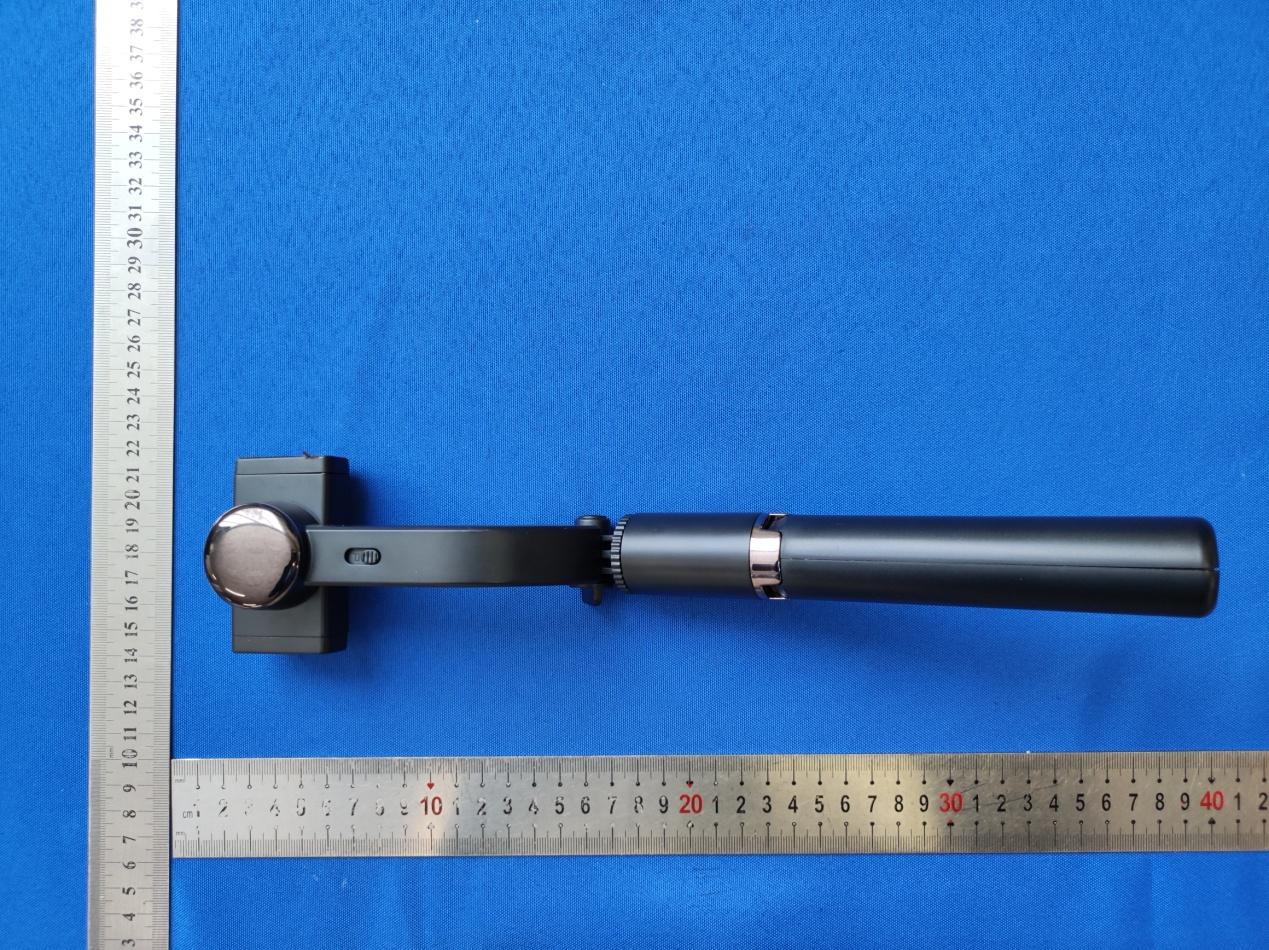

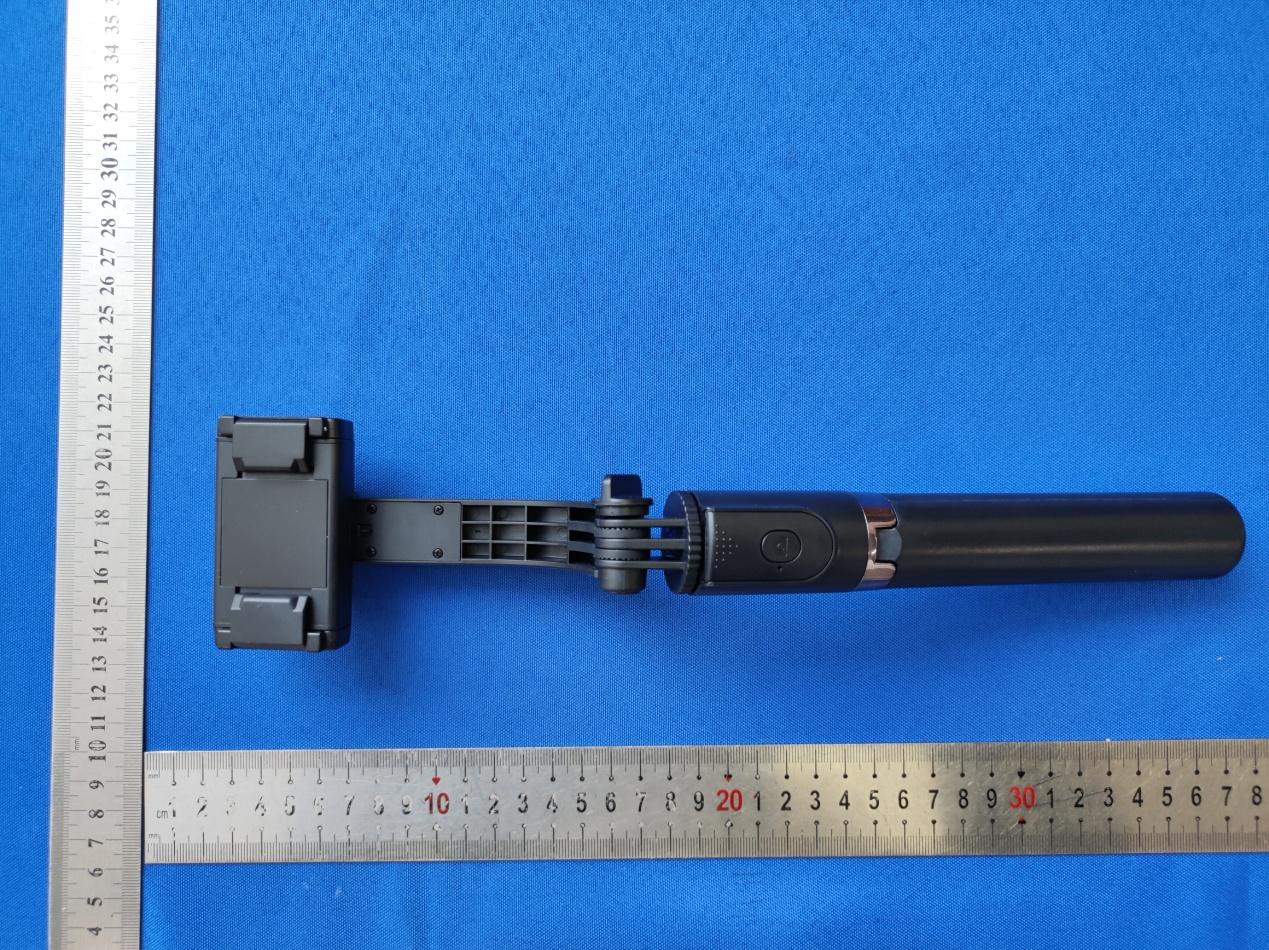

Model: R15 Model: R15 Model: R15 Model: R15

FCC ID LABEL: Label Location: Long: 2cm Width: 0.5cm FCC ID: 2A7Y6-R15

Model: R15 Model: R15 Model: R15 Model: R15 Model: R15 PCB Antenna

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 0 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 1.0% Gain (dBi) 0 (Avg Gain XY-plane) Maximum Power (dBm) 0 (XY-plane) Minimum Power (dBm) 0(XY-plane) Avg. Power (dBm) 0(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical& Horizontal V .S.W .R <6 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 0 0 0 0 0 0 0 Return Loss 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Page 1 of 28 Report No.: UNIA22112309ER-61 FCC RADIO TEST REPORT FCC ID: 2A7Y6-R15 Sample： R15 GIMBAL Trade Name： N/A Main Model： R15 Additional Model： R25, R25S, R35, R35S, R45, R45S, R55, R55S, R1, R1S, H1, H1S, H8, H8S, H9, R21, R21S, R23, R23S, XT-02, XT-02SP, Q07, Q07S Report No.： UNIA22112309ER-61 Prepared for Dongguan Mingqinxin Electronics Co., Ltd 302, building 5, fengzhimei Industrial Zone, Jintian Road, Huangdong, Fenggang, Dongguan, China Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang Community, Xixiang Str, Bao'an District, Shenzhen, China Page 2 of 28 Report No.: UNIA22112309ER-61 TEST RESULT CERTIFICATION Applicant .............................. : Dongguan Mingqinxin Electronics Co., Ltd Address ................................. : 302, building 5, fengzhimei Industrial Zone, Jintian Road, Huangdong, Fenggang, Dongguan, China Manufacturer ........................ : Dongguan Mingqinxin Electronics Co., Ltd Address ................................. : 302, building 5, fengzhimei Industrial Zone, Jintian Road, Huangdong, Fenggang, Dongguan, China Product description Product ....................................... : R15 GIMBAL Trade Name ........................... : N/A Model Name .......................... : R15, R25, R25S, R35, R35S, R45, R45S, R55, R55S, R1, R1S, H1, H1S, H8, H8S, H9, R21, R21S, R23, R23S, XT-02, XT-02SP, Q07, Q07S Test Methods ........................ : FCC Rules and Regulations Part 15 Subpart C Section 15.249, ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : Nov. 23, 2022 ~ Nov. 29, 2022 Date of Issue .......................................... : Dec. 01, 2022 Test Result.............................................. : Pass Prepared by: Kahn yang/Supervisor Reviewer: Kelly Cheng/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 28 Report No.: UNIA22112309ER-61 Table of Contents Pages 1 TEST SUMMARY ........................................................................................................ 4 1.1 TEST PROCEDURES AND RESULTS .......................................................................... 4 1.2 TEST FACILITY ............................................................................................................ 4 1.3 MEASUREMENT UNCERTAINTY ................................................................................ 5 2 GENERAL INFORMATION ......................................................................................... 6 2.1 GENERAL DESCRIPTION OF EUT .............................................................................. 6 2.2 CARRIER FREQUENCY OF CHANNELS ..................................................................... 7 2.3 TEST MODE ................................................................................................................. 7 2.4 TEST SETUP ................................................................................................................ 8 2.5 EQUIPMENT USED IN TESTED SYSTEM ................................................................... 8 2.6 MEASUREMENT INSTRUMENTS LIST ....................................................................... 9 3 CONDUCTED EMISSION ......................................................................................... 10 3.1 TESTLIMIT .................................................................................................................. 10 3.2 TEST SETUP .............................................................................................................. 10 3.3 TEST PROCEDURE ................................................................................................... 11 3.4 TESTRESULT ............................................................................................................. 11 4 RADIATED EMISSION .............................................................................................. 12 4.1 TESTLIMIT .................................................................................................................. 12 4.2 TESTSETUP ............................................................................................................... 13 4.3 TEST PROCEDURE ................................................................................................... 14 4.4 TESTRESULT ............................................................................................................. 14 5 BAND EDGE ............................................................................................................. 20 5.1 TESTLIMIT .................................................................................................................. 20 5.2 TEST PROCEDURE ................................................................................................... 20 5.3 TESTRESULT ............................................................................................................. 20 6 OCCUPIED BANDWIDTH ......................................................................................... 23 6.1 TESTSETUP ............................................................................................................... 23 6.2 TEST PROCEDURE ................................................................................................... 23 6.3 TESTRESULT .................................................…
