2A7ZC-SG6Geodetic GNSS Receiver

Premium Surveying. Trusted Solutions Revision 1.0 June 01, 2018 GEOMATE SG6 GNSS User Guide Table of Content GEOMATE SG6 GNSS USER GUIDE | 2023-02 P a g e | 2 Table of Content Table of Content ................................................................................................................ 2 Preface .............................................................................................................................. 5 Copyright ................................................................................................................................. 5 Safety Warnings ....................................................................................................................... 5 FCC Statement......................................................................................................................... 5 CE Interference Statement ...................................................................................................... 6 1 Introduction ................................................................................................................ 7 1.1 Safety Information ............................................................................................... 7 1.1.1 Warnings and Cautions ........................................................................................ 7 1.2 Regulations and Safety ........................................................................................ 7 1.2.1 Use and Care ........................................................................................................ 8 1.3 Technical Support ................................................................................................. 8 1.4 Disclaimer ............................................................................................................ 8 1.5 Your Comments ................................................................................................... 8 2 Getting Started with SG6 ............................................................................................. 9 2.1 About the Receiver .............................................................................................. 9 2.2 Parts of the Receiver ........................................................................................... 9 2.2.1 Front Panel .......................................................................................................... 9 2.2.2 Lower Housing ................................................................................................... 11 2.2.3 Receiver Ports .................................................................................................... 11 2.3 Batteries and Power .......................................................................................... 12 2.3.1 Batteries ............................................................................................................ 12 2.3.2 The Internal Battery........................................................................................... 12 2.3.3 Battery Safe ....................................................................................................... 14 2.3.4 External Power Supply ....................................................................................... 15 2.4 Product Basic Supply Accessories ...................................................................... 16 2.4.1 Base Kit Basic Supply ......................................................................................... 16 2.4.2 Rover Kit Basic Supply ....................................................................................... 17 2.5 UHF Antenna Description .................................................................................. 18 2.6 Connecting to an Office Computer .................................................................... 19 2.7 Connecting to a Controller ................................................................................ 20 2.7.1 Connecting via Wi-Fi with Mate Survey Software ............................................. 20 2.7.2 Connecting via Bluetooth with MateSurvey Software ...................................... 22 2.8 Downloading Logged Data ................................................................................. 24 2.8.1 FTP Download .................................................................................................... 24 2.8.2 Web Server Download ....................................................................................... 25 Table of Content GEOMATE SG6 GNSS USER GUIDE | 2023-02 P a g e | 3 2.8.3 USB Download ................................................................................................... 26 3 Equipment Setup and Operation ................................................................................ 28 3.1 Post-processing Base Station Setup .................................................................. 28 3.2 Real-Time Rover Station Setup .......................................................................... 30 3.3 Working with the Tilt Compensation ................................................................ 32 3.3.1Operation Steps .......................................................................................................... 32 3.3.2Notes of using tilt measurement ................................................................................ 34 4 Configuring Through a Web Browser .......................................................................... 38 4.1 Status Menu .................................................................................................................... 40 4.1.1 Position Submenu .............................................................................................. 40 4.1.2 Activity Submenu ............................................................................................... 40 4.1.3 Google Map Submenu .............................…

Text truncated - open the document above for the full version.

GEOMATE POSITIONING PTE. LTD. 808 FRENCH ROAD #04-167 KITCHENER COMPLEX SINGAPORE(200808) Singapore Date: July 30, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A7ZC-SG6 FRN: 0032673824 US Agent – Attestation Statement / Part 2.911(d)(7) GEOMATE POSITIONING PTE. LTD. certifies, that as of July 30, 2024, we have designated iGage Mapping Corporation to accept service of process on our behalf for FCC ID: 2A7ZC-SG6. GEOMATE POSITIONING PTE. LTD., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. iGage Mapping Corporation accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of GEOMATE POSITIONING PTE. LTD. for FCC ID: 2A7ZC-SG6. Designated Agent Information: Company Name: iGage Mapping Corporation FRN: 0013933296 Address: 1545 South 1100 East #1, Salt Lake City, UTAH 84105, United States Contact Person: Mark E Silver Email: [email protected] Sincerely, Company: GEOMATE POSITIONING PTE. LTD. Designated Agent: iGage Mapping Corporation Company Representative: GLENN CHU Designated Agent Representative: Mark E Silver Signature: Signature:

GEOMATE POSITIONING PTE. LTD. Covered Equipment Certification Attestation Letter 8/5/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2A7ZC-SG6 GEOMATE POSITIONING PTE. LTD. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. GEOMATE POSITIONING PTE. LTD. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: GLENN CHU Title: Certification Manager Company Name: GEOMATE POSITIONING PTE. LTD. Date: 8/5/2024

July 30, 2024 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A7ZC-SG6 Product Name: Geodetic GNSS Receiver Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name GLEN CHU Company Name GEOMATE POSITIONING PTE. LTD. Address 808 FRENCH ROAD #04-167 KITCHENER COMPLEX SINGAPORE(200808) Tel +8675529766001 Fax +8675529766001 Email [email protected]

July 30, 2024 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Alpha Product Testing Co., Ltd. Address: Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with GEOMATE POSITIONING PTE. LTD. Address: 808 FRENCH ROAD #04-167 KITCHENER COMPLEX SINGAPORE(200808) ( applicant name and address). Signature: Name GLEN CHU Company Name GEOMATE POSITIONING PTE. LTD. Address 808 FRENCH ROAD #04-167 KITCHENER COMPLEX SINGAPORE(200808) Tel +8675529766001 Fax +8675529766001 Email [email protected]

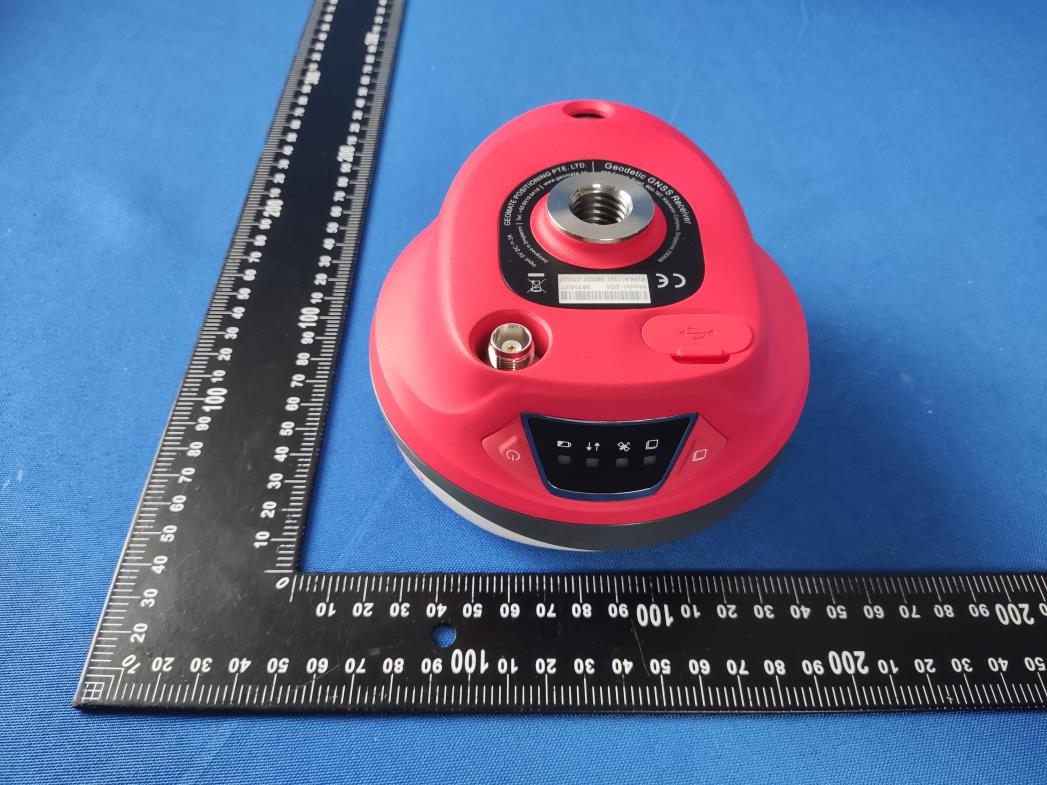

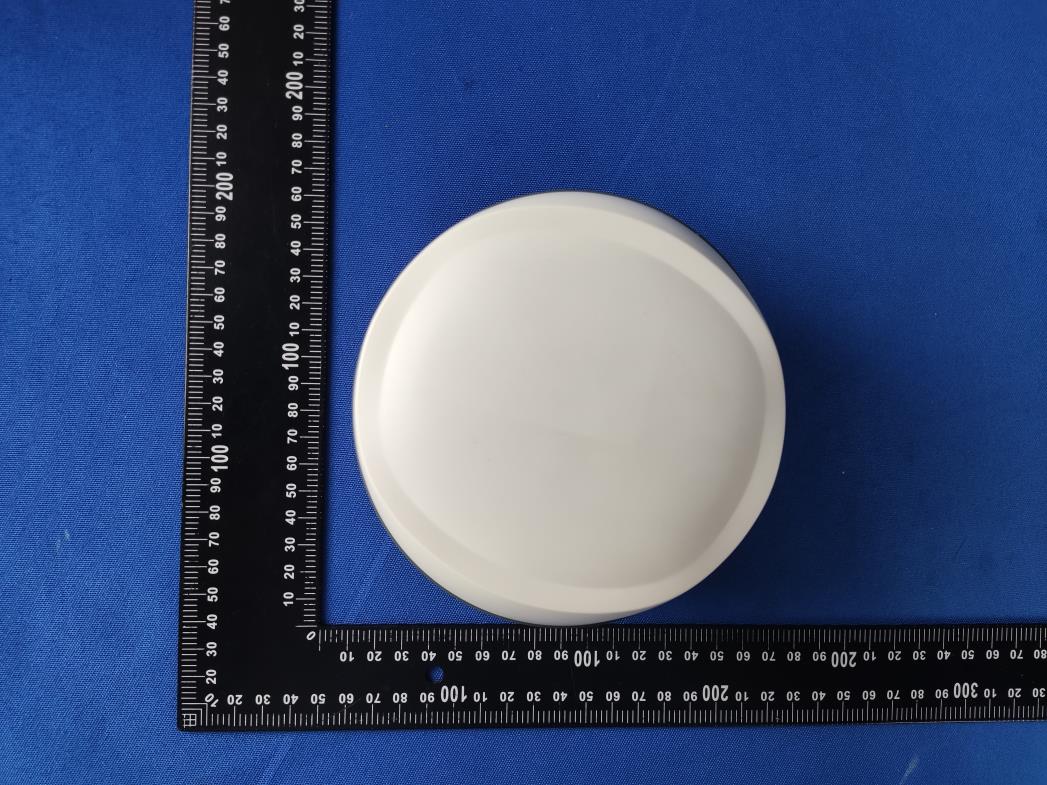

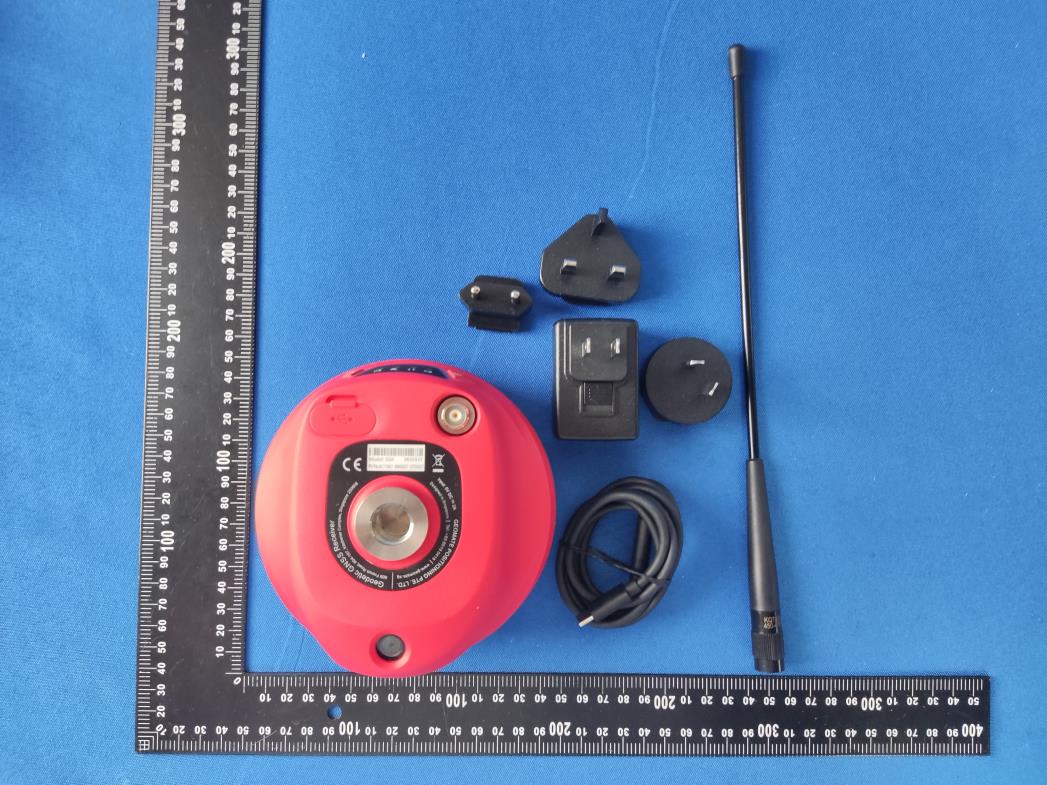

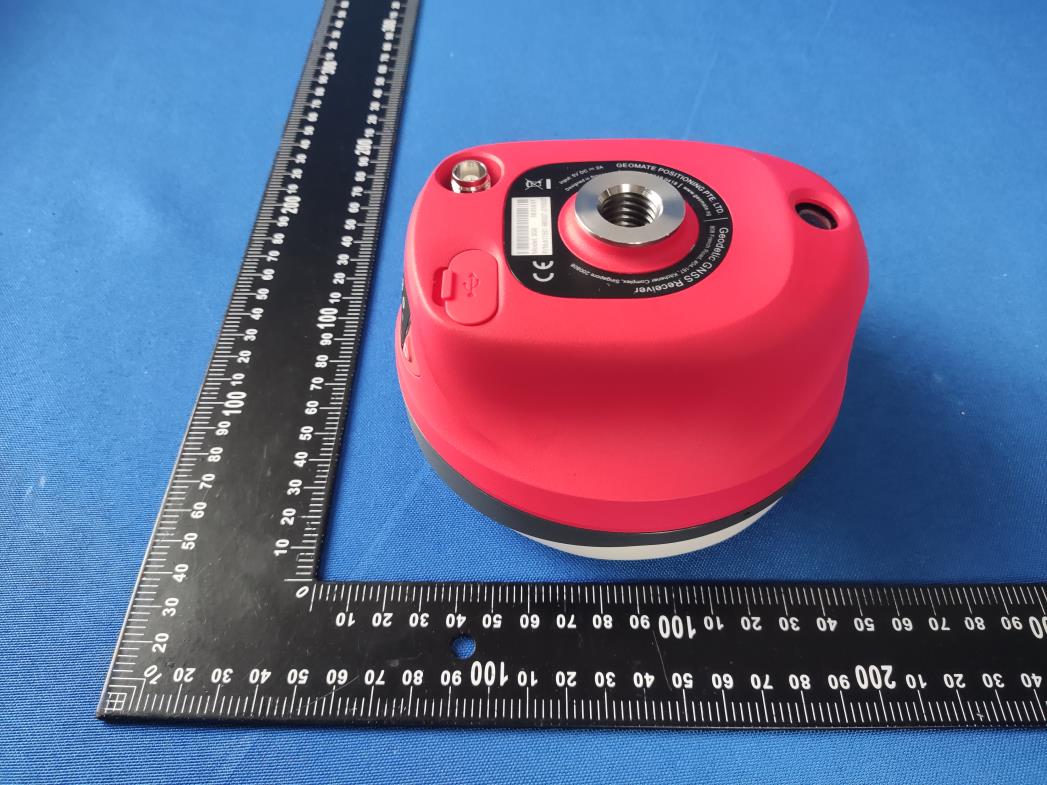

FCCID: 2A7ZC-SG6 UHF ANT FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6

4.5cm 2.5cm Label Location FCC ID: 2A7ZC-SG6 GEOMATE POSITIONING PTE. LTD. Product name: Geodetic GNSS Receiver Model No.: SG6 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 BT WIFI UHF FCCID: 2A7ZC-SG6 UHF FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 2.4GWIFI&5GWIFI ANT FCCID: 2A7ZC-SG6 BT ANT FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6 FCCID: 2A7ZC-SG6

- 1 - Tune-up Procedure During manufacturing each phone will be individually calibrated. The measurement is done in a fully calibrated setup, which is based on Anritsu MT8820C (adjustment of gain factors) or Agilent 8960 or RS CMU200 or RS CMW500 (control of power levels). Furthermore, the highest power level is verified afterwards in a call or data measurement on three channels (low, mid and high). Procedure: 1. Set the phone to operational voltage and on one certain channel in a special service mode by means of company proprietary software. 2. The actual power is measured at several power levels. 3. The gain factors of each individual phone are adjusted via the Board-test SW using automatic adjustment arithmetic until the Tune-up value is met. 4．The Tune-up value is below: - 2 - 1) WiFi WiFi 802.11b (2.4GHz) Normal Channel Channel 1 Channel 7 Channel 13 Target (dBm) 14 14 15 Tune-up(dB) 14± 1 14± 1 15± 1 WiFi 802.11g (2.4GHz) Normal Channel Channel 1 Channel 7 Channel 13 Target (dBm) 15 14 16 Tune-up(dB) 15± 1 14± 1 16± 1 WiFi 802.11n20 (2.4GHz) Normal Channel Channel 1 Channel 7 Channel 13 Target (dBm) 15 14 16 Tune-up(dB) 15± 1 14± 1 16± 1 WiFi 802.11n40 (2.4GHz) Normal Channel Channel 3 Channel 7 Channel 11 Target (dBm) 16 16 16 Tune-up(dB) 16± 1 16± 1 16± 1 WiFi 802.11ac80 (5GHz) Normal Channel Channel 42 / / / / Target (dBm) 14 / / / / Tune-up(dB) 14± 1 / / / / 2) Bluetooth (所有模式均需要分信道设置Tune up) GFSK Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4 5 4 Tune-up(dB) 4± 1 5± 1 4± 1 DQPSK Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3 3 3 Tune-up(dB) 3± 1 3± 1 3± 1 8DPSK Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3 4 3 Tune-up(dB) 3± 1 4± 1 3± 1 - 3 - 3) UHF GMSK mode (1W) Channel Channel Low Channel Mid Channel High Channel spacing 12.5 25 12.5 25 12.5 25 Target (dBm) 30 30 30 30 30 30 Tune-up(dB) 30± 1 30± 1 30± 1 30± 1 30± 1 30± 1 GMSK mode (0.5W) Channel Channel Low Channel Mid Channel High Channel spacing 12.5 25 12.5 25 12.5 25 Target (dBm) 26.99 26.99 26.99 26.99 26.99 26.99 Tune-up(dB) 26.99± 1 26.99± 1 26.99± 1 26.99± 1 26.99± 1 26.99± 1 The appropriate gain control settings are stored in RF table (a special section in Flash marked with Read only and untouchable for end user) each phone individually (for each power level). The user has no possibility to change these settings later on.

FCC ID: 2A7ZC-SG6 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure FCC Rules 47 CFR §2.1093 KDB 447498 D04 interim General RF Exposure Guidance v01 Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2A7ZC-SG6 3. Result Worse case is as below: Mode Frequency (MHz) Prediction distance (cm) RF output power MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW EDR 2441 50 5.093 3.2307 0.00010 1 Yes 2.4GWIFI 2452 50 16.942 49.4538 0.00157 1 Yes 5GWIFI 5210 50 14.479 28.0479 0.00089 1 Yes UHF 469.95 50 29.283 847.8129 0.06779 0.3133 Yes Maximum Simultaneous transmission MPE Ratios for EDR+WIFI+UHF: Max MPE ratio EDR /Limit Max MPE ratio WIFI /Limit Max MPE ratio UHF /Limit ∑MPE ratios Limit Result 0.00010 0.00157 0.06779 0.06946 1 PASS EDR Antenna Gain: 0dBi, 1(numeric) WIFI Antenna Gain: 0dBi, 1(numeric) UHF Antenna Gain: 4dBi, 2.51(numeric) Meet MPE requirements, then SAR evaluation is not required.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008300895 Website: http://www.a-lab.cn/certificate FCC TEST REPORT FCC ID: 2A7ZC-SG6 On Behalf of GEOMATE POSITIONING PTE. LTD. Geodetic GNSS Receiver Model No.: SG6 Prepared for : GEOMATE POSITIONING PTE. LTD. Address : 808 FRENCH ROAD #04-167 KITCHENER COMPLEX SINGAPORE(200808) Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2406033-C01-R02 Date of Receipt : June 18, 2024 Date of Test : June 18, 2024-July 22, 2024 Date of Report : July 24, 2024 Version Number : V0 Test Result : Pass Page 2 of 64 Report No.: A2406033-C01-R02 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ............................................................................................ 6 1.1. Description of Standards and Results ..................................................................................... 6 2. General Information ........................................................................................................................ 7 2.1. Description of Device (EUT) .................................................................................................... 7 2.2. Accessories of Device (EUT) .................................................................................................. 8 2.3. Tested Supporting System Details .......................................................................................... 8 2.4. Block Diagram of connection between EUT and simulators ................................................... 8 2.5. Test Mode Description ............................................................................................................. 8 2.6. Test Conditions ........................................................................................................................ 9 2.7. Test Facility .............................................................................................................................. 9 2.8. Measurement Uncertainty ....................................................................................................... 9 2.9. Test Equipment List ............................................................................................................... 10 3. Maximum Peak Output power...................................................................................................... 12 3.1. Limit ....................................................................................................................................... 12 3.2. Test Procedure ...................................................................................................................... 12 3.3. Test Setup .............................................................................................................................. 12 3.4. Test Result ............................................................................................................................. 12 4. Bandwidth ...................................................................................................................................... 13 4.1. Limit ....................................................................................................................................... 13 4.2. Test Procedure ...................................................................................................................... 13 4.3. Test Result ............................................................................................................................. 13 5. Carrier Frequency Separation ..................................................................................................... 24 5.1. Limit ....................................................................................................................................... 24 5.2. Test Procedure ...................................................................................................................... 24 5.3. Test Result ............................................................................................................................. 24 6. Number Of Hopping Channel ....................................................................................................... 26 6.1. Limit ....................................................................................................................................... 26 6.2. Test Procedure ...................................................................................................................... 26 6.3. Test Result ............................................................................................................................. 26 7. Dwell Time ..................................................................................................................................... 28 7.1. Test limit ................................................................................................................................. 28 7.2. Test Procedure ...................................................................................................................... 28 7.3. Test Result ............................................................................................................................. 28 8. Radiated emissions ...................................................................................................................... 38 8.1. Limit ....................................................................................................................................... 38 8.2. Block Diagram of Test setup ........................................................…

Text truncated - open the document above for the full version.

深圳市华信天线技术有限公司 Harxon Corporation Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 1/8 Antenna specification 深圳市华信天线技术有限公司 Harxon Corporation Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 2/8 Applicant Shanghai Huace Navigation Technology Ltd. Address 577 Songying Road, Qingpu District, 201706 Shanghai, China Antenna model: MARB AT V1.0 APPlications ※Bluetooth Home RF ※ISM band 2.4GHz applications 1.Dimensions Size: length: 22mm width: 7mm 2.Specifications number Item Specifications 1 Working Central Frequency 2441 MHz 2 Band Width (2402-2480)MHz 3 Gain 0dBi 4 VSWR Resonance point≤2.0 5 Antenna type PCB antenna 6 Azimuth Beam width Omni‐directional 7 Impedance 50ohm 8 Modulation mode GFSK 深圳市华信天线技术有限公司 Harxon Corporation Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 3/8 3.simulation parameter ① VSWR Mkr1: 2402MHz 4.3 Mkr2: 2441MHz 1.7 Mkr3: 2480 MHz 3.2 深圳市华信天线技术有限公司 Harxon Corporation Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 4/8 ②Smith Chart Mkr1: 2402MHz 16 Mkr2: 2441MHz 32 Mkr3: 2480MHz 160 深圳市华信天线技术有限公司 Harxon Corporation Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 5/8 ③Return Loss Mkr1: 2402MHz -4 Mkr2: 2441MHz -11 Mkr3: 2480 MHz -5.6 深圳市华信天线技术有限公司 Harxon Corporation Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 6/8 ④Smith Chart Mkr1: 2402MHz -4 Mkr2: 2441MHz -11 Mkr3: 2480 MHz -5.6 ⑤Phase 7Mkr1: 2402MHz -113 Mkr2: 2441MHz 143 Mkr3: 2480MHz -1 深圳市华信天线技术有限公司 Harxon Corporation Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 7/8 4. Radiation Pattems 2441MHz 深圳市华信天线技术有限公司 Harxon Corporation Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 8/8  3DRadiation pattern 2441MHz

FCCID: 2A7ZC-SG6 Radiated Emission FCCID: 2A7ZC-SG6 Conducted emission
