DongGuan Hidizs Technology Co.,Ltd. Room 101, Building 40-1, Chuangye 1st Road, Changping Town, Dongguan City, Guangdong Province, 523000 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/22 U.S. Agent Designation DongGuan Hidizs Technology Co.,Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A7ZP-AP80PROMAX): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of DongGuan Hidizs Technology Co.,Ltd. DongGuan Hidizs Technology Co.,Ltd. with the FRN [0032681017] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Tamson Tan CEO DongGuan Hidizs Technology Co.,Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

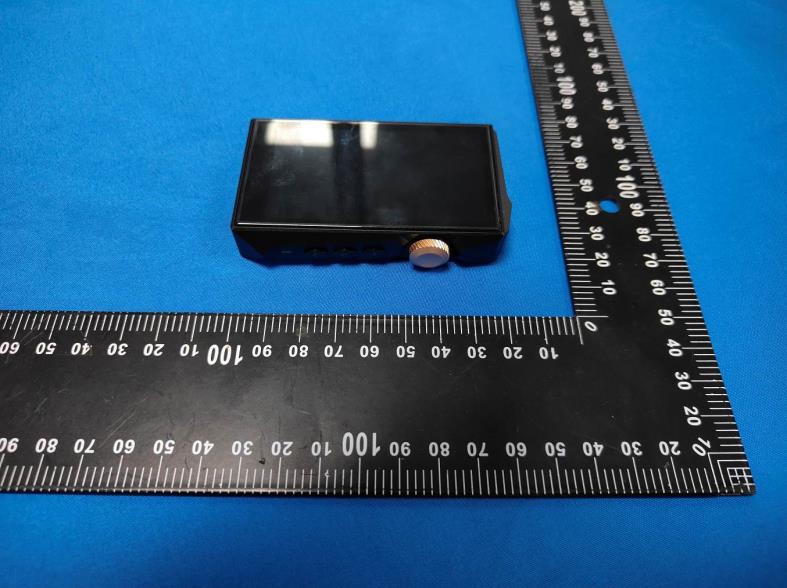

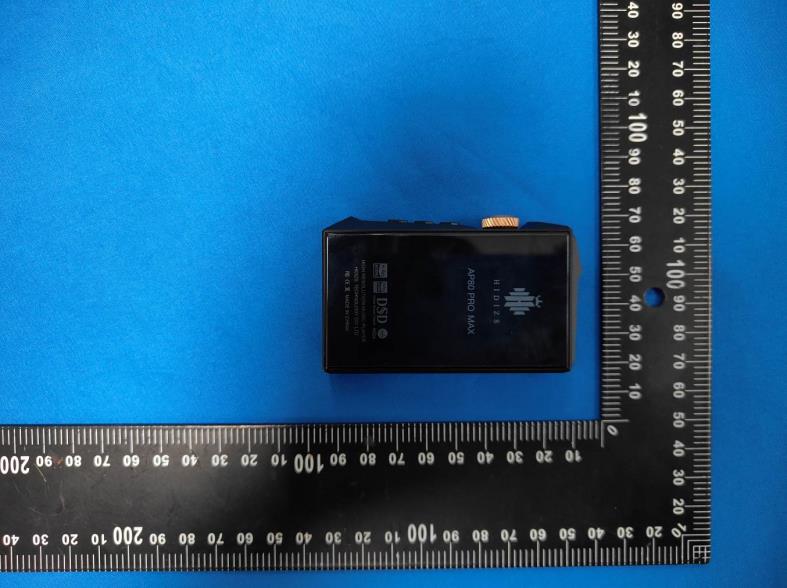

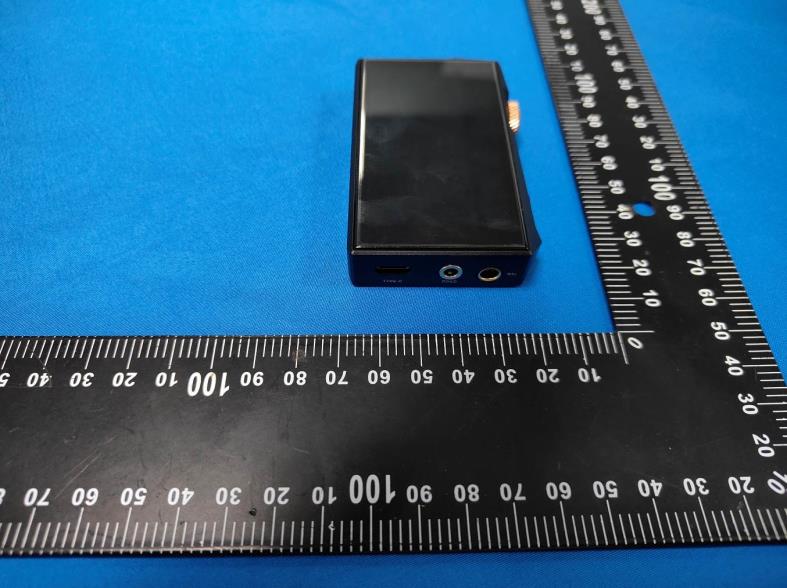

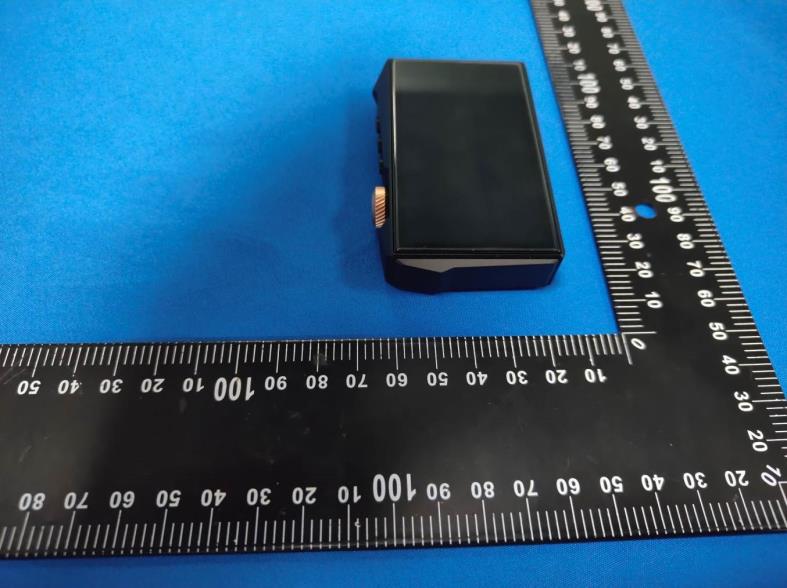

FCC ID:2A7ZP-AP80PROMAX External Photos of the EUT FCC ID:2A7ZP-AP80PROMAX

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A7ZP-AP80PROMAX

FCC ID:2A7ZP-AP80PROMAX Internal Photos of the EUT ANT FCC ID:2A7ZP-AP80PROMAX FCC ID:2A7ZP-AP80PROMAX

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25120400602 2A7ZP-AP80PROMAX Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 10, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : DongGuan Hidizs Technology Co.,Ltd. Address............................................ : Room 101, Building 40-1, Chuangye 1st Road, Changping Town, Dongguan City, Guangdong Province, 523000 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : AP80 PRO MAX Portable High-Res Lossless Music Player Trade Mark ....................................... : HIDIZS Manufacturer .................................... : DongGuan Hidizs Technology Co.,Ltd. Model/Type reference ...................... : AP80 PRO MAX Listed Models ................................... : Refer to page 2 Ratings ............................................. : Input: 5V 2.0A Battery: 3.8V 1300mAh 4.94Wh Result ............................................... : PASS Report No.: CTA25120400602 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : AP80 PRO MAX Portable High-Res Lossless Music Player Model /Type : AP80 PRO MAX Listed Models : AP80PRO MAX, AP10, AP20, AP30, AP30PRO, AP80 ULTRA, AP90, AP90 PRO, AP90PRO MAX Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : DongGuan Hidizs Technology Co.,Ltd. Address : Room 101, Building 40-1, Chuangye 1st Road, Changping Town, Dongguan City, Guangdong Province, 523000 China Manufacturer : DongGuan Hidizs Technology Co.,Ltd. Address : Room 101, Building 40-1, Chuangye 1st Road, Changping Town, Dongguan City, Guangdong Province, 523000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120400602 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Result ......................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ................................................................................…

Text truncated - open the document above for the full version.

1 深圳市飞敏科技有限公司 ShenZhen City FeiMin Technology CO.,LTD. 产品承认书 SPECIFICATION FOR APPROVED 客户 CUSTOMER: 东莞市凯泰科技有限公司 产品名称 PRODUCTS: FPC天线 客户料号 PART NO: 产品型号 Spec.: FM-S2735-AP80PRO MAX 日期 Data: 2025.11.26 备注：承认盖章后请回复一份承认书（或复印件）给我司，其余由贵公司存档 REMARK:Please send us one(or copy)of this approval with stamp after accepting,other copies filed by the customer. 地址：深圳市宝安区西乡街道固兴社区盛辉路 4 号科运达电商基地 8 楼 801室 ADD: Room 801, 8th Floor, Keyunda E-commerce Base, No. 4 Shenghui Road, Guxing Community, Xixiang Subdistrict, Baoan District, Shenzhen. 电话Tel: 0755-23035723 传真Fax: 0755-23036702 邮箱E-mail: [email protected] 网址HTTP:www.fmant.cn 客户 CUSTOMER 承认 ACCEPTED BY 审核 CHECKED BY 批准 APPROVED BY 供应商 SUPPLIER 拟制 PREPARED BY 审核 CHECKED BY 批准 APPROVED BY 2 目录 产品承认书 ..................................................................................................................... 1 1. 项目信息Project Information .................................................................................. 4 1.1. 外观尺寸Appearance and Dimensions .......................................................... 4 2. 电气性能 Electrical Characteristics ......................................................................... 5 2.1. 测试环境条件Test Environment Conditions ................................................. 5 2.2.测示方法Measurement method ......................................................................... 5 2.1.1. 天线电压驻波比Antenna VSWR ............................................................... 5 2.1.2. 天线回波损耗Antenna Return loss ................................................... 6 2.2. 天线无源测试数据 Antenna passive test data ................................. 6 2.2.1. 测试系统Test system ............................................................................... 6 2.3.2天线效率及增益Antenna efficiency and gain .............................. 7 2.3.3.天线辐射方向图Antenna Radiation Pattern ....................................... 7 3. 备注Notes................................................................................................................. 8 4. 产品包装规范Product packaging specification ...................................................... 8 ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 3 Revision history 版本 日期 状态 A1 2025-3-22 首版 A2 2025-3-24 客户要求总线长改为52mm A3 2025-3-25 客户要求端子更改为IPEX-3代 FPC更新为A5版本 A4 2025-11-26 增加测试数据 变更内容： 第一次变更： 变更前：（如有必要，请添加相应的图片，此处变更明细要描述清楚） 变更后：（如有必要，请添加相应的图片，此处变更明细要描述清楚） ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 4 1. 项目信息Project Information 1.1. 外观尺寸Appearance and Dimensions ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 5 2. 电气性能 Electrical Characteristics 2.1. 测试环境条件Test Environment Conditions 温度Temperature Ordinary Temperature (5 to 35°C) 湿度Humidity Ordinary Humidity (25 to 85% RH) 2.2.测示方法Measurement method 2.1.1. 天线电压驻波比Antenna VSWR ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 6 2.1.2. 天线回波损耗Antenna Return loss 2.2. 天线无源测试数据 Antenna passive test data 2.2.1. 测试系统Test system 深圳市飞敏科技有限公司（24探头OTA 微波暗室） ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 7 2.3.2天线效率及增益Antenna efficiency and gain Frequency (MHz) Efficiency(%) Gain(dB) 2400 41.71 1.45 2410 43.03 1.66 2420 45.39 1.88 2430 46.22 1.96 2440 45.50 1.92 2450 44.95 1.85 2460 46.94 2.04 2470 46.31 1.95 2480 46.08 1.88 2490 44.82 1.57 2500 43.53 1.53 2.3.3.天线辐射方向图Antenna Radiation Pattern ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 8 3. 备注Notes 1、安装时注意不能离金属部分太近，以避免影响天线性能。 2、此款天线只适用此机型，天线的位置不可以随意改动，若用于其它机器上导致效果变差，与我司无 关。 4. 产品包装规范Product packaging specification 产品名称:FPC天线 一、标签要求 内标签长7CM，宽4CM左右 外标签长7CM，5CM左右 二、装箱流程 作业说明： 1.产品___PCS用PE开口袋装好，每小袋贴好内标签； 将___小袋装入大PE封口胶带袋中，尾数及备品除外。 2.每箱装___大袋产品，将箱子用胶纸以“工”字形封箱。 3.在箱子的右上角贴上外标签，不可有漏填、填错现象。 三、注意事项 装箱时要注意将天线平整放好，封胶后不可出现严重晃 动情况，未填满整箱的情况需塞入泡棉填充，避免运输 过程中造成产品不良的情况。 客户名称 供 应 商 深圳市飞敏科技有限公司 订单编号 ************* 物料编码 ************* 规格型号 ****** 产品名称 ******* 数 量 *****PCS 检验 备品 ***PCS 备注 供 应 商 深圳市飞敏科技有限公司 产品名称 ****** 物料编码 ************ 规格型号 ********** 数 量 ***PCS 产品

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25120400601 2A7ZP-AP80PROMAX Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 10, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : DongGuan Hidizs Technology Co.,Ltd. Address ............................................ : Room 101, Building 40-1, Chuangye 1st Road, Changping Town, Dongguan City, Guangdong Province, 523000 China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : AP80 PRO MAX Portable High-Res Lossless Music Player Trade Mark ....................................... : HIDIZS Manufacturer .................................... : DongGuan Hidizs Technology Co.,Ltd. Model/Type reference ...................... : AP80 PRO MAX Listed Models ................................... : Refer to page 2 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Input: 5V 2.0A Battery: 3.8V 1300mAh 4.94Wh Result ............................................... : PASS Report No.: CTA25120400601 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : AP80 PRO MAX Portable High-Res Lossless Music Player Model /Type : AP80 PRO MAX Listed Models : AP80PRO MAX, AP10, AP20, AP30, AP30PRO, AP80 ULTRA, AP90, AP90 PRO, AP90PRO MAX Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : DongGuan Hidizs Technology Co.,Ltd. Address : Room 101, Building 40-1, Chuangye 1st Road, Changping Town, Dongguan City, Guangdong Province, 523000 China Manufacturer : DongGuan Hidizs Technology Co.,Ltd. Address : Room 101, Building 40-1, Chuangye 1st Road, Changping Town, Dongguan City, Guangdong Province, 523000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120400601 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ............................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2A7ZP-AP80PROMAX Company : DongGuan Hidizs Technology Co.,Ltd. EUT : AP80 PRO MAX Portable High-Res Lossless Music Player Model Number : AP80 PRO MAX Report No. : CTA25120400601 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.023 2401.484 2402.507 --- --- 2441 0.960 2440.544 2441.504 --- --- 2480 0.948 2479.550 2480.498 --- --- 2DH5 Ant1 2402 1.284 2401.379 2402.663 --- --- 2441 1.344 2440.337 2441.681 --- --- 2480 1.338 2479.340 2480.678 --- --- 3DH5 Ant1 2402 1.293 2401.376 2402.669 --- --- 2441 1.323 2440.349 2441.672 --- --- 2480 1.320 2479.346 2480.666 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86487 2401.5760 2402.4409 --- --- 2441 0.86533 2440.5745 2441.4398 --- --- 2480 0.87151 2479.5750 2480.4465 --- --- 2DH5 Ant1 2402 1.1880 2401.4171 2402.6051 --- --- 2441 1.1854 2440.4175 2441.6029 --- --- 2480 1.1875 2479.4160 2480.6035 --- --- 3DH5 Ant1 2402 1.1862 2401.4160 2402.6022 --- --- 2441 1.1884 2440.4160 2441.6044 --- --- 2480 1.1894 2479.4164 2480.6058 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.18 ≤20.97 PASS 2441 -0.07 ≤20.97 PASS 2480 -0.11 ≤20.97 PASS 2DH5 Ant1 2402 -0.66 ≤20.97 PASS 2441 -0.86 ≤20.97 PASS 2480 -0.98 ≤20.97 PASS 3DH5 Ant1 2402 -0.62 ≤20.97 PASS 2441 -0.86 ≤20.97 PASS 2480 -0.93 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.024 ≥1.023 PASS 2DH5 Ant1 Hop 0.988 ≥0.896 PASS 3DH5 Ant1 Hop 1.156 ≥0.882 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 316 0.123 ≤0.4 PASS DH3 Ant1 Hop 1.650 173 0.285 ≤0.4 PASS DH5 Ant1 Hop 2.890 106 0.306 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 316 0.123 ≤0.4 PASS 2DH3 Ant1 Hop 1.640 156 0.256 ≤0.4 PASS 2DH5 Ant1 Hop 2.900 117 0.339 ≤0.4 PASS 3DH1 Ant1 Hop 0.390 317 0.124 ≤0.4 PASS 3DH3 Ant1 Hop 1.650 162 0.267 ≤0.4 PASS 3DH5 Ant1 Hop 2.900 113 0.328 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.39 -58.12 ≤-20.39 PASS High 2480 -0.67 -55.42 ≤-20.67 PASS Low Hop_2402 -4.18 -61.6 ≤-24.18 PASS High Hop_2480 -3.82 -64.07 ≤-23.82 PASS 2DH5 Ant1 Low 2402 -3.46 -58.55 ≤-23.46 PASS High 2480 -5.56 -61.68 ≤-25.56 PASS Low Hop_2402 -3.23 -61.67 ≤-23.23 PASS High Hop_2480 -3.50 -58.48 ≤-23.5 PASS 3DH5 Ant1 Low 2402 -4.66 -60.68 ≤-24.66 PASS High 2480 -4.30 -56.35 ≤-24.3 PASS Low Hop_2402 -4.85 -61.76 ≤-24.85 PASS High Hop_2480 -4.31 -64.01 ≤-24.31 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.40 -0.40 --- PASS 30~1000 -0.40 -67.88 ≤-20.4 PASS 1000~26500 -0.40 -42.32 ≤-20.4 PASS 2441 Reference -0.96 -0.96 --- PASS 30~1000 -0.96 -67.37 ≤-20.96 PASS 1000~26500 -0.96 -43.68 ≤-20.96 PASS 2480 Reference -1.13 -1.13 --- PASS 30~1000 -1.13 -67.9 ≤-21.13 PASS 1000~26500 -1.13 -44.04 ≤-21.13 PASS 2DH5 Ant1 2402 Reference -5.47 -5.47 --- PASS 30~1000 -5.47 -65.66 ≤-25.47 PASS 1000~26500 -5.47 -49.35 ≤-25.47 PASS 2441 Reference -5.23 -5.23 --- PASS 30~1000 -5.23 -62.75 ≤-25.23 PASS 1000~26500 -5.23 -46.76 ≤-25.23 PASS 2480 Reference -3.72 -3.72 --- PASS 30~1000 -3.72 -66.2 ≤-23.72 PASS 1000~26500 -3.72 -49.11 ≤-23.72 PASS 3DH5 Ant1 2402 Reference -4.82 -4.82 --- PASS 30~1000 -4.82 -67.42 ≤-24.82 PASS 1000~26500 -4.82 -49.63 ≤-24.82 PASS 2441 Reference -6.74 -6.74 --- PASS 30~1000 -6.74 -67.08 ≤-26.74 PASS 1000~26500 -6.74 -48.72 ≤-26.74 PASS 2480 Reference -5.00 -5.00 --- PASS 30~1000 -5.00 -68.11 ≤-25 PASS 1000~26500 -5.00 -47.98 ≤-25 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000

36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 3DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480

FCC ID:2A7ZP-AP80PROMAX Test Setup Photos of the EUT FCC ID:2A7ZP-AP80PROMAX
