2A82Z-MAVRIKPROMAVRIK-PRO

STRIKERVR MAVRIK-PRO // PRODUCT MANUAL STRIKERVR.COM [email protected] With the StrikerVR Mavrik-Pro, players will experience virtual reality like never before—the future of VR gaming starts now. Its innovative recoil and haptic technologies unlock incredible force effects that can simu- late limitless tools and environments. You need to feel it to believe it. For the latest product information, requirements, warranty, and anything else please visit support.strikervr.com MAVRIK-PRO / PRODUCT MANUAL 5 MAVRIK-PRO OVERVIEW 6 ACTIVE TOUCH 7 QUICK START 8 DEVICE MODES 10 CHARGING YOUR MAVRIK-PRO 13 SETUP & INTEGRATION 14 CARE & MAINTENANCE 15 ELECTRICAL SPECIFICATIONS | STRIKERVR.COM / 3 TOP BOTTOM F R O N T B A C K EU POWER ADAPTER CHARGING CABLE UK LEF T VIEW 20.5 in x 2.6 in x 7.6 in3.3 LBS 520 mm x 66 mm x 193 mm1.5 KG STRIKERVR MAVRIK-PRO VR GAMING CONTROLLER L LH LS F1 LT PWR USB-C L TRIG F2 AT8 AT2 AT 7 AT6 AT1 AT5 AT4 AT3 | STRIKERVR.COM MAVRIK-PRO OVERVIEW ACTIVE TOUCH AREAS AT1: Trigger Sense AT2: Trigger Grip AT3: Reload AT4 : Front Hand Grip Face AT5: Front Hand Grip AT6: Under Touchpad Grip AT7: Forward Bar Grip AT8: Slide USER BUTTONS F1: Front Top Button F2: Front Bottom Button -- LT/RT: Left/Right Touchpad L/R: Left/Right Side Button -- TRIG: Trigger PWR: Power Button ACCESSORIES Power Adapter USB-C Charging Cable UK Power Adapter Plug EU Power Adapter Plug OTHER LH/RH: LED Halo LS/RS: LED Strip USB-C: Charging Port GET THIS: Our USB-C powers both ways. Wanna charge your cell phone? Plug it into the Mavrik! TOP BOTTOM F R O N T B A C K EU POWER ADAPTER CHARGING CABLE UK LEF T VIEW 20.5 in x 2.6 in x 7.6 in3.3 LBS 520 mm x 66 mm x 193 mm1.5 KG STRIKERVR MAVRIK-PRO VR GAMING CONTROLLER L LH LS F1 LT PWR USB-C L TRIG F2 AT8 AT2 AT 7 AT6 AT1 AT5 AT4 AT3 / 5 Active Touch 8: Slide ACTIVE TOUCH Get in the game with Active Touch! The Mavrik-Pro’s Active Touch technology unlocks a new world of possibilities through unique gameplay and user interaction. Located strategically on the Mavrik-Pro at the areas of optimal interaction, the Active Touch enables innovative swipe and gesture functions. It also allows for left/right-hand recognition and alternative grip placements. MAVRIK-PRO / PRODUCT MANUAL Active Touch 8: Slide QUICK START First, ensure that nothing has been damaged during shipping and that all items are in the box. 1. To start-up the device push & hold the Power button which is located on the back underside of the Mavrik-Pro (see “Mavrik-Pro Overview” section). 2. The device will then begin its startup sequence and you will hear / feel the movement of the haptic engines. The startup sequence ends when the LED Halo/Strip are softly glowing and the haptic engines have ceased motion. 3. The Mavrik-Pro’s initial state is preprogrammed with various demo blaster profiles. Cycle through these modes by utilizing the L / R Side buttons. The haptic modes can be initialized by squeezing the Trigger or interacting with Active Touch areas. 4. See “Demo Blaster Profiles” section (pg 8) for additional information on individual profiles. GET THIS: Your Mavrik-Pro’s battery should be at 30-50% charge so you can test the goods immediately. | STRIKERVR.COM / 7 DEVICE MODES DEMO MODE By default, device is set to demo mode for initial startup. If no buttons have been pressed for 15 seconds, blaster will blink blue, meaning it is advertising for connection. CALIBRATION To Enter Calibration Mode: With the device ON, hold both Front buttons (F1 & F2) and both Side buttons (L & R) for 5 seconds. Device will restart following calibration. UNPAIRING To Clear Current Pairing: with the device OFF, hold both Side buttons (L & R) and press Power button. Device will blink blue 3 times then continue normal operation. DEMO BLASTER PROFILES Your Mavrik-Pro is package with prepro- grammed blaster profiles which are avail- able at initial startup in “Demo Mode.” Scan QR for a walk-through of each blaster.v FIRMWARE UPDATE To Enter Firmware Update Mode: With the device OFF, depress both Touchpads (LT & RT) then press and hold the Power button for 5 seconds. Device will restart following firmware update. MAVRIK-PRO / PRODUCT MANUAL | STRIKERVR.COM GET THIS: What are MetaSports? The next evolution of Esports, where the metaverse is your arena! / 9 CHARGING CABLE POWER ADAPTER CHARGING CABLE 1 2 R CHARGING LEVELS 0%100%20%40%60%80% R FULLY CHARGED 3 4 / 11 MAVRIK-PRO / PRODUCT MANUAL CHARGING YOUR MAVRIK-PRO Ok, so you’ve used all your blaster juice; time to recharge.* Here’s how: 1. Unpack all the accessories, and then plug the USB-C charging cable into the power adapter and an available outlet. Make sure you are utilizing the appropriate converter adapter. 2. Plug the other end of the charging cable into the USB-C charging port located next to the Power button. CHARGING CABLE POWER ADAPTER CHARGING CABLE 1 2 R CHARGING LEVELS 0%100%20%40%60%80% R FULLY CHARGED 3 4 / 11 MAVRIK-PRO / PRODUCT MANUAL 3. You should see an illuminated LED Halo and a front to back filling movement on the LED Strip, which means the batteries are charging. There are 6 charging stages ranging from red to green. 4. When the charging motion ends, you should see solid green flashing to white on the LED Halo and Strip. This means the battery is fully charged. Time to get your game on! * Battery life is variable, depending on gameplay GET THIS: To display current power level, momentarily (<1 sec) press and release Power button MODULAR TRACKING The Mavrik-Pro features a removable top plate which allows for installation of various tracking mounts & modules. TRACKING MOUNTS & MODULES See individual Tracking Mount/Module manuals for setup instructions. For complete listing of compatible HMD sys- tems and Tracking Mounts/Modules, visit StrikerVR.com. STRIKERVR SUPPORT CENTER Scan QR or visit support.strikervr.com for all your setup & integration needs, including: • Developers Setup • Blaster to HMD Pairing • Tracking System Setup • Device Manager …

Text truncated - open the document above for the full version.

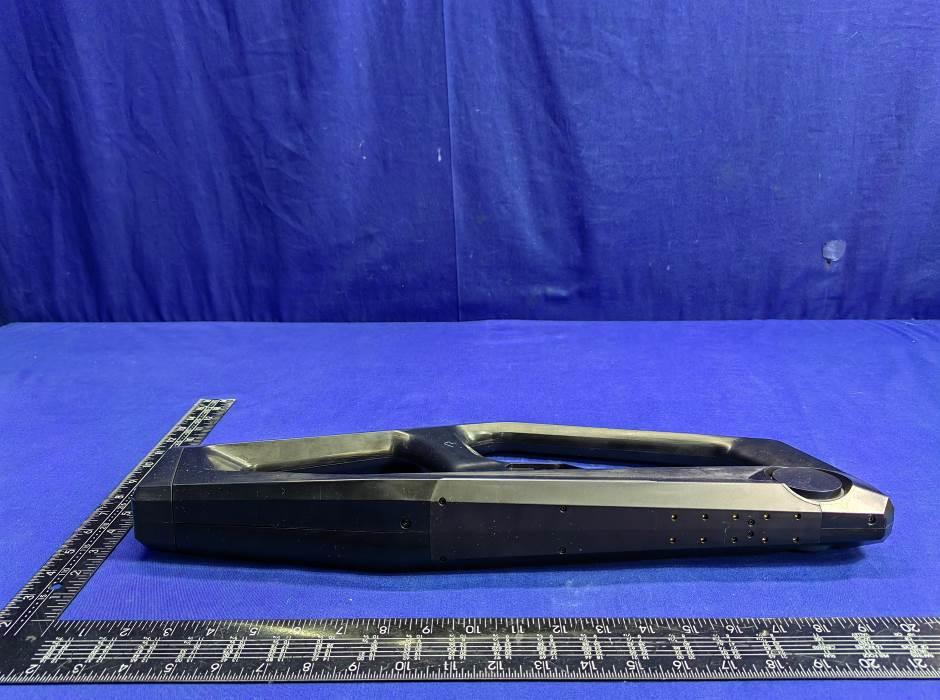

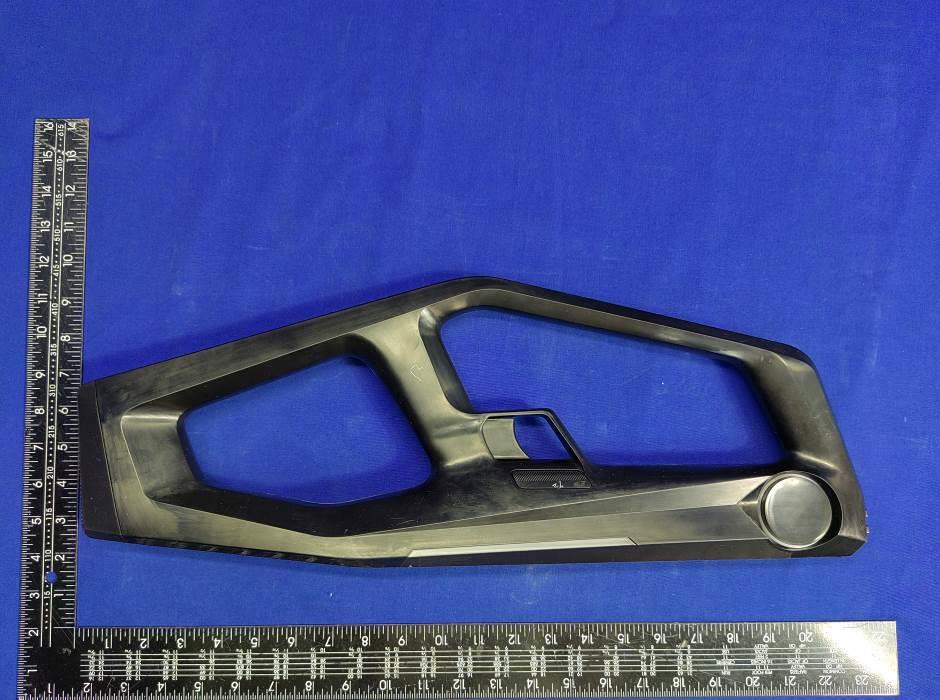

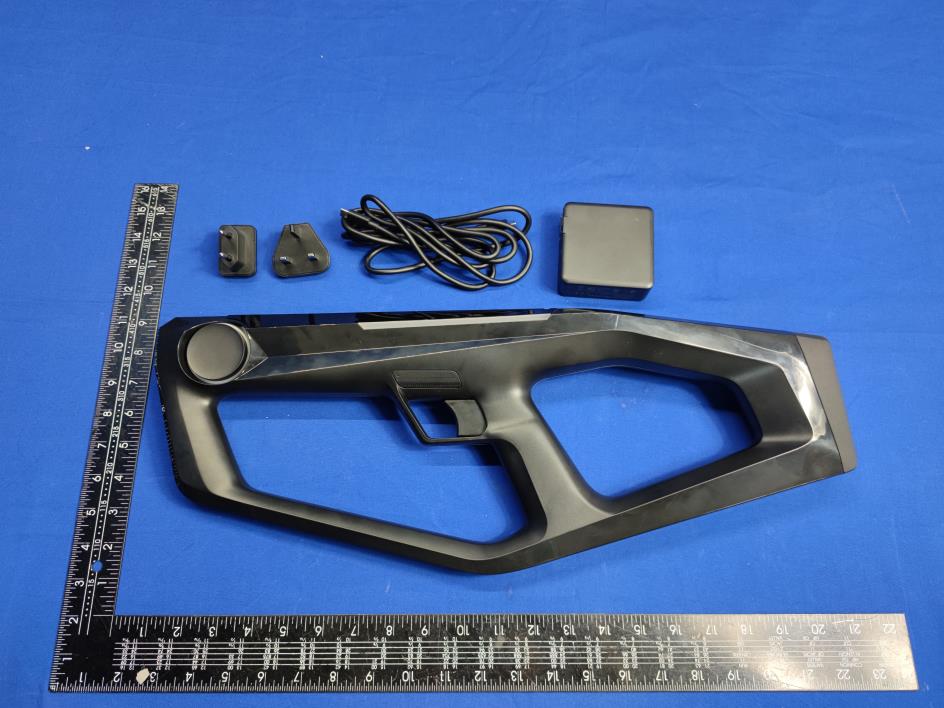

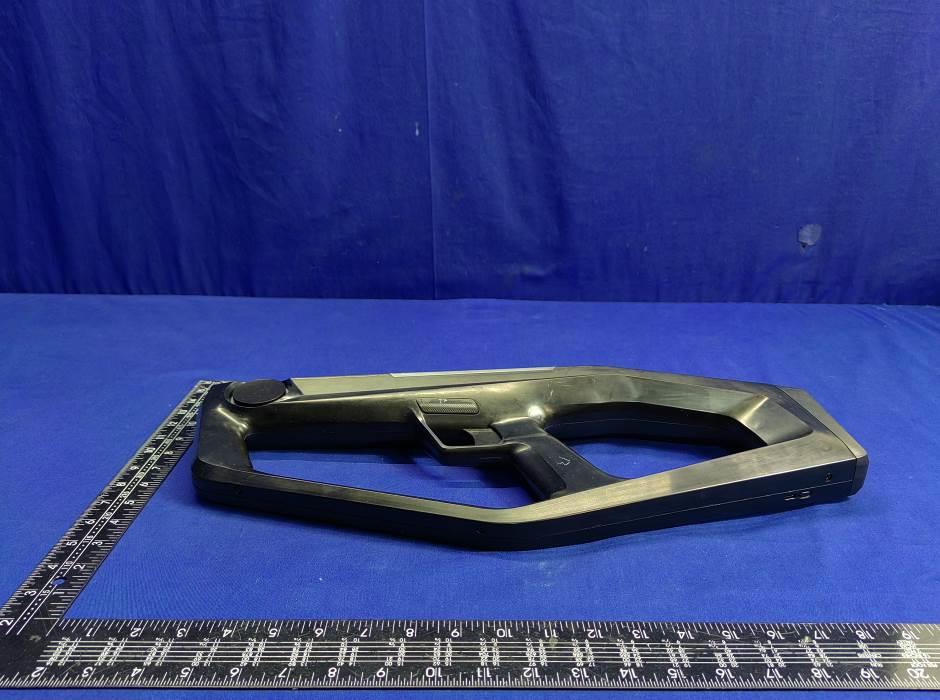

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

EUT INTERNAL PHOTOGRAPHS Antenna ----------------The end----------------

FCC ID: 2A82Z-MAVRIKPRO According to § 15.247(i) and § 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BLE: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) tune up maximum power(dBm) Result calculation 1-g SAR 2.402 GFSK -1.05 0 0.310 3 2.441 GFSK -1.99 0 0.312 3 2.480 GFSK -2.43 0 0.315 3 Conclusion: For the max result : 0.315≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Signature: Date: 2022.11.14 NAME AND TITLE (Please print or type): Lisa Wang/Manager COMPANY (Please print or type): Shenzhen EMTEK Co.,Ltd./Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China

ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page1of9 TestingReport CustomerName:DashineElectronicsCo.,Ltd ProductName:MavrikPro SampleModel:MavrikPro ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-1979 IssueDate:2022.9.30 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page2of9 Version VersionNo.DateDescriptionFormulateApproval A02022.9.30Forthefirsttime,formulateJacksonEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3DUTsetupphotooffreespaceOTAtesting........................................................................6 3.TestResults......................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata................................................................................................................................8 3.3.1Typicalfreespaceefficiencyandgain......................................................................8 3.3.2Typicalfreespaceradiationpattern...........................................................................8 （Thefollowingisblank）................................................................................................................9 ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page3of9 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRoad,BaoanDistrict,Shenzhen Tel 13631623357 E-mail [email protected] Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page4of9 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2021.3.152023.3.14 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2022.5.132023.5.12 1.4Testenvironment Temperature 24.3°C Humidity 59%RH Pressure 100.06kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page5of9 2.SampleInformation 2.1Clientinformation Name DashineElectronicsCo.,Ltd Address No.53,GuangtianRoad,Yanchuancommunity,Yanluostreet, Bao'anDistrict,ShenZhen,China Contacts lulu Tel 18272295031 E-mail [email protected] 2.2DescriptionofEUT(S) ProductName MavrikPro SampleModel MavrikPro Size / SerialNo. / TestItem Gain;Efficiency;Radiationpattern FrequencyRange 2400MHz-2500MHz ReceivedDate 2022.9.30 TestDate 2022.9.30 Remark ThelengthoftheRFcableis100mm ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page6of9 2.3DUTsetupphotooffreespaceOTAtesting Planform Frontview ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page7of9 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecificationfor antennasusedinthe mobilecommunications GB/T9410-2008 Radiationpattern Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-1979 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty Antennagain±0.72dB Radiationefficiency±0.72dB ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page8of9 3.3 Testdata 3.3.1Typicalfreespaceefficiencyandgain 3.3.2Typicalfreespaceradiationpattern （1）X-ZPlane: （2）Y-ZPlane: Frequency/MHz 24002410242024302440245024602470248024902500 PeakGain/dBi -3.57-4.17-4.87-5.72-6.79-7.69-8.17-8.24-8.57-8.65-8.72 Efficiency/% 7.316.225.334.724.263.863.733.553.122.902.68 ReportNo.:RFI-LAB-RF-202209-II44 QP030-E41 Page9of9 （3）X-YPlane: （4）TypicalFreeSpace3DRadiationPatternat2450MHz: -------------------------------------------------End------------------------------------------------ （Thefollowingisblank）

Report No. ENS2202280115W00401R Page 1 of 47 Ver.1.0 TEST REPORT Product Name ： MAVRIK-PRO Model Number ： Mavrik Pro FCC ID ： 2A82Z-MAVRIKPRO Prepared for : StrikerVR, Inc. Address : 612 Andrew Higgins Drive New Orleans, LA 70130 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2202280115W00401R Date(s) of Tests : May 17, 2022 to September 7, 2022 Date of issue : September 8, 2022 $二维码$ Report No. ENS2202280115W00401R Page 2 of 47 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION .......................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................................ 5 3 SUMMARY OF TEST RESULT ............................................................................................................................. 6 4 TEST METHODOLOGY ........................................................................................................................................ 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................................. 7 4.2 MEASUREMENT EQUIPMENT USED ........................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES .................................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS .................................................................................................................. 9 5.1 FACILITIES ..................................................................................................................................................... 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ...................................................................................... 9 6 TEST SYSTEM UNCERTAINTY ......................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................................ 11 7.1 RADIO FREQUENCY TEST SETUP 1 .......................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2.......................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ...................................................................................................... 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .......................................................................... 13 7.5 SUPPORT EQUIPMENT............................................................................................................................... 13 8 TEST REQUIREMENTS ..................................................................................................................................... 14 8.1 DTS 6DB BANDWIDTH ................................................................................................................................ 14 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................................... 17 8.3 MAXIMUM POWER SPECTRAL DENSITY .................................................................................................. 20 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS .................................................. 23 8.5 RADIATED SPURIOUS EMISSION .............................................................................................................. 31 8.6 CONDUCTED EMISSIONS TEST ................................................................................................................ 43 8.7 ANTENNA APPLICATION ............................................................................................................................. 46 Report No. ENS2202280115W00401R Page 3 of 47 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : StrikerVR, Inc. Address： 612 Andrew Higgins Drive New Orleans, LA 70130 Manufacturer : StrikerVR, Inc. Address： 612 Andrew Higgins Drive New Orleans, LA 70130 EUT : MAVRIK-PRO Model Name : Mavrik Pro Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report Date of Test : May 17, 2022 to September 7, 2022 Prepared by : Una Yu/Editor Reviewer : Joe Xia/Supervisor Approved & Authorized Signer : Lisa Wang/Manager Report No. ENS2202280115W00401R Page 4 of 47 Ver.1.0 Modified Information Version Report No. Revision Date Summary Ver.1.0 ENS2202280115W00401R / Original Report Report No. ENS2202280115W00401R Page 5 of 47 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product MAVRIK-PRO Model Number Mavrik Pro Device Type Bluetooth with BLE mode Data Rate 1Mbps for GFSK modulation Modulation Bluetooth DTS: GFSK Operating Frequency Range 2402-2480MHz Number of Channels 40 Channels for Bluetooth DTS; Transmit Power Max -1.05dBm Antenna Type PCB Antenna Antenna Gain -3.57 dBi Power Supply Adapter： Mode:RH-PD100W Input:AC100-240V~2A 50/60Hz Output1:5V/3A-9V/3A-12V/3A-15V/3A-20V/5A Temperature Range 10°C ~ +40°C Note: for more details…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
