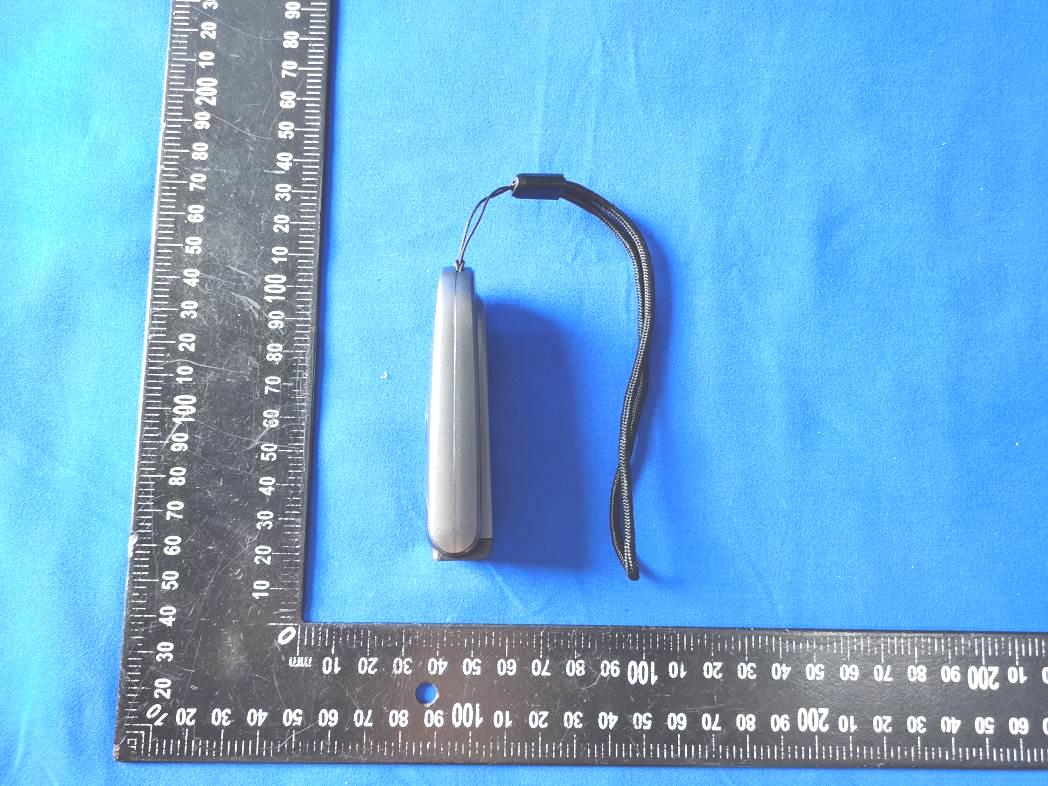

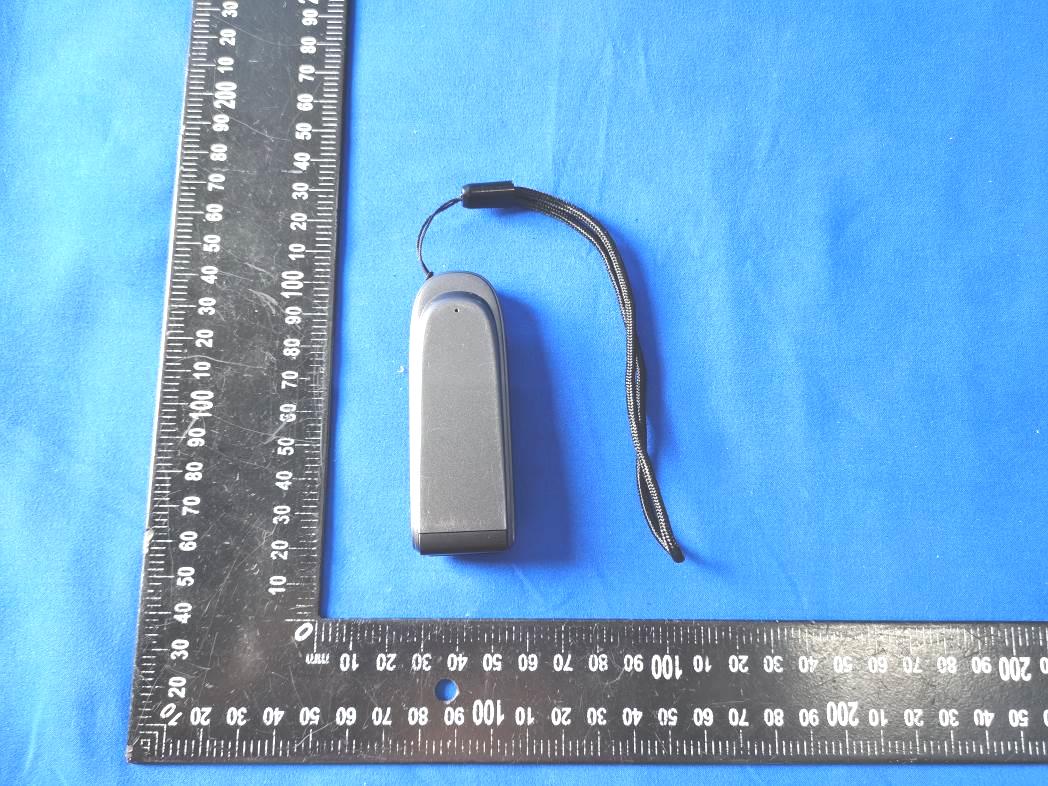

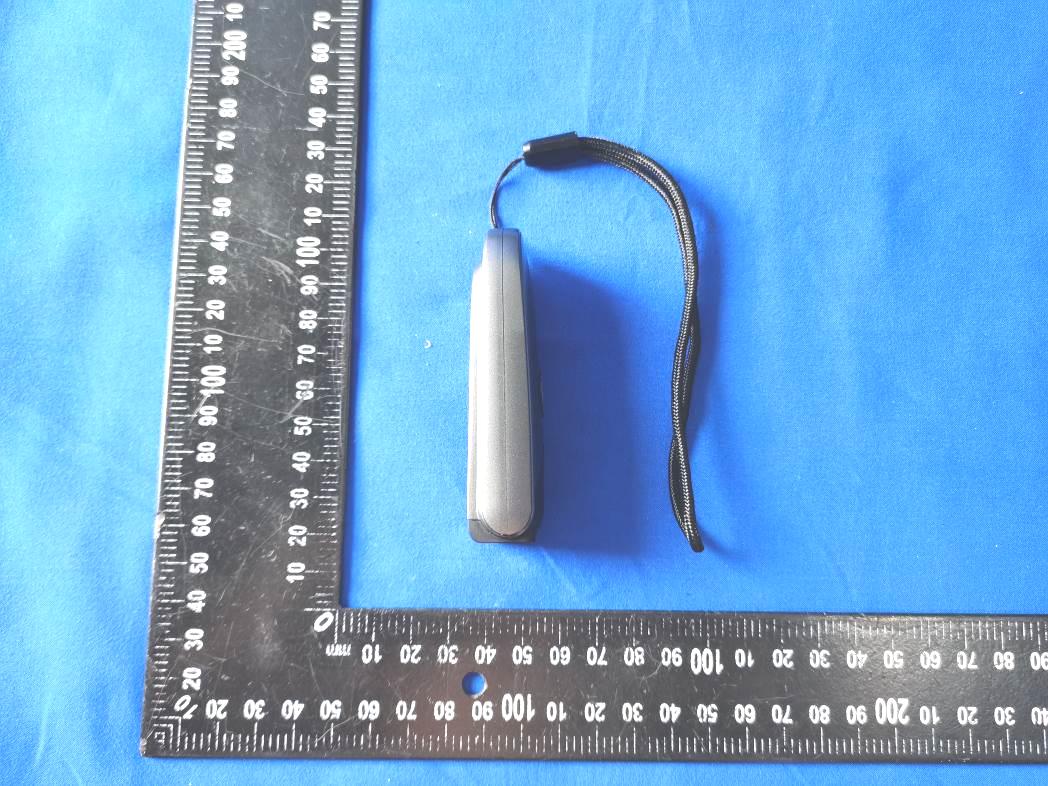

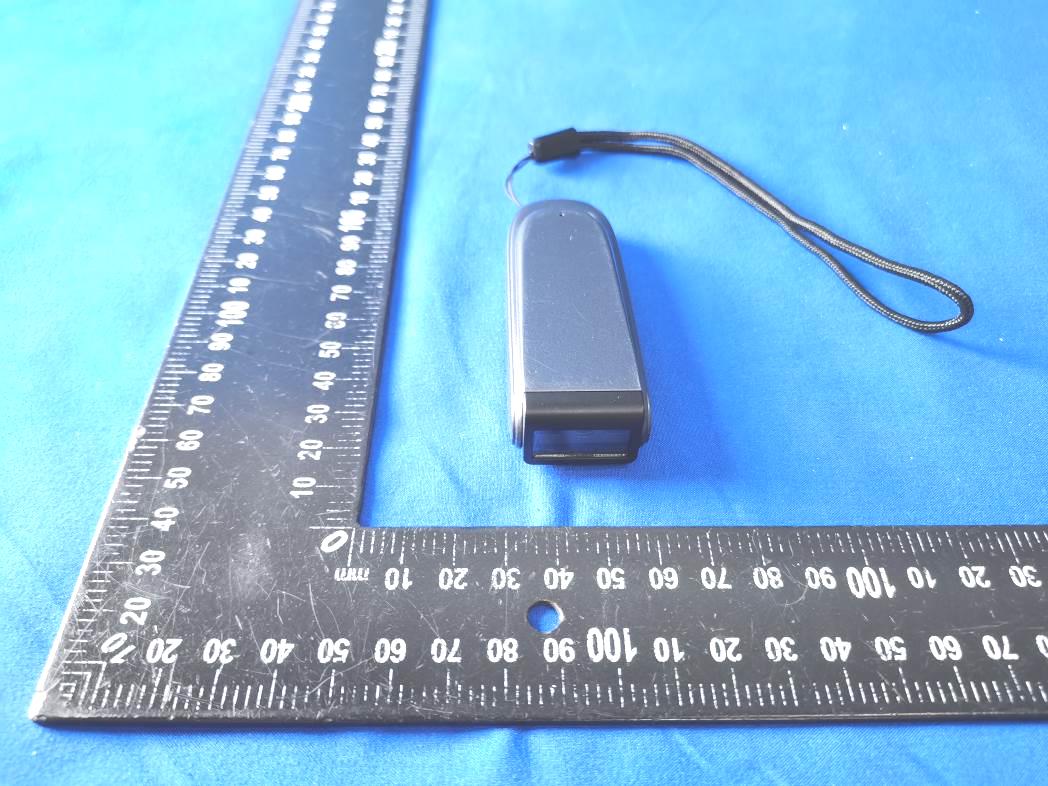

2A83E-BT3218Barcode Scanner

01.Precautions-----------------------------------------------------01 02.Quick Getting Started-----------------------------------------02 03.Features & Technical Parameter----------------------------03 04.Product Introduction--------------------------------------- ---07 05.Buzzer & Indicator Light state------------------------------ -08 06.FAQS & Troubleshooting----- --------------------------------09 07.Battery & Charging------------------------------------------- -13 09.Paring Mode Setting-------------------------------------------16 9.2 2.4G Wireless Pairing-------------------------------------20 11. Bluetooth Name change setting---------------------------- -24 12.IOS Pull up and Hide keyboard----------------------- -------25 13.Keyboard language setting------------------------------------26 15.Sleep time setting-----------------------------------------------28 17.Case conversion------------------------------------------------30 18.Scanning Mode Setting----------------------------------------31 19.Symbologies setting--------------------------------------------32 20.Hide front and back characters-------------------------------47 21.Add prefix and suffix--------------------------------------------50 22.Appendix A-------------------------------------------------------53 14.Beep & Vibration setting------- --------------------------------27 16.End Character setting------------------------------------------29 08.Restore Defaults & Version Number------------------------15 9.1 Bluetooth Name Change Setting -----------------------16 10.Upload Mode Setting-------------------------------------------21 this manual cannot be configured with all functions. if you need more detailed or special customized functions, please contact your local vendor this chapter explains how to use the barcode scanner when you received it. 2.1 turn on the barcode scanner by press and hold the scan buttons simultaneously for 2 seconds. if the barcode scanner makes a di,di,di,di sound and the light goes out immediately after turning it on,it means that the battery is insufficient,please charge the battery immediately.otherwise, the battery is sufficient. (we recommend that customers use our original charging cable to charge the barcode scanner after receiving the product at the first time) 2.2 after ensuring that the barcode scanner is fully charged and turned on,please test whether the barcode scanner can scan the barcode successfully.press the scan trigger and aim the device at a barcode.when no device is connected. if the barcode scanner makes a di,di sound,it means that the barcodes is reading successfully. 2.3 press and hold the scan button of the barcode scanner for about 8-10 seconds,until you hear a beep and see the blue light flashing,then release the button. 2.4 navigate to the bluetooth setting on the smartphone or tablet ensure that bluetooth is enabled on the smartphone or tablet and searching for devices. 2.5 check the list of available bluetooth devices on your smartphone or tablet .from the list select barcode bluetooth hid listed to pair. 2.6 run notepad on smartphone or tablet,put the cursor in the blank field.when you use the barcode scanner to scan the barcode.you willsee that the barcode will be uploaded to the location of the cursor. 02 Please note:if no barcodes are transmitted to your smartphone or tablet,please take a video to show me your poerating setps and send us. If you want to know about other connection mode,please see chapter 9(page 20) 3.features&technical parameter features 3.1 Super light weight ,mini size compact design ,portable to carry and use. 3.2 Wired and wireless dual-mode freely switching,2.4g dongle wireless bluetooth wireless usb wired three types of connection ways. 3.3 Support windows xp,win7,win8,win10,linux,unix operating system pc ,android , ios device. 3.4 lower elecetric consumption design , can work over 10 hours. 3.5 16m large capacity storage,safe and reliable under off-line scanning mode can store upc/ean barcodes more than 100000 pcs 3.6 Long transmission distance. 3.7 The sound and vibration can be turned off. 3.8 Support bluetooth hid protocol, spp protocol and ble protocol 3.9 With rich symbologies supported, support hide/add custom prefix/suffix digits. 3.10 Support scan bar codes:code128, ean-8, ean-13,isbn, issn,upc-e0,upc-e1,upc-a,interleaved 2 of 5,matrix 2 of 5, industrial ,code93, code11,msi plessey,pdf417 qr code, micro qr, data matrix,micro pdf417,atztec, gs1 databar, gs1 limited, gs1 databar expanded. 03 Application Technical Parameter Supermarket Mobile Payment Courier Warehouse Retail Chain Health Care A Dual-mode Scanner Wired And Wireless, Switch Freely Wireless Transmission Protocol Bluetooth+2.4g Storage 16mb Decoding Chip Arm Cortex 32 Bits Bluetooth Module Bluetooth 4.1 Module 04 05 Support Barcode Code128,ean-8,ean-13,isbn Issn,upc-e0,upc-e1,upc-a Interleaved 2 Of 5,matrix 2 Of 5 Industrial 2 Of 5,iata 2 Of 5, Code39, Code32,code39 Full Ascii,codabar ,code93,code11 Msi Plessey, Pdf 417, Qr Code Micro Qr, Data Matrix, Micro Pdf417,aztec, Gs1 Databar, Gs1 Databar Limited,gs1 Databar Expanded. Indicator Charging Voltage/current Time Of Endurance Battery Type Printing Constrast Scanning Angle Standby Time Working Temperature Storage Temperature Humidity Ruggedness Led Light,buzzer,vibration 5v/1a Continuously Work Over 8h Li Battery >25% Pitch +65 Roll:0-360 Skew:+60 >30days 32f To 140 F/0 C To 40 C -40f To 140 F/0 C To 40 C 5% to 90% relative humidity Resist About 6 Times Drops From 1.5m To Concrete Ground Technical Parameter 06 Under Normal Office And Factory Ambient Lighting Conditions,or Exposed To The Sun Won’t Take Any Effect Ot It Electrostatic Discharge In Line With 15kv Air Discharge And 8kv Contact Discharge Requirements Electrical Safety In Accordance With Ul1950.csa C22 2.no.950.en60950/iec950 Emi/rfi:fcc Part 15 Class B, European Union Emc Directive, Taiwan Emc Ambient Light Immunity Environment Terms In Accordance With Rohs Direct…

Text truncated - open the document above for the full version.

Dongguan Scanlogic Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: October 31, 2022 Subject; Request for Long Term Confidentiality FCC ID: 2A83E-BT3218 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, 2022-10-22 Name Hua Tang Position General manager Company Name Dongguan Scanlogic Technology Co., Ltd Address 18/F, Building 32, Jewelry culture industry center, 568 Huanchang North Road, Changping Town, Dongguan City, Guangdong Province Tel +86-769-81174498 Fax +86-769-81174498 Email [email protected] (Signature)

Differences Description We Dongguan Scanlogic Technology Co., Ltd state: Product name: Barcode Scanner Model: BT3218, BT3228, BT3268, BT3238, BT3398, BT3298, BT3208, BT3258, BT6900, BT5800, BT5208, BT5600 All model’s the function, software, electric circuit and enclosure are the same, except the model numbers and appearance color difference. 2022-10-22 Name Hua Tang Position General manager Company Name Dongguan Scanlogic Technology Co., Ltd Address 18/F, Building 32, Jewelry culture industry center, 568 Huanchang North Road, Changping Town, Dongguan City, Guangdong Province Tel +86-769-81174498 Fax +86-769-81174498 Email [email protected] (Signature)

FCC ID: 2A83E-BT3218

Size: 2.0cm *0.5cm Label Location FCC ID: 2A83E-BT3218 Barcode Scanner Model No.: BT3218

FCC ID: 2A83E-BT3218 2.4G TX ANT BT ANT

FCC ID: 2A83E-BT3218 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison LE: Worse case Mode: Output power= -1.08dBm, Ant gain= 4.41dBi, EIRP=3.33dBm [2402MHz: 3.33dBm(2.153mW) output power(EIRP)] (2.153mW /5mm)·[√2402(GHz)]= 0.67 <3.0 for 1-g SAR 2.4G: Worst case Mode: Field strength = 87.44 dBuV/m @3m Ant gain -2.03dBi; so Ant numeric gain=0.63 So pt= {[10 (87.44/20) /10 6 x3] 2 /(30x0.63)} x 1000 mW =0.166 mW So (0.166mW/5mm) x √2.441 GHz = 0.0518<3.0 for 1-g SAR BLE and 2.4G not transmit at the same time. Then SAR evaluation is not required

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008300895 Website: http://www.a-lab.cn/certificate FCC TEST REPORT FCC ID: 2A83E-BT3218 On Behalf of Dongguan Scanlogic Technology Co., Ltd Barcode Scanner Model No.: BT3218, BT3228, BT3268, BT3238, BT3398, BT3298, BT3208, BT3258, BT6900, BT5800, BT5208, BT5600 Prepared for : Dongguan Scanlogic Technology Co., Ltd Address : 18/F, Building 32, Jewelry culture industry center, 568 Huanchang North Road, Changping Town, Dongguan City, Guangdong Province Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2210010-C01-R06 Date of Receipt : October 12, 2022 Date of Test : October 12, 2022-October 20, 2022 Date of Report : October 20, 2022 Version Number : V0 Page 2 of 31 Report No.: A2210010-C01-R06 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ............................................................................................. 6 1.1. Description of Standards and Results .................................................................................... 6 2. General Information ......................................................................................................................... 7 2.1. Description of Device (EUT) ................................................................................................... 7 2.2. Accessories of Device (EUT).................................................................................................. 8 2.3. Tested Supporting System Details ......................................................................................... 8 2.4. Block Diagram of connection between EUT and simulators .................................................. 8 2.5. Test Mode Description ............................................................................................................ 8 2.6. Test Conditions ....................................................................................................................... 9 2.7. Test Facility ............................................................................................................................ 9 2.8. Measurement Uncertainty ...................................................................................................... 9 2.9. Test Equipment List .............................................................................................................. 10 3. Power Line Conducted Emission Test ........................................................................................ 12 3.1. Block Diagram of Test Setup ................................................................................................ 12 3.2. Test Limits ............................................................................................................................ 12 3.3. Configuration of EUT on Test ............................................................................................... 13 3.4. Operating Condition of EUT ................................................................................................. 13 3.5. Test Procedure ..................................................................................................................... 13 3.6. Test Results .......................................................................................................................... 13 4. Radiated Emission Test ................................................................................................................ 16 4.1. Block Diagram of Test Setup ................................................................................................ 16 4.2. Test Limit .............................................................................................................................. 17 4.3. Configuration of EUT on Test ............................................................................................... 18 4.4. Operating Condition of EUT ................................................................................................. 18 4.5. Test Procedure ..................................................................................................................... 18 4.6. Test Results .......................................................................................................................... 19 5. Band Edge Test .............................................................................................................................. 23 5.1. Block Diagram of Test Setup ................................................................................................ 23 5.2. Test Limit .............................................................................................................................. 23 5.3. Configuration of EUT on Test ............................................................................................... 24 5.4. Operating Condition of EUT ................................................................................................. 24 5.5. Test Procedure ..................................................................................................................... 24 5.6. Test Results .......................................................................................................................... 26 6. Occupied Bandwidth Test ............................................................................................................. 27 6.1. Block Diagram of Test Setup ................................................................................................ 27 6.2. Test Limit ........................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2A83E-BT3218 1.1. Photo of Radiated Emission test 1.2. Photo of Conducted Emission test
