2A83TRFASPDRFID Module

Babson Diagnostics Art Sample Preparation Device User Manual Babson Diagnostics Page 2 of 48 Table of Contents Babson Diagnostics Art Sample Preparation Device ............................................................................................................... 1 Preface ............................................................................................................................................................................................... 4 Scope of Supply .................................................................................................................................................................................... 4 Accident Prevention ........................................................................................................................................................ 5 Precautions ...................................................................................................................................................................... 5 Symbols ........................................................................................................................................................................... 6 Safety and Regulatory Considerations .................................................................................................................................................... 7 Intended Use and Characteristics ....................................................................................................................... 8 Regulatory Labels and Warnings ........................................................................................................................ 9 FCC Statements .................................................................................................................................................. 11 Safety Practices .................................................................................................................................................. 12 Technical Data ...................................................................................................................................................... 13 Directives, Standards and Guidelines......................................................................................................................... 14 Functions and Features ............................................................................................................................................. 15 Mains Supply ....................................................................................................................................................... 15 Installation ......................................................................................................................................................................................... 16 Before Setting Up .................................................................................................................................................. 17 Transporting the Art Sample Preparation Device ....................................................................................................... 18 Installation ........................................................................................................................................................... 20 Power On ............................................................................................................................................................. 21 User Events and Responses ................................................................................................................................................................. 23 Device Basics ....................................................................................................................................................... 24 Control Panel ........................................................................................................................................................ 25 Caddy / Base Inventory Lights .............................................................................................................................. 26 Events and Audio Responses ............................................................................................................................... 28 Operation ....................................................................................................................................................................... 34 Switch on Art Sample Preparation Device .............................................................................................................. 35 Page 3 of 48 Collection .............................................................................................................................................................. 35 Tube Deposit ........................................................................................................................................................ 39 Tube Mixing .......................................................................................................................................................... 40 Centrifugation ...................................................................................................................................................... 40 Storage ................................................................................................................................................................. 42 Maintenance and Care ....................................................................................................................................................................... 43 Cleaning ................................................................................................................................................................ 44 Preventativ…

Text truncated - open the document above for the full version.

Unlicensed Transmitters: Approved Antennas List Manufacturer Antenna Description Type Length (mm) Width (mm) Other Info Connector Type Notes Babson Diagnostics RFID PCB Trace Loop 48.3 32.5 Integral 1 1) Dimensions are approximate.

1/9/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Permanent Confidentiality To Whom It May Concern: In accordance with 47CFR Section 0.457 and Section 0.459 pertaining to confidential material, we hereby request to hold permanently confidential all information contained within the below identified exhibits/document categories submitted pursuant to radio equipment certification requirements for FCC ID: 2A83TRFASPD All Items Submitted to the FCC: 1. Block Diagrams 2. Operational Descriptions 3. Schematics 4. Parts List / Servicing Procedure The above material contains trade secrets and proprietary information as specified by 47CFR 0.457(d) and technical data, which would customarily be guarded from competitors. The public disclosure of this information might be harmful to our company and provide unjustified benefits to our competitors. Sincerely, Eric Olson Chief Operating Officer Babson Diagnostics, Inc. (862) 241-0705 1205 Sheldon Cove, Suite 2J Austin, TX 78753 DocuSign Envelope ID: 757C2B9C-9952-435C-9C23-93B724A92E0A

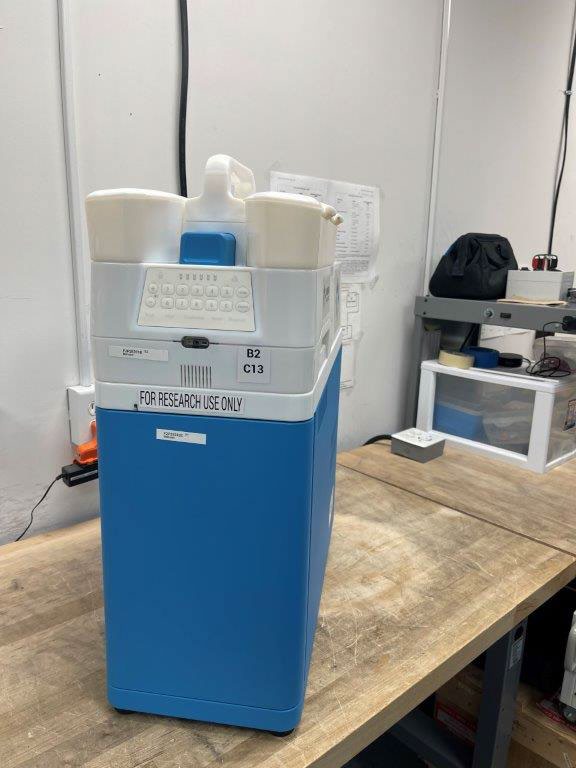

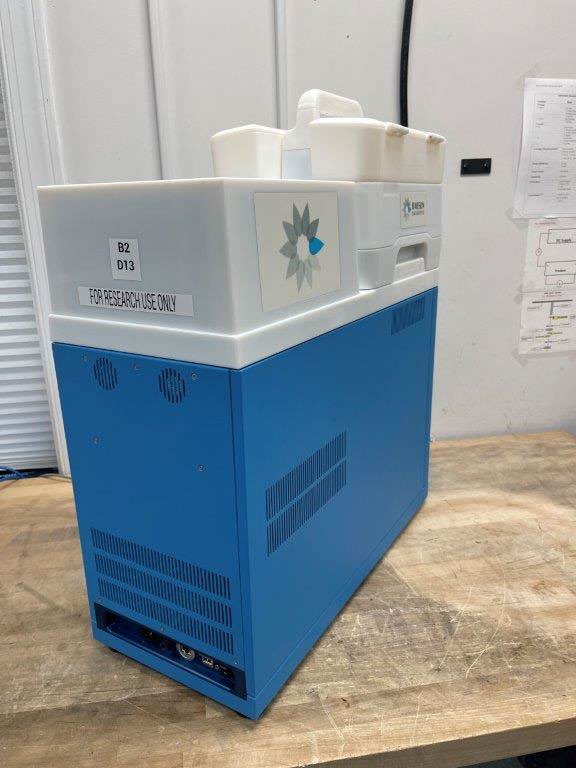

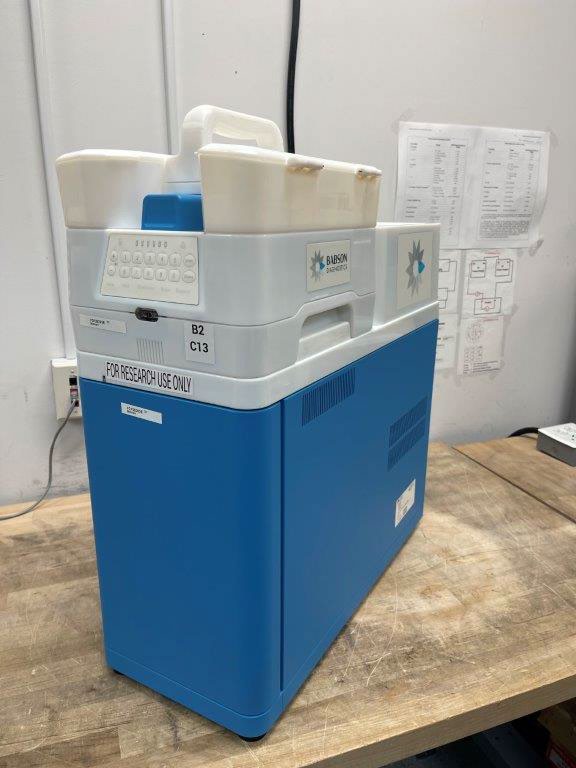

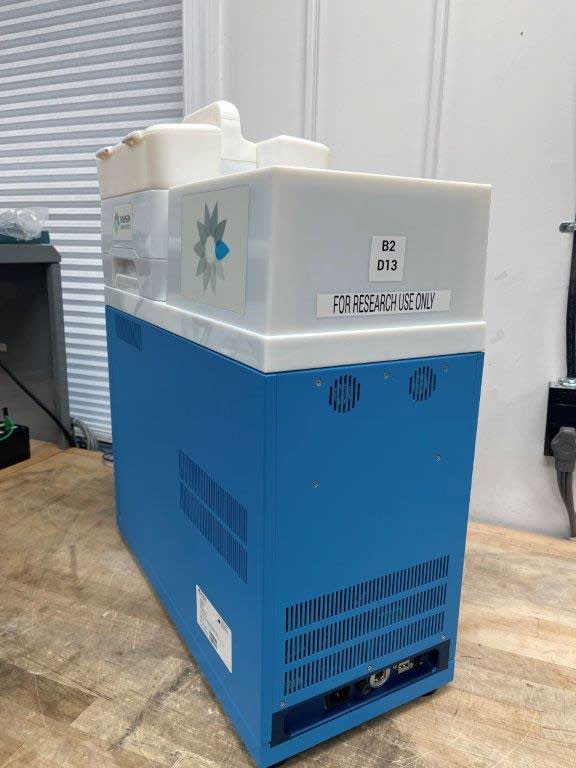

F2P28283E Page 1 of 5 2022-12-22 PHOTOGRAPHS: EXTERNAL Babson Diagnostics, Inc. - Model Art Sample Preparation Device Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device F2P28283E Page 2 of 5 2022-12-22 Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device F2P28283E Page 3 of 5 2022-12-22 Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device F2P28283E Page 4 of 5 2022-12-22 Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device F2P28283E Page 5 of 5 2022-12-22

Disconnect power before servicing Fuse (125V, 15A) 15A FAST This device contains WiFi Module FCC ID: 2A83TWFASPD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including any interference that may cause undesired operation. RFID Module FCC ID: 2A83TRFASPD

Tag is a passive RF device.

20200617 Report Number: F2P28283E-02E Page 1 of 27 Issue Date: 2023-01-19 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Babson Diagnostics, Inc. 1205 Sheldon Cove, Suite 2-J Austin, Texas 78753 USA Applicant: Same as Above Product Name: Art Sample Preparation Device Product Description: The Art Sample Preparation Device is a sample preparation device used to automate the mixing, centrifugation, and refrigeration of capillary blood samples for chemistry and hematology testing. It is used in settings where a capillary blood sample is collected by a trained healthcare worker. Operating Voltage/Frequency: 120V/60 Hz Model: Art Sample Preparation Device FCC ID: 2A83TRFASPD Testing Commenced: 2022-10-19 Testing Ended: 2022-10-21 Summary of Test Results: In Compliance Standards:  FCC Part 15 Subpart C, Section 15.209  FCC Part 15 Subpart C, Section 15.215(c) – Additional provisions to the general radiated emission limitations  FCC15.207 - Conducted Limits Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device 20200617 Report Number: F2P28283E-02E Page 2 of 27 Issue Date: 2023-01-19 Evaluation Conducted by: Julius Chiller, Senior Wireless Project Engineer Report Reviewed by: Ken Littell, Vice President of Operations F2 Labs F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road 8583 Zionsville Road Damascus, MD 20872 Middlefield, OH 44062 Indianapolis, IN 46268 Ph 301.253.4500 Ph 440.632.5541 Ph 317.610.0611 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device 20200617 Report Number: F2P28283E-02E Page 3 of 27 Issue Date: 2023-01-19 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 4 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 7 3 TABLE OF MEASURED RESULTS 8 4 ENGINEERING STATEMENT 9 5 EUT INFORMATION AND DATA 10 6 LIST OF MEASUREMENT INSTRUMENTATION 11 7 OCCUPIED BANDWIDTH 12 8 FIELD STRENGTH OF EMISSIONS/ 14 RADIATED SPURIOUS EMISSIONS 9 CONDUCTED EMISSIONS 20 10 PHOTOGRAPHS 25 Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device 20200617 Report Number: F2P28283E-02E Page 4 of 27 Issue Date: 2023-01-19 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2013 version of ANSI C63.10 and recommended FCC procedure of measurement of equipment operating under Section 15.209. A list of the measurement equipment can be found in Section 6. Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device 20200617 Report Number: F2P28283E-02E Page 5 of 27 Issue Date: 2023-01-19 1.3 Uncertainty Budget: The uncertainty in EMC measurements arises from several factors which affect the results, some associated with environmental conditions in the measurement room, the test equipment being used, and the measurement techniques adopted. The measurement uncertainty budgets detailed below are calculated from the test and calibration data and are expressed with a 95% confidence factor using a coverage factor of k=2. The Uncertainty for a laboratory is referred to as Ulab. For Radiated and Conducted Emissions, the Expanded Uncertainty is compared to the Ucispr values to determine if a specific margin is required to deem compliance. Ulab Ucispr If Ulab is less than or equal to Ucispr, then: • compliance is deemed to occur if no measured disturbance exceeds the disturbance limit; • non-compliance is deemed to occur if any measured disturbance exceeds the disturbance limit. If Ulab is greater than Ucispr in table 1, then: • compliance is deemed to occur if no measured disturbance, increased by (Ulab – Ucispr), exceeds the disturbance limit; • non-compliance is deemed to occur if any measured disturbance, increased by (Ulab – Ucispr), exceeds the disturbance limit. Note: Only measurements listed in the tables above that relate to tests included in this Test Report are applicable. Measurement Range Combined Uncertainty Expanded Uncertainty Radiated Emissions <1 GHz @ 3m 2.54 5.07dB Radiated Emissions <1 GHz @ 10m 2.55 5.09dB Radiated Emissions 1 GHz to 2.7 GHz 1.81 3.62dB Radiated Emissions 2.7 GHz to 18 GHz 1.55 3.10dB AC Power Line Conducted Emissions, 150kHz to 30 MHz 1.38 2.76dB AC Power Line Conducted Emissions, 9kHz to 150kHz 1.66 3.32dB Measurement Range Expanded Uncertainty Radiated Emissions <1 GHz @ 3m 5.2dB Radiated Emissions <1 GHz @ 10m 5.2dB Radiated Emissions 1 GHz to 2.7 GHz Under Consideration Radiated Emissions 2.7 GHz to 18 GHz Under Consideration AC Power Line Conducted Emissions, 150kHz to 30 MHz 3.6dB AC Power Line Conducted Emissions, 9kHz to 150kHz 4.0dB Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device 20200617 Report Number: F2P28283E-02E Page 6 of 27 Issue Date: 2023-01-19 1.4 Document History: Document Number Description Issue Date Approved By F2P28283E-02E First Issue 2022-11-11 K. Littell Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device 20200617 Report Number: F2P28283E-02E Page 7 of 27 Issue Date: 2023-01-19 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results -20dB Occupied Bandwidth CFR 47 Part 15.215(c) Complies Field Strength of Emissions CFR 47 Part 15.209 Complies Radiated Spurious Emissions CFR 47 Part 15.209 Complies Conducted Emissions CFR 47, Part 15.207 Complies Modifications Made to the Equipment No modifications were made to the EUT. Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample …

Text truncated - open the document above for the full version.

F2P28283E Page 1 of 3 2022-12-22 PHOTOGRAPHS: TEST SETUP Babson Diagnostics, Inc. - Model Art Sample Preparation Device Radiated Spurious Emissions, Field Strength, Occupied Bandwidth 0.009 MHz to 30 MHz Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device F2P28283E Page 2 of 3 2022-12-22 Radiated Spurious Emissions: 30 MHz to 1000 MHz Order Number: F2P28283E Applicant: Babson Diagnostics, Inc. Model: Art Sample Preparation Device F2P28283E Page 3 of 3 2022-12-22 Conducted Emissions
