2A854BORMB-01Ninenovo Blood Oxygen Ring

Ninenovo Blood Oxygen Ring User Manual 1. Introduction 1.1 Intended Use The Ninenovo Blood Oxygen Ring is a wireless, non-invasive, and stand-alone pulse oximeter intended to be used for spot-check and/or continuous data collection of oxygen saturation of arterial hemoglobin (SpO2) and pulse rate (PR) through the index in adult patients. It can be used in hospitals and home environments for up to twelve hours in non-motion and well perfused conditions. It is not intended for single-use and out-of-hospital transport use and does not have alarms. Note: The data and results provided by this device are for pre-check screening purpose only and cannot be directly used for diagnostic or treatment. The data provided by the APP is not intended for diagnosis or treatment purpose, always consult your doctor for any health condition （Rx only）. Warnings and Cautionary Advices  Before using this product, it should be ensured that it is in normal working condition and operating environment. For more accurate measurement, this product should be used in a quiet and comfortable environment.  Do not use this product immediately when transitioning from a cold environment to a warm and humid location. If this product is splashed or has water condensation, stop the operation.  Do not use sharp objects to operate this product.  Do not use this device during MRI examination.  Do not use the device in a combustible environment (i.e., oxygen-enriched environment).  Never submerge the device in water or other liquids. Do not clean the device with acetone or other volatile solutions.  This product is suitable for adults aged 18 and above.  Do not place this device in pressure vessels or gas sterilization device.  Do not place the device in contact with children or pets, to avoid children or pets using the device as a toy and accidentally swallowing dry batteries, resulting in suffocation and other dangerous situations.  This product may not be suitable for everyone. If satisfactory measurements cannot be achieved, please give up using it.  Data averaging and signal processing on SpO2. Delay in displaying and transmitting data values. The measurement data update cycle is less than 30 seconds, and when signal attenuation, weak perfusion, or other interference occurs, it will lead to an increase in the time for taking the dynamic mean, which depends on the pulse rate value.  The service life of this product is 5 years, and the production date can be found on the label.  This product does not provide alarm functions for blood oxygen saturation and pulse rate exceeding limits, and is not suitable for places that require alarm functions for measuring value exceeding limits.  Do not drop this device or subject it to strong impact, such as falling on the floor, to avoid damaging the sensor and affecting the performance of the device.  Do not dismantle the device, as this could cause damage or malfunctions or impede the operation of the device.  This device is not intended for use by people (including children) with restricted physical, sensory or mental skills or a lack of experience and/or a lack of knowledge, unless they are supervised by a person who has responsibility for their safety or they receive instructions from this person on how to use the device.  The volume recording waveform has not been normalized and serves as an indicator of signal incompleteness. When the waveform does not tend to be smooth and stable, the accuracy of the measured value may decrease. When the waveform tends to be smooth and stable, the measured value read is the optimal value, and the waveform at this time is also the most standard. Our company can provide circuit diagrams, component lists, annotation and other information as required, so that qualified technical personnel of users can repair product components designated by our company that can be repaired.  The test part should not have external colorants, such as nail polish, colorants or colored skin care products, otherwise the measurement will be affected.  Fingers should be placed correctly (refer to 2.4 of this manual). Improper placement or contact with sensors can affect measurement.  The light between the photoelectric receiving tube and the light emitting tube of this product must pass through the small arterial bed of the tested person; There should be no light barriers such as adhesive tape in the area where the light path passes through, otherwise it may cause inaccurate measurement values.  Excessive ambient light can affect measurements, such as surgical lamps (especially aviation light sources), bilirubin lamps, fluorescent lamps, infrared heating lamps, and direct sunlight. To prevent interference from ambient light, it is essential to place the sensor properly and cover the sensor area with opaque materials.  Excessive movement (active or passive) or intense activity of the subject can affect measurement accuracy.  Do not place the sensor on limbs with blood pressure cuffs, arterial catheters, or intraluminal pipelines. This product does not have anti defibrillation function, and measurement values may be inaccurate during and shortly after defibrillation.  This product undergoes pre factory calibration.  This product has been calibrated to display functional blood oxygen saturation.  Do not place the device in direct sunlight.  Do not store the device in the following locations: locations in which the device is exposed to direct sunlight, high temperatures or levels of moisture, or heavy contamination; locations near to sources of water or fire; or locations that are subject to strong electromagnetic influences.  Vital signs measurements, such as those taken with this device, cannot identify all diseases. Regardless of the measurement taken using this device, you should consult your doctor immediately if you experience symptoms that could indicate acute disease.  Do not self-diagnose or self-medicate on the basis of this device without co…

Text truncated - open the document above for the full version.

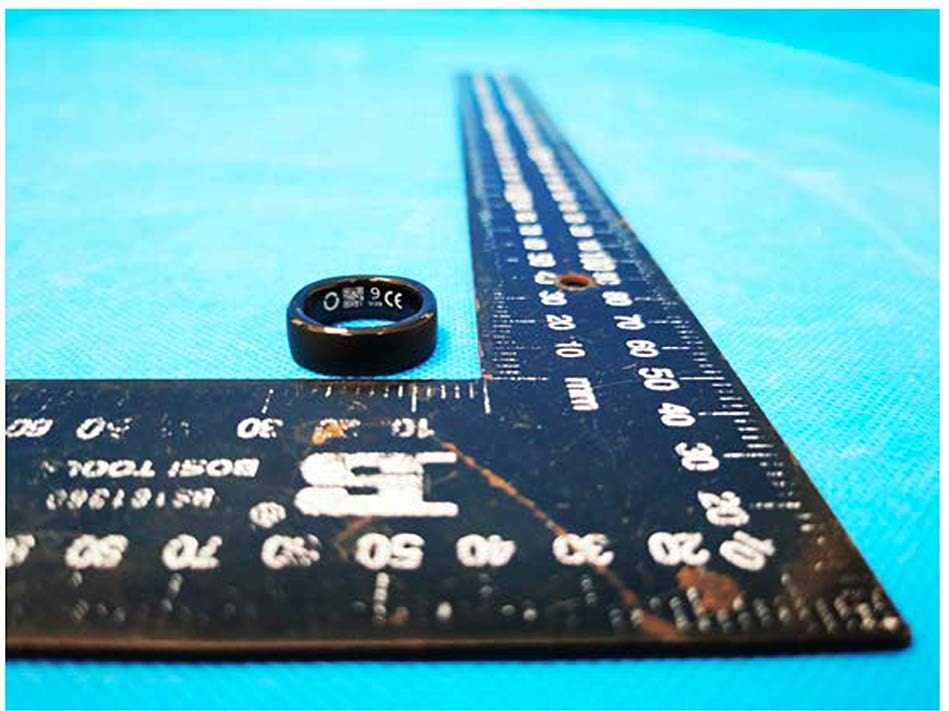

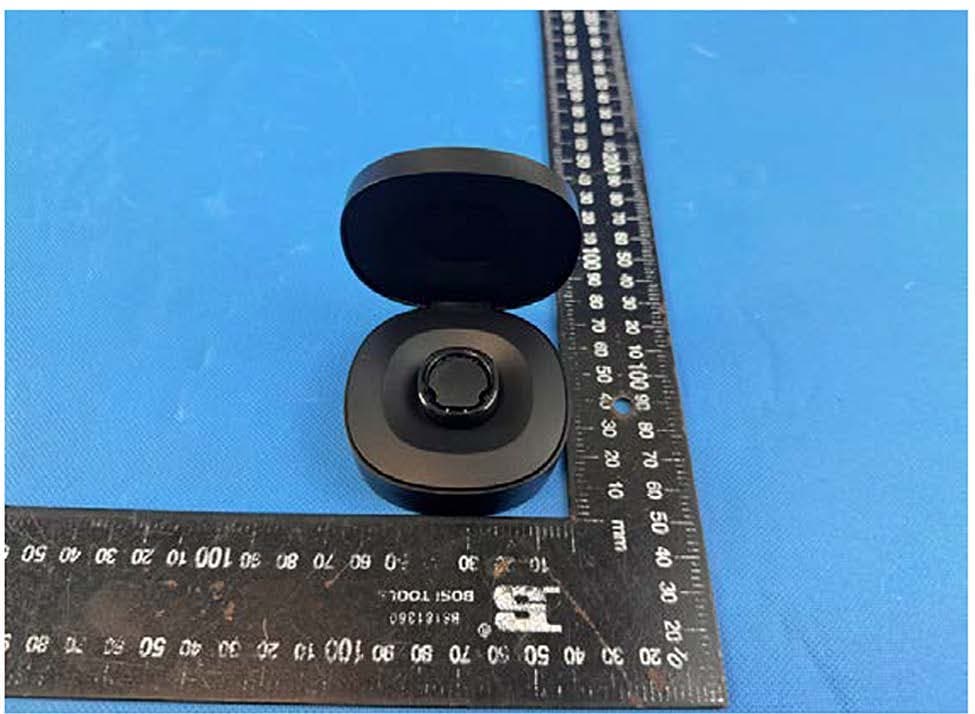

External Photos

FCC ID2A854BORMB-01

Internal Photos

FCC ID: 2A854BORMB-01 RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable Radio Type Frequency range (MHz) Conducted Power (dBm) Maximum Tune-up (dBm) Calculating data Limit Result Bluetooth 2402-2480 0.36 0.50 0.3485 3.00 Pass Note: 1) The maximum antenna gain is 2.50dBi 2) The exposure evaluation safety distance is 0mm.

Page: 1 of 34 TEST REPORT For Bluetooth-LE Report No. ...................................... : CHTEW23090028 Report Verification: Project No.................................： SHT2308049504EW FCC ID ............................................. : 2A854BORMB-01 Applicant’s name ........................... : Shenzhen Ninenovo Technology Limited Address ............................................. : 1301, Building 3, Sunshine Yuehai Garden Phase II, 3818 Baishi Road, Yuegui Community, Yuehai Street, Shenzhen, China Product Name ................................ : Ninenovo Blood Oxygen Ring Trade Mark ....................................... : - Model No. ......................................... : BORMB-01-6 Listed Model(s) ................................. : BORMB-01-7,BORMB-01-8,BORMB-01-9,BORMB-01- 10,BORMB-01-11,BORMB-01-12,BORMB-01-13,BORMB-01-14 Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C § 15.247 Date of receipt of test sample..........: Sep.04, 2023 Date of testing.............................: Sep.04, 2023-Jan.18, 2024 Date of issue...............................: Jan.19, 2024 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrators Kiki Kong Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Xu yang Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : Building 7, Baiwang Idea Factory, No.1051, Songbai Road, Yangguang Community, Xili Subdistrict, Nanshan District, Shenzhen, Guangdong, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23090028 Page: 2 of 34 Date of issue: 2024-01-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06(2023-0 9) Contents 1. TEST STANDARDS AND REPORT VERSION 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 14 5.4. Power Spectral Density 15 5.5. 6dB bandwidth 16 5.6. 99% Occupied Bandwidth 17 5.7. Duty Cycle 18 5.8. Conducted Band edge and Spurious Emission 19 5.9. Radiated Band edge Emission 20 5.10. Radiated Spurious Emission 22 6. TEST SETUP PHOTOS 27 7. EXTERNAL AND INTERNAL PHOTOS 30 7.1. External Photos 30 7.2. Internal Photos 33 8. APPENDIX REPORT 34 Report No.: CHTEW23090028 Page: 3 of 34 Date of issue: 2024-01-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06(2023-0 9) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC CFR Title 47 Part 15 Subpart C § 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2020: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2024-01-19 Original Report No.: CHTEW23090028 Page: 4 of 34 Date of issue: 2024-01-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06(2023-0 9) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS kongyongshu 5.2 AC Conducted Emission 15.207 PASS Junman Wang 5.3 Peak Output Power 15.247(b)(3) PASS kongyongshu 5.4 Power Spectral Density 15.247(e) PASS kongyongshu 5.5 6dB Bandwidth 15.247(a)(2) PASS kongyongshu 5.6 99% Occupied Bandwidth - PASS *1 kongyongshu 5.7 Duty cycle - PASS *1 kongyongshu 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS kongyongshu 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Yifan Wang 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Yifan Wang Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW23090028 Page: 5 of 34 Date of issue: 2024-01-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06(2023-0 9) 3. SUMMARY 3.1. Client Information Applicant: Shenzhen Ninenovo Technology Limited Address: 1301, Building 3, Sunshine Yuehai Garden Phase II, 3818 Baishi Road, Yuegui Community, Yuehai Street, Shenzhen, China Manufacturer: Shenzhen Ninenovo Technology Limited Address: 1301, Building 3, Sunshine Yuehai Garden Phase II, 3818 Baishi Road, Yuegui Community, Yuehai Street, Shenzhen, China 3.2. Product Description Main unit information: Product Name: Ninenovo Blood Oxygen Ring Trade Mark: - Model No.: BORMB-01-6 Listed Model(s): BORMB-01-7,BORMB-01-8,BORMB-01-9,BORMB-01-10,BORMB-01- 11,BORMB-01-12,BORMB-01-13,BORMB-01-14 …

Text truncated - open the document above for the full version.

September 2016 Multilayer Antenna For 2400-2484MHz ANT016008LCS2442MA2 1.6x0.8mm [EIA 0603]* * Dimensions Code JIS[EIA] RF Components RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma2_summary Multilayer Antenna For 2400-2484MHz SHAPES AND DIMENSIONS RECOMMENDED LAND PATTERNSOLDER RESIST PATTERN ANT016008LCS2442MA2 Conformity to RoHS Directive 1.60±0.10 ( 0.1 ) ( 0.1 ) 0.40max. 0.80±0.10 0.63±0.10 0.215±0.100.25±0.10 0.20±0.10 Dimensions in mm [Top view] [Bottom view] 1 Radiator electrode 2 Dummy pad 3 Dummy pad 4 Feed point 5 Dummy pad 6 Dummy pad Terminal functions ( 1 ) ( 4 ) ( 5 )( 6 ) ( 2 )( 3 ) Dimensions in mm 0.6 0.9 1.6 0.21 0.73 0.8 Dimensions in mm 0.7 3 0.60 0.90 1.53 0.11 RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma2_summary ANT016008LCS2442MA2 EVALUATION BOARD Measurement condition for Radiation Pattern PCB size : 50mm x 10mm x 1mm Antenna area : 6 x 2.5 mm Ft-1 Mt 2.0nH(MLG060 3P2N0:TDK) 3.0nH(MLG0603P3N0:TDK) Component P/N Mt ANT016008LCS2442MA2 Ft-1 PCB Z Y X Er θ Eθ Eø ø Chip antenna RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma2_summary ANT016008LCS2442MA2 ELECTRICAL CHARACTERISTICS This is typical antenna performance with the standard PCB. TEMPERATURE RANGE FREQUENCY CHARACTERISTICS EFFICIENCY AND VSWR • Tested antenna has been soldered. Evaluation board size is 50x10x1 mm. Item Frequency Range (MHz) Min.Typ.Max. VSWR2400 to 2484—1.603.0 PolarizationLinear PCB size (mm)5010 Antenna keep-out area (mm)62.5 Characteristic Impedance ()50 (Nominal) Operating temperatureStorage temperature °C°C –40 to +85–40 to +85 –10 –9 –8 –6 –7 –3 –4 –1 –5 –2 0 Efficiency ( dB ) 1 11 10 9 8 7 6 5 4 3 2 VSWR Frequency ( GHz ) 2.3002.4002.5002.600 Efficiency Spec ( VSWR ) VSWR RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma2_summary ANT016008LCS2442MA2 RADIATION PATTERNS • Tested antenna has been soldered. Evaluation board size is 50x10x1 mm. 270 ̊90 ̊ 0 ̊ X Y Z 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –50 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –16.1 –10.5 –26.9 2442 –16.0 –11.3 –26.5 2484 –16.4 –11.7 –31.9 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –50 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –1.4 –0.5 –2.4 2442 –0.8 0.0 –2.1 2484 –1.6 –0.9 –3.0 2400MHz 2442MHz 2484MHz 270° 90° 0° Y X Z 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –50 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –4.3 1.6 –21.9 2442 –3.6 2.5 –24.0 2484 –4.2 2.0 –25.5 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –50 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –17.5 –11.1 –30.4 2442 –16.8 –10.4 –36.3 2484 –17.0 –10.4 –53.3 2400MHz 2442MHz 2484MHz 270 ̊ 90 ̊ 0 ̊ Y Z X 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –50 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –3.9 –0.5 –29.4 2442 –3.3 0.2 –28.7 2484 –4.0 –0.3 –34.7 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –50 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –18.7 –14.8 –26.3 2442 –18.6 –15.0 –25.3 2484 –19.8 –16.7 –29.1 2400MHz 2442MHz 2484MHz RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma2_summary ANT016008LCS2442MA2 RECOMMENDED REFLOW PROFILE SoakingWorkingSoldering Peak Temp.TimeTemp.TimeTemp.TimeTemp. T1T2t1T3t2T4t3T5 150°C180°C60 to 120s230°C30 to 60s247 to 253°Cwithin 10s260°C max. t3 t1 Soaking t2 Working T3T3 T4T4 T5 T2 T1 t: Time Soldering T: Temperature Peak RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma2_summary ANT016008LCS2442MA2 PACKAGING STYLE REEL DIMENSIONS TAPE DIMENSIONS PACKAGE QUANTITY Dimensions in mm ABCDEFGHJKt 0.97±0.05 1.8±0.058.0±0.23.5±0.05 1.75±0.14.0±0.12.0±0.054.0±0.1 1.5+0.1/-0 0.55max. 0.25±0.05 Standard package quantity (pieces/reel) 4,000 2.0±0.5 ø21±0.8 Dimensions in mm 13.0±1.0 9.0 +1.0 –0.0 ø180 +0 –1.5 ø13±0.2 ø 60 +1.0–0.0 C D t K E H F G J B A Material of carrier the tape: PS RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma2_summary REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed bel…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Radiated Emission AC Conducted Emission
