2A85H-BSK96Audio Lighting Speaker

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shenzhen Cyberblue Electronics Co., Ltd Agent Authorization Company: Shenzhen Cyberblue Electronics Co., Ltd Address: 3F, Building 6, Lijin City Industrial Park, Gongye East Road, Longhua District, Shenzhen, Guangdong Product Name: Audio Lighting Speaker Model Number(s): BSK96, BSK98, BSK99, BSK10, BSK12, BSK13, BSK14, BSK15, BSK16, BSK17, BSK18, BSK19, BSK20, BSK33, BSK35, BSK66, BSK70, BSK80, BSK90, BSK92, BSK95, BSK96, BSK97 Product Description: Audio Lighting Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-12-14 Name: Tian Ye Company: Shenzhen Cyberblue Electronics Co., Ltd

Shenzhen Cyberblue Electronics Co., Ltd Dec.14, 2022 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2A85H-BSK96 Model Number: BSK96, BSK98, BSK99, BSK10, BSK12, BSK13, BSK14, BSK15, BSK16, BSK17, BSK18, BSK19, BSK20, BSK33, BSK35, BSK66, BSK70, BSK80, BSK90, BSK92, BSK95, BSK96, BSK97 To Whom It May Concern: We, The Shenzhen Cyberblue Electronics Co., Ltd hereby declare that the models are identical except for the the model name and appearance. Except for the different above, no other modification is performed. Sincerely, Signature: Shenzhen Cyberblue Electronics Co., Ltd Contact person: Tian Ye

Report No.: AGC00126221102AP02 Page 1 of 4 EXTERNAL PHOTOS TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC00126221102AP02 Page 2 of 4 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC00126221102AP02 Page 3 of 4 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC00126221102AP02 Page 4 of 4 PORT VIEW OF EUT ****************************************End of Report****************************************

FCC ID Label Location 30mm&30mm FCC ID: 2A85H-BSK96

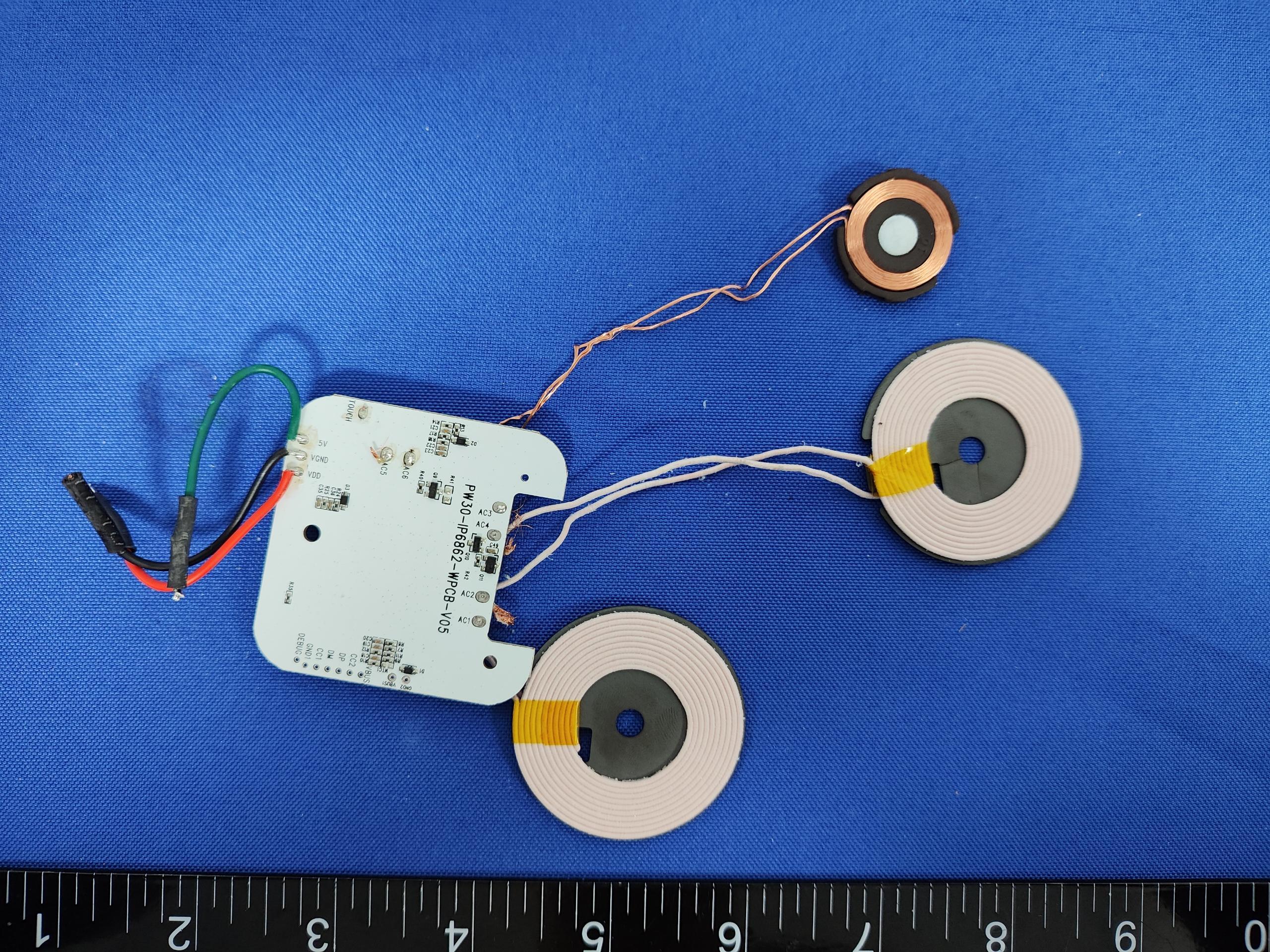

Report No.: AGC00126221102AP02 Page 1 of 3 INTERNAL PHOTOS OPEN VIEW OF EUT-1 INTERNAL VIEW OF EUT (FIGURE 1) Report No.: AGC00126221102AP02 Page 2 of 3 INTERNAL VIEW OF EUT (FIGURE 2) INTERNAL VIEW OF EUT (FIGURE 3) Antenna Report No.: AGC00126221102AP02 Page 3 of 3 BATTERY VIEW OF EUT ****************************************End of Report****************************************

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Audio Lighting Speaker Model Name BSK96 Series Model BSK98, BSK99, BSK10, BSK12, BSK13, BSK14, BSK15, BSK16, BSK17, BSK18, BSK19, BSK20, BSK33, BSK35, BSK66, BSK70, BSK80, BSK90, BSK92, BSK95, BSK96, BSK97 FCC ID 2A85H-BSK96 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t = 2.220dBm=1.667mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.667mW /5mm) .[√2.402GHz)]=0.517<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

SUBJECT˖subject PAGE NO. 1 OF 2 PW20 PCB Antenna Specification VERSION A1 DATE 2022.9.26 1. PW20 uses PCB board antenna. 2. Antenna size.Unit:mm SUBJECT˖subject PAGE NO. 2 OF 2 PW20 PCB Antenna Specification VERSION A1 DATE 2022.9.26 3. Matching cicuit:(Center frequency is about 2441MHz) 4. Description: 4.1. Antenna name: BSK96 4.2. Material:FR4 (PCB board antenna) 4.3. Working frequency: B:2400~2500 MHz 4.4. VSWR:<2 4.5 Peak Gain: 2.5 dBi@2441MHz 4.6 Impedance: 50 OHM 4.7 Return Loss , Smith chart & VSWR Return Loss SUBJECT˖subject PAGE NO. 3 OF 2 PW20 PCB Antenna Specification VERSION A1 DATE 2022.9.26 Smith chart VSWR SUBJECT˖subject PAGE NO. 4 OF 2 PW20 PCB Antenna Specification VERSION A1 DATE 2022.9.26 5. 3D Radiation Gain @2450MHz(unit:dBi)

Page 1 of 80 FCC Test Report Report No.: AGC00126221102FE03 FCC ID : 2A85H-BSK96 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Audio Lighting Speaker BRAND NAME : N/A MODEL NAME : BSK96, BSK98, BSK99, BSK10, BSK12, BSK13, BSK14, BSK15, BSK16, BSK17, BSK18, BSK19, BSK20, BSK33, BSK35, BSK66, BSK70, BSK80, BSK90, BSK92, BSK95, BSK96, BSK97 APPLICANT : Shenzhen Cyberblue Electronics Co., Ltd DATE OF ISSUE : Dec. 08, 2022 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00126221102FE03 Page 2 of 70 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 08, 2022 Valid Initial Release Report No.: AGC00126221102FE03 Page 3 of 70 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 20 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 25 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 25 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 25 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 25 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 25 10. RADIATED EMISSION ................................................................................................................................. 46 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 46 10.2. TEST SETUP ......................................................................................................................................... 48 Report No.: AGC00126221102FE03 Page 4 of 70 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 49 10.4. TEST RESULT...................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00126221102FE03 Page 64 of 70 Test_Graph_BR_HOP_ANT1_NA_1Mbps_2480_Number of Busrt Test_Graph_BR_HOP_ANT1_NA_1Mbps_2480_Time per Burst Report No.: AGC00126221102FE03 Page 65 of 70 13. FREQUENCY SEPARATION 13.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Wide enough to capture the peaks of two adjacent channels. 2. RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. 3. Video (or average) bandwidth (VBW) ≥ RBW. 4. Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. 13.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 6.2 13.3. MEASUREMENT EQUIPMENT USED The same as described in section 6.3 13.4. LIMITS AND MEASUREMENT RESULT Test Data of Frequency Separation Test Mode Channel Separation (MHz) Limits Pass or Fail GFSK Hopping 1.001 >= 2/3 -20dB BW Pass Test Graphs of Number of Hopping Frequency Test_Graph_BR_HOP_ANT1_NA_1Mbps_Hopping Separation Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC00126221102FE03 Page 66 of 70 14. LINE CONDUCTED EMISSION TEST 14.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P. (dBμV) Average (dBμV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5MHz~30MHz 60 50 Note: 1. The lower limit shall apply at the transition frequency. 2. The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz. 14.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST EUT & Support Units Report No.: AGC00126221102FE03 Page 67 of 70 14.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per ANSI C63.10 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2. Support equipment, if needed, was placed as per ANSI C63.10. 3. All I/O cables were positioned to simulate typical actual usage as per ANSI C63.10. 4. All support equipment received AC120V/60Hz power from a LISN, if any. 5. The EUT received DC 5V power from adapter which received AC120V/60Hz power from a LISN. 6. The test program was started. Emissions were measured on each current carrying line of the EUT using a spectrum Analyzer / Receiver connected to the LISN powering the EUT. The LISN has two monitoring points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were taken: one with Line 1 connected to Analyzer / Receiver and Line 2 connected to a 50 ohm load; the second scan had Line 1 connected to a 50 ohm load and Line 2 connected to the Analyzer / Receiver. 7. Analyzer / Receiver scanned from 150 kHz to 30MHz for emissions in each of the test modes. 8. During the above scans, the emissions were maximized by cable manipulation. 9. The test mode(s) were scanned during the preliminary test. Then, the EUT configuration and cable configuration of the above highest emission level were recorded for reference of final testing. 14.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. EUT and support equipment was set up on the test bench as per step 2 of the preliminary test. 2. A scan was taken on both power lines, Line 1 and Line 2, recording at least the six highest emissions. Emission frequency and amplitude were recorded into a computer in which correction factors were used to calculate the emission level and compare reading to the applicable limit. If EUT emission level was less – 2dB to the A.V. limit in Peak mode, then the emission signal was re-checked using Q.P and Average detector. 3. The test data of the worst case condition(s) was reported on the Summary Data page. Report No.: AGC00126221102FE03 Page 68 of 70 14.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST Line Conducted Emission Test Line 1-L Report No.: AGC00126221102FE03 Page 69 of 70 Line Conducted Emission Test Line 2-N RESULT: PASS Report No.: AGC00126221102FE03 Page 70 of 70 APPENDIX A: PHOTOGRAPHS OF TEST SETUP Refer to the Report No.: AGC00126221102AP01 APPENDIX B: PHOTOGRAPHS OF EUT Refer to the Report No.: AGC00126221102AP02 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd. (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court…

Text truncated - open the document above for the full version.

Report No.: AGC00126221102AP01 Page 1 of 2 TEST SETUP PHOTOS RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC00126221102AP01 Page 2 of 2 AC POWER LINE CONDUCTED TEST SETUP RF CONDUCTED TEST SETUP ****************************************End of Report*************************************
