2A86W-S1Wi-Fi Doorbell Base Station

Video Doorbell (Battery Powered) Technical Support: [email protected] Official Website: www.napcat.net EN/DE/FR/ES/IT Quick Start Guide @Napcat Smart Home @Napcat Smart Home @napcatlife @napcatlife EN 01 What’s in the BoxIntroduce the Video Doorbell Quick Start Guide Video Doorbell (Battery Powered) Mounting Bracket (Attached to 15° Mounting Wedge) 15° Mounting Wedge (Optional) Screw Hole Positioning Card Pack of Screws×3 Extension Wires and Wire Nuts (Optional) Jumper for Existing Chime USB Charging Cable Quick Start Guide Surveillance Poster * Power Plug(Note: Power plug may vary in different regions.) Wi-Fi Doorbell Chime(Home Base) Doorbell Detaching Pin The video doorbell detects motion at your porch and allows you to answer the door anytime and anywhere. Camera Lens Microphone Ambient Light Sensor Motion Sensor LED Ring Doorbell Button Speaker Release Hole LED StatusDevice Status Blinking between red and blue Doorbell lost connection with the Doorbell Chime Orange light is solid onDoorbell is Charging Off Fully charged/ Sleep Blue light is solid on Booting/ Press Doorbell Button/ Alarm Detection 02 Introduce the Wi-Fi Doorbell Chime The doorbell chime stores video clips with SD card, when someone rings the doorbell, people in the house will be notified. Power Switch MicroSD Card Slot Indicator Light Bracket lnstallation Slot Power Terminals for Existing Doorbell Wire (Optional) Type-C Charging Port How - to Power on Power off the doorbell Add doorbell to Homebase Operation Press and hold the Power Switch button until you hear Booting sound effect. Press and hold the Power Switch button until you hear Shutdown sound effect(About 10 seconds) Quick-press the Power Switch button 3 times in 3 seconds, and quick-press the reset button on the chime 3 times in 3 seconds at the same time. How - to Reset the doorbell chime Add doorbell to HomeBase Operation Press and hold the Reset button until you hear the voice prompt: "Reset success, device is restarting, please wait." Quick-press the reset button 3 times in 3 seconds, and quick-press the Power Switch button on the chime 3 times in 3 seconds at the same time. Device Status Blinking between red and blueDoorbell Chime network abnormal Doorbell Chime is Booting Connected to the network Blue light is solid on Red light is solid on LED Status Speaker Reset Button Antenna EN Set up the ChimeSet up the Doorbell on phone 03 Follow the steps below to get started with your new doorbell. Step 1. Download the“Napcat Life”App Get the“Napcat Life”app from the APP Store or Google Play. Or download the APP by scanning below QR code. Napcat Life Download on the App Store Get it on Google Play Step 2. Login and add device Note: Power plug may vary in different regions. Fix the power connector to Wi-Fi Doorbell Chime Place the power connector over Wi-Fi Doorbell Chime as indicated. 1. Run the“napcat Life”app, sign up for a Napcat Life account. Login with your account ID, tap“+ Add Device”and scan the setup QR code on the Doorbell Chime. Align the raised slots of the power connector with the notch on the base of the doorbell chime. Push hard in the direction as indicated to lock the power connector in place. Step1. Step2. Step3. 2. 04 Install the Doorbell Step 1. Finding a Mounting Spot Consider the below factors: 5. Follow the onscreen instructions to finish the initial setup. Check if you can reuse the existing holes and anchors on the wall or door frame. If you want to place the doorbell close to a side wall, make sure the wall doesn’t show up in the field of view. Otherwise IR light will be reflected and night vision will become blurry. Plug the chime into the power socket at your desired location. The LED indicator turns blinking red, when the doorbell chime is ready for setup. Extend Wi-Fi Doorbell Chime’s antennas. we recommend that you place the antenna upward and try not to have anything blocking it, as this will provide better WiFi quality. Take the video doorbell to your front door and check the live view on the App at the same time. Find a location where you can get the desired field of view. 3. 1. 2. If you are drilling the mounting holes for the first time, the recommended mounting height is 55" / 1.4 meters from the ground. 3. Use the 15° mounting wedge as a supplementary mounting bracket if you wish to see more on a specific side. 4. 4. 55 inches(140cm) EN 05 Step3. Determining the power option Find a suitable height to place the Screw Hole Positioning Card. If you don’t have existing doorbell wiring at the front door, use the built-in battery. You are free to determine the doorbell position and the mounting is easy and quick. 1. If the doorbell battery is low, you need to charge it before installing it. 2. Mount the Bracket, Please NOTE That The Mounting Bracket has a positive indicator showing the installation direction pointing upward from the ground. If you need to adjust the angle of the doorbell to see more on a specific side, you can use the 15° mounting wedge provided. 3. Step2. Option 1 - Battery Powered 5 Place the Screw Hole Positioning Card 1 1 4 44 Drill and install anchors.( Anchors are not required if the wall is made of wood) 2 2 1 2 Mounting Bracket (If the installation surface is smooth and dust-free, you can use 3M tape along the edges behind the mounting bracket, eliminating the need to drill holes) 3 3 3 06 If you have existing and working doorbell wiring at the front door, the doorbell will be powered by the wires constantly. So you don’t need to detach and charge it after installation. The video doorbell requires user to bypass the existing chime first to get sufficient power. Without this step, the video doorbell will still be able to power on but will operate unstably. 1. Find the doorbell chime in your house, then remove the cover and find the screw terminals with TRANS and FRONT markings. Use the provided Jumper for Existing Chime to connect the two terminals. This is to bypass the doorbell chime and will not affec…

Text truncated - open the document above for the full version.

-ShenzhenRaycloudTechnologyCo.,Ltd- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 3/14/24 U.S.AgentDesignation ShenzhenRaycloudTechnologyCo.,Ltdacknowledgestheirconsentforthefollowingcontactlocated intheUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhich authorizationissought(FCCID:[2A86W-S1]): NameandcompanyofU.S.agent:LinkwldLLC PhysicalU.S.addressofagent:1942BroadwaySt.STE314C,Boulder,CO,80302,US FRNofU.S.agent:0033625682 EmailaddressofU.S.agent:[email protected] LinkwldLLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfofShenzhen RaycloudTechnologyCo.,Ltd. ShenzhenRaycloudTechnologyCo.,LtdwiththeFRN[0033032244]acceptsitsobligationtomaintain anagentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegrantee haspermanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S., ortheconclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(d)(7). Sincerely, Signature [Name]JifengPang [Title]generalmanager [Company]ShenzhenRaycloudTechnologyCo.,Ltd Signature [NameofU.S.agent]TimothyZhu [TitleofU.S.agent]Manager 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 4 -ShenzhenRaycloudTechnologyCo.,Ltd- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. [CompanyofU.S.agent]LinkwldLLC

-ShenzhenRaycloudTechnologyCo.,Ltd- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 3/14/24 Towhomitmayconcern: We,[ShenzhenRaycloudTechnologyCo.,Ltd],herebycertifythattheequipmentforwhich authorizationissought(FCCID:[2A86W-S1])isnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [JifengPang] [LegalRepresentative] [ShenzhenRaycloudTechnologyCo.,Ltd] 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

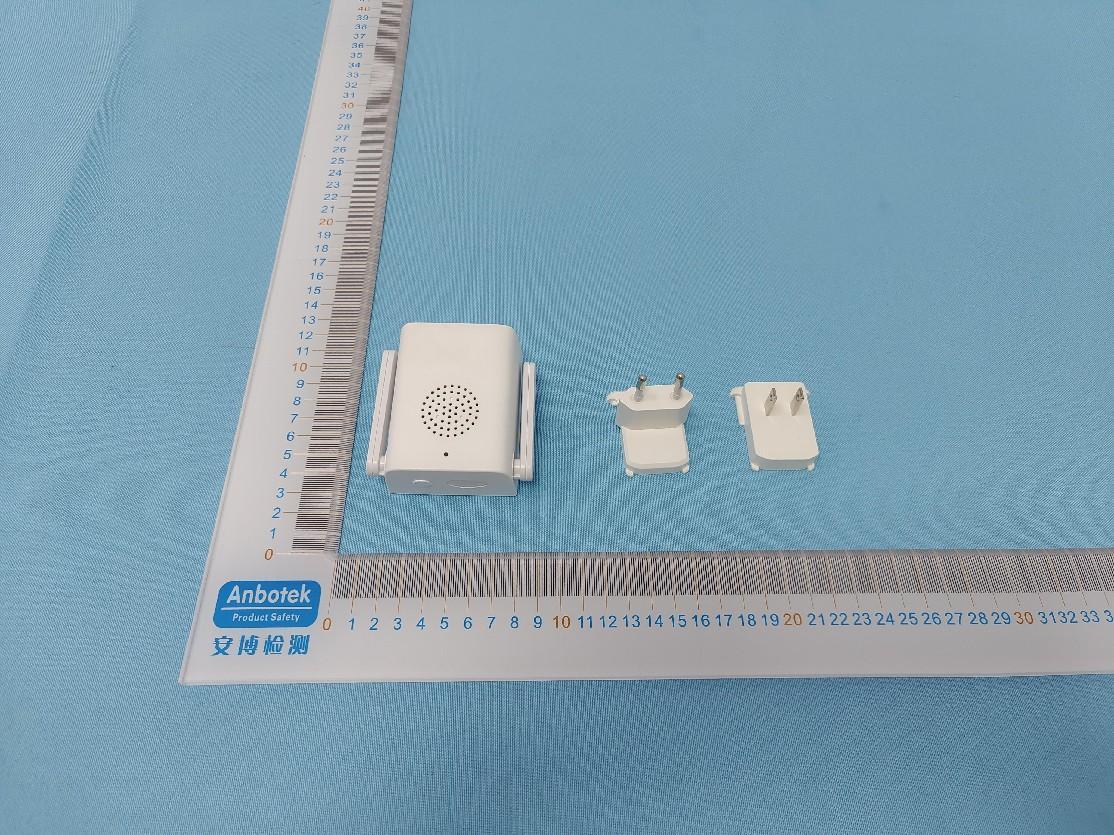

ProjectNo.:18220WC302755Page1of4 Code:AB-RF-05-b AppendixII--ExternalPhotograph ProjectNo.:18220WC302755Page2of4 Code:AB-RF-05-b ProjectNo.:18220WC302755Page3of4 Code:AB-RF-05-b WLANANTWLAN&RLANANT ProjectNo.:18220WC302755Page4of4 Code:AB-RF-05-b

Label Location On EUT Label

ProjectNo.:18220WC302755Page1of5 Code:AB-RF-05-b AppendixIII--InternalPhotograph ProjectNo.:18220WC302755Page2of5 Code:AB-RF-05-b ProjectNo.:18220WC302755Page3of5 Code:AB-RF-05-b ProjectNo.:18220WC302755Page4of5 Code:AB-RF-05-b ProjectNo.:18220WC302755Page5of5 Code:AB-RF-05-b

MAXIMUMPERMISSIBLEEXPOSURE KDB447498D01MobileandPortableDevicesRFExposureProceduresand EquipmentAuthorizationPoliciesv06. AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b) EUTSpecification FCCID2A86W-S1 EUTWi-FiDoorbellBaseStation Frequencyband (Operating) BT:2.402GHz~2.480GH WLAN:2.412GHz~2.462GHz RLAN:5.180GHz~5.240GHz RLAN:5.260GHz~5.320GHz RLAN:5.500GHz~5.700GHz RLAN:5.745GHz~5.825GHz Others: Devicecategory Portable(<20cmseparation) Mobile(>20cmseparation) Others___ Exposureclassification Occupational/Controlledexposure GeneralPopulation/Uncontrolledexposure Antennadiversity Singleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpowerModule:RTL8189FTV WiFi2.4G:15.37dBm 0.0344 W Module:RTL8731BU WiFi2.4G:13.97dBm0.0249W WiFi5.2G:14.07dBm0.0255W WiFi5.3G:13.85dBm0.0243W WiFi5.6G: 15.22 dBm 0.0333 W WiFi5.8G:14.50dBm0.0282W Antennagain(Max)Module:RTL8189FTV WiFi2.4G:2.42dBi Module:RTL8731BU WiFi2.4G:2.42dBi WiFi5.2G:3.08dBi WiFi5.3G:3.08dBi WiFi5.6G:3.08dBi WiFi5.8G:3.08dBi Evaluationapplied MPEEvaluation SAREvaluation LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm 2 ) AverageTime (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/150030 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R2) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainMw G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdthelimitofMPE.Ifweknowthemaximumgainoftheantennaandtotal powerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. MaxMeasurementResult Module Operating Mode Measured Power Tuneup tolerance Max. Tune up Power Antenna Gain Power densityat 20cm Power density Limits (mW/cm 2 ) (dBm)(dBm)(dBm)(dBi)(mW/cm 2 ) RTL8189FTVWiFi2.4G15.3715.37±116.372.420.01511 RTL8731BU WiFi2.4G13.9713.97±114.972.420.01091 WiFi5.2G14.0714.07±115.073.080.01301 WiFi5.3G13.8513.85±114.853.080.01241 WiFi5.6G15.2215.22±116.223.080.01691 WiFi5.8G14.5014.50±115.503.080.01441 No.ApplicableSimultaneousTransmission 1.moduleRTL8189FTVWiFi2.4G+moduleRTL8731BUWiFi2.4G 2.moduleRTL8189FTVWiFi2.4G+moduleRTL8731BUWiFi5.2G 3.moduleRTL8189FTVWiFi2.4G+moduleRTL8731BUWiFi5.3G 4.moduleRTL8189FTVWiFi2.4G+moduleRTL8731BUWiFi5.6G 5.moduleRTL8189FTVWiFi2.4G+moduleRTL8731BUWiFi5.8G TheMaximumsimultaneoustransmissionformoduleRTL8189FTVWiFi 2.4G+moduleRTL8731BUWiFi5.6G: =S WiFi2.4G /S limit-2.4G +S WiFi5.8G /S limit-5.8G =0.0151/1+0.0169/1 =0.0320 <1.0 Result:NoStandaloneSARtestisrequired.

Page 1 of 82 AppendixTestData ReportNo:18220WC30275503TestSampleNO:1-2-2 StartTestDate：2024.1.26FinishTestDate:2024.1.27 TestEngineer:Auditor: Temperature:24.9°CRelativeHumidity:44% Pressure:101kPa AppendixA1:EmissionBandwidth TestResult TestModeAntennaFrequency[MHz] 26db EBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict 802.11aAnt1 518019.8805169.9605189.840------ 520019.5205190.3205209.840------ 524019.5605230.2805249.840------ 526019.2005250.3205269.520------ 530019.6005290.3205309.920------ 532019.2405310.6005329.840------ 550019.5605490.2005509.760------ 558019.6405570.2005589.840------ 570019.2805690.4005709.680------ 574519.6005735.1605754.760------ 578519.2005775.4805794.680------ 582519.7605815.3205835.080------ 802.11n(HT20) SISO Ant1 518020.4405169.8405190.280------ 520020.1605190.1205210.280------ 524020.0005229.9605249.960------ 526019.9605250.0005269.960------ 530020.5605290.0005310.560------ 532020.5605309.6405330.200------ 550020.4805489.8405510.320------ 558020.3205569.8805590.200------ 570020.2405689.8005710.040------ 574520.4805734.6405755.120------ 578520.3205774.8405795.160------ 582520.5205814.8405835.360------ Page 2 of 82 TestGraphs 802.11a_Ant1_5180 802.11a_Ant1_5200 802.11a_Ant1_5240 Page 3 of 82 802.11a_Ant1_5260 802.11a_Ant1_5300 Page 4 of 82 802.11a_Ant1_5320 802.11a_Ant1_5500 802.11a_Ant1_5580 Page 5 of 82 802.11a_Ant1_5700 802.11a_Ant1_5745 Page 6 of 82 802.11a_Ant1_5785 802.11a_Ant1_5825 802.11n(HT20)SISO_Ant1_5180 Page 7 of 82 802.11n(HT20)SISO_Ant1_5200 802.11n(HT20)SISO_Ant1_5240 Page 8 of 82 802.11n(HT20)SISO_Ant1_5260 802.11n(HT20)SISO_Ant1_5300 802.11n(HT20)SISO_Ant1_5320 Page 9 of 82 802.11n(HT20)SISO_Ant1_5500 802.11n(HT20)SISO_Ant1_5580 Page 10 of 82 802.11n(HT20)SISO_Ant1_5700 802.11n(HT20)SISO_Ant1_5745 802.11n(HT20)SISO_Ant1_5785 Page 11 of 82 802.11n(HT20)SISO_Ant1_5825 Page 12 of 82 AppendixA2:Occupiedbandwidth TestResult TestMode Antenn a Frequency[MHz ] OCB [MHz] FL[MHz]FH[MHz] Limit[MHz ] Verdic t 802.11aAnt1 5180 16.54 2 5171.735 1 5188.277 1 ------ 5200 16.58 2 5191.730 1 5208.312 1 ------ 5240 16.65 5 5231.722 0 5248.377 0 ------ 5260 16.54 1 5251.765 7 5268.306 7 ------ 5300 16.61 2 5291.770 6 5308.382 6 ------ 5320 16.63 9 5311.7333 5328.372 3 ------ 5500 16.70 3 5491.669 3 5508.372 3 ------ 5580 16.58 9 5571.759 2 5588.348 2 ------ 5700 16.62 3 5691.716 2 5708.339 2 ------ 5745 16.58 8 5736.748 2 5753.336 2 ------ 5785 16.57 1 5776.766 6 5793.337 6 ------ 5825 16.66 5 5816.718 1 5833.383 1 ------ 802.11n(HT20 )SISO Ant1 5180 17.68 1 5171.215 7 5188.896 7 ------ 5200 17.68 3 5191.245 4 5208.928 4 ------ 5240 17.71 8 5231.178 0 5248.896 0 ------ 5260 17.70 5 5251.202 5 5268.907 5 ------ 5300 17.71 2 5291.196 3 5308.908 3 ------ 5320 17.75 7 5311.1369 5328.893 9 ------ 5500 17.66 5 5491.174 3 5508.839 3 ------ Page 13 of 82 5580 17.64 0 5571.221 6 5588.861 6 ------ 5700 17.65 2 5691.174 9 5708.826 9 ------ 5745 17.64 8 5736.205 9 5753.853 9 ------ 5785 17.65 3 5776.192 5 5793.845 5 ------ 5825 17.64 2 5816.223 1 5833.865 1 ------ Page 14 of 82 TestGraphs 802.11a_Ant1_5180 802.11a_Ant1_5200 802.11a_Ant1_5240 Page 15 of 82 802.11a_Ant1_5260 802.11a_Ant1_5300 Page 16 of 82 802.11a_Ant1_5320 802.11a_Ant1_5500 802.11a_Ant1_5580 Page 17 of 82 802.11a_Ant1_5700 802.11a_Ant1_5745 Page 18 of 82 802.11a_Ant1_5785 802.11a_Ant1_5825 802.11n(HT20)SISO_Ant1_5180 Page 19 of 82 802.11n(HT20)SISO_Ant1_5200 802.11n(HT20)SISO_Ant1_5240 Page 20 of 82 802.11n(HT20)SISO_Ant1_5260 802.11n(HT20)SISO_Ant1_5300 802.11n(HT20)SISO_Ant1_5320 Page 21 of 82 802.11n(HT20)SISO_Ant1_5500 802.11n(HT20)SISO_Ant1_5580 Page 22 of 82 802.11n(HT20)SISO_Ant1_5700 802.11n(HT20)SISO_Ant1_5745 802.11n(HT20)SISO_Ant1_5785 Page 23 of 82 802.11n(HT20)SISO_Ant1_5825 Page 24 of 82 AppendixA3:Minemissionbandwidth TestResultB4 TestModeAntennaFrequency[MHz] 6db EBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict 802.11aAnt1 574515.4005737.1205752.5200.5PASS 578511.8405778.7605790.6000.5PASS 582515.7205817.0805832.8000.5PASS 802.11n(HT20) SISO Ant1 574515.8405737.0805752.9200.5PASS 578510.9205779.3605790.2800.5PASS 582515.1205817.4405832.5600.5PASS Page 25 of 82 TestGraphsB4 802.11a_Ant1_5745 802.11a_Ant1_5785 802.11a_Ant1_5825 Page 26 of 82 802.11n(HT20)SISO_Ant1_5745 802.11n(HT20)SISO_Ant1_5785 Page 27 of 82 802.11n(HT20)SISO_Ant1_5825 Page 28 of 82 AppendixB:DutyCycle TestResult TestModeAntennaFrequency[MHz] Transmission Duration[ms] Transmission Period[ms] DutyCycle [%] 802.11aAnt1 51802.072.2990.39 52002.062.3089.57 52402.062.2193.21 52602.062.2691.15 53002.062.2790.75 53202.072.3090.00 55002.062.2890.35 55802.062.2491.96 57002.062.2890.35 57452.062.2591.56 57852.072.2990.39 58252.062.2392.38 802.11n(HT20) SISO Ant1 51801.922.1191.00 52001.922.1589.30 52401.922.1688.89 52601.922.1290.57 53001.922.1290.57 53201.922.1390.14 55001.922.1489.72 55801.922.1589.30 57001.922.1191.00 57451.922.1191.00 57851.922.1091.43 58251.922.1390.14 Page 29 of 82 TestGraphs 802.11a_Ant1_5180 802.11a_Ant1_5200 802.11a_Ant1_5240 Page 30 of 82 802.11a_Ant1_5260 802.11a_Ant1_5300 Page 31 of 82 802.11a_Ant1_5320 802.11a_Ant1_5500 802.11a_Ant1_5580 Page 32 of 82 802.11a_Ant1_5700 802.11a_Ant1_5745 Page 33 of 82 802.11a_Ant1_5785 802.11a_Ant1_5825 802.11n(HT20)SISO_Ant1_5180 Page 34 of 82 802.11n(HT20)SISO_Ant1_5200 802.11n(HT20)SISO_Ant1_5240 Page 35 of 82 802.11n(HT20)SISO_Ant1_5260 802.11n(HT20)SISO_Ant1_5300 802.11n(HT20)SISO_Ant1_5320 Page 36 of 82 802.11n(HT20)SISO_Ant1_5500 802.11n(HT20)SISO_Ant1_5580 Page 37 of 82 802.11n(HT20)SISO_Ant1_5700 802.11n(HT20)SISO_Ant1_5745 802.11n(HT20)SISO_Ant1_5785 Page 38 of 82 802.11n(HT20)SISO_Ant1_5825 Page 39 of 82 AppendixC:Maximumconductedoutputpower TestResultChannelPower Test Mode Antenna Frequenc y[MHz] Set Power Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] 802.11 a Ant1 5180---13.6390.390.4414.07≤23.98 5200---13.4389.570.4813.91≤23.98 5240---13.4893.210.3113.79≤23.98 5260 ---5.0691.150.405.46≤23.83 ---12.5991.150.4012.99≤23.83 ---12.5691.150.4012.96…

Text truncated - open the document above for the full version.

ReportNo.:18220WC30275503FCCID:2A86W-S1Page1of48 FCCTestReport Applicant:ShenzhenRaycloudTechnologyCo.,Ltd Address: BulongRoadNo.663,BuildingF,4thFloor,411A, DafabuCommunity,BantianStreet,Longgang District,Shenzhen,Guangdong,China ProductName:Wi-FiDoorbellBaseStation ReportDate:Mar.14,2024 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30275503FCCID:2A86W-S1Page2of48 Contents 1.GeneralInformation.................................................................................................................................6 1.1.ClientInformation...........................................................................................................................6 1.2.DescriptionofDevice(EUT)..........................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest..........................................................................................8 1.4.Operationchannellist....................................................................................................................9 1.5.DescriptionofTestModes...........................................................................................................10 1.6.MeasurementUncertainty...........................................................................................................10 1.7.TestSummary..............................................................................................................................11 1.8.DescriptionofTestFacility...........................................................................................................12 1.9.Disclaimer....................................................................................................................................12 1.10.TestEquipmentList...................................................................................................................13 2.ConductedEmissionatACpowerline..................................................................................................15 2.1.EUTOperation.............................................................................................................................15 2.2.TestSetup....................................................................................................................................15 2.3.TestData......................................................................................................................................16 3.DutyCycle..............................................................................................................................................18 3.1.EUTOperation.............................................................................................................................18 3.2.TestSetup....................................................................................................................................18 3.3.TestData......................................................................................................................................18 4.Maximumconductedoutputpower........................................................................................................19 4.1.EUTOperation.............................................................................................................................19 4.2.TestSetup....................................................................................................................................20 4.3.TestData......................................................................................................................................20 5.Powerspectraldensity...........................................................................................................................21 5.1.EUTOperation.............................................................................................................................21 5.2.TestSetup....................................................................................................................................22 5.3.TestData......................................................................................................................................22 6.Emissionbandwidthandoccupiedbandwidth......................................................................................23 6.1.EUTOperation.............................................................................................................................24 6.2.TestSetup....................................................................................................................................24 6.3.TestData......................................................................................................................................25 7.ChannelMoveTime,ChannelClosingTransmissionTime..................................................................26 7.1.EUTOperation.............................................................................................................................27 7.2.TestSetup....................................................................................................................................27 7.3.TestData......................................................................................................................................27 8.DFSDetectionThresholds.....................................................................................................................28 8.1.EUTOperation.............................................................................................................................28 8.2.TestSetup....................................................................................................................................29 8.3.TestData......................................................................................................................................29 9.Bandedgeem…

Text truncated - open the document above for the full version.

version01 ShenzhenRaycloudTechnologyCo.,Ltd DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:S1 FCCID:2A86W-S1 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor external antennatype(s) describedbelow: ModelNo.ofantenna:UB02C55W2Daaa1A Typeofantenna:RodAntenna Frequencyrange/Gain oftheantenna: 2.42dBifor2400-2500MHz 3.08dBifor5150-5850MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShenzhenRaycloudTechnologyCo.,Ltd Address:BulongRoadNo.663,BuildingF,4thFloor,411A,DafabuCommunity,Bantian Street,LonggangDistrict,Shenzhen,Guangdong,China City:Shenzhen,Guangdong ZIP/Postalcode:518000 Country:China Place:Date:3/14/2024 Signature:

承认书 公司名称（安联填写）：珠海安联锐视科技股份有限公司 物料编码（供方填写）：UB02C55W2Daaa1A 物料名称（供方填写）：2.4/5.8GW73白色外置天线L=55mm+端子 规格型号（安联填写）： 承认日期（安联填写）： 供应商名称（供方填写）：东莞市优比电子有限公司 供应商规格型号（供方填写）：UB02C55W2Daaa1A 品牌（供方填写）：UANT 承认签章 供应商承认（供方填写中文名）安联锐视公司承认 工程师 审核 批准工程师审核批准 黄土放黄土放刘长兴 盖章签署盖章签署 日期2023.1.9日期 批示：□接受□有条件接受 存储条件下 对应的存储 时间 包装方式PE袋包装存储温度范围-20°C~+50°C存储失效辨别 存储相对 湿度范围 30%-70%存储时间（月）12 产品表面出现 氧化现象 备注（安联填写）： 以下供方填写 供应商名称：东莞市优比电子有限公司 供应商英文名称：Dongguanyoubielectronicsco.,ltd 供应商地址：广东省东莞市塘厦镇林村社区新太阳工业城79栋 电话：0769-81777126传真：0769-81777125 网址：www.ubuant.com电子邮箱：[email protected] 提供以下资料： 1:提供图纸 2：提供包装图 3：提供相关测试报告 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 3 /9 承认书 APPROVALSHEET 客户名称 CUSTOMERNAME:珠海安联锐视科技股份有限公司 产品名称 PRODUCTNAME:2.4/5.8GW73白色外置天线L=55mm+端子 客户料号 CUSTOMERP/N: 优比电子料号 YoubiP/N:UB02C55W2Daaa1AREV:A MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKEDBY: Eddy APPROVEDBY:Changxing.Liu DATE:2024/1/9 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 4 /9 ModificationHistory VersionContentRevisionIssuedbyDate AOriginalversionEddy2024-1-9 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 5 /9 Content ltemDescription 1.--------------------------------------------------------------------ElectricalSpecification 2.---------------------------------------------------------------TestItemsandEquipment 3.---------------------------------------------------------------------------------SParameter 4.------------------------------------------------------------------------EfficiencyandGain 5.-----------------------------------------------------------------------------Activetestdata 6.------------------------------------------------------------Antennainstallationdiagram 7.-----------------------------------------------------------------MechanicalSpecification DongguanYoubiElectronicsCo.,LTDHangzhouYoubige ElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106, BuildingA,XinzhengIndustrialPark, XinfaRoa d,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57 LiuxianRoad,Bao 'an District,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 6 / 9 1. ElectricalSpecification 2.TestItems and Equipment CharacteristicsSpecificationsUnit OutlineDimensions63 x13.96x12,L55mm Frequency 2400-2500;5150-5850 MHz Impedance50Ω VSWR< 2 Polarization LinearPolarization Gain 2.4G:2.42DBI 5G:3.08DBI dBi Efficiency>60 % ConnectorTypeRF 1 Operatingtemperature-20°C~+85°C StorageTemp-20°C~+ 50°C TestitemsTestequipment S Parameter 1.ReturnLoss 2. VSWR Networkanalyzer (AgilentE5071B) The wholemachineof Passiveparameters 1.Frequency 2.Gain 3.RadiationPattern 1.3D microwavedarkroom (5m *5m *5 m) 2. Networkanalyzer (AgilentE5071B) The wholemachineof Activeparameters 1. TRP 2. TIS 1.3D microwavedarkroom (5m *5m *5 m) 2. Comprehensivetest instrument (CMW500) DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 7 /9 3.SParameter *VoltageStandingWaveRatio(VSWR) ReturnLoss(RL) RL=20*log10[(VSWR+1)/(VSWR-1) 4.EfficiencyandGain Frequency (MHz) Return Loss(dB) VSWR 2400-15.511.43 2450-21.231.19 2500-22.301.19 5150-11.821.72 5500-15.381.41 5850-10.911.84 Frequency (MHz) 240024502500515055005850 Efficiency (%) 70.0674.1980.3966.4663.6561.87 Gain (dBi) 2.112.342.422.753.082.42 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 8 /9 5.Activetestdata 6.Antennainstallationdiagram B模11MN模MCS7 ChannelMeasurementTotalMeasurementTotal 1TRP 18.66 TRP 18.02 6TRP 18.21 TRP 18.65 11TRP 17.95 TRP 18.20 1TIS(EIRP) -89.06 TIS(EIRP) -70.38 6TIS(EIRP) -…

Text truncated - open the document above for the full version.
