DXYBT015-A00 datasheet DXYBT015-A00 Bluetooth Module Specification DXYBT015-A00 datasheet www.dxytech.com Tel:400-9900-108 1 / 6 Content A) Overview ............................................................................................................................... 2 B) Main Features ....................................................................................................................... 2 C) Application ............................................................................................................................ 2 D) Physical Characteristics ......................................................................................................... 2 E) Electrical Characteristics ....................................................................................................... 3 Table 1 Recommended operating conditions ...................................................................... 3 Table2 DC Characteristics ..................................................................................................... 3 Table 3 RF receiver and transmitter characteristics ............................................................. 3 F) Pin descriptions ..................................................................................................................... 4 K) ................................................................................... PCB package size and Layout Precautions ................................................................................................................................................... 5 PCB package size ................................................................................................................... 5 Layout notes .......................................................................................................................... 5 DXYBT015-A00 datasheet www.dxytech.com Tel:400-9900-108 2 / 6 A) Overview DXYBT015-A00 is a BLE wireless transparent transmission UART module based on onsemi ultra-low power BLE 5.2 wireless MCU, and designed by Shenzhen DXY Technology Co., Ltd. It supports AT command to change the UART baud rate, Device name, Broadcast parameters, ...etc. We can also provide custom-made firmware service according to customer’s requirement. B) Main Features Ultra-low power BLE 5.2 standard Build in 32bit Cortex-M33 mcu core. RX sensitivity: 1Mbps: -96dBm 2Mbps: -94dBm TX power: 2.69dBm(max) Configure UART setting pa rameter. Small module size: 10mm(L)*9mm(W)*2.3mm(H) C) Application The module is mainly used in short distance wireless data transmission. Easy connection with mobile phone BLE & PC BLE. Data exchange is also possible in between two modules. This can replace wire cables and direct replacement of UART. BLE wireless data transmission Wireless data collection Industrial remote control, telemetry POS system, BLE wireless keyboard, mouse Automatic wireless data collection Building automation, security, smart door locks Smart home, industrial control D) Physical Characteristics Operating Frequency Band 2.4GHz ISM Band Bluetooth Specification Bluetooth v5.2 Low Energy (BLE) Output Power Class Class 2 Operating Voltage 3.3V Host Interface UART Dimension 10mm(L)*9mm(W)*2.3mm(H) DXYBT015-A00 datasheet www.dxytech.com Tel:400-9900-108 3 / 6 E) Electrical Characteristics Table 1 Recommended operating conditions SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT VCC Power supply Relative to GND 1.2V 3.3 3.6 V TA Operating temperature -40 +25 +85 °C Table2 DC Characteristics (Typical values are Ta=25°C and VCC = 3.3V) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT Icc Current consumption Sleep mode 0.08 uA RX mode(1Mbps) 2.7 mA RX mode(2Mbps) 3.2 mA TX mode(+0dBM) 4.3 mA TX mode(+6dBM) 11.4 mA INTERFACE V(OH) High level output voltage 0.9*Vcc V V(OL) Low level output voltage 0.1*Vcc V V(IH) High level input voltage 0.7*Vcc V V(IL) Low level input voltage 0.3*Vcc V Table 3 RF receiver and transmitter characteristics (Typical values are Ta=25°C and VCC = 3.3V) SYMBOL PARAMETERS CONDITIONS MIN TYP MAX UNIT RX sensitivity (Non DC-DC) 1Mbps -96 dBm 2Mbps -94 dBm Maximum input signal level 0 dBm Adjacent-channel rejection(C/I) ±1MHz -1 dB Adjacent-channel rejection(C/I) ±2MHz -40 dB F Frequency range 2400 2480 MHz P(TX) Output power -17 6 dBm DXYBT015-A00 datasheet www.dxytech.com Tel:400-9900-108 4 / 6 F) Pin descriptions Pin No. Pin Name input/output Pin Description 1 NC -- -- 2 GND -- Analog GND, GND 3 NC -- -- 4 SWDIO -- SWDIO 5 SWCLK -- SWCLK 6 DI014 IO GPIO14 7 DI08 IO GPIO8, UART RX 8 DI06 IO GPIO6, UART TX 9 DI02 IO GPIO2 10 RESET I Reset pin, Low activate 11 DIO10 IO GPIO10 12 DIO1 IO GPIO1 13 GND Analog GND, GND 14 V BAT POWER Module Power supply input (1.2V-3.6V) 15 DIO0 IO GPIO0 16 NC -- -- DXYBT015-A00 datasheet www.dxytech.com Tel:400-9900-108 5 / 6 K)PCB package size and Layout Precautions PCB package size: Unit : mm Pad Tolerance : +/-0.2 Appearance Tolerance : +/-0.2 Layout notes BLE module Layout, the upper & lower area of antenna cannot be covered by Copper GND. Besides, the bottom PCB side of antenna should be No Copper. FCC regulatory conformance： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular inst…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Wuhan P&S Information Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2/24/2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2A876-DXYBT015 [Insert applicant name] (“Wuhan P&S Information Technology Co., Ltd”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) Alex Wong Rev 1/26/2023 Wuhan P&S Information Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2/24/2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2A876-DXYBT015 [Insert applicant name] (“Wuhan P&S Information Technology Co., Ltd”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) Alex Wong

Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: __ 2A876-DXYBT015 _ Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. No,This modular has no RF shield. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, the modular data inputs are buffered through log or microcontroller connections. All modulation and data inputs are buffered by circuitry on the transmitter chip 3. The modular transmitter must have its own power supply regulation. Yes, Power supply regulation is provided by circuitry on the CPU chip 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Yes, The EUT meet the FCC antenna requirements 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, The EUT is can transmitting Stand-alone, please refer the test setup photos 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). Yes, The module is labeled with its permanently affixed FCC ID label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, The EUT is full compliant with FCC rules 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, This module is complies with FCC CFR 47 part 2.1091 and FCC KDB 447498 D01 General RF Exposure Guidance v06 limit, Please refer RF exposure report. Items to be covered by Split modular transmitters. Answer from applicant 1.The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2.Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3.Control information and other data may be exchanged between the transmitter control elements and radio front end. 4.The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5.Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. c Name and surname of applicant (or authorized representative): _Alex Wong___ Date: ____2023/01/10___________ Signature: ___________________________ Wuhan P&S Information Technology Co.,Ltd Name: Alex Wong Date: Jan. 30 2023 Signature of applicant: The DXY BLE MODULE (FCC ID: 2A876-DXYBT015) works in the 2.4G wireless frequency band and uses an on-board antenna. The standing wave ratio (VSWR) and efficiency of the antenna depend on the placement of the patch. Various factors should be avoided as far as possible to the wireless signal transmission and reception. Note the following: 1、Avoid using metal for the product shell surrounding the Bluetooth. When using a part of the metal shell, try to keep the antenna part of the module away from the metal part.The metal connecting wire or metal screw inside the product should be as far away as possible from the antenna part of the module. 2、The antenna part of the module should be placed against the edge of the carrier board PCB or directly exposed to the carrier board, and it is not allowed to be placed in the middle of the board, There is at least 5mm of free space in the antenna direction, and the carrier board under the…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2290649-AW 1 / 3 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2290649-AW 2 / 3 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ2290649-AW 3 / 3 TOP VIEW OF EUT BOTTOM VIEW OF EUT

LABEL labellocation：

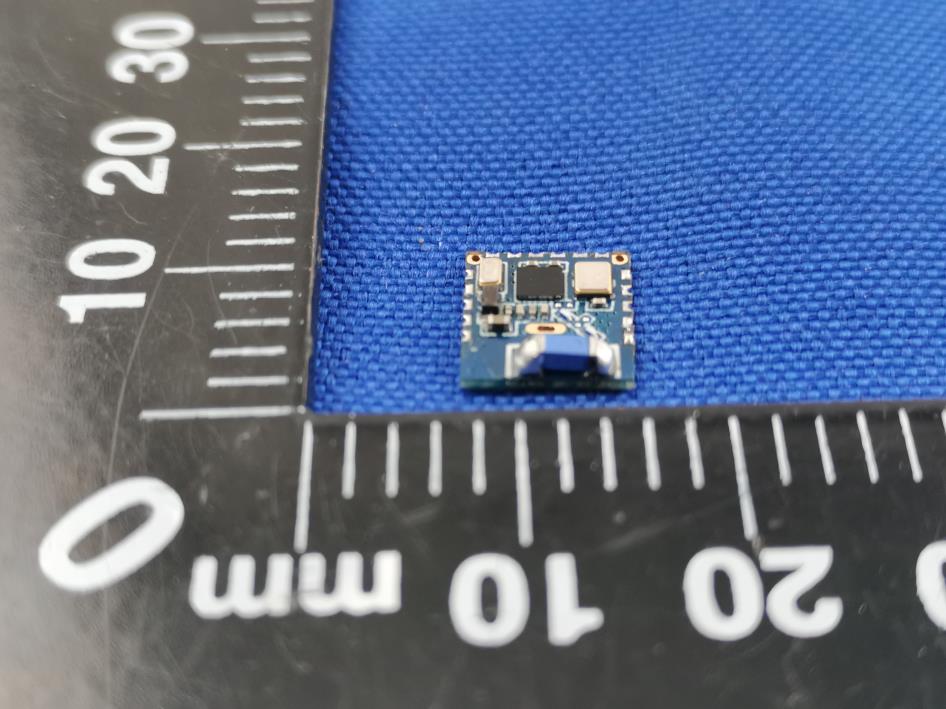

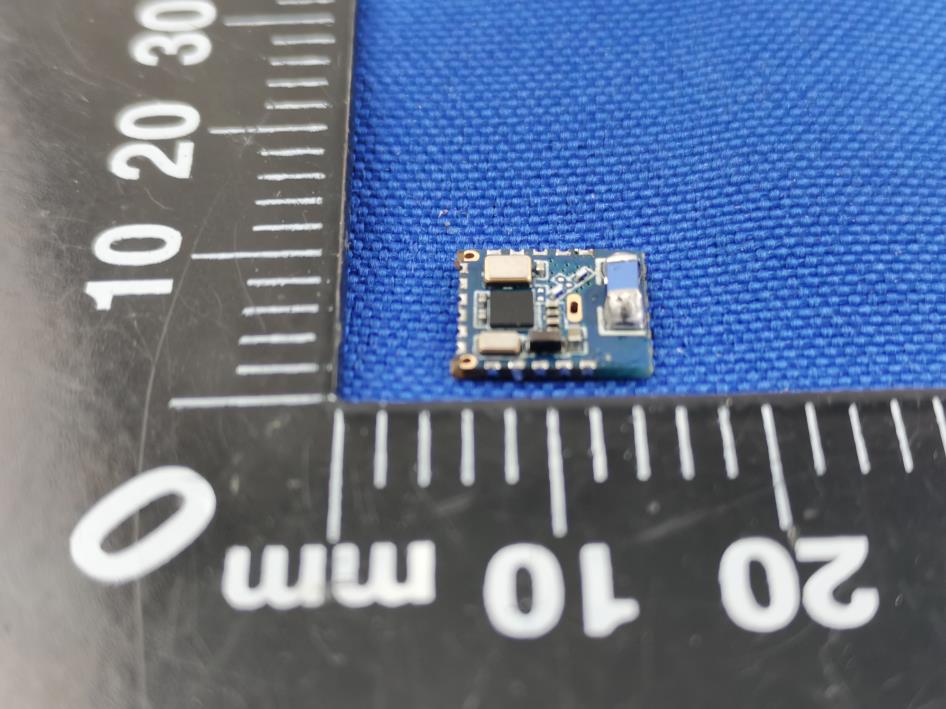

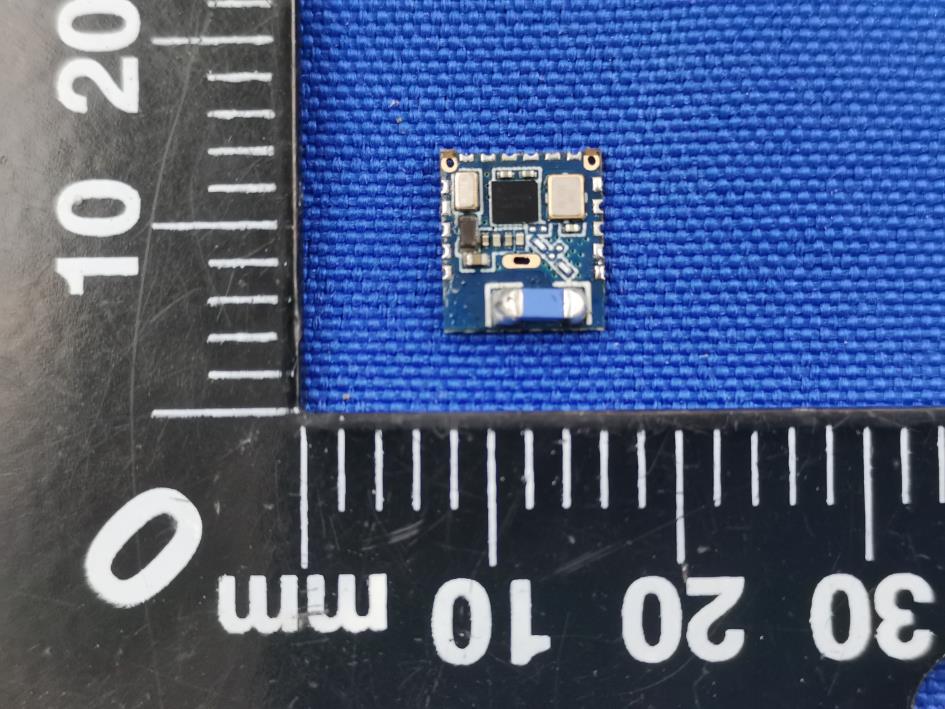

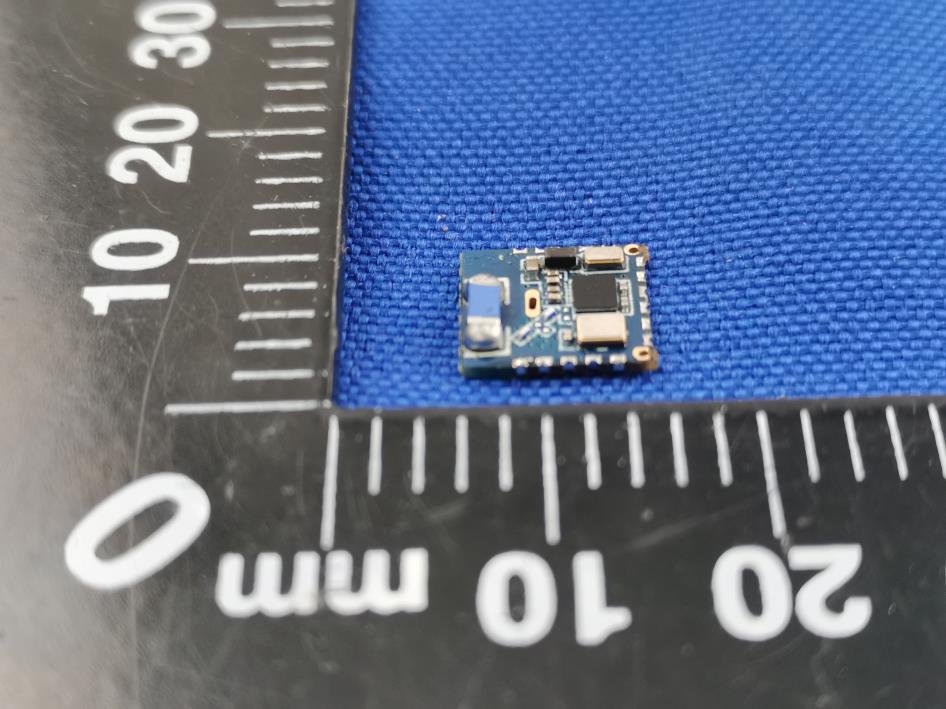

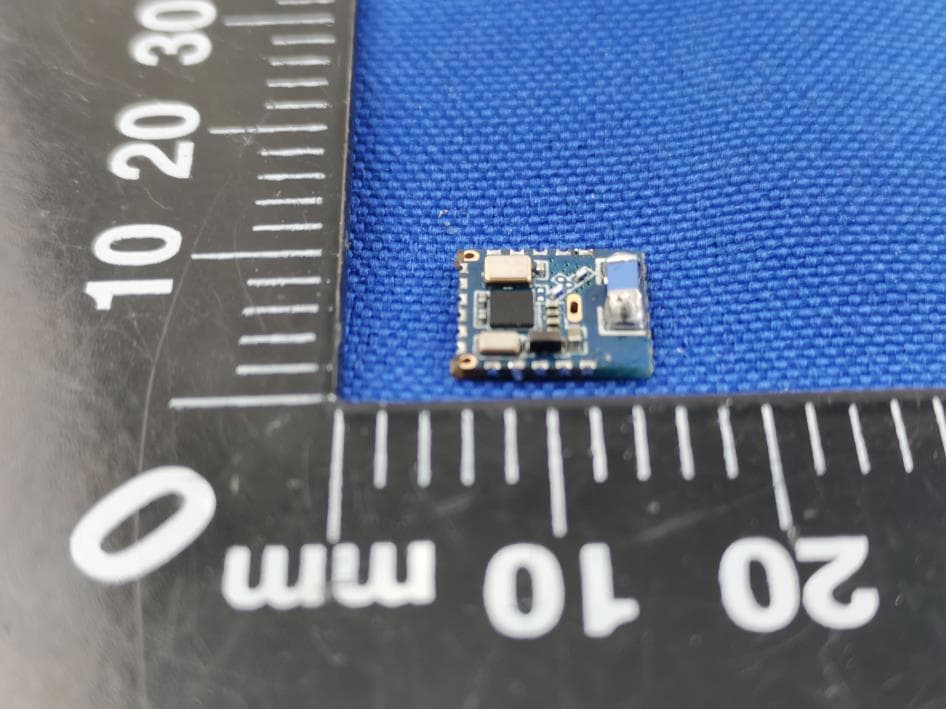

Report No.: BL-SZ2290649-AI 1 / 1 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW

Report No.: BL-SZ2290649-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Wuhan P&S Information Technology Co., Ltd Address: 5 Wudayuan 3rd Road, Donghu New Technology Development Zone, Wuhan City Equipment Type: DXY BLE MODULE Model Name: DXYBT015 Brand Name: DXY FCC ID: 2A876-DXYBT015 Test Standard: 47 CFR Part 2.1091 (refer section 3.1) Test Date Sep. 26, 2022 - Nov. 01, 2022 Date of Issue: Dec. 26, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Xu Rui Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2290649-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Dec. 26, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Test Laboratory .............................................................................................................. 3 1.2 Test Location .................................................................................................................. 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ...................................................................................................... 4 2.2 Manufacturer Information ............................................................................................... 4 2.3 Factory Information ........................................................................................................ 4 2.4 General Description for Equipment under Test (EUT) ................................................... 4 2.5 Ancillary Equipment ........................................................................................................ 4 2.6 Technical Information ..................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................... 6 3.1 Test Standards ............................................................................................................... 6 4 DEVICE CATEGORY AND LEVELS LIMITS .............................................................................. 7 5 ASSESSMENT RESULT ............................................................................................................. 9 5.1 Output Power ................................................................................................................. 9 5.2 Tune-up power ............................................................................................................... 9 5.3 RF Exposure Evaluation Result ..................................................................................... 9 5.4 Conclusion ...................................................................................................................... 9 Report No.: BL-SZ2290649-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2290649-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Wuhan P&S Information Technology Co., Ltd Address 5 Wudayuan 3rd Road, Donghu New Technology Development Zone, Wuhan City 2.2 Manufacturer Information Manufacturer DXY Technology Co., Limited Address 26/F, buil ding C, Xinghe WORLD, Minle Community Minzhi Street, Longhua district, Shenzhen 2.3 Factory Information Factory N/A Address N/A 2.4 General Description for Equipment under Test (EUT) EUT Name DXY BLE MODULE Model Name Under Test DXYBT015 Series Model Name N/A Description of Model name differentiation N/A Hardware Version V1.0 Software Version V1.0.0 Dimensions (Approx.) N/A Weight (Approx.) N/A 2.5 Ancillary Equipment Note: Not applicable. Report No.: BL-SZ2290649-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 5 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2.6 Technical Information Network and Wireless connectivity Bluetooth (BLE) The requirement for the followi…

Text truncated - open the document above for the full version.

DATA SHEET WIRELESS COMPONENTS Ceramic Chip Antenna ANT3216LL00R2400A 2.4 - 2.5 GHZ 3216 Serie s Product Specification – March 27, 2013 V.0 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 2 6 Product specification Ceramic Chip Antenna FEATURES z Compact size z Omni-directional radiation z Tape & reel automatic mounting z Reflow process compatible z RoHS compliant APPLICATIONS z 2.4 GHz WiFi device z Bluetooth gadget z Zigbee device z ISM band equipment ORDERING INFORMATION All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. PART NUMBER ANT 3216 L L00 R 2400A (1) (2) (3) (4) (5) (6) ( 1 ) PRODUCT ANT = Antenna ( 2 ) SIZE 3216 = 3.2 × 1.6 mm ( 3 ) ANTENNA TYPE L,F,A = Chip Antenna ( 4 ) SERIAL NO. L00 ( 5 ) PACKING TYPE R = Tape and Reel ( 6 ) WORKING FREQUENCY 2400 = 2.4GHz PHYCOMP CTC CAN4311712002453K 12NC 431171200245 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 3 6 Product specification Ceramic Chip Antenna SPECIFICATION DESCRIPTION VALUE Working Frequency 2.4 - 2.5 GHz Bandwidth 160 MHz Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 5.05 dBi (Typ.) Impedance 50Ω Operating Temperature -40 ~105°C Maximum Power 1W Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to Soldering Heats 260°C , 10sec. NOTE 1. The specification is defined on Yageo evaluation board Ta b l e 1 O O U U T T L L I I N N E E S S YNH0010 Side ViewTop View Bot t om View T W L C S1S2 Fig. 1 Antenna outlines DIMENSIONS DIMENSION L (mm) 3.20 ±0.15 W (mm) 1.60 ±0.15 T (mm) 1.20 ±0.15 C (mm) 0.40 ±0.20 Table 2 Machinical Dimension TERMINAL NAME FUNCTION S1 Feeding Point S2 Soldering Point Table 3 Termination configuration www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 4 6 Product specification Ceramic Chip Antenna YNH0011 Bottom Layer Top Layer 2.5 2.0 3.5 0.4 Matching Circuit 1.8 Unit : mm Unit : mm 1030 18 Fig. 2 Outlook and dimension of evaluation board REFERENCE DESIGN OF EVALUATION BOARD Fig. 3 Details of soldering Pad www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 5 6 Product specification Ceramic Chip Antenna 2.0 2.13.0 f (GHz) Return loss (dB) −50 −30 −10 10 30 50 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 YNH0012 1 2 3 Fig. 4 Return loss ELECTRICAL PERFORMANCES YNH0013 Y X Z Z axle X axleY axle Gain (dBi) 5.00 − 0.00 − − 5.00 − − 10.00 − − 15.00 − − 20.00 − − 25.00 − − 30.00 − − 35.00 − Fig. 5 Radiation pattern Max gain = 5.05 dBi, at (180, 60) MEG (mean effective gain)= 0.45dBi Directivity (dB) = 7.15 Efficiency = -1.50dB, 70.74% Evaluation board and XYZ direction Marker data 1. 2.37GHz, -10dB 2. 2.45GHz, -27.3dB 3. 2.53GHz, -10dB www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 6 6 Product specification Ceramic Chip Antenna REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 Mar. 27, 2013 - - New datasheet for Ceramic Chip Antenna, 2.4-2.5 GHz application, size 3216 series

Report No.: BL-SZ2290649-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 54 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Wuhan P&S Information Technology Co., Ltd Address: 5 Wudayuan 3rd Road, Donghu New Technology Development Zone, Wuhan City Equipment Type: DXY BLE MODULE Model Name: DXYBT015 Brand Name: DXY FCC ID: 2A876-DXYBT015 Test Standard: 47 CFR Part 15 Subpart C (refer section 3.1) Test Date: Sep. 26, 2022 - Nov. 01, 2022 Date of Issue: Dec. 26, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie zhu Checked by: Ye Hongji Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2290649-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 54 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Dec. 26, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 4 1.1 Test Laboratory .............................................................................................................. 4 1.2 Test Location .................................................................................................................. 4 2 PRODUCT INFORMATION ......................................................................................................... 5 2.1 Applicant Information ...................................................................................................... 5 2.2 Manufacturer Information ............................................................................................... 5 2.3 Factory Information ........................................................................................................ 5 2.4 General Description for Equipment under Test (EUT) ................................................... 5 2.5 Technical Information ..................................................................................................... 6 3 SUMMARY OF TEST RESULTS ................................................................................................. 7 3.1 Test Standards ............................................................................................................... 7 3.2 Test Verdict .................................................................................................................... 7 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 8 4.1 Test Environments ......................................................................................................... 8 4.2 Test Equipment List ........................................................................................................ 8 4.3 Test Software List ........................................................................................................... 8 4.4 Measurement Uncertainty .............................................................................................. 9 4.5 Description of Test Setup ............................................................................................... 9 4.6 Measurement Results Explanation Example ................................................................ 12 5 TEST ITEMS .............................................................................................................................. 13 5.1 Antenna Requirements ................................................................................................. 13 5.2 Output Power ............................................................................................................... 14 5.3 Occupied Bandwidth .................................................................................................... 16 5.4 Conducted Spurious Emission ..................................................................................... 17 Report No.: BL-SZ2290649-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 54 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 5.5 Band Edge (Authorized-band band-edge) .................................................................... 19 5.6 Conducted Emission .................................................................................................... 21 5.7 Radiated Spurious Emission ........................................................................................ 22 5.8 Band Edge (Restricted-band band-edge) ..................................................................... 27 5.9 Power Spectral density (PSD) ...................................................................................... 28 ANNEX A TEST RESULT ............................................................................................................. 29 A.1 Output Power, Duty Cycle ............................................................................................ 29 A.2 Occupied Bandwidth .................................................................................................... 32 A.3 Conducted Spurious Emissions ................................................................................... 35 A.4 Band Edge (Authorized-band band-edge) .................................................................... 38 A.5 Conducted Emissions ................................................................................................... 40 A.6 Radiated Spurious Emission ...............…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2290649-AR 1 / 4 TEST SETUP PHOTOS 1 Radiated Test Photo Below 30MHz 30MHz-1GHz Report No.: BL-SZ2290649-AR 2 / 4 Close-up Above 1GHz Report No.: BL-SZ2290649-AR 3 / 4 Close-up 2 Conducted Test Photo Conducted Test-BLE Report No.: BL-SZ2290649-AR 4 / 4 3 Conducted Emission
