2A878-P2DPVR ALL IN ONE

User Guide Follow the official account and register for a DPVR account. Images in the manual are for reference only. Please refer to the actual product. Product Packing List Main Device: DPVR VR All-in-One VR Headset AccessoriesCharger USB Cable User Manual & Warranty Certificate Controllers 3A Batteries Buttons / Ports / Indicator Light States Microphone Head Strap Optical Lenses Optical Sensor Distance Sensor Touchpad Indicator Light Menu Button TYPE-C Port Power Button Volume Buttons Micro phone Back Button Speaker Headphone Jack TF Card Slot Button Description Power Button Back Button Short Press:Turns off the screen to sleep/wake Long Press (3 seconds):Turns the device on/off Long Press (10 seconds):Force shuts down the device Short Press: Returns to the previous step Menu Button Short Press: Home function Long Press (3 seconds): Adjusts the viewing angle Double Press: Enters quick settings Volume Buttons Adjusts the volume level Touchpad Swipe: Page turning function Tap: Confirms actions Ports Descriptions Audio Port For connecting wired headphones Micro USB Port For charging and data transfer TF Card Slot Located under the mask, insert the TF card as shown in the diagram after removing the mask Indicator Light States Descriptions Blue Light On Device is in normal working condition Green Light On Charging is complete Red Light On Battery is low Red Light Blinking Voltage is low; after charging for a certain duration, the device can be turned on Yellow Light On Charging in progress Head Strap Installation Adjustment Instructions Installing and Adjusting the Head Strap 1.The top head strap can be adjusted to three positions. Choose the position that is comfortable and secures the headset. 2.The connection cable between the headset and the battery contains cables that are necessary for the headset to function properly. Avoid bending, pulling, or damaging these cables. 3.The side head strap passes through the slots on both sides of the headset. Loop the straps through the slots and adjust to a suitable position. IPD Adjustment Instructions The device supports three levels of IPD adjustment (58mm / 64mm / 70mm). You can manually move the lenses to the left or right to adjust to the appropriate pupil distance. Note: Using an inappropriate pupil distance setting may cause double imaging or eye fatigue. Battery Removal Instructions The rear battery is designed to be removable. Push the release button on the side of the battery cover to remove the battery. If needed, you can purchase additional batteries and a battery charger as required. For more details, you can visit the relevant website. Touchpad Instructions Tap Operation 1. Turn your head to align the cursor on the screen with the menu you want to select. 2. Use your finger to tap the touchpad. Swipe left or right for page turning. Swipe up or down to scroll through lists. Cursor Positioning Instructions The device can recognize head movements and use them to position the cursor within the screen display area. Cursor Selection By turning your head and tapping the touchpad, you can select applications and options. 1. Turn your head to move the cursor to the desired area. 2. Tap the touchpad (on the right side of the device). Controller Usage Instructions 1.Product Overview Product Name: DPVR Bluetooth Controller Product Model: BC301 Weight: 45g Dimensions: 12mm x 37mm x 34mm Connection: Bluetooth Battery: 2 x AAA 2.Button Definitions Touchpad + Confirm Button Indicator Light Back Button Home Button Trigger Button Battery Compartment 3.Button Usage Instructions Home Button Short Press: Return to the main interface. Long Press (2 seconds): Reorient the field of view. Long Press (5 seconds): Power on/off the Bluetooth controller. Back Button Short Press: Go back to the previous menu. Touchpad Swipe: Scroll through pages. Tap: Confirm Press: Confirm. Trigger Button 4.Indicator Light Status Press: Confirm. Power On, Not Paired: White light blinking (once per second). Pairing in Progress: Solid white light. Pairing Completed: White light turns off. Normal Button Press: White light illuminates. Low Battery: Fast blinking (twice per second). 5.Pairing Ensure that the host's Bluetooth function is turned on. When the host is in pairing mode, simultaneously press the "Back Button" and "Home Button" on the controller according to the on-screen prompt. The white light will turn off once pairing is successful. If pairing is unsuccessful, the white light will blink (once per second). If the white light turns off but the target host doesn't show the controller connection, check for interference from other devices nearby. After eliminating the interference, retry pairing. Safety Information Before using the device, please read the following safety information to ensure safe and proper usage. Follow the warning information provided below to prevent accidents such as fires or explosions. - Do not subject the device to physical collisions or damage. - Use only manufacturer-approved chargers and accessories. - Avoid touching the device with wet hands. Additionally, do not use the device in liquid environments such as bathrooms or during activities like swimming. - The icon indicates suitability for non-tropical climate conditions only. Follow the warnings below to prevent harm to people or damage to the device - Do not store the device in excessively hot or cold places. It is recommended to use the device in an ambient temperature environment between 0°C -35°C. - When not in use, store the device in a cool and dry place. Avoid direct sunlight or strong light sources on the device's lens to prevent screen damage from intense light. - Charging the device in temperatures lower than 0°C or higher than 40°C can potentially damage the battery. - Keep the device dry and avoid using it outdoors during thunderstorms. - To prevent potential hearing damage while using headphones, do not use high volume levels for extended periods. - This device is not recommended for…

Text truncated - open the document above for the full version.

Lexiang Technology Co., LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Lexiang Technology Co., LTD Address: 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China Product Name: DPVR ALL IN ONE FCC ID: 2A878-P2 Model(s): P2 2.911(d)(5)(i) Equipment Type We, [Lexiang Technology Co., LTD] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Mike.zhu Date: 2023.12.11 Title and Company name: Manager, Lexiang Technology Co., LTD NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Lexiang Technology Co., LTD 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Lexiang Technology Co., LTD Address: 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China Product Name: DPVR ALL IN ONE FCC ID: 2A878-P2 Model(s): P2 2.911(d)(5)(ii) Applicant filing We, [Lexiang Technology Co., LTD] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Mike.zhu Date: 2023.12.11 Title and Company name: Manager, Lexiang Technology Co., LTD NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

AOGES CO., LIMITED 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Lexiang Technology Co., LTD Address: 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China Product Name: DPVR ALL IN ONE FCC ID: 2A878-P2 Model(s): P2 2.911(d)(7) USA Designated Agent for Service of Process We, [Lexiang Technology Co., LTD] (“the applicant”) designate [AOGES CO., LIMITED] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: AOGES CO., LIMITED USA Address: 1624 Market St., Ste 226, #30327 Denver CO, 80202 US FRN Number 0033947847 Contact Name: XIAOYAN LAI Telephone No: +1 303 623 1940 Email: [email protected] Applicant Company name: Lexiang Technology Co., LTD Address: 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China Grantee FRN Number: 0033051301 FCC Grantee Code: 2A878 Contact Name: Mike.zhu Telephone No: 13701937495 Email: [email protected] AOGES CO., LIMITED 2.911 (d)(7)USA Agent v1.5 Signature: Title: General Manager Signature: Title: Manager Date:2023.12.11 Date: 2023.12.11 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Lexiang Technology Co., LTD Authorization Letter We, (the approval holder) Company name Lexiang Technology Co., LTD Addresss 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China declare that the following representative (agent): Name (person) Eric Wang Company name Shenzhen CTA Testing Technology Co., Ltd. Addresss Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China City Shenzhen Country China Name (person) Gavin Liang Company name Shenzhen LCS Compliance Testing Laboratory Ltd. Addresss 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Nemko for product certification below Product Description DPVR ALL IN ONE Type or Model(s) P2 Brand Name DPVR FCC ID 2A878-P2 Attestation: Signature: Date: 2023.12.11 Name: Mike.zhu Title: Manager Company: Lexiang Technology Co., LTD

Lexiang Technology Co., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.12.11 Subject; Request for Confidentiality FCC ID: 2A878-P2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Attestation: Signature: Date: 2023.12.11 Name: Mike.zhu Title: Manager Company: Lexiang Technology Co., LTD

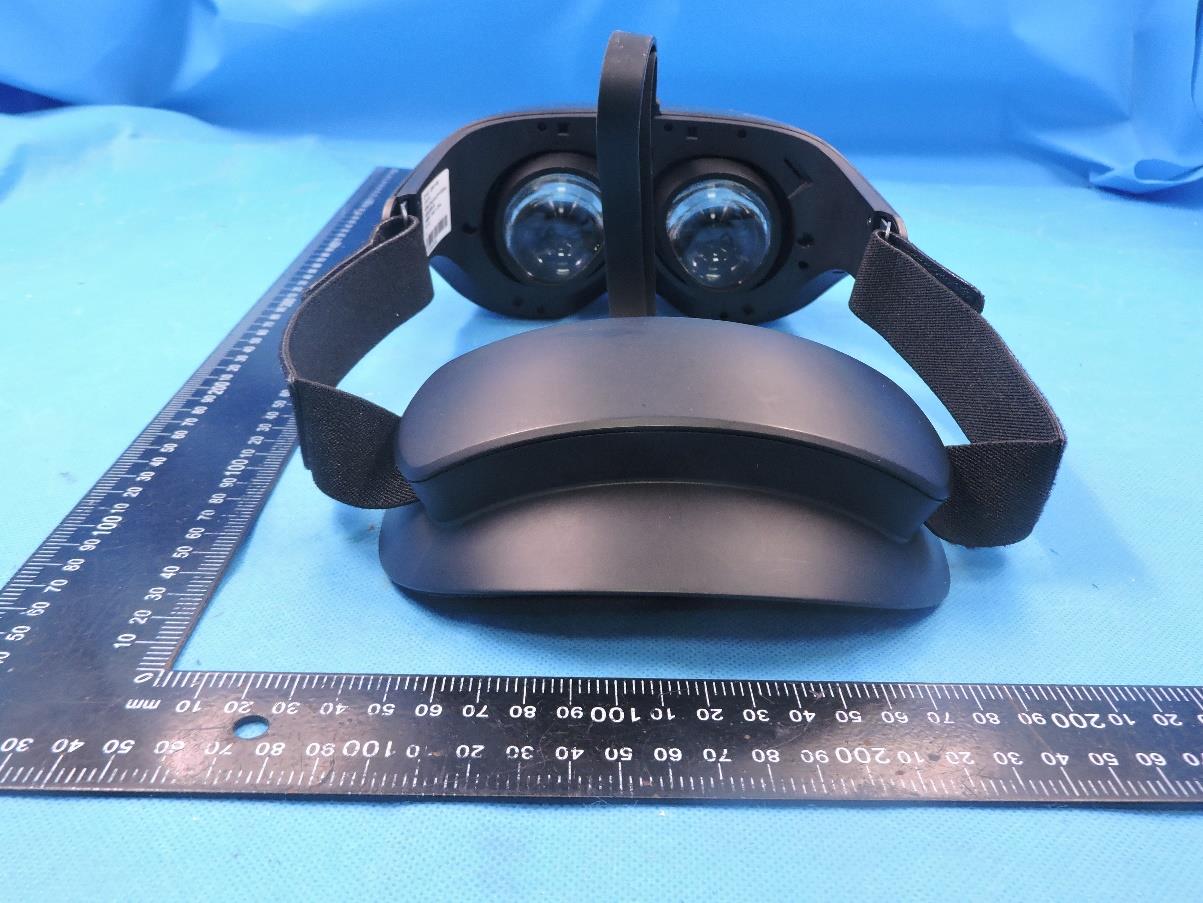

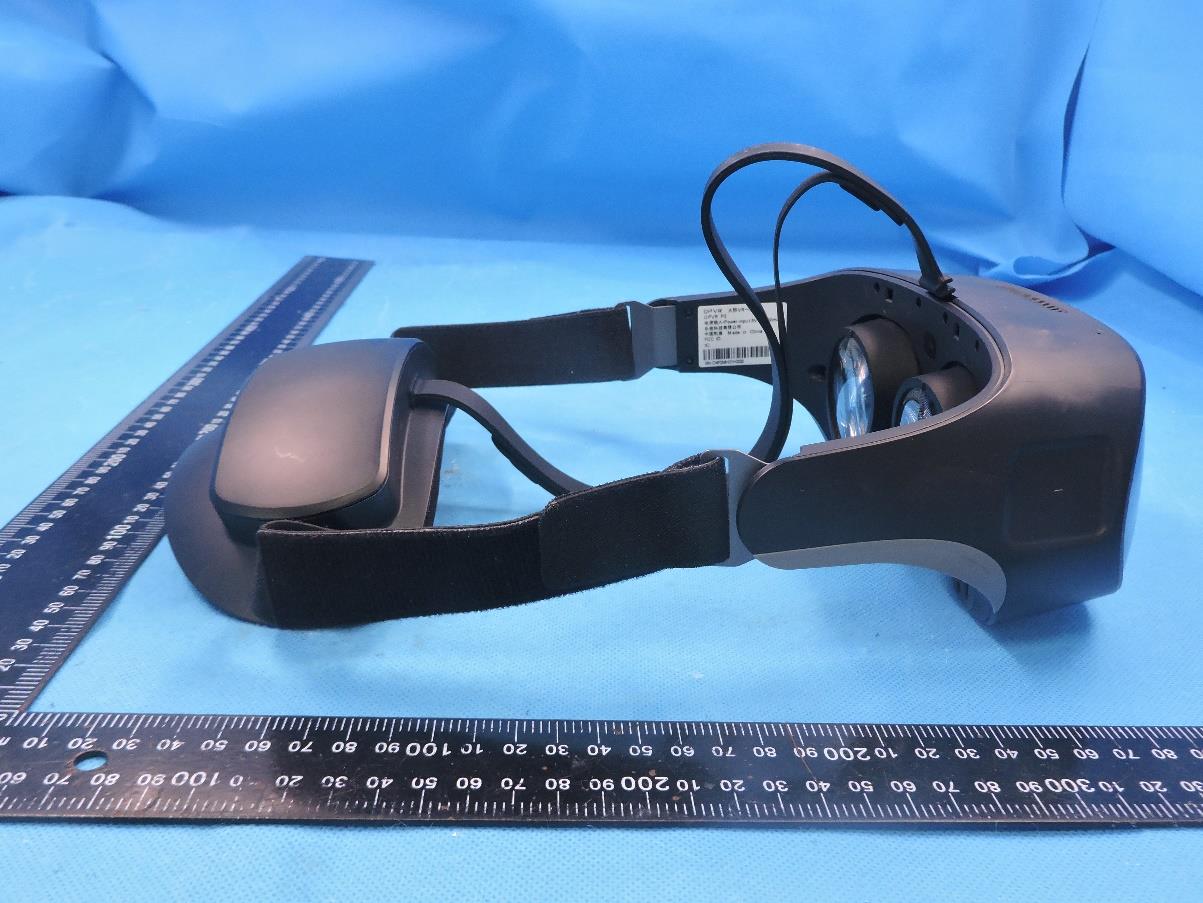

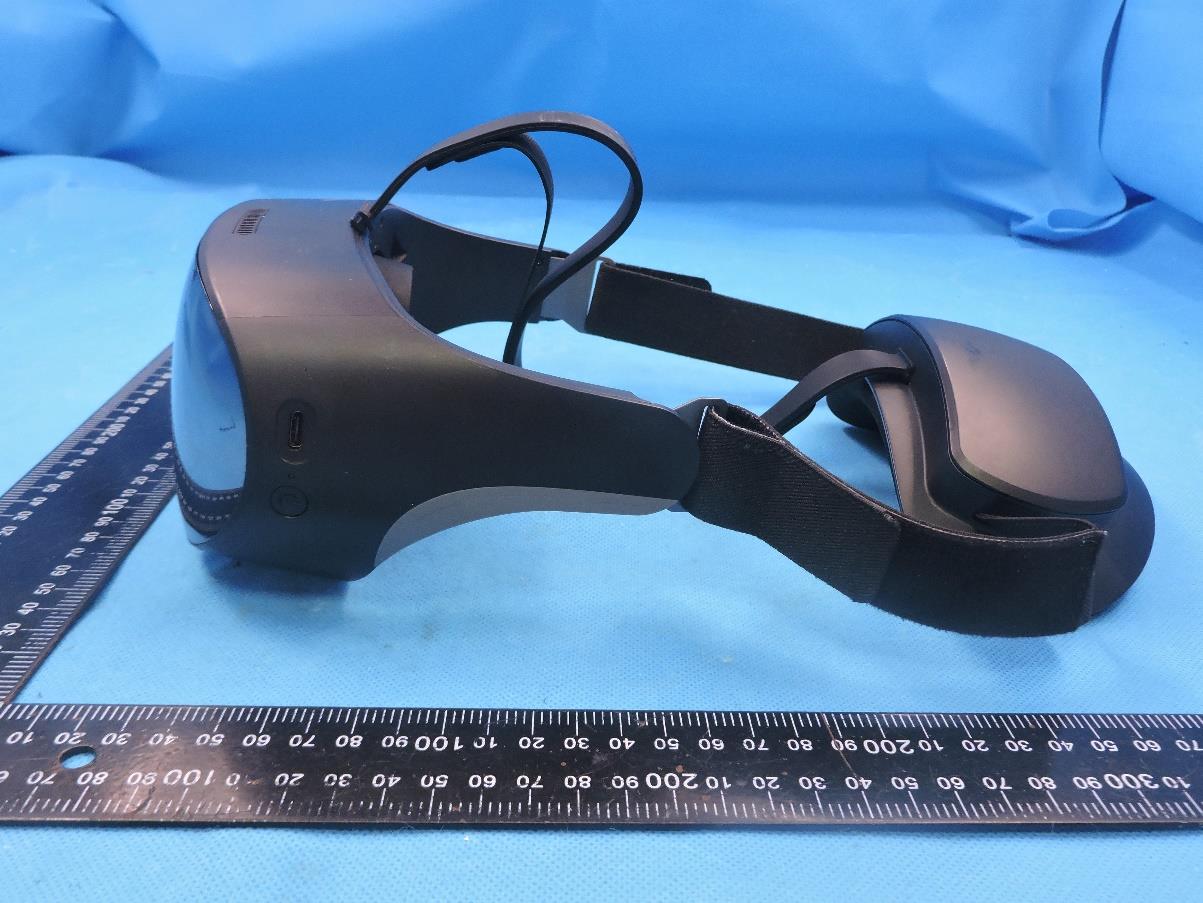

Page 1 of 4 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: P2 Photo 1 Photo 2 Page 2 of 4 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Photo 3 Photo 4 Page 3 of 4 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Photo 5 Photo 6 Page 4 of 4 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Photo 7 Photo 8

FCC Label Size: 40*30mm The label is printed on the shell DPVR P2 Power Input: DC 5V 3000mA FCC ID: 2A878-P2

Page 1 of 6 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: P2 Photo 1 Photo 2 WIFI Antenna 2 Page 2 of 6 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Photo 3 Photo 4 BLE/WIFI Antenna 1 Page 3 of 6 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Photo 5 Photo 6 Page 4 of 6 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Photo 7 Photo 8 Page 5 of 6 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Photo 9 Photo 10 Page 6 of 6 Report No.: CTA231129003 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Photo 11 Photo 12

Page 1 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT For Lexiang Technology Co., LTD DPVR ALL IN ONE Test Model:P2 Prepared for : Lexiang Technology Co., LTD Address : 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Date of receipt of test sample : Sep. 15, 2023 Number of tested samples Sample number : : 1 A231205059 Serial number : Prototype Date of Test : Sep. 18, 2023 Date of Report : Sep. 20, 2023 Page 2 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT Report Reference No. ................ : LCSA12053125E Date Of Issue ............................... : Sep. 20, 2023 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : Lexiang Technology Co., LTD Address ....................................... : 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China Test Specification: Standard ...................................... : IEEE Std C95.1, 2019/IEEE Std 1528™-2013/FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : DPVR ALL IN ONE Trade Mark .................................. : DPVR Test Model .................................. : P2 Operation Frequency ................... : WLAN2.4G, Bluetooth5.0 Ratings ........................................ : Rated Voltage: DC 3.8V Charge Limit Voltage: DC 4.35V Capacity: 5600mAh Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jay Zhan / File administrators Cary Luo / Technique principal Gavin Liang / Manager Page 3 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA12053125E Sep 20, 2023 Date of issue Type / Model......................... : P2 EUT....................................... : DPVR ALL IN ONE Applicant.............................. : Lexiang Technology Co., LTD Address.................................. : 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Lexiang Technology Co., LTD Address.................................. : 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyuan Weisi Road, Laoshan District, Qingdao City, Shandong Province, China Telephone.............................. : / Fax......................................... : / Factory.................................. : / Address.................................. : / Telephone.............................. : / Fax......................................... : / Page 4 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revison History Revision Issue Date Revision Content Revised By 000 Sep. 20, 2023 Initial Issue --- Page 5 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION ...........................…

Text truncated - open the document above for the full version.

Page 41 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 42 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 43 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 44 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 45 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 46 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 47 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 48 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 49 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 50 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 51 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 5.2 SID2450 Dipole Calibration Ceriticate Page 52 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 53 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 54 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 55 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 56 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 57 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 58 of 65 FCC ID: 2A878-P2 Report No.: LCSA12053125E Sh…

Text truncated - open the document above for the full version.

Antenna Specification Model: SA2105_WIFI_1_V0.6_0621-YFT Brand: Futen Technology (ShangHai) Co.,LTD. Manufacturer: Futen Technology (ShangHai) Co.,LTD. 1. Antenna describe: Antenna Model: SA2105_WIFI_1_V0.6_0621-YFT Antenna plate: Built-in FPC antenna Frequency range:2.4~2.5GHz, 5.15~5.85GHz Connector type: FPC+Cable 2. Radiation pattern 2.4GWIFI/5GWIFI 5 5 5 5 5 5 3. Gain&Efficiency 4.Antenna structure drawing

Antenna Specification Model: SA2105_WIFI_2_V0.6_0621-YFT Brand: Futen Technology (ShangHai) Co.,LTD. Manufacturer: Futen Technology (ShangHai) Co.,LTD. 1. Antenna describe: Antenna Model: SA2105_WIFI_1_V0.6_0621-YFT Antenna plate: Built-in FPC antenna Frequency range:2.4~2.5GHz, 5.15~5.85GHz Connector type: FPC+Cable 2. Radiationpattern2.4GWIFI/5GWIFI 5 5 5 5 5 5 3.Gain&Efficiency 4.Antenna structure drawing

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from CTA, all test data presented in this report is only applicable to presented test sample. Radio Test Report Report No.:CTA231129003W05 Issued for Lexiang Technology Co., LTD 5th Floor, Jufeng Optical Medical Device Industrial Park, No. 120, Keyu…
