2A87O-VOTPTIThermal Imaging Monocular

Thermal Imaging Monocular User manual PTI335A Table of Contents Summary 1 Cautions and Safe Maintenance 1 Performance Indicators 3 Description of Menu Operation 6 Product Structures 11 Button Function Operation 13 Application of Color Palettes 14 WiFi App application 15 Product After-sale Service 17 1 2 Summary The TH-RXY500 outdoor thermal image telescope takes advanced uncooled focal plane infrared detector and high-quality optical lenses as the core. Combined with convenient and fast operating system, it has a small appearance design, fully functional expansion spare parts, long service life, firmess and durability, so it is suitable for various environments, and creates a “clear imaging, simple operation and easy to carry” infrared thermal imaging tools for users.This product is used for field animal observation, search and rescue, police law enforcement investigation, night patrol, outdoor sports, personalsecurity, etc. This product functions as photo taking and videos. You can browse the photos or videos taken through this unit or USB connected computer, so that several persons can observe at the same time creating possibilities for more applications. Cautions and Safe Maintenance In order that this product is properly used, please read the operation instructions carefully: Never dismantle or refit this product without authorization. Do not use this product in the flammable, explosive, humid or corrosive environment. This product contains precision electronic and sensitive optical devices. Please do not make it collide or fall so as not to cause any damage. The housing of this product must be cleaned with wet cloth or weak soap. Do not use abrasives, isopropanol or solvents for cleaning. Optical lens cleaners must be used for lenses and screens. There will be minor clacks every several seconds while this product works. This is the sound uttered by lenses, which is a normal case. Warning: Do not look directly at the sun with lenses, for this will damage the optical lenses. Performance Indicators Infrared detector Detector type Amorphous silicon uncooled infrared focal plane Resolution 384×288 Pixel size 17μm×17μm Operating band 8~14μm Performance (NEDT) ＜40mk (50Hz, F/1, 300K)TFPA 25°C(± 5°C) Performance (Scene dynamic) ＞50°C (50Hz, F/1, 300K)TFPA 25°C(± 5°C) Frame rate 60Hz Infrared objective lens Focus mode Manual focusing F coefficient 1.0 Effective imaging surface Φ8.2mm Φ8.2mm Focal length 25mm 35mm Field angle 14.9°×11.2° 10.7°×8.0° Focusing range ＞ 1.0m ＞ 1.0m Eyepiece Focal distance 22.0mm Eye relief 30.8mm Exit-pupil diameter 6mm Visual adjustment ±4SD Apparent magnification 12.5X Display Display screen type LCOS Resolution 1280×960 Display screen size 0.4 inch 3 System function Electron doubling ×2/×4 Color palette White hot, black hot, rainbow, hot metal, yellow saturation and bird watching mode Brightness adjustment 10 levels Contrast ratio adjustment 10 levels Image detail mode 2 types and 5 levels Photo taking Supported Camera shooting Supported Picture in pictures Supported WIFI Supported Hotspot tracking Supported Language Chinese and English Standby Supported Laser lamp Supported Lighting lamp Supported Detection distance Infrared objective lens 25mm objective lens 35mm objective lens Character ≤1667m ≤2333m Boar ≤1471m ≤2059m Vehicles ≤2501m ≤3500m Identification distance Character ≤416m ≤583m Boar ≤367m ≤515m Vehicles ≤626m ≤875m Storage Built-in memory Standard configuration 16G (supporting 16G/32G/64G/128G) Image format JPG Video format MP4 4 5 6 Interface CVBS output Supported, SMA base interface USB interface TYPE-C exporting pictures, videos and battery charging function Power supply Non removable rechargeable lithium battery 18650/3500mAh Overall power supply ≤2W Endurance time ≤5.5 hours Operating/ Storage environment Operating temperature -20°C ~ +50°C Storage temperature -30°C ~ +60°C Impact resistance ≤30g Protection level ≤IP65 Overall dimension/ Weight Overall dimension 187*67*67mm 198*67*67mm Weight 503g±5g 513g±5g Description of Menu Operation 1， Main menu: Long press the menu button for 2 seconds to enter the main menu, press the Up button or Down button to select, press the menu button for confirmation, press theshooting button to quit the main menu, or if there is nooperation within 30 seconds, quit the main menu. 2，Main menu interface: color palette, hotspot tracking, magnification, brightness, contrast, detail mode, WiFi, picture in picture, pictures and system. 3，Color palette: 6 color palettes, white heat, black heat, rainbow, hot metal, yellow saturation and bird watching mode, with the default value as white heat. Press the Up button or Down button for selection, and press the menu button for confirmation, and return to the main menu. 4，Hot spot tracing: on, off, default value as off. Press the Up button or Down button to select on or off, and press the menu button for confirmation and return to the main menu, 8 7 5，Brightness: 10 levels (0-9), with the default value as 4 levels. Press the Up button or Down button to select , press the menu button for confirmation and return to the main menu, and the corresponding brightness icon displays. 6，Contrast: 10 levels (0-9), with the default value as 6 levels. Press the Up button or Down button to select , press the menu button for confirmation and return to the main menu, and the corresponding contrast icon displays. 7，Detail mode: (Edge and detail) with the default value as the edge mode, 3 levels, image detail mode, only one mode can be displayed, and two modes cannot be displayed simultaneously. a. Edge: Press the Up button or Down button to select edges, press the menu button to conform entering the second layer of menu (0, 1, 2, 3, 4). Press Up button or Down button for selection and press the Menu button for confirmation and return to the previous menu, and press Shooting button to return to the main menu. b. Detail: Press the Up button or Down button to select details, press the menu button…

Text truncated - open the document above for the full version.

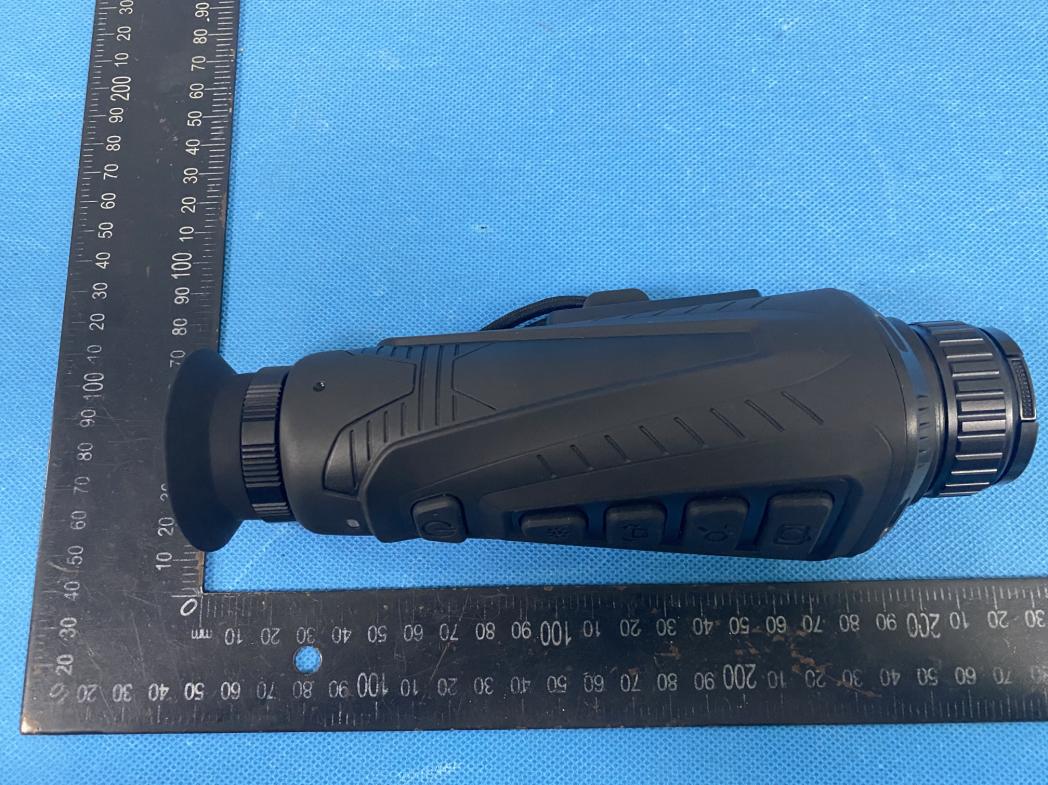

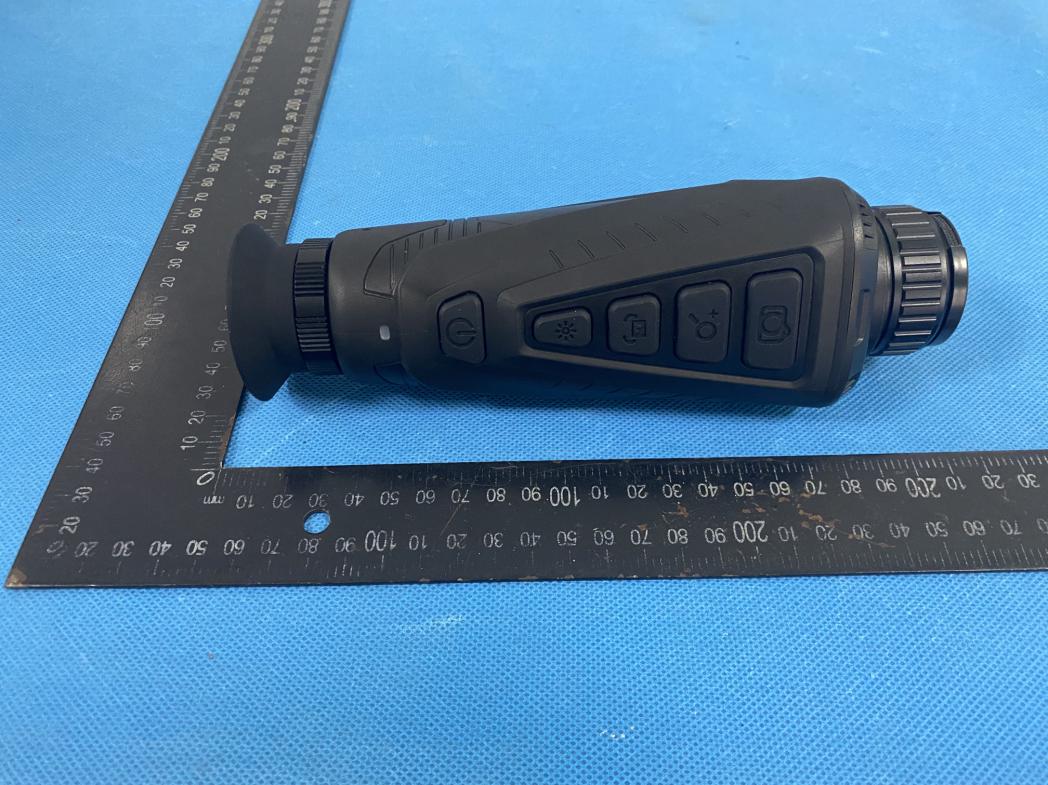

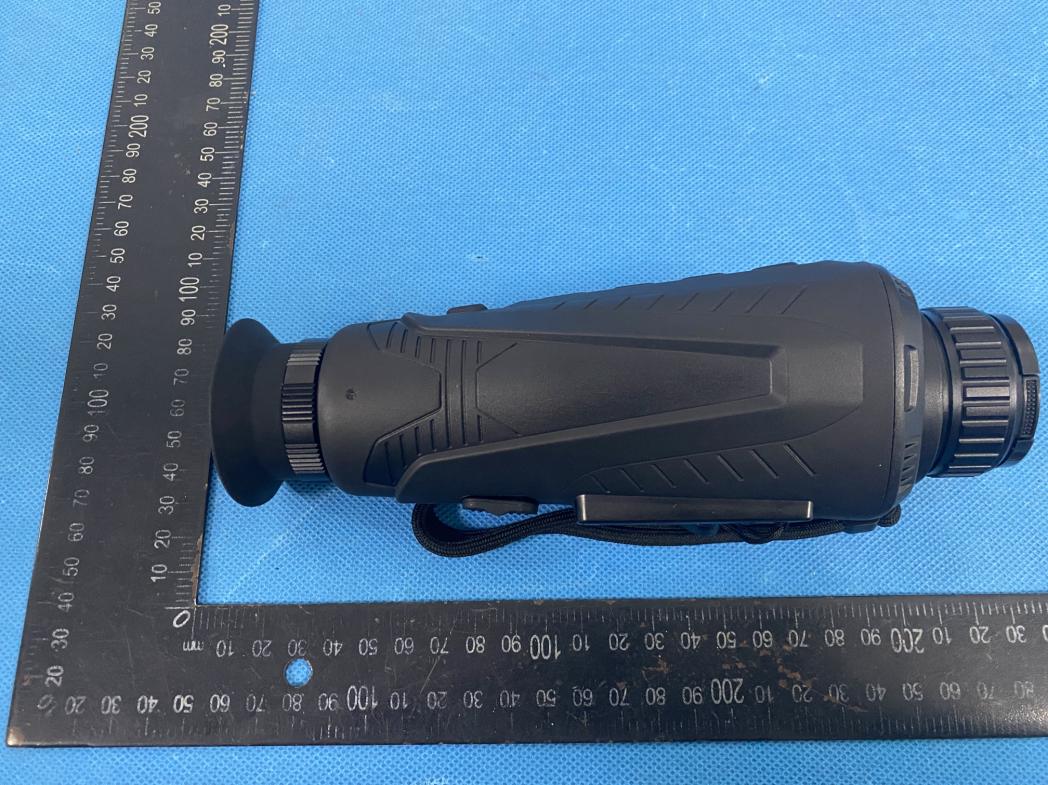

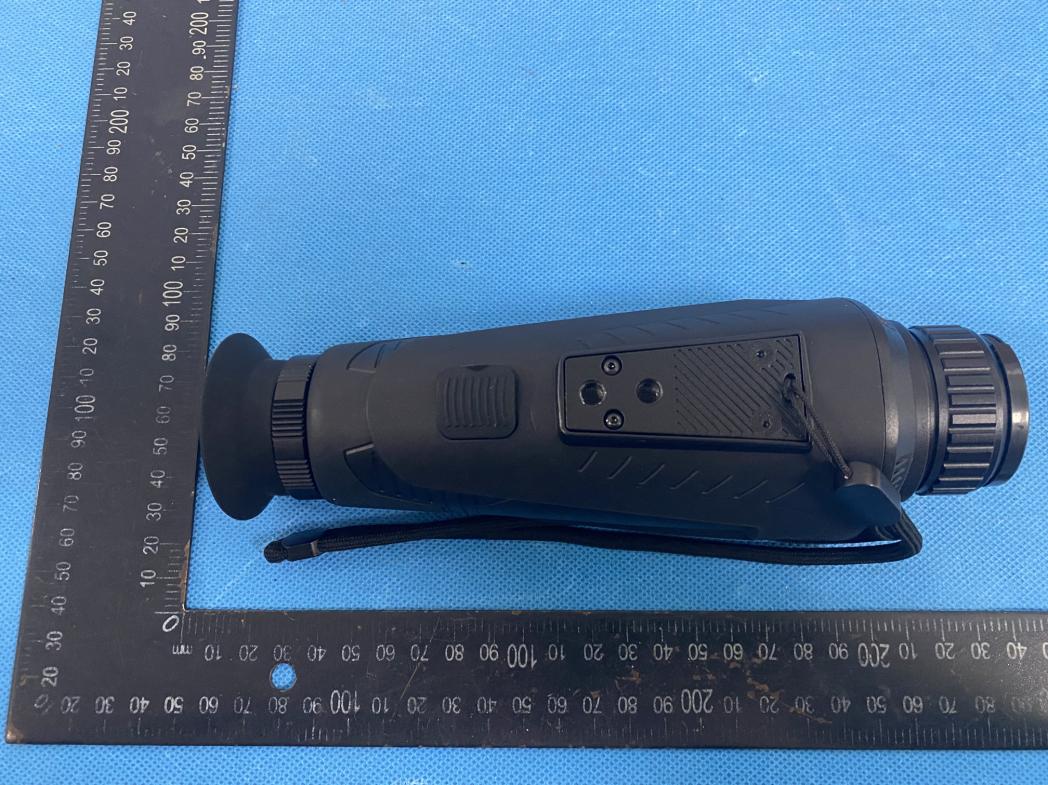

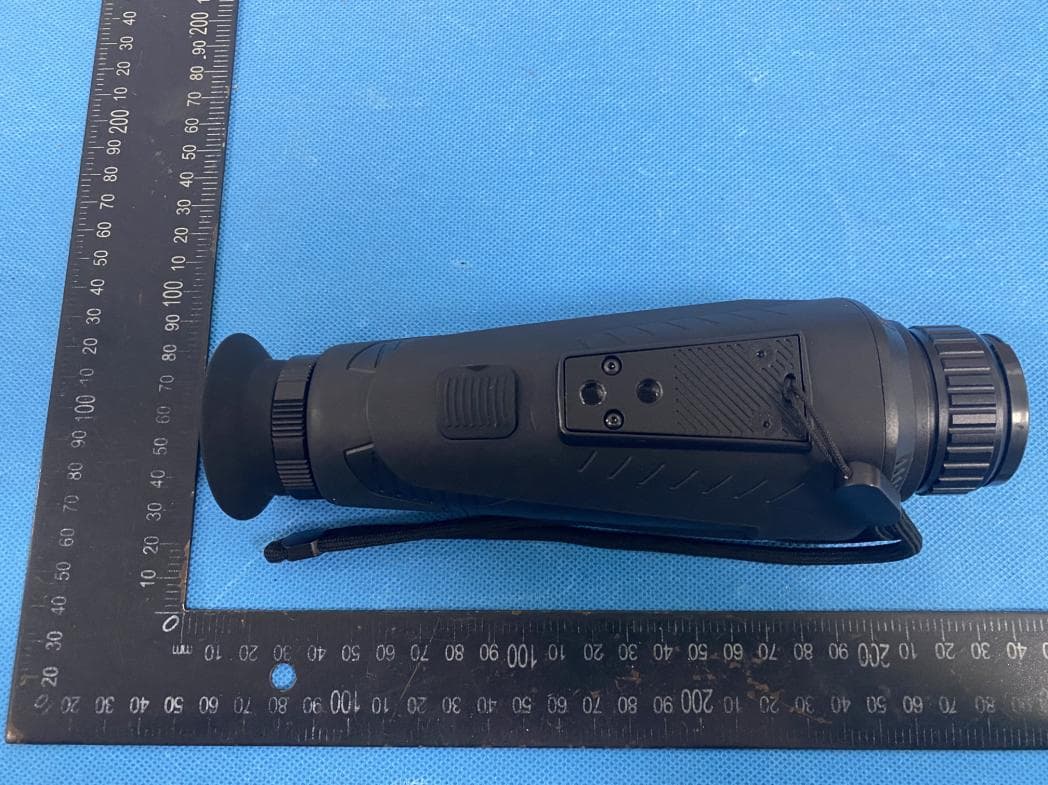

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 25 Photo 26

Product Name : Thermal Imaging Monocular Product Model: PTI335A Manufacturer : Vital Optics Technology Co.,Ltd. Serial Number：PTI335A-BJ0001 FCC ID:2A87O-VOTPTI IP65 Product Name : Thermal Imaging Monocular Product Model: PTI335A Manufacturer : Vital Optics Technology Co.,Ltd. Serial Number：PTI335A-BJ0001 FCC ID:2A87O-VOTPTI IP65

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Ant Photo 21 Photo 22 Photo 23 Photo 24

version01 Vital Optics Technology Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: PTI335A,PTI313A, PTI319A, PTI635A, PTI650A FCC ID: 2A87O-VOTPTI fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for FPC Antenna antenna type(s) described below: Model No. of antenna: D-XR070RA Type of antenna: FPC Antenna Gain of the antenna: 5 dBi Frequency range: 2412-2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Vital Optics Technology Co., Ltd. Address: No.100 Nanjing Rd., Langya Economic Development Zone, Chuzhou City, Anhui Province, China City: Chuzhou City ZIP / Postal code: N/A Country: China Name: yinghui zhang Date: 25/11/2022 Signature:

Red Dot Information Technology (Shenzhen) Co., LTD Room 302, Building 1, No. 181, Renmin Road, Xikeng Community, Fucheng Street, Longhua District, Shenzhen Page- 1 - Letter of admission Mode:D-XR070RA Chang Feng ME RF QC Signature Liu Yanqin WeiXing Liu Yanqin date 2022/07/21 2022/07/21 2022/07/21 CUSTOME R ME MD QC Signature date Page- 2 - date versions condition 2022/07/21 A fpc Sample antenna 1summarize ........................................................................................................................................................ 1-2 2machine description ................................................................ 2-2 3Debugging Settings .......................................................................................................................................... 3 3.1 Standing Wave (VSWR) and Return Loss ......................................................................................... 3.2 TRP/TRS was tested in ETS 5m× 4m× 4m 3D darkroom using Agilent8960(5515C) ......................... 3.3 匹配电路(MatchingCircuitDescription) ...................................................................................................... 4EffectiveRadiatedPowerSummation(MAX) .................................................................................................... 4 5EffectiveIsotopicSensitivitySummation(MIN) ................................................................................................. 5 6Assembly of structure ...................................................................................................................................... 6 Page- 3 - 1summarize This report is mainly used to describe the D-XR070RA antenna acceptance letter. 2Description of machine The D-XR070RA antenna network mode is 2.4G, and the antenna is at the bottom of the top side of the device in FPC mode. 3 Debugging Settings 3.1 VSWR and Return Loss The VSWR was tested using an Agilent E5062B attached to a hand mechanism in a free- space state. 3.2 TRP/TRS was tested in ETS 5m×4m×3m 3D darkroom using Agilent8960(5515C). 3.3 (Matching Circuit Description) The match has not changed. Page- 4 - 4EffectiveRadiatedPowerAndIsotopicSensitivitySummation Page- 5 - 5Structural assembly drawing

FCC ID: 2A87O-VOTPTI Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2.4G wifi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation SAR Exclusion threshold SAR test exclusion 2.412 9.450 8.818.5±19.58.91<52.768343.00YES 2.437 9.310 8.538.5±19.58.91<52.782643.00YES 2.462 9.460 8.838.5±19.58.91<52.796883.00YES 2.412 9.050 8.048.5±19.58.91<52.768343.00YES 2.437 9.450 8.818.5±19.58.91<52.782643.00YES 2.462 9.370 8.658.5±19.58.91<52.796883.00YES 2.412 9.370 8.658.5±19.58.91<52.768343.00YES 2.437 9.330 8.578.5±19.58.91<52.782643.00YES 2.462 9.470 8.858.5±19.58.91<52.796883.00YES 802.11b 802.11g 802.11n H20 Conclusion: For the max result : 2.79688 ≤ 3.0 for 1g SAR, SAR is not required. Signature: Date: 2022-10-28 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S22101103307001 Version.1.3 Page 1 of 69 FCC RADIO TEST REPORT FCC ID: 2A87O-VOTPTI Product: Thermal Imaging Monocular Trade Mark: VOT Model No.: PTI335A Family Model: PTI313A, PTI319A, PTI635A, PTI650A Report No.: S22101103307001 Issue Date: Oct 28. 2022 Prepared for Vital Optics Technology Co., Ltd. No.100 Nanjing Rd., Langya Economic Development Zone, Chuzhou City, Anhui Province, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website:http://www.ntek.org.cn Report No.: S22101103307001 Version.1.3 Page 2 of 69 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULT S ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.4 DUTY CYCLE ............................................................................................................................................... 28 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 29 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 31 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 33 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 35 7.9 ANTENNA APPLICATION .......................................................................................................................... 36 8 TEST RESU LT S ................................................................................................................................................... 37 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 37 8.2 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 38 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 48 8.4 BAND EDGE .................................................................................................................................................... 53 8.5 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 60 Report No.: S22101103307001 Version.1.3 Page 3 of 69 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Vital Optics Technology Co., Ltd. Address ....................................... : No.100 Nanjing Rd., Langya Economic Development Zone, Chuzhou City, Anhui Province, China Manufacturer's Name .................. : Vital Optics Technology Co., Ltd. Address ....................................... : No.100 Nanjing Rd., Langya Economic Development Zone, Chuzhou City, Anhui Province, China Product description Product name .............................. : Thermal Imaging Monocular Model and/or type reference ..... : PTI335A Family Model ............................... : PTI313A, PTI319A, PTI635A, PTI650A Test Sample Number ................... S221011033007 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in co…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
