2A887-XT12Rugged Tablet

User Manual English 05-0835 (EN) 12/8/2022 CONTENTS GENERAL INFORMATION New, continue and save7 Finalize8 Filter8 File manager9 Report Overview14 Settings16 Update System21 Cleaning of optical windows22 DISPLAY UNITS XT12 Startscreen23 XT12 Battery Status and charging24 XT11 Startscreen25 XT11 Info display26 XT11 Charging27 XT Display Unit Camera28 XT Display Unit IR camera29 XT Display Unit Screenshot31 VALUES Overview33 Prepare35 Measure37 Autorecord40 Result42 Report44 Calibration check45 MEASURING UNITS Select measuring units47 XT4050 XT5053 XT6055 XT7057 EASYTREND Overview EasyTrend59 DM bracket60 Prepare61 Measure62 Easy Trend Report63 HORIZONTAL Overview Horizontal65 Prepare67 Measure using EasyTurn™78 Measure using 9-12-380 Measure using Multipoint82 Measure using Continuous sweep84 Measure using Uncoupled sweep86 Softfoot88 Result89 Adjust96 Adjustment Guide98 Horizontal Report99 MACHINE TRAIN Overview Machine Train101 Prepare102 Measure using EasyTurn™111 Measure using 9-12-3113 Measure using Multipoint115 Measure using Continuous sweep117 Measure using Uncoupled sweep119 Softfoot121 Result122 Adjust Machine Train129 Machine train Report131 VERTICAL Overview Vertical133 Prepare134 Measure138 Result139 Adjust141 Vertical Report143 CARDAN Overview Cardan145 Prepare146 Measure using EasyTurn™152 Measure using 9-12-3154 Measure using Multipoint156 Result158 Adjust Cardan160 Cardan Report162 TWIST Overview Twist163 Prepare164 Measure166 Result168 Twist Report169 BASIC FLATNESS Overview Basic Flatness171 Prepare172 Measure174 Result176 Basic Flatness Report178 STRAIGHTNESS Overview179 Prepare180 Measure182 Result187 Report189 BELT Overview Belt191 Prepare193 Measure with Display unit196 Measure without Display unit198 Belt Report200 VIBRATION Overview Vibration201 Configuration203 Measure with Display unit206 Vibration Report207 Measure without Display unit208 Result209 Vibration analysis211 Frequency spectrum212 Asset management213 PRECISION LEVEL Overview XT290215 Measure222 Measure with Display unit225 LASER TRANSMITTERS Laser transmitter XT20/XT22227 Using the XT20/XT22231 Calibrate XT20/XT22 electronic levels horizontally234 Calibrate XT22 electronic level vertically237 Laser transmitter D22239 Level D22 horizontally241 Level D22 vertically243 TECHNICAL DATA Display Unit XT12245 Display unit XT11247 XT40 Technical data249 XT50 Technical data252 XT60 Technical data255 XT70 Technical data258 XT20/XT22 Technical data261 D22 Technical data264 XT290 Technical data266 XT440 Shaft268 XT550 Shaft269 XT660 Shaft274 XT770 Shaft275 XT980 Sawmill277 XT190 BTA279 XT280 VIB282 Chargers for XT series284 LEGAL NOTICE Quality certificate287 IP code and classification288 Safety precautions288 Service and calibration290 Copyright290 Software licenses292 FCC/IC Warning298 GENERAL INFORMATION NEW, CONTINUE AND SAVE A. Start a program. B. The measurement is saved automatically through the entire workflow. C. You can go to the home screen, have a coffee break, charge the batteries or even use another program. Even if you are interrupted, you are able to continue the same measurement session later on. D. When you select Finalize, the measurement file is added to the File manager. See "Finalize" on the next page. E. It is possible to create a editable copy of the finalized measurement. See "File manager" on page 9. New or Continue session Tap the program icon to start a new measurement. If you leave an ongoing measurement session, the next time you will start the same program you are asked if you want to start a new measurement or continue on the previous session. Tap to continue the previous session. Tap to start a new measurement. The ongoing session will be deleted. Save The measurement is saved automatically through the entire workflow. When you select Finalize, the measurement file is added to the File manager. See "Finalize" on the next page. 7 FINALIZE The measurement is saved automatically through the entire workflow. When you have finished the measurement, you final- ize it. When a measurement has been finalized, it is no longer editable. It is however possible to open a copy and continue working were the last session was ended. For information regarding copy and edit: See "File manager" on the facing page. Finalize a measurement Usually, you select finalize when you have finished your measurement. 1. Tap and . 2. Enter a new name, or leave the default name. 3. Tap if you want to link a code to the measurement. See "QR and barcode" on page 13. 4. Tap . The file is finalized and no longer editable. The measurement file is added to the File manager. It is possible to create a template of a measurement. See "Templates for measurements" on page 12. View a finalized measurement 1. Tap to open the File Manager. 2. Tap the measurement you want to view. The distances are visible but not editable. If you want to create a editable copy of the open measurement, tap and to open a copy of it. FILTER If the laser beam passes through air with varying temperature, this may influence the direction of the laser beam. If meas- urement values fluctuate, this could mean unstable readings. Try to reduce air movements between laser and detector by, for instance, moving heat sources or closing doors. If the readings remain unstable, increase the filter value (more samples will become available to the statistical filter). Filter is not available when you measure with the method Continuous Sweep. Select filter Tap to expand the filter tab. Use as low filter value as possible that still produces acceptable stability during the meas- urement. Default is set to 0. The filter value you choose, will be default next time you start the program. Select filter on the tab. 8 GENERALINFORMATION FILE MANAGER On the Start view, tap to open the File Manager. A. Select files. B. Sort files. C. Source. Tap to show local files or files on a USB. D. Filter view. Use filters to easily find the files you are looking for. See "Filter files"…

Text truncated - open the document above for the full version.

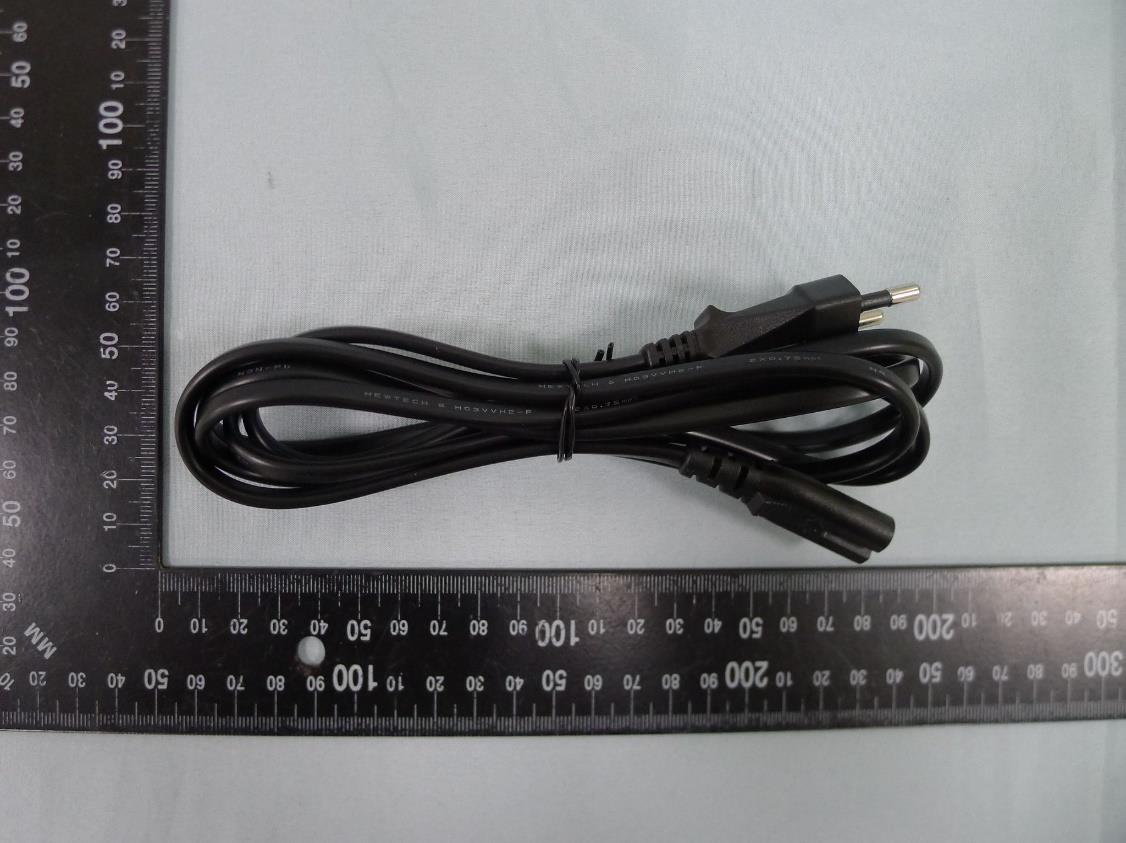

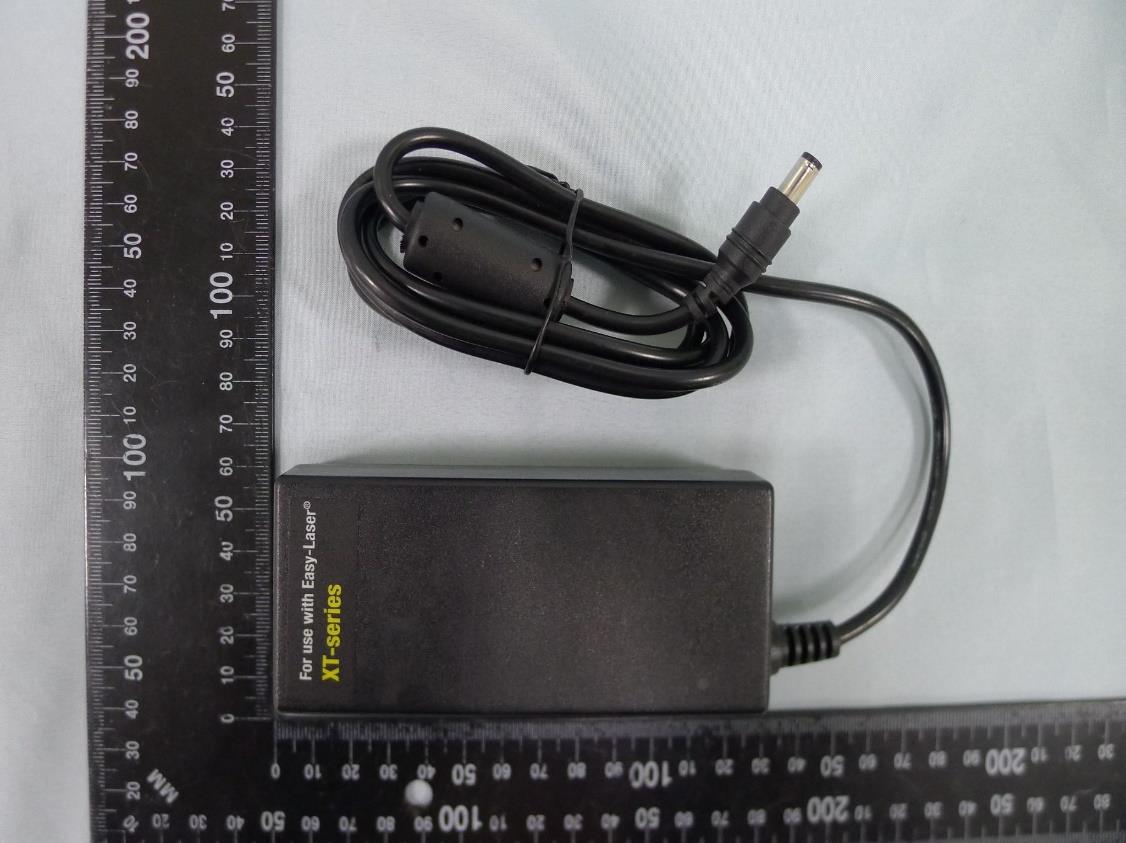

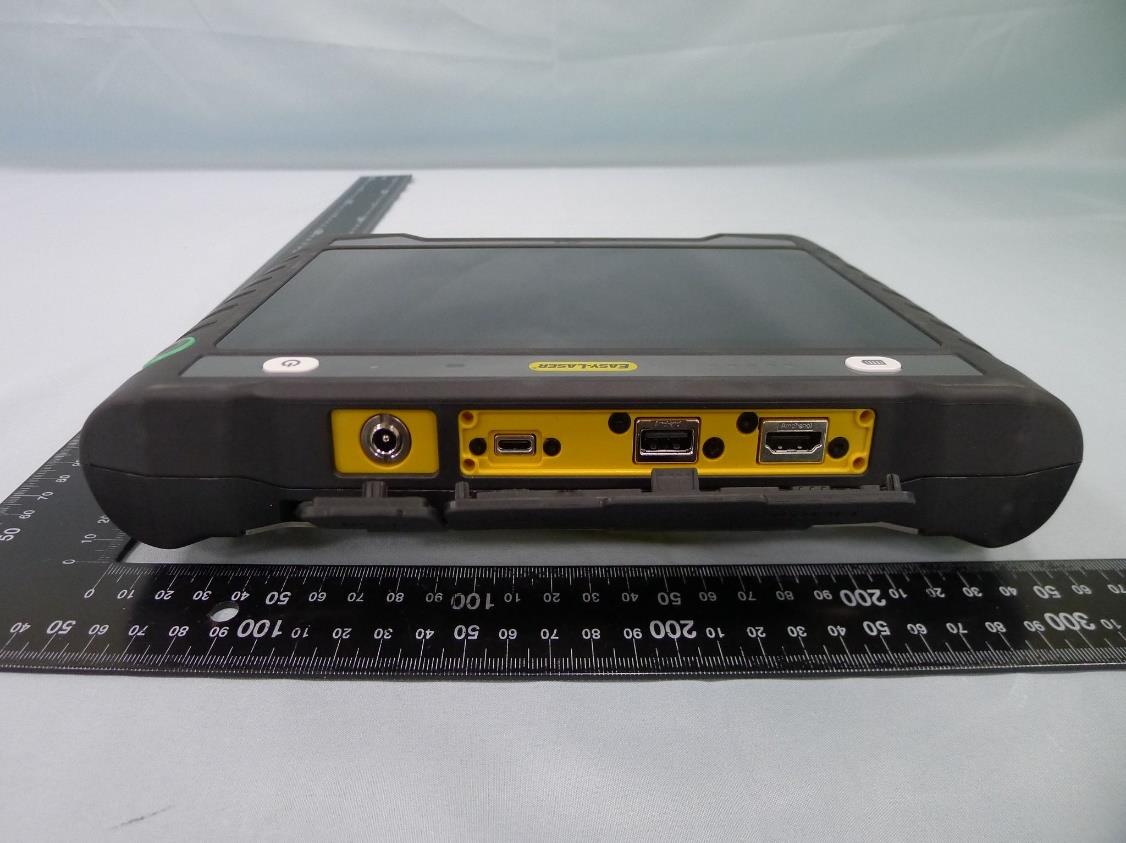

Report No.: 2208TW7403-U2~U4 Product: Rugged Tablet Brand Name: Easy-Laser Model Number: XT12 1 of 7 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2208TW7403-U2~U4 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2208TW7403-U2~U4 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2208TW7403-U2~U4 4 of 7 (7) EUT Photo (8) Adapter Report No.: 2208TW7403-U2~U4 5 of 7 (9) Adapter (10) Adapter Report No.: 2208TW7403-U2~U4 6 of 7 (11) Adapter (12) Adapter Report No.: 2208TW7403-U2~U4 7 of 7 (13) Adapter (14) Adapter

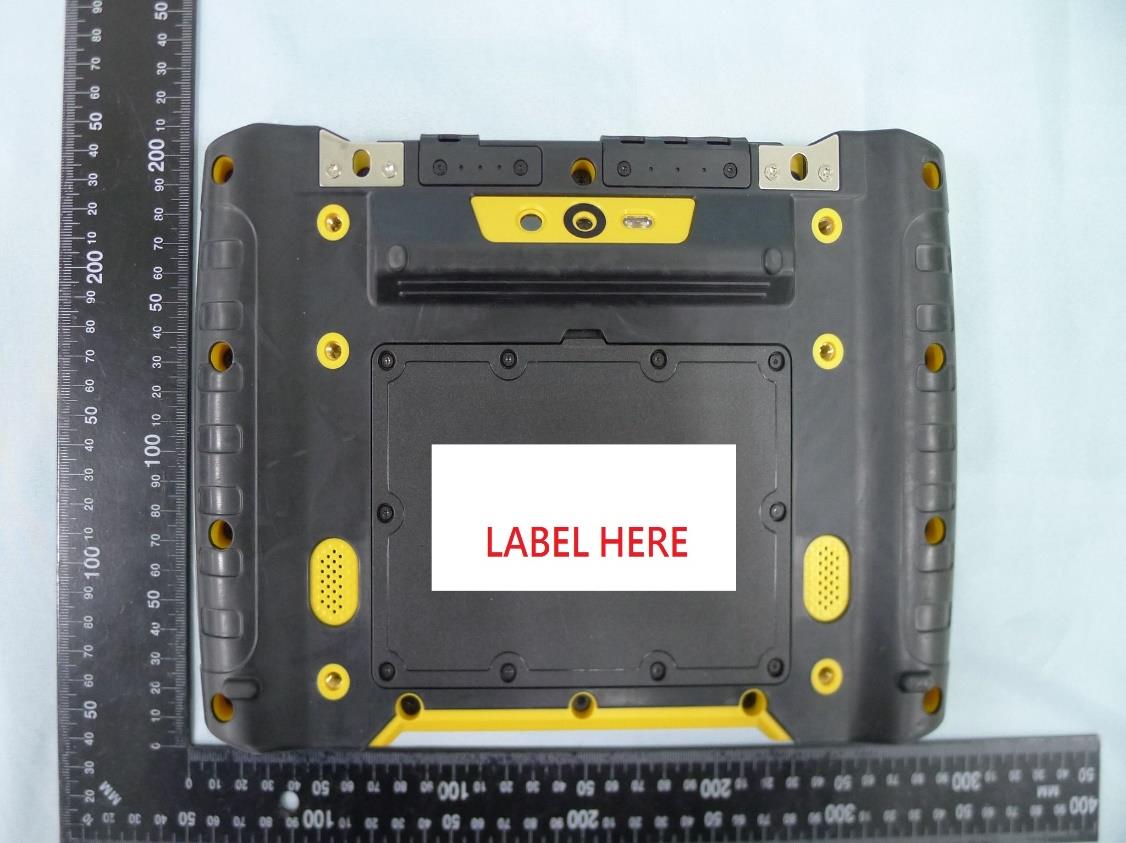

Label Label location

Report No.: 2208TW7403-U2~U4 Product: Rugged Tablet Brand Name: Easy-Laser Model Number: XT12 1 of 15 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2208TW7403-U2~U4 2 of 15 (3) EUT Photo (4) EUT Photo Report No.: 2208TW7403-U2~U4 3 of 15 (5) EUT Photo (6) EUT Photo Report No.: 2208TW7403-U2~U4 4 of 15 (7) EUT Photo (8) EUT Photo Report No.: 2208TW7403-U2~U4 5 of 15 (9) EUT Photo (10) EUT Photo Report No.: 2208TW7403-U2~U4 6 of 15 (11) EUT Photo (12) EUT Photo Report No.: 2208TW7403-U2~U4 7 of 15 (13) EUT Photo (14) EUT Photo Report No.: 2208TW7403-U2~U4 8 of 15 (15) EUT Photo (16) EUT Photo Report No.: 2208TW7403-U2~U4 9 of 15 (17) EUT Photo (18) EUT Photo Report No.: 2208TW7403-U2~U4 10 of 15 (19) EUT Photo (20) EUT Photo Report No.: 2208TW7403-U2~U4 11 of 15 (21) EUT Photo (22) EUT Photo Report No.: 2208TW7403-U2~U4 12 of 15 (23) EUT Photo (24) EUT Photo Report No.: 2208TW7403-U2~U4 13 of 15 (25) EUT Photo (26) EUT Photo Report No.: 2208TW7403-U2~U4 14 of 15 (27) EUT Photo (28) EUT Photo Report No.: 2208TW7403-U2~U4 15 of 15 (29) EUT Photo (30) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2210RU015-U1 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2022-12-27 1 of 60 FCC ID: 2A887-XT12 Applicant: Easy-Laser AB Product: Rugged Tablet Model No.: XT12 Brand Name: Easy-Laser FCC Rule Part(s): FCC 47 CFR Part 2.1093 Result: Complies Received Date: 2022-10-24 Test Date: 2022-10-28 ~ 2022-10-29 SAR MEASUREMENT REPORT Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2210RSU015-U1 2 of 60 Revision History Report No. Version Description Issue Date Note 2210RSU015-U1 Rev. 01 Initial Report 2022-12-22 Invalid 2210RSU015-U1 Rev. 02 Add more simultaneous transmission information 2022-12-27 Valid Report No.: 2210RSU015-U1 3 of 60 CONTENTS Description Page 1. General Information ............................................................................................................... 5 1.1. Applicant ....................................................................................................................... 5 1.2. Manufacturer ................................................................................................................ 5 1.3. Testing Facility .............................................................................................................. 5 1.4. Product Information ...................................................................................................... 6 1.5. Radio Specification ....................................................................................................... 7 1.6. Antennas Details .......................................................................................................... 8 2. Summary of Test Result ........................................................................................................ 9 2.1. Test Standards ............................................................................................................. 9 2.2. Environment Condition ................................................................................................. 9 2.3. RF Exposure Limits ...................................................................................................... 9 2.4. Test Result Summary ................................................................................................. 10 3. Specific Absorption Rate (SAR).......................................................................................... 11 3.1. Introduction ................................................................................................................. 11 3.2. Definition .................................................................................................................... 11 4. DASY6 Measurement System ............................................................................................. 12 4.1. Introduction ................................................................................................................. 12 4.2. DASY6 Measurement System Diagram ...................................................................... 12 4.3. System Components Details ....................................................................................... 13 5. The SAR Measurement Procedure ..................................................................................... 24 5.1. Measurement Process Diagram.................................................................................. 24 5.2. Test Position Definition ............................................................................................... 25 5.3. Test Procedure ........................................................................................................... 28 6. System Verification.............................................................................................................. 30 6.1. Tissue Check .............................................................................................................. 30 6.2. System Check ............................................................................................................ 33 7. Analysis and Results ........................................................................................................... 35 7.1. Antenna Location ........................................................................................................ 35 7.2. Conducted Power ....................................................................................................... 36 7.3. SAR Test Results ....................................................................................................... 40 7.4. Estimated SAR Calculation ......................................................................................... 42 8. Simultaneous Transmission Analysis ................................................................................ 43 Report No.: 2210RSU015-U1 4 of 60 9. Test Equipment Used .......................................................................................................... 44 10. Measurement Uncertainty ................................................................................................... 45 Annex A - System Check Result ................................................................................................. 47 Annex B - Test Data Plots ........................................................................................................... 51 Annex C - SAR Test Setup Photos...............................…

Text truncated - open the document above for the full version.

Report No.: 2210RSU015-UT 1 of 3 SAR Test Setup Photograph Description: Body Back Position with 0mm gap Description: Body Left Position with 0mm gap Report No.: 2210RSU015-UT Description: Body Right Position with 0mm gap Description: Body To p Position with 0mm gap Report No.: 2210RSU015-UT Description: Body Bottom Position with 0mm gap

Report No.: 2210RSU015-UE Product: Rugged Tablet Brand Name: Easy-Laser Model Number: XT12 1 of 22 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2210RSU015-UE 2 of 22 (3) EUT Photo (4) EUT Photo Report No.: 2210RSU015-UE 3 of 22 (5) EUT Photo (6) EUT Photo Report No.: 2210RSU015-UE 4 of 22 (7) EUT Photo (8) Adapter Report No.: 2210RSU015-UE 5 of 22 (9) Adapter (10) Adapter Report No.: 2210RSU015-UE 6 of 22 (11) Adapter (12) Adapter Report No.: 2210RSU015-UE 7 of 22 (13) Adapter (14) Adapter Report No.: 2210RSU015-UE 8 of 22 Internal Photograph (15) EUT Photo (16) EUT Photo Report No.: 2210RSU015-UE 9 of 22 (17) EUT Photo (18) EUT Photo Report No.: 2210RSU015-UE 10 of 22 (19) EUT Photo (20) EUT Photo Report No.: 2210RSU015-UE 11 of 22 (21) EUT Photo (22) EUT Photo Report No.: 2210RSU015-UE 12 of 22 (23) EUT Photo (24) EUT Photo Report No.: 2210RSU015-UE 13 of 22 (25) EUT Photo (26) EUT Photo Report No.: 2210RSU015-UE 14 of 22 (27) EUT Photo (28) EUT Photo Report No.: 2210RSU015-UE 15 of 22 (29) EUT Photo (30) EUT Photo Report No.: 2210RSU015-UE 16 of 22 (31) EUT Photo (32) EUT Photo Report No.: 2210RSU015-UE 17 of 22 (33) EUT Photo (34) EUT Photo Report No.: 2210RSU015-UE 18 of 22 (35) EUT Photo (36) EUT Photo Report No.: 2210RSU015-UE 19 of 22 (37) EUT Photo (38) EUT Photo Report No.: 2210RSU015-UE 20 of 22 (39) EUT Photo (40) EUT Photo Report No.: 2210RSU015-UE 21 of 22 (41) EUT Photo (42) EUT Photo Report No.: 2210RSU015-UE 22 of 22 (43) EUT Photo (44) EUT Photo

Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -29.0 -27.73 -4.38% Impedance 53.7Ω - 0.01jΩ 51.46Ω - 1.61Ω -2.24Ω Real part -1.60Ω Imaginary part Test Date: 2022/05/18

MRT Technology (Taiwan) Co., Ltd Report No.: 2208TW7403-U2 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2022-11-25 Web: www.mrt-cert.com FCC ID: 2A887-XT12 Page Number: 1 of 111 IC: 29653-XT12 FCC ID : 2A887-XT12 IC : 29653-XT12 APPLICANT : Easy-Laser AB Application Type : Certification Product : Rugged Tablet Model No. : XT12 Brand Name : Easy-Laser FCC Classification : (DTS) Digital Transmission System FCC Rule Part(s) : Part 15.247 ISED Standard : RSS-247 Issue 2 Test Procedure(s) : ANSI C63.10-2013 Received Date : August 30, 2022 Test Date : October 1, 2022 ~ October 5, 2022 MEASUREMENT REPORT Test By : ( Fran Chen ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 2 of 111 IC: 29653-XT12 Revision History Report No. Version Description Issue Date Note 2208TW7403-U2 1.0 Original Report 2022-11-25 Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 3 of 111 IC: 29653-XT12 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope .................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Working Frequencies for this Report ..................................................................................... 8 2.3. Test Mode ............................................................................................................................. 8 2.4. Test Software ........................................................................................................................ 8 2.5. Test Configuration ................................................................................................................. 9 2.6. EMI Suppression Device(s)/Modifications ............................................................................. 9 2.7. Labeling Requirements ......................................................................................................... 9 3. DESCRIPTION of TEST ........................................................................................................ 10 3.1. Evaluation Procedure .......................................................................................................... 10 3.2. AC Line Conducted Emissions ............................................................................................ 10 3.3. Radiated Emissions ............................................................................................................ 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary ............................................................................................................................. 15 7.2. 6dB Bandwidth Measurement ............................................................................................. 16 7.2.1. Test Limit ......................................................................................................................... 16 7.2.2. Test Procedure used ....................................................................................................... 16 7.2.3. Test Setting ..................................................................................................................... 16 7.2.4. Test Setup ....................................................................................................................... 16 7.2.5. Test Result ...................................................................................................................... 17 7.3. Output Power Measurement ................................................................................................ 23 7.3.1. Test Limit ......................................................................................................................... 23 7.3.2. Test Setting ..................................................................................................................... 23 7.3.3. Test Setup ....................................................................................................................... 23 7.3.1. Test Procedure Used ....................................................................................................... 23 7.3.2. Test Result of Output Power ............................................................................................ 24 7.4. Power Spectral Density Measurement ...................................…

Text truncated - open the document above for the full version.

Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 39 of 111 IC: 29653-XT12 7.6.4. Test Setup 9kHz ~ 30MHz Test Setup: 30MHz ~ 1GHz Test Setup: Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 40 of 111 IC: 29653-XT12 1GHz ~ 18GHz Test Setup: 18GHz ~25GHz Test Setup: Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 41 of 111 IC: 29653-XT12 7.6.5. Test Result EUT Rugged Tablet Date of Test 2022-10-06 Factor VULB 9162 Temp. / Humidity 24C /61% Polarity Horizontal Site / Test Engineer AC2 / Ares Test Mode 802.11n-20MHz_TX_CH 6_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 62.980 5.29 18.93 24.21 -15.79 40.00 200 20 QP 2 106.630 6.42 19.01 25.43 -18.07 43.50 150 75 QP 3 205.570 13.58 18.67 32.24 -11.26 43.50 100 265 QP 4 319.060 0.90 21.97 22.86 -23.14 46.00 100 70 QP 5 477.170 8.25 25.13 33.38 -12.62 46.00 160 0 QP 6 * 656.620 7.72 28.26 35.98 -10.02 46.00 100 30 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 42 of 111 IC: 29653-XT12 EUT Rugged Tablet Date of Test 2022-10-06 Factor VULB 9162 Temp. / Humidity 24C /61% Polarity Vertical Site / Test Engineer AC2 / Ares Test Mode 802.11n-20MHz_TX_CH 6_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 39.700 10.96 20.33 31.29 -8.71 40.00 100 190 QP 2 127.000 6.39 16.62 23.01 -20.49 43.50 100 65 QP 3 206.540 6.40 18.66 25.06 -18.44 43.50 100 65 QP 4 340.400 -0.70 22.64 21.95 -24.05 46.00 100 110 QP 5 491.720 5.72 25.51 31.23 -14.77 46.00 100 295 QP 6 801.150 1.07 29.91 30.98 -15.02 46.00 100 170 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 43 of 111 IC: 29653-XT12 EUT Rugged Tablet Date of Test 2022-10-06 Factor VULB 9162 Temp. / Humidity 24C /61% Polarity Horizontal Site / Test Engineer AC2 / Ares Test Mode 802.11n-20MHz_RX_CH 6_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 64.310 6.55 18.43 24.97 -15.03 40.00 100 35 QP 2 105.620 7.13 19.06 26.19 -17.31 43.50 100 90 QP 3 207.090 12.35 18.66 31.00 -12.50 43.50 100 280 QP 4 318.080 1.69 21.93 23.62 -22.38 46.00 100 85 QP 5 478.320 8.98 25.16 34.14 -11.86 46.00 100 15 QP 6 * 655.950 6.49 28.25 34.74 -11.26 46.00 100 45 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 44 of 111 IC: 29653-XT12 EUT Rugged Tablet Date of Test 2022-10-06 Factor VULB 9162 Temp. / Humidity 24C /61% Polarity Vertical Site / Test Engineer AC2 / Ares Test Mode 802.11n-20MHz_RX_CH 6_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 41.030 9.39 20.66 30.05 -9.95 40.00 100 205 QP 2 125.990 7.01 16.76 23.77 -19.73 43.50 100 80 QP 3 208.060 7.17 18.65 25.82 -17.68 43.50 100 80 QP 4 339.420 0.09 22.61 22.71 -23.29 46.00 100 125 QP 5 492.870 6.45 25.54 31.99 -14.01 46.00 100 310 QP 6 800.480 -0.16 29.90 29.74 -16.26 46.00 100 185 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 45 of 111 IC: 29653-XT12 EUT Rugged Tablet Date of Test 2022-10-01 Factor DRH18-E & BBHA 9170 Temp. / Humidity 24C /61% Polarity Horizontal Site / Test Engineer AC2 / Jay Test Mode 802.11b_TX_CH 1_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 4824.000 54.90 0.25 55.15 -18.85 74.00 150 180 Peak 2 * 4824.000 53.23 0.25 53.48 -0.52 54.00 150 180 Average 3 7236.000 40.10 5.81 45.92 -28.08 74.00 150 360 Peak 4 9648.000 42.05 5.32 47.38 -26.62 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB)+ Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2208TW7403-U2 FCC ID: 2A887-XT12 Page Number: 46 of 111 IC: 29653-XT12 EUT Rugged Tablet Date of Test 2022-10-01 Factor DRH18-E & BBHA 9170 Temp. / Humidity 24C /61% Polarity Vertical Site / Test Engineer AC2 / Jay Test Mode 802.11b_TX_CH 1_ANT 0 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 4824.000 50.35 0.25 50.60 -23.40 74.00 150 360 Peak 2 7236.000 40.45 5.81 46.27 -27.73 74.00 150 360 Peak 3 9648.000 42.64 5.32 47.96 -26.04 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Cor…

Text truncated - open the document above for the full version.

磐旭HT08 AUG.06.2022V.1Page2of9 2. 2.1TestEquipment A.VSWRandinputimpedance:Agilent8720/8753NetworkAnalyzer B.Antennagainandefficiency:ETSthree-dimensionalanechoicchamber 2.2TestSetup 2.2.1FrequencyRange A.WiFi:2.40～2.50GHz;5.15～5.85GHz 2.2.2VSWR Step1:Theantennaisarrangedonthecustomerprovidedtestfixture. Step2:TheVSWRoftheantennaismeasuredviaAgilent8720/8753Network Analyzer(seefigure.1). 2.2.3RadiationpatternandGain A.The3Dchamberprovideslessthan-40dBreflectivityfrom800MHzto6GHzand a40cmdiametersphericalquietzone.Themeasurementresultsarecalibrated usingbothdipolesandstandardgainhorns(seefigure.2). B.Theantennaundertestedisarrangedintheturnedtableandadecouplingsleeve isusedtoreducefeedlineradiation(seefigure.3). C.Themeasuredresultsoftheradiationpatternsandantennagainareobtained fromthecontrolsystemandshowedonthemonitor(seefigure.4and5). Figure.1 磐旭HT08 AUG.06.2022V.1Page3of9 Figure.2 Figure.3 Figure.4 Figure.5 磐旭HT08 AUG.06.2022V.1Page4of9 3.PerformanceData 3.1S11 磐旭HT08 AUG.06.2022V.1Page5of9 3.2Radiationpattern&Gain(WIFIAntenna) 3.2.1Antennapattern 磐旭HT08 AUG.06.2022V.1Page6of9 磐旭HT08 AUG.06.2022V.1Page8of9 4.1AssemblyDrawing(WIFIAntenna) Test Report. No. SHAEC2124645101 Date: 19 Nov 2021.Page 1 of 4. SHANGHAI CHANGYUAN ELECTRONIC MATERIAL CO., LTD.. NO.1690#, JIAHAO ROAD, JIADING, SHANGHAI . . The following sample(s) was/were submitted and identified on behalf of the clients as : Heat-shrinkable Tubing. SGS Job No. :SP21-035212 - SH. Part No. (P/N) :.CB-101(Transparent). Main Substance :.EVA. Date of Sample Received :.12 Nov 2021. Testing Period :.12 Nov 2021 - 19 Nov 2021. Test Requested :.Selected test(s) as requested by client.. Please refer to next page(s).. Please refer to next page(s).. Test Method :. Test Results :. Carol Luo. Approved Signatory. Signed for and on behalf of SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd.. Test Report. No. SHAEC2124645101 Date: 19 Nov 2021.Page 2 of 4. Test Results :. Test Part Description :. Specimen No..SGS Sample ID.Description. SN1.SHA21-246451.001Transparent soft solid. Remarks :. (1) 1 mg/kg = 0.0001%. (2) MDL = Method Detection Limit. (3) ND = Not Detected ( < MDL ). (4) "-" = Not Regulated. Halogen. Test Method :.With reference to EN 14582: 2016 , analysis was performed by IC.. Test Item(s).Un…
