2A88H-0033052275Hd Smart camera

Form: RFT-AMER-TCB-OP-19o Revision: 1 Page 1 of 1 Date: 1/25/2023 TREND MAKERS , LLC Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to 47 CFR part §2.911(d)(7) of the FCC rules To whom it may concern, This letter is to certify that TREND MAKERS , LLC (“Applicant”) accepts responsibilities to act as its own agent pursuant to 47 CFR part §2.911(d)(7) of the FCC rules for service of process. I consent to the obligation to accept service of process on behalf of the applicant in regard to the FCC ID designated below. I HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC and Intertek if there is any change in the status identified above. Applicant Company Name : TREND MAKERS , LLC Contact Name : Lesley Blixler Address : 2113 Lewis Turner Boulevard Suite 100 Fort Walton Beach, FL 32547,USA Telephone No : (201)294-8716 Email : [email protected] FCC ID : 2A88H-0033052275 Applicant FRN : 0033052275 19 April 2023

Form: RFT-AMER-TCB-OP-19n Revision: 1 Page 1 of 1 Date: 1/25/2023 TREND MAKERS LLC Attention: Application Examiner Re: Covered List, located at https://www.fcc.gov/supplychain/coveredlist and 47 CFR parts §2.903 and §2.911(d)(5)(ii) of the FCC rules Applicant: TREND MAKERS LLC FCC ID: 2A88H-0033052275 To whom it may concern, TREND MAKERS LLC (“Applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to 47 CFR part §2.903 of the FCC rules and does not originate directly or indirectly from any company named on the covered list located in the link above or any subsidiary or affiliate thereof. Applicant further certifies that, as of the date of the filing of the application, the Applicant is not identified on the Covered List as an entity producing “covered” equipment and is not a subsidiary or affiliate of any such entity pursuant to 47 CFR part §1.50002 and required by 47 CFR part §2.911(d)(5)(ii) of the FCC rules. I HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant and agree to immediately notify Intertek if there is any change in the status identified above. Lesley Bixler Supply Chain Manager TREND MAKERS LLC 19 April 2023

Trend Makers,- November 2 nd , 2022 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Trend Makers LLC FCC ID: 2A88H-0033052275 To Whom It May Concern: We, Trend Makers LLC, hereby authorize lntertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2A88H-0033052275 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is November 2 nd , 2022. The Limited Agency Agreement expires on November 2 nd , 2023, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial offederal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, d~ Lesley Bixler Supply Chain Manager 2113 Lewis Turner Boulevard, Suite 100 Fort Walton Beach, FL 32547

2113 Lewis Turner Boulevard, Suite 100 Fort Walton Beach, FL 32547 Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2A88H-0033052275 To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1.Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2.Describe how public access is restricted for products serviceable by professional designated technicians. 3.A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4.Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of [please enter 1 to 180] days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] 2113 Lewis Turner Boulevard, Suite 100 Fort Walton Beach, FL 32547 Schematics Block diagrams Operational Description Tune-up Procedure Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely,

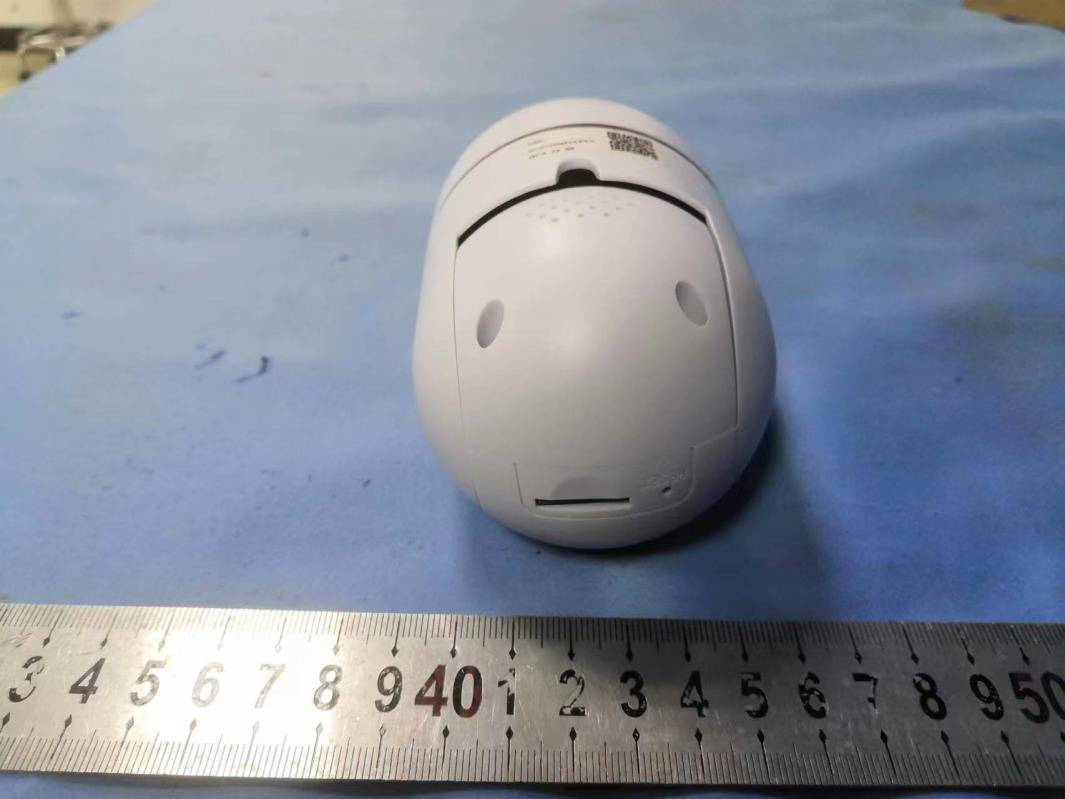

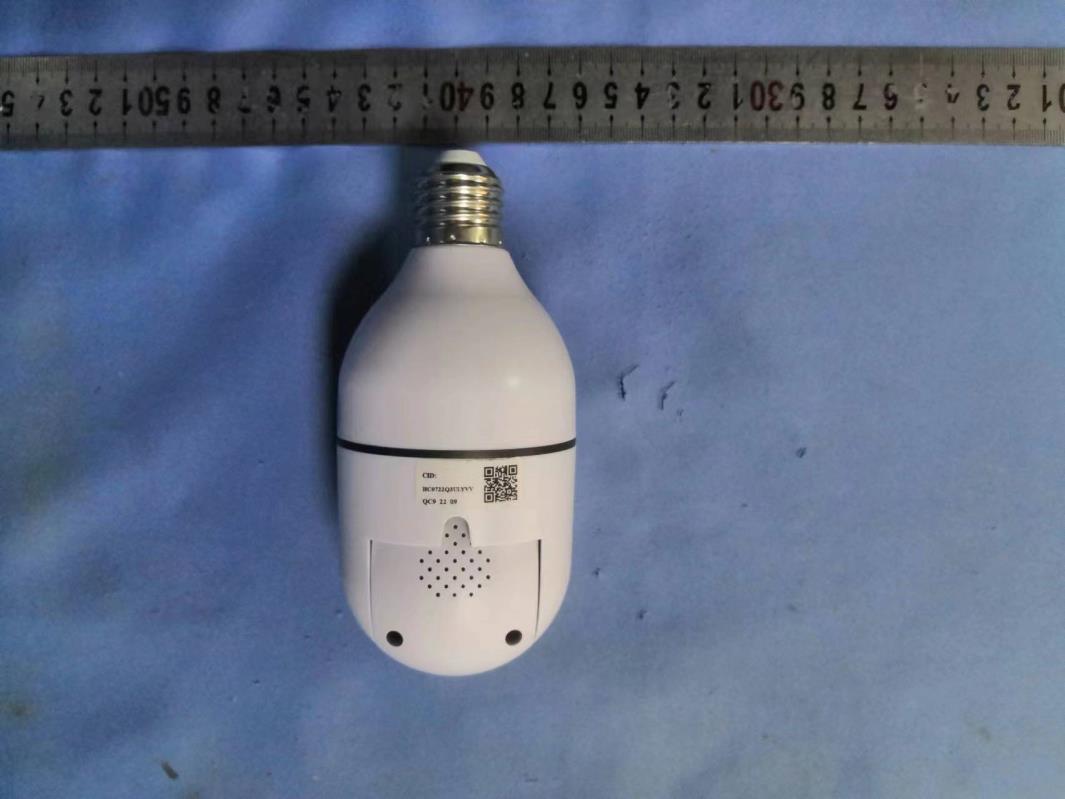

Appearance 1 Appearance 2 Appearance 1 Appearance 2

Size: 29mm*13mm

Appearance 1 Appearance 2 Appearance 1 Appearance 2 Appearance 1 Appearance 2 Appearance 1 Appearance 2 Appearance 1 Appearance 2 2.4G WIFI ANT

INTERTEK TESTING SERVICES RF Exposure The Equipment Under Test (EUT) is a Hd Smart camera with Wi-Fi function operating at 2412-2462MHz for 802.11b/n-HT20, 11 channels with 5MHz channel spacing. The EUT is powered by AC110V-240V. For more detailed features description, please refer to the user’s manual. Antenna Type: Integral Antenna Antenna Gain: 3.0dBi Modulation Type: CCK, BPSK, QPSK, 16QAM, 64QAM The normal radiated output power (e.i.r.p) is: 24.0dBm (tolerance: +/-3dB). The normal conducted output power is 21.0dBm (tolerance: +/-3dB). The maximum conducted output power for the EUT is 23.7dBm in the frequency 2.412GHz 802.11g mode which is within the production variation. The minimum conducted output power for the EUT is 18.5dBm in the frequency 2.462GHz 802.11b mode which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 24dBm+3dB= 27dBm = 501.19mW At the distance (R) of 20cm to 40cm and in 0.3 GHz to 6 GHz, MPE Exclusion Threshold Level: The MPE limit is 3060mW for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1307. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Note: EIRP is higher than ERP, thus EIRP is compared with the Exclusion Threshold. FCC ID: 2A88H-0033052275

TREND MAKERS , LLC TEST REPORT SCOPE OF WORK FCC TESTING–SB-CF26.1.1 REPORT NUMBER 221031048SZN-001 ISSUE DATE [REVISED DATE] 20 December 2022 [--------------------] PAGES 28 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com TEST REPORT Intertek Report No.: 221031048SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 28 FCC ID 247_b TREND MAKERS , LLC Application For Certification FCC ID: 2A88H-0033052275 Hd Smart camera Model: SB-CF26.1.1 2.4GHz Wi-Fi Transceiver Report No.: 221031048SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-21] Prepared and Checked by: Approved by: Allen Qin Peter Kang Engineer Sr.Technical Supervisor Date: 20 December 2022 TEST REPORT Intertek Report No.: 221031048SZN-001 Version: 01-November-2017 Page: 2 of 28 FCC ID 247_b MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Wi-Fi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-20] Edition] provision. Report prepared by: Allen Qin Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8614 0743 Fax: (86 755) 8601 6661 TEST REPORT Intertek Report No.: 221031048SZN-001 Version: 01-November-2017 Page: 3 of 28 FCC ID 247_b Table of Contents 1.0 Summary of Test results ............................................................................................... 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description ........................................................................................................... 5 2.2 Related Submittal(s) Grants ............................................................................................... 5 2.3 Test Methodology .............................................................................................................. 5 2.4 Test Facility ........................................................................................................................ 5 3.0 System Test Configuration ............................................................................................ 6 3.1 Justification ........................................................................................................................ 6 3.2 EUT Exercising Software ..................................................................................................... 6 3.3 Special Accessories ............................................................................................................ 6 3.4 Measurement Uncertainty ................................................................................................. 7 3.5 Equipment Modification .................................................................................................... 7 3.6 Support Equipment List and Description .......................................................................... 7 4.0 Measurement Results ................................................................................................... 8 4.1 Maximum Conducted Output Power at Antenna Terminals ................................................. 8 4.2 Minimum 6 dB RF Bandwidth ............................................................................................ 9 4.3 Maximum Power Density Reading ................................................................................... 10 4.4 Out of Band Conducted Emissions ................................................................................... 11 4.5 Out of Band Radiated Emissions ...................................................................................... 12 4.6 Transmitter Radiated Emissions in Restricted Bands ........................................................ 13 4.7 Field Strength Calculation ................................................................................................ 14 4.8 Radiated Spurious Emission ............................................................................................. 15 4.9 Conducted Emi…

Text truncated - open the document above for the full version.

Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] SPECIFICATION FOR APPROVAL CUSTOMER NAME: PRODUCT NAME:2.4G 3dBi Built-in Antenna CUSTOMER P/N: ZLYDP/N:Z1NP3D16AREV: A Mode : Z1NP3D16A MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKED BY: VICTOR APPROVED BY: EVINE DATE: 2023-1-11 Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] Contents ltemDescription 一、-------------------------------------------------Changeof resume 二、------------------------------------------------Specificationsheet 三、-----------------------------------------------Finisheddrawing 四、------------------------------------------------Testreport Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 一、 Change of resume versiondateChangerecord A2022-11-10 Initialrelease Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 二、 Specification sheet Product main technical parameters Main technical specifications Frequency Range (MHZ) 2400~2500 Impedance(Ω)50 Peak Gain(dBi)3 ± 0.5 VSWR ≤1.92 PolarizationLinear Connector TypeDIP Physical Properties Operating Temp-20 °C ~+70 °C Storage Temp-20 °C ~+60 °C Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 三、 Finished drawing Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 四、 Test report 4.1 ： Network analyzer test report 4 .2：Antenna gain and efficiency Frequency（MHZ） Peak gain（dBi） Efficiency（%） 24002.6556.61 24503.0361.27 25002.8558.38 Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 4.3 ： Dark room 2D 、 3DRaditation Pattern Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected]

Appendix of 221031048SZN-001 Appendix A1:6dB Emission Bandwidth Test Result TestMode Antenna Channel 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11G Ant1 2412 16.620 2403.690 2420.310 >=0.5 PASS 2437 16.620 2428.690 2445.310 >=0.5 PASS 2462 16.620 2453.690 2470.310 >=0.5 PASS 11N20SISO Ant1 2412 17.850 2403.090 2420.940 >=0.5 PASS 2437 17.760 2428.090 2445.850 >=0.5 PASS 2462 17.760 2453.090 2470.850 >=0.5 PASS 11B Ant1 2412 9.090 2407.470 2416.560 >=0.5 PASS 2437 9.120 2432.440 2441.560 >=0.5 PASS 2462 9.120 2457.440 2466.560 >=0.5 PASS Appendix of 221031048SZN-001 Test Graphs 11G_Ant1_2412 11G_Ant1_2437 Appendix of 221031048SZN-001 11G_Ant1_2462 11N20SISO_Ant1_2412 Appendix of 221031048SZN-001 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11B_Ant1_2412 Appendix of 221031048SZN-001 11B_Ant1_2437 11B_Ant1_2462 Appendix of 221031048SZN-001 Appendix A2: 99%Occupied channel bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11G Ant1 2412 17.353 2403.159 2420.511 --- PASS 2437 17.413 2428.099 2445.511 --- PASS 2462 17.383 2453.099 2470.482 --- PASS 11N20SISO Ant1 2412 18.222 2402.859 2421.081 --- PASS 2437 18.222 2427.829 2446.051 --- PASS 2462 18.252 2452.799 2471.051 --- PASS 11B Ant1 2412 13.217 2405.437 2418.653 --- PASS 2437 13.277 2430.347 2443.623 --- PASS 2462 13.337 2455.287 2468.623 --- PASS Appendix of 221031048SZN-001 Test Graphs 11G_Ant1_2412 11G_Ant1_2437 Appendix of 221031048SZN-001 11G_Ant1_2462 11N20SISO_Ant1_2412 Appendix of 221031048SZN-001 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11B_Ant1_2412 Appendix of 221031048SZN-001 11B_Ant1_2437 11B_Ant1_2462 Appendix of 221031048SZN-001 Appendix B: Conducted Peak Power Test Result SISO Mode Model Channel Frequency (MHz) Power (dBm) Limit (dBm) Verdict 11b 1 2412 19.3 30 PASS 6 2437 19.6 30 PASS 11 2462 18.5 30 PASS 11g 1 2412 23.7 30 PASS 6 2437 23.1 30 PASS 11 2462 22.0 30 PASS 11n20 1 2412 21.5 30 PASS 6 2437 21.0 30 PASS 11 2462 20.2 30 PASS Appendix of 221031048SZN-001 Appendix C: Maximum power spectral density Test Result TestMode Antenna Channel Result Limit Verdict 11G Ant1 2412 -16.24 <=8 PASS 2437 -16.48 <=8 PASS 2462 -17.14 <=8 PASS 11N20SISO Ant1 2412 -16.95 <=8 PASS 2437 -17.2 <=8 PASS 2462 -17.78 <=8 PASS 11B Ant1 2412 -13.5 <=8 PASS 2437 -14.09 <=8 PASS 2462 -15.18 <=8 PASS Appendix of 221031048SZN-001 Test Graphs 11G_Ant1_2412 11G_Ant1_2437 Appendix of 221031048SZN-001 11G_Ant1_2462 11N20SISO_Ant1_2412 Appendix of 221031048SZN-001 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11B_Ant1_2412 Appendix of 221031048SZN-001 11B_Ant1_2437 11B_Ant1_2462 Appendix of 221031048SZN-001 Appendix D: Band edge measurements Test Result TestMode Antenna ChName Channel Result Limit Verdict 11G Ant1 Low 2412 -39.26 <=-21.86 PASS High 2462 -55.59 <=-23.01 PASS 11N20SISO Ant1 Low 2412 -40.8 <=-22.94 PASS High 2462 -55.88 <=-24.03 PASS 11B Ant1 Low 2412 -48.13 <=-13.07 PASS High 2462 -55.04 <=-14.64 PASS Appendix of 221031048SZN-001 Test Graphs 11G_Ant1_Low_2412 11G_Ant1_High_2462 Appendix of 221031048SZN-001 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Appendix of 221031048SZN-001 11B_Ant1_Low_2412 11B_Ant1_High_2462 Appendix of 221031048SZN-001 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange Max. Fre Max. Level Limit Verdict 11G Ant1 2412 Reference -1.92 -1.92 --- PASS 1~2400 -1.92 -39.97 <=- 21.92 PASS 2483.5~25000 -1.92 -46.01 <=- 21.92 PASS 2437 Reference -2.40 -2.40 --- PASS 1~2400 -2.40 -54.49 <=- 22.4 PASS 2483.5~25000 -2.40 -48.12 <=- 22.4 PASS 2462 Reference -3.05 -3.05 --- PASS 1~2400 -3.05 -55.38 <=- 23.05 PASS 2483.5~25000 -3.05 -48.86 <=- 23.05 PASS 11N20SISO Ant1 2412 Reference -2.89 -2.89 --- PASS 1~2400 -2.89 -40.54 <=- 22.89 PASS 2483.5~25000 -2.89 -47.72 <=- 22.89 PASS 2437 Reference -3.41 -3.41 --- PASS 1~2400 -3.41 -56.73 <=- 23.41 PASS 2483.5~25000 -3.41 -49.04 <=- 23.41 PASS 2462 Reference -4.03 -4.03 --- PASS 1~2400 -4.03 -55.54 <=- 24.03 PASS 2483.5~25000 -4.03 -49.64 <=- 24.03 PASS 11B Ant1 2412 Reference 6.86 6.86 --- PASS 1~2400 6.86 -50.47 <=- 13.14 PASS 2483.5~25000 6.86 -29.4 <=- 13.14 PASS 2437 Reference 6.49 6.49 --- PASS 1~2400 6.49 -52.18 <=- 13.51 PASS Appendix of 221031048SZN-001 2483.5~25000 6.49 -30.16 <=- 13.51 PASS 2462 Reference 5.42 5.42 --- PASS 1~2400 5.42 -53.75 <=- 14.58 PASS 2483.5~25000 5.42 -32.12 <=- 14.58 PASS Appendix of 221031048SZN-001 Test Graphs 11G_Ant1_2412_0~Reference 11G_Ant1_2412_1~2400 Appendix of 221031048SZN-001 11G_Ant1_2412_2483.5~25000 11G_Ant1_2437_0~Reference Appendix of 221031048SZN-001 11G_Ant1_2437_1~2400 11G_Ant1_2437_2483.5~25000 11G_Ant1_2462_0~Reference Appendix of 221031048SZN-001 11G_Ant1_2462_1~2400 11G_Ant1_2462_2483.5~25000 Appendix of 221031048SZN-001 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_1~2400 11N20SISO_Ant1_2412_2483.5~25000 Appendix of 221031048SZN-001 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_1~2400 Appendix of 221031048SZN-001 11N20SISO_Ant1_2437_2483.5~25000 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_1~2400 Appendix of 221031048SZN-001 11N20SISO_Ant1_2462_2483.5~25000 11B_Ant1_2412_0~Reference Appendix of 221031048SZN-001 11B_Ant1_2412_1~2400 11B_Ant1_2412_2483.5~25000 11B_Ant1_2437_0~Reference Appendix of 221031048SZN-001 11B_Ant1_2437_1~2400 11B_Ant1_2437_2483.5~25000 Appendix of 221031048SZN-001 11B_Ant1_2462_0~Reference 11B_Ant1_2462_1~2400 11B_Ant1_2462_2483.5~25000

The EUT was placed at the center of turntable The EUT was placed at the center of turntable

Front View Side View
